Perform complex corrosion inspection using any number of accessories.

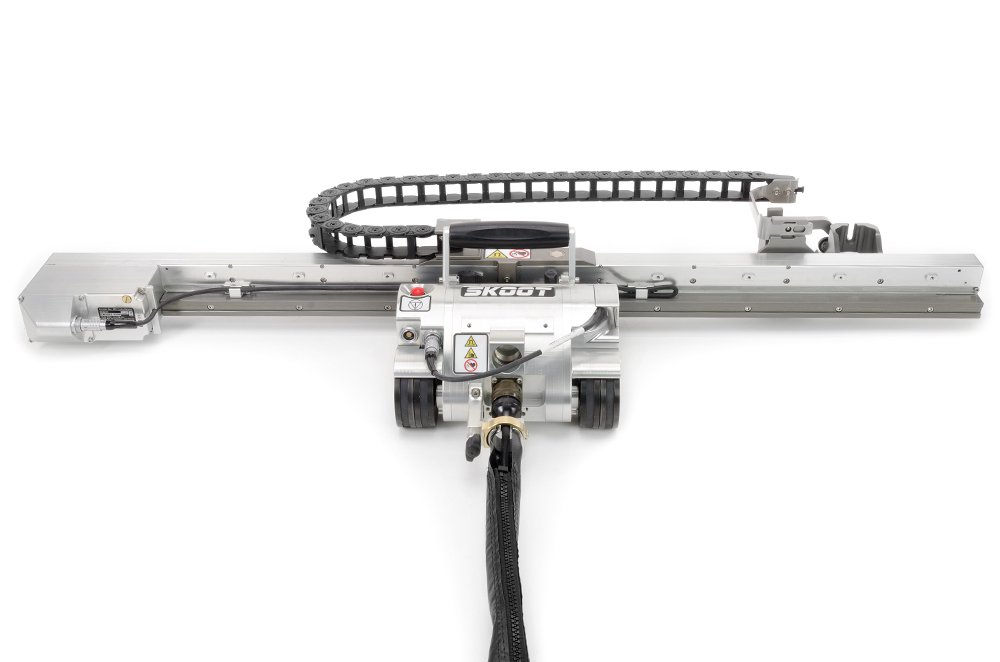

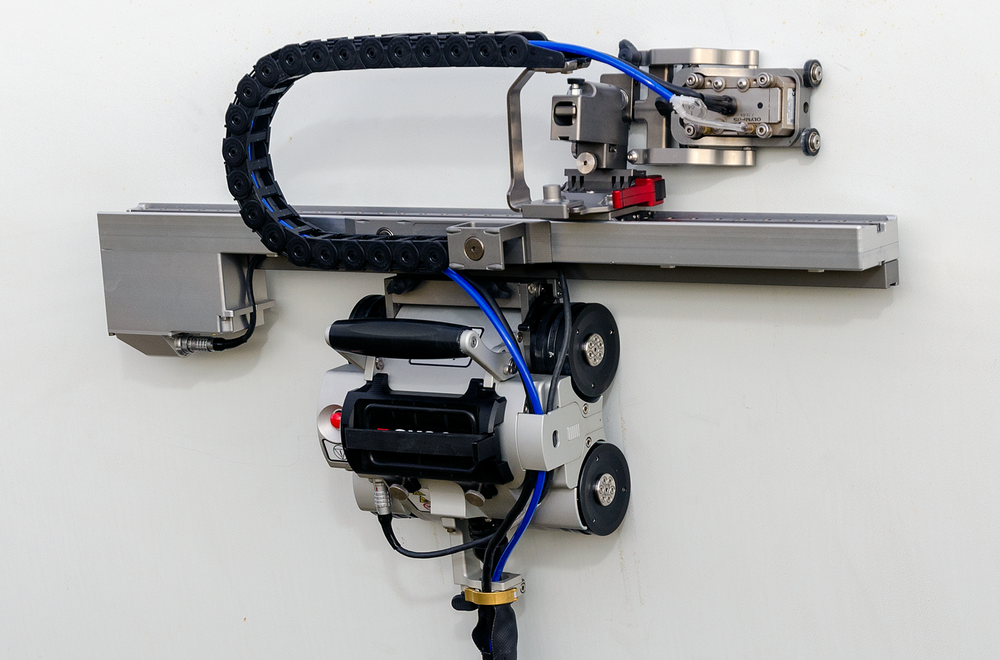

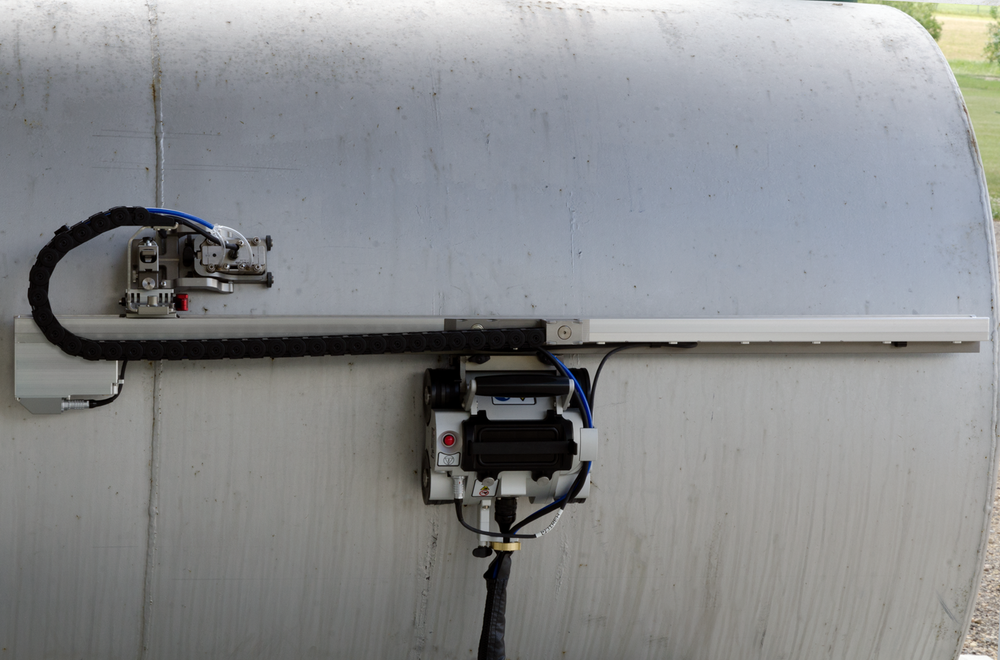

The automated SKOOT - Corrosion Mapping Scanner is a powerful scanner that can perform complex corrosion inspections while traversing all magnetic surfaces. Remote operation combined with one of any four lengths of motorized raster arm ensures the SKOOT is the leader of automated two-axis corrosion scans.

Videos

Features

Low Profile

The SKOOT requires a radial clearance of 11.4 cm (4.5 in), which allows for inspection in limited-access applications.

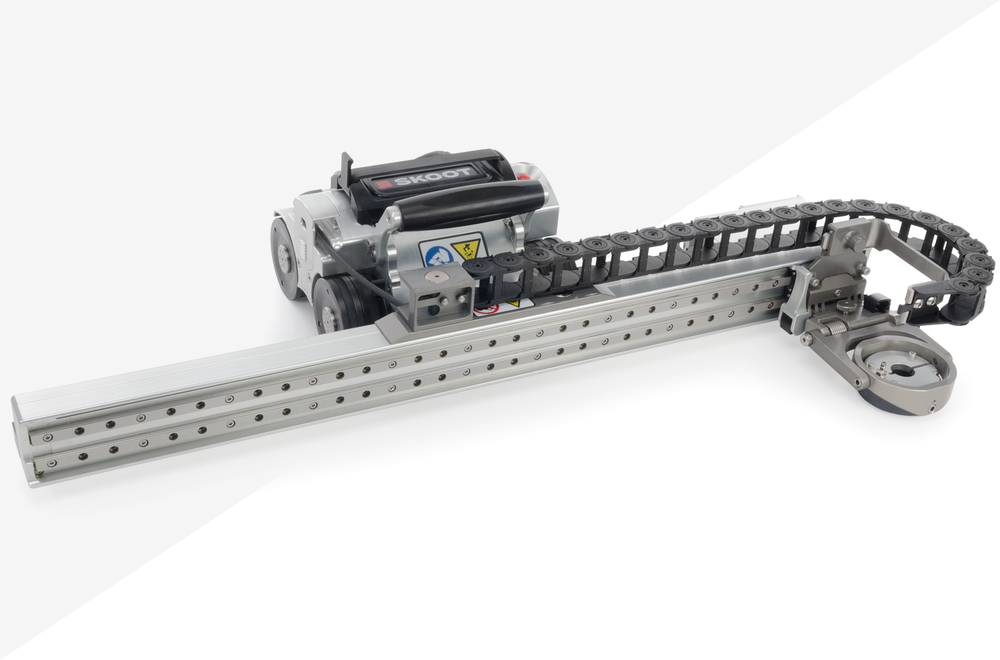

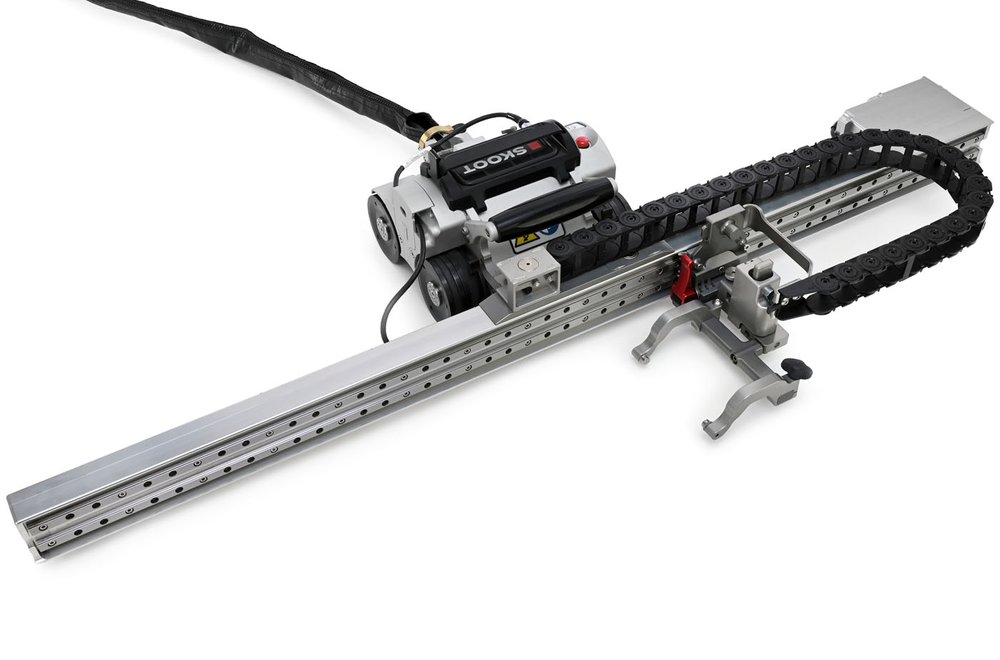

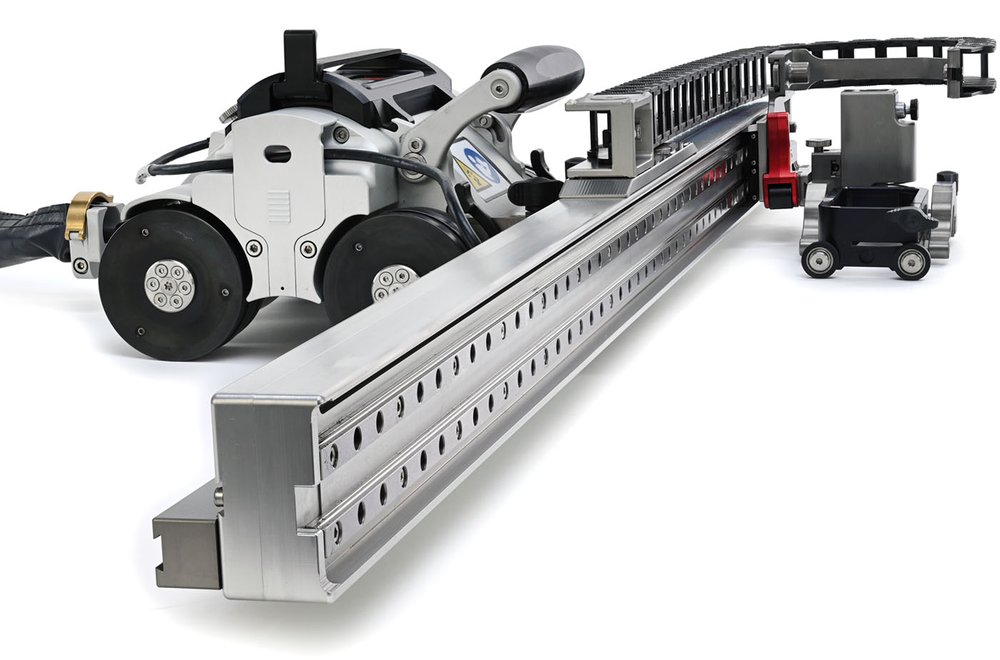

Raster Arms

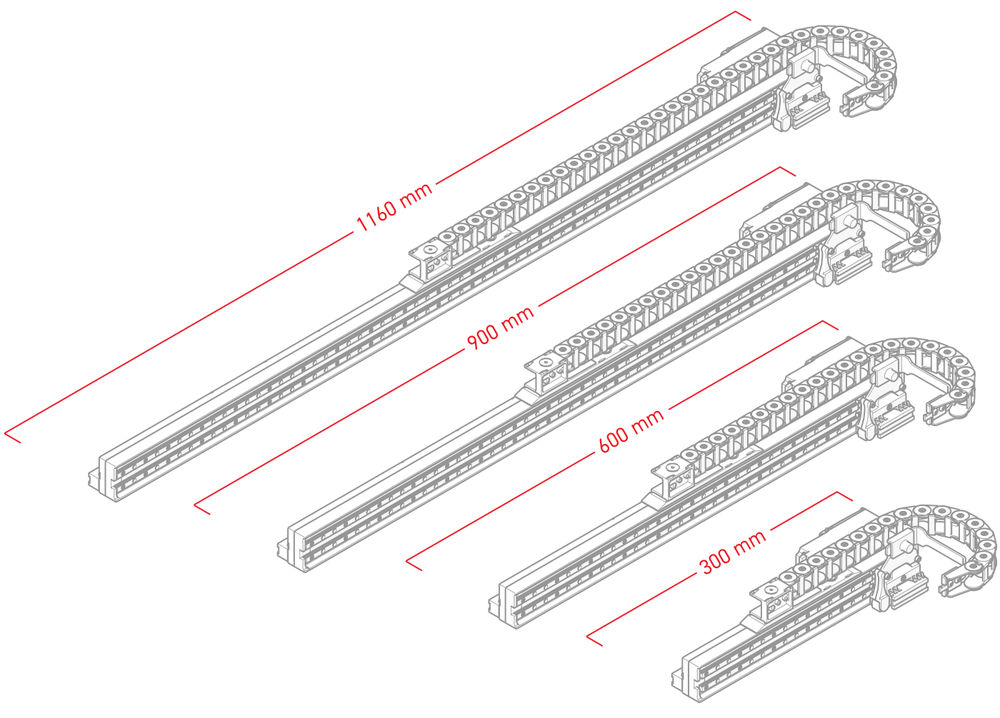

Available in 4 different lengths, the sophisticated raster arm delivers precision corrosion results: program custom scan paths, intervals, speed and more for repeatable and highly configurable readings.

Magnetic Wheels

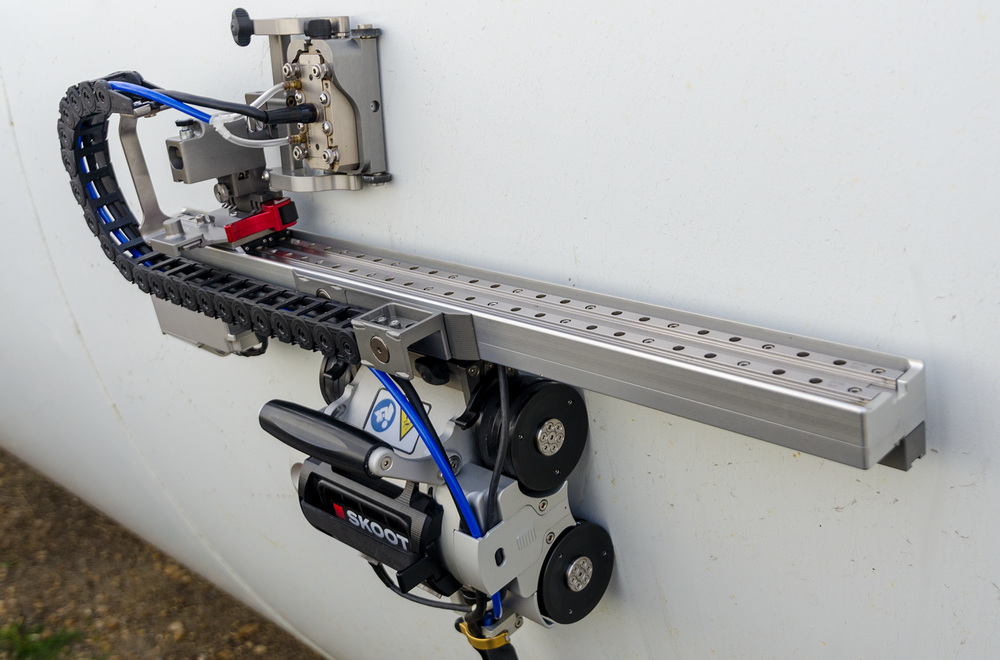

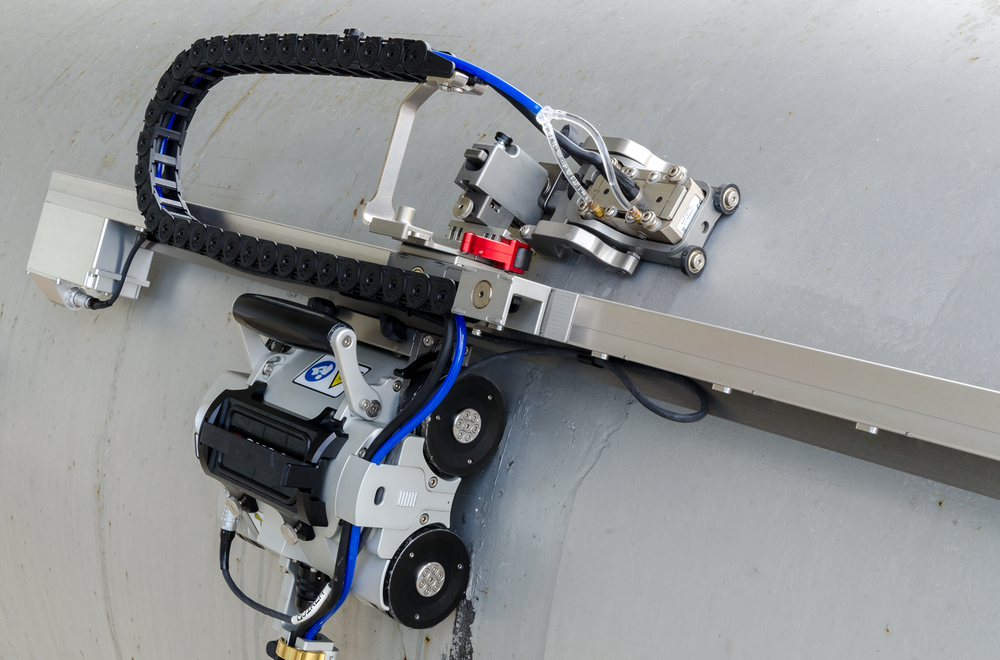

The SKOOT can operate on vertical, horizontal and inverted surfaces using rare-earth magnetic wheels.

Scan Versatility

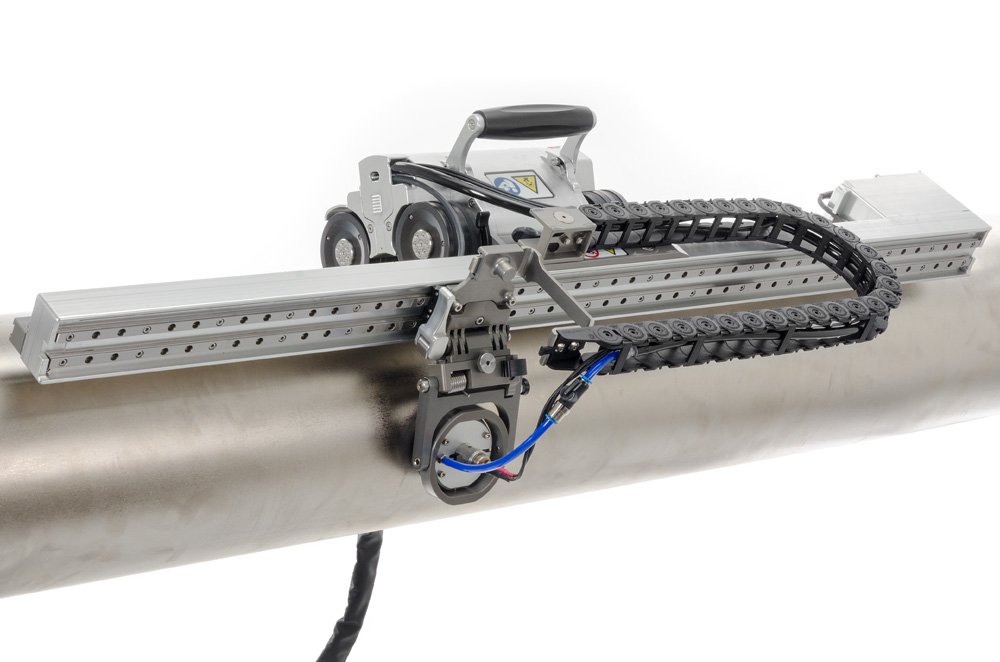

The SKOOT can facilitate circumferential scans on pipes as small as 6.4 cm (2.5 in) OD and 68.6 cm (27 in) ID. In addition, flat surface scans and longitudinal scanning on pipes as small as 76.2 cm (30 in) OD are available.

Backpack

The optional backpack conveniently carries ultrasonic accessories with the unit.

Handheld Controller

Program raster paths from up to 30 m (100 ft) away using the intuitive handheld remote control. The ergonomic handheld controller programs probe speed, intervals, and much more.

Battery Power

Order the SKOOT with the battery kit and avoid using heavy, cumbersome generators. These rechargeable batteries can power the SKOOT system and accessories for hours at a time.

Warranty

A 3-year warranty backs all components of the SKOOT system.

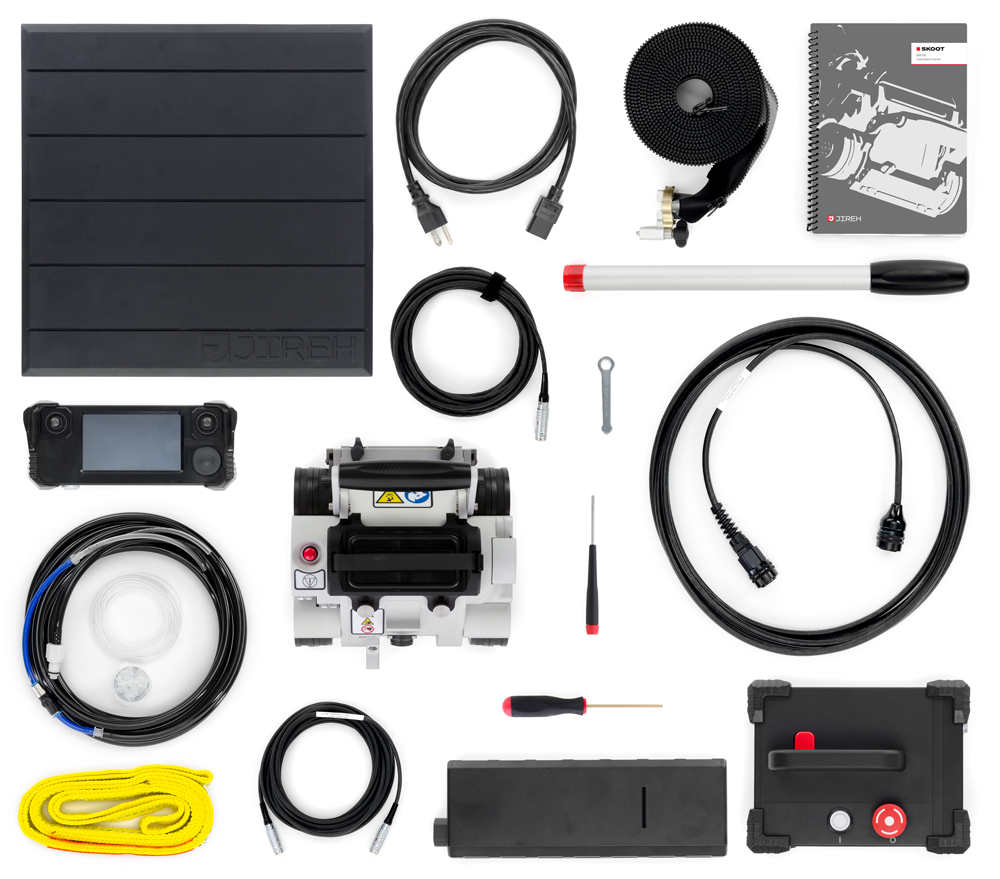

Kit Contents

Path 2 CopyPath 2 Copy

SCANNER

SKOOT base crawler

PARTS & ACCESSORIES

Power controller
Power supply (North American, European or UK plugs available)
Umbilical, 7.5 m (25 ft) or 30 m (100 ft) lengths available
Handheld controller
Auxiliary cable, 6 m (20 ft)
Manipulation handle
Cable management, threaded mount, (length dependent on umbilical length)
J300 encoder cable, 5 m (15 ft)
Installation/Removal mat
6 mm ID irrigation kit (7/16 in quick connect)
Lifting sling (safety tether)
User manual

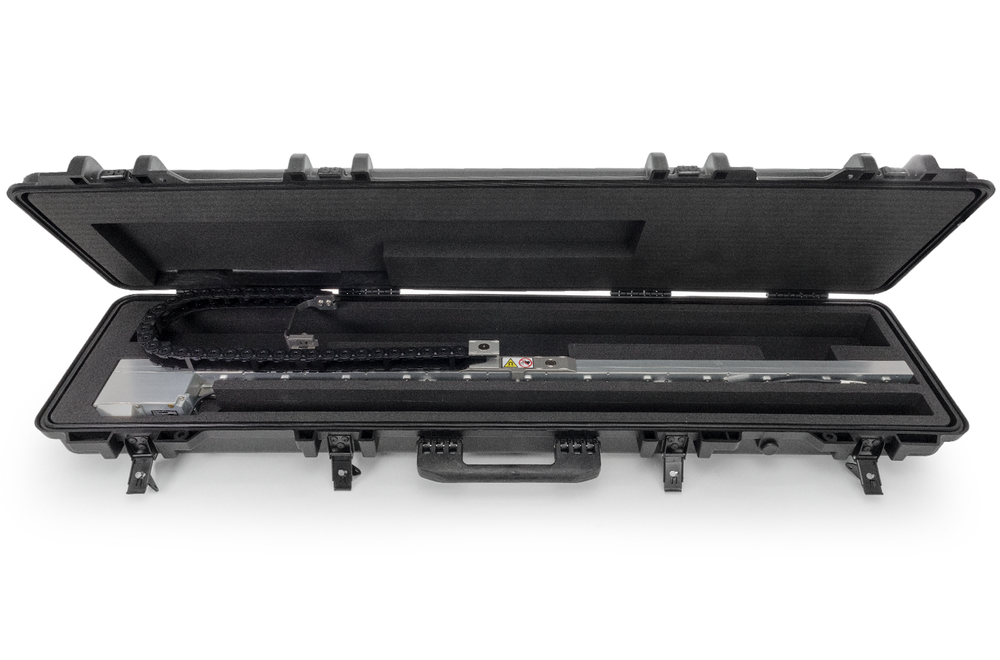

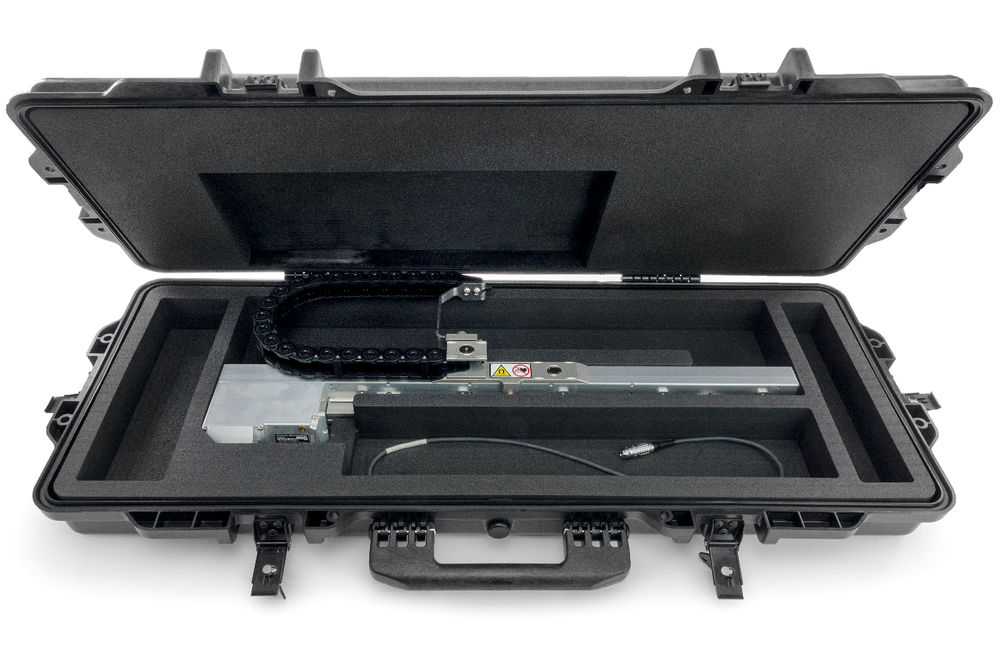

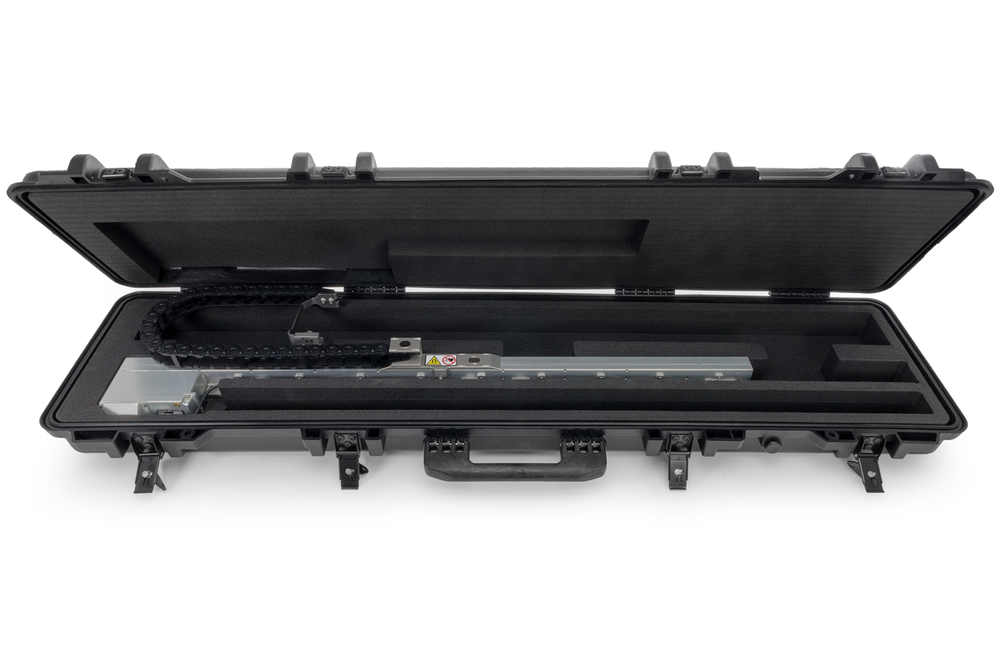

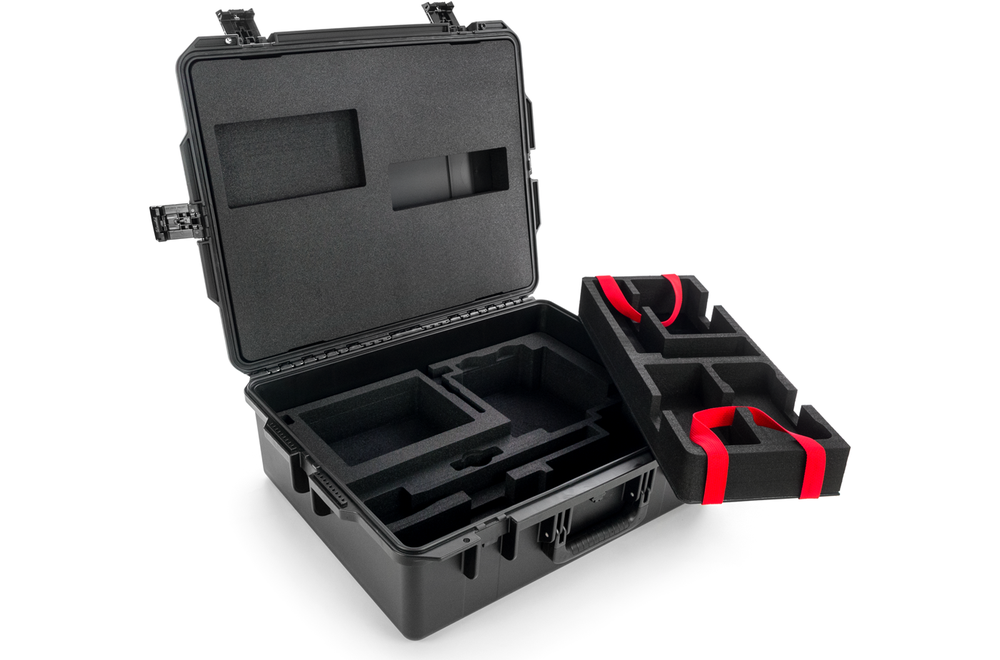

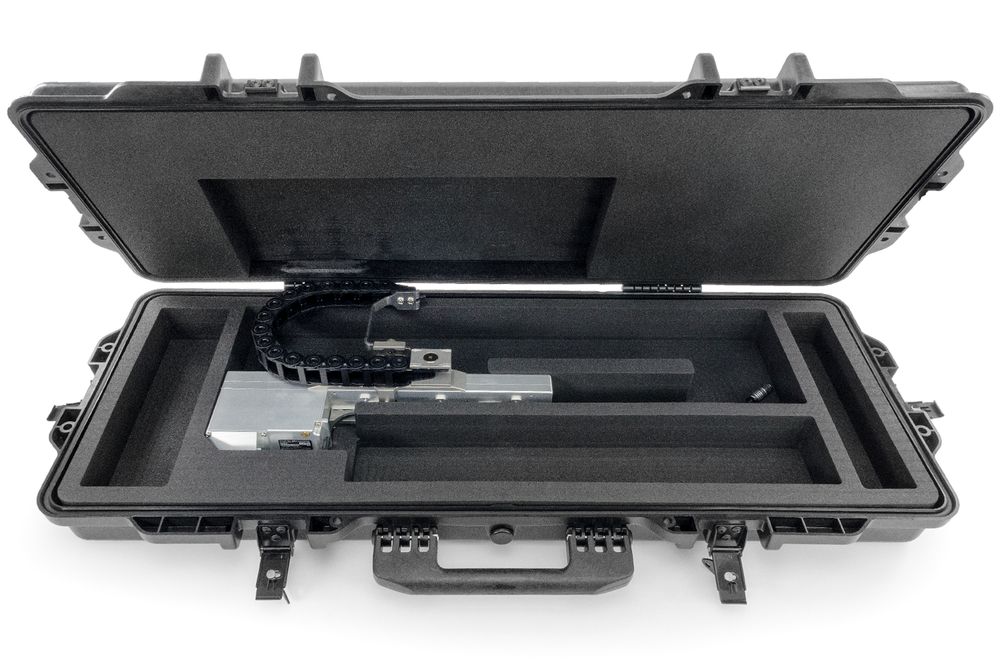

Rugged carrying cases (various types based on chosen accessories)

TOOLS

3 mm hex driver
3 mm flat driver
Wrench for pivot button adjustment

Component Identification

Base Crawler

Four highly magnetic wheels propel the SKOOT crawler along ferrous surfaces. Attach many weld and corrosion scanning accessories to the crawler, which features cable management and an integrated encoder.

Backpack

A flexible strap securely holds any pre-amp, splitters or scan accessories to the SKOOT crawler.

Manipulation Handle

Slight steering adjustments and crawler manipulation are achieved using the manipulation handle.

Power Controller

Configurable for North American or European electrical standards, the power controller is a sophisticated operating platform and connection point for instrumentation and handheld controllers.

Handheld Controller

Precision forward and reverse drive control, programmable y-axis control, and system diagnostics are all accessed using the handheld controller's touchscreen and joysticks.

Umbilical

The backbone of communication between the power controller and the base crawler.

Parts & Add-Ons

Related Products

Specification

Path 2 CopyPath 2 Copy

GENERAL

Encoder Resolution: 1354 counts/mm (34394 counts/inch)
Maximum Vertical Payload: 9 kg (20 lb)1
Maximum Speed: 14.2 cm/sec (5.6 in/sec)
Power Requirements: 100-240VAC, 50/60Hz, 1.4 Amps
Umbilical Length: 7.5 m (25 ft)2
Inspection Surface: Ferrous
Maximum Backpack Payload: 1.36 kg (3 lb)

PIPE RANGE

Circumferential, Outer Diameter (OD): 6.4 cm (2.5 in) to flat

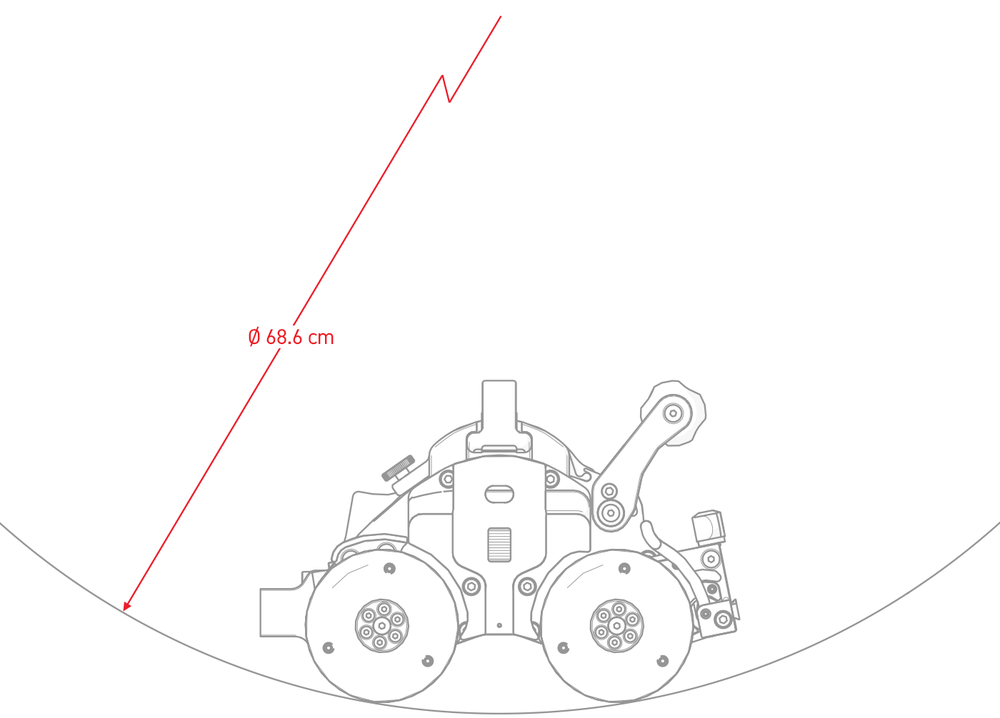

Circumferential, Inner Diameter (ID): 68.6 cm (27 in) to flat
Longitudinal: 76.2 cm (30 in) to flat

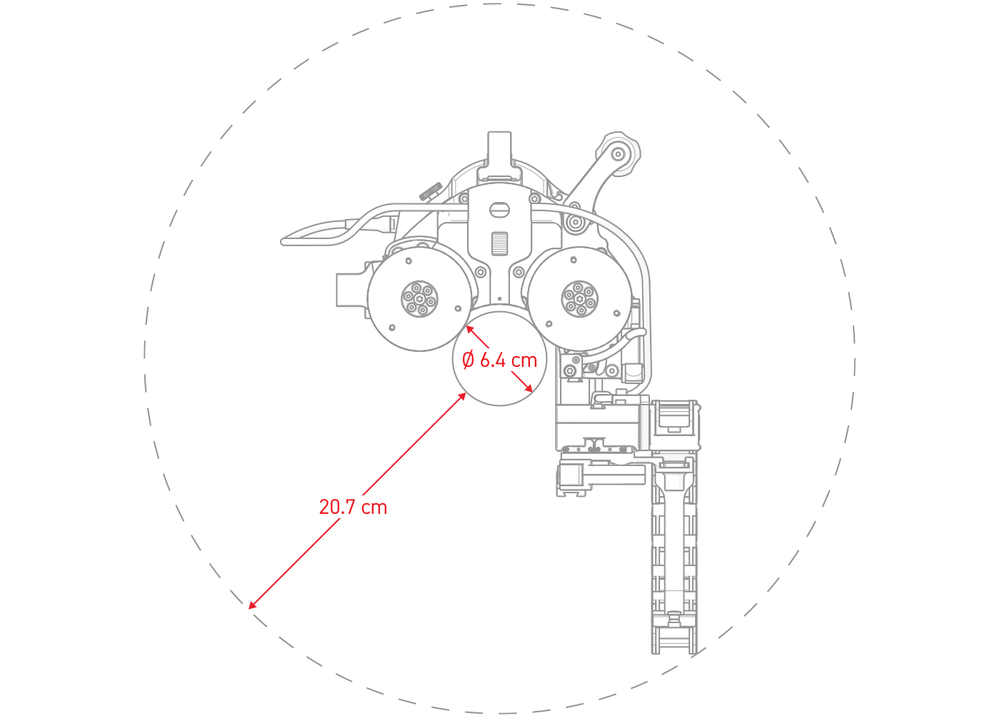

RADIAL CLEARANCE

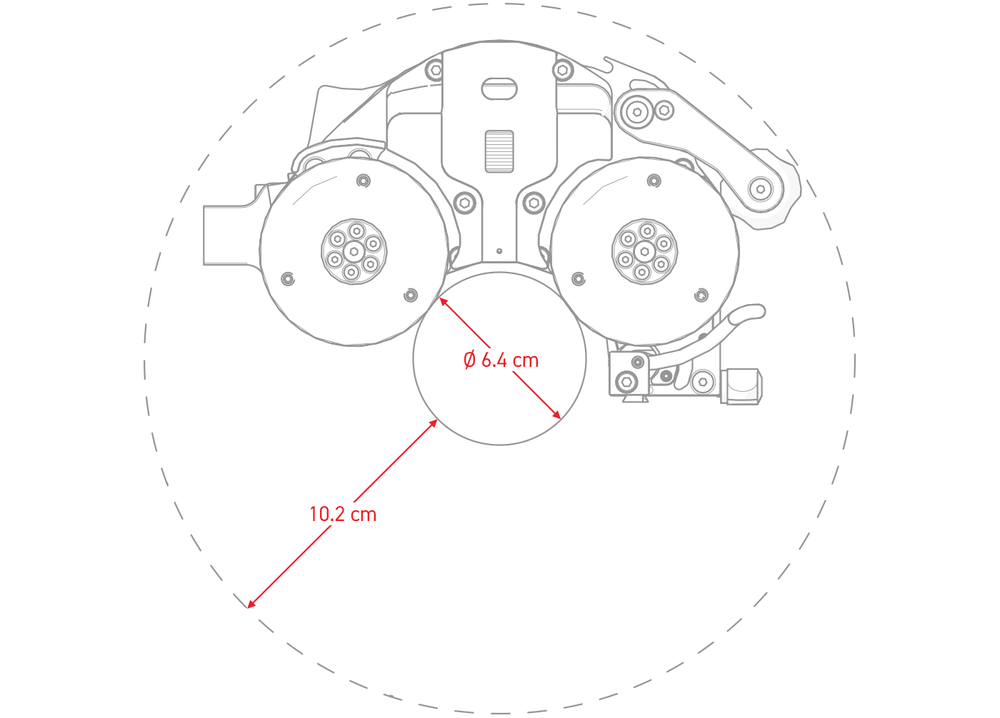

Pipes under 200 mm (8 in): 10.2 cm (4 in)3
Pipes over 200 mm (8 in): 11 cm (4.3 in)3
With Motorized Raster Arm and Cable Tray: 20.7 cm (8.1 in)

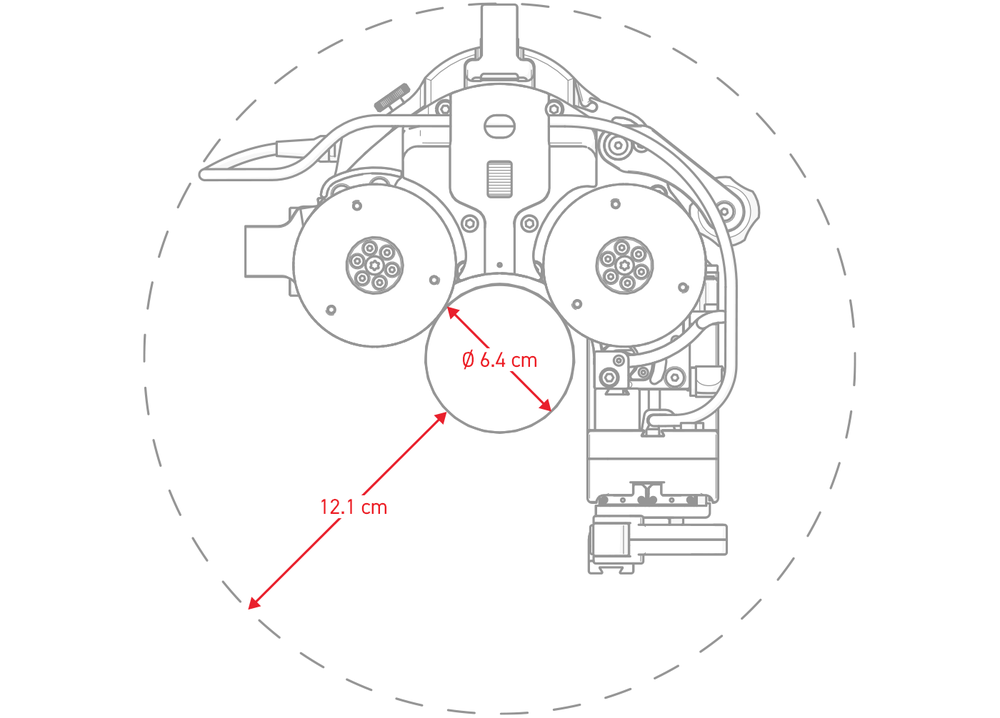

With Motorized Raster Arm: 12.1 cm (4.8 in)

REGULATIONS

CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.4
FCC: Compliance with Part 15 of FCC rules.4
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.4
UKCA: United Kingdom Conformity Assessed – Compliance with relevant UK statutory requirements and legislation.4

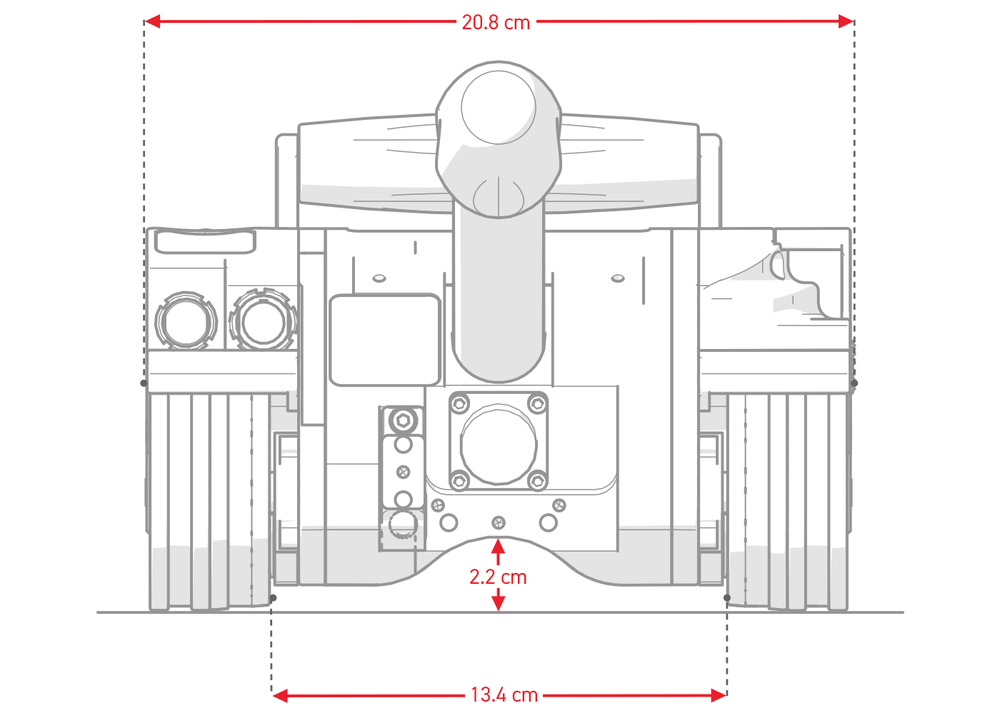

SIZE & WEIGHT

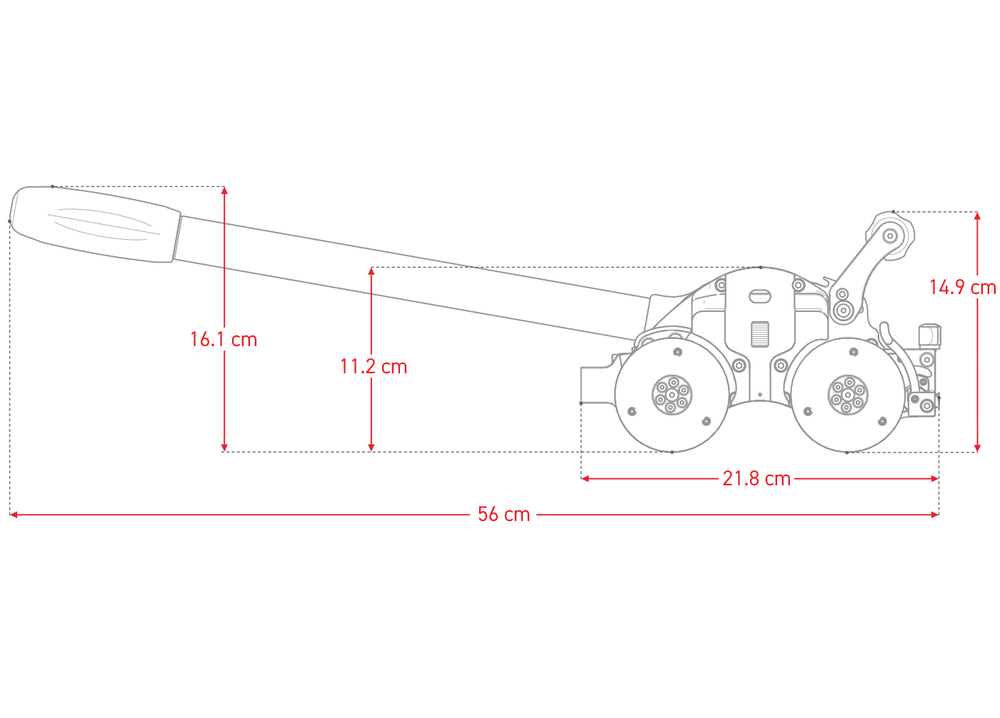

Base Crawler Height: 11.2 cm (4.4 in)5
Base Crawler Height, including handle: 14.9 cm (5.9 in)
Base Crawler Height with manipulation handle: 16.1 cm (6.3 in)
Base Crawler Width: 20.8 cm (8.2 in)
Base Crawler Length: 21.8 cm (8.6 in)
Base Crawler Length with manipulation handle: 56 cm (22 in)
Base Crawler Weight: 7.3 kg (16 lb)

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
Maximum Inspection Surface Temperature: 150°C (302°F)6

RASTER ARM SPECIFICATIONS

Raster Arm Module Encoder: 240.2 counts/mm (6100.9 counts/inch)
Raster Arm Module Speed: 0 - 76.2 cm/sec (0 - 30 in/sec)

RASTER ARM WEIGHT

300 mm Raster Arm (12 in): 2.45 kg (5.4 lb)
600 mm Raster Arm (24 in): 3.36 kg (7.4 lb)
900 mm Raster Arm (35 in): 4.04 kg (8.9 lb)
1160 mm Raster Arm (45 in): 4.54 kg (10 lb)

HEAVY DUTY VERTICAL PROBE HOLDER SPECIFICATIONS

Standard Width: 17.4 mm (0.69 in) – 55 mm (2.17 in)
Standard Length: 63.5 mm (2.5 in)

Wide Width: 17.4 mm (0.69 in) – 93.8 mm (3.69 in)
Wide Length: 63.5 mm (2.5 in)

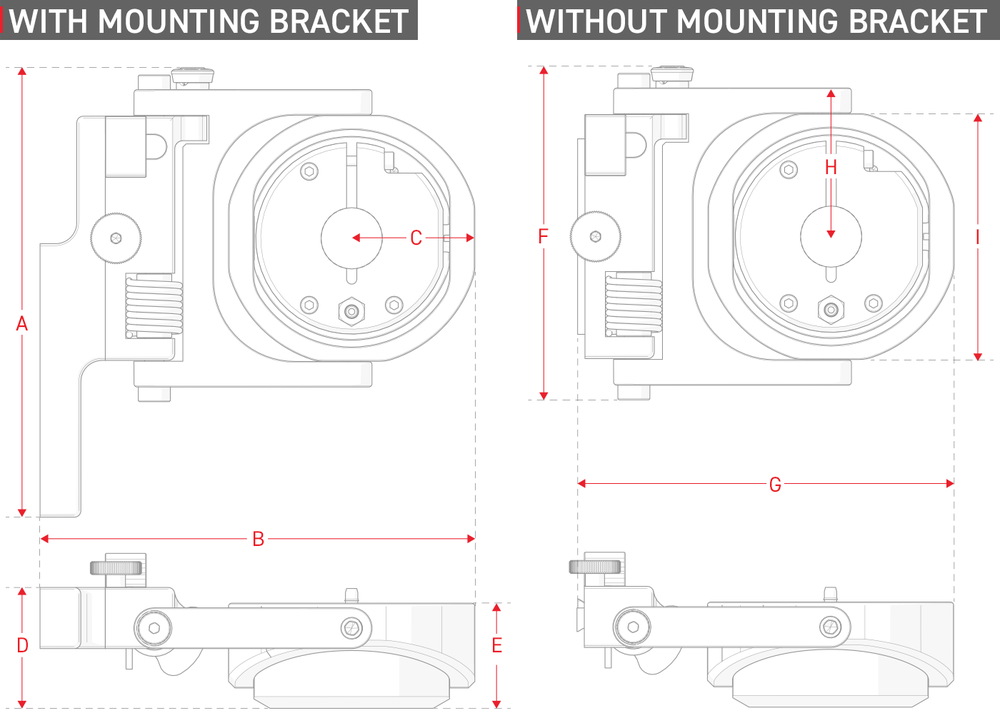

Corrosion thickness probe holder specifications

Path 2 CopyPath 2 Copy

Size and Weight

With Mounting Bracket
A
 - 140.09 mm (5.52 in)
B - 135.18 mm (5.32 in)
C - 38.28 mm (1.51 in)
D - 38.28 mm (1.51 in)
Weight: 0.5 kg (1.1 lb)

Without Mounting Bracket (Raster Arm Application)
E
 - 32.77 mm (1.29 in)
F - 104.08 mm (4.10 in)
G - 117.27 mm (4.62 in)
H - 46.33 mm (1.82 in)
I - 76.66 mm (3.02 in)
Weight: 0.4 kg (0.9 lb)

Receptacle Sizes

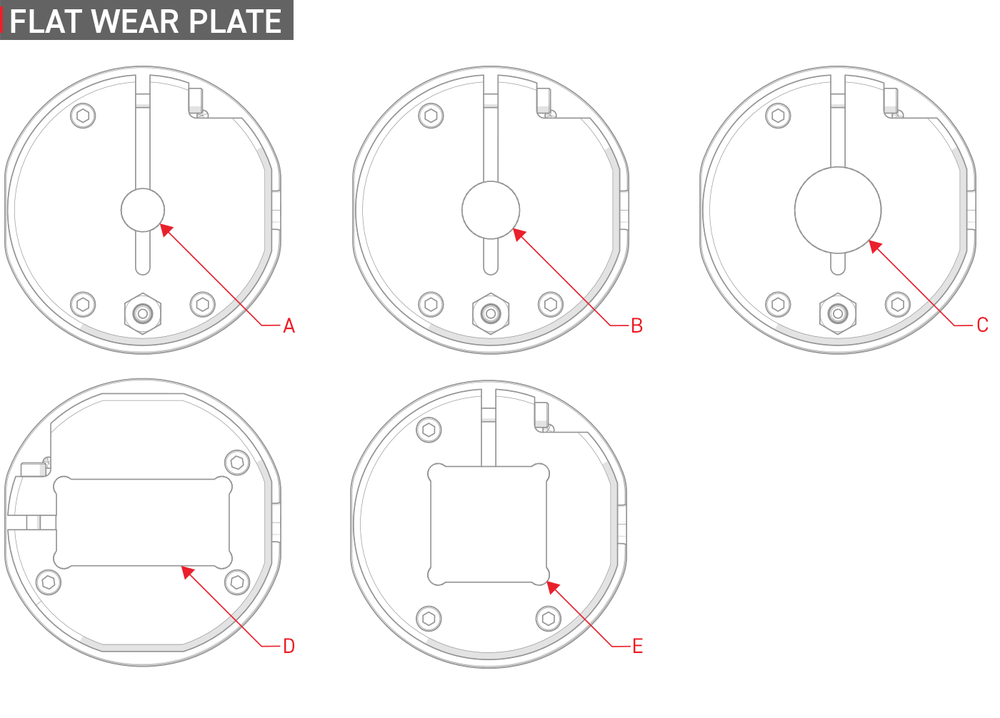

Flat Wear Plate
A
 - 9.53 mm (0.375 in) dia.
B - 12.7 mm (0.5 in) dia.
C - 19 mm (0.75 in) dia.
D - Technisonic
E - 25.4 mm (1 in)

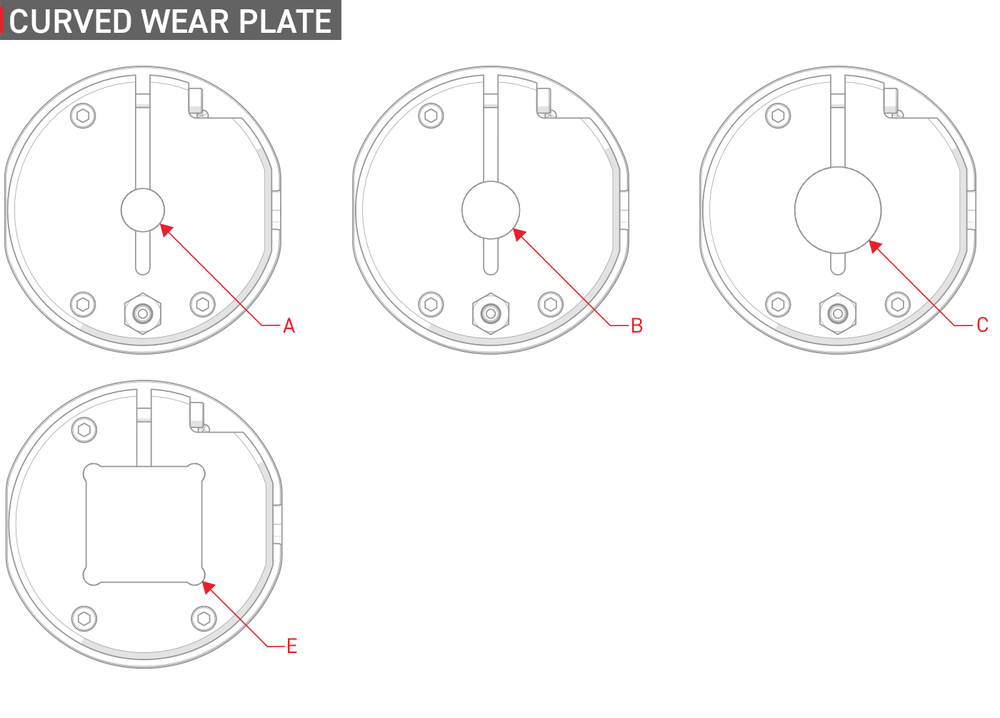

Curved Wear Plate
A - 9.53 mm (0.375 in) dia.
B - 12.7 mm (0.5 in) dia.
C - 19 mm (0.75 in) dia.
E - 25.4 mm (1 in)

  1. Performance may vary with the surface type. Umbilical and attachments are considered payload.
  2. Custom umbilical lengths are available.
  3. With backpack and manipulation handle removed, using slip-joint probe holders only.
  4. For a complete description of regulatory certifications, please contact Jireh Industries
  5. Measurements do not include the backpack.
  6. The automated crawler medium temperature add-on kit is required when the inspection surface temperature measures between 50°C (122°F) and 150°C (302°F).
    Technical specifications are subject to change.

Crawler

From USD$ 25,452.62

A powerful, remotely operated, automated scanner. Perform a multitude of complex weld and corrosion scans using any number of accessories.

The SKOOT - Base Crawler is a powerful automated scanner. The ability to carry multiple attachments and various accessories while traversing all magnetic surfaces makes the SKOOT an extremely versatile scanning device. This remotely operated scanning platform can be outfitted with probe holder frames for weld inspection or a raster arm for automated two-axis corrosion scans.

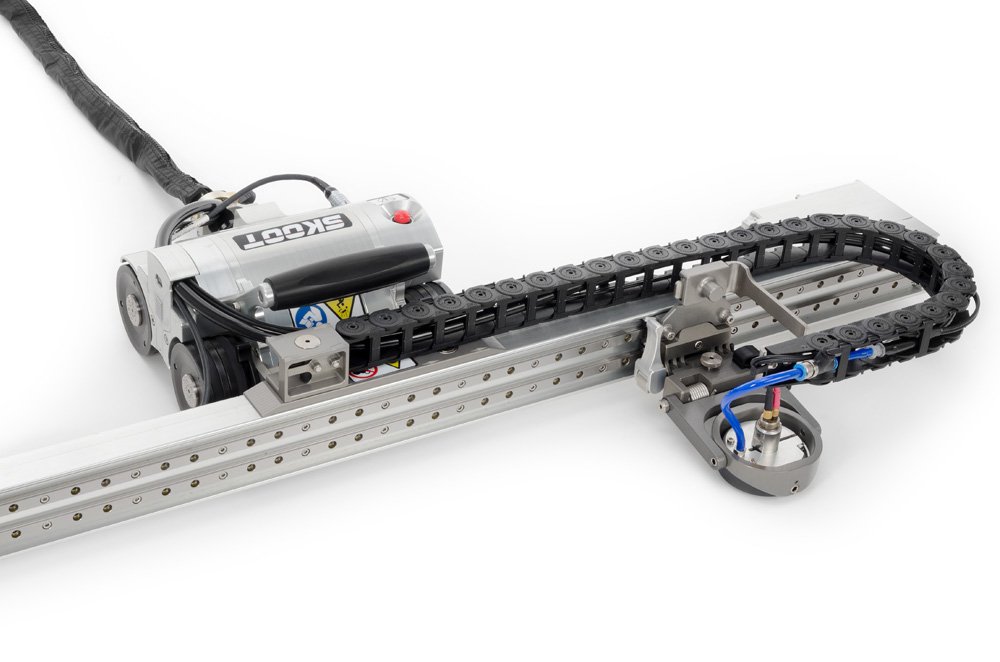

Raster Arm
