Power Cord
The plug designation of the power cord may be chosen to best suit the standard of your region. Select 'No Cord' should you wish to build a specific power cord not listed here. Contact a JIREH sales specialist for more information.

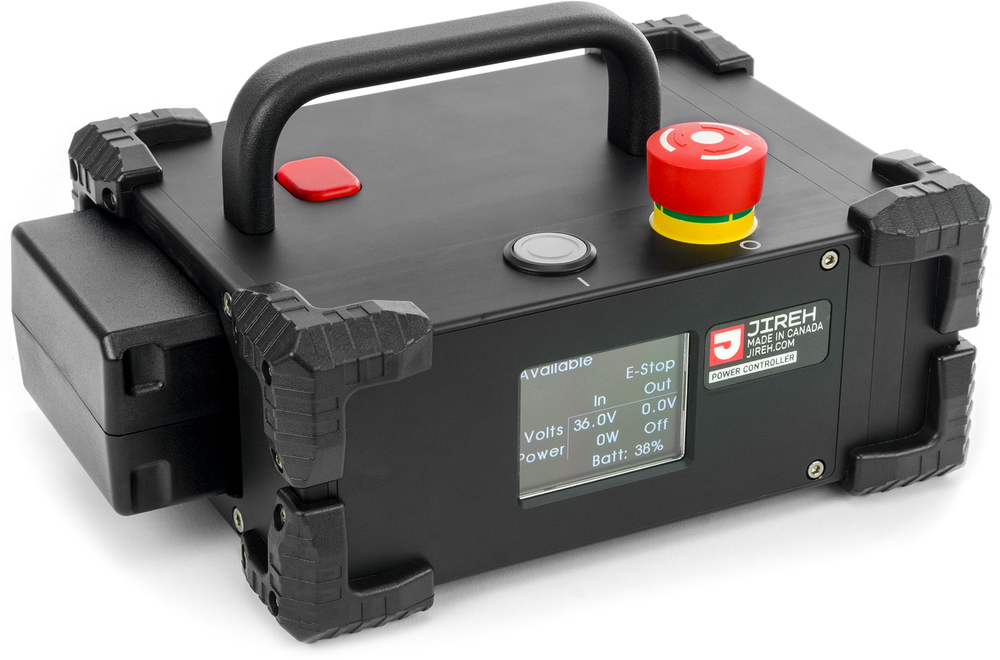

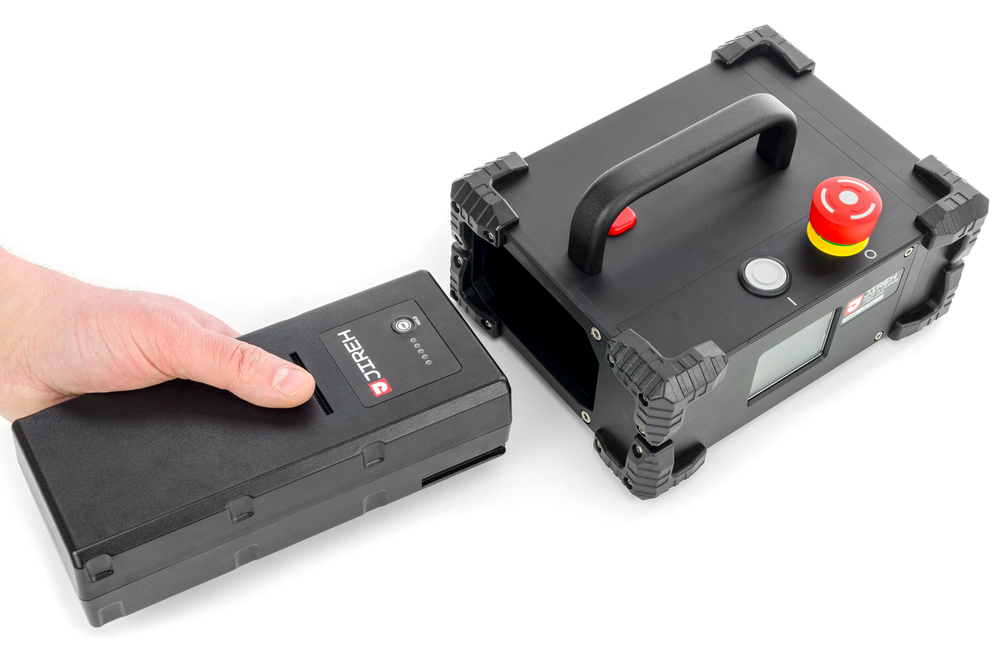

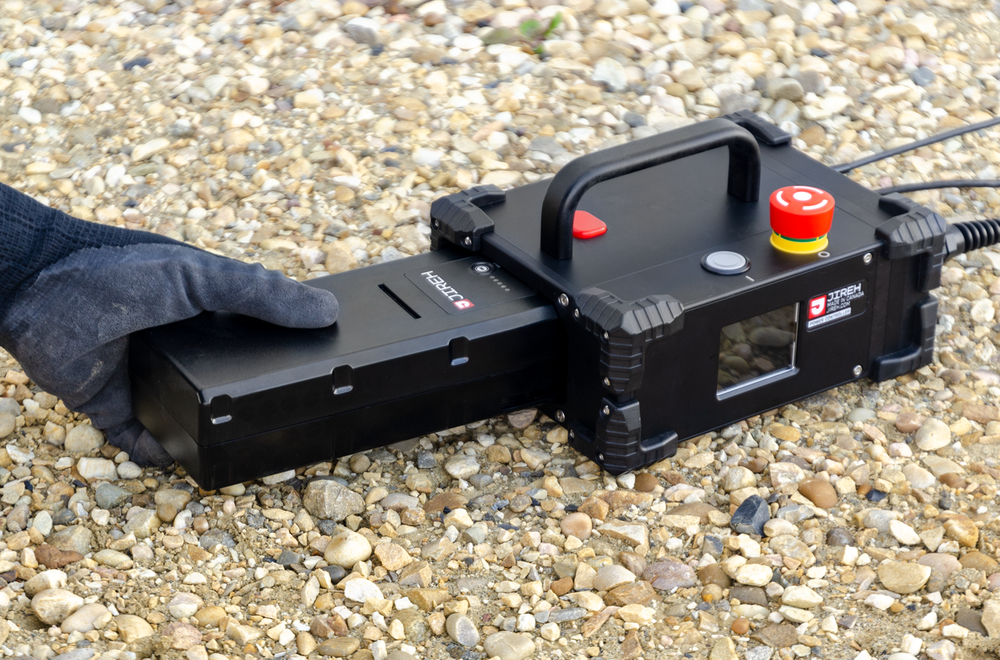

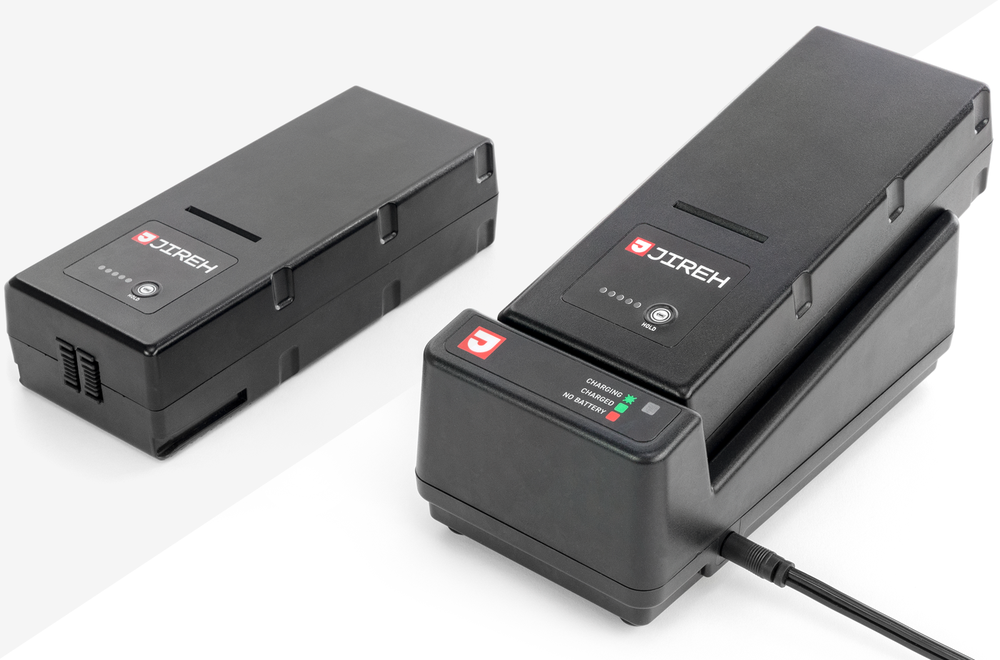

No need for cumbersome, heavy generators any longer. The Battery Kit provides two rechargeable batteries for use with the MOTIX, SKOOT, TERAX or NAVIC system. The batteries fit into the system controller and will operate an automated crawler and attached components for hours at a time on a single charge*.

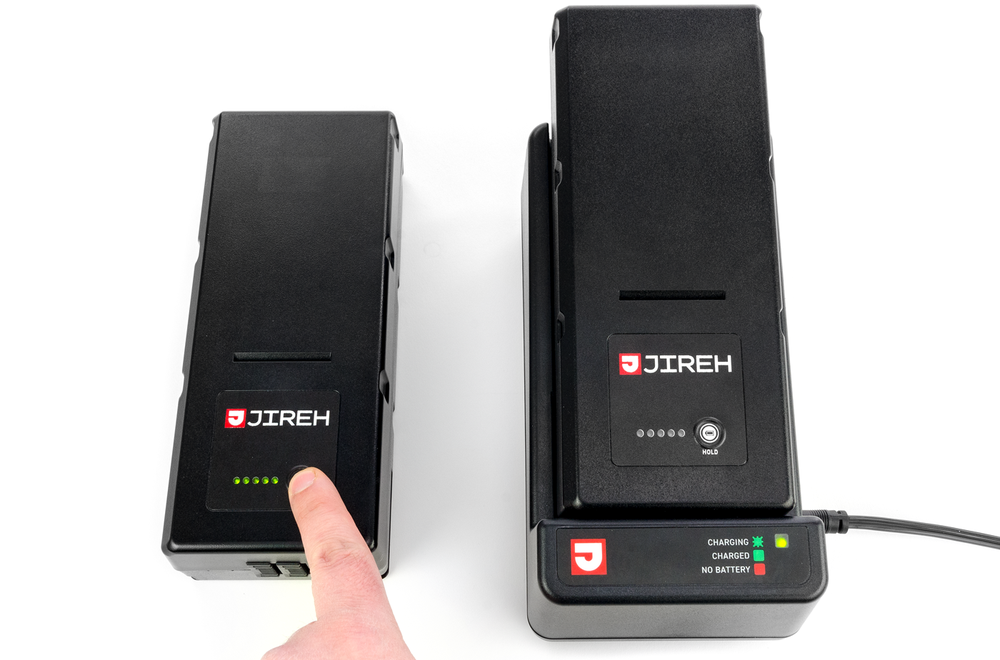

The included charger may be configured for various plug styles.

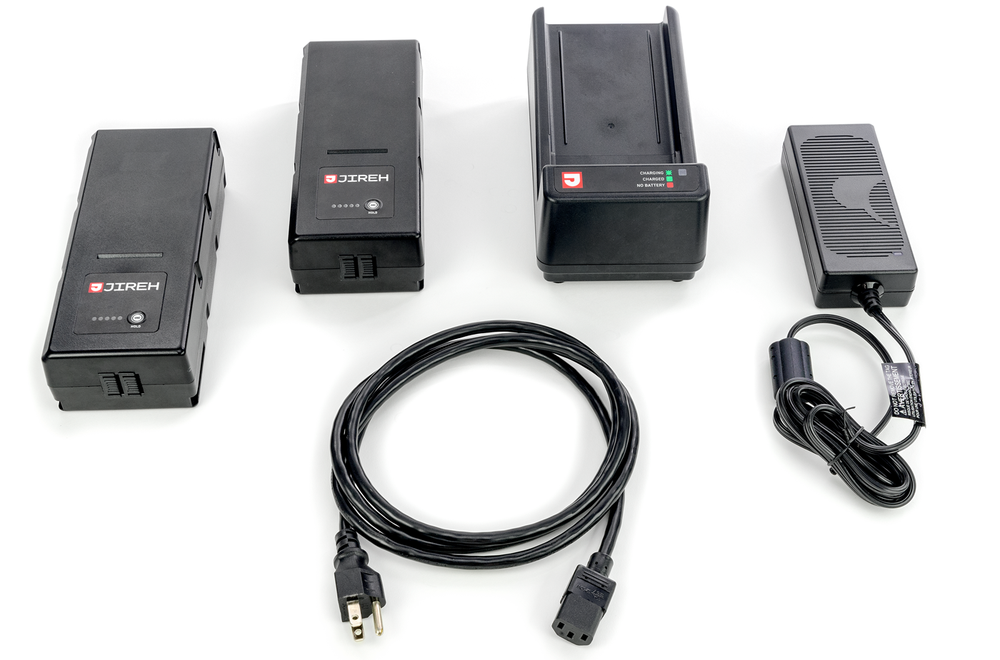

Kit Contents
Batteries x2
Charger
Power Adapter
Power Cord
User Manual
Related Products

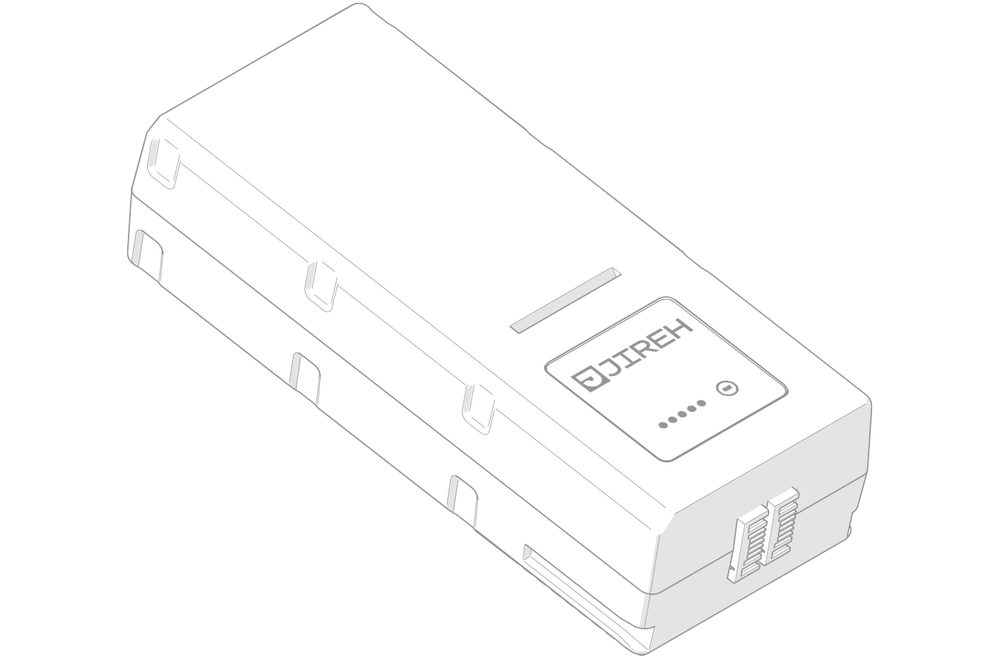

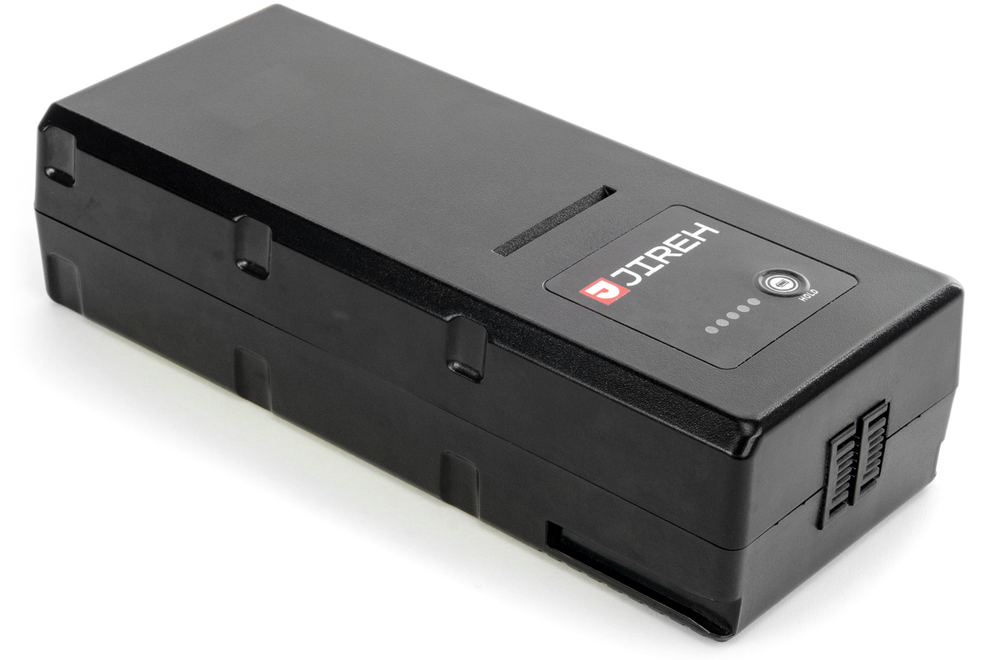

Battery Specifications
Battery Life
Typical NAVIC/SKOOT/MOTIX Run Time: 8-12 hours
Fully Loaded NAVIC/SKOOT/MOTIX Run Time: 5 hours
Battery Type
36V Nominal 5Ah Li-ion battery (180Wh)
Operating Temperature
Battery: -20°C to 60°C (-4°F to 140°F)
Charger: 0°C to 40°C (32° to 104°F)
Shipping
Air shipping is allowed
Compliance Declarations
CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.1
FCC: Compliance with Part 15 of FCC rules.1
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.1
UKCA: United Kingdom Conformity Assessed – Compliance with relevant UK statutory requirements and legislation.1
Dimensions

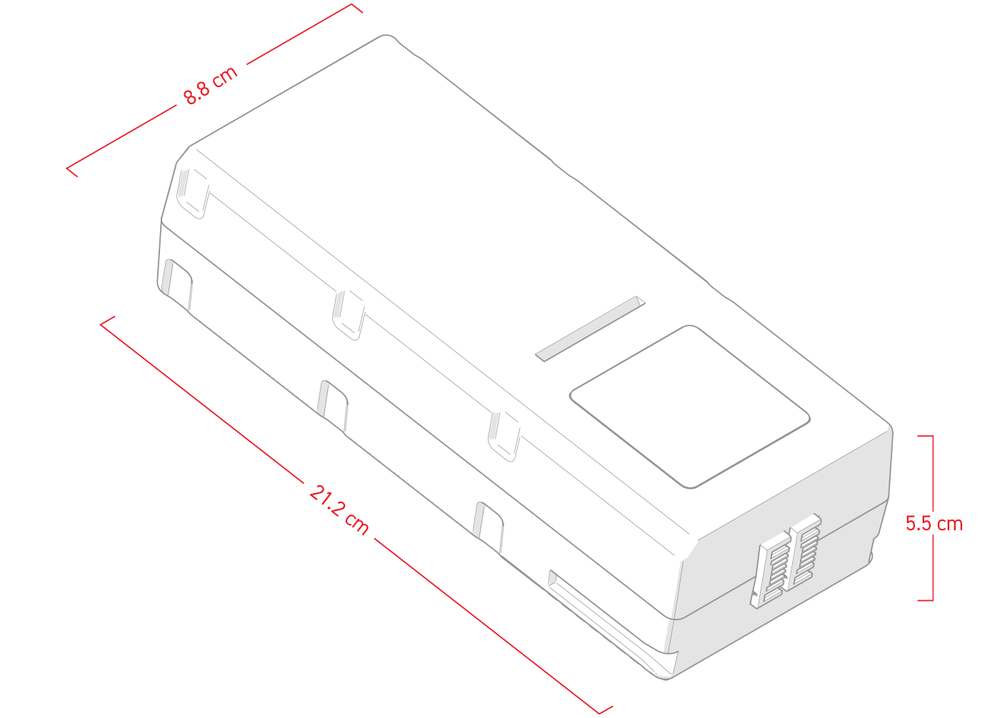

Battery Dimensions
Width: 8.8 cm (3.5 in)
Depth: 21.2 cm (8.4 in)
Height: 5.5 cm (2.2 in)
Weight: 1.4 kg (3 lb)

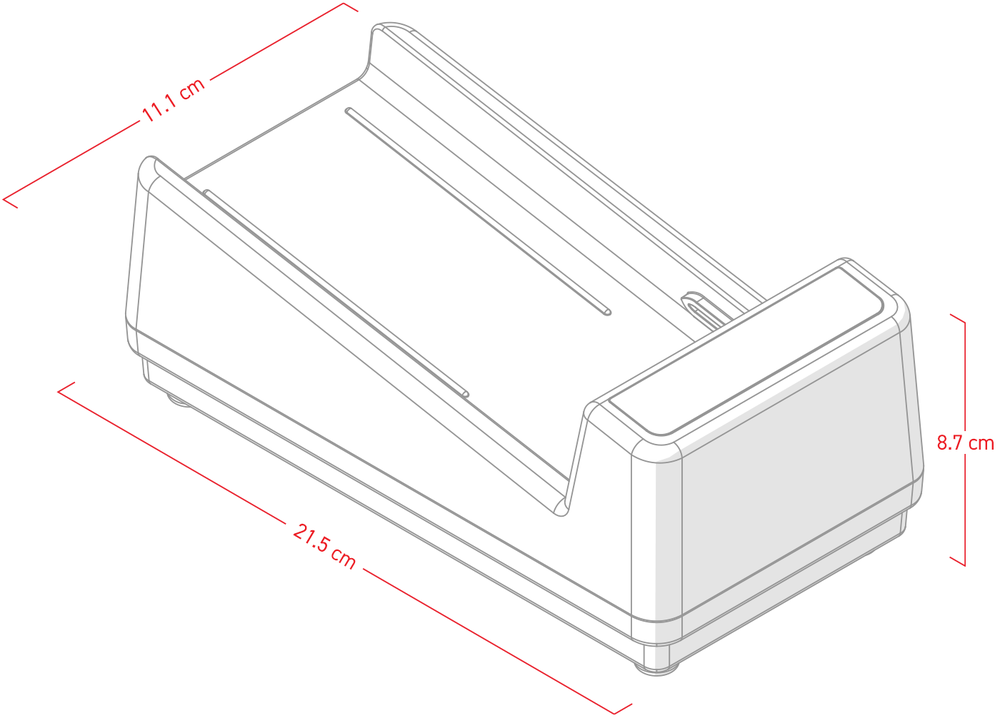

Charger Dimensions
Width: 11.1 cm (4.4 in)
Depth: 21.5 cm (8.5 in)
Height: 8.7 cm (3.4 in)
Weight: 0.4 kg (0.9 lb)
- For a complete description of regulatory certifications, please get in touch with Jireh Industries.
Technical specifications are subject to change.
