The industry-leading NAVIC is JIREH's most powerful, all-encompassing, weld and corrosion scanning solution.

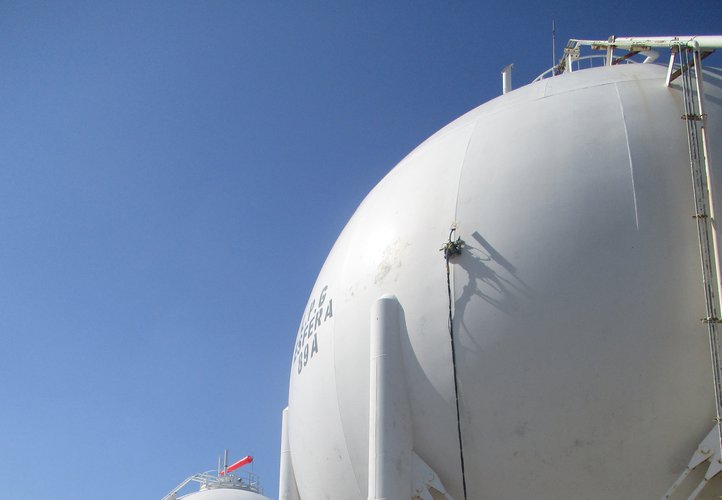

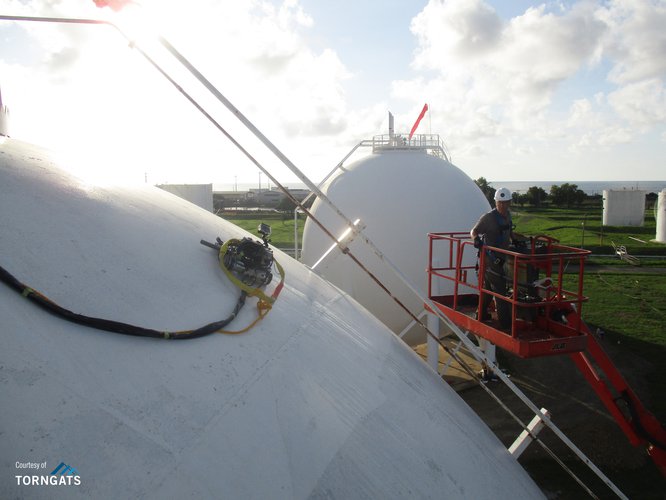

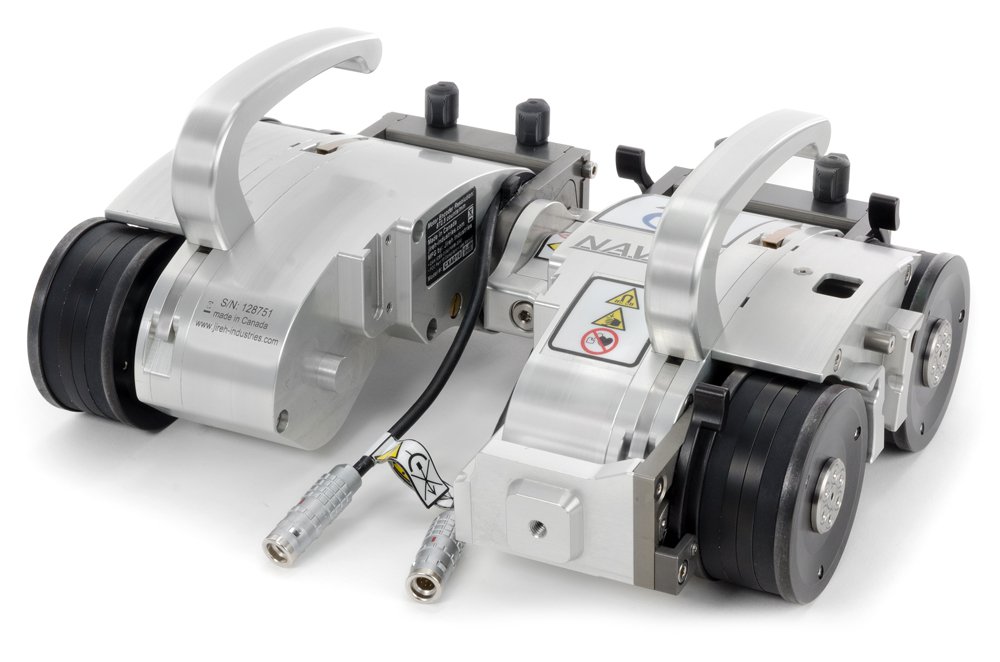

The NAVIC 2 - Base Crawler is a modular, motorized, steerable scanner designed to carry multiple attachments used in various scanning and inspection applications. This remotely operated scanning platform is capable of circumferential scans on diameters as small as 70 mm (2.75 in) OD.

Part ID: CXG023

Features

Motorized Driving and Steering

Variable drive speed and steering control.

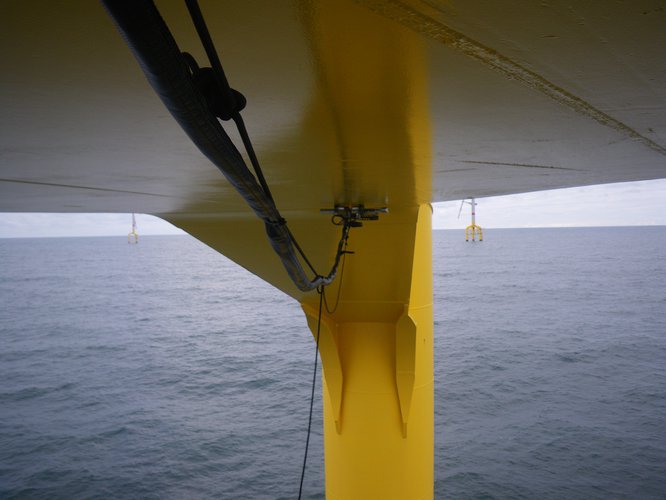

Rugged

Designed to handle intense tasks and challenging environments (dust tight, watertight).

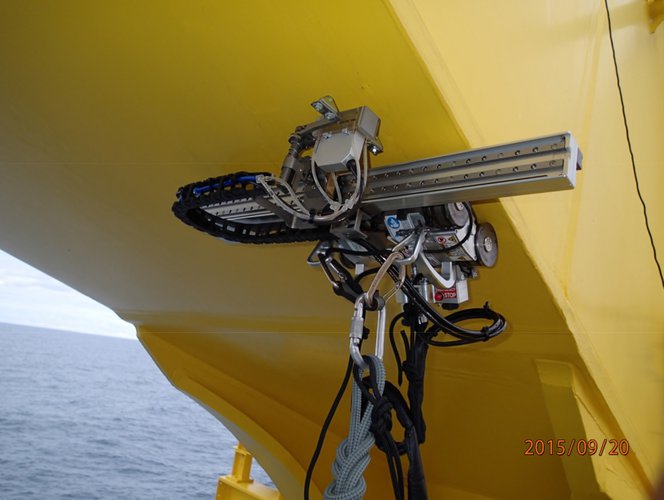

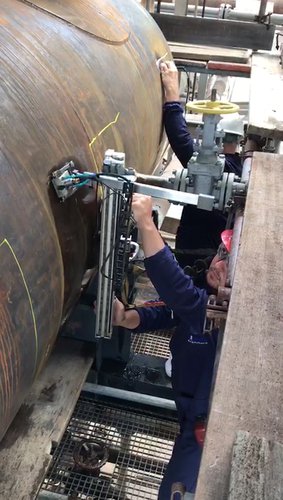

Corrosion Mapping

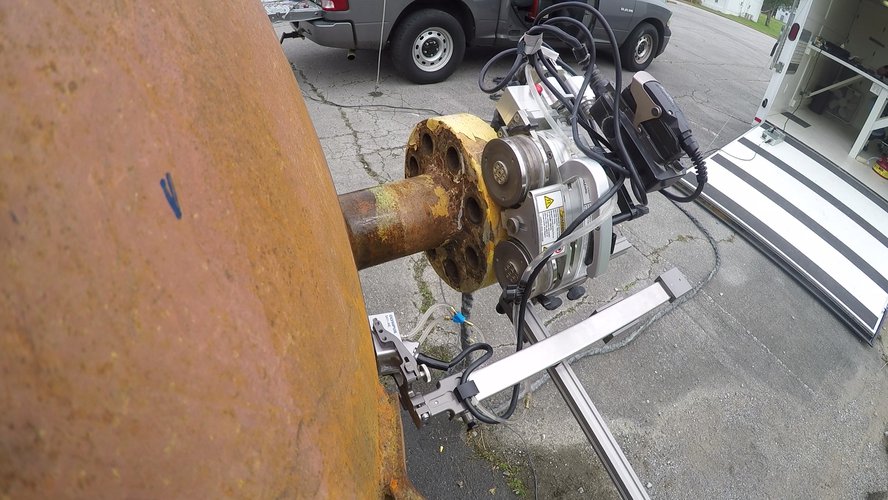

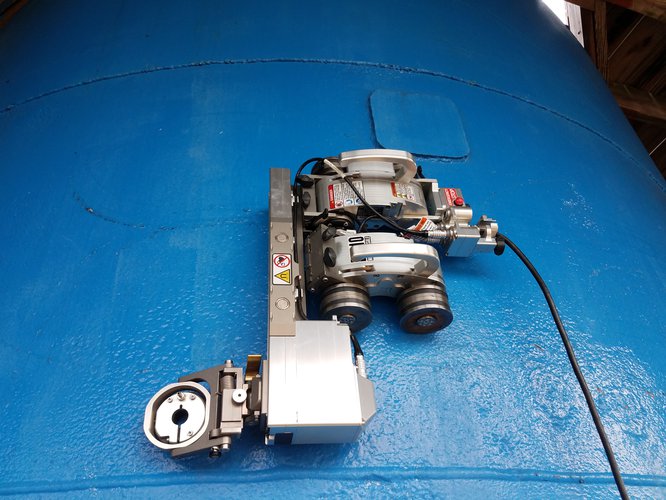

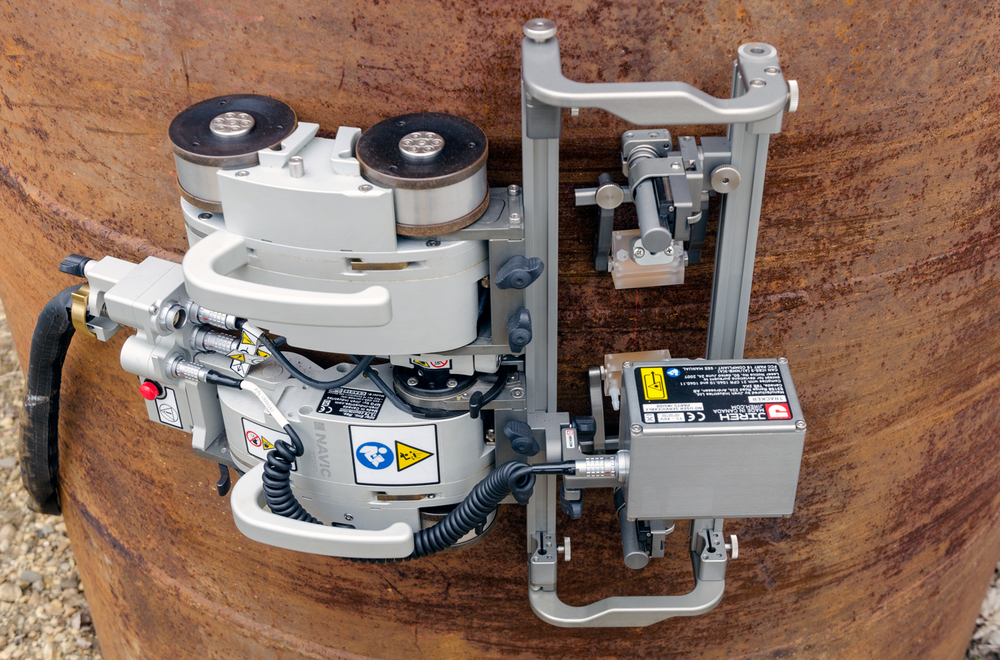

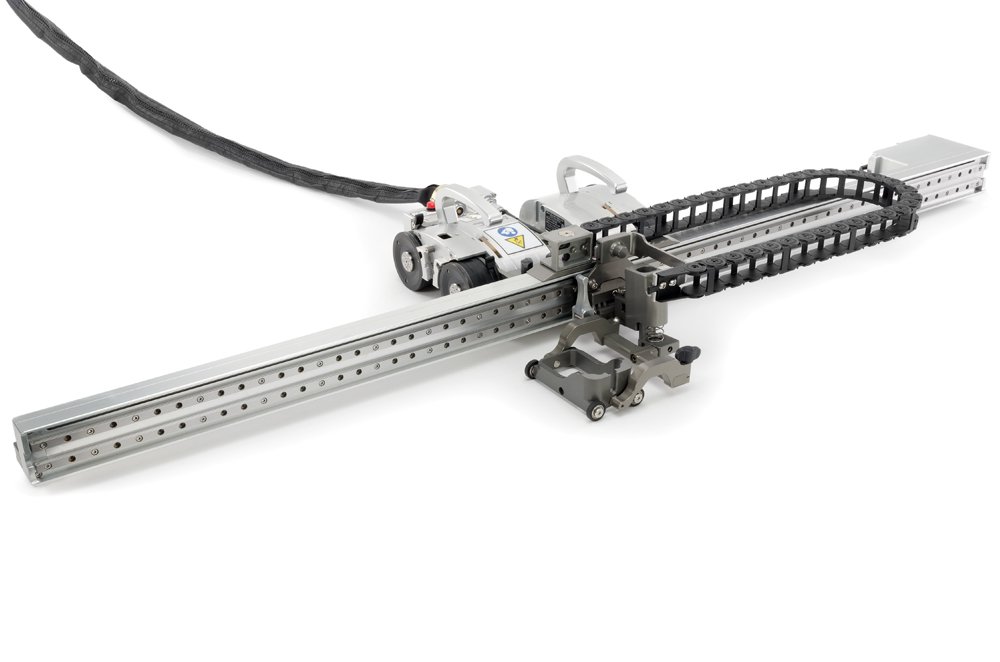

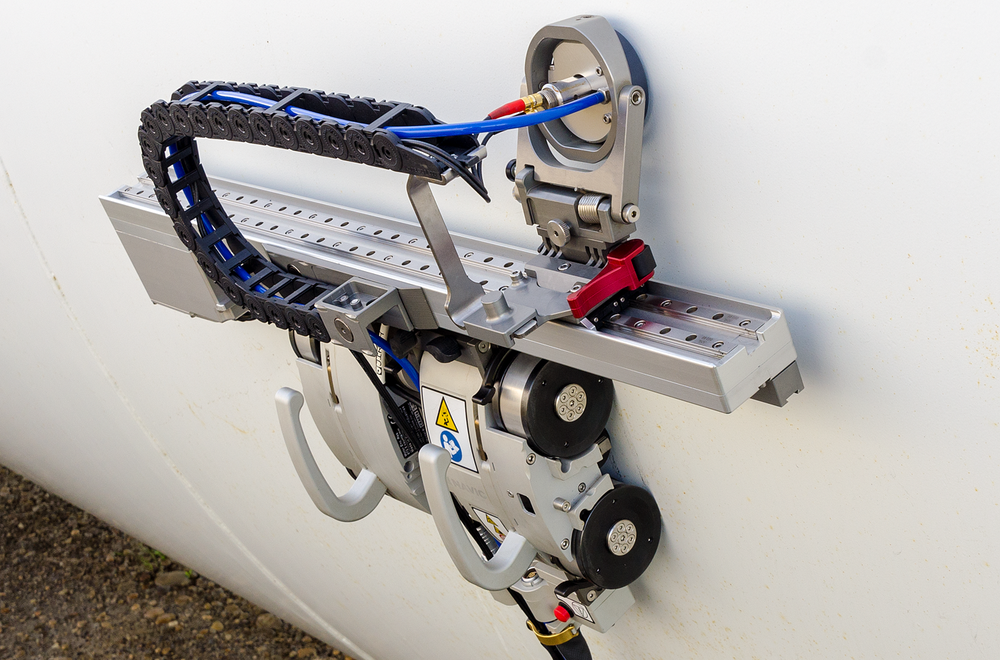

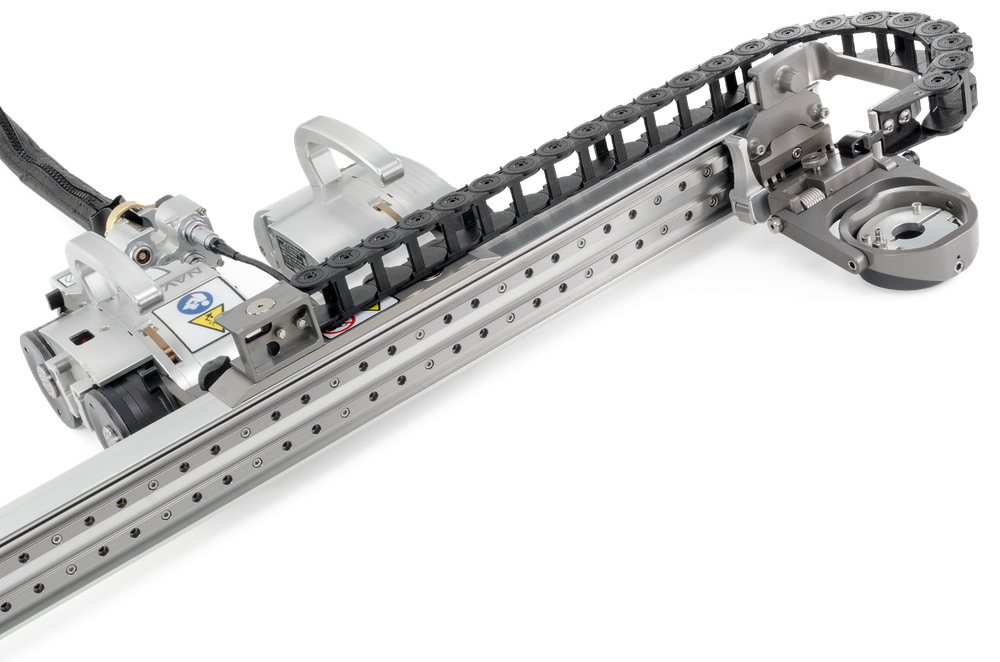

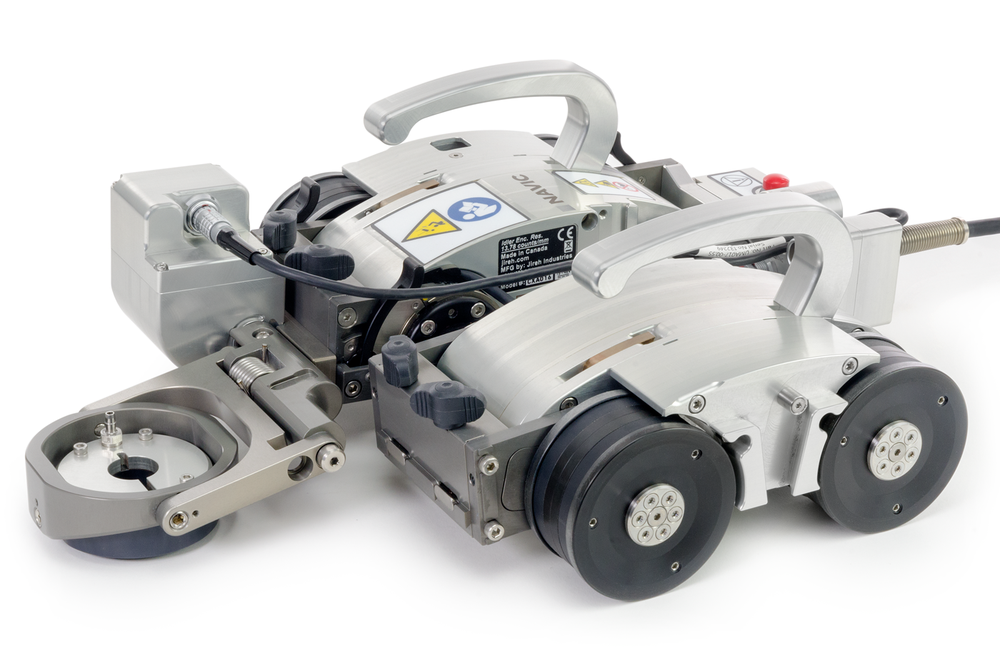

Effortlessly perform corrosion mapping with a variety of automated raster arms.

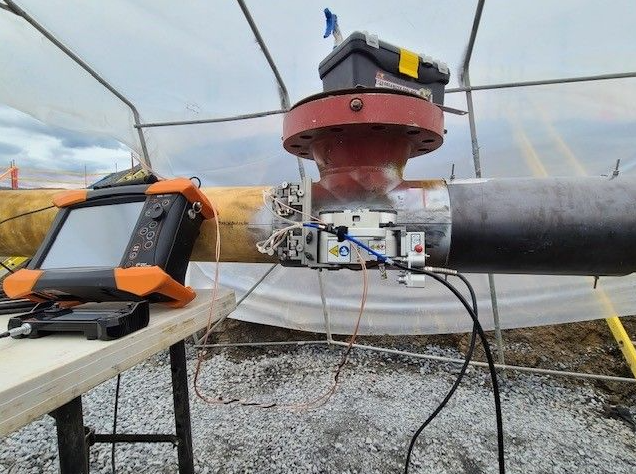

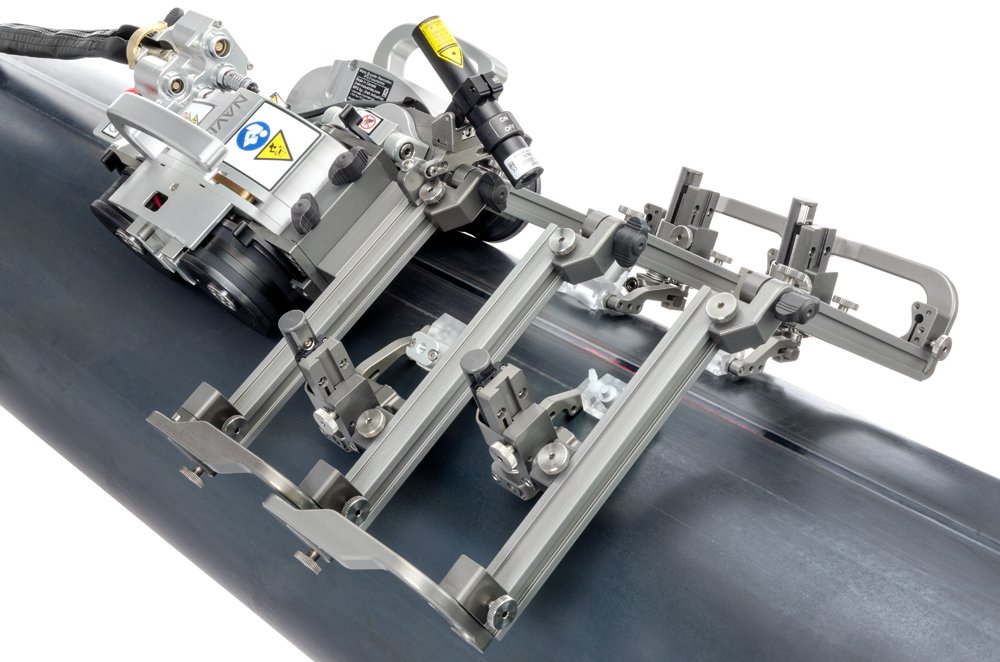

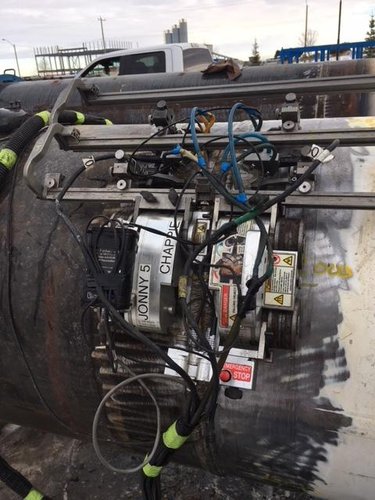

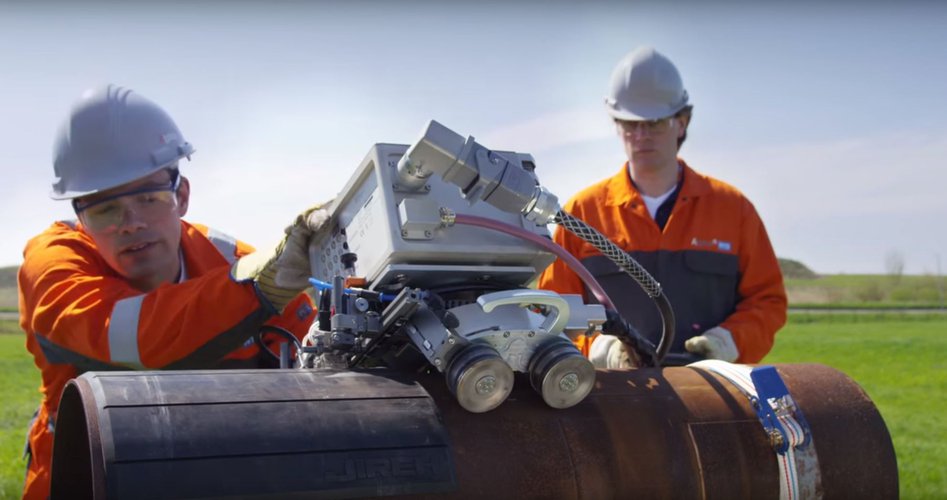

Weld Scanning

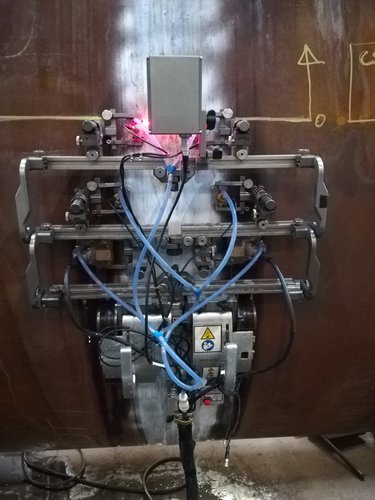

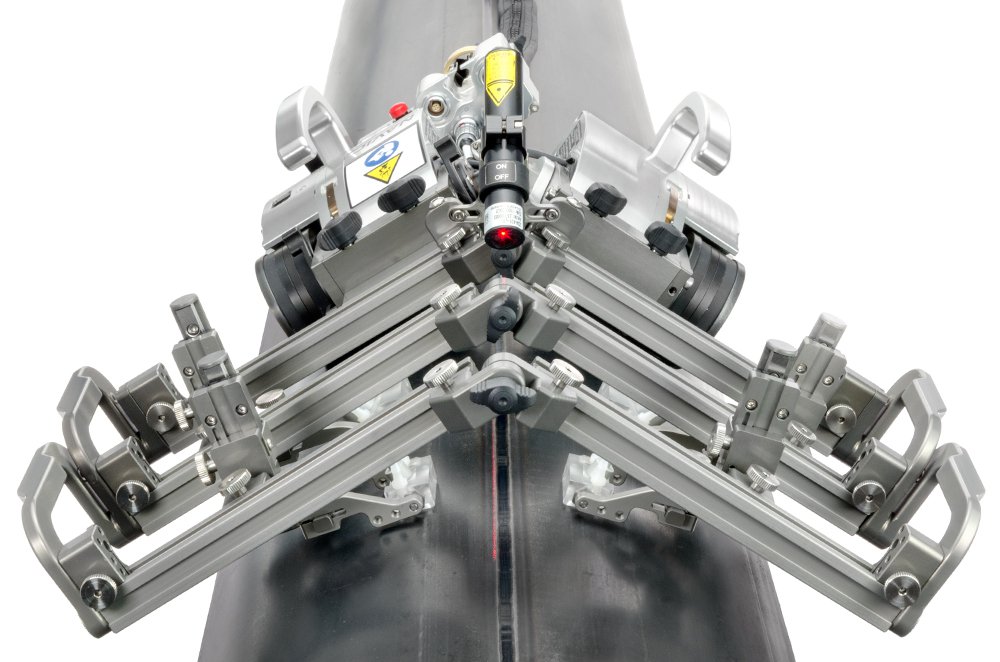

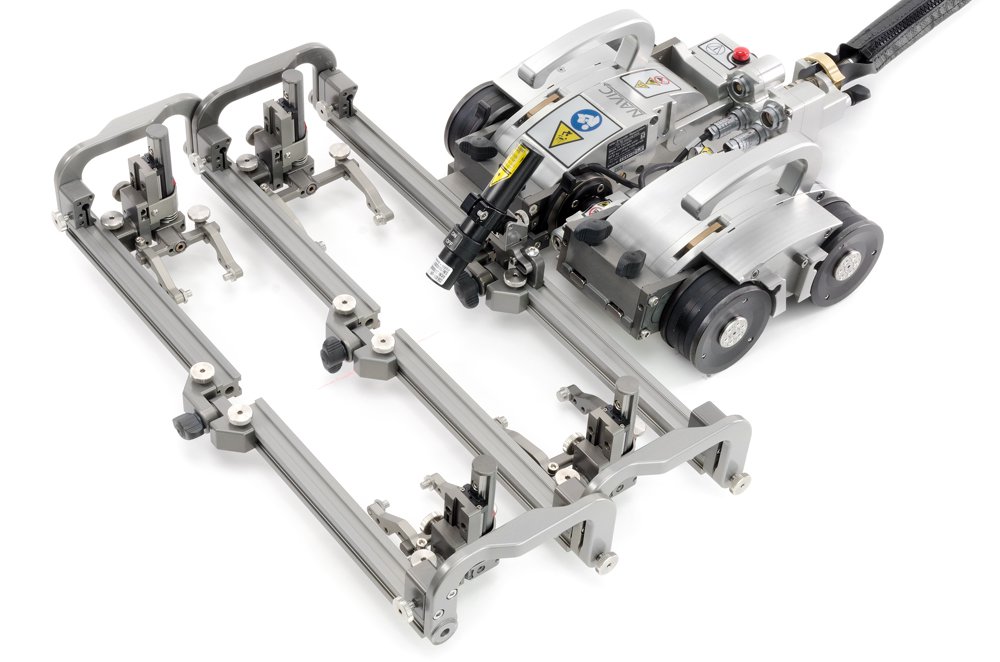

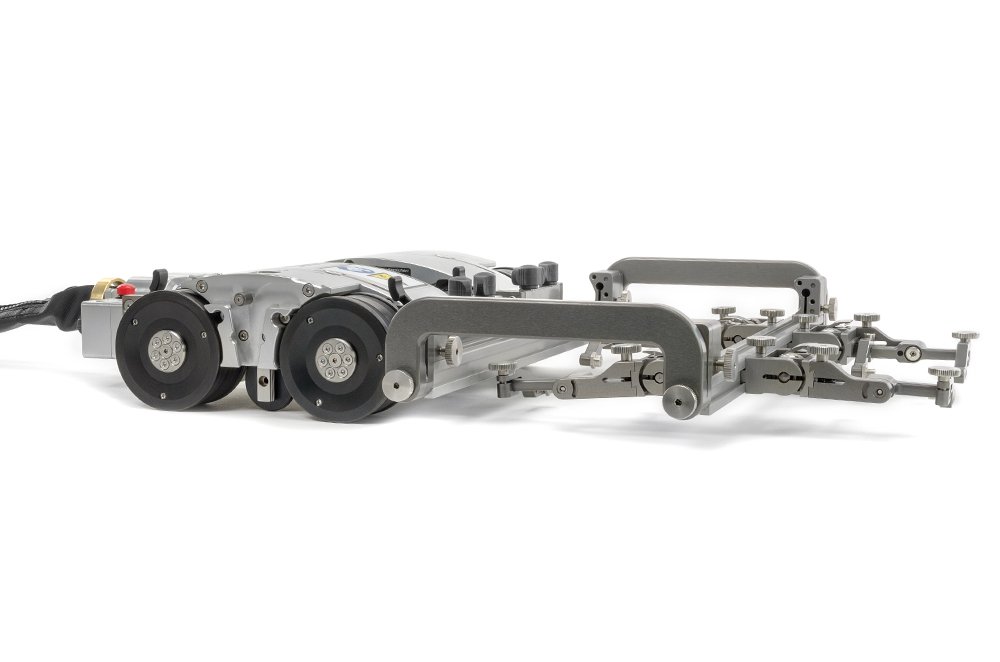

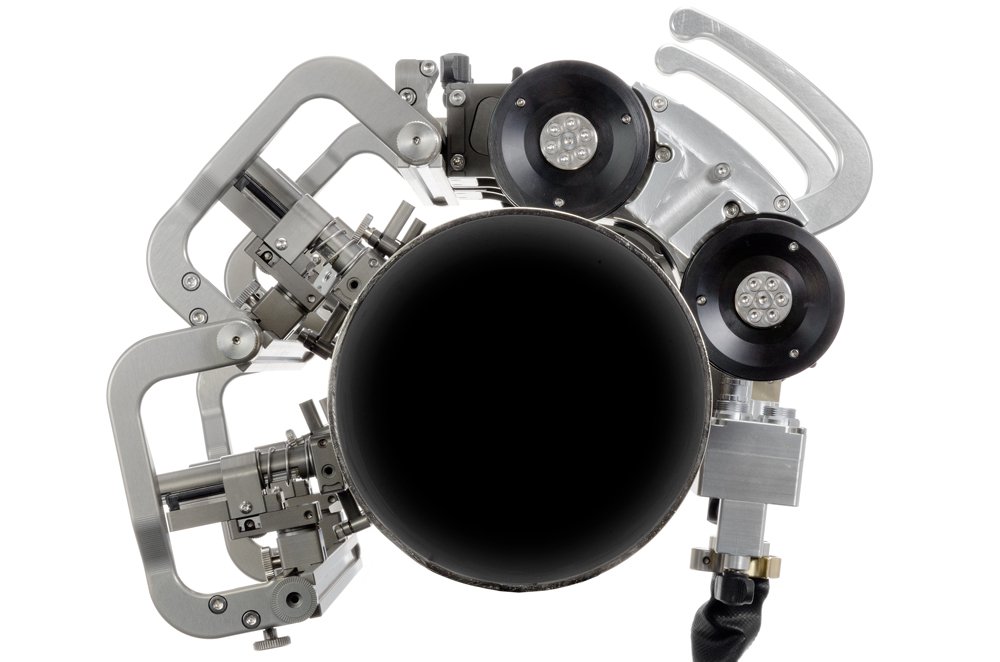

Various probe holder frame configurations allow for carrying between 2 and 6 probes during weld inspection.

Modular

Increased capability with pod separation, multiple encoders, accessory mounts and a handheld controller.

Many Accessories

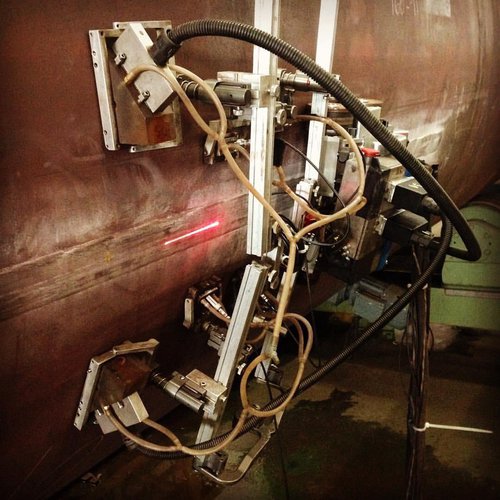

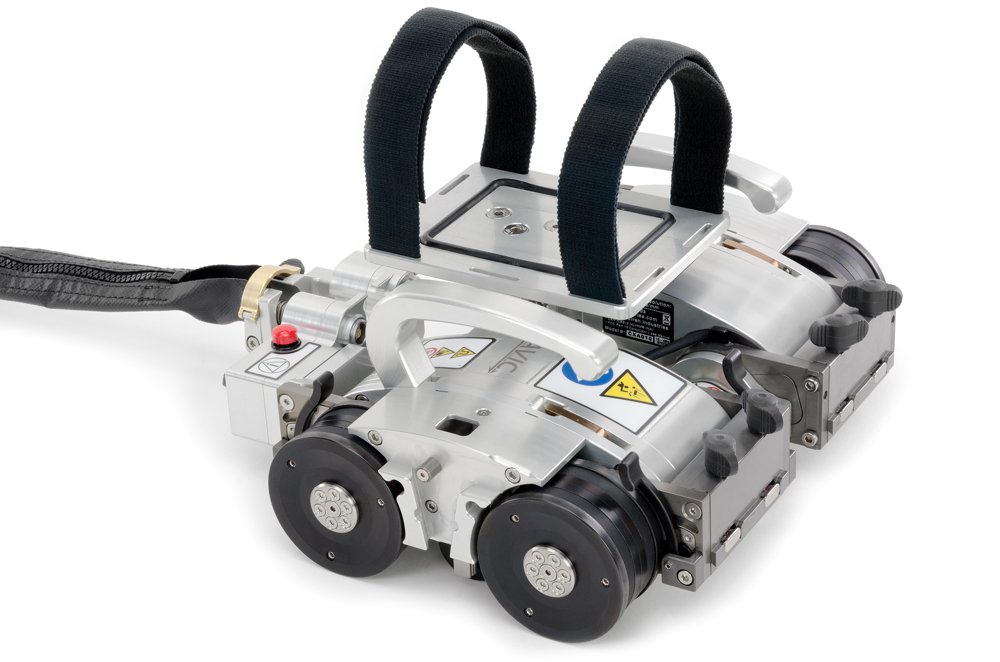

Enhance the NAVIC's capability with optional accessories: battery powered laser guide, onboard camera, backpack, cable management, crawler removal system and motorized couplant pump.

Magnetic Wheels

Magnetic wheels provide the foundation for scan operations on ferrous surfaces

Low Profile Design

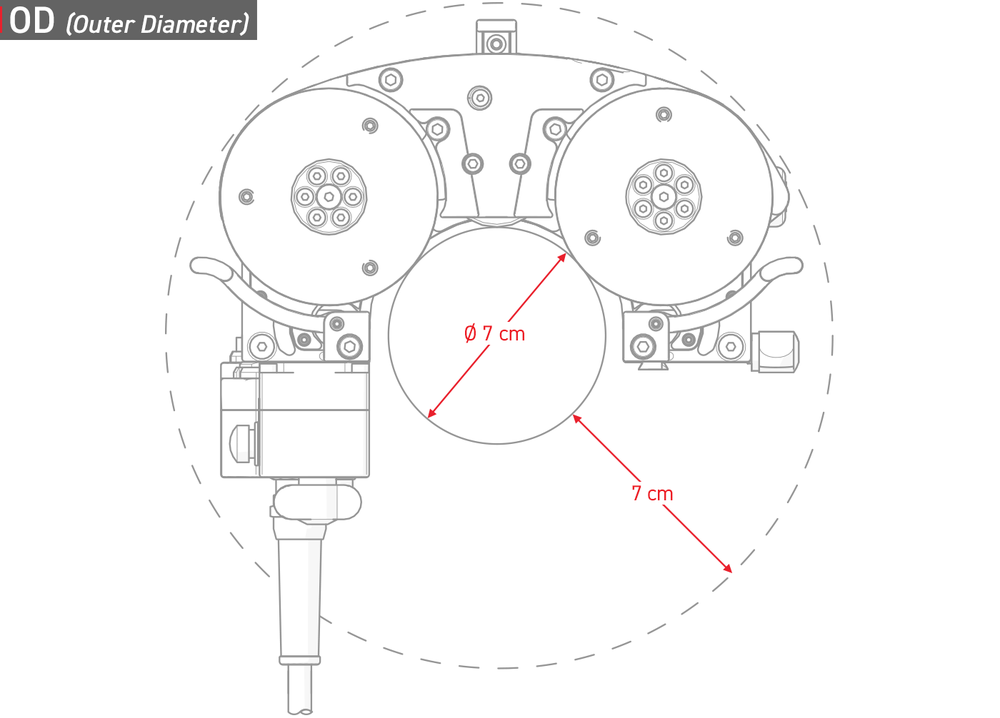

The NAVIC can circumnavigate pipes as small as 7 cm (2.75 in) OD while only requiring 7 cm (2.75 in) of radial clearance when low profile scanning is required.

Remote Control

Program scan and raster paths from up to 30 m (100 ft) away using the intuitive handheld remote control. The ergonomic handheld controller includes programming of raster patterns, drive paths and system diagnostics.

Warranty

JIREH backs the NAVIC system with a limited 3-year warranty.

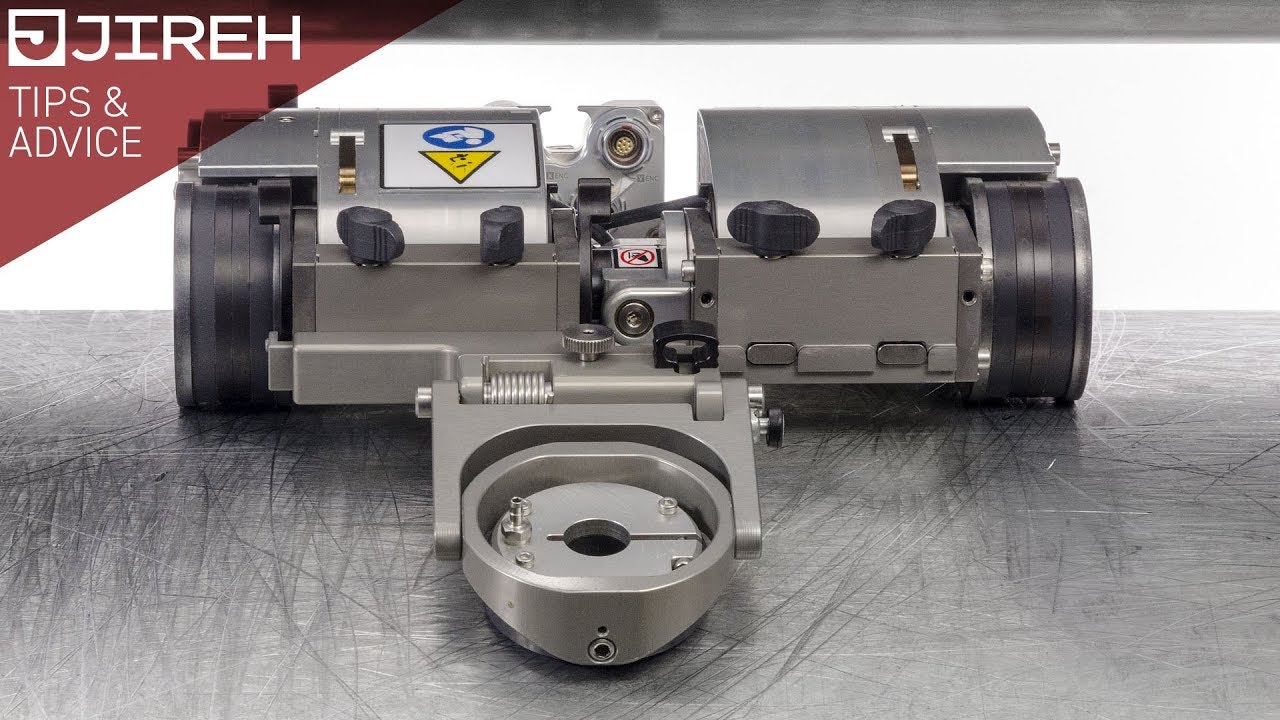

Video Highlights

Component Identification

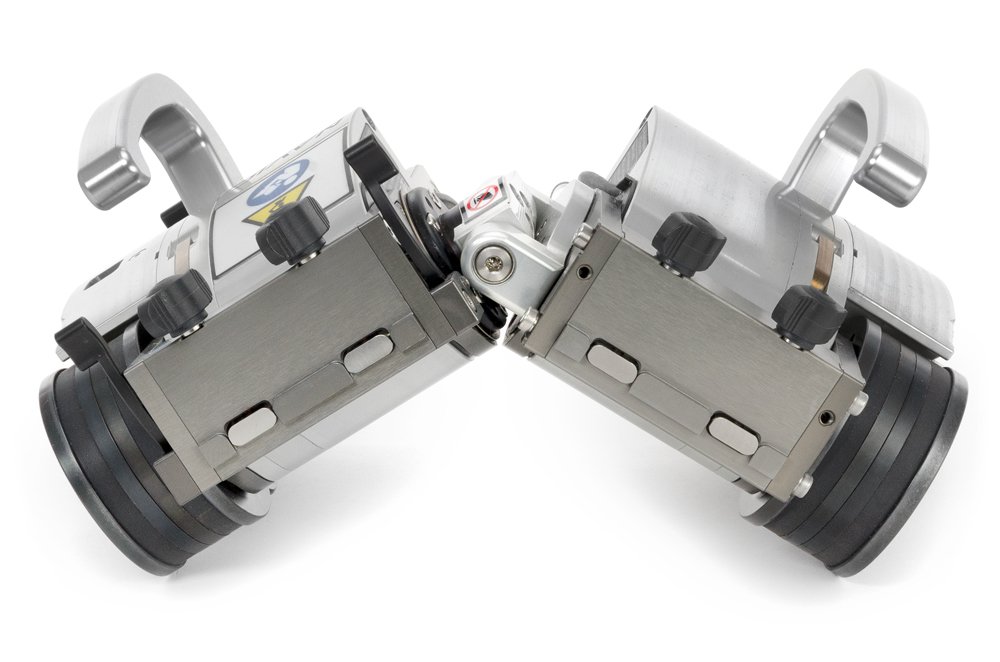

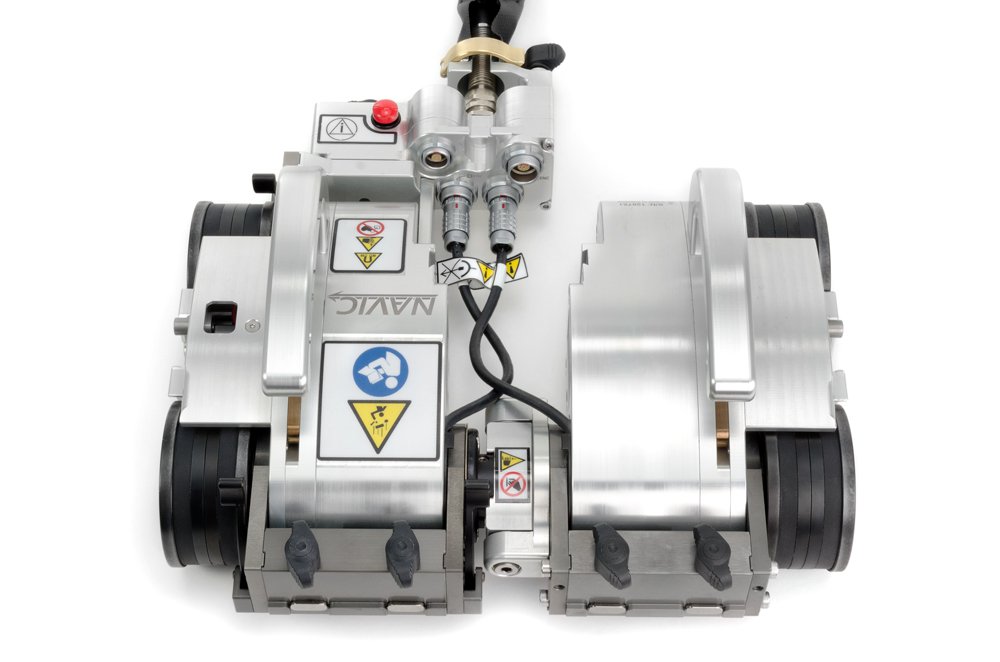

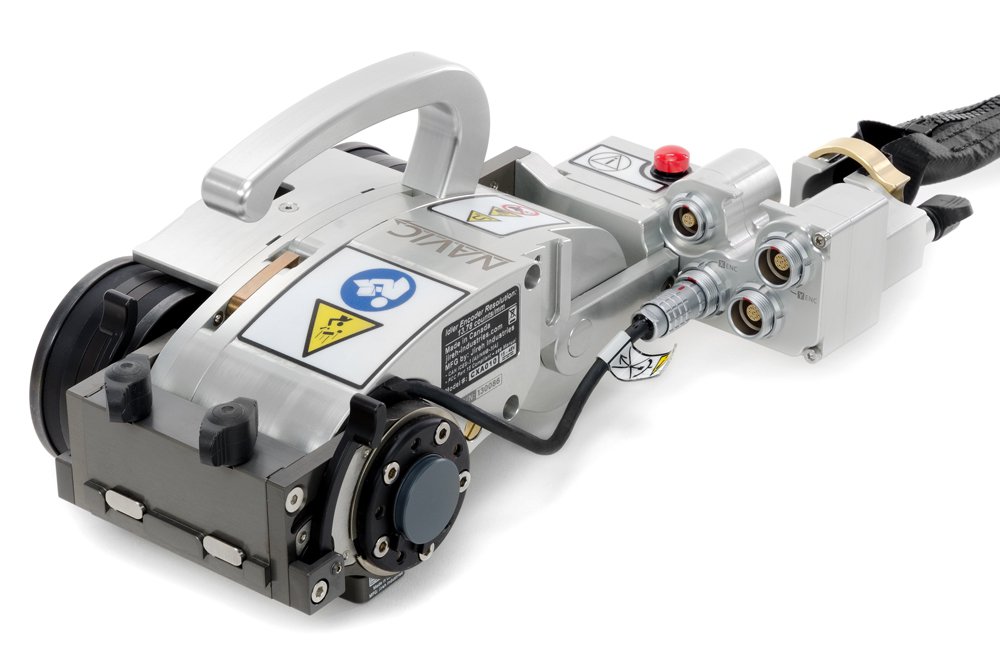

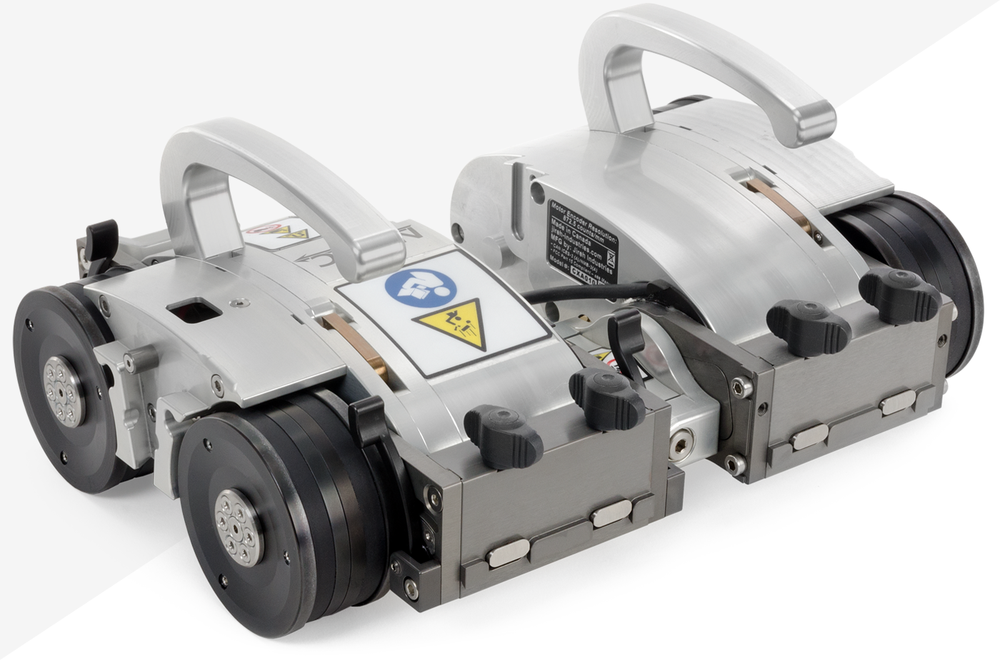

Base Crawler

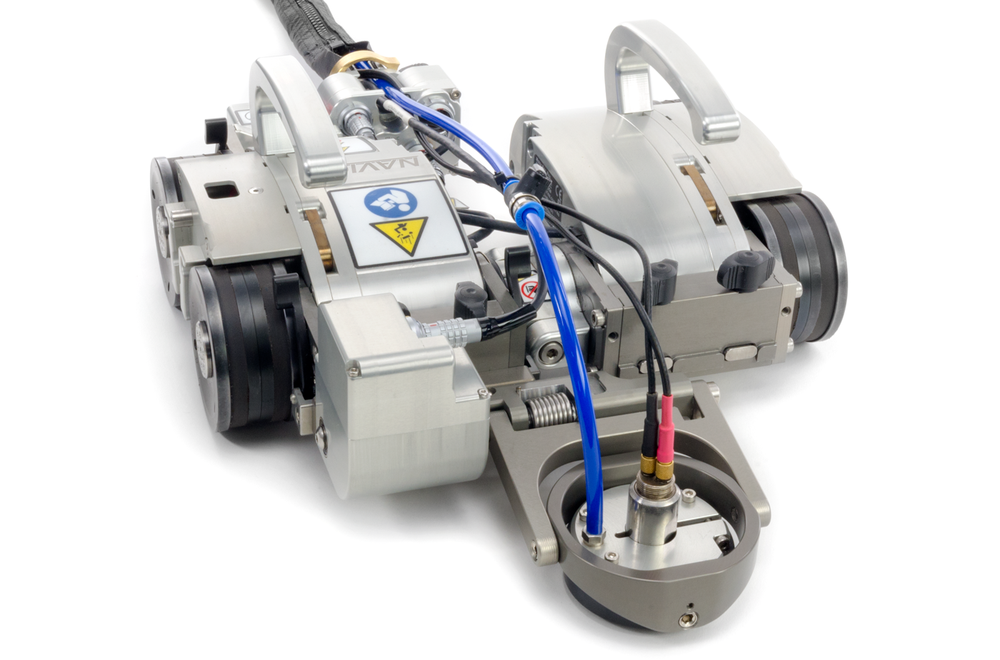

The powerful base crawler carries probe holder frames, raster arms and a multitude of accessories for the purposes of weld and corrosion inspection.

Integrated encoder

A spring-loaded encoder maintains surface contact on all various scan surface diameters.

Magnetic Wheels

Powerful magnetic wheels ensure the crawler remains fixed to any ferrous surface.

Power Controller

Compatible with both North American and European power sources, the power controller connects the user instrument and handheld controller to the base crawler.

Umbilical

The backbone of communication between the power controller and the base crawler.

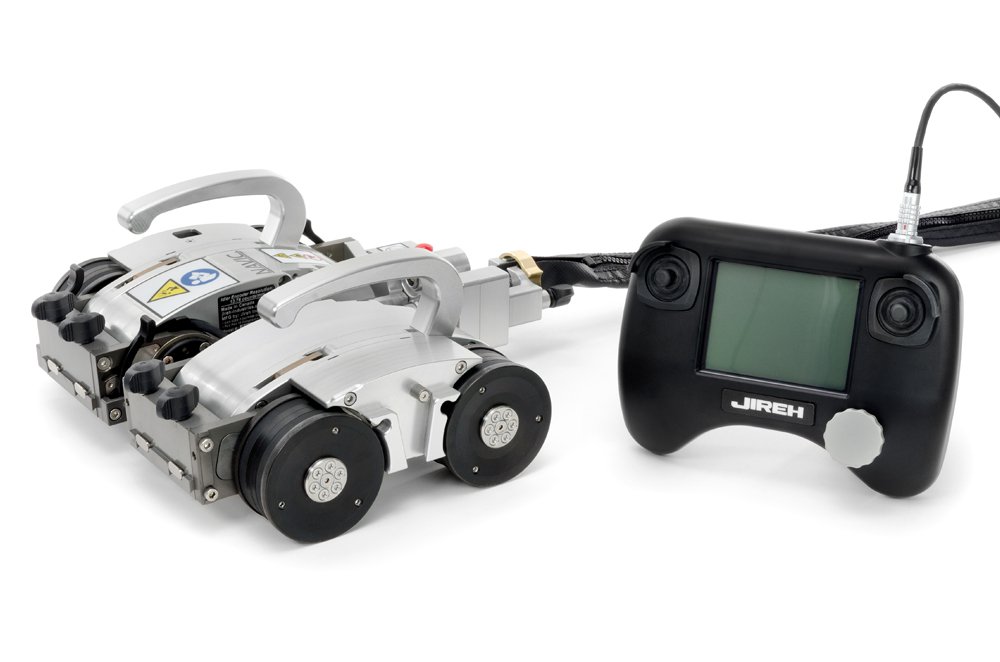

Handheld Controller

Containing the NAVIC operating system, the handheld controller joysticks control speed and steering of the base crawler while the intuitive touchscreen allows for more intricate raster path and drive programming.

Kit Contents

SCANNER

NAVIC base crawler

PARTS & ACCESSORIES

Power controller (North American or European plug)
Umbilical, 5 m (15 ft), 10 m (30 ft), 15 m (50 ft) or 30 m (100 ft) lengths available
Handheld controller
Controller cable, 6 m (20 ft)
Cable management, threaded mount, (length dependent on umbilical length)
J300 encoder cable, 5 m (15 ft)
Installation/Removal mat
6 mm ID irrigation kit (7/16 in quick connect)

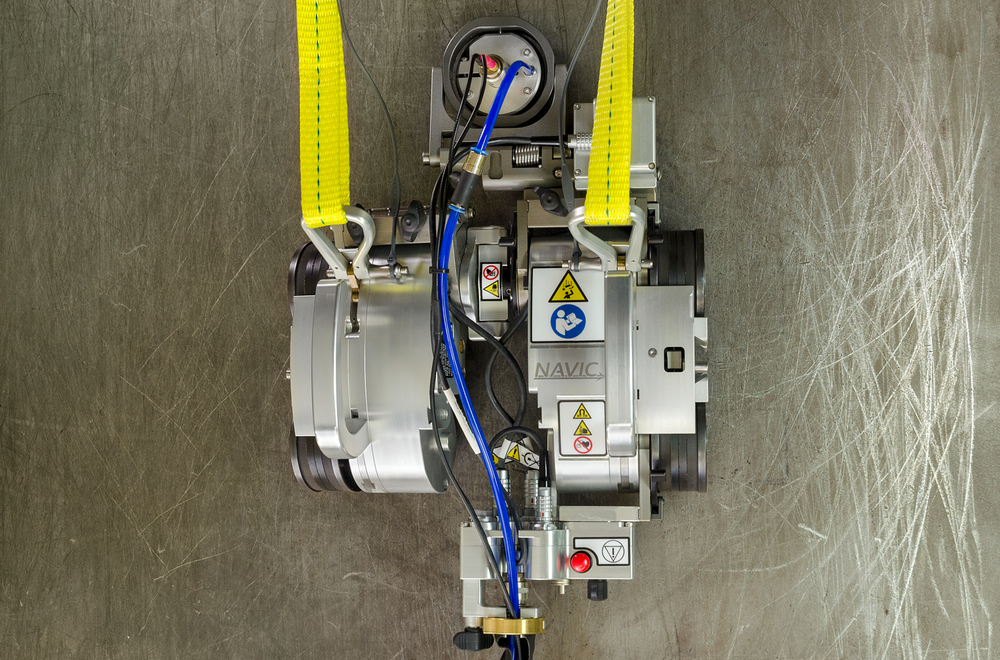

Lifting Sling (safety tether)
User manual
Cap (hinge covers) x2

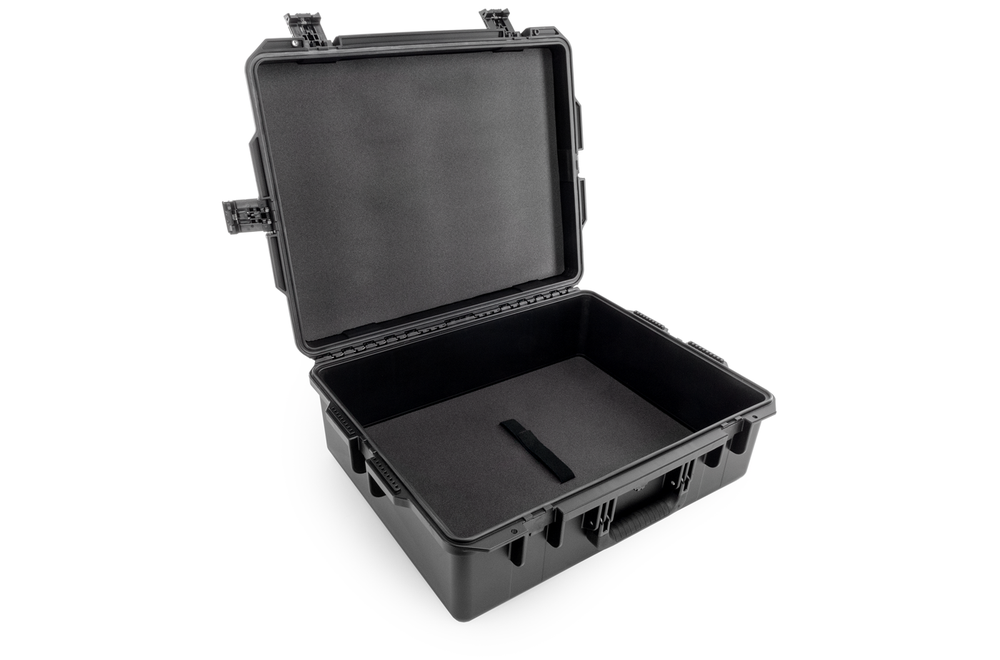

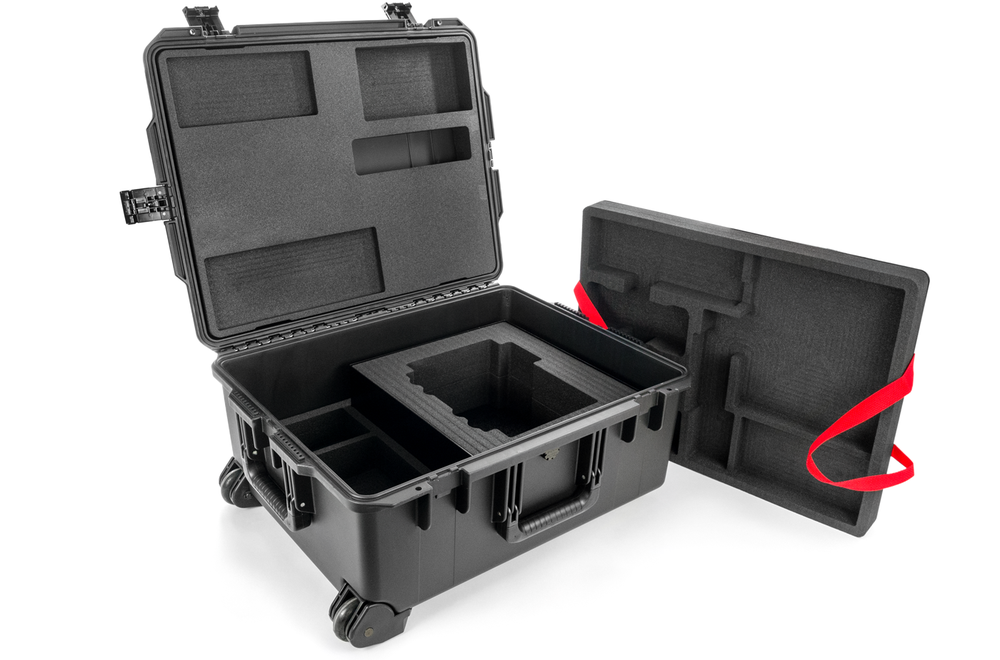

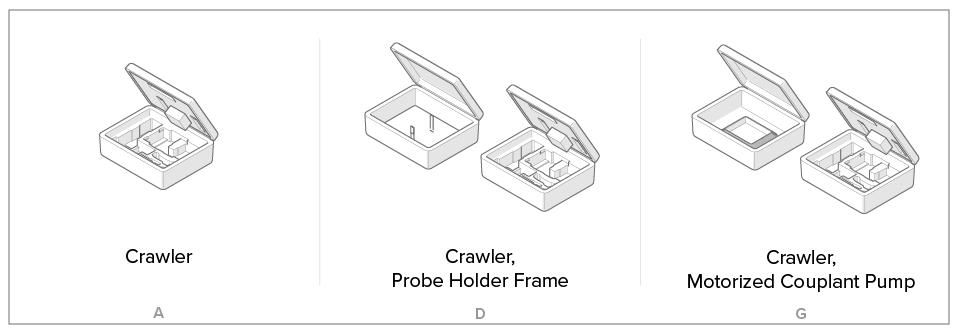

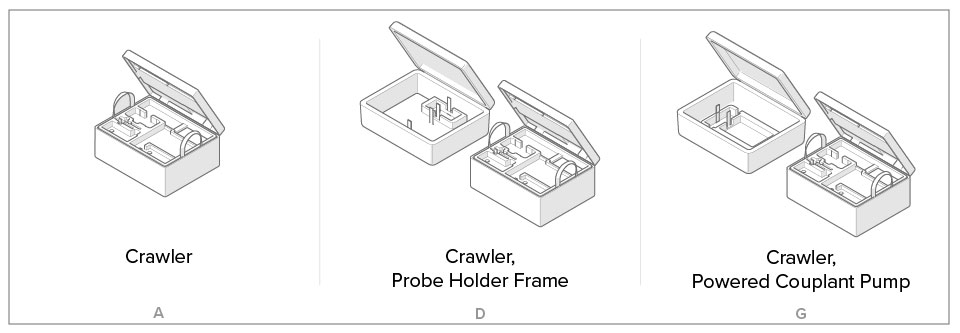

Rugged carrying cases (various types based on chosen accessories)  x2 – x3



TOOLS

3 mm hex driver
3 mm flat driver
Wrench for pivot button adjustment







Parts & Add-Ons

Specifications

Path 2 CopyPath 2 Copy

GENERAL

Idler Encoder (Right Module): 13.78 counts/mm (349.9 counts/inch)
Motor Encoder (Left Module): 872.5 counts/mm (22162.8 counts/inch)
Crawler’s Vertical Payload: 10 kg (22 lb)1
Driving Speed: Variable 0 – 25 cm/sec (0 – 10 in/sec)
Power Requirements: 100-240VAC, 50/60Hz, 3.5 Amps
Umbilical Lengths: 5 m (15 ft), 10 m (30 ft), 15 m (50 ft) to 30 m (100 ft)2
Inspection Surface: Ferrous
Maximum Backpack payload: 1.36 kg (3 lb)3

PIPE RANGE

Pipe Range, Circumferential: 7 cm (2.75 in) to flat pipe

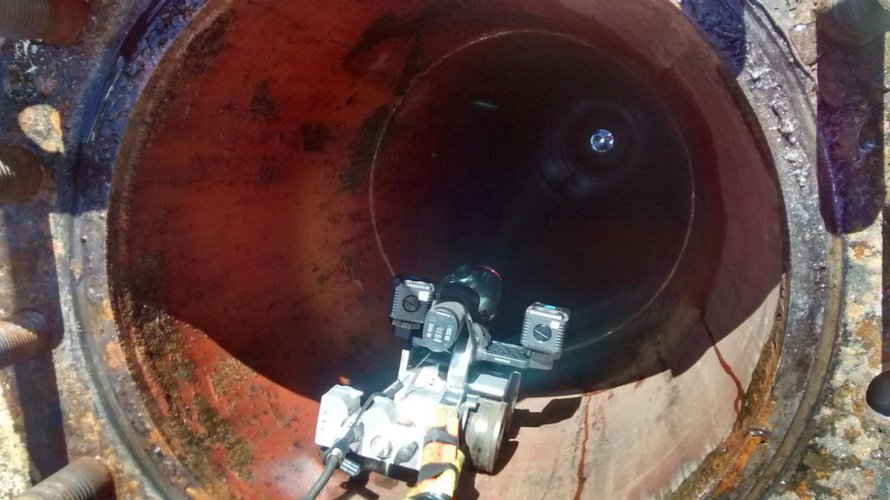

Range, Internal Circumferential: 61 cm (24 in) to flat

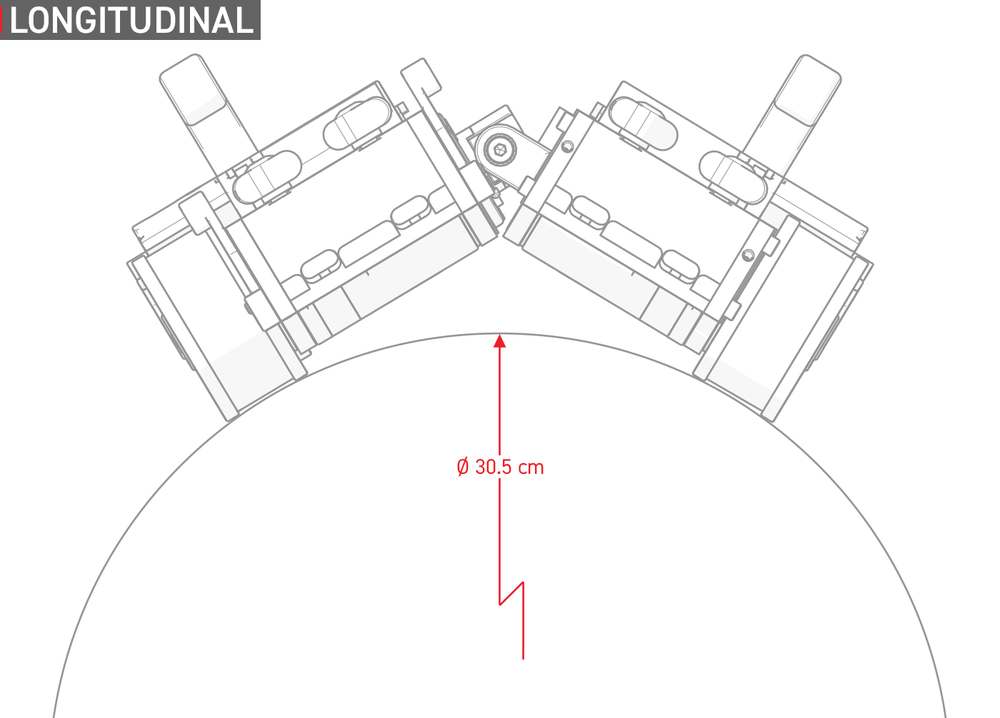

Pipe Range, Longitudinal: 30.5 cm (12 in) to flat

RADIAL CLEARANCE

Radial Clearance, Pipes under 20 cm (8 in): 7 cm (2.75 in)4
Radial Clearance, Pipes over 20 cm (8 in): 8.15 cm (3.2 in)4

REGULATIONS

CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.5
FCC: Compliance with Part 15 of FCC rules.5
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.5

SIZE & WEIGHT

Base Crawler Height (including handles): 12.5 cm (4.9 in)
Base Crawler Height (handles removed): 8.1 cm (3.2 in)

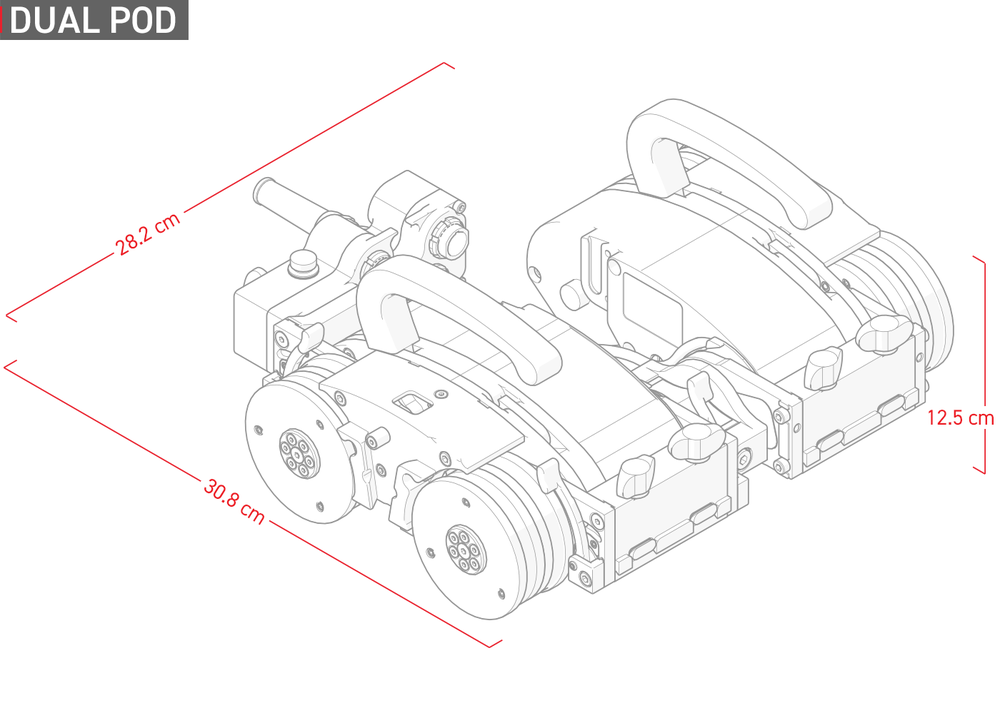

Base Crawler Width (Dual Pod): 28.2 cm (11.1 in)
Base Crawler Length: 30.8 cm (12.1 in)6

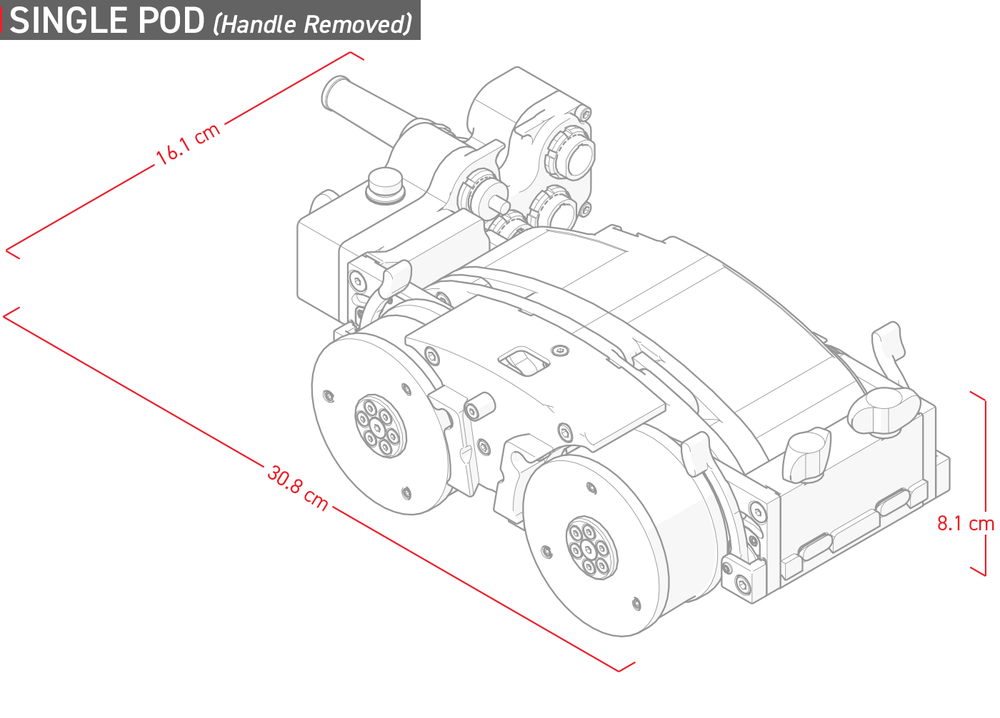

Base Crawler Width (Single Pod): 16.1 cm (6.3 in)
Base Crawler Weight: 7.7 kg (17 lb)7

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
Maximum Inspection Surface Temperature: 150°C (302°F)8

PHASED ARRAY PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 10.5 mm (0.41 in)
Maximum Wedge Width: 48.3 mm (1.9 in)9

TOFD PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 10.5 mm (0.41 in)
Maximum Wedge Width: 33.3 mm (1.3 in)9

HEAVY DUTY VERTICAL PROBE HOLDER SPECIFICATIONS

Standard Width: 17.4 mm (0.69 in) – 55 mm (2.17 in)
Standard Length: 63.5 mm (2.5 in)

Wide Width: 17.4 mm (0.69 in) – 93.8 mm (3.69 in)
Wide Length: 63.5 mm (2.5 in)

Probe Holder Pivot Buttons

01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)

Power Cords

Path 2 CopyPath 2 Copy

Power Requirements

100-240VAC, 50/60Hz, 3.5 Amps



Plug Designation

North America
NEMA 5-15P

Europe
CEE7/7

UK
BS1363A

  1. Performance may vary with surface type. Heavy payloads may require reduced speeds.
  2. Custom umbilical lengths are available.
  3. The backpack is not compatible with older generation NAVIC crawlers.
  4. Handles removed.
  5. For a complete description of regulatory certifications, please contact Jireh Industries.
  6. Length of the unit includes umbilical strain relief.
  7. Crawler weight excludes umbilical.
  8. The automated crawler medium temperature add-on kit is required when the inspection surface temperature measures between 50°C (122°F) and 150°C (302°F).
  9. Some arms styles may provide additional maximum wedge width. Contact Jireh Industries for details.
    Technical specifications subject to change.
