Cameras
(The TERAX features an integrated umbilical, eliminating the need for a separate camera cable to run alongside the crawler umbilical.)
High Definition Visual Inspection

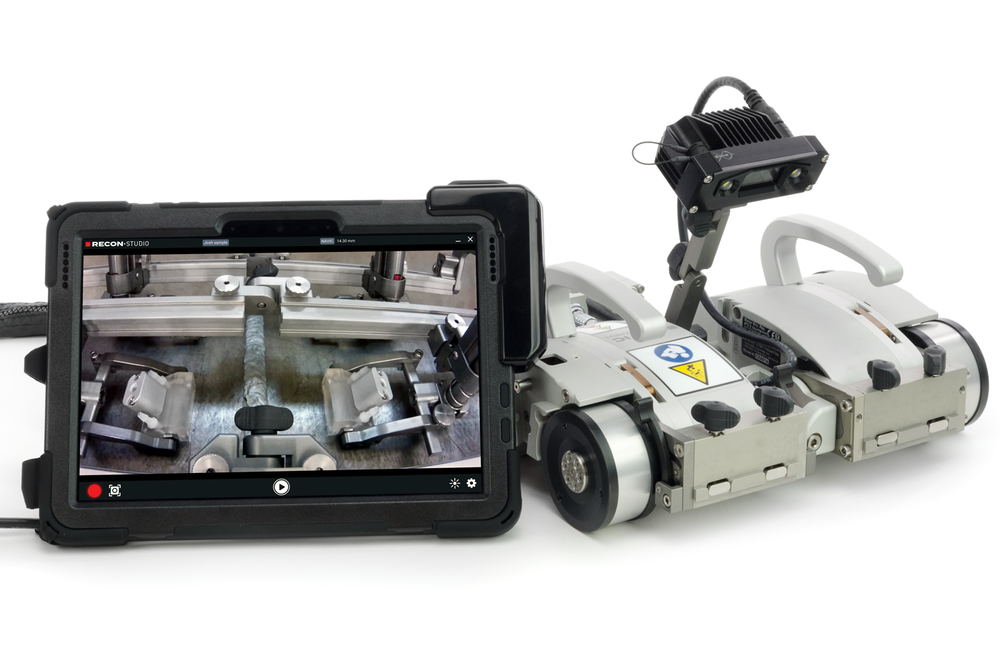

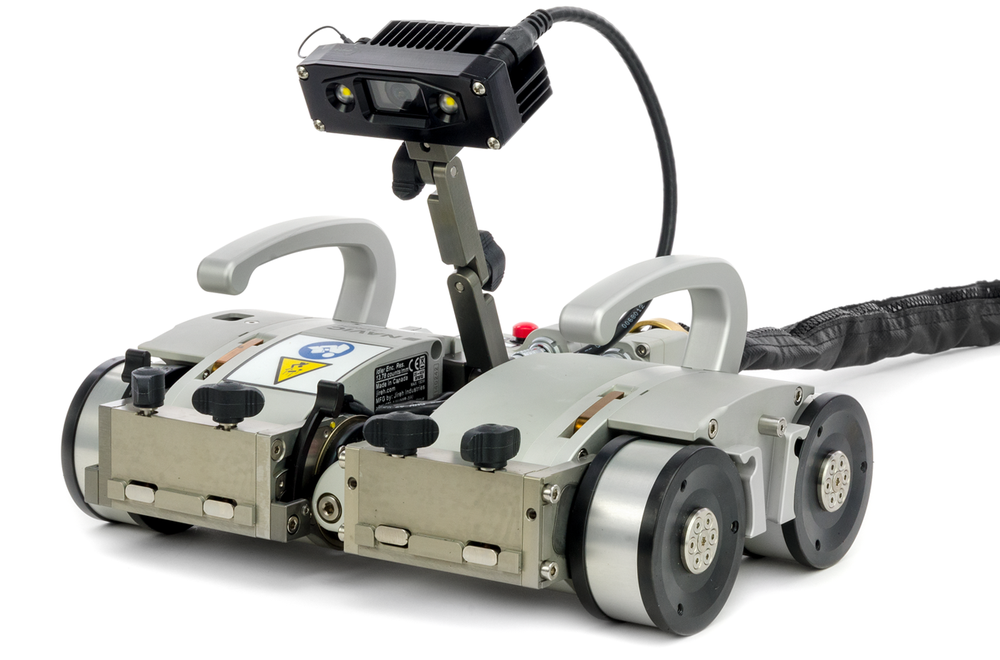

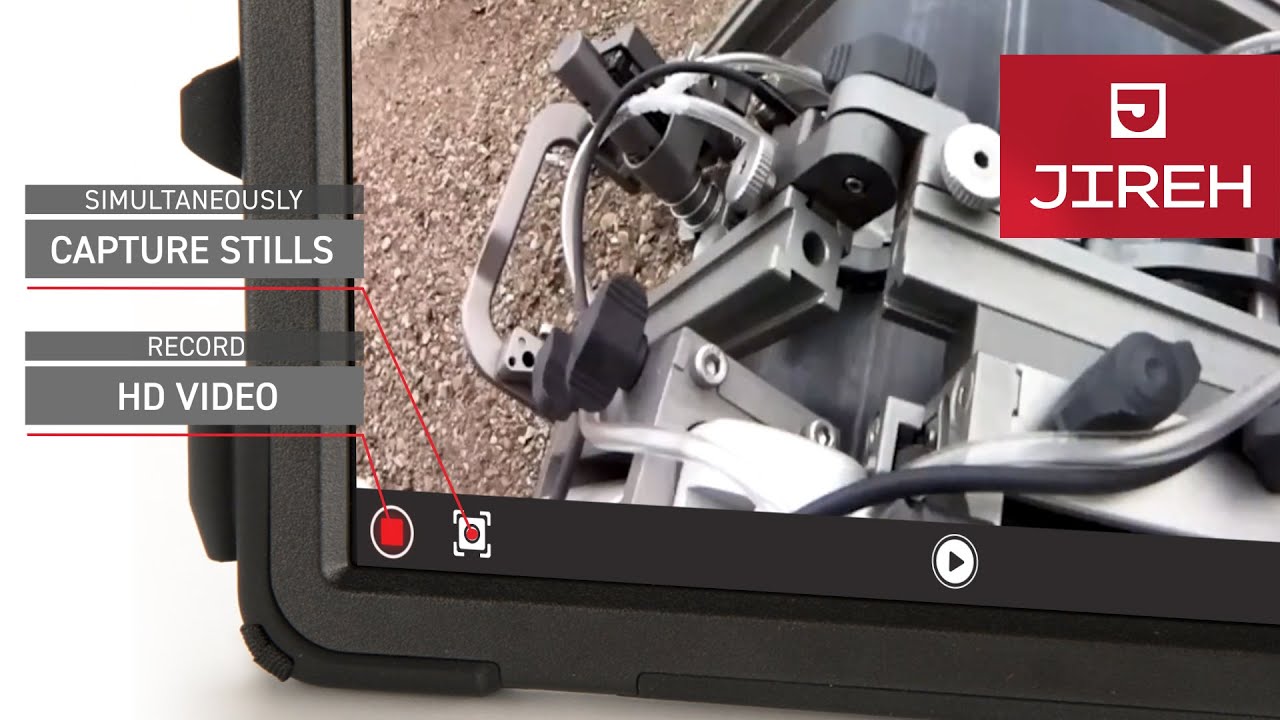

Bring video capabilities to the NAVIC, SKOOT, MOTIX, TRIPOD and TERAX with the RECON - Fixed Camera Kit. Monitor your crawler with real-time HD video, record inspections for later review, catalogue, and share notable clips. All this and more are made possible with the included RECON • Studio software.

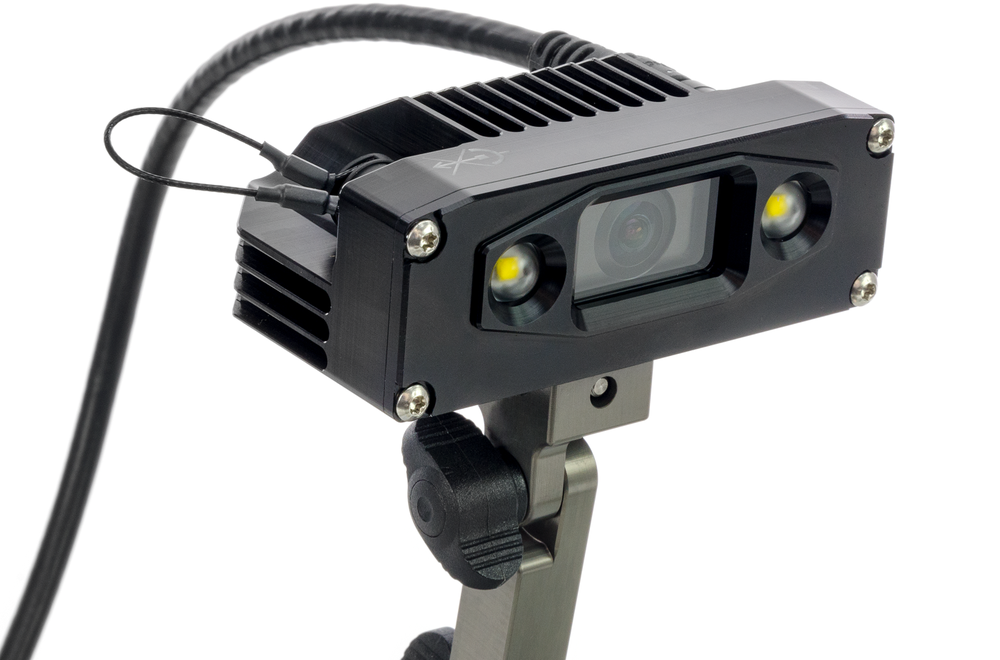

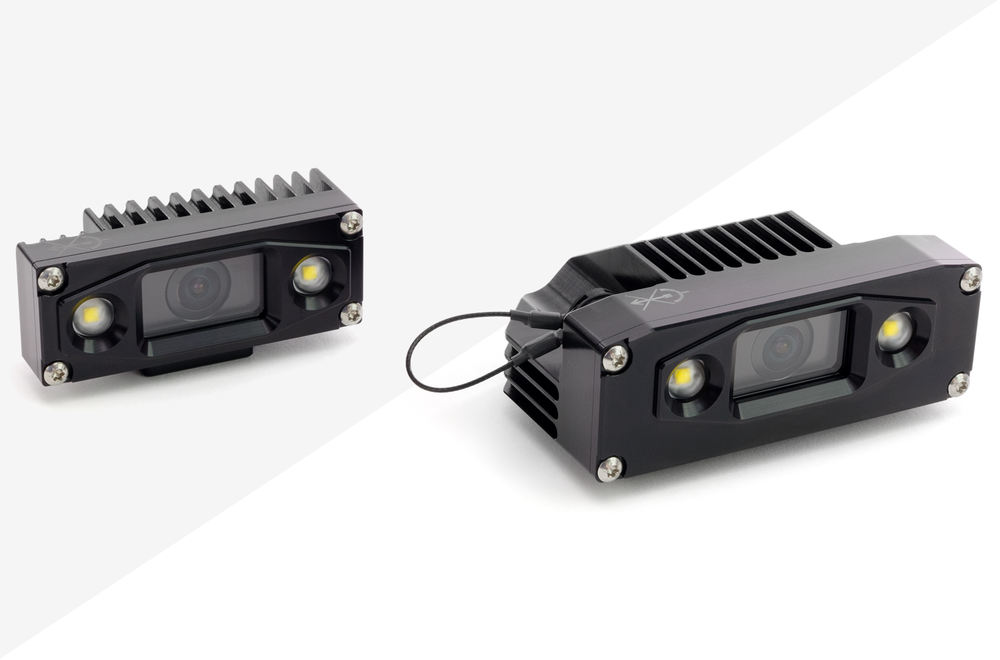

The camera captures video in 1080p high definition at 30 fps. Capture high-quality still images while the camera is recording video using the included RECON • Studio software. The cameras have very low latency, meaning virtually no video recording or viewing delays. (no audio)

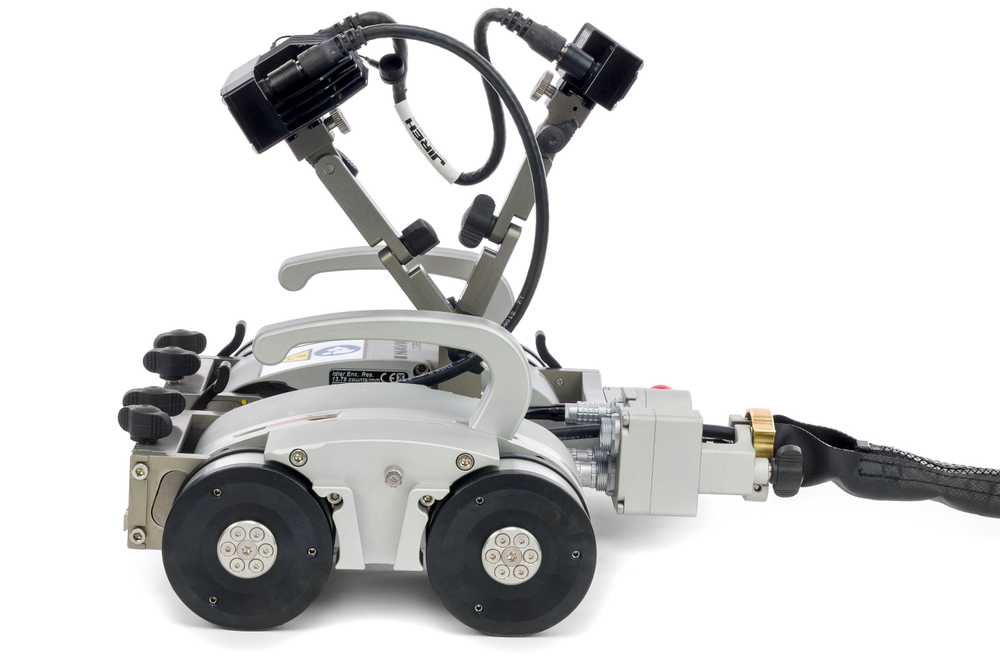

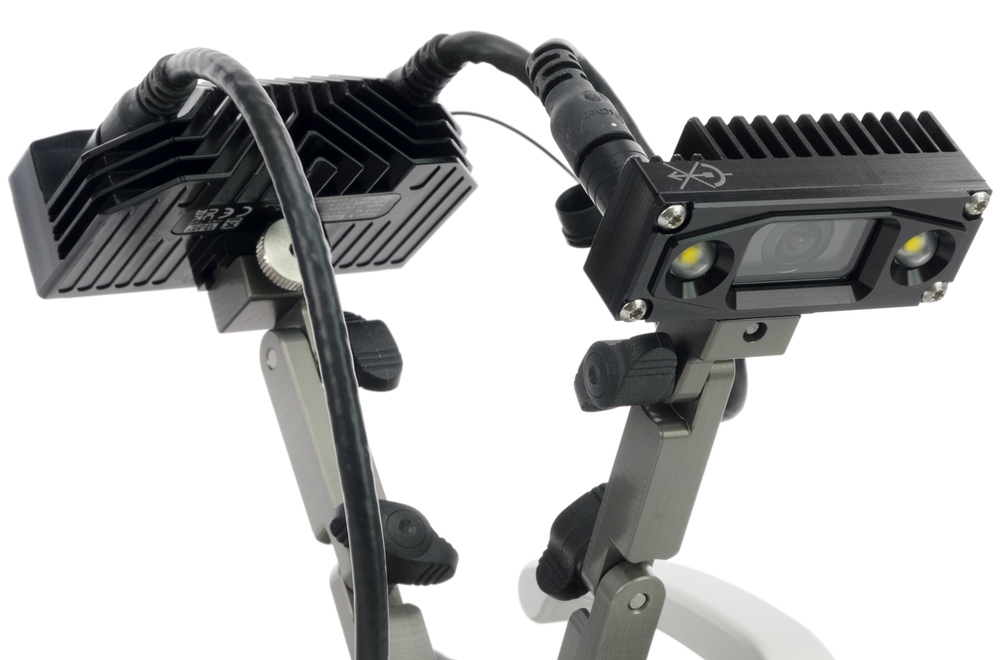

The satellite camera provides a 2nd viewing angle when required. Capable of recording 1080p HD video and capturing high-quality stills, the satellite camera can be viewed simultaneously using the RECON • Studio software. (no audio)

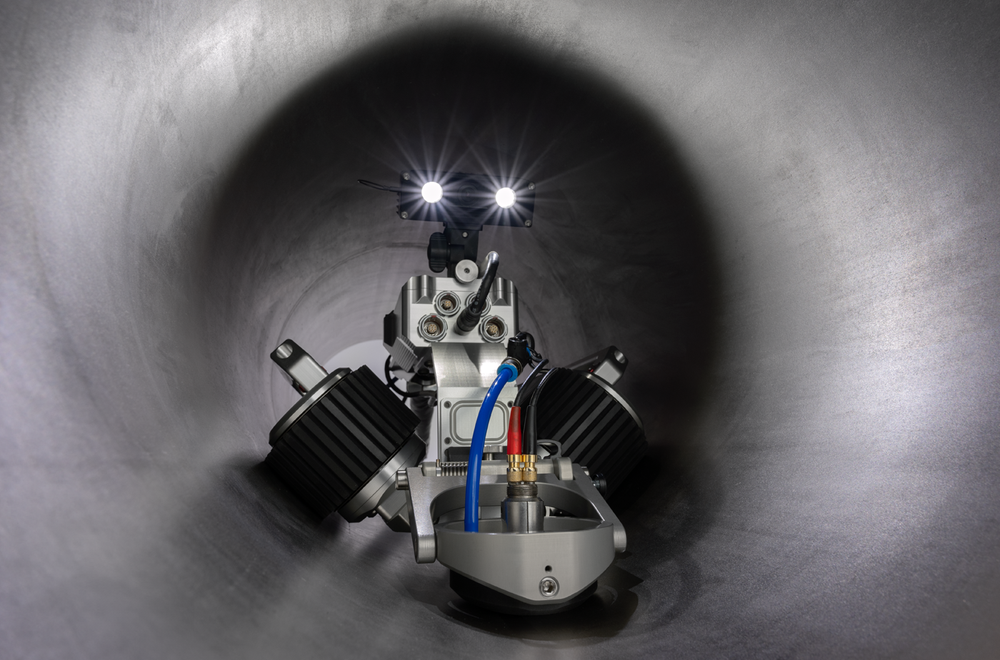

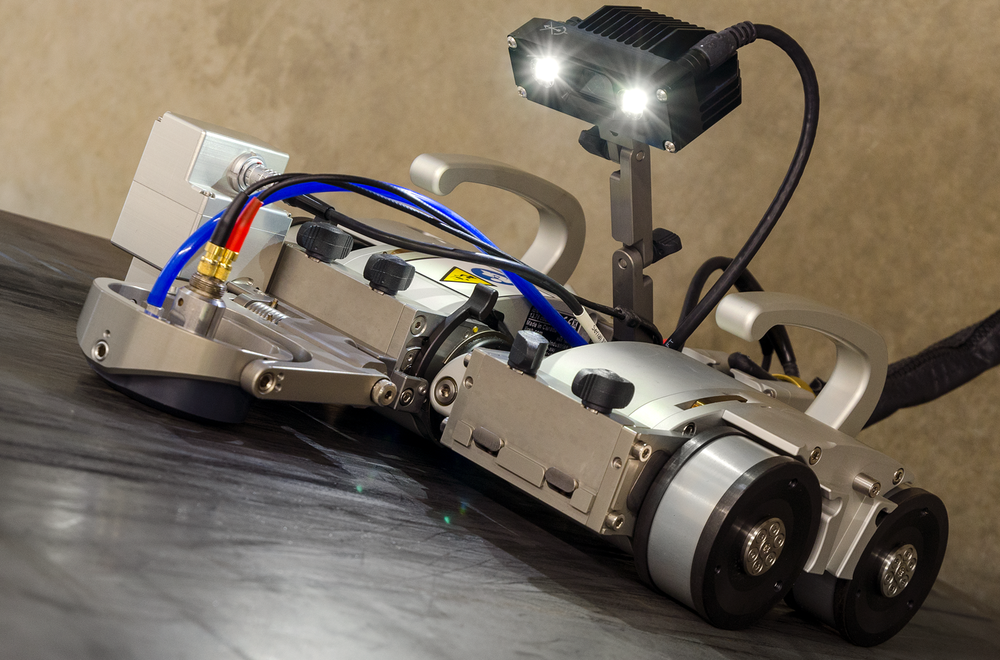

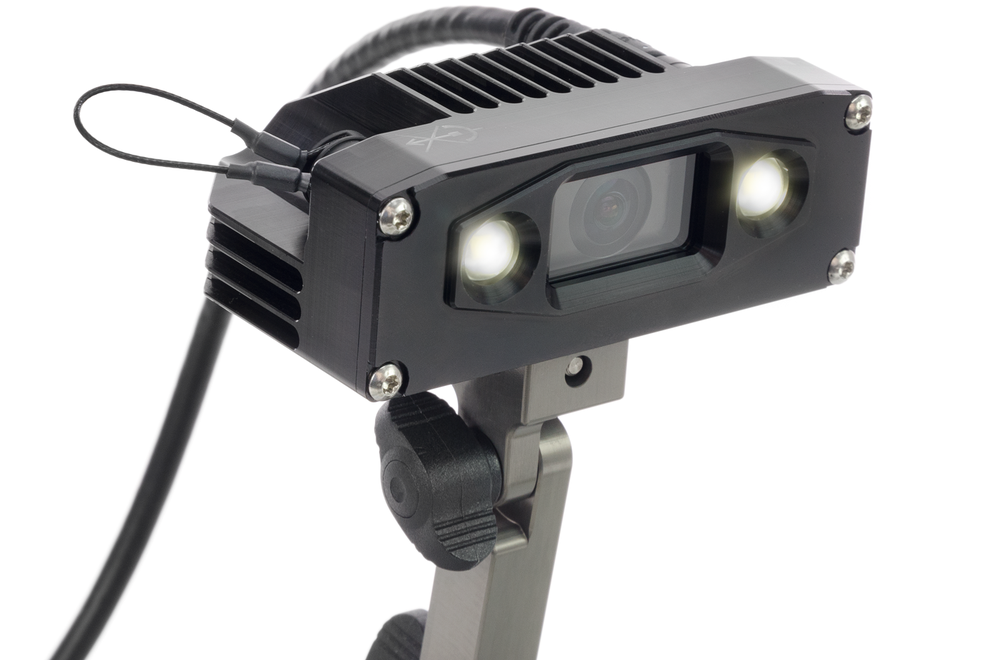

LED lights are built into the cameras to illuminate the foreground. The brightness of the LEDs may be adjusted using the RECON • Studio software.
This powerful video software offers many features.
These are just a few of the capabilities of the RECON • Studio software.
Point the camera where you want using the adjustable camera bracket. Single or dual camera brackets are included with the system, and you can mount the camera quickly and easily to the crawler.
Drive the crawler up to 30 m (98.4 ft) while maintaining clear video monitoring and control.
The tablet comes with a protective cover, a convenient stand, and a hand strap. The tablet also has clips to attach a neck strap to prevent drops and help hold the tablet. The HD view screen is visible in direct sunlight.
Imagine the power to drive, steer, and monitor your TERAX vehicle remotely in real time. That's precisely what you can do with the RECON. The TERAX features an integrated umbilical, eliminating the need to run a separate camera cable alongside the crawler umbilical.
Enhance your TRIPOD inspection system with the RECON camera kit. Designed to integrate with your existing crawler, RECON provides a clear, real-time view of the inspection area and crawler positioning, making navigation and inspections easier.

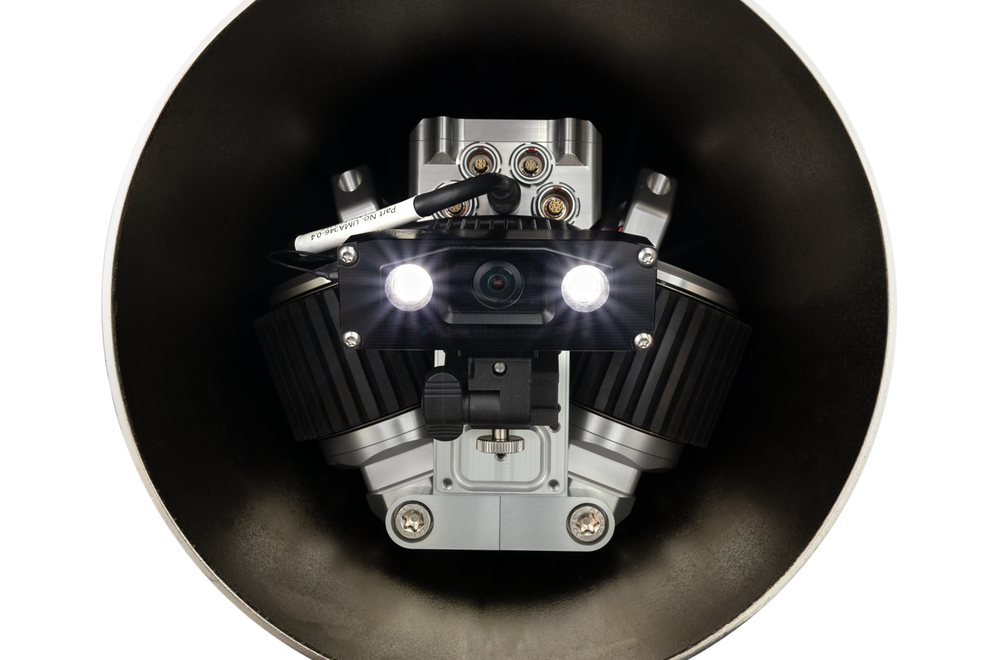

Brings unrivalled video capabilities to your NAVIC, allowing you to monitor your crawler in real time with high-definition video.
The RECON is backed by our industry-leading 3-year warranty.

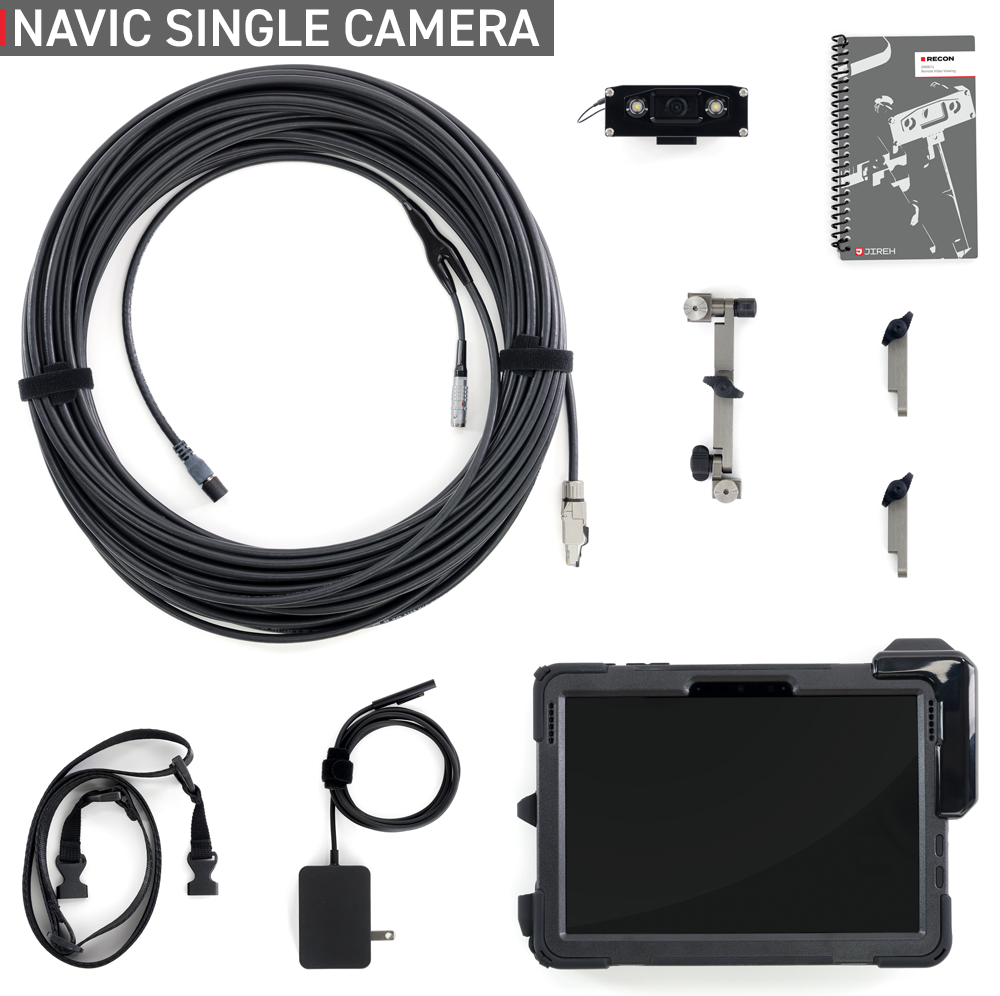

Camera
Camera bracket
Camera bracket, arm x2
Tablet
Tablet, power supply
Tablet, strap
Crawler-powered camera cable
User manual

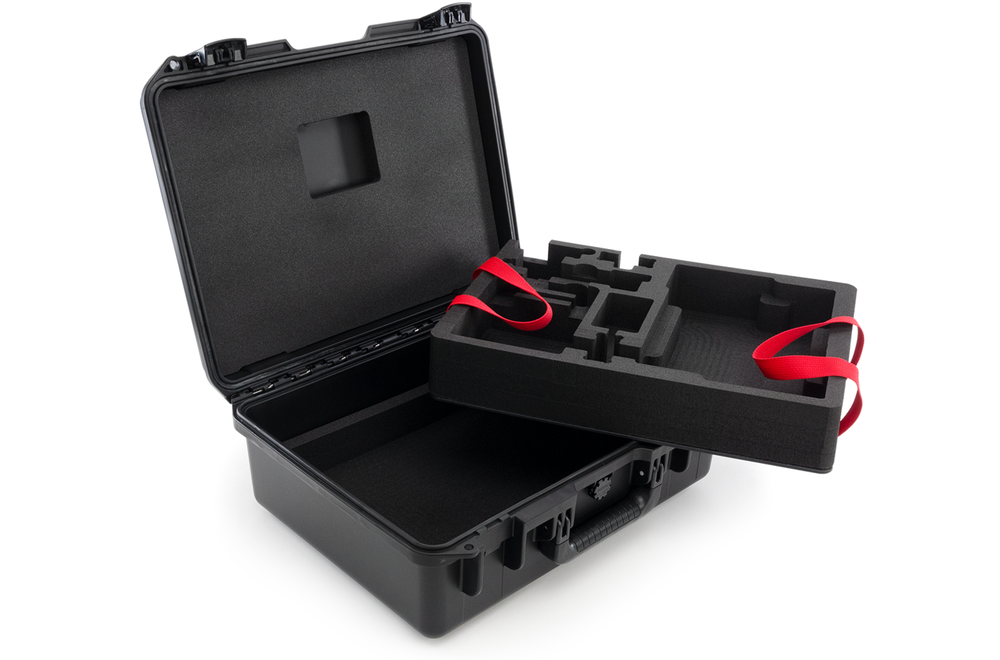

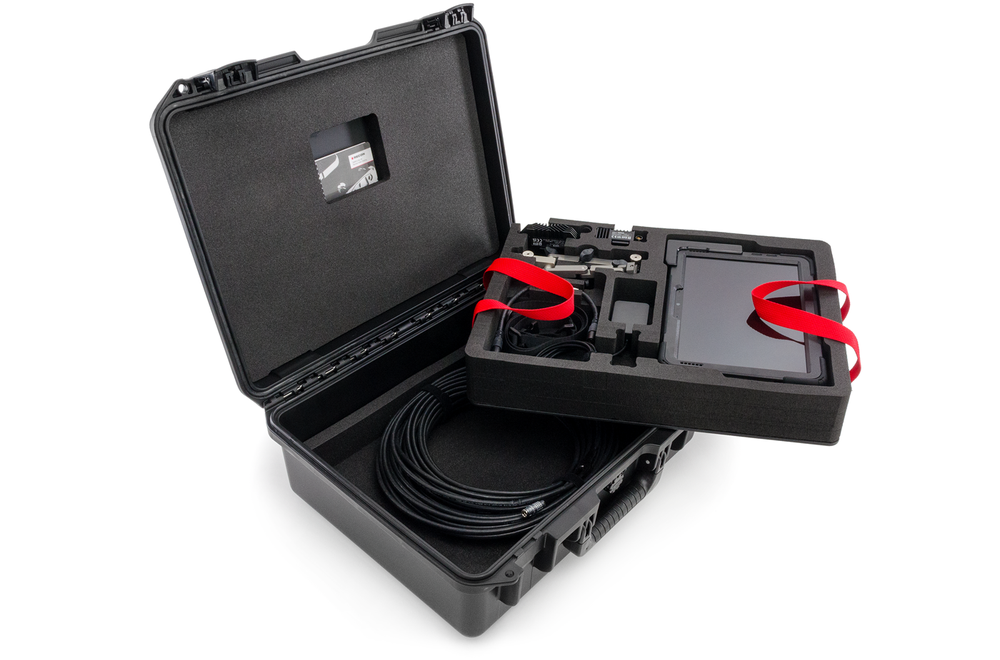

Rugged carrying case

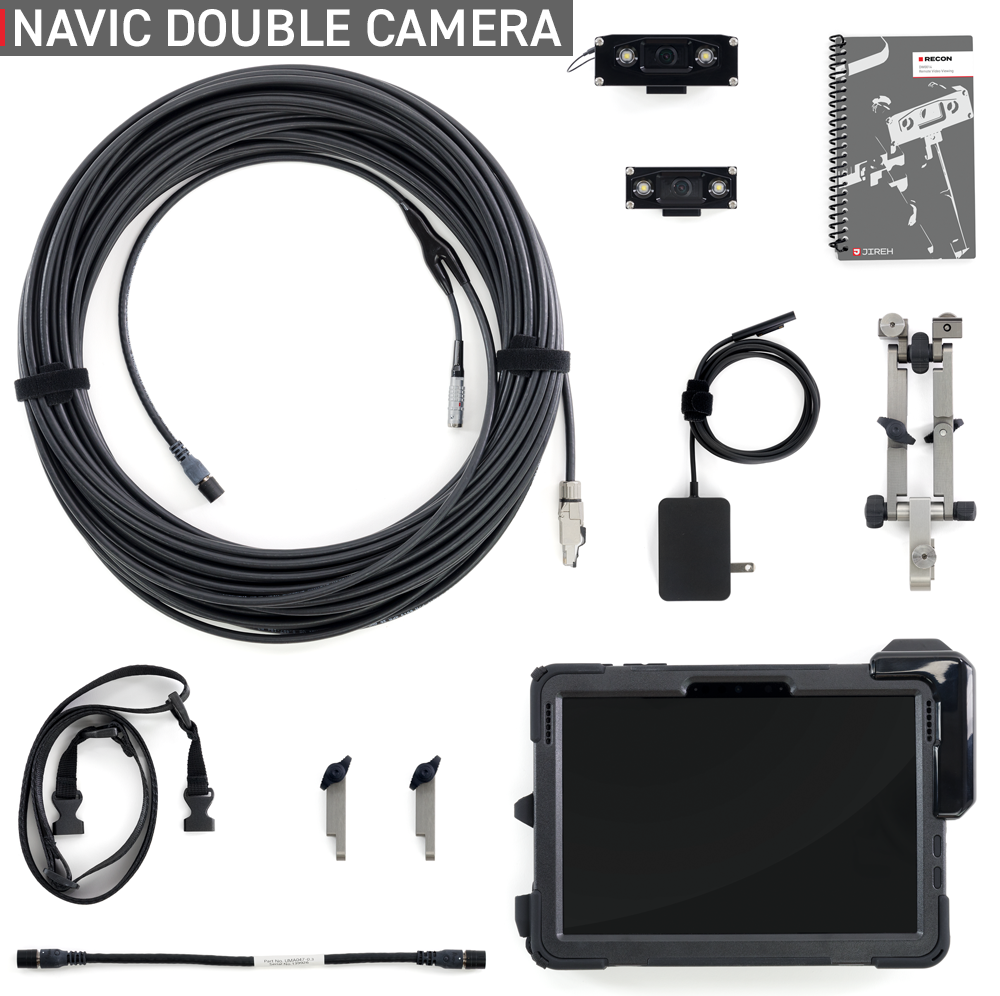

Camera
Satellite camera
Dual camera bracket
Camera bracket, arm x2
Tablet
Tablet, power supply
Tablet, strap
Crawler-powered camera cable
Satellite camera cable
User manual
Rugged carrying case
Camera
Short camera bracket
Tablet
Tablet, power supply
Tablet, strap
Camera cable
Ethernet cable
User manual
Rugged carrying case
Camera
Satellite camera
Dual camera bracket
Tablet
Tablet, power supply
Tablet, strap
Camera cable
Ethernet cable
User manual
Rugged carrying case
Resolution: 1080p
Frame Rate: 30 fps
LED lights: 800-lumen
Power: Supplied by crawler connection
Environmental Sealing: Dust-tight, watertight (not submersible)
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Software: RECON • Studio from JIREH
Operating System: Windows-based
Touchscreen: Yes
Connection to the camera: Wired ethernet
Dual camera support: Yes
Battery Life: Up to 10 hours of typical device usage
Power requirements
100–240 VAC, 50/60 Hz, 24 W power adapter
North America
Type A (2-prong)
Europe
European 2-pin
To download the various documentation for the system, click the appropriate link below.
(specifications are subject to change)
(The TERAX features an integrated umbilical, eliminating the need for a separate camera cable to run alongside the crawler umbilical.)
Choose the power cord plug designation to best suit your region's standard. Select 'No Cord' if you wish to build a specific power cord not listed here. Contact a JIREH sales specialist for more information.
