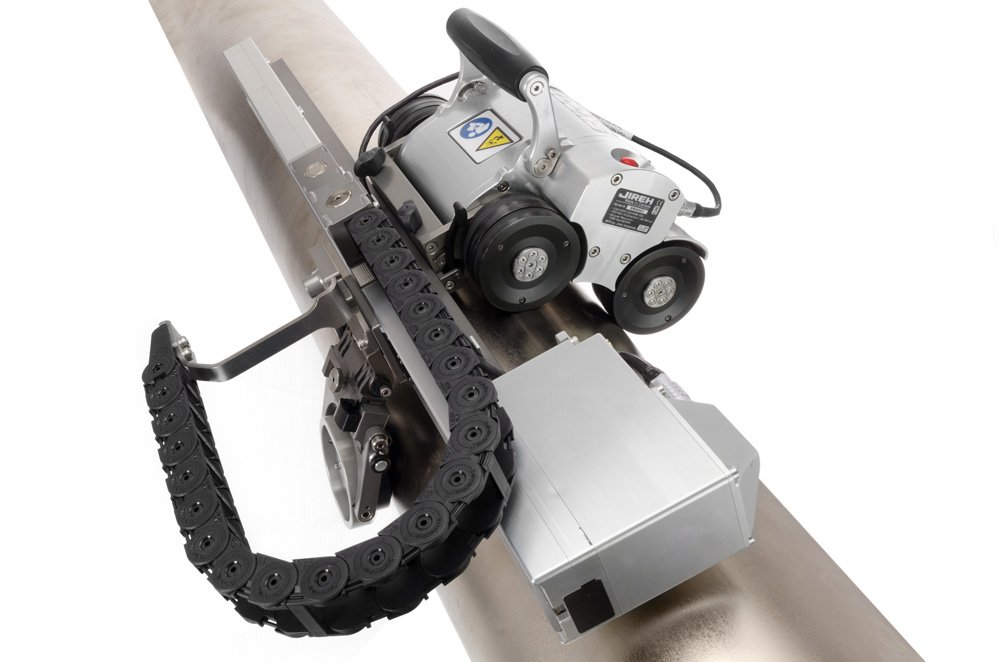

The Motorized Raster Arm adds two-axis automated scan capabilities to automated crawlers.

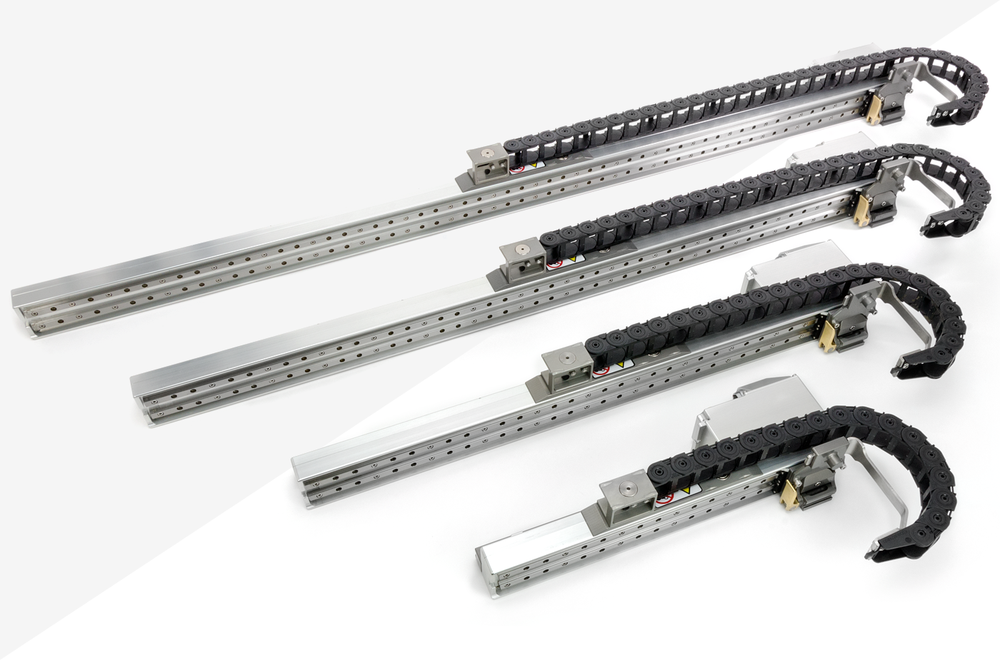

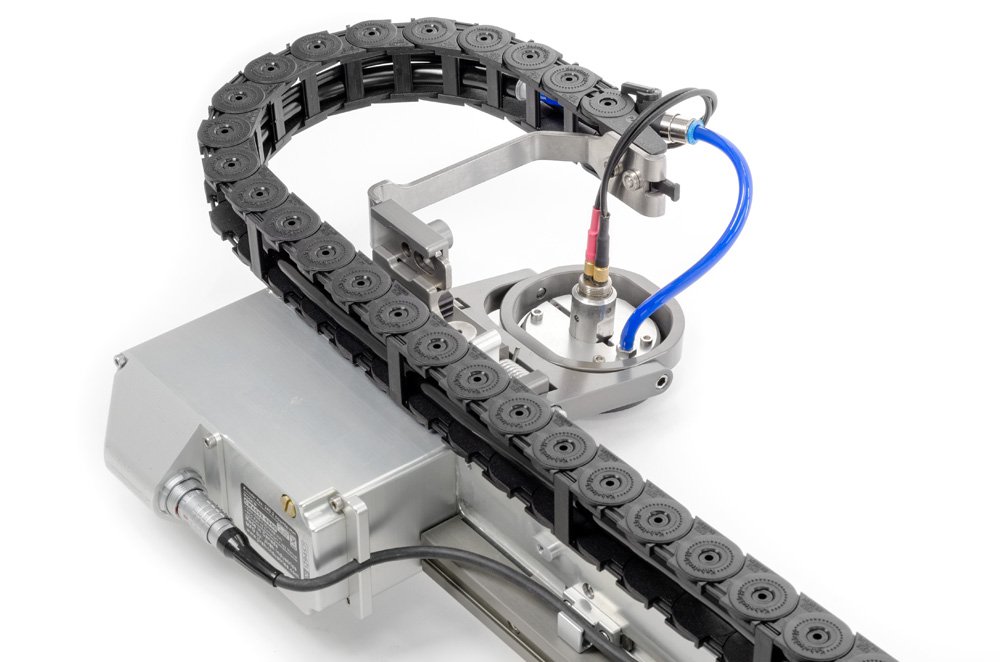

The Motorized Raster Arm, available 300 mm (12 in), 600 mm (24 in), 900 mm (36 in), and 1160 mm (46 in) lengths1, can carry many different probes for various types of corrosion scans, including conventional 0° transducers, phased array probes (HydroFORM, DLA/DMA, 5L64, etc.), and more.
The handheld controller included with the NAVIC and SKOOT is used to setup all parameters of the scan (speed, index, stroke, etc.).
Videos
Specifications
GENERAL
Raster Arm Module Encoder: 240.2 counts/mm (6101 counts/inch)
Raster Arm Module Speed: 0 - 76.2 cm/sec (0 - 30 in/sec)
STROKE
300 mm Raster Arm: 300 mm (11.8 in)
600 mm Raster Arm: 600 mm (23.6 in)
900 mm Raster Arm: 900 mm (35.4 in)
11600 mm Raster Arm: 11600 mm (45.7 in)
WEIGHT1
300 mm Raster Arm (12 in): 2.4 kg (5.3 lb)
600 mm Raster Arm (24 in): 3.33 kg (7.2 lb)
900 mm Raster Arm (35 in): 4 kg (8.7 lb)
1160 mm Raster Arm (45 in): 4.6 kg (10.2 lb)
- Some imperial measurements are approximate.
Parts & Add-Ons
Corrosion Thickness Probe Holder - Curved Wear Plate
Corrosion Thickness Probe Holder - Flat Wear Plate
Heavy Duty Vertical Probe Holder
HydroFORM Cart
Motor Pod Cable
Raster Arm Pivot Nose (Female)
