Probe Pivot Buttons
Various shapes and sizes of pivot button are available. Choose the pivot button that matches the wedge you will use.

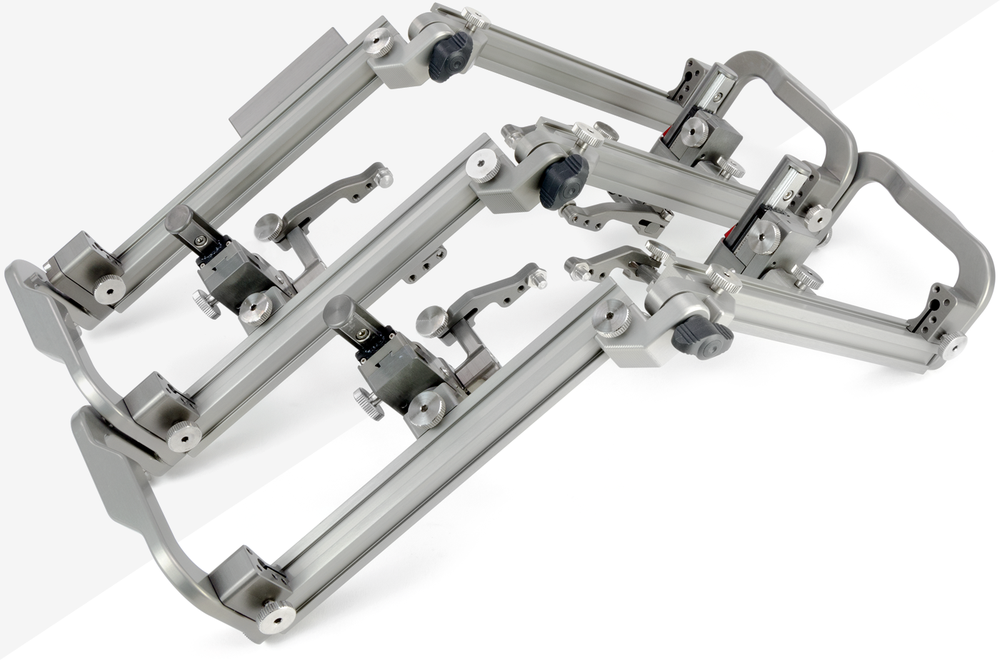

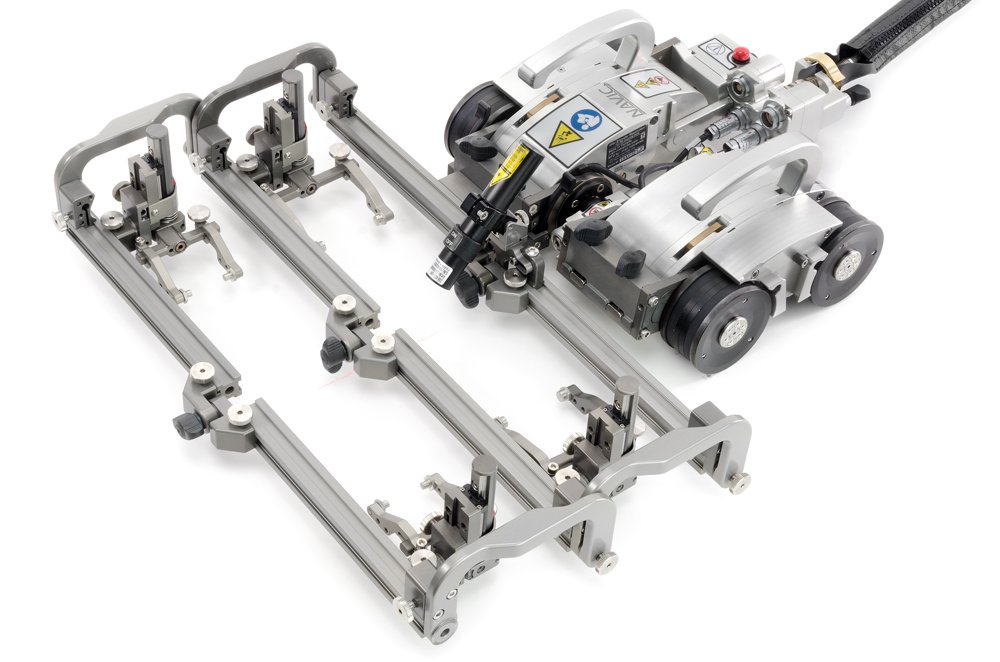

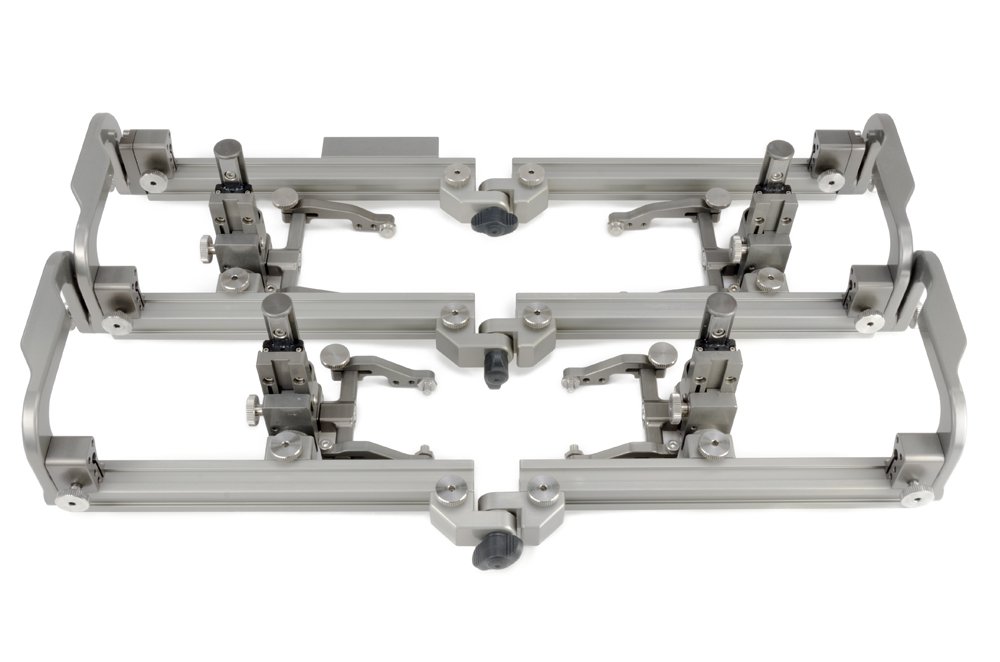

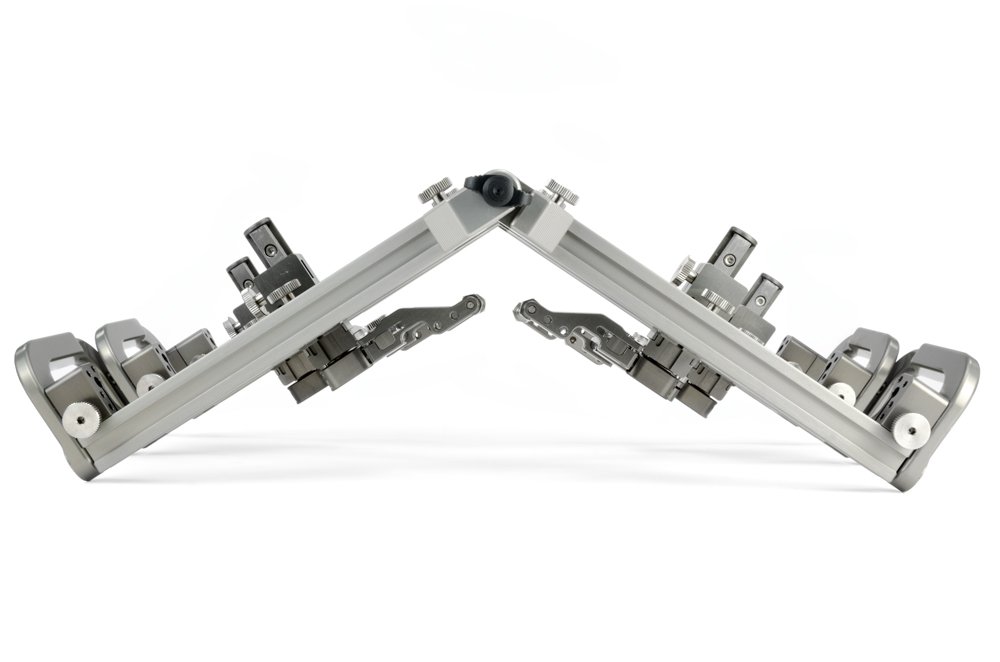

The Pivoting Probe Holder Frame adds longitudinal weld scanning capability to the NAVIC (> 12 in. OD) and SKOOT (> 30 in. OD) motorized scanners. The CXG013 carries (4) vertical probe holders (2 Phased Array and 2 TOFD). Combine the frame with a battery powered laser guide (sold separately) by adding the laser guide pivot mount to the order.
Phased array vertical probe holders x2
TOFD vertical probe holders x2

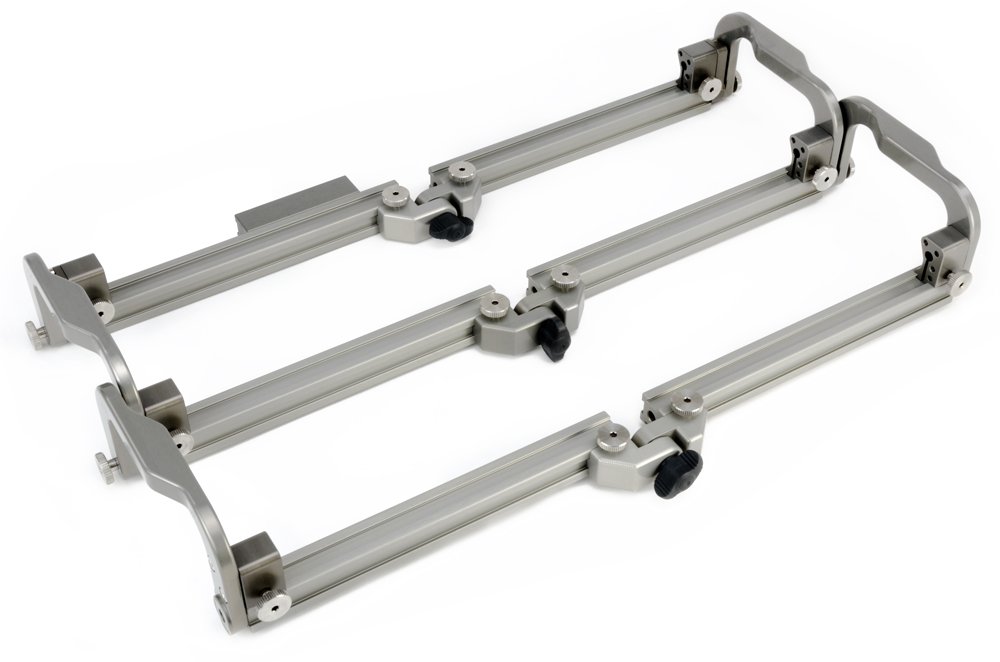

Pivoting probe holder frame components
20 cm (7.9 in) frame bar x6

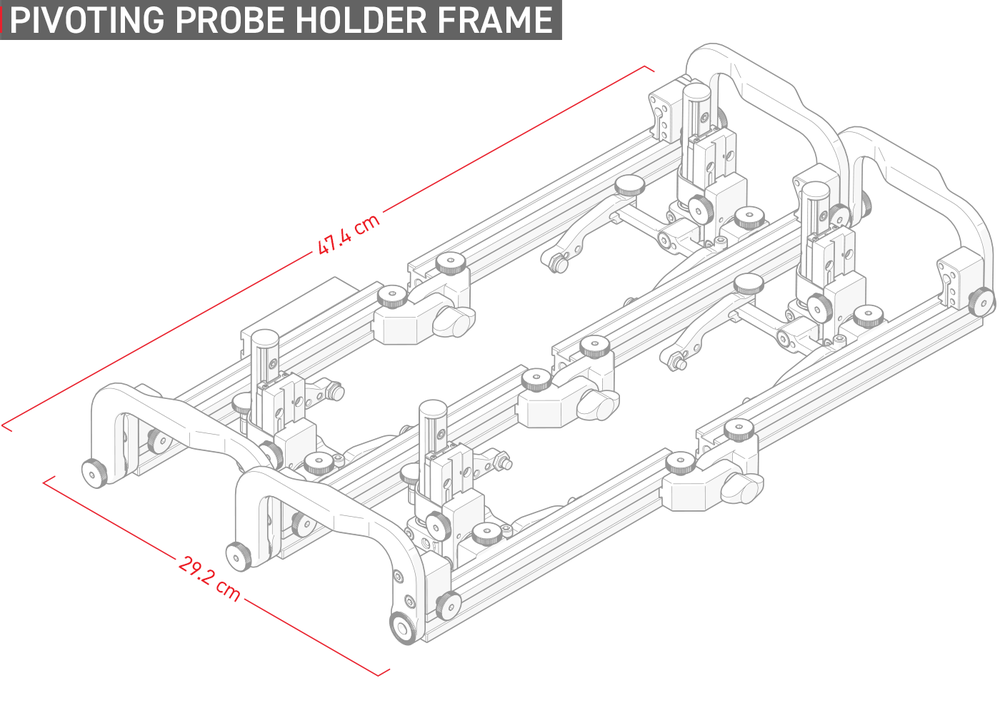

Pivoting Probe Holder Frame Length: 47.4 cm (18.7 in)
Pivoting Probe Holder Frame Width: 29.2 cm (11.5 in)
Pivoting Probe Holder Frame Weight: 2 kg (4.4 lb)
Minimum Wedge Width: 17 mm (0.67 in)
Maximum Wedge Width: 55.8 mm (2.2 in)
Minimum Wedge Width: 17 mm (0.67 in)
Maximum Wedge Width: 44.4 mm (1.75 in)
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
Technical specifications subject to change.
