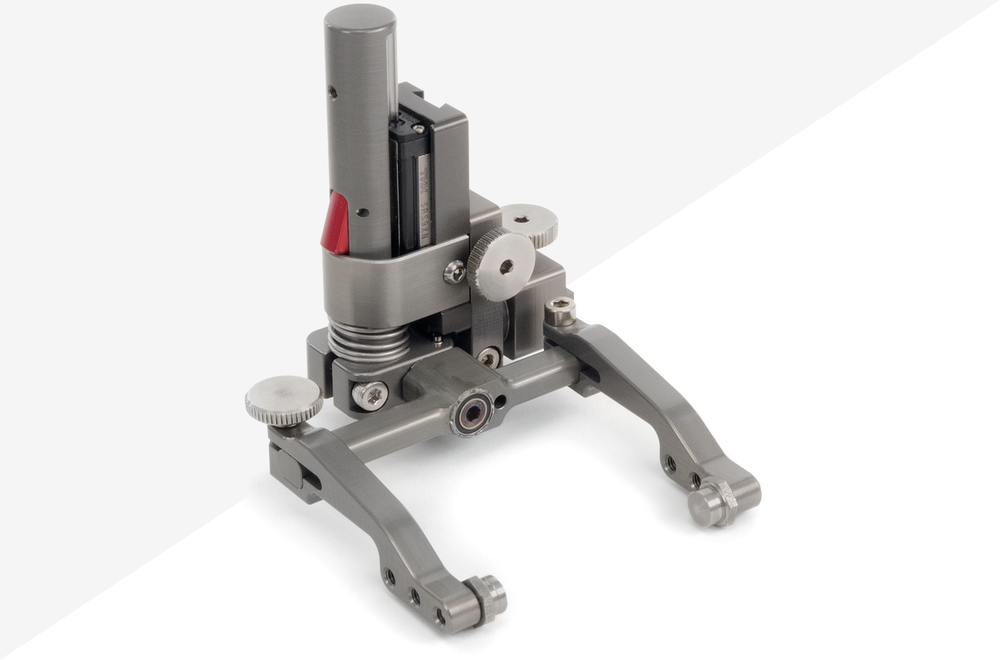

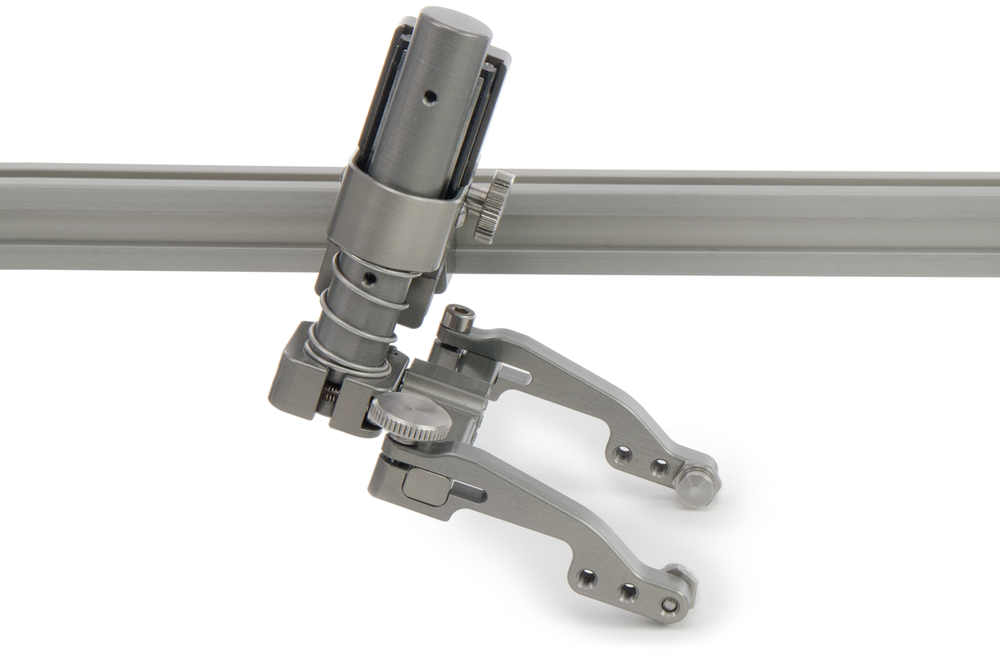

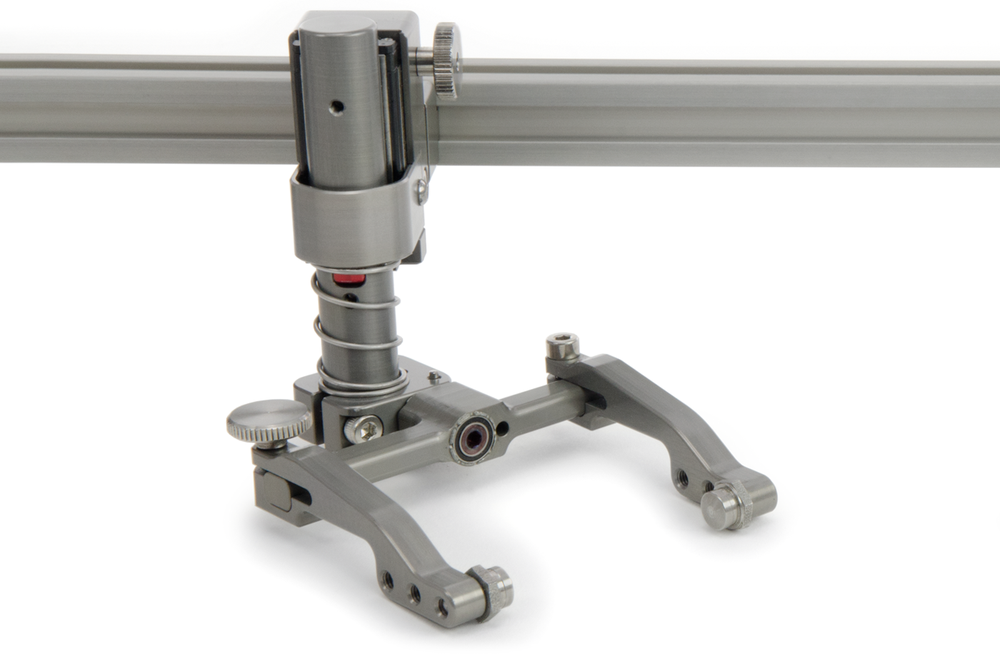

The Vertical Probe Holder has multiple adjustment options for various scanning applications. It can be used for both circumferential and longitudinal weld scans. The probe holder yoke also rotates nearly 180° for transverse scans at any angle.

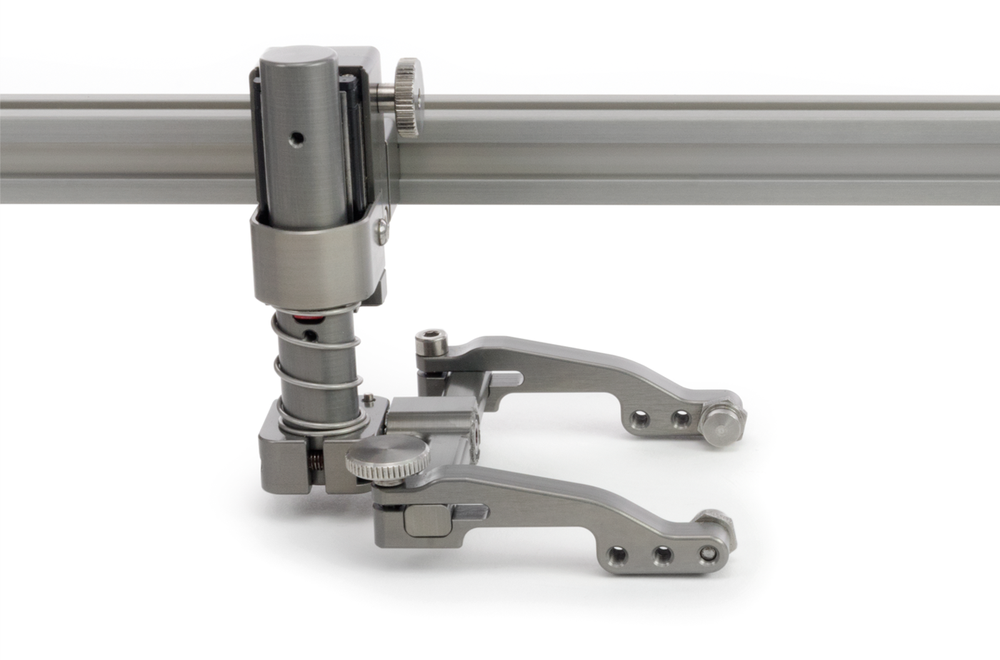

The vertical probe holder can be used in both left and right configurations. TOFD probe holders use a standard yoke style. Phased array probe holders use a wide yoke style.

Part ID: PHA015

Arm Styles

Path 2 CopyPath 2 Copy

A Arm Style: Standard, Flat
Part Number:1 - PH0090

B Arm Style: Short, Flat
Part Number:1 - PH0089

C Arm Style: Long, Flat
Part Number:1 - PH0099

D Arm Style: Standard, Drop
Part Number:1 - PH0093

E Arm Style: Short, Drop
Part Number:1 - PH0092

F Arm Style: Long, Drop
Part Number:1 - PH0094

G Arm Style: Standard, Extra-Drop
Part Number:1 - PH0096

H Arm Style: Short, Extra-Drop
Part Number:1 - PH0095

I Arm Style: Extra-Short, Flat
Part Number:1 - PH0159

J Arm Style: Extra-Short, Drop
Part Number:1 - PH0161

Probe Holder Pivot Buttons

01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.009 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)

Probe Holder Pivot Adjustments

  1. Single arm part number. Pivot button, arm clamp screw and probe holder arm adjustment knob NOT included

Parts & Add-Ons

Related Products

Specifications

Path 2 CopyPath 2 Copy

PHASED ARRAY PROBE HOLDER SPECIFICATIONS

Standard Width: 13 – 57.6 mm (0.513 - 2.266 in)
Standard Length: 48.5 mm (1.910 in)

Long Width: 13 – 55 mm (0.513 - 2.165 in)
Long Length: 65.3 mm (2.570 in)

TOFD PROBE HOLDER SPECIFICATIONS

Short Width: 13 – 45 mm (0.513 - 1.772 in)
Short Length: 36.8 mm (1.450 in)
