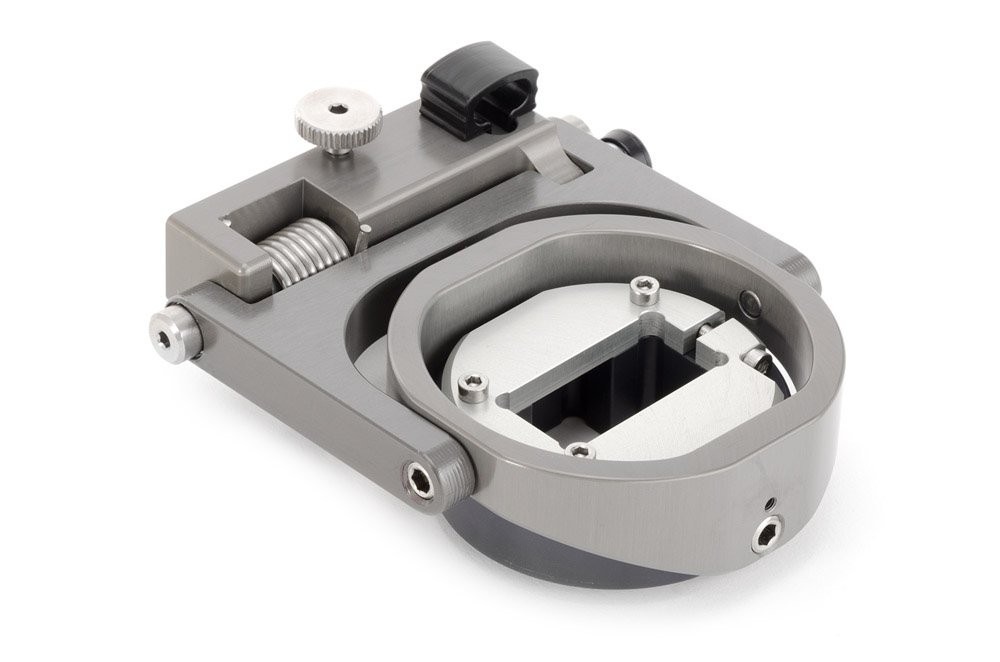

Perform various corrosion mapping and thickness measurement inspection.

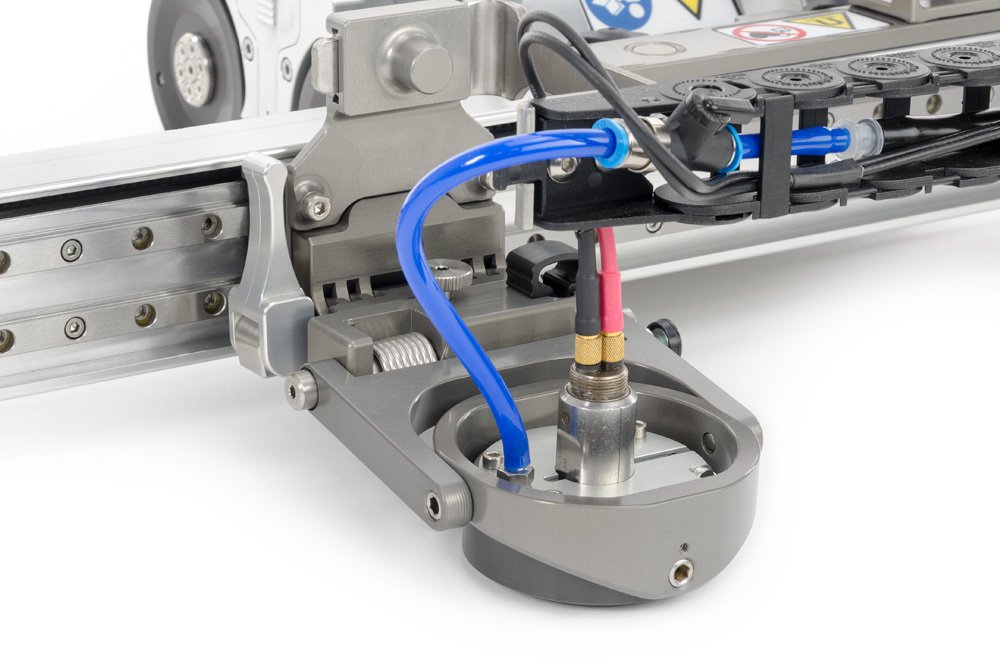

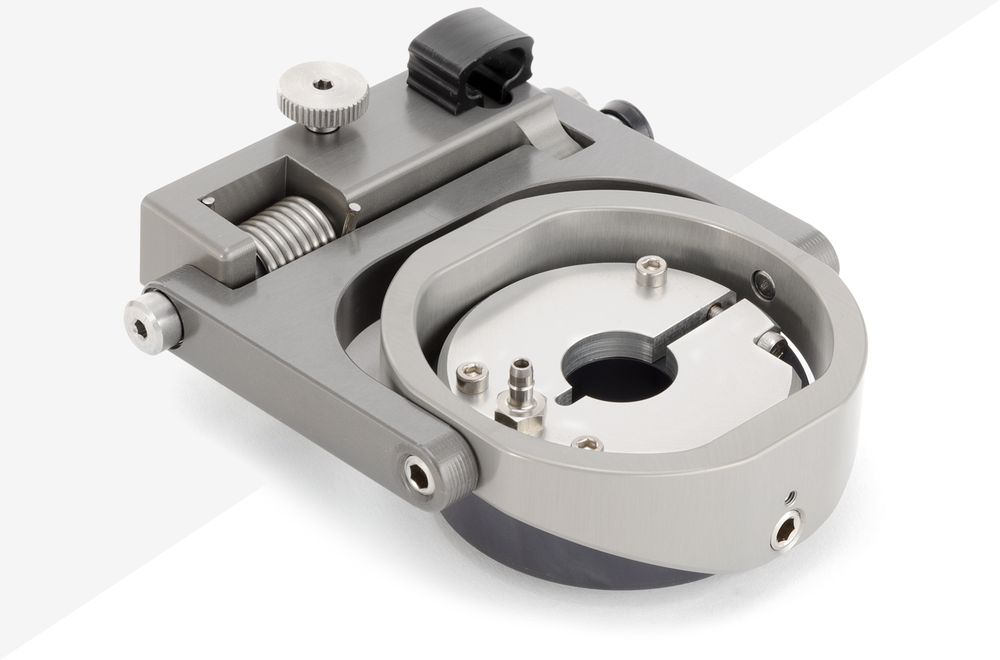

When used in conjunction with a raster arm connected to either the NAVIC or SKOOT, the Corrosion Thickness Probe Holder - Flat Wear Plate may assist with corrosion mapping (C-scans, or automated two-axis scans).

Equipped with a flat wear plate receptacle.

Part ID: PHS056

Dimensions

A - 104.08 mm (4.10 in)
B - 46.33 mm (1.82 in)
C - 38.28 mm (1.51 in)
D - 76.66 mm (3.02 in)
E - 117.27 mm (4.62 in)
F - 38.28 mm (1.51 in)
G - 32.77 mm (1.29 in)



Receptacle Sizes

A - 9.53 mm (0.375 in) dia.
B - 12.7 mm (0.5 in) dia.
C - 19 mm (0.75 in) dia.
D - Technisonic
E - 25.4 mm (1 in)
H - 16 mm (0.630 in) dia.
