The TERAX - Base Crawler is a high-powered device that utilizes a hovering magnet and rubber tracks to navigate without causing any damage to the ferrous asset it operates on. Its powerful motors allow the TERAX to be steered vertically, allowing precise and controlled movements. Handles on the device provide an easy grab point for convenient handling and transport.
In addition to its exceptional functionality, the TERAX crawler also offers encoded positional data. This means it can accurately track and communicate its position during operation, providing valuable information to the user and making the TERAX a versatile and reliable tool for various applications.
Features
Hovering Magnet
This advanced feature ensures that the magnet hovers just above the surface, providing a secure hold without any contact that could cause damage. Plus, with the added benefit of rubber tracks, you can rest assured that your valuable assets are protected while the TERAX effortlessly glides across the surface.
Rubber Tracks
Engineered to provide exceptional traction and stability, these tracks are designed to overcome uneven surfaces and small obstacles in your path.
Steering
Regarding turning, the TERAX utilizes a technique called differential steering. This method involves operating the left and right tracks at different speeds, allowing the machine to make turns by skidding or dragging its tracks across the ground.
Low Profile
Requiring only 5 inches of vertical clearance, this innovative equipment navigates tight spaces and restricted areas.

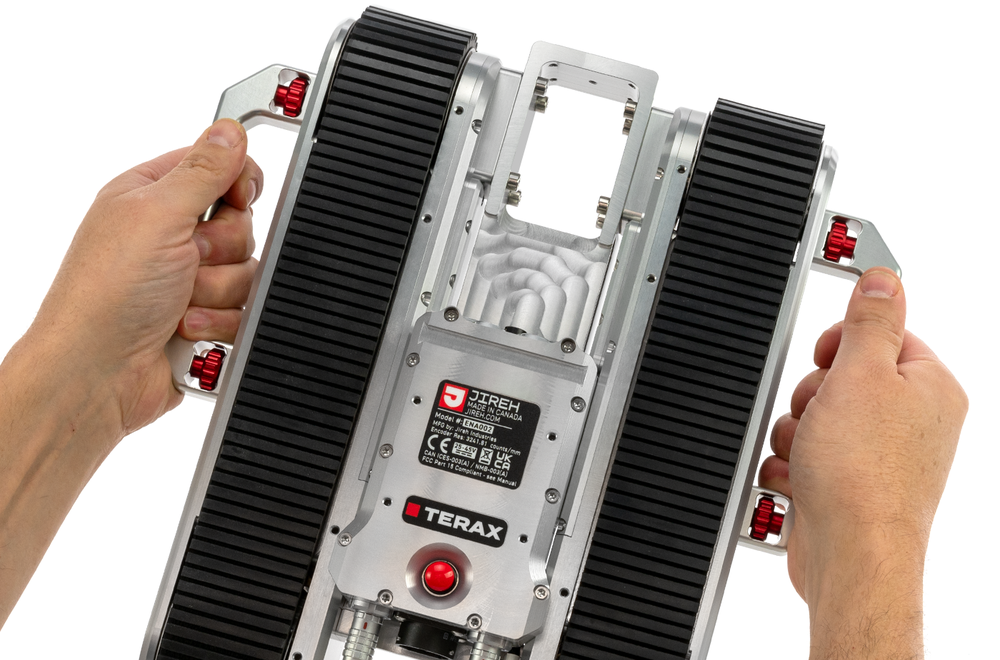

Handles

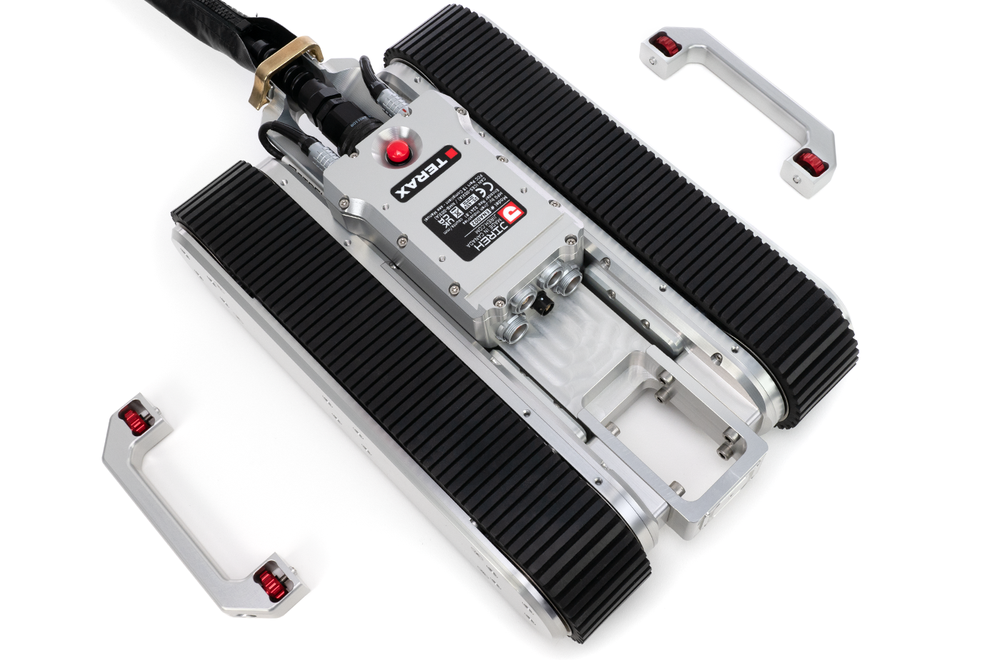

The handles on the scanner serve as a convenient holding point, allowing you to maneuver and transport the device easily. But that's not all - these handles are also removable, allowing you to reduce the scanner's horizontal size when needed.
Cable Management
Cable management (sold separately) goes beyond just protecting cables and hoses; it also plays a crucial role in keeping them organized. We all know the frustration of dealing with tangled, messy cables that can waste valuable time.

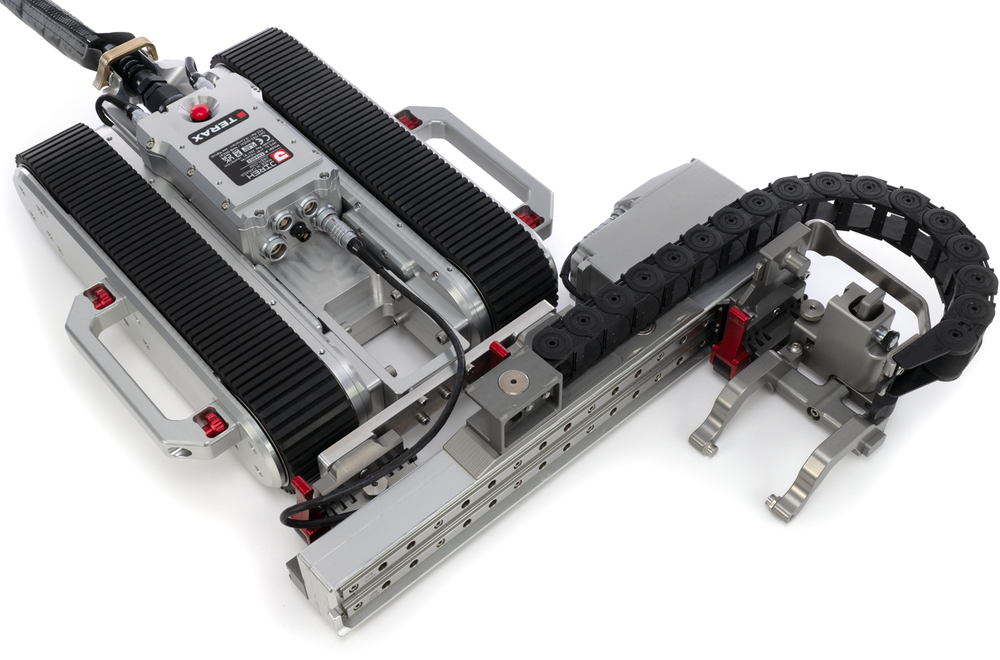

Corrosion Inspection

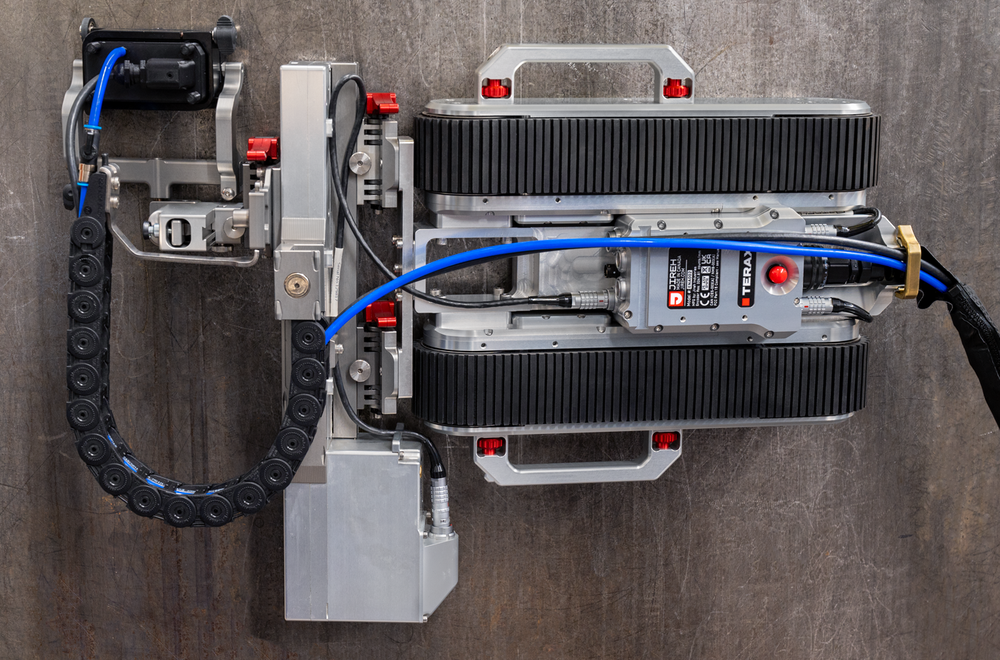

Attach the Motorized Raster Arm to your TERAX to perform thorough inspections and accurately measure the thickness of asset walls. With its advanced technology and reliable performance, the Motorized Raster Arm empowers you to conduct comprehensive corrosion inspections and obtain accurate asset thickness measurements of ferrous surfaces.
RECON - Camera System

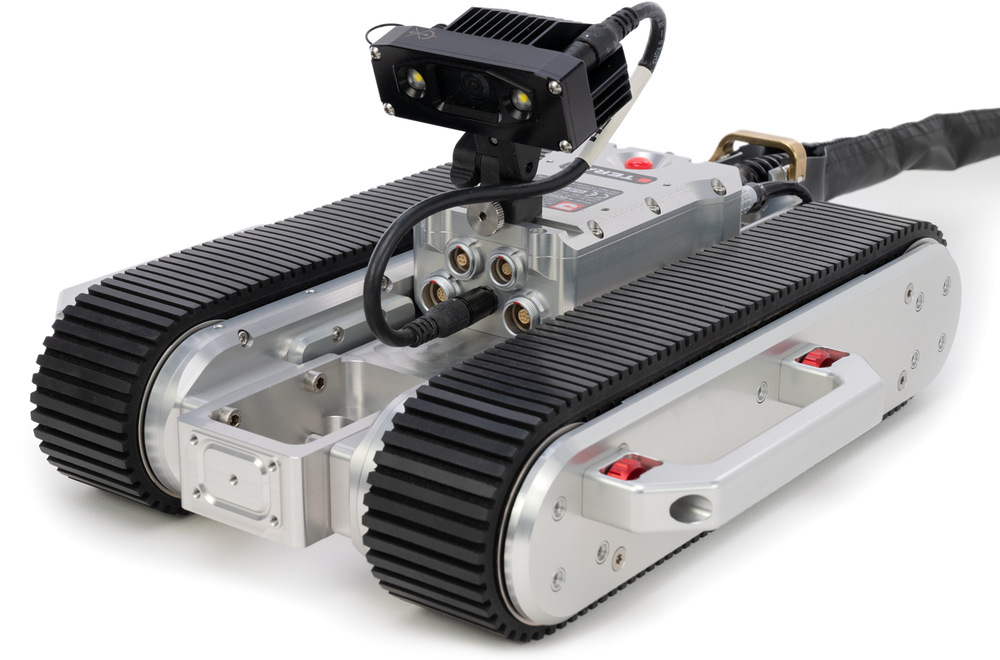

Imagine having the power to drive, steer, and monitor your TERAX vehicle remotely in real-time. Well, that's precisely what you can do with the optional RECON camera!
Battery Power
Order the TERAX with the battery kit and avoid using heavy, cumbersome generators. These rechargeable batteries can power the TERAX system and accessories for hours.
Warranty
At JIREH, we stand behind the quality and craftsmanship of our hardware products. That's why we are pleased to offer a warranty that protects against defects in materials and workmanship. This warranty is valid for three (3) years from the original date of purchase, giving you peace of mind and assurance in your investment.
VIDEOS

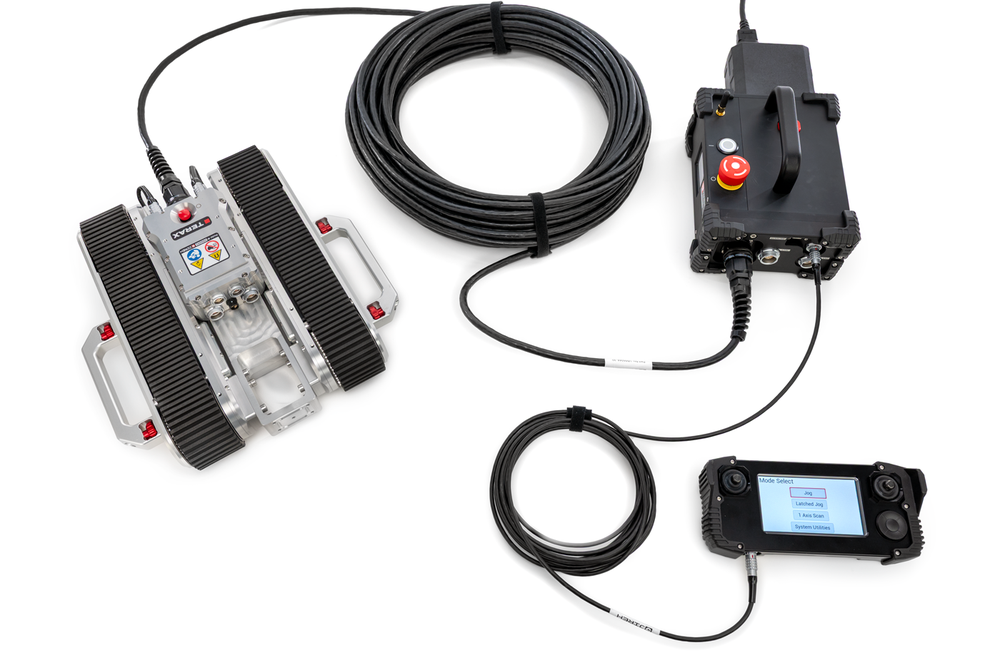

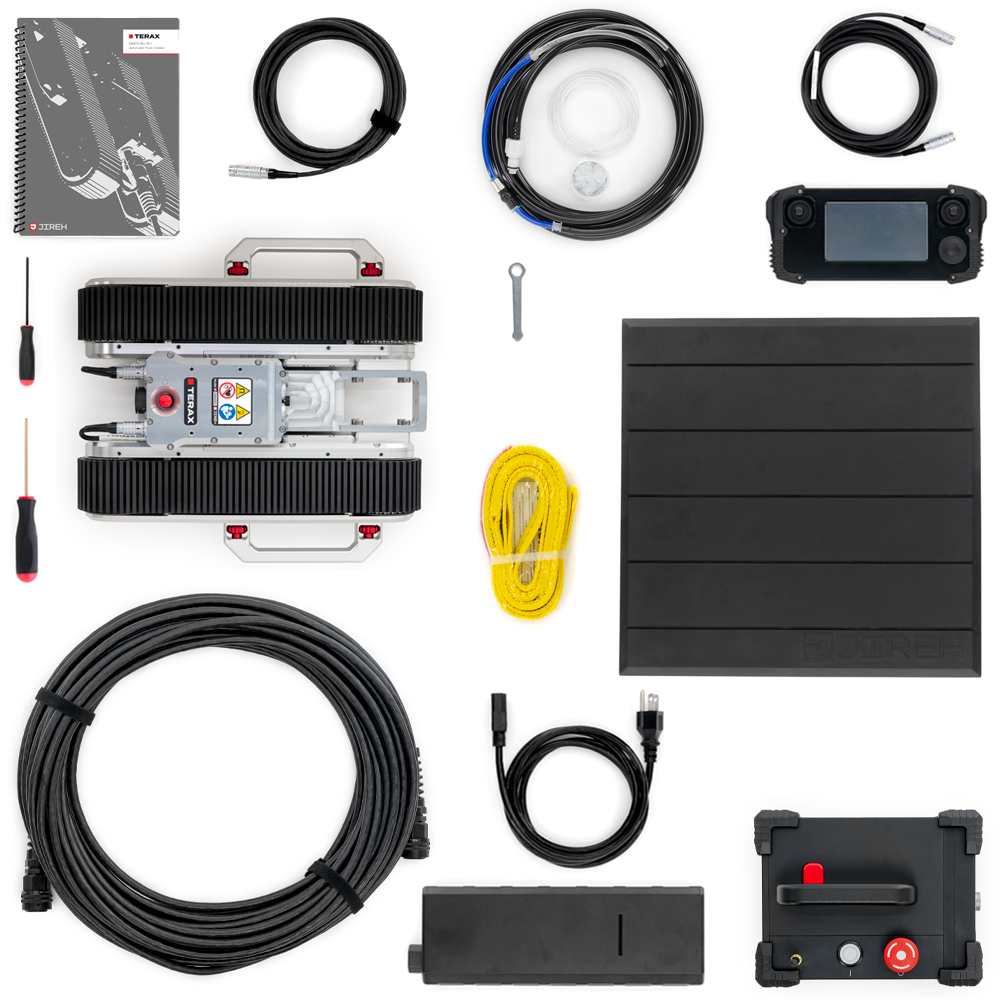

Component Identification

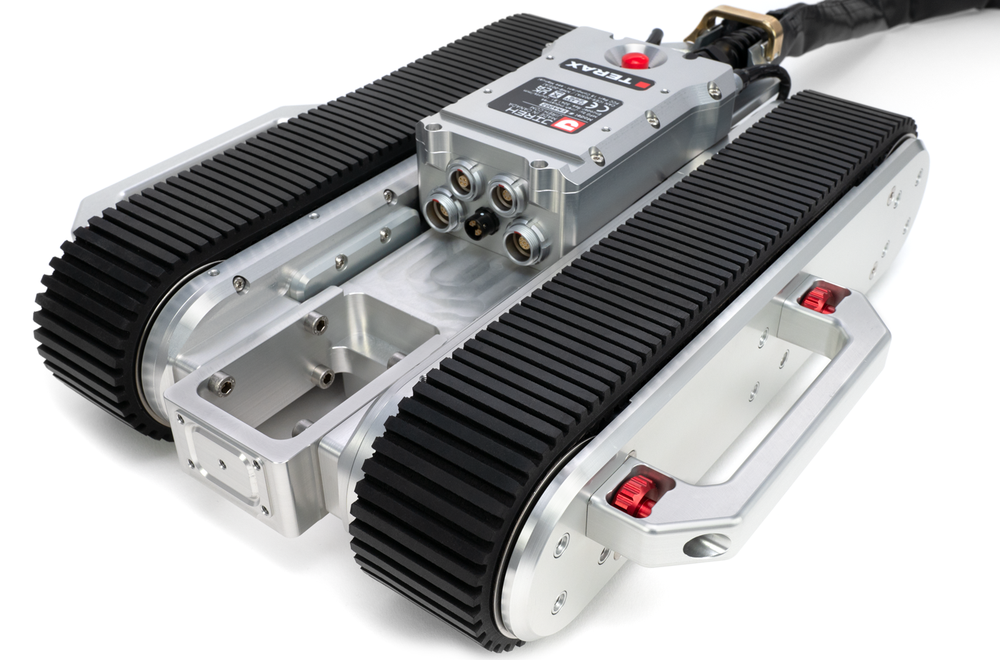

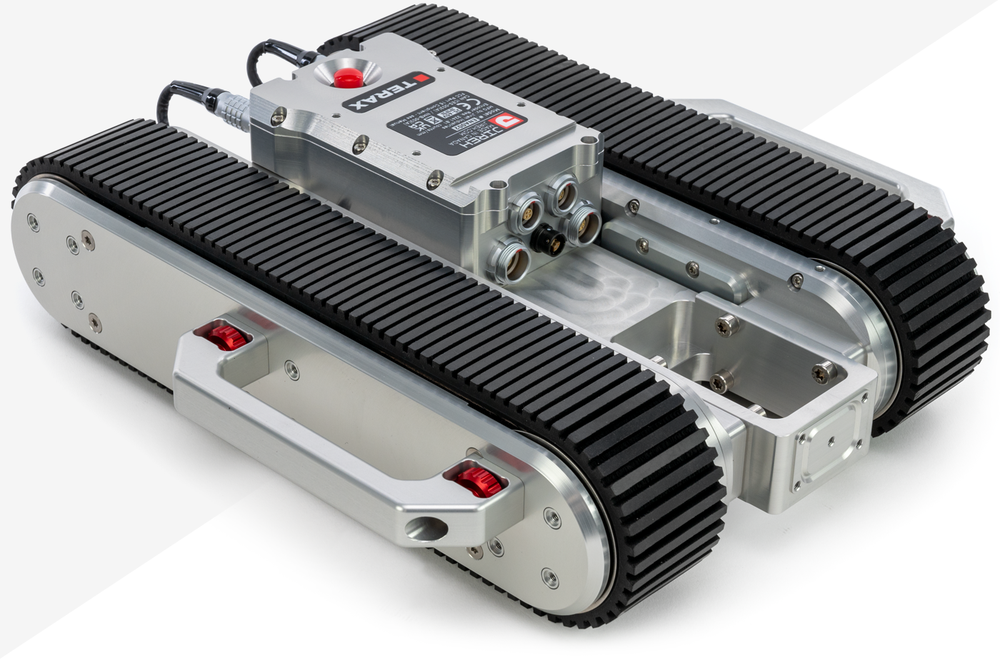

Base Crawler
The TERAX base crawler is equipped with large rubber tracks that serve as a means of steering and driving, while the internal encoder provides real-time data on the machine's position.
Power Supply
The TERAX is designed to be compatible with a wide range of power sources, including those commonly used in North America, Europe, and the UK.
Power Controller
The Power Controller provides automated systems with power from a standard power supply or battery power (sold separately).
Auxiliary Cable
The Auxiliary Cable connects the Handheld Controller to the Power Controller, carrying essential signals for their operation. With identical and interchangeable connectors on both ends, it offers reliability and durability.
Handheld Controller
The Handheld Controller offers a compact and rugged solution to control all TERAX operations. Its colour touchscreen displays an intuitive and easy-to-use operating system, which includes haptic feedback for an enhanced user experience. The inclusion of joysticks ensures precise control over driving and steering, allowing for efficient and accurate operation.
J300 Encoder Cable
The J300 Encoder Cable is a waterproof cable that provides encoder information from the TERAX to the user's instrument. With a length of 5 meters (16.4 feet), it offers a convenient and flexible solution for transmitting data.
Umbilical
The Umbilical is a robust, heavy-duty cable connecting the TERAX crawler to the power controller. Its primary function is to carry network and operational signals between the two components. Designed to withstand demanding conditions, the Umbilical is rugged and built to last.
Parts & Add-Ons
Related Products
Specifications
GENERAL
Encoder Resolution (Motor): 3913 counts/mm (99398 counts/in)
Maximum Steerable Payload: 10 kg (23 lb)1
Maximum Speed: 14 cm/sec (5.5 in/sec)
Power Requirements: 100-240VAC, 50/60Hz, 3.5 Amps
Umbilical Lengths: 30 m (98.4 ft)2
Inspection Surface: Ferrous

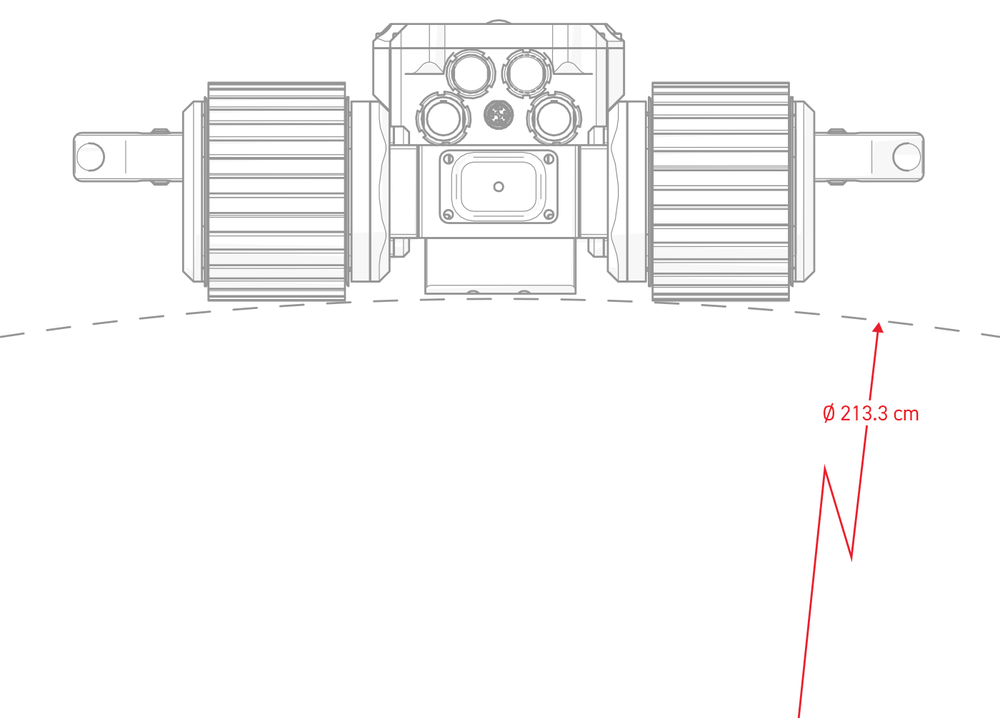

PIPE RANGE
Minimum Diameter (Longitudinal): 213.3 cm (84 in)

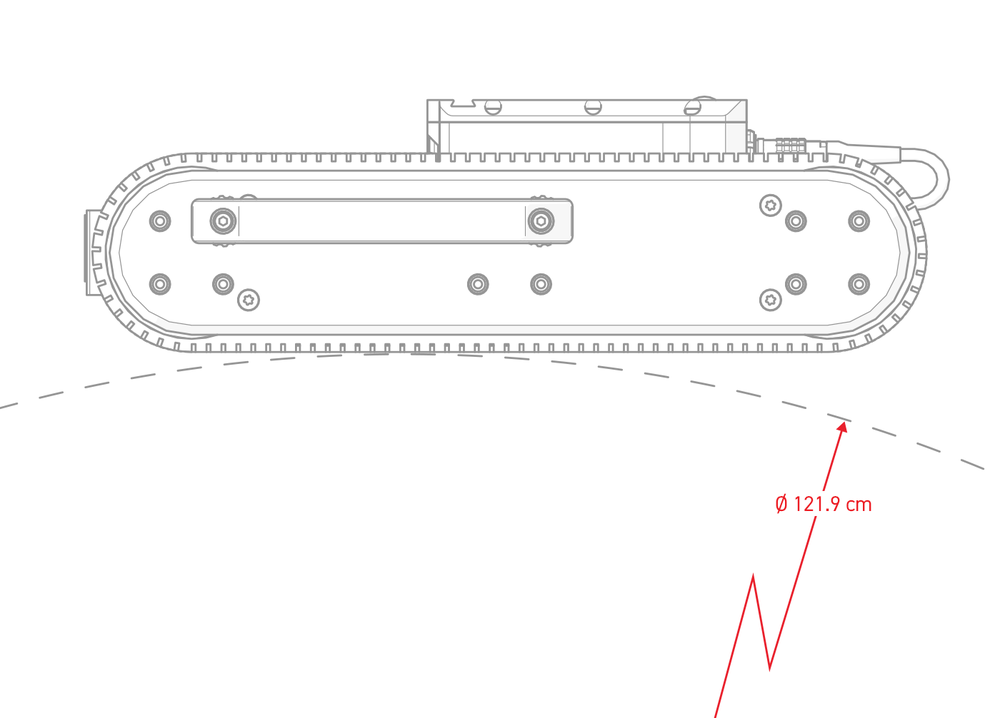

Minimum Diameter (Circumferential): 121.9 cm (48 in)

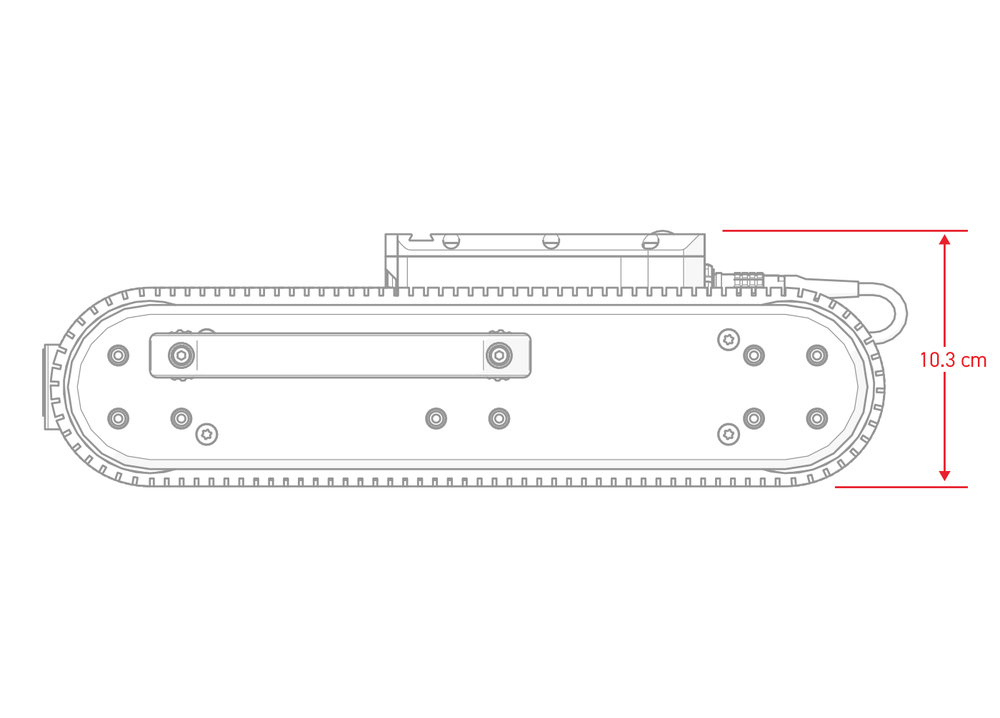

RADIAL CLEARANCE
Scanner Clearance on Flat Surface: 10.3 cm (4.1 in)

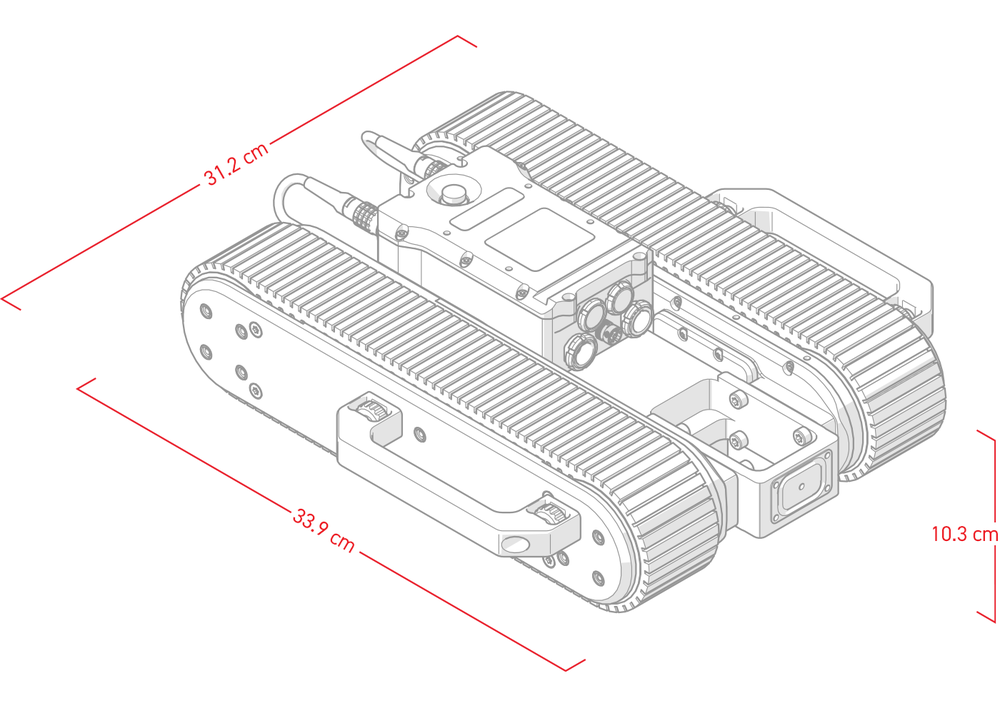

SIZE & WEIGHT
Base Crawler Height: 10.3 cm (4.1 in)
Base Crawler Width: 31.2 cm (12.3 in)
Base Crawler Depth: 33.9 cm (13.3 in)
Base Crawler Weight: 7.7 kg (17 lb)
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C to 50°C (-4°F to 122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
REGULATIONS
CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.3
FCC: Compliance with Part 15 of FCC rules.3
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.3
UKCA: United Kingdom Conformity Assessed – Compliance with relevant UK statutory requirements and legislation.3
Power Cords
Power Requirements
100-240VAC, 50/60Hz, 3.5 Amps
Plug Designation
North America
NEMA 5-15P
Europe
CEE7/7
UK
BS1363A
- Performance may vary with the surface condition.
- Custom umbilical lengths are available.
- For a complete description of regulatory certifications, please get in touch with JIREH.
Technical specifications are subject to change.
Documents
To download various documentation for the scanner, click the appropriate link below.
(specifications are subject to change)
