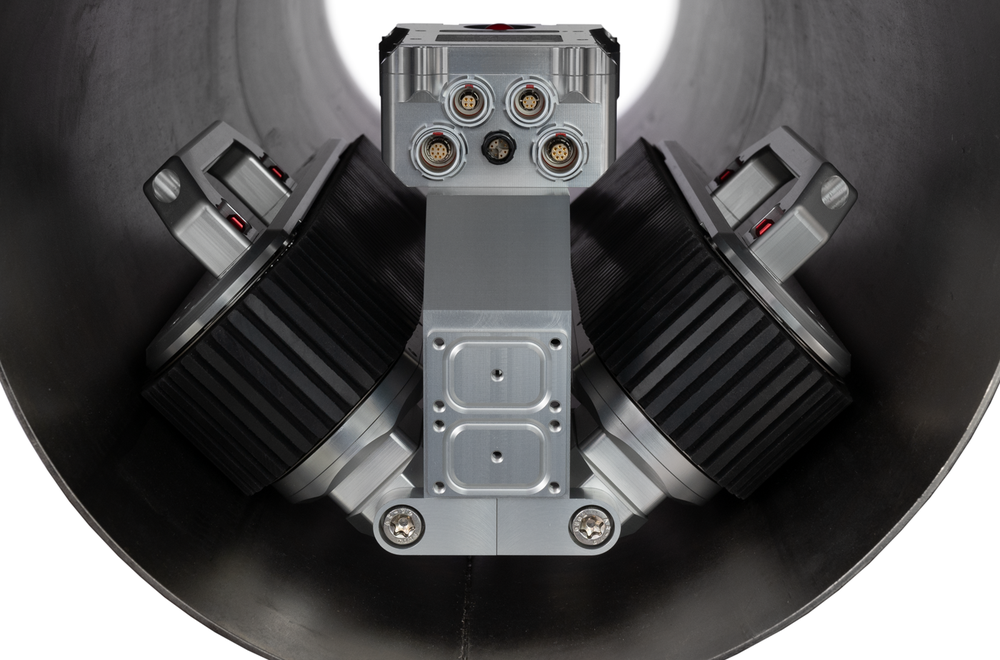

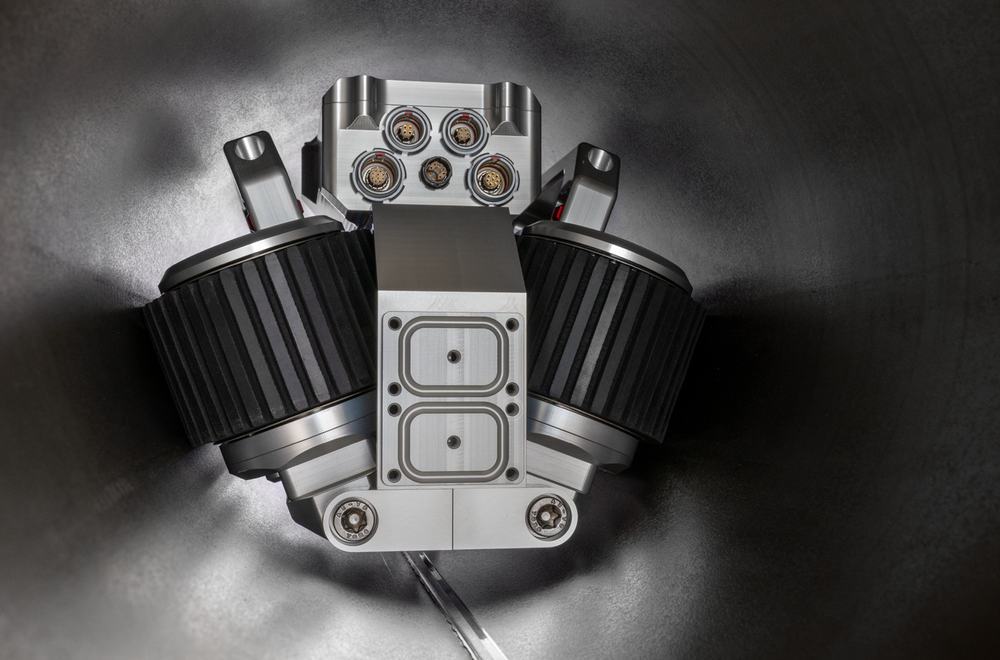

The TERAX - Internal Base Crawler is designed to operate inside pipes, making it ideal for internal applications. Its flexible design allows the TERAX to fit into tubes as small as 8 inches, ensuring accessibility in narrow and confined spaces. The crawler has robust rubber tracks that provide excellent grip on the pipe walls, allowing it to propel forward quickly. This traction ensures smooth movement and prevents slippage, enabling the TERAX to navigate through pipes efficiently.
With its convenient handheld controller, you can operate and maneuver this cutting-edge device effortlessly. The handheld controller offers steering joysticks and crawler control, giving you complete command over the TERAX's movements and operations.
But that's not all - the TERAX goes beyond traditional remote control capabilities. It also provides a live video feed with the RECON, allowing you to monitor and assess your progress inside the pipe in real time (sold separately).
Features
Internal Operation
The TERAX crawler is designed for internal applications, fitting into pipes as small as 8 inches in diameter. Its flexible design and robust rubber tracks provide excellent grip, ensuring smooth navigation in narrow and confined spaces.
Rubber Tracks
Engineered to provide exceptional traction and stability, these tracks are designed to overcome uneven surfaces and small obstacles in your path.

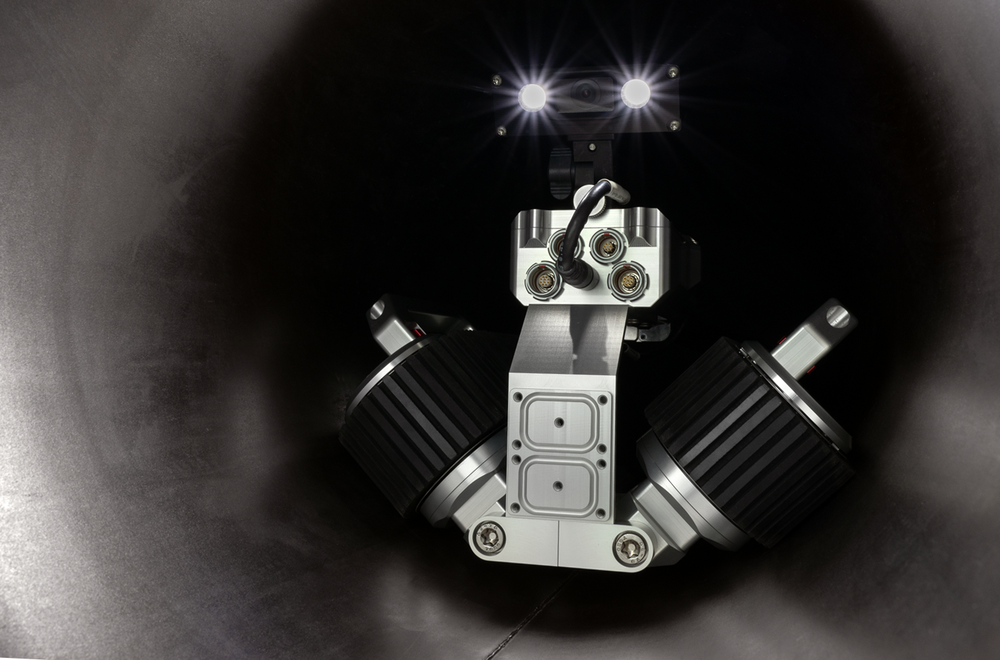

Recon - Camera System
Imagine having the power to drive, steer, and monitor your TERAX vehicle remotely in real time. Well, that's precisely what you can do with the optional RECON camera!
Handles
The handles on the scanner serve as a convenient holding point, allowing you to maneuver and transport the device easily. But that's not all - these handles are also removable, allowing you to reduce the scanner's horizontal size when needed.
Cable Management
Cable management (sold separately) goes beyond just protecting cables and hoses; it also plays a crucial role in keeping them organized. We all know the frustration of dealing with tangled, messy cables that can waste valuable time.
Battery Power
Order the TERAX with the battery kit and avoid using heavy, cumbersome generators. These rechargeable batteries can power the TERAX system and accessories for hours.
Warranty
At JIREH, we stand behind the quality and craftsmanship of our hardware products. That's why we are pleased to offer a warranty that protects against defects in materials and workmanship. This warranty is valid for three (3) years from the original date of purchase, giving you peace of mind and assurance in your investment.
VIDEOS

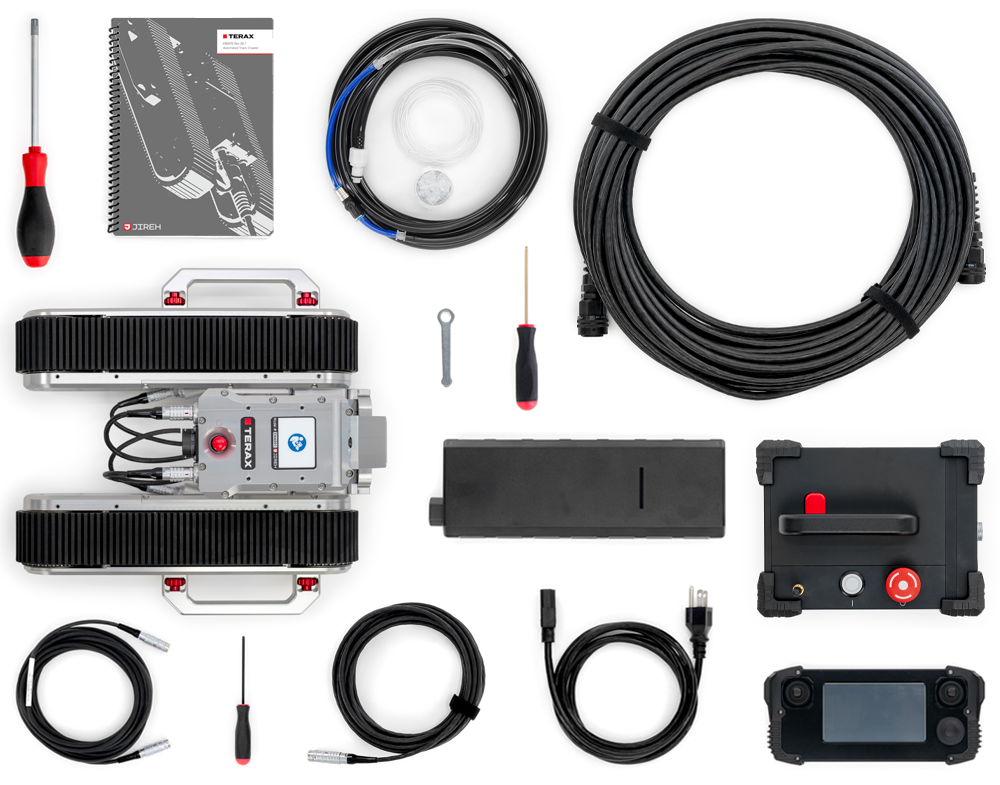

Kit Contents
SCANNER
TERAX Internal crawler
COMPONENTS
System controller with passthrough
Power supply (North American, European or UK plugs available)
Umbilical, Ethernet, 30 m (98.4 ft) or 60 m (196.8 ft) lengths available
Handheld controller
Auxiliary cable, 6 m (20 ft)
J300 encoder cable, 5 m (15 ft)
Irrigation Kit: 6 mm ID, (7/16 in quick connect) (length dependent on umbilical length)
User manual

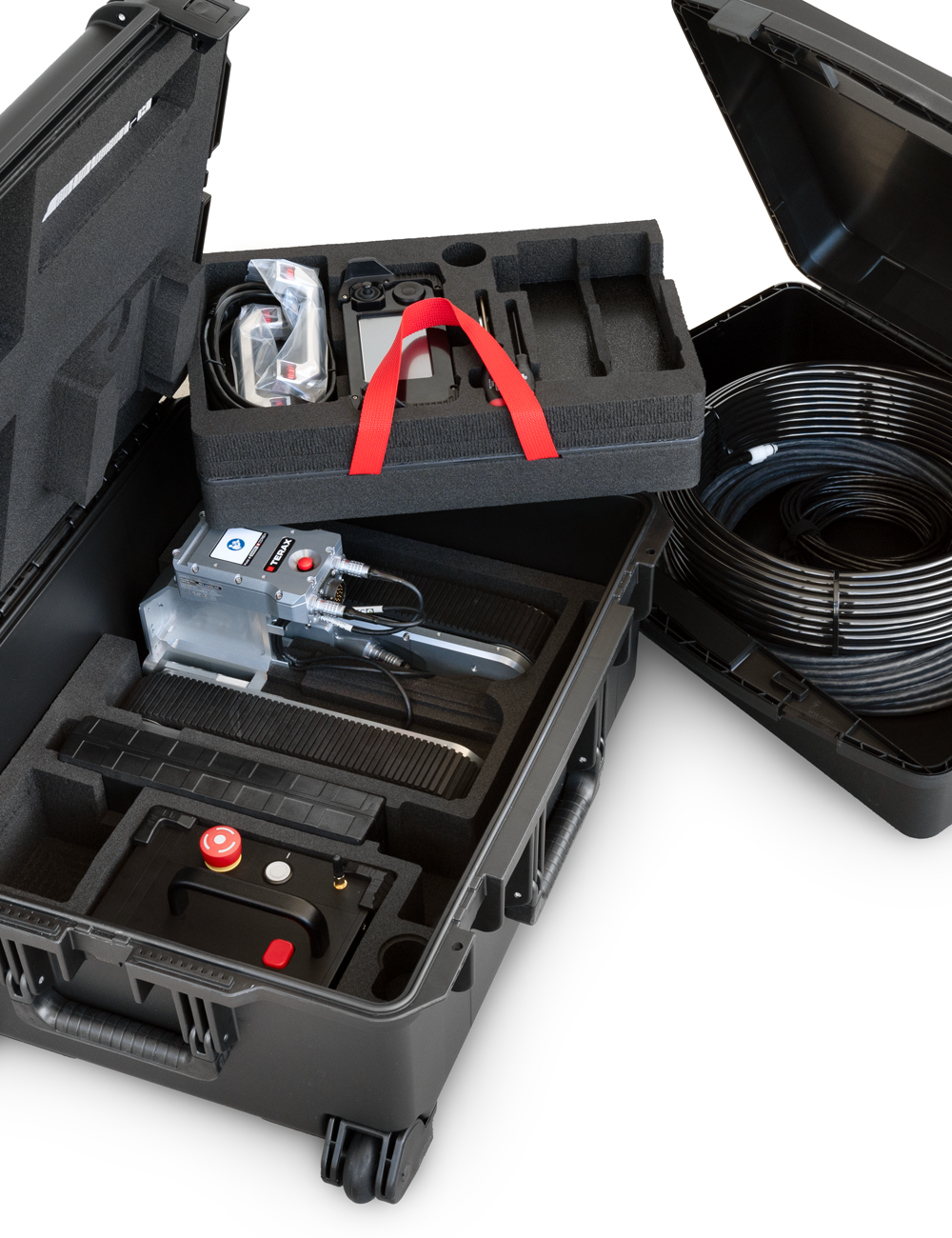

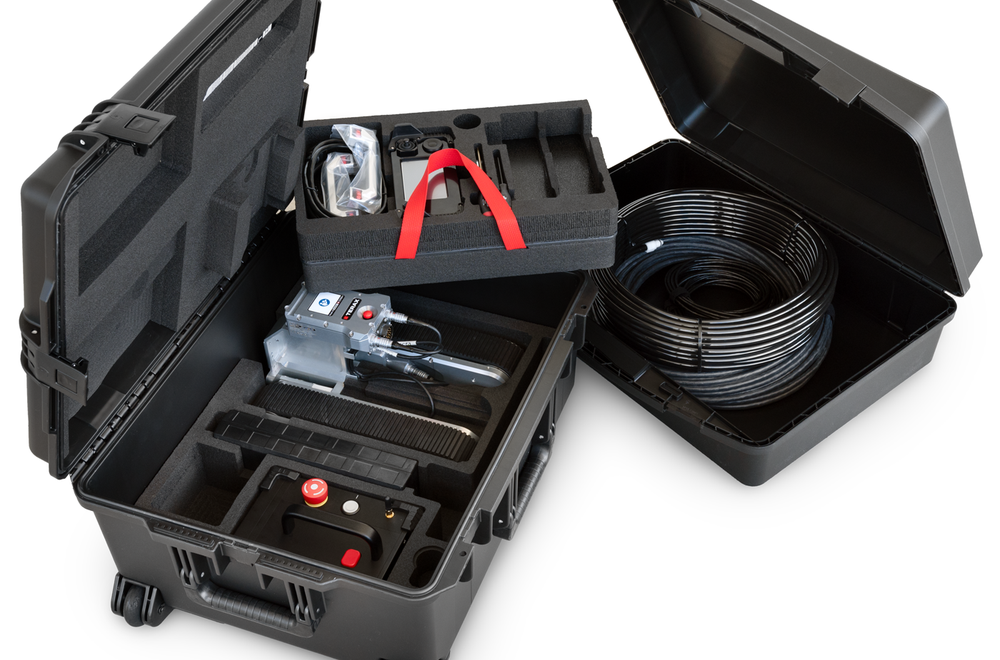

Rugged carrying cases (various types based on chosen accessories)
TOOLS
Hex Driver: 3 mm
Hex Driver: 2.5 mm
3/8" Wrench for pivot button adjustment
Torx Driver: T45
Contents may vary depending on the configuration selected.
Component Identification

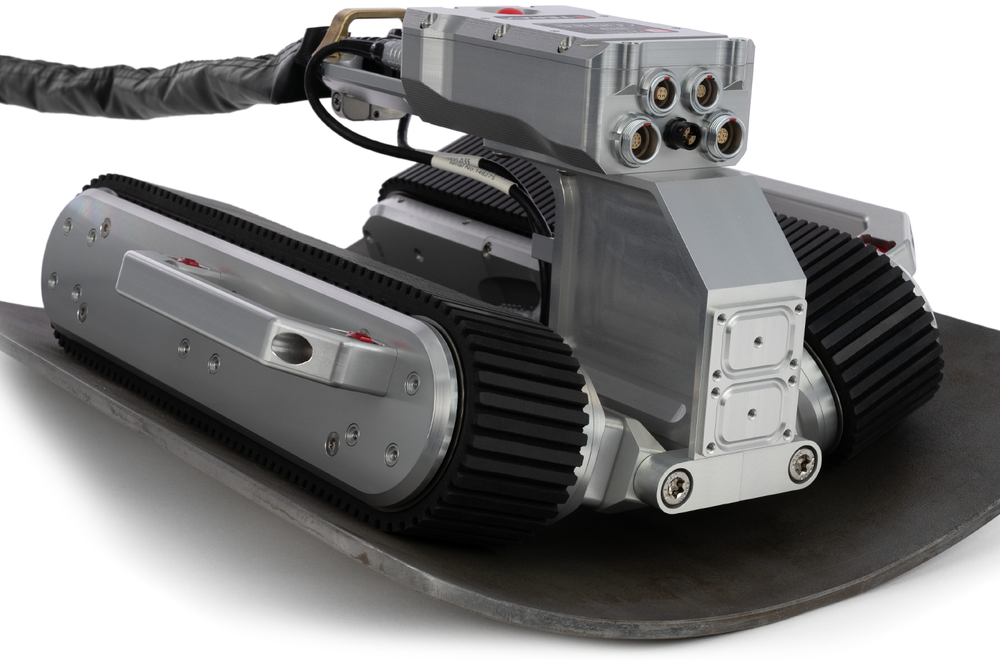

Base Crawler

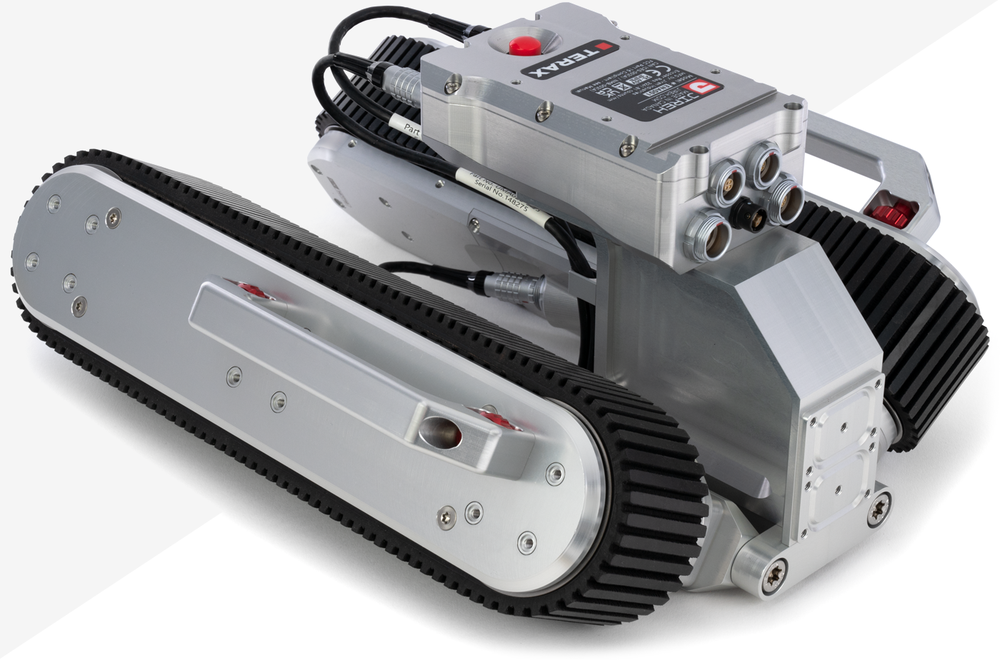

The TERAX base crawler is equipped with large rubber tracks that serve as a means of steering and driving, while the internal encoder provides real-time data on the machine's position.
Power Supply
The TERAX is designed to be compatible with a wide range of power sources, including those commonly used in North America, Europe, and the UK.
Power Controller
The Power Controller provides automated systems with power from a standard power supply or battery power (sold separately).
Auxiliary Cable
The Auxiliary Cable connects the Handheld Controller to the Power Controller, carrying essential signals for their operation. With identical and interchangeable connectors on both ends, it offers reliability and durability.
Handheld Controller
The Handheld Controller offers a compact and rugged solution to control all TERAX operations. Its colour touchscreen displays an intuitive and easy-to-use operating system, which includes haptic feedback for an enhanced user experience. The inclusion of joysticks ensures precise control over driving and steering, allowing for efficient and accurate operation.
J300 Encoder Cable
The J300 Encoder Cable is a waterproof cable that provides encoder information from the TERAX to the user's instrument. With a length of 5 meters (16.4 feet), it offers a convenient and flexible solution for transmitting data.
Umbilical
The Umbilical is a robust, heavy-duty cable connecting the TERAX crawler to the power controller. Its primary function is to carry network and operational signals between the two components. Designed to withstand demanding conditions, the Umbilical is rugged and built to last.
Various Pipe Diameters
EXAMPLES

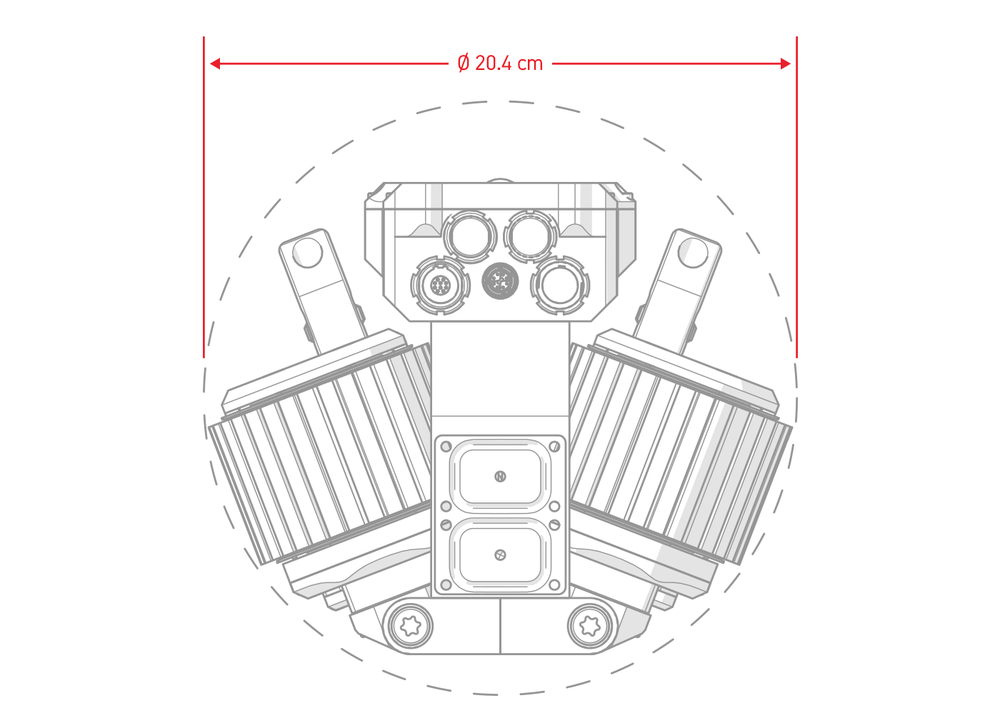

Ø 20.4 cm (8 in)

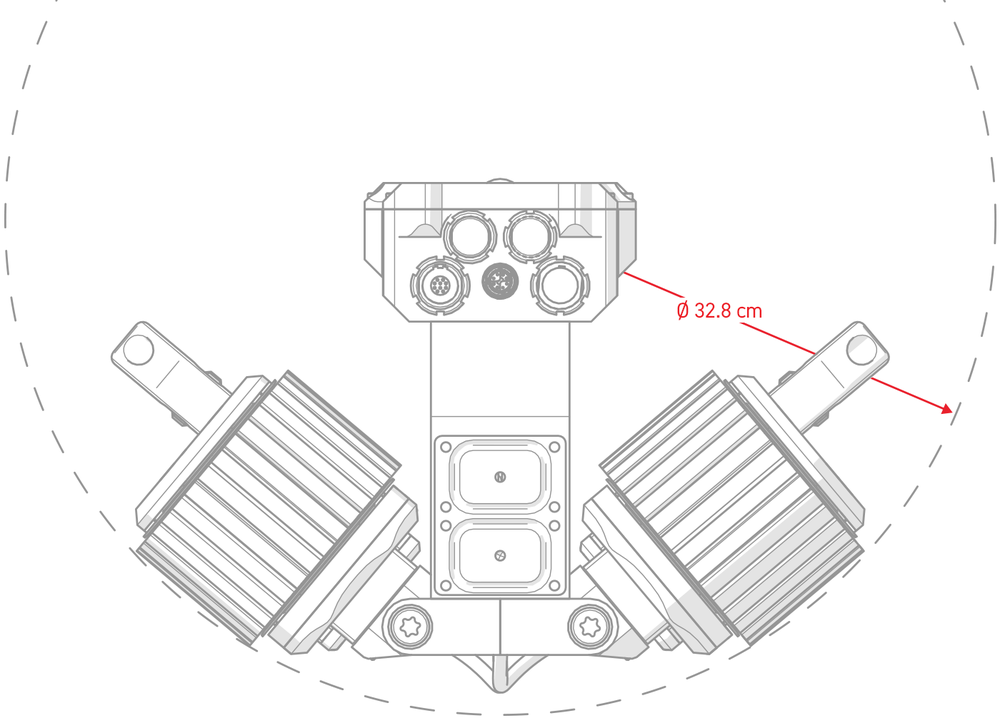

Ø 32.8 cm (12.9 in)

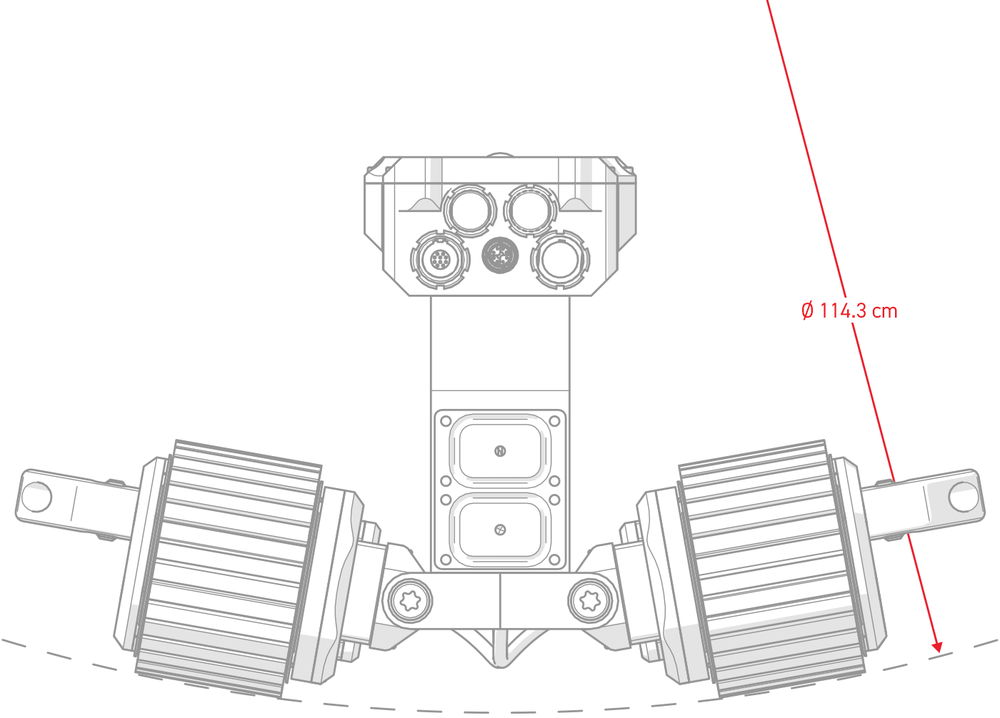

Ø 114.3 cm (45 in)
Parts & Add-Ons
Related Products
Specifications
GENERAL
Encoder Resolution (Motor): 3913 counts/mm (99398 counts/in)
Maximum Straight Driving Pull: 27 kg (60 lb)1
Maximum Speed: 14 cm/sec (5.5 in/sec)
Power Requirements: 100-240VAC, 50/60Hz, 3.5 Amps
Umbilical Lengths: 30 m (98.4 ft)2
Inspection Surface: Ferrous and Non Ferrous
PIPE RANGE
Minimum Internal Diameter (Longitudinal): 20.4 cm (8 in)
SIZE & WEIGHT

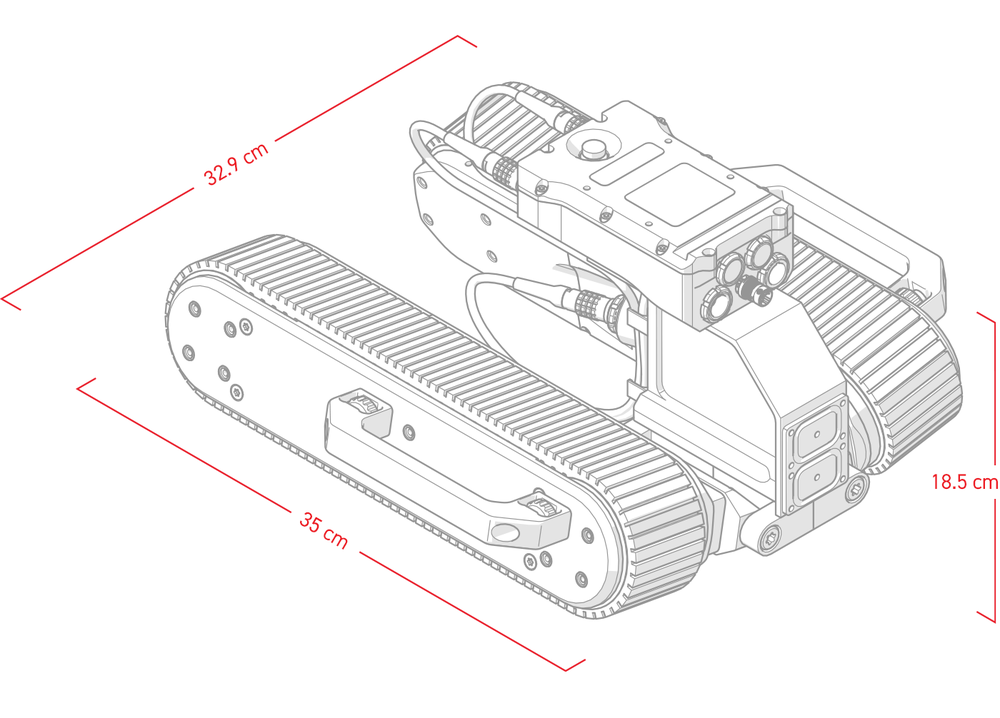

Base Crawler Height: 18.5 cm (7.3 in)
Base Crawler Width: 32.9 cm (13 in)
Base Crawler Depth: 35 cm (13.8 in)
Base Crawler Weight: 7.7 kg (17 lb)
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C to 50°C (-4°F to 122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
REGULATIONS
CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.3
FCC: Compliance with Part 15 of FCC rules.3
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.3
UKCA: United Kingdom Conformity Assessed – Compliance with relevant UK statutory requirements and legislation.3
Power Cords
Power Requirements
100-240VAC, 50/60Hz, 3.5 Amps
Plug Designation
North America
NEMA 5-15P
Europe
CEE7/7
UK
BS1363A
- Performance may vary with the surface condition.
- Custom umbilical lengths are available.
- For a complete description of regulatory certifications, please get in touch with JIREH.
Technical specifications are subject to change.
