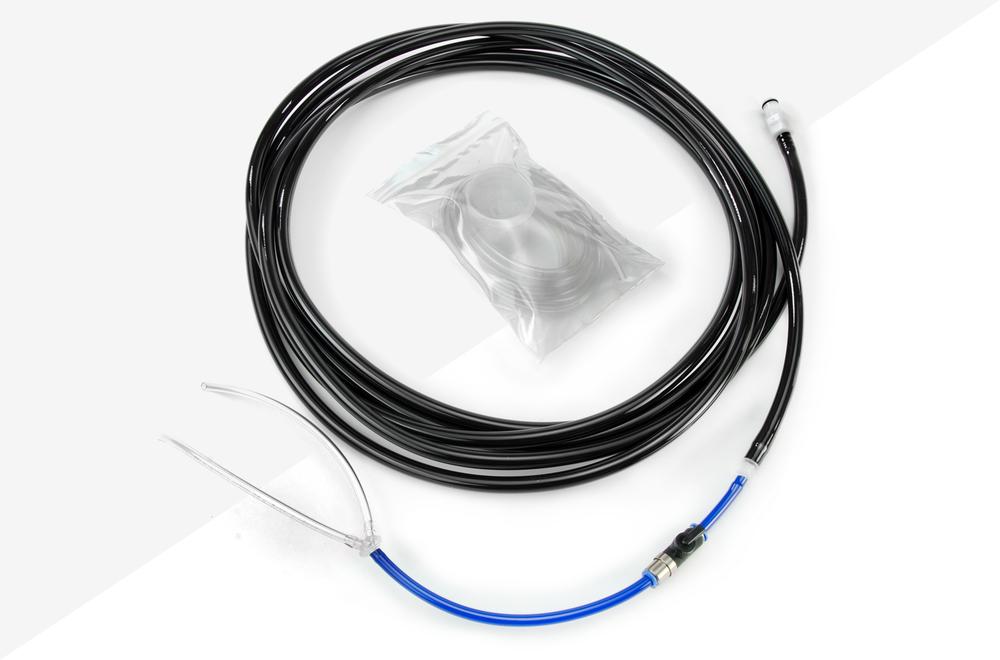

The 6 mm ID Irrigation Kit (7/16 In Quick Connect) contains the necessary hoses, fittings, tubing and standard 7/16 in quick connect required to connect a couplant pump to the probe(s) being carried by the scanner. This irrigation kit is compatible with the 7.9 L (2 Gallon) Manual Couplant Pump and the Motorized Couplant Pump.

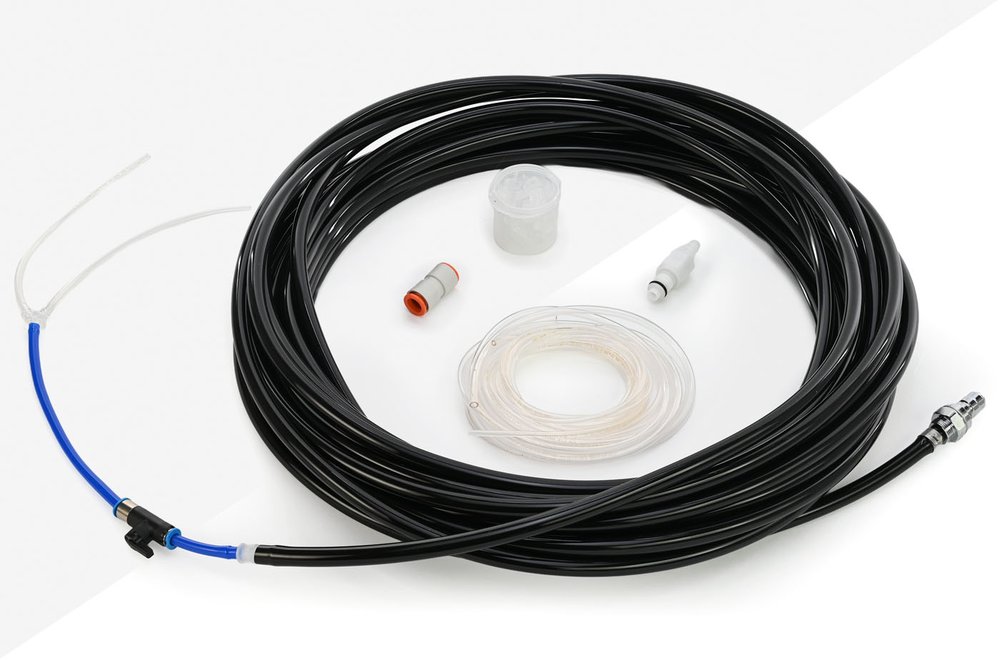

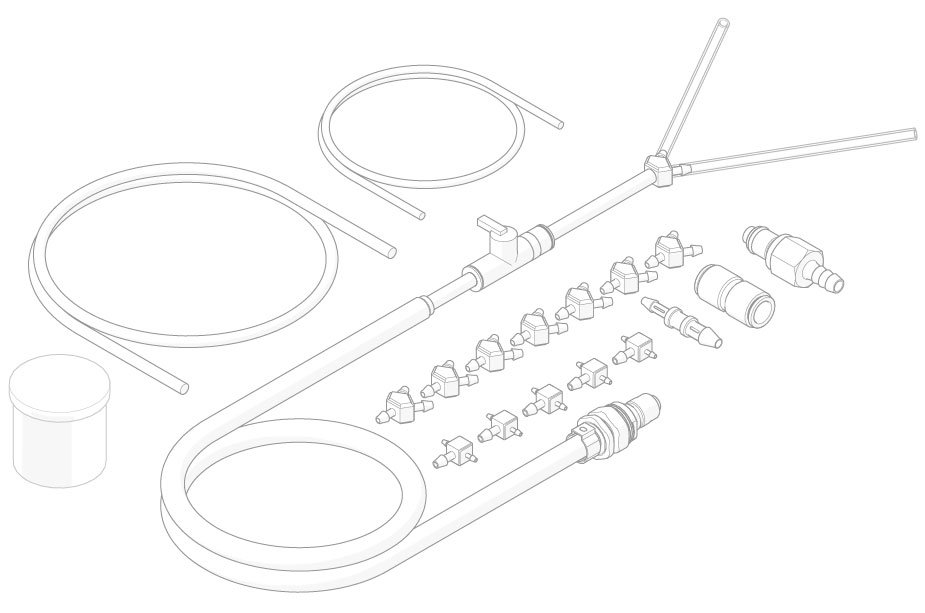

Kit Contents

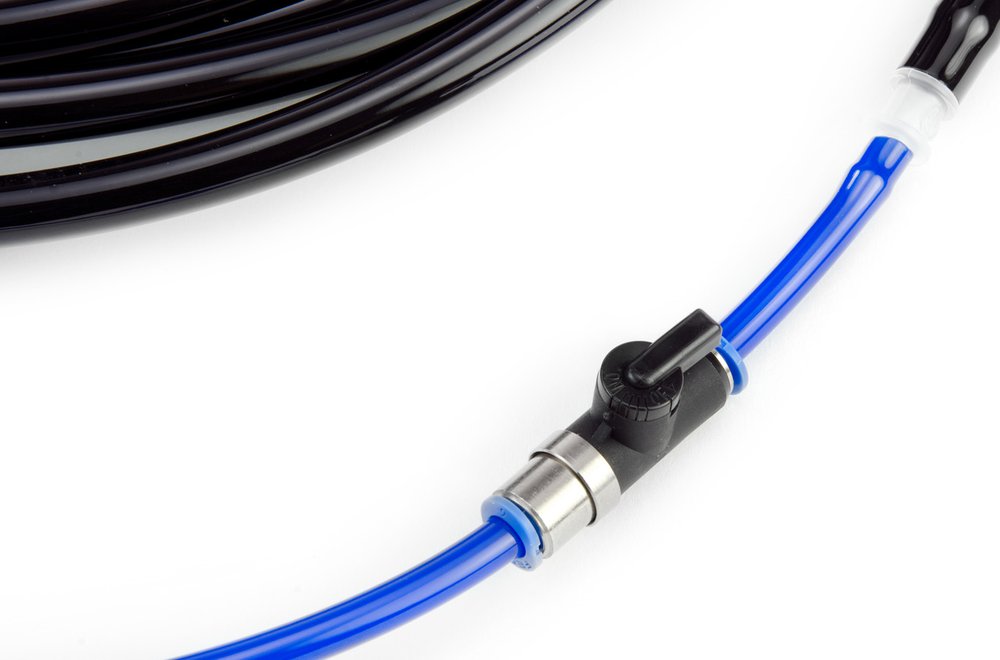

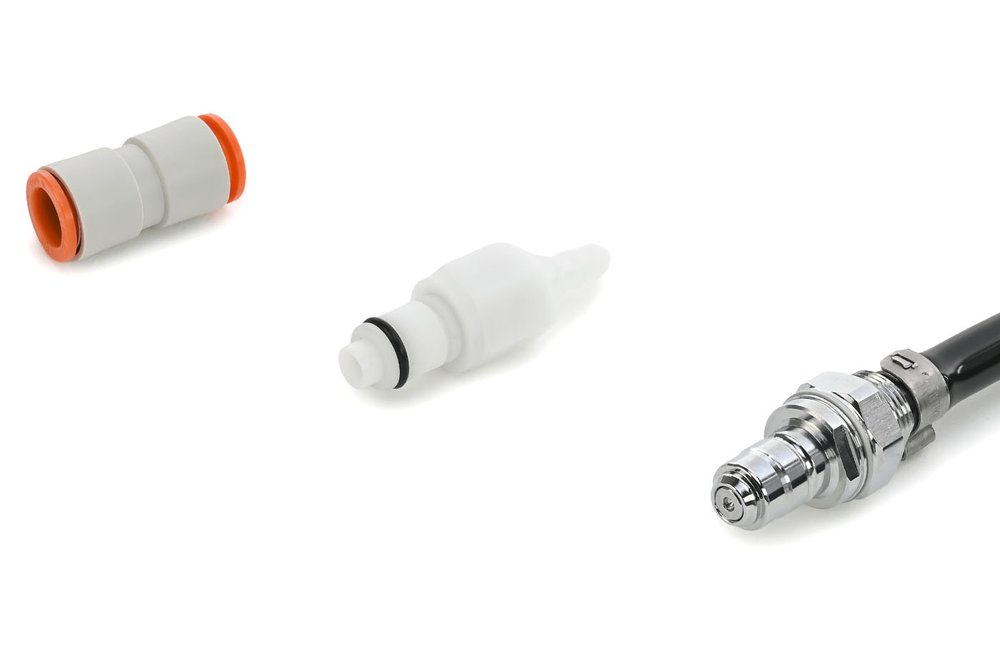

6 mm ID Irrigation Subassembly with 7/16 in Quick Connect and Shutoff Valve

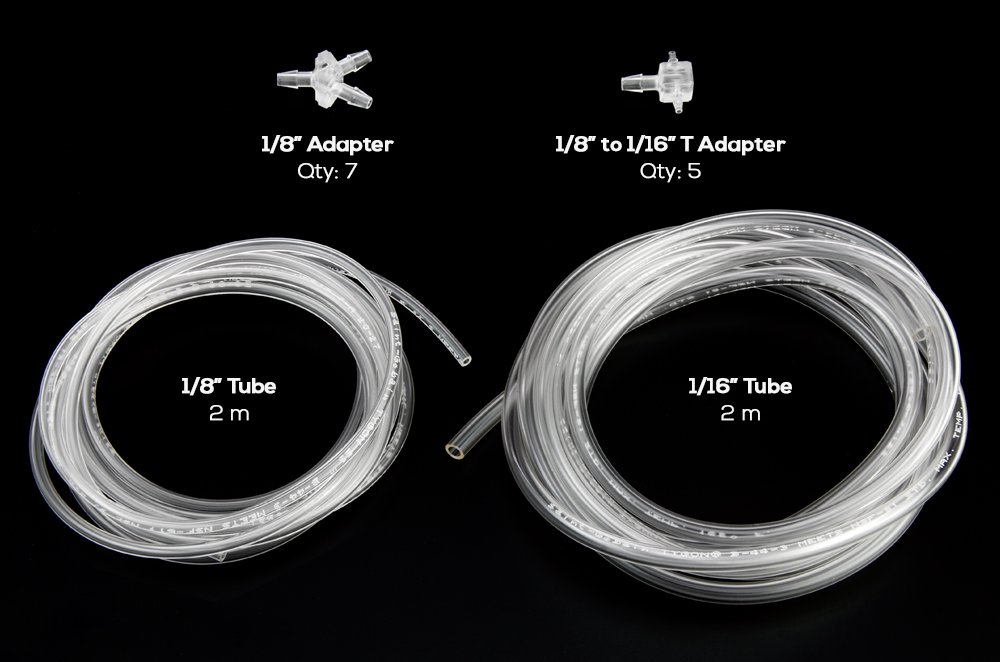

1/8 in Adapter x7
1/8 in To 1/16 in T Adapter x5
1/4 in Barb to 5/32 in Barb x1
1/8 in Tube 2 m (6.5 ft)
1/16 in Tube 2 m (6.5 ft)

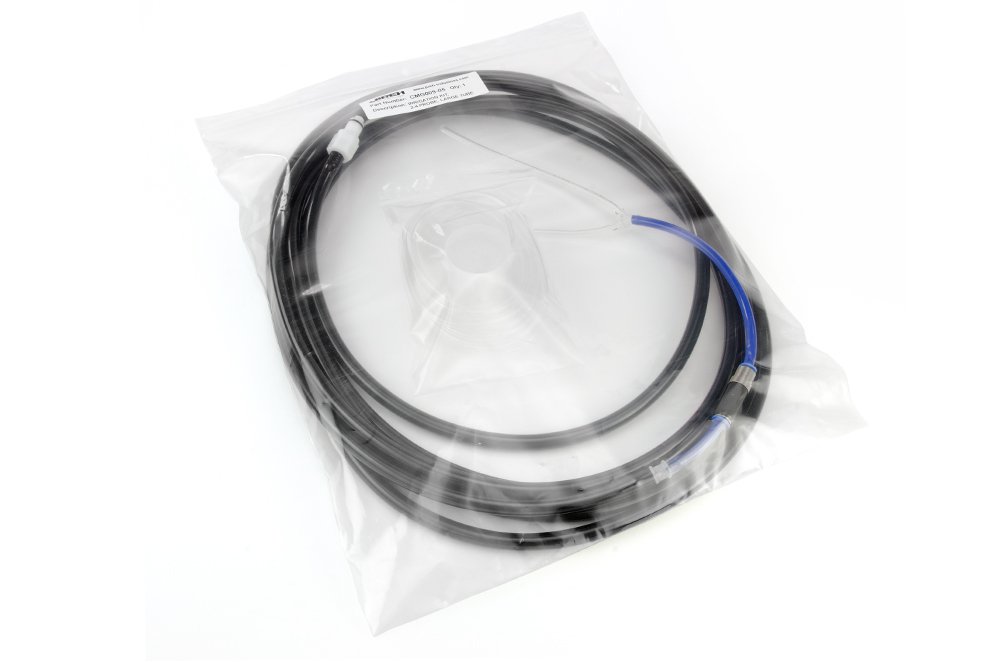

Plastic Container
Pump and Irrigation Compatibility
Irrigation Kits
CMG007 - 4 mm ID Irrigation Kit (7/16 in Quick Connect) - 1/8 in tube
CMG008 - 4 mm ID Irrigation Kit (5/16 in Quick Connect) - 1/8 in tube
CMG009 - 6 mm ID Irrigation Kit (7/16 in Quick Connect) - 1/4 in tube
Pumps
CMA012 - Manual Couplant Pump - 1 Litre
CMA014 - Manual Couplant Pump - 7.9 L (2.1 gal.)
CMA015 - Motorized Couplant Pump
Manifolds
CMG002 - Manifold - Connect 2, 4 or 6 Probes
CMG010 - Shutoff Manifold - Connect four probes with fluid shutoff
