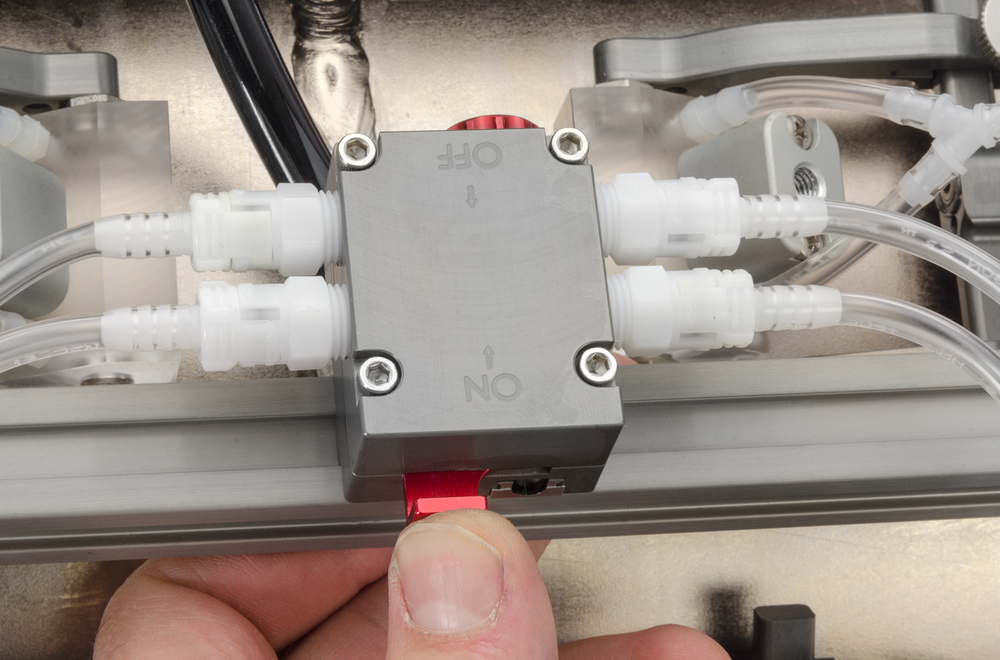

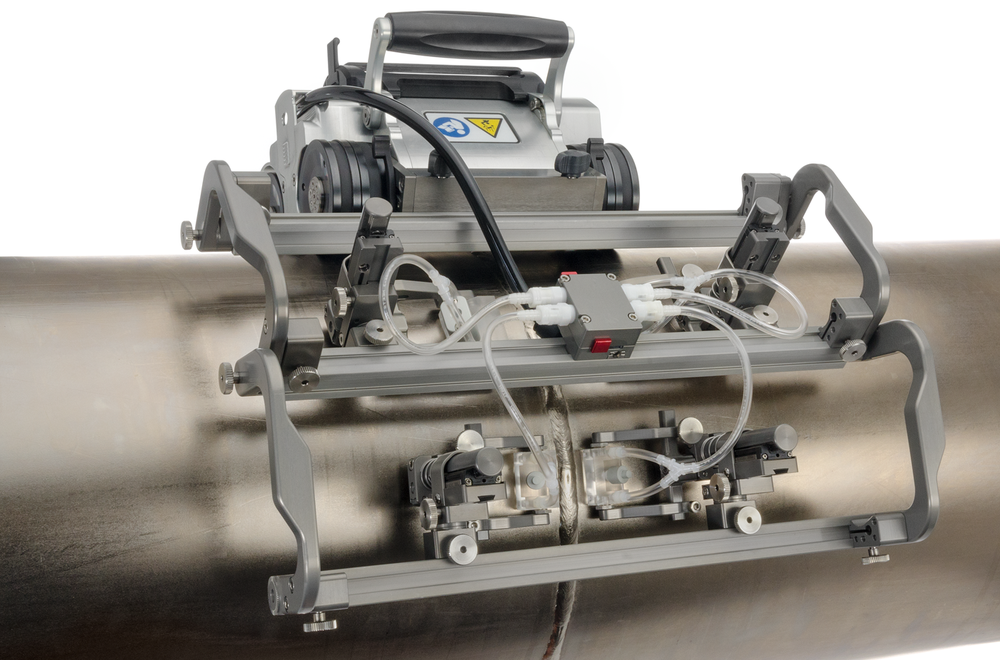

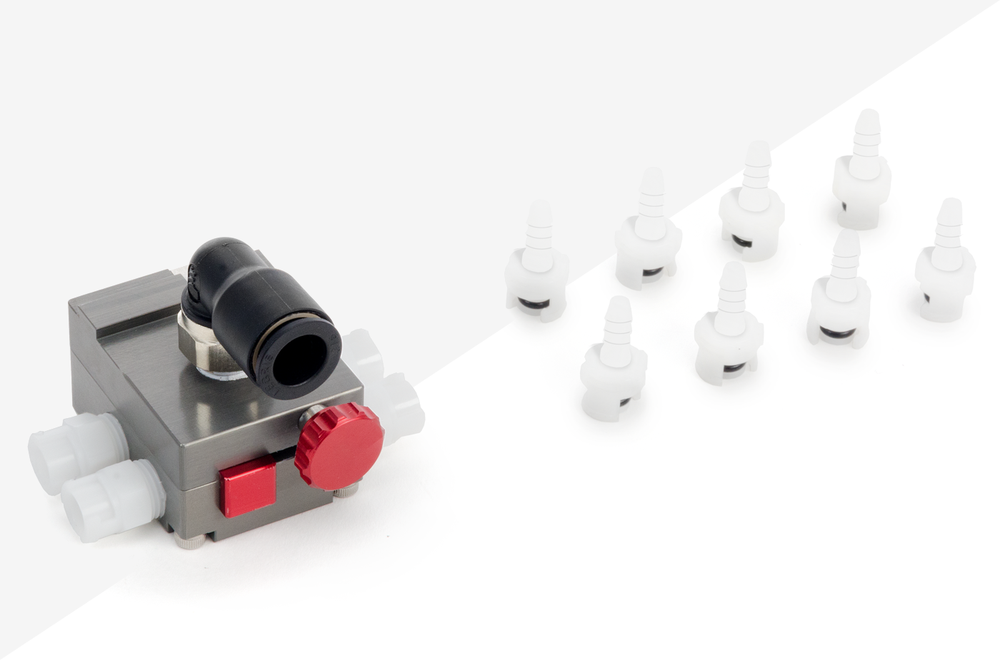

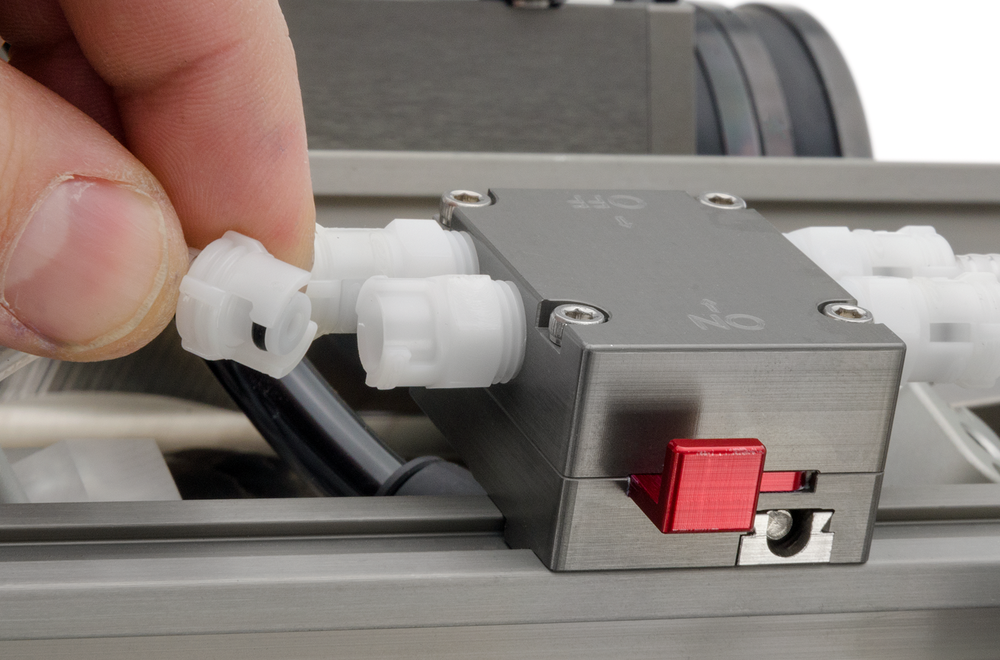

The Shutoff Manifold connects to any 0.95 cm (3/8 in) OD irrigation tube and directs couplant flow towards four separate quick connects while providing an easy means of fluid shutoff. Ideal for use during weld scans with either the NAVIC or SKOOT platforms, the shutoff manifold attaches to any dovetail mount found on the scanner. Use the shutoff manifold with any number of probes as the quick connect utilize an automatic shutoff design.

Part ID: CMG010

Pump and Irrigation Compatibility

Irrigation Kits

CMG007 - 4 mm ID Irrigation Kit (7/16 in Quick Connect) - 1/8 in tube

CMG008 - 3 mm ID Irrigation Kit (5/16 in Quick Connect) - 1/8 in tube

CMG009 - 6 mm ID Irrigation Kit (7/16 in Quick Connect) - 1/4 in tube

Pumps

CMA012 - Manual Couplant Pump - 1 Litre

CMA014 - Manual Couplant Pump - 7.9 L (2.1 gal.)

CMA015 - Motorized Couplant Pump

Manifolds

CMG002 - Manifold - Connect 2, 4 or 6 Probes

CMG010 - Shutoff Manifold - Connect 4 probes with fluid shutoff
