Motorized circumferential and longitudinal weld scanning with up to 6 probes.

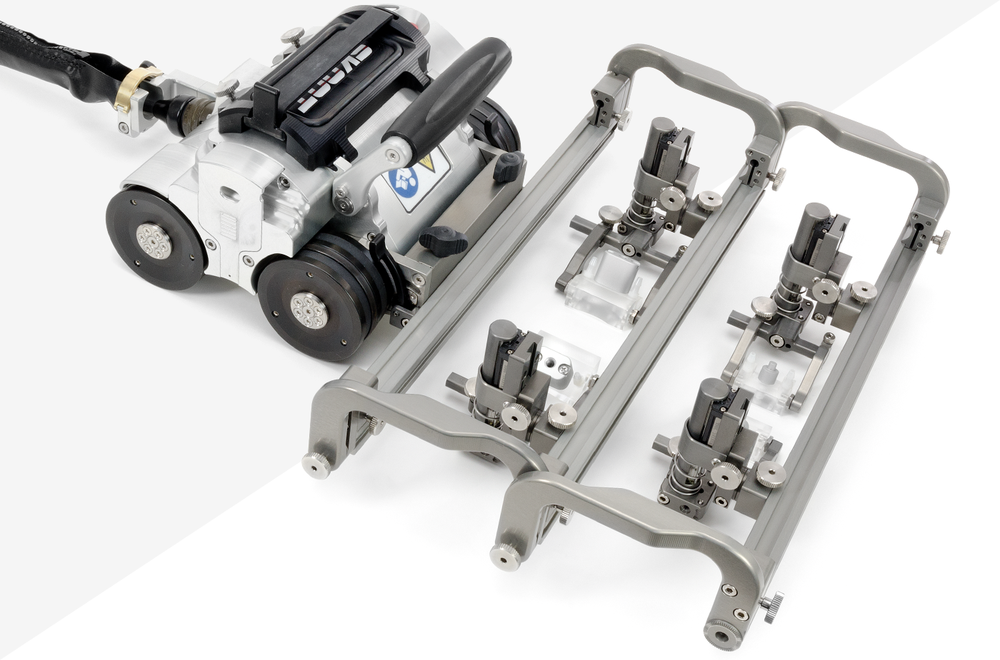

The SKOOT delivers an impressive weld scanning package. A low profile, motorized scan platform for use upon ferrous surfaces, the SKOOT - Weld Scanner is controlled remotely via the handheld controller and combines with several types of probe holder frames to cover a multitude of inspection applications.

Features

Low Profile Design

The SKOOT requires a radial clearance of 11.4 cm (4.5 in), which allows for inspection in limited access applications.

Magnetic Wheels

Using rare-earth magnets, the SKOOT can operate on vertical, horizontal and inverted surfaces.

Scan Versatility

The SKOOT can facilitate circumferential scans on pipes as small as 6.4 cm (2.5 in) OD and 68.6 cm (27 in) ID. In addition, flat surface scans and longitudinal scanning on pipes as small as 76.2 cm (30 in) OD are available.

Backpack

The optional backpack conveniently carries ultrasonic accessories with the unit.

Up to 6 Probes

Various probe holder frames are available for use with the SKOOT. Carry up to 6 probes during circumferential or longitudinal scanning.

Warranty

3-year warranty

Component Identification

Base Crawler

Four highly magnetic wheels propel the SKOOT crawler along ferrous surfaces. Attach a multitude of weld and corrosion scanning accessories to the crawler which features cable management and integrated encoder.

Backpack

A flexible strap securely holds any pre-amp, splitters or scan accessories to the SKOOT crawler.

Manipulation Handle

Slight steering adjustments and crawler manipulation are achieved using the manipulation handle.

Power Controller

Configurable for North American or European electrical standards, the power controller is a sophisticated operating platform and connection point for instrumentation and handheld controllers.

Handheld Controller

Precision forward and reverse drive control, programmable y-axis control and system diagnostics are all accessed using handheld controller's touchscreen and joysticks.

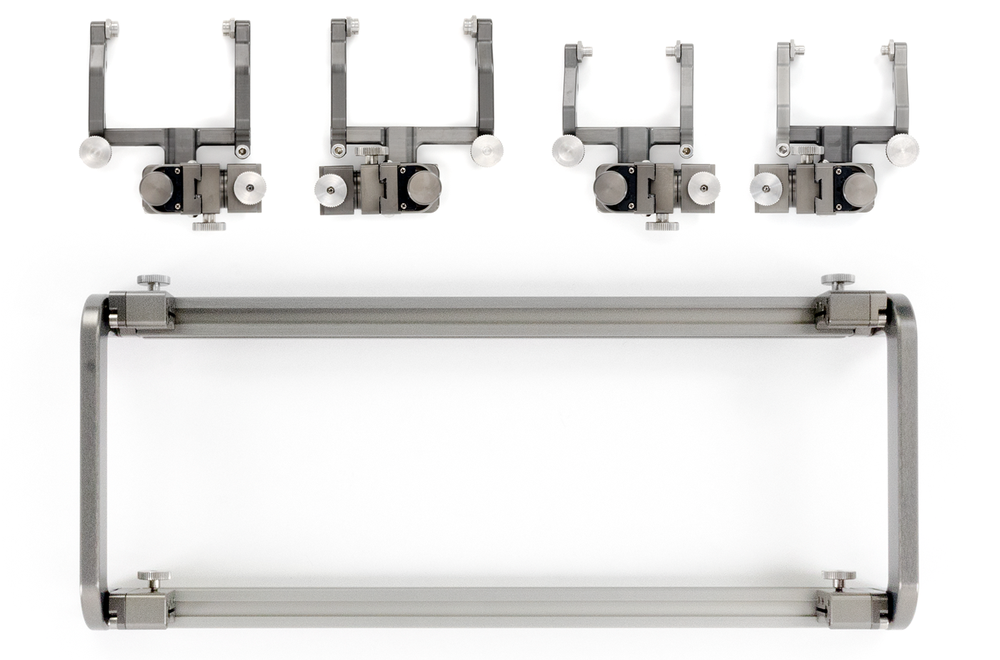

Kit Contents

Path 2 CopyPath 2 Copy

SCANNER

SKOOT base crawler

PARTS & ACCESSORIES

Power controller (North American or European plug)
Umbilical, 7.5 m (25 ft) or 30 m (100 ft) lengths available
Handheld controller
Controller cable, 6 m (20 ft)
Manipulation handle
Cable management, threaded mount, (length dependent on umbilical length)
J300 encoder cable, 5 m (15 ft)

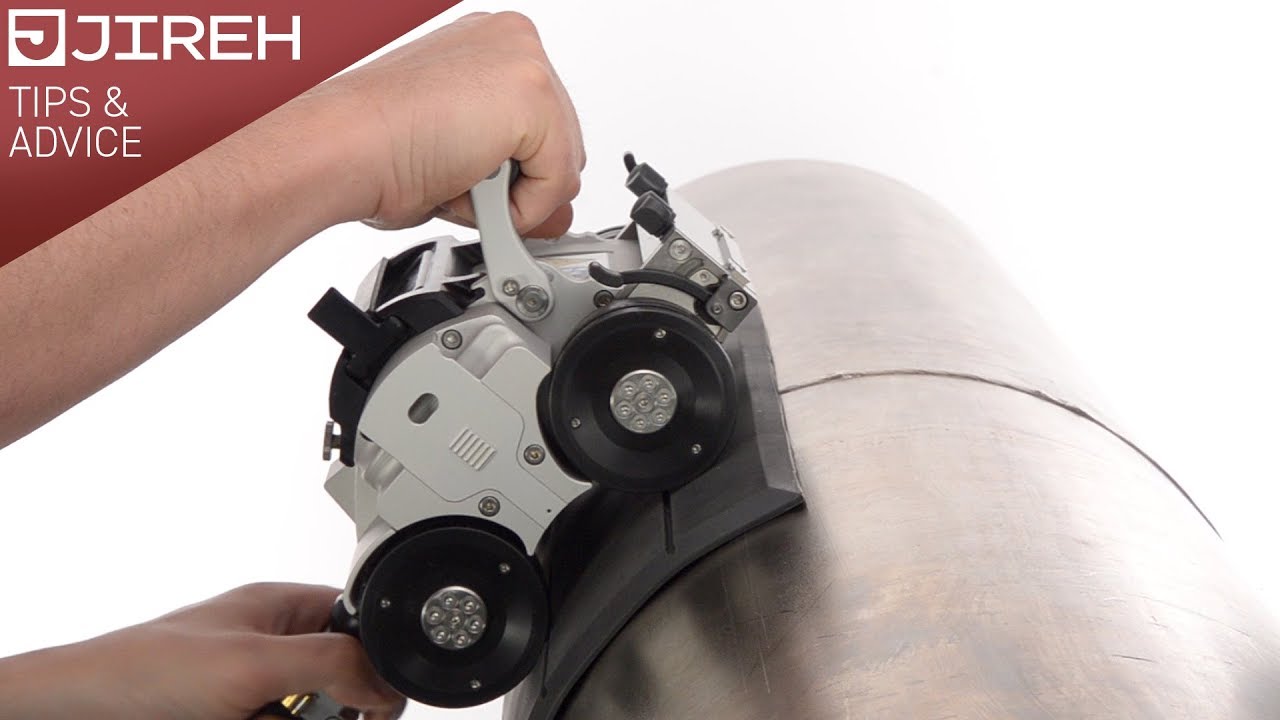

Installation/Removal mat
6 mm ID irrigation kit (7/16 in quick connect)
Lifting sling (safety tether)
User manual
Rugged carrying cases (various types based on chosen accessories)

TOOLS

3 mm hex driver
3 mm flat driver
Wrench for pivot button adjustment

COMPONENTS

(Components may vary based on selected configuration)

Vertical probe holder frame
Phased array vertical probe holder x2
TOFD vertical probe holder x2

Low profile probe holder frame
Phased array slip joint probe holders x2
TOFD slip joint probe holders x2

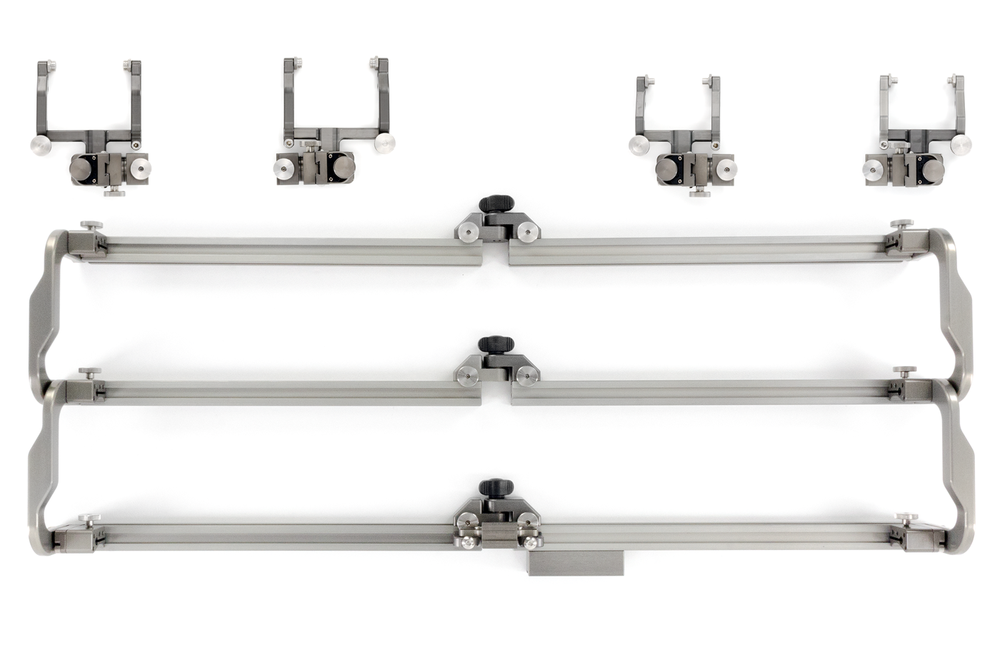

Pivoting probe holder frame
Phased array vertical probe holder x2
TOFD vertical probe holder x2

Parts & Add-Ons

Related Products

Specifications

Path 2 CopyPath 2 Copy

GENERAL

Encoder Resolution: 1354 counts/mm (6100.9 counts/inch)
Maximum Vertical Payload: 9 kg (20 lb)1
Maximum Travel Speed: 0.5-14.2 cm/sec (0.2-5.6 in/sec)
Power Requirements: 100-240VAC, 50/60Hz, 1.4 Amps
Umbilical Length: 7.5 m (25 ft)2
Inspection Surface: Ferrous
Maximum Backpack Payload: 1.36 kg (3 lb)

PIPE RANGE

Circumferential, Outer Diameter (OD): 6.35 cm (2.5 in) to flat
Circumferential, Inner Diameter (ID): 68.6 cm (27 in) to flat
Longitudinal: 76.2 cm (30 in) to flat

RADIAL CLEARANCE

Pipes under 200 mm (8 in): 10.4 cm (4 in)3
Pipes over 200 mm (8 in): 11.03 cm (4.34 in)3

REGULATIONS

CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.4
FCC: Compliance with Part 15 of FCC rules.4
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.4

SIZE & WEIGHT

Base Crawler Height: 11.21 cm (4.41 in)5
Base Crawler Height, including handle: 14.86 cm (5.85 in)
Base Crawler Height with manipulation handle: 16.10 cm (6.34 in)
Base Crawler Width: 20.78 cm (8.18 in)
Base Crawler Length: 21.77 cm (8.57 in)
Base Crawler Length with manipulation handle: 55.97 cm (22.04 in)
Base Crawler Weight: 7.3 kg (5.4 lb)

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
Maximum Inspection Surface Temperature: 150°C (302°F)6

PHASED ARRAY PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 17 mm (0.67 in)
Maximum Wedge Width: 55.8 mm (2.2 in)7

TOFD PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 17 mm (0.67 in)
Maximum Wedge Width: 44.4 mm (1.75 in)7

Probe Holder Pivot Buttons

01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.009 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)

  1. Performance may vary with surface type. Umbilical and attachments are considered payload.
  2. Custom umbilical lengths are available.
  3. With backpack and manipulation handle removed, using slip-joint probe holders only.
  4. For a complete description of regulatory certifications, please contact Jireh Industries
  5. Measurements do not include the backpack.
  6. The automated crawler medium temperature add-on kit is required when the inspection surface temperature measures between 50°C (122°F) and 150°C (302°F).
  7. Some arms styles may provide additional maximum wedge width. Contact Jireh Industries for details.
    Technical specifications subject to change.



Crawler

From USD$ 23,274.00

A powerful, remotely operated, automated scanner. Perform a multitude of complex weld and corrosion scans using any number of accessories.

The SKOOT - Base Crawler is a powerful automated scanner. The ability to carry multiple attachments and various accessories while traversing all types of magnetic surfaces make the SKOOT an extremely versatile scanning device. This remotely operated scanning platform can be outfitted with probe holder frames for weld inspection or a raster arm for automated two-axis corrosion scans.

Probe Holder Frame

From USD$ 3,150.00

Low Profile Probe Holder Frame

From USD$ 3,150.00

Low Profile Multi-probe Weld Inspection

The Low Profile Probe Holder Frame adds weld scanning capability to the NAVIC and SKOOT motorized scanners. The CXG004 frame uses (4) slip joint probe holders (2 Phased Array and 2 TOFD). The low-profile design of the frame allows for scanning on all diameters where radial clearance is limited.

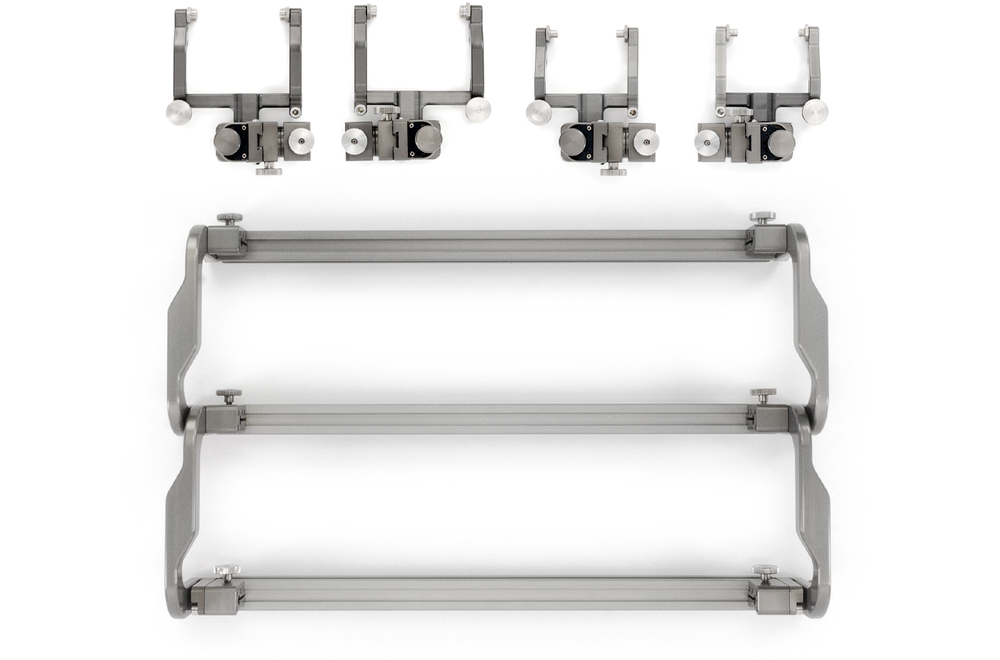

Vertical Probe Holder Frame

From USD$ 4,234.50

Add weld scanning capability to the automated NAVIC and SKOOT scanners. The configurable Vertical Probe Holder Frame - 4 probe uses four vertical probe holders (2 phased array and 2 TOFD) and is available in various frame bar lengths to perform intricate weld scanning on ferrous surfaces.

Laser Guide

From USD$ 630.00

The Battery Powered Optical Guide provides a point of reference useful for guiding scanners along a given path (i.e. a weld). The angle of projection may be adjusted to account for various scan surfaces and sizes. An included perpendicular dovetail mount ensures the battery powered optical guide is compatible with many manual and motorized scanners.

Irrigation Pump

From USD$ 1,440.00

The Motorized Couplant Pump is designed for use with the CMG007 and CMG009 irrigation kits. The motorized couplant pump is a powered pumping unit used for supplying couplant fluid to the scanning surface.


Pump/Umbilical Case

From USD$ 405.00

The Motorized Pump/Umbilical Case offers superior protection for a Motorized Couplant Pump as well as additional storage for umbilicals, cables, hoses and tubes.
