Enhance your corrosion scanning with our versatile, functional, and user-friendly scanner.

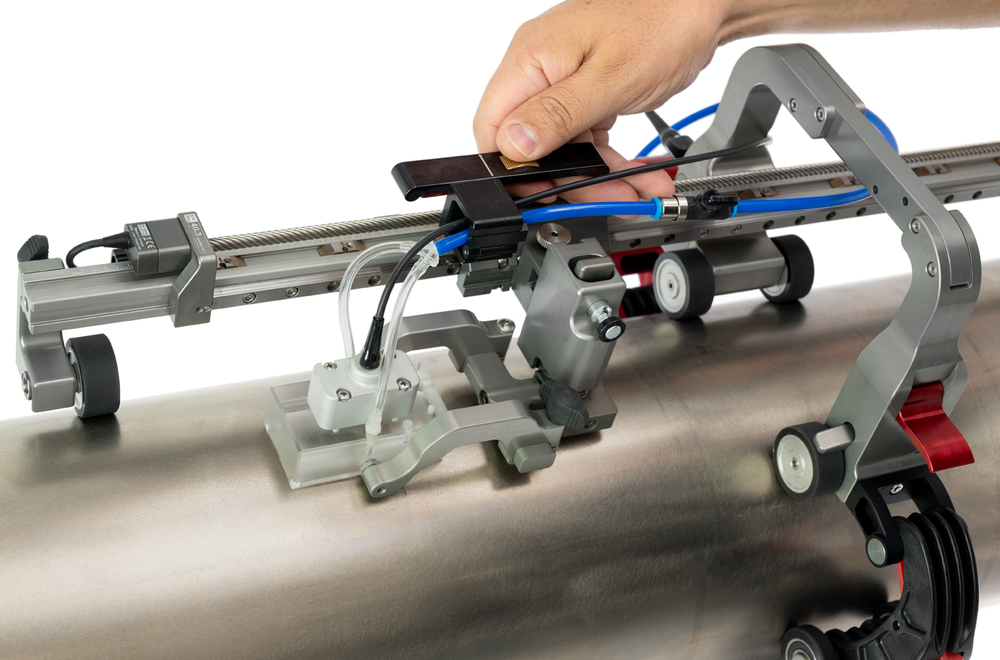

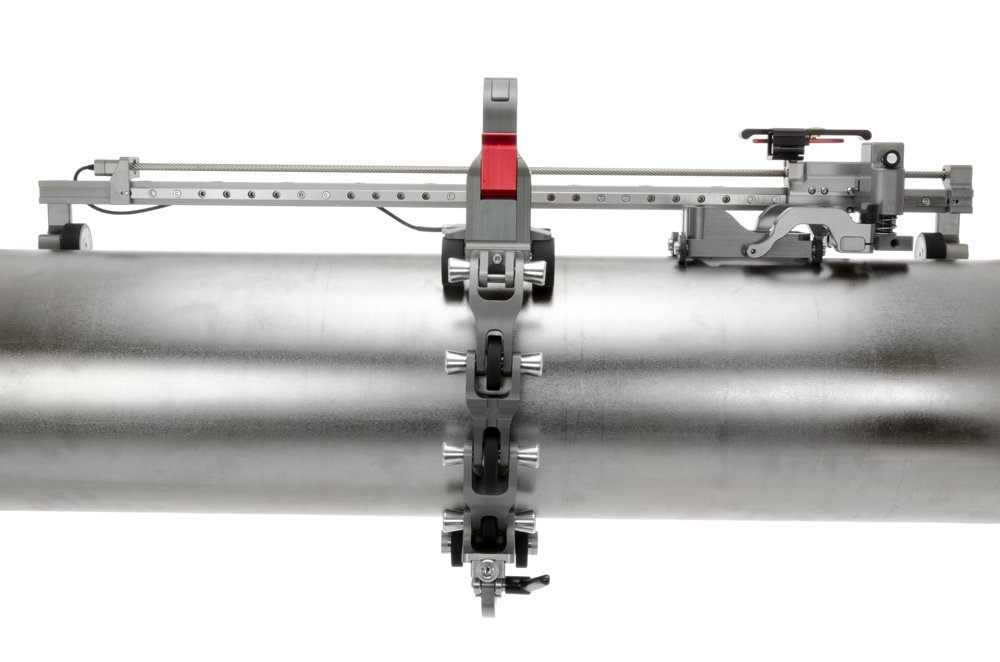

The ROTIX - Corrosion Chain Scanner offers versatile inspection capability, allowing you to assess non-ferrous and ferrous materials for corrosion efficiently. One of the standout features of the ROTIX is its built-in positional and index encoders. These encoders enable precise measurement during inspections, ensuring that you obtain accurate and reliable results. Furthermore, the scanner's user-friendly interface makes operating easy, even in challenging inspection environments. Additionally, the versatile QuickLink chain system allows for easy adaptation to pipe sizes ranging from 10.2 to 96.5 cm (4 to 38 in), making it suitable for various applications.
Choose the ROTIX - Corrosion Chain Scanner and experience the benefits of a top-quality tool to enhance your corrosion inspection processes.
Note: The HydroFORM Cart is sold separately. To accommodate the HydroFORM Cart, you will need 8 mm (0.315 in) probe pivot buttons. These buttons are specifically designed to fit the HydroFORM Cart and ensure optimal performance.
Videos
FEATURES

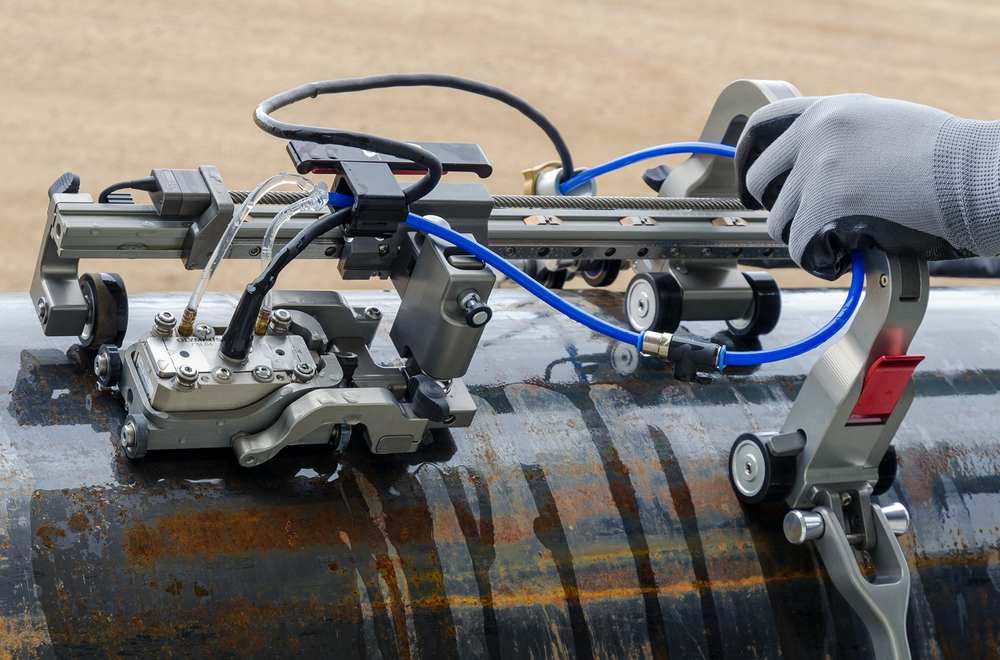

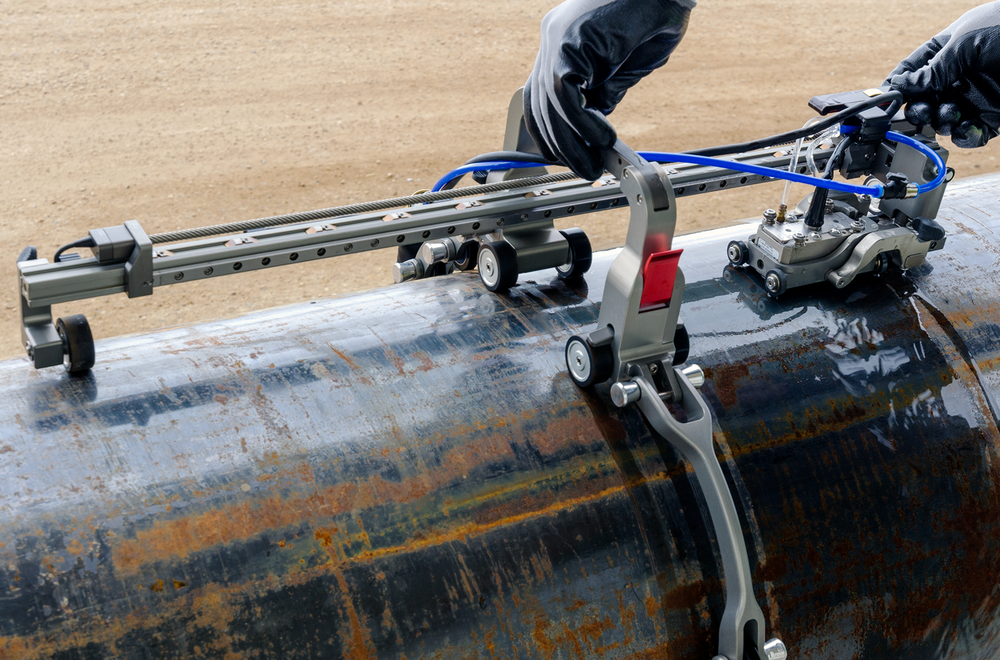

Corrosion Scanning
Effortlessly conduct precise corrosion scans with our user-friendly chain scanner. This manually operated device offers encoded probe positioning on non-ferrous and ferrous inspection surfaces, ensuring accurate results every time.

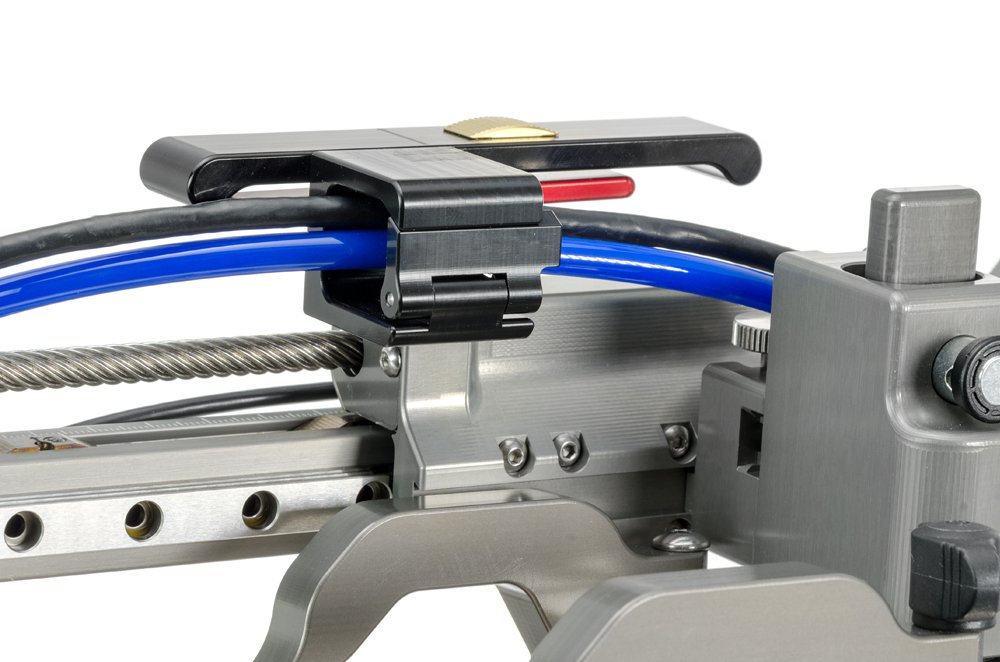

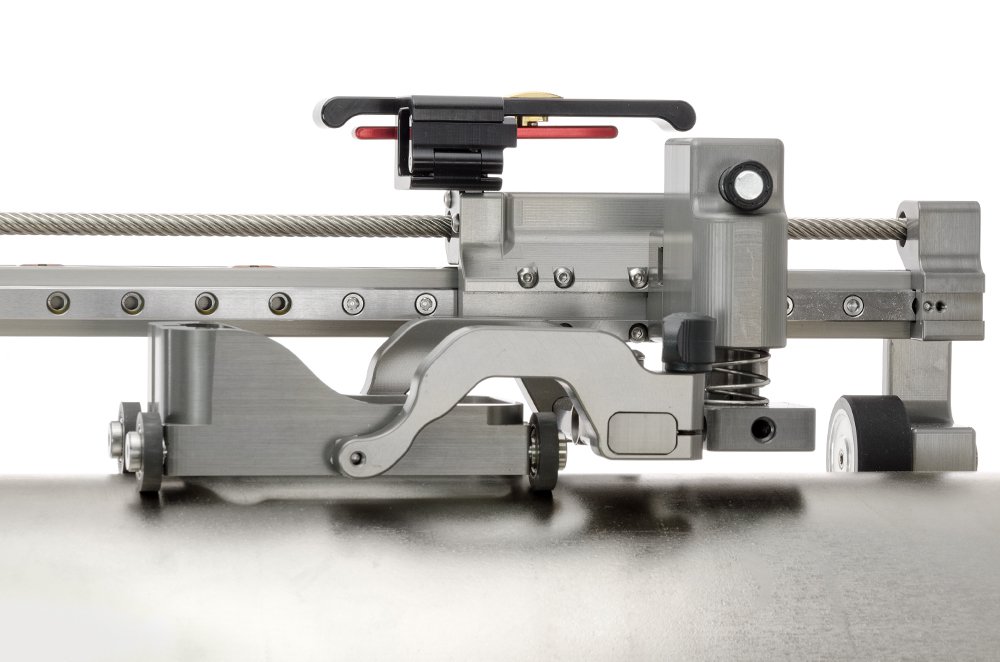

Scan Control
The carrier, to which the heavy-duty vertical probe holder connects, includes an indexing latch that controls seamless switching between different scan paths. The convenient cable clip also ensures the hassle-free organization of cables and tubes.

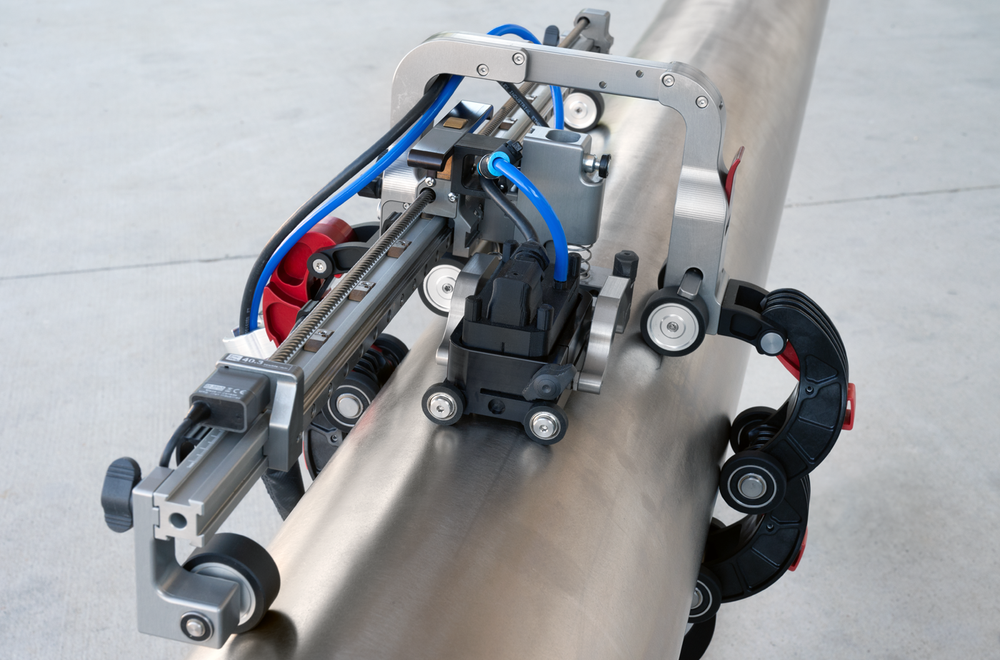

Adjustable QuickLink Chain
Using QuickLinks and an adjustable QuickLink buckle, pipes and tubes ranging from 10.2 - 96.5 cm (4 - 38 in) in diameter can be effortlessly scanned. Quicklinks facilitate swift and hassle-free connections, and assembling various chain configuration lengths is a breeze.
Precise Encoded Positioning
This scanner delivers accurate positional data during your inspections by providing encoded positioning for both the X and Y-Axis. That means both the scanner and probe positions are tracked and delivered via the built-in encoder output, which is fully compatible with all standard instruments, allowing seamless integration into your existing workflow.
QuickLinks
With QuickLinks, you can effortlessly connect and disconnect with ease. Our user-friendly design ensures a seamless experience - latch them to connect and press a button to disconnect.

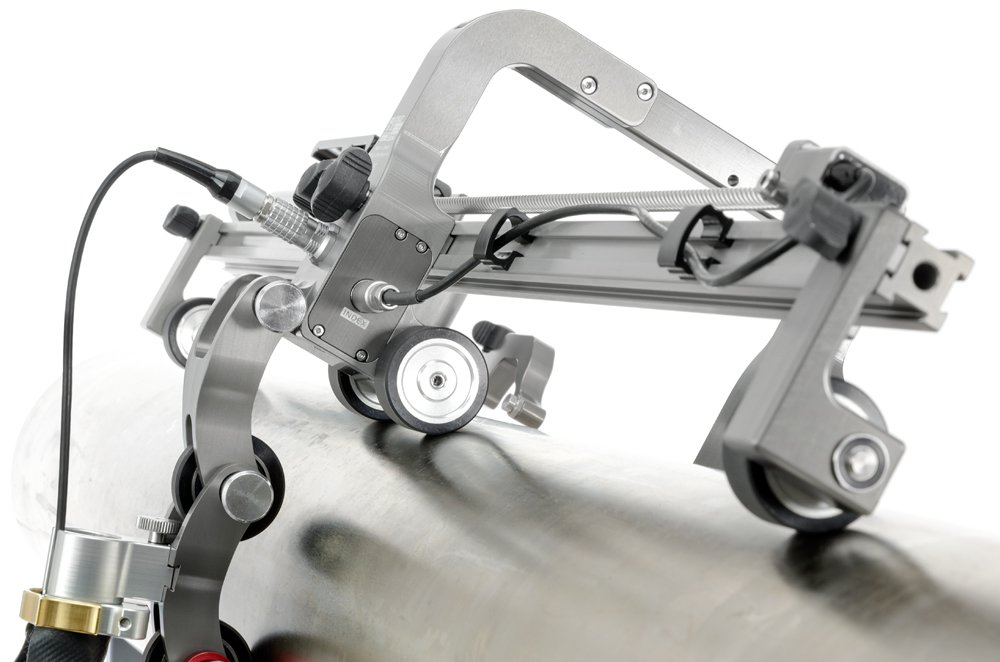

Brake
The scanner's brake system allows you to manage and control the movement of the scanner quickly.

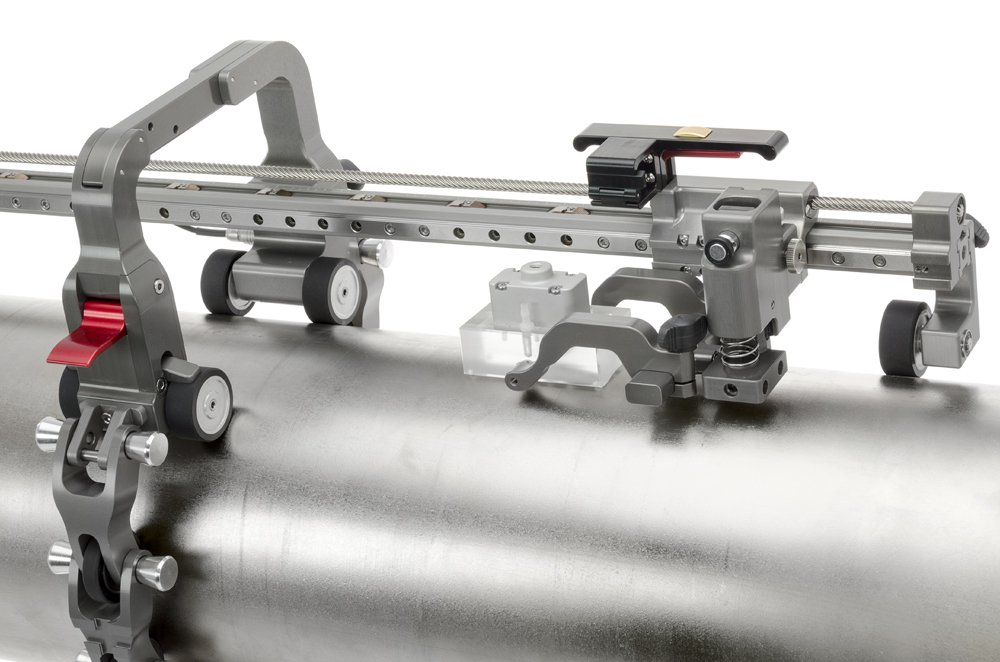

Heavy Duty Vertical Probe Holder
The heavy duty vertical probe holder is specifically designed to accommodate large probes. This probe holder is compatible with the Olympus HydroFORM, allowing you to maximize the capabilities of your inspection equipment. With its sturdy construction and spring-loaded capabilities, this vertical probe holder provides outstanding performance with oversized probes.
Cable Management
Not only do our Cable Clips and Cable Management help with organization, but they also offer an added layer of protection for your tubes and cables. By keeping them securely in place, you can prevent accidental damage and extend the lifespan of your equipment.
Warranty
With our limited three-year warranty, you can trust in the reliability and longevity of our products.

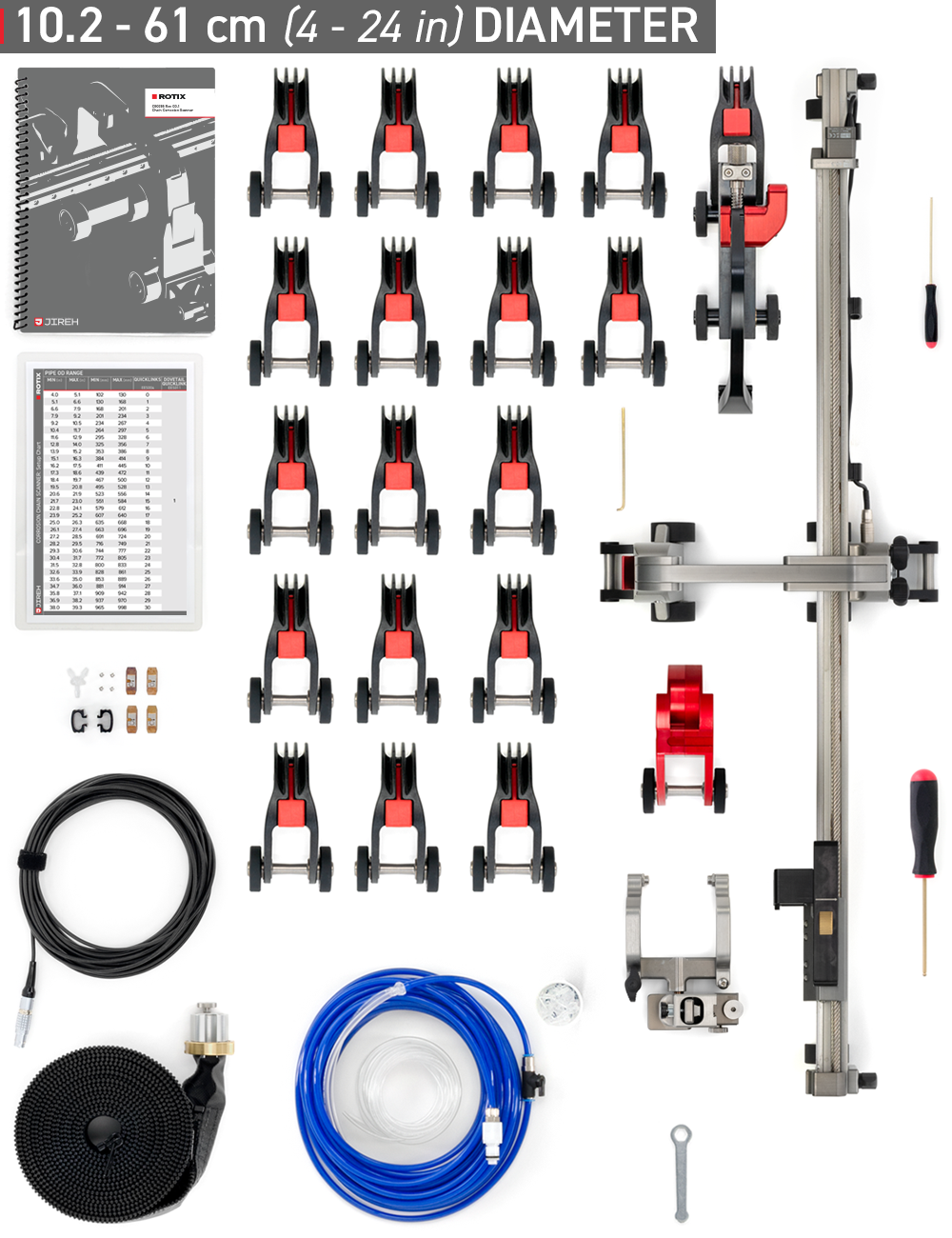

Kit Contents
COMPONENTS
ROTIX corrosion frame, 75 cm (29.5 in) frame bar with ruler
PPS encoder
Heavy duty vertical probe holder
J100 encoder cable, 7.5 m (24.6 ft) length
Irrigation Kit: 4 mm ID, (7/16 in quick connect)
Cable management, dovetail mount, 7 m (22.9 ft)
Corrosion scanner spare parts kit
Cable clips x2
User manual
Setup chart

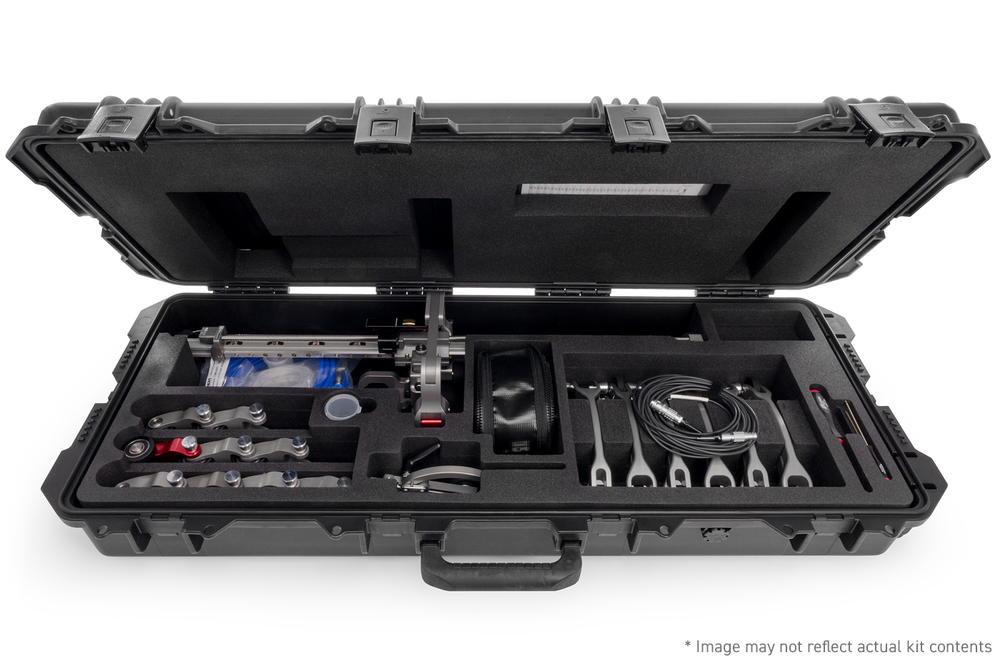

Rugged carrying case
QUICKLINKS

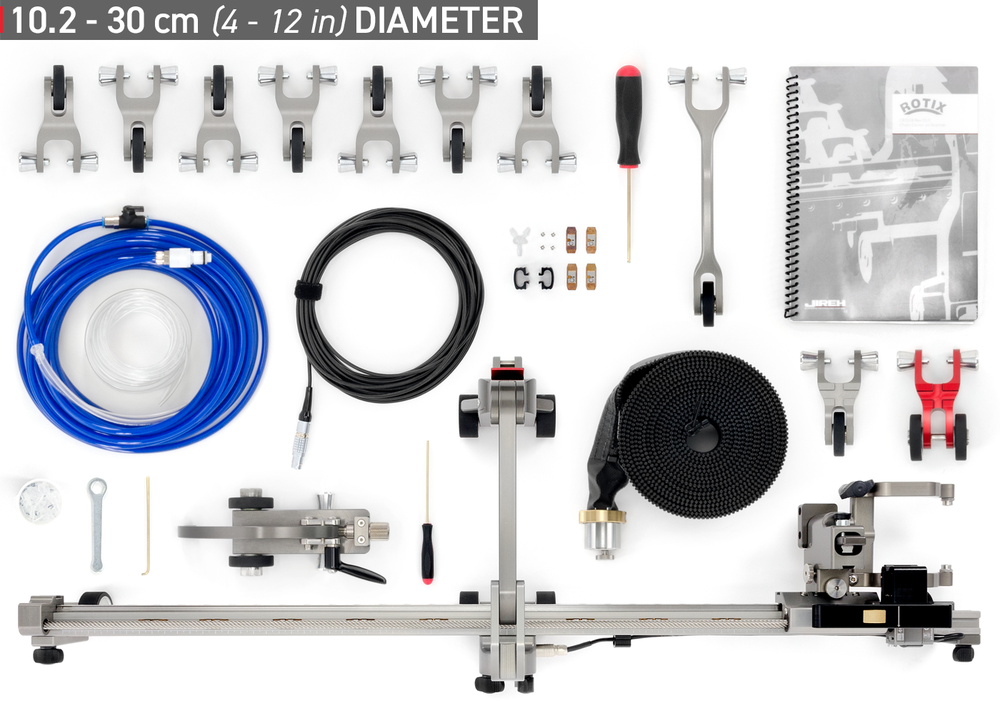

30.5 cm (12 in) Diameter kit - QuickLinks x6

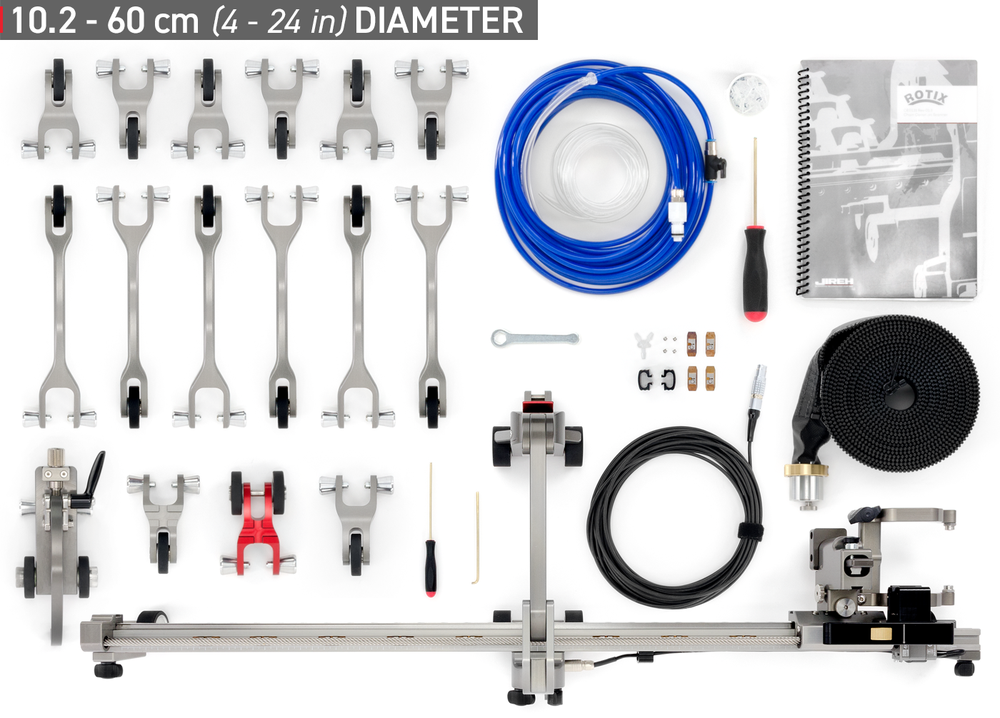

61 cm (24 in) Diameter kit - QuickLinks x17

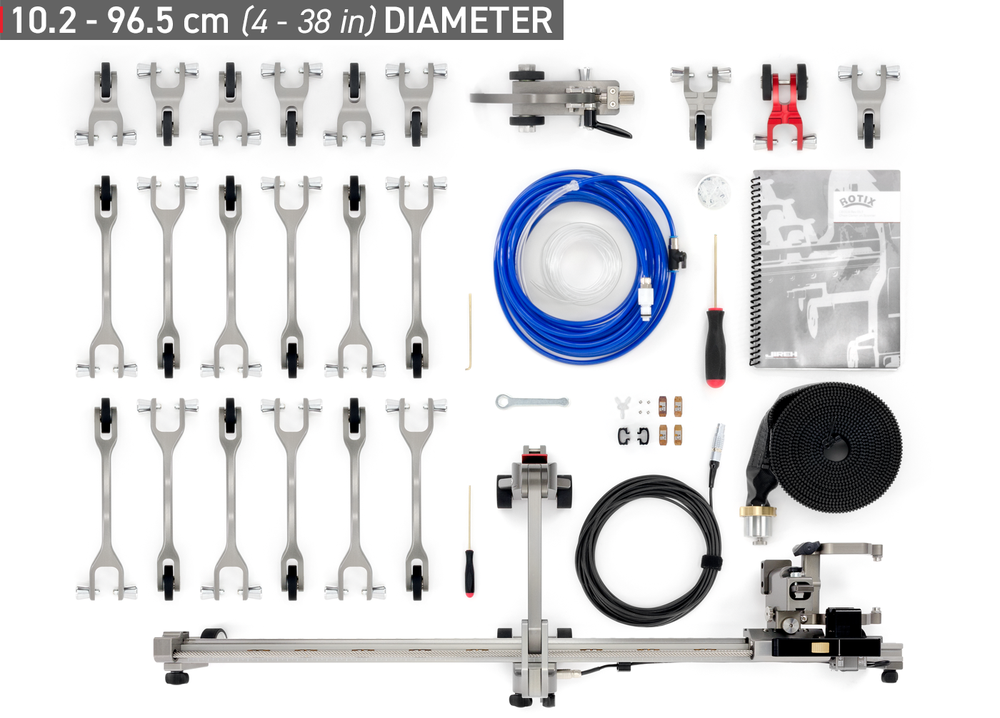

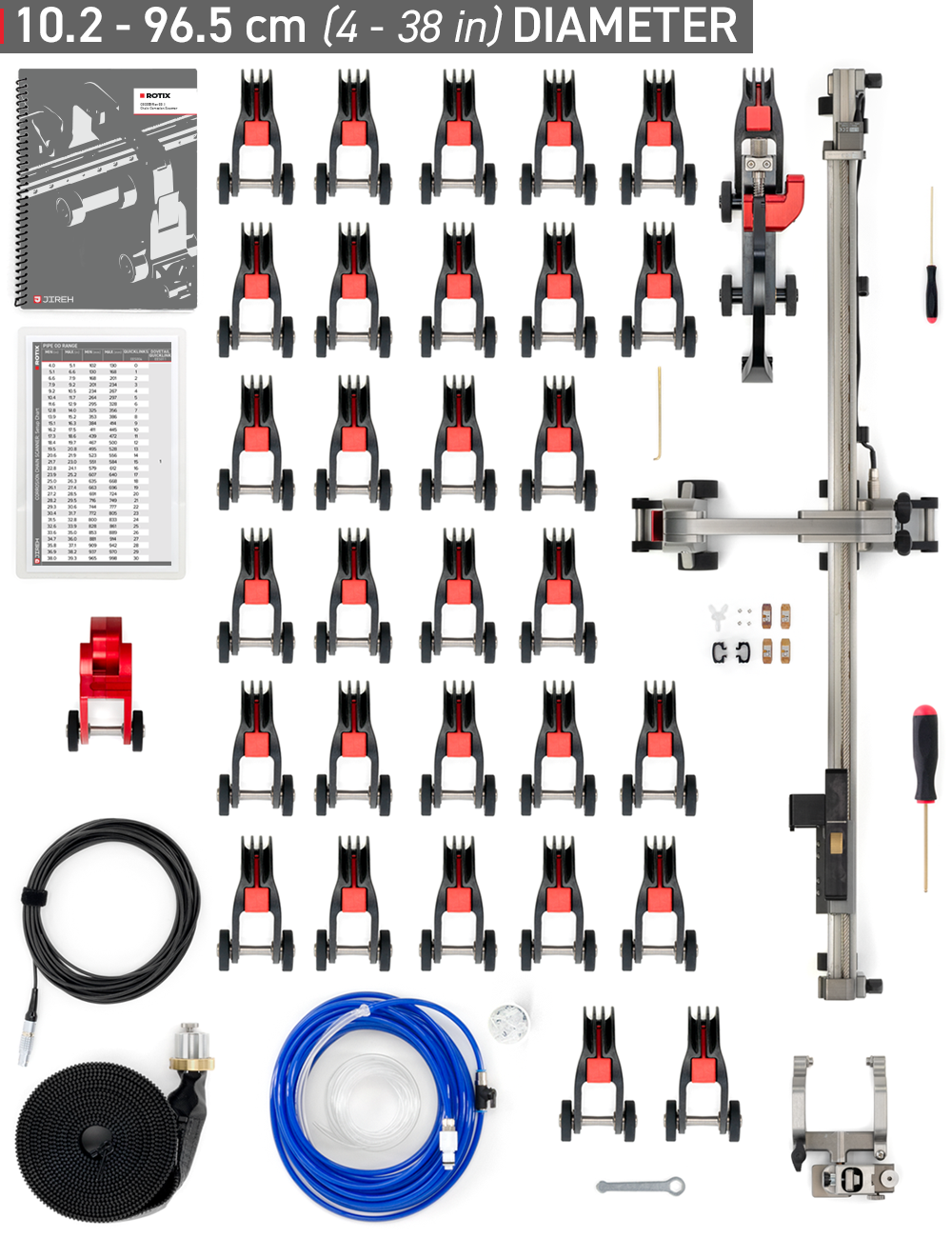

96.5 cm (38 in) Diameter kit - QuickLinks x30
Dovetail QuickLink x1
QuickLink Buckle x1
TOOLS
Hex driver: 3 mm
Hex driver: 2 mm
Short 2 mm hex wrench
3/8" Wrench for pivot button adjustment
Contents may vary depending on the configuration selected.
Component Identification
J100 Encoder Cable
We offer a variety of encoder cable styles to connect the ROTIX system to different instruments, ensuring compatibility and a seamless connection.

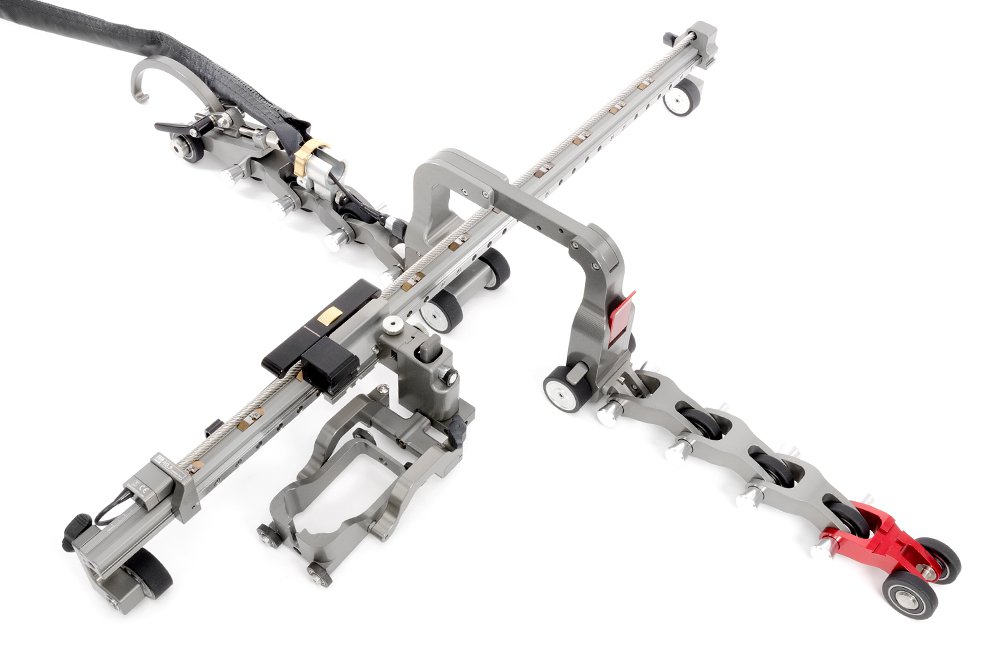

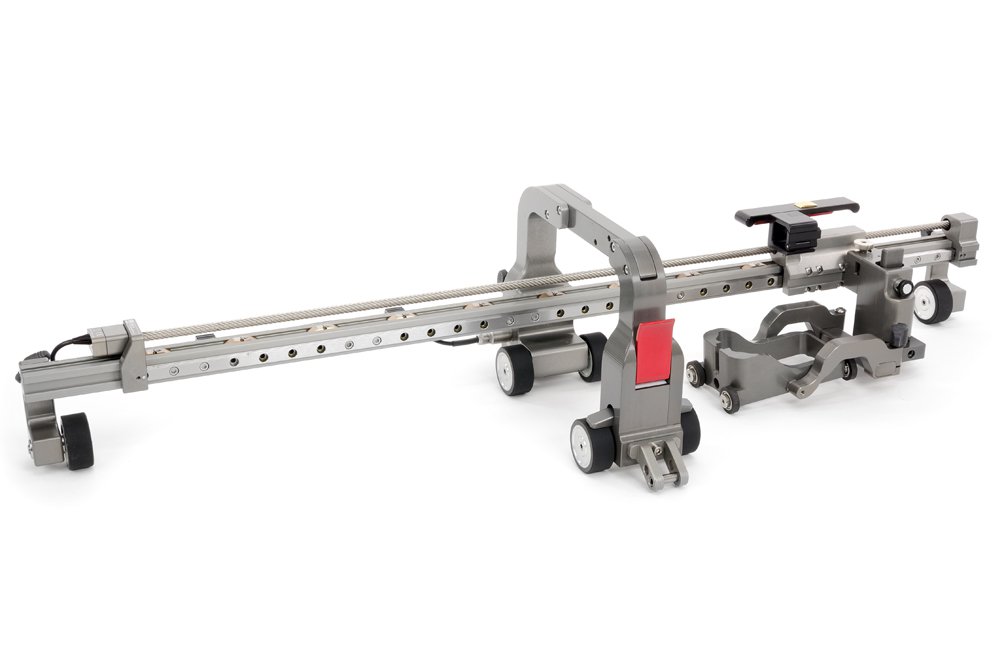

ROTIX Corrosion Frame
The ROTIX Corrosion Frame is the backbone of the system. It carries many essential features, including system braking, an internal positional encoder and the corrosion slider system.
Cable Management
Cable Management provides durable protection for probe cables, irrigation tubes, and more. Its flexible, zippered material is resistant to low temperatures and offers high break strength, abrasion resistance, and flame-retardant properties.
PPS Encoder
The PPS Encoder (Probe Positioning System) tracks the probe position on the Y-Axis. This enables precise positioning during inspections. The encoder plug connects with the second encoder input on the ROTIX corrosion frame.
QuickLink Buckle
Effortlessly adjust chain tension to achieve optimal performance of your scanner. Not only that, but the QuickLink Buckle also serves as a reliable connection point for the QuickLinks.
Heavy Duty Vertical Probe Holder
The Heavy Duty Vertical Probe Holder is designed to handle more significant probes like the Olympus HydroFORM and various probe/wedge combinations used in corrosion inspection. Its sturdy construction provides stability and support and can apply additional downforce when required.
QuickLink
Achieve the perfect length for mounting your system on a pipe thanks to QuickLinks. These versatile links allow you to assemble the required length quickly, ensuring a secure and reliable chain configuration.
Dovetail QuickLink
The Dovetail QuickLink helps you expand your chain configuration and is a versatile connector for accessories such as cable management.
Parts & Add-Ons
4 mm ID Irrigation Kit (7/16 in Quick Connect)
Aqualock Cart
Corrosion Scanner Spare Parts Kit
Corrosion Thickness Probe Holder - Curved Wear Plate
Corrosion Thickness Probe Holder Receptacle - Curved Wear Plate
Dovetail QuickLink
Heavy Duty 0° Probe Adapter
HydroFORM Cart - 2nd Generation
J100 Encoder Cable
Manual Corrosion Scanner Spare Parts Kit
Manual Couplant Pump - 7.9 L (2.1 gal.)
QuickLink
QuickLink Buckle
Related Products
Specifications
GENERAL
Pipe Range, Circumferential: 10.2 to 96.5 cm (4 to 38 in)
Stroke Length: 61 cm (24 in)
Encoder Resolution: 16.3 counts/mm (414.5 counts/inch)
Index Resolution: 40.3 counts/mm (1023.9 counts/inch)
Probe Holding Capacity: One heavy duty probe holder
Encoder Cable Length: 7.5 m (24.6 ft)1
Inspection Surface: Ferrous and non-ferrous
RADIAL CLEARANCE

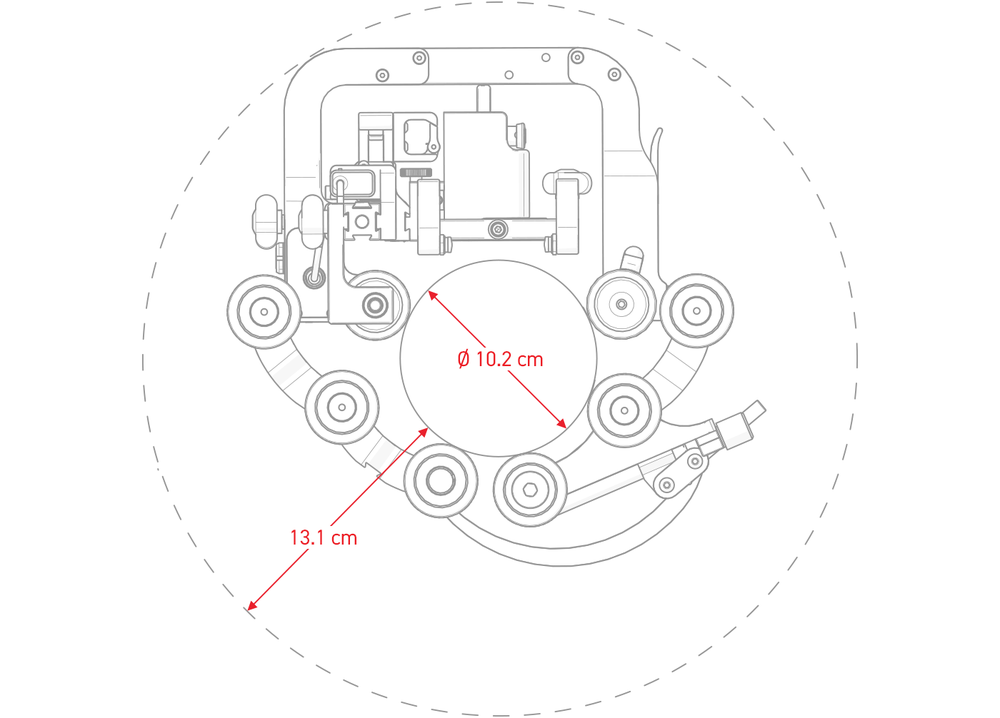

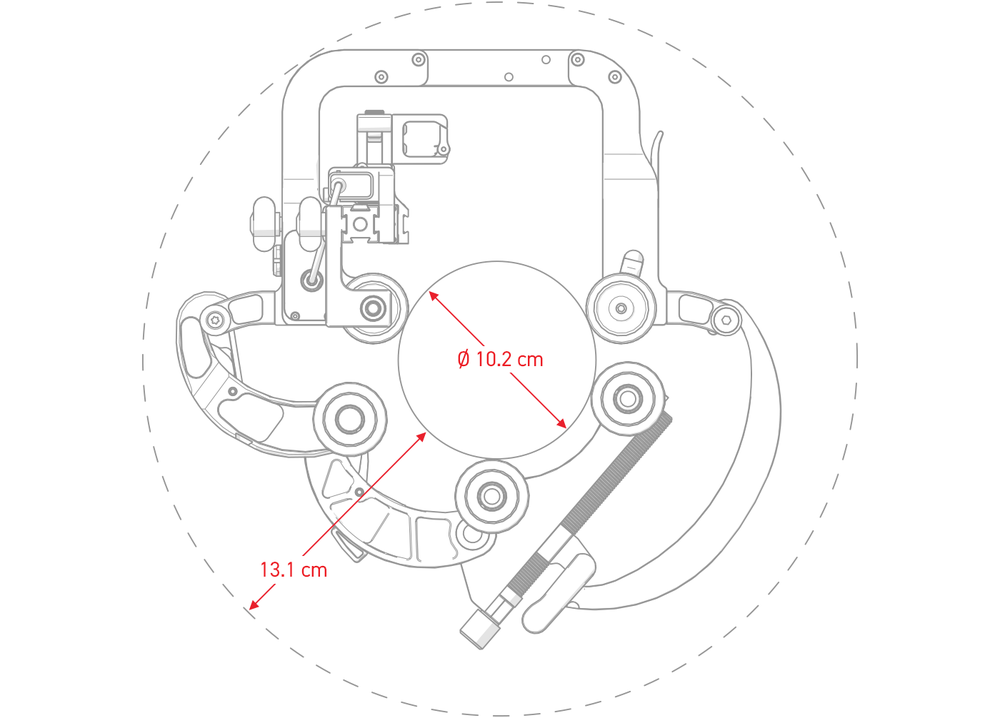

Radial Scanner Clearance: 13.1 cm (5.2 in)

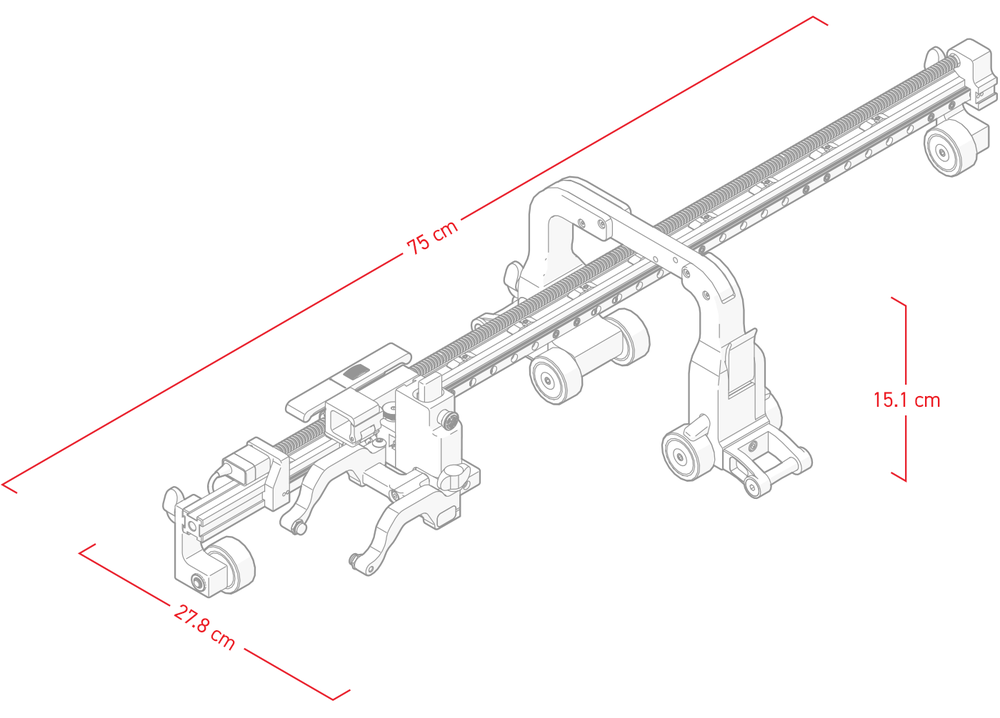

SIZE & WEIGHT

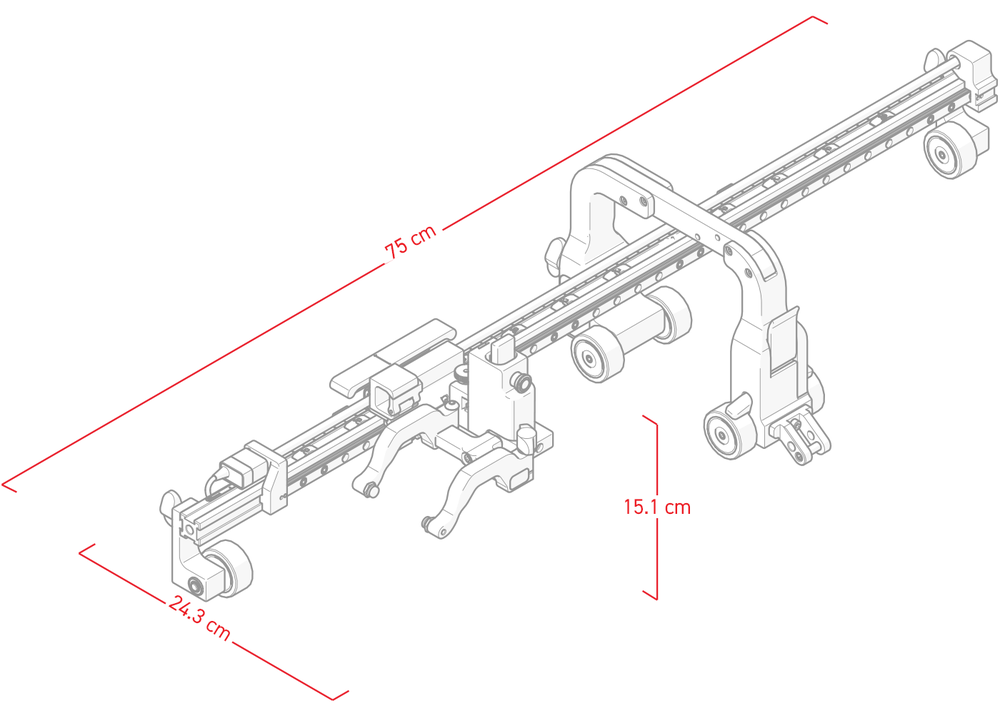

Scanner Height: 15.1 cm (5.9 in)
Scanner Width: 75 cm (29.5 in)
Scanner Depth: 27.8 cm (10.9 in)
Scanner Weight: 2.8 kg (6.2 lb)2
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C to 50°C (-4°F to 122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
HEAVY DUTY VERTICAL PROBE HOLDER SPECIFICATIONS
Standard Yoke
Minimum Wedge Width: 17.4 mm (0.69 in)
Maximum Wedge Width: 55 mm (2.17 in)
Standard Length: 63.5 mm (2.5 in)
Wide Yoke
Minimum Wedge Width: 17.4 mm (0.69 in)
Maximum Wedge Width: 93.8 mm (3.69 in)
Wide Length: 63.5 mm (2.5 in)
Probe Holder Pivot Buttons
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
- Custom encoder cable lengths are available.
- Approximate shipping weight of standard kit contents.
Technical specifications are subject to change.
Documents
To download the user manuals, setup charts, and additional documentation for the scanner, click the appropriate link below.
(specifications are subject to change)
