Keep high temperature pipes online during an inspection.

Perform precision corrosion inspection on materials with a surface temperature of up to 350°C (662°F). The SKOOT • HT harnesses the great features of the SKOOT crawler while adding the ability of high temperature inspection without the need for duty cycling. A powerful cooling system protects the precision components of the crawler while specialized cable management protects the cables and hoses.

Motorized Raster Arm HT sold separately.

Part ID: DPG001-

Features

High Temperature

Coolant flows through the raster arm and crawler to protect the equipment from the heated inspection surface. Constant cooling means no duty cycling is required.

Handheld Controller

Control all aspects of the crawler, raster arm and cooler remotely with the handheld controller.

Corrosion Inspection

A high temperature capable 600 mm (24 in) raster arm is programmable for any number of corrosion mapping tasks. Various probe holders are available to carry any number of probe and wedge combinations.

Cable Management

Specialized tubing protects the instrument cables, irrigation tubes and coolant hoses.

Magnetic Wheels

High Temperature magnetic wheels are specifically designed to dissipate heat and maintain integrity on a heated surface.

Handles

The handle and manipulation handle assist with crawler placement on the scan surface and steering adjustment.

Quick Connect

The hoses are outfitted with an ingenious quick connect system that prevents any dripping or leaking when connecting or disconnecting hoses from the system.

Three Year Limited Warranty

All repairs which are not caused by physical damage are entirely covered with our 3-year warranty.

VIDEOS

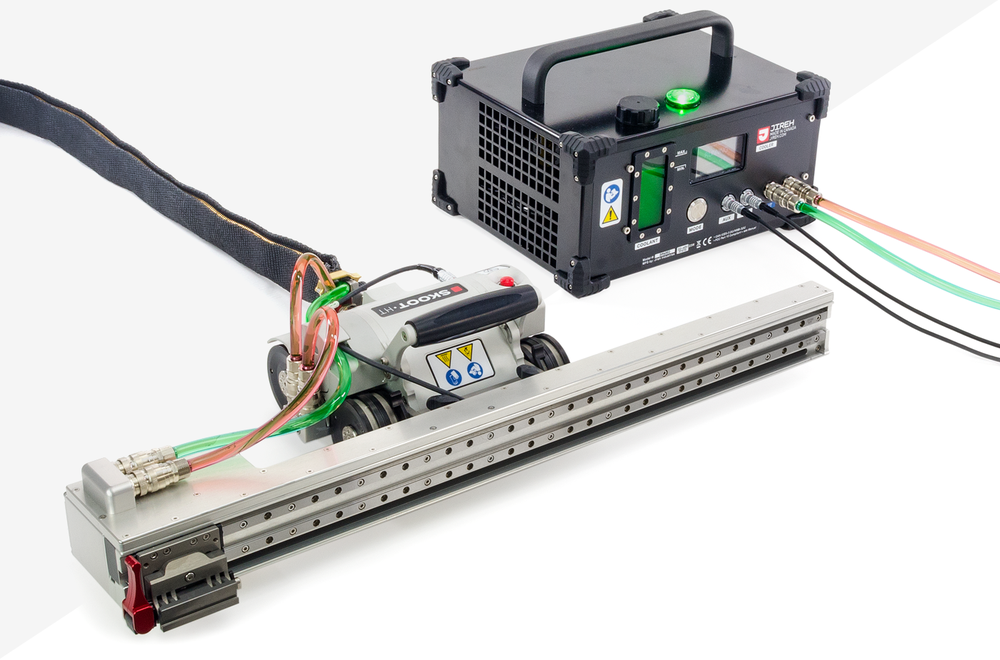

Component Identification

Cooler

A high-performance cooling system which cycles coolant through the crawler and raster arm.

Power Controller

Compatible with various plug styles, the power controller activates the system and features encoder cable and handheld controller cable connections.

SKOOT Crawler

The powerful crawler has been fitted with a cooling apparatus to protect the internals during high temperature scanning. The cable retainer offers cable management, and the swivel mount is the attachment point for accessories.

Handheld Controller

Control crawler speed and direction with the handheld controller. Alternate menus allow programing of raster paths and settings. Activation of the cooler also is also available using the multifaceted handheld controller.

Raster Arm

Carry various probe holders across 600 mm (24 in) of the Y-Axis.

Parts & Add-Ons

Related Products

Specifications

Path 2 CopyPath 2 Copy

GENERAL

Encoder Resolution: 1354 counts/mm (6100.9 counts/inch)
Maximum Vertical Payload: 9 kg (20 lb)1
Maximum Travel Speed: 0.5-14.2 cm/sec (0.2-5.6 in/sec)
Power Requirements: 100-240VAC, 50/60Hz, 1.4 Amps
Umbilical Length: 7.5 m (25 ft)2
Inspection Surface: Ferrous

PIPE RANGE

Circumferential, Outer Diameter (OD): 10.2 cm (4 in) to flat
Circumferential, Inner Diameter (ID): 68.6 cm (27 in) to flat
Longitudinal: 76.2 cm (30 in) to flat

RADIAL CLEARANCE

Pipes under 200 mm (8 in): 10.2 cm (4 in)3
Pipes over 200 mm (8 in)11.3 cm (4.3 in)3

REGULATIONS

CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.4
FCC: Compliance with Part 15 of FCC rules.4
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.4

SIZE & WEIGHT

Base Crawler Height: 11.2 cm (4.4 in)
Base Crawler Height with manipulation handle: 16 cm (6.3 in)
Base Crawler Length: 22.9 cm (9 in)
Base Crawler Depth: 23.3 cm (9.1 in)
Base Crawler Depth with manipulation handle: 55.5 cm (21.8 in)
Base Crawler Weight: 7.7 kg (16.9 lb)

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
Maximum Inspection Surface Temperature: 350°C (662°F)5

HEAVY DUTY VERTICAL PROBE HOLDER SPECIFICATIONS

Standard Yoke
Minimum Wedge Width:
 17.4 mm (0.69 in)
Maximum Wedge Width: 55 mm (2.17 in)
Standard Length:
 63.5 mm (2.5 in)

Wide Yoke
Minimum Wedge Width:
 17.4 mm (0.69 in)
Maximum Wedge Width: 93.8 mm (3.69 in)
Wide Length: 63.5 mm (2.5 in)

CORROSION THICKNESS PROBE HOLDER HT

Receptacle Size and Wear Plate: 19 mm (0.75 in) receptacle diameter - Flat wear plate - PHS078-C

Probe Holder Pivot Buttons

01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)

Power Cords

Path 2 CopyPath 2 Copy

Power Requirements

100-240VAC, 50/60Hz, 3.5 Amps



Plug Designation

North America
NEMA 5-15P

Europe
CEE7/7

UK
BS1363A

  1. Performance may vary with the surface type. Umbilical and attachments are considered payload.
  2. Custom umbilical lengths are available.
  3. Manipulation handle removed.
  4. For a complete description of regulatory certifications, please contact JIREH.
  5. The Cooler has sufficient cooling capacity to continuously cool the SKOOT HT with Raster Arm HT operating on a 350°C (662°F) surface, provided the Cooler is kept in an ambient temperature less than 35°C (95°F). Operation with a duty cycle or supplemental cooling may be required for ambient temperatures greater than 35°C (95°F).
    Technical specifications subject to change.
