Designed for demanding UT irrigation applications

The Powered Couplant Pump is a couplant delivery unit designed to supply a steady, adjustable flow of couplant from an external reservoir to the scanning surface during ultrasonic testing. Built for higher-demand scanner irrigation setups, it provides increased flow capacity and improved handling of higher-viscosity couplants, supporting consistent delivery for single or multi-probe configurations.

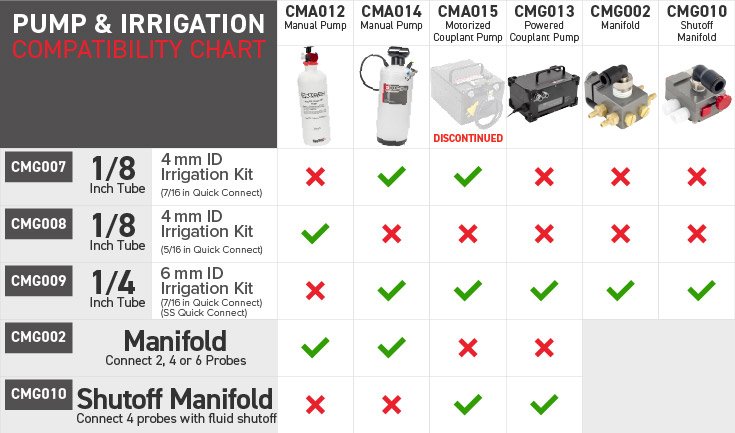

Designed for use with CMG009 irrigation kits. The CMG009 kit includes the hoses, fittings, tubing, and quick-connect components required to route couplant to the probe or probes carried by the scanner. (Sold separately)

Part ID: CMG013

About
Resources

Specifications

GENERAL

Output: 690 kPa (100 psi), 3.8 L/min (1.0 GPM)
Maximum Duty Cycle: 100%
Maximum Fluid Viscosity: 100 cSt
Fluid Temperature: -10°C (14°F) to 50°C (122°F)
Maximum Elevation: 2500 m (8200 ft)

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: Designed for use in a dry, nonexplosive industrial environment between -20° C (-4° F) and 50° C (122° F).

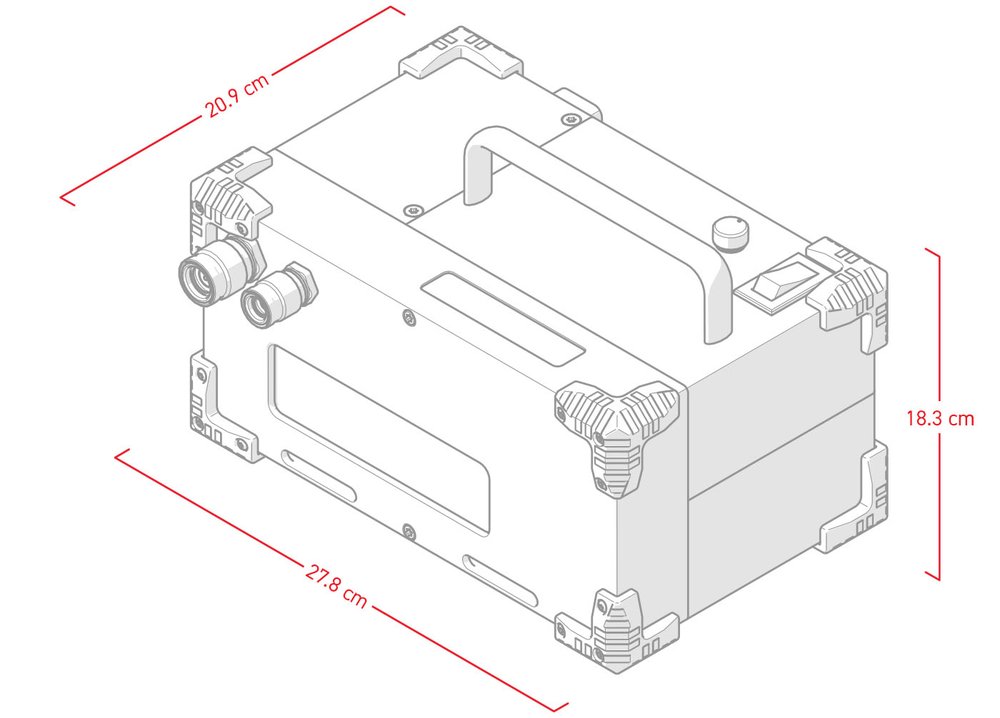

Size & Weight

Width: 27.8 cm (10.9 in)
Depth: 20.9 cm (8.2 in)
Height: 18.3 cm (7.2 in)
Weight: 7.6 kg (16.8 lb)

REGULATIONS

CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.⁴
FCC: Compliance with Part 15 of FCC rules.⁴
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.⁴
UKCA: United Kingdom Conformity Assessed – Compliance with relevant UK statutory requirements and legislation.⁴
