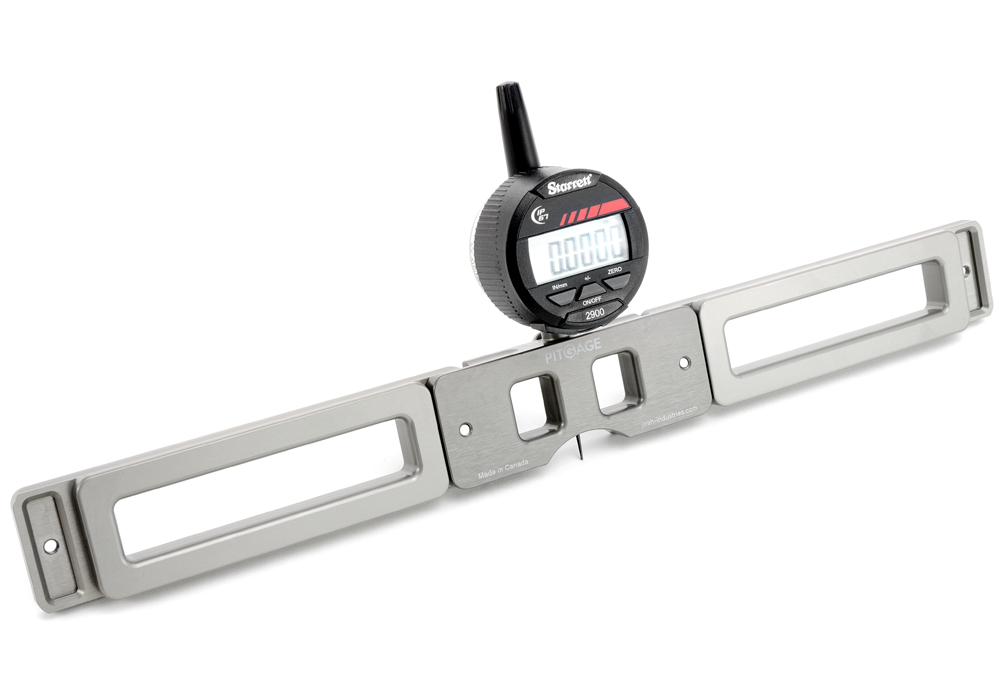

Configure the PIT GAGE to your requirements for accurate pit depth measurement.
Measure surface variations with precision and ease. The PIT GAGE is an essential tool for manual pit inspection. Each kit includes two or four non-magnetic extension arms. Choose either a Starrett or Mitutoyo digital indicator, and add optional magnetic arms (sold separately) to mount the gage to a ferrous surface—even upside down.

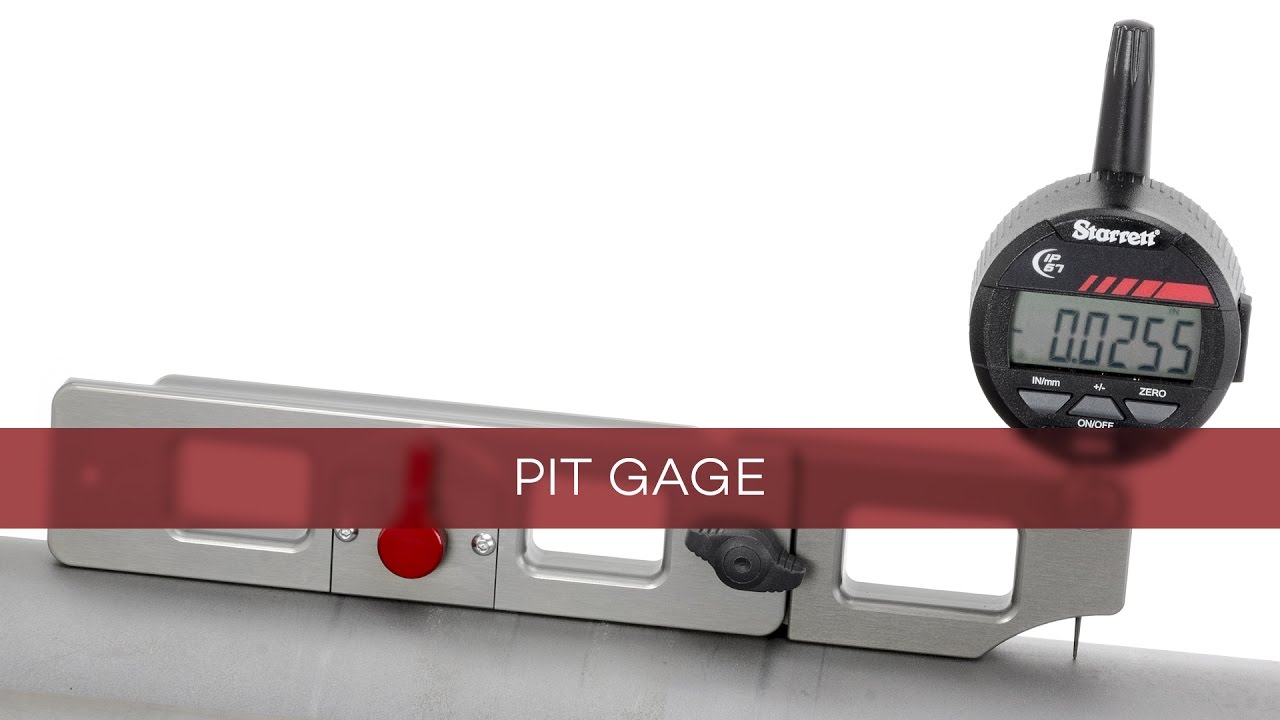

Videos

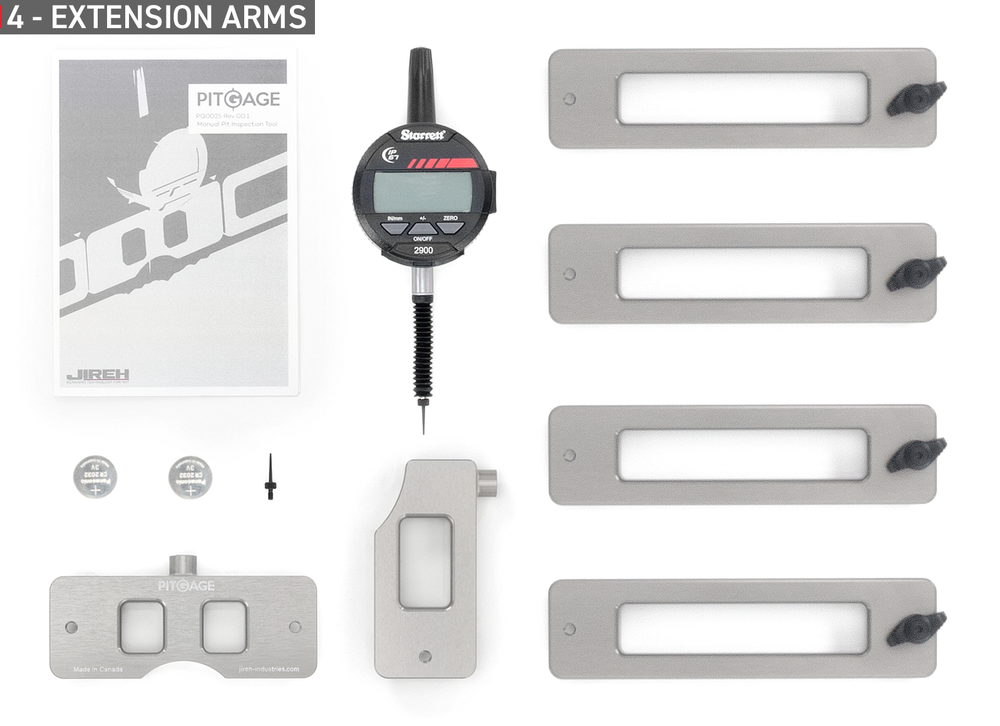

Kit Contents

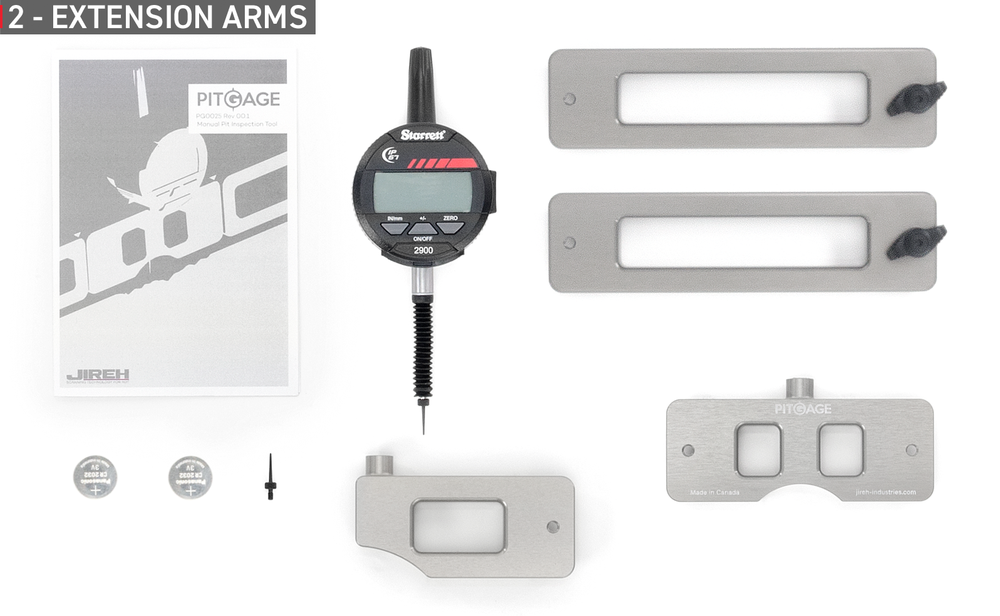

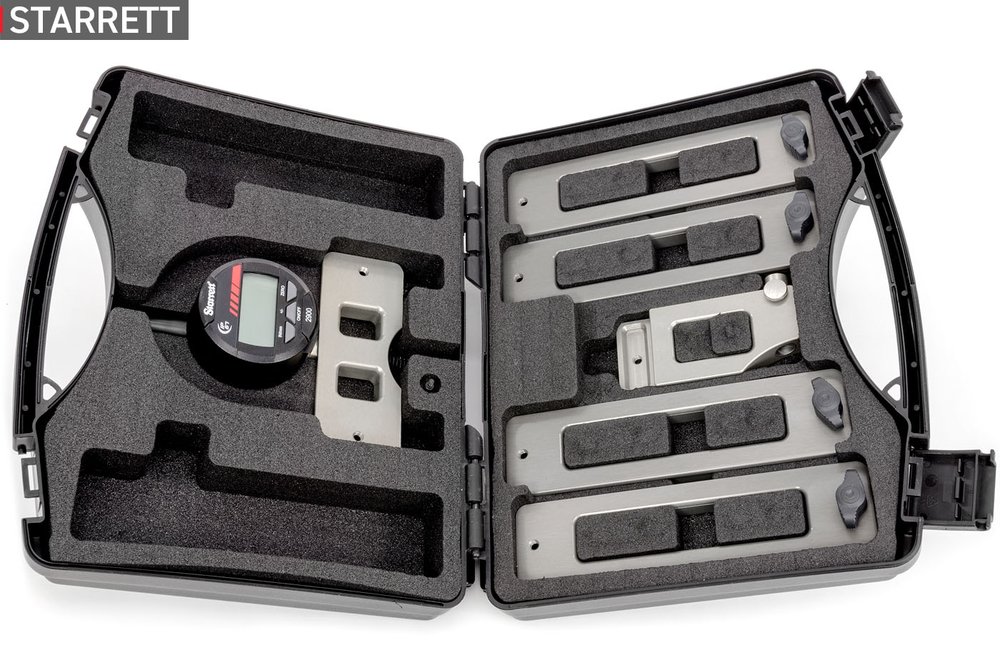

STARRETT PIT GAGE KIT CONTENTS
0-25 mm (0-1in) rechargeable digital indicator
USB charger
Centre base
Blind side base
Non-magnetic Extension arms (2 or 4 arm kit) x2
Indicator tip x2
User manual

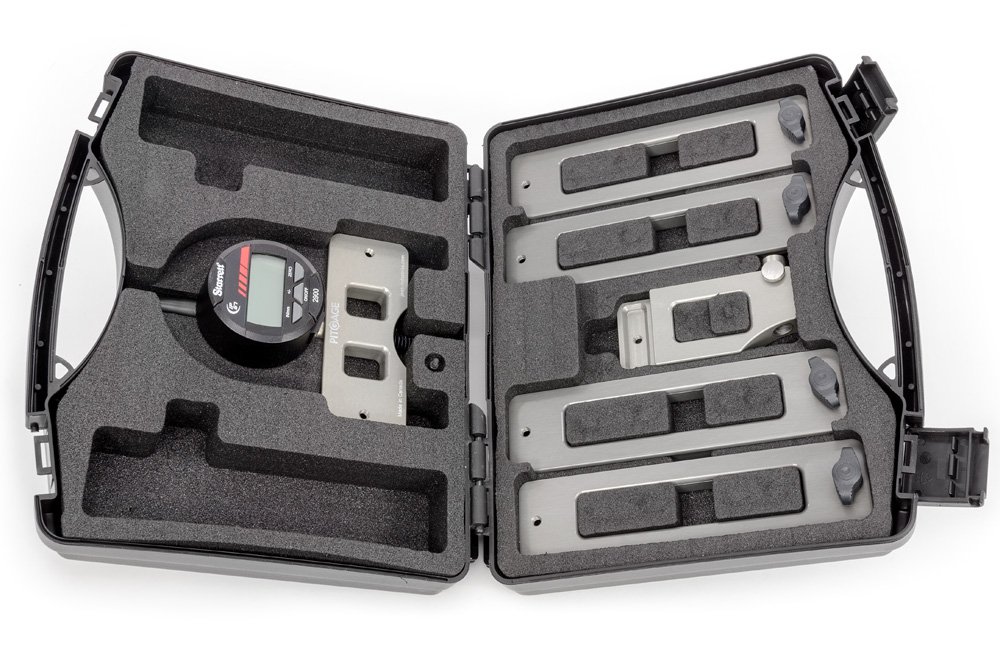

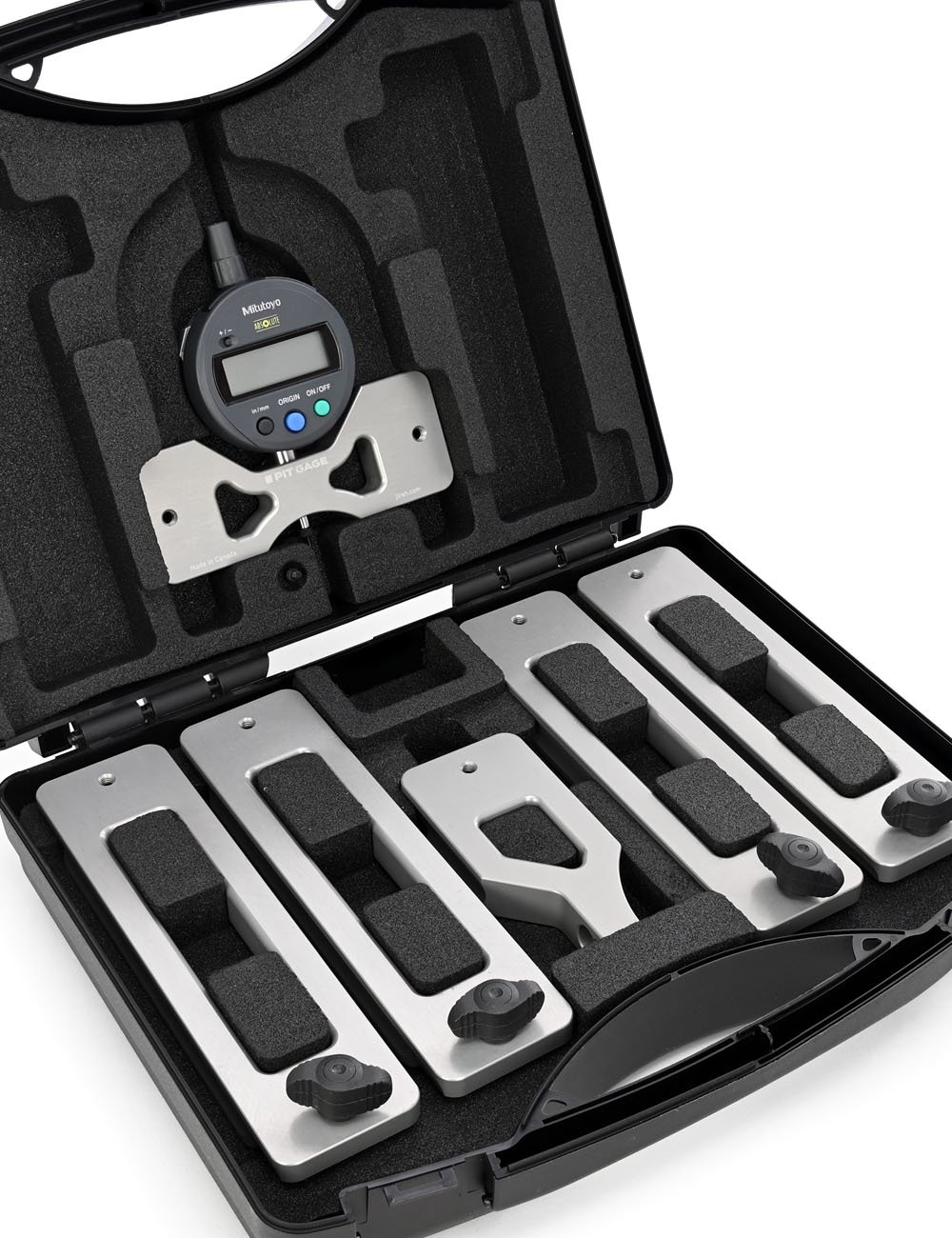

Rugged carrying case
_______________________________________________

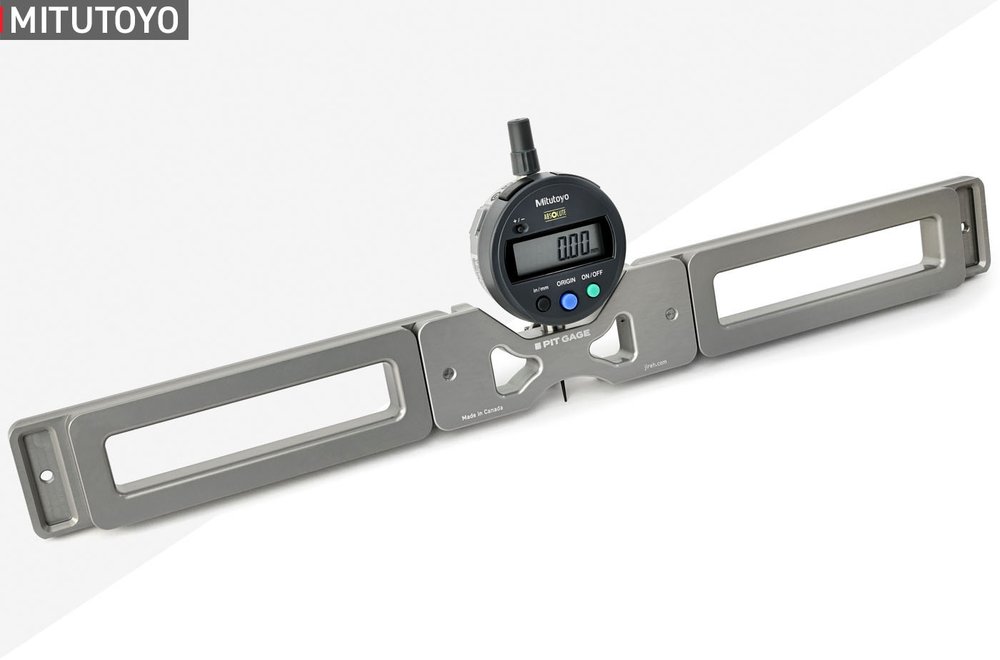

MITUTOYO PIT GAGE KIT CONTENTS
0-12.7 mm (0-0.5 in) digital indicator (batteries included)
Centre base
Blind side base
Non-magnetic Extension arms (2 or 4 arm kit) x2
Indicator tip x2
User manual

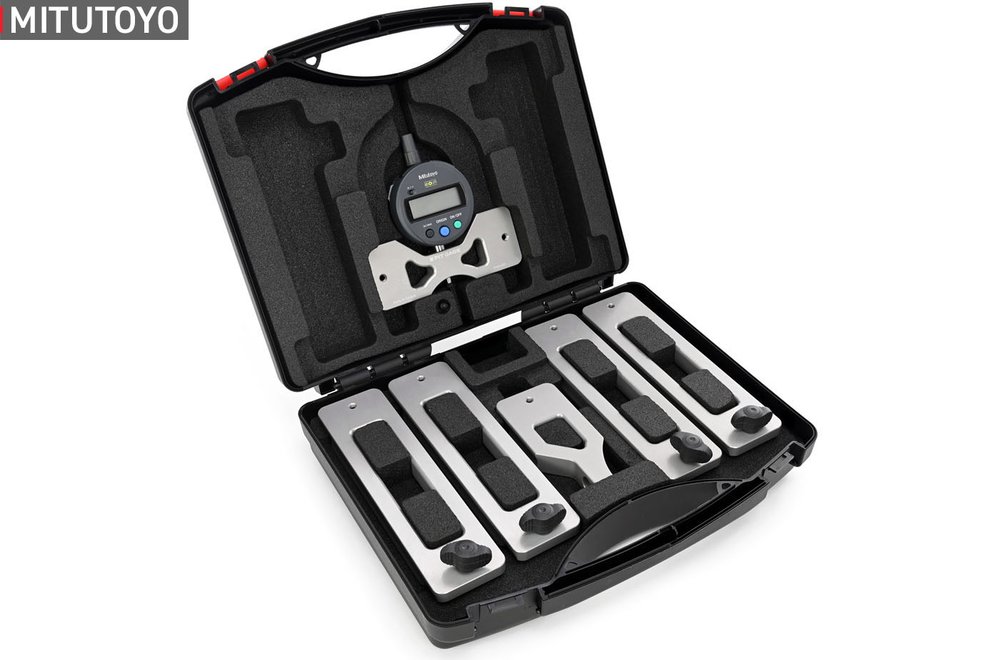

Rugged plastic carrying case
Optional Contents

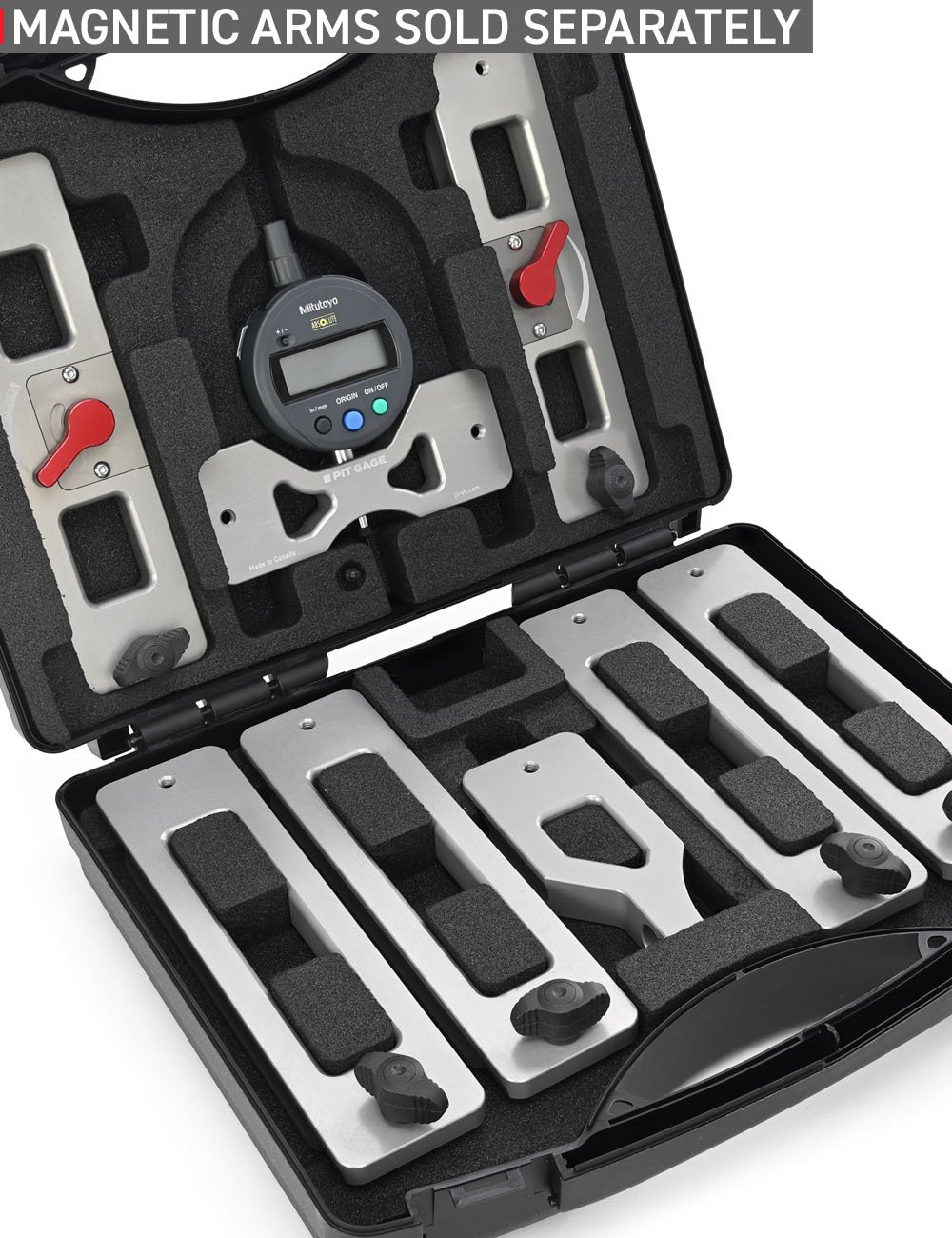

Magnetic arm kit (sold separately)
Component Identification

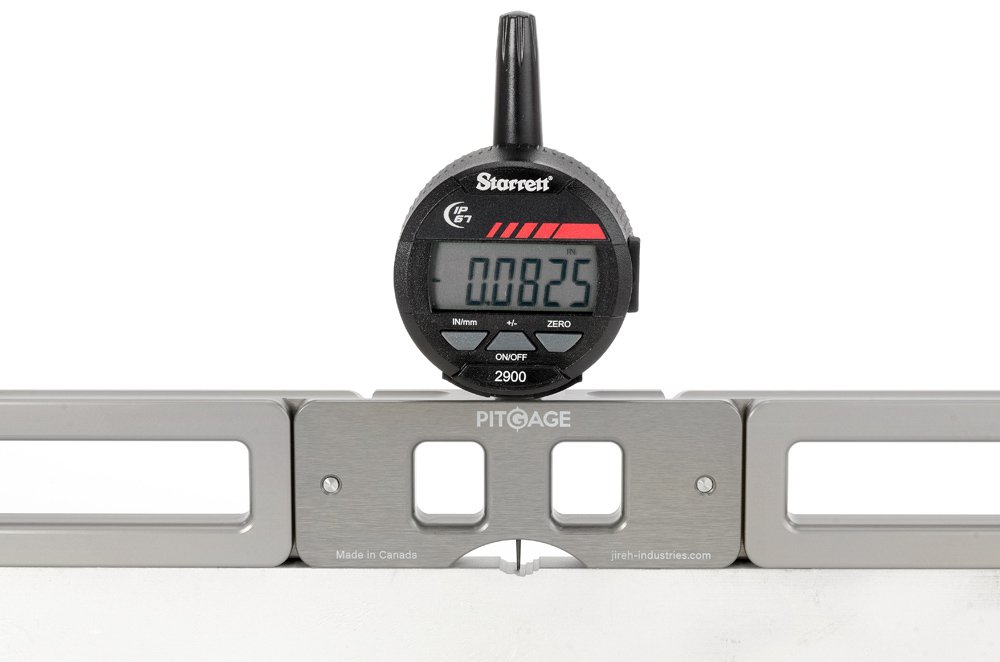

Digital Indicator

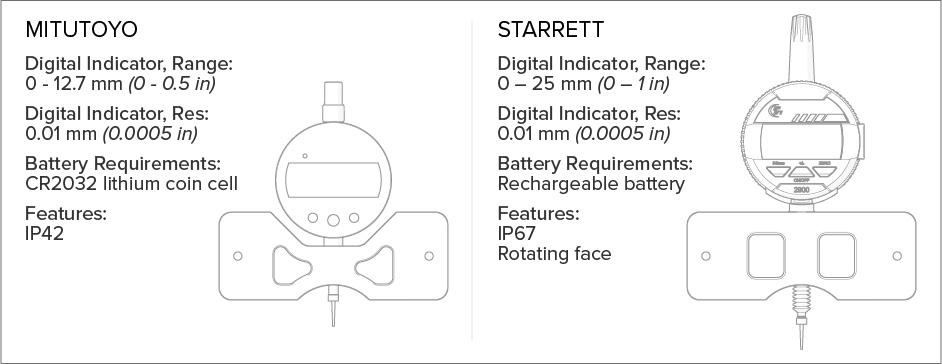

Easy-to-read Starrett and Mitutoyo digital indicators are available. The Starrett model features a rotating face, IP67 protection, and a 1-inch range, whereas the Mitutoyo has a ½-inch range, an IP42 rating and a compact size.

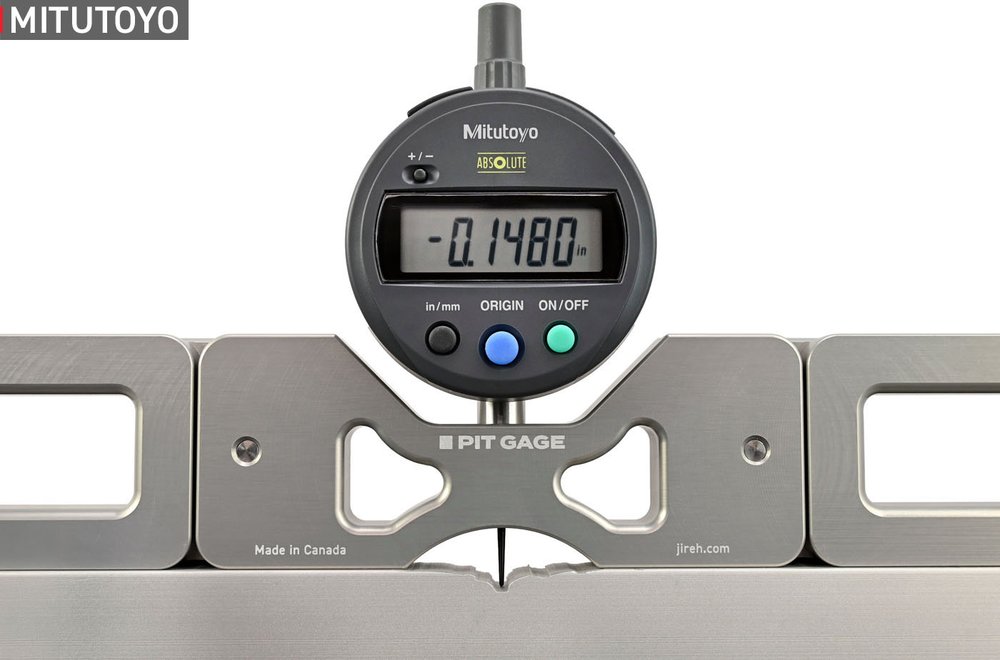

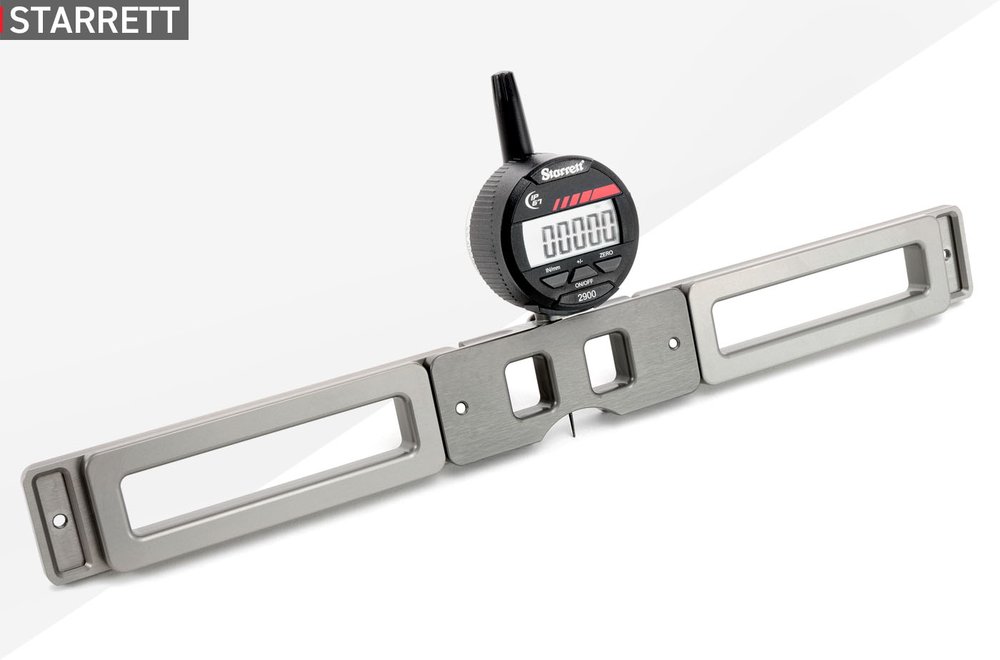

Centre Base
The standard mounting apparatus for the digital indicator.
Indicator Tip
The precise measurement point of the tool. A spare indicator tip is included.

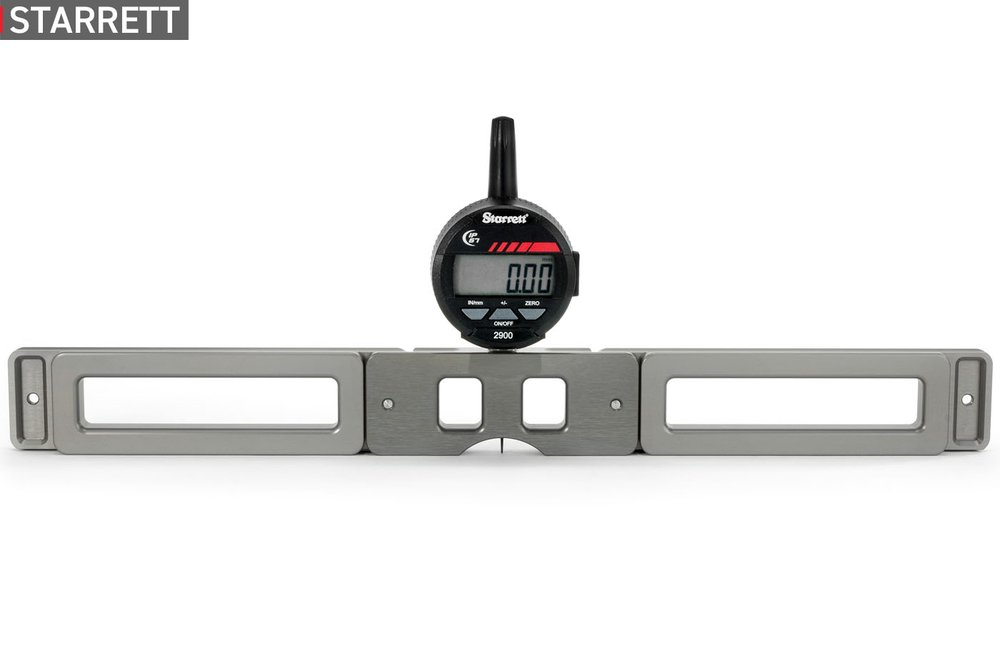

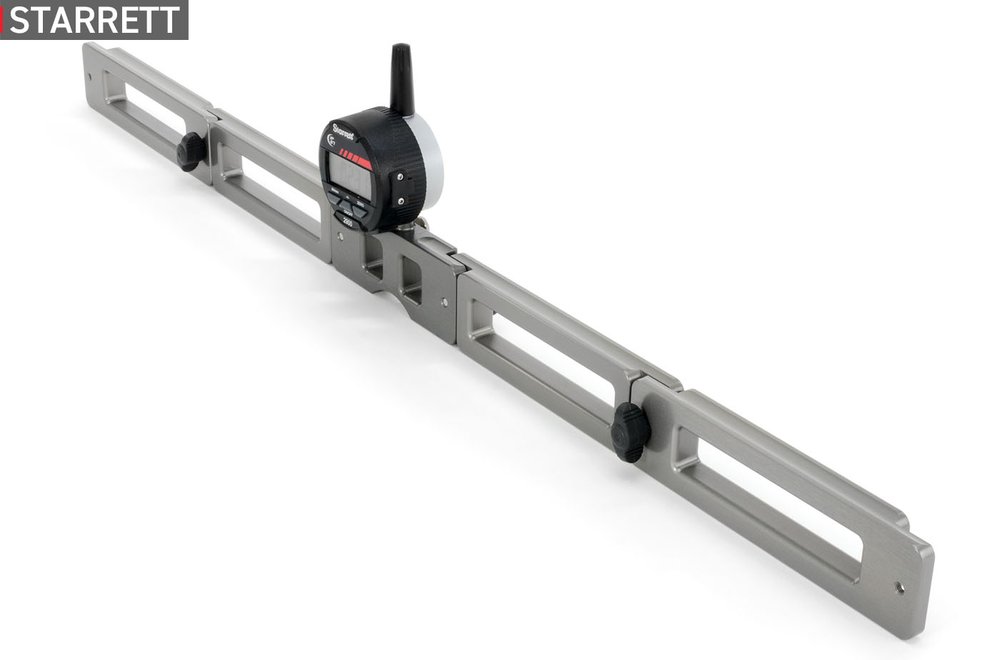

Extension Arms
Extend the length of the PIT GAGE with additional non-magnetic extension arms.

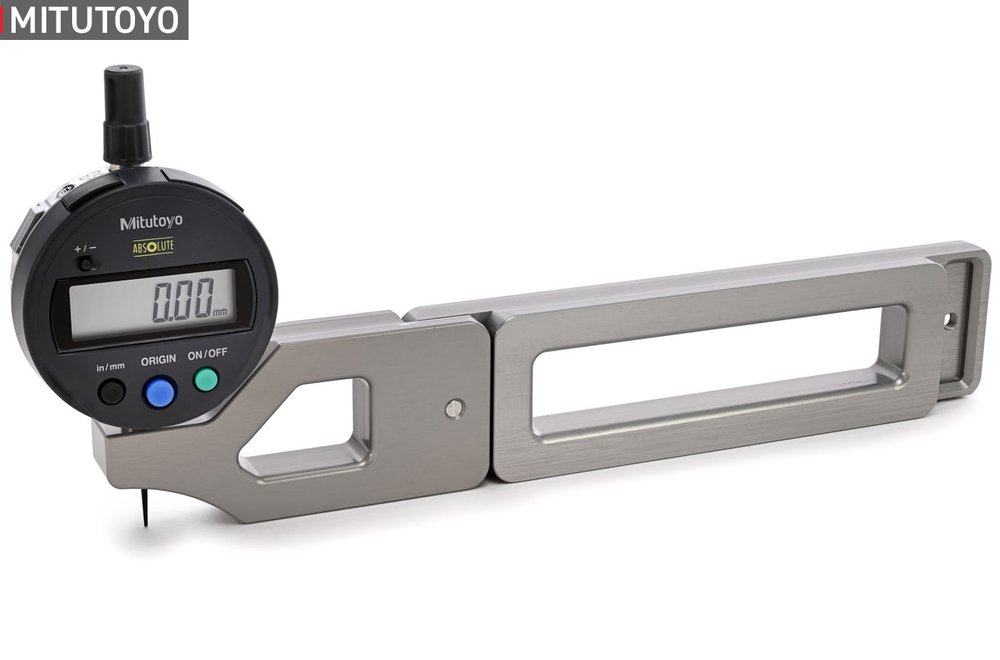

Blind Side Base

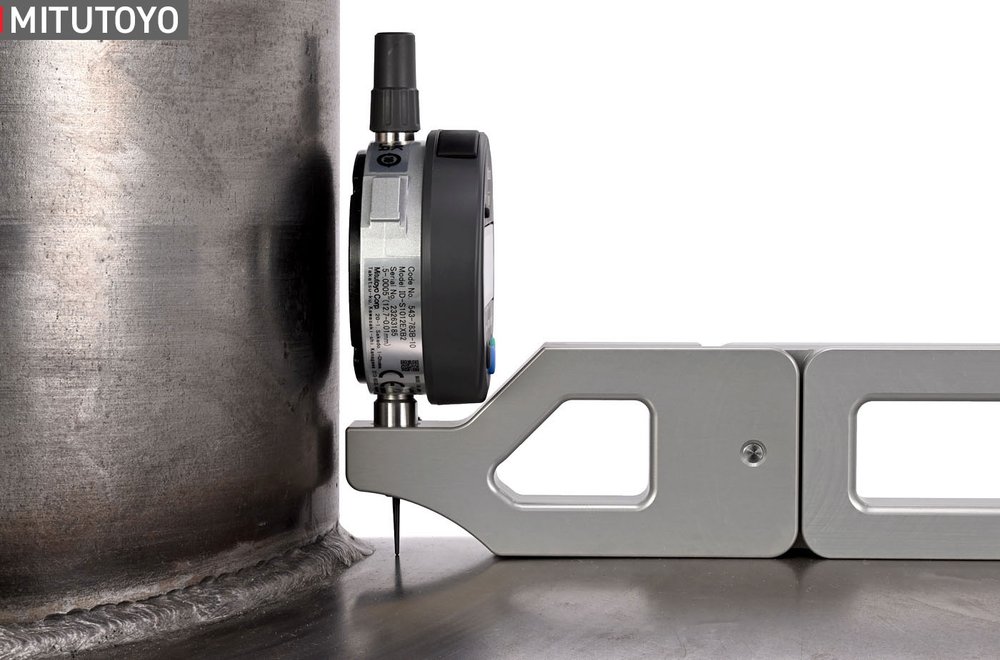

Use the blind side base to take one-sided pit depth measurements in limited access applications (flanges, elbows, large weld caps, etc.).

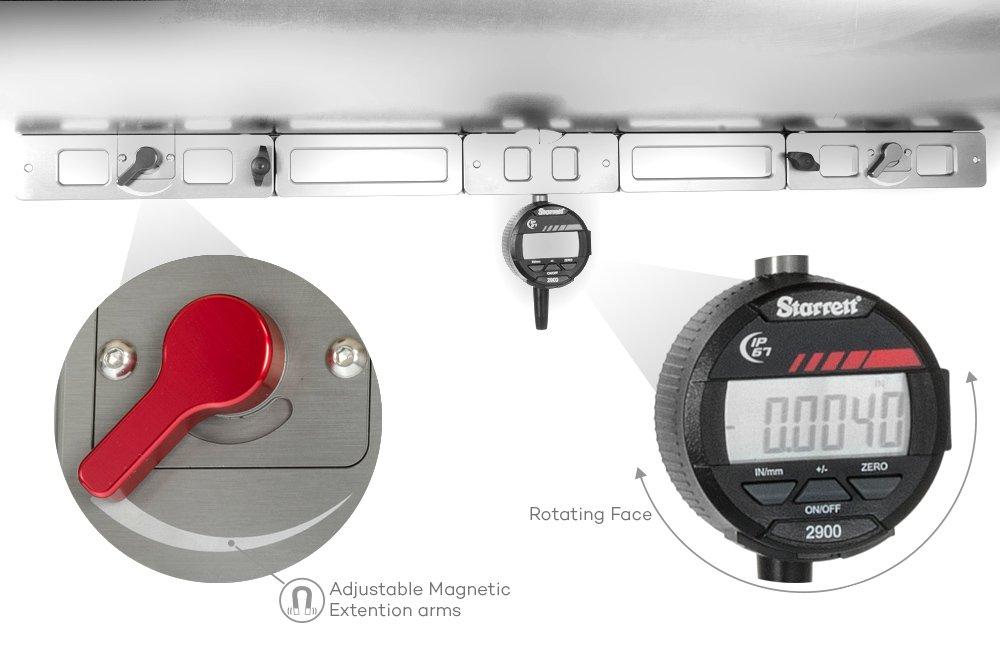

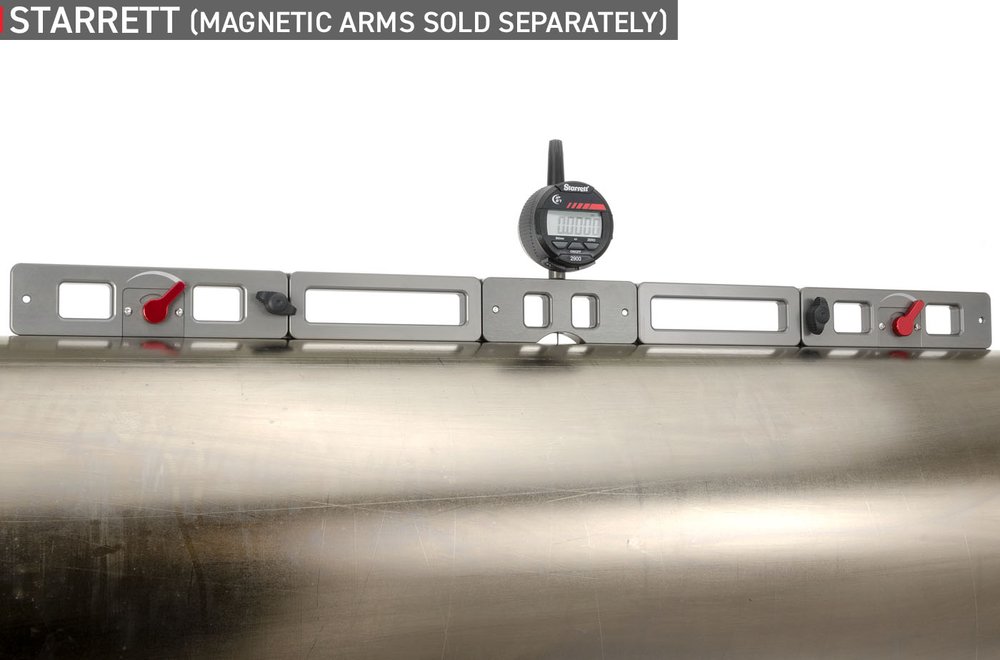

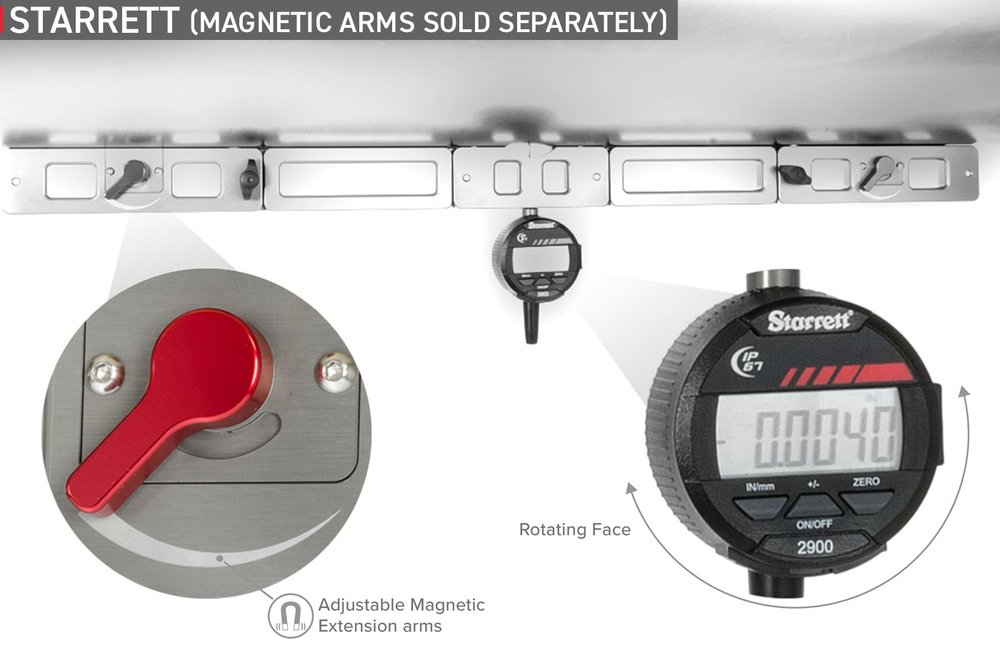

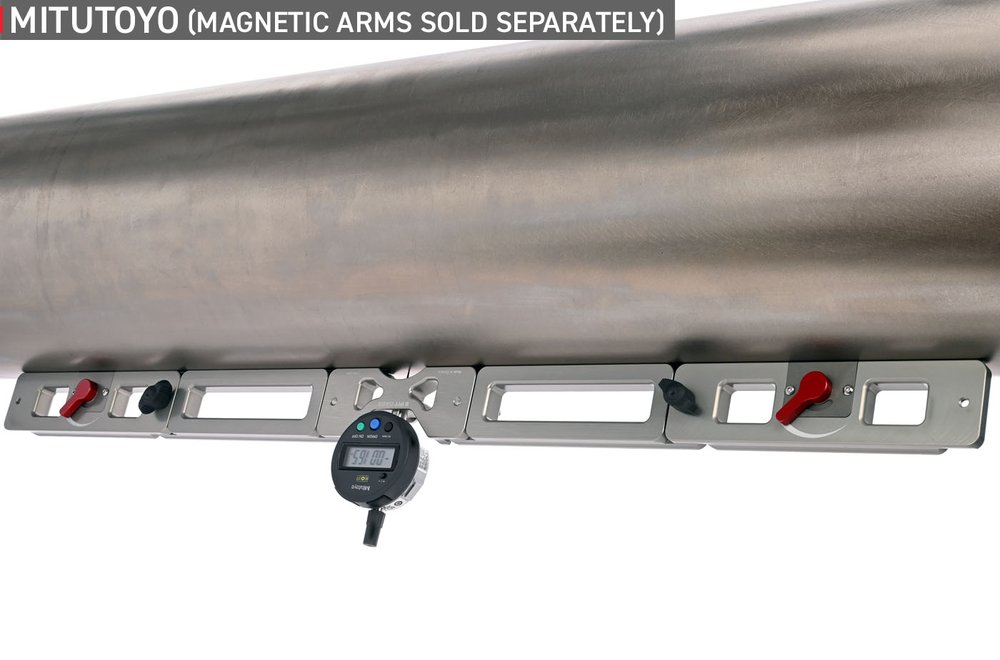

Magnetic Arms

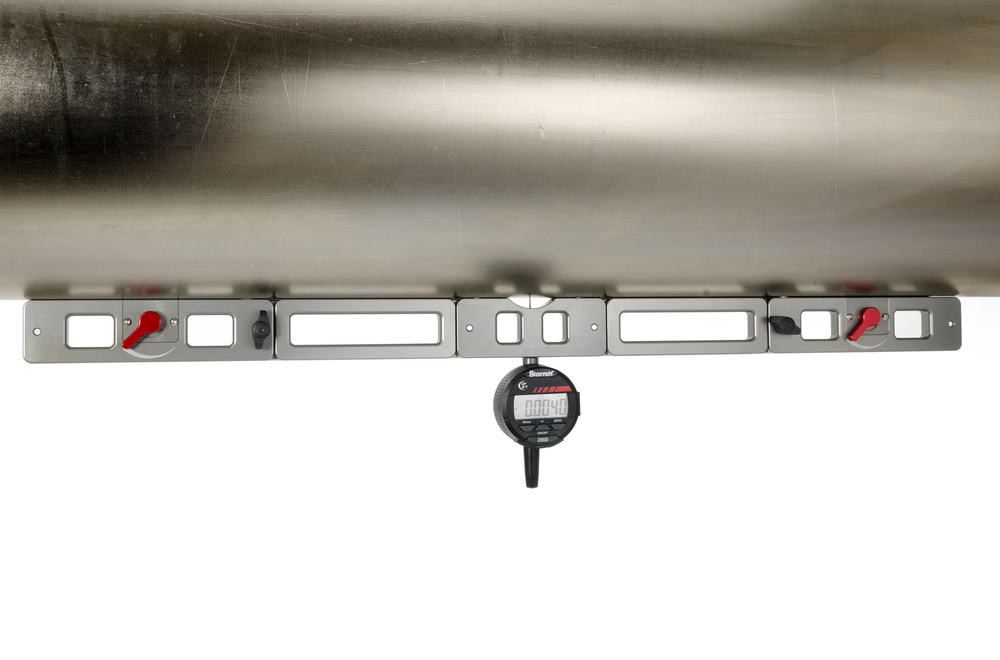

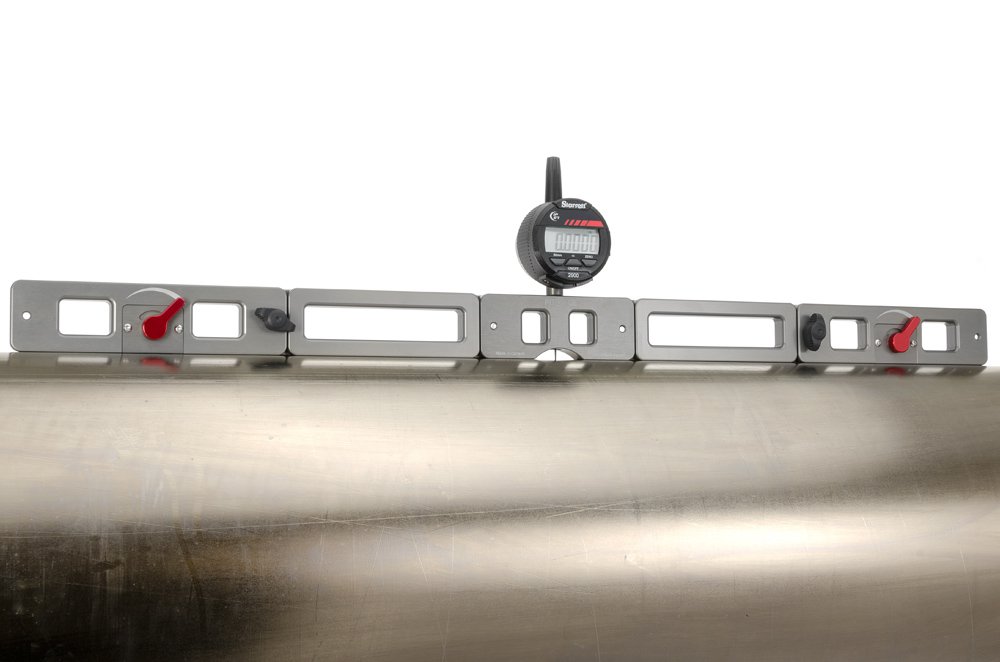

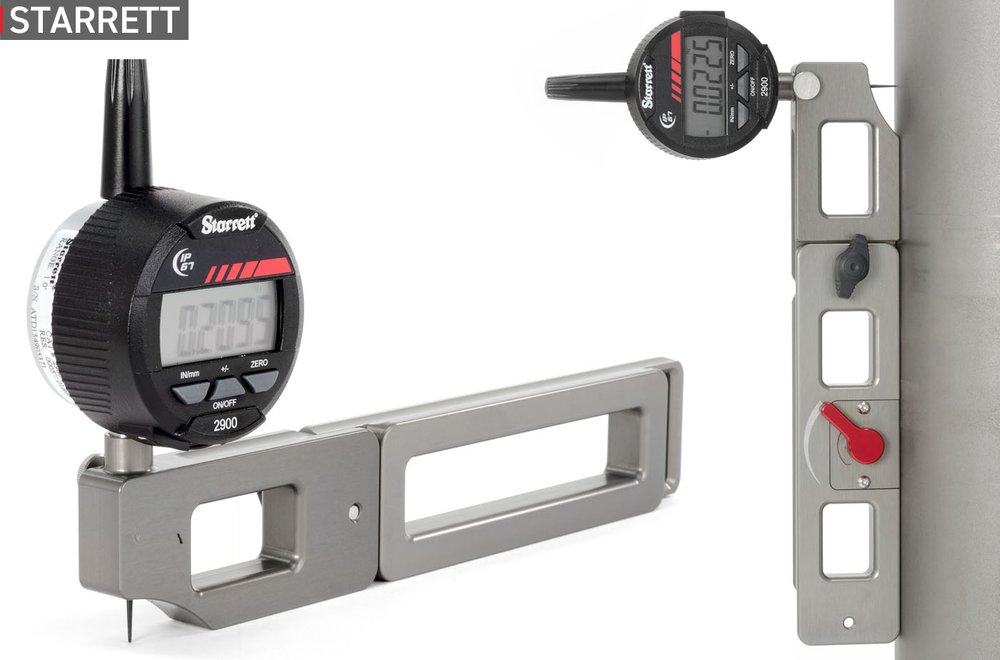

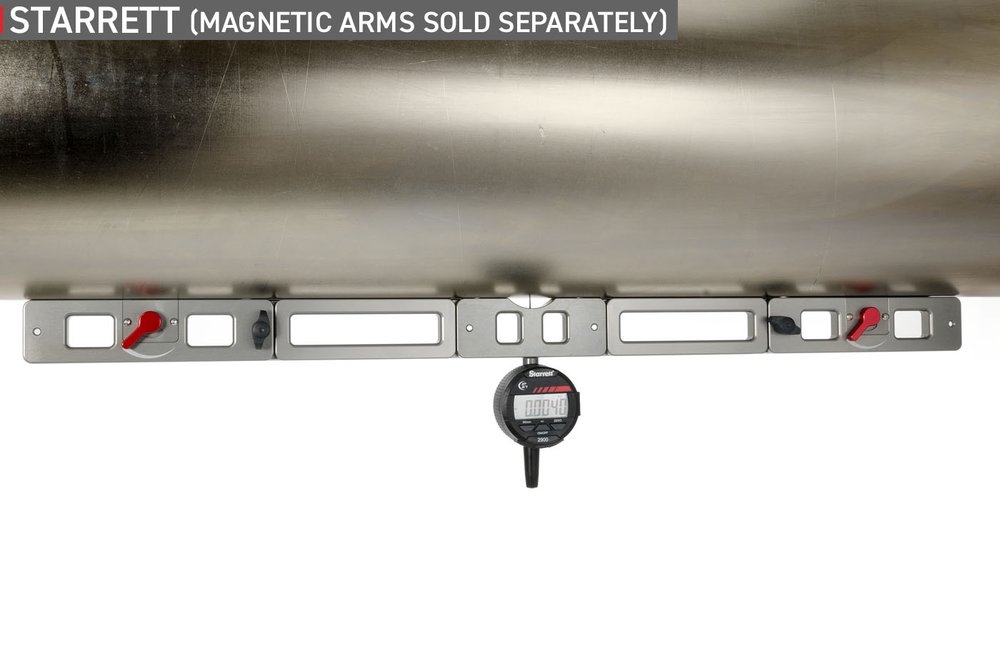

Use with magnetic arms (sold separately) to free your hands and prevent drops. The Starrett’s rotating indicator makes readings easy, even when the Pit Gage is mounted upside down.
Parts & Add-Ons
Specifications
STARRETT INDICATOR
SPECIFICATIONS
Digital Indicator, Range: 0 – 25 mm (0 – 1 in)
Digital Indicator, Resolution: 0.01 mm (0.0005 in)
Digital Indicator, Stem Diameter: 9.52 mm (.375 in)
Battery Requirements: Rechargeable battery
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -10° C (14° F) to 50° C (122° F)
Environmental Sealing: Waterproof (IP67)
SIZE
Height: 15 cm (5.9 in)
Depth: 4.9 cm (1.9 in)
_______________________________________________
MITUTOYO INDICATOR
SPECIFCATIONS
Digital Indicator, Range: 0 - 12.7 mm (0 - 0.5 in)
Digital Indicator, Resolution: 0.01 mm (0.0005 in.)
Digital Indicator, Stem Diameter: 9.52 mm (.375 in)
Battery Requirements: SR44 x1 (included)
SIZE
Height: 12.5 cm (4.9 in)
Depth: 4.3 cm (1.7 in)
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
_______________________________________________
GENERAL SPECIFICATIONS
INDICATOR TIP
Diameter: 0.914 mm (0.036 in)

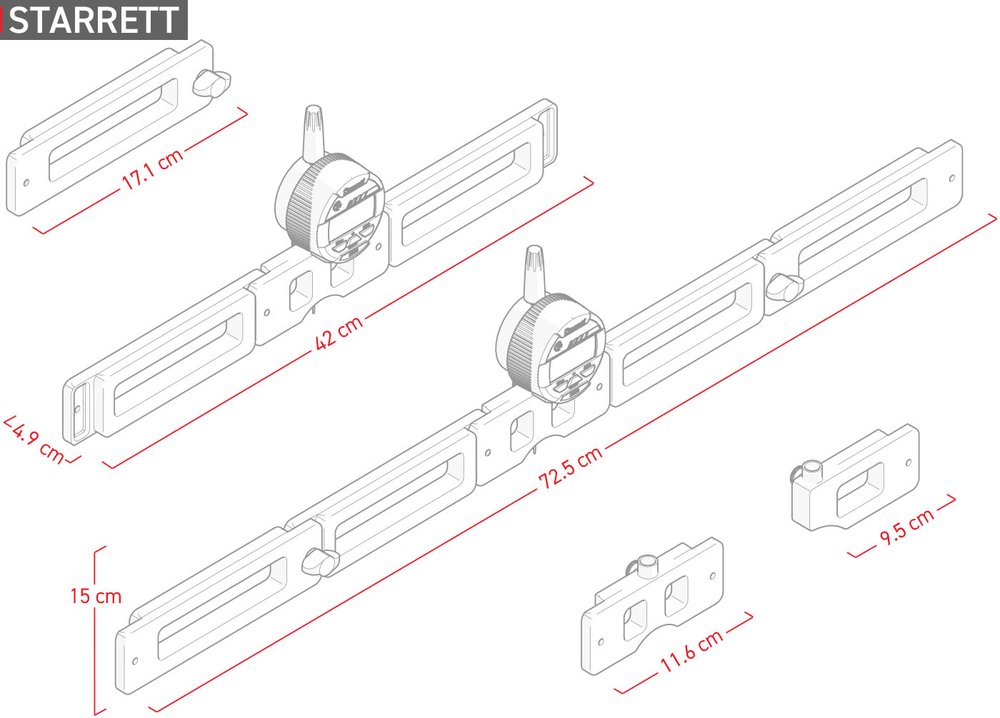

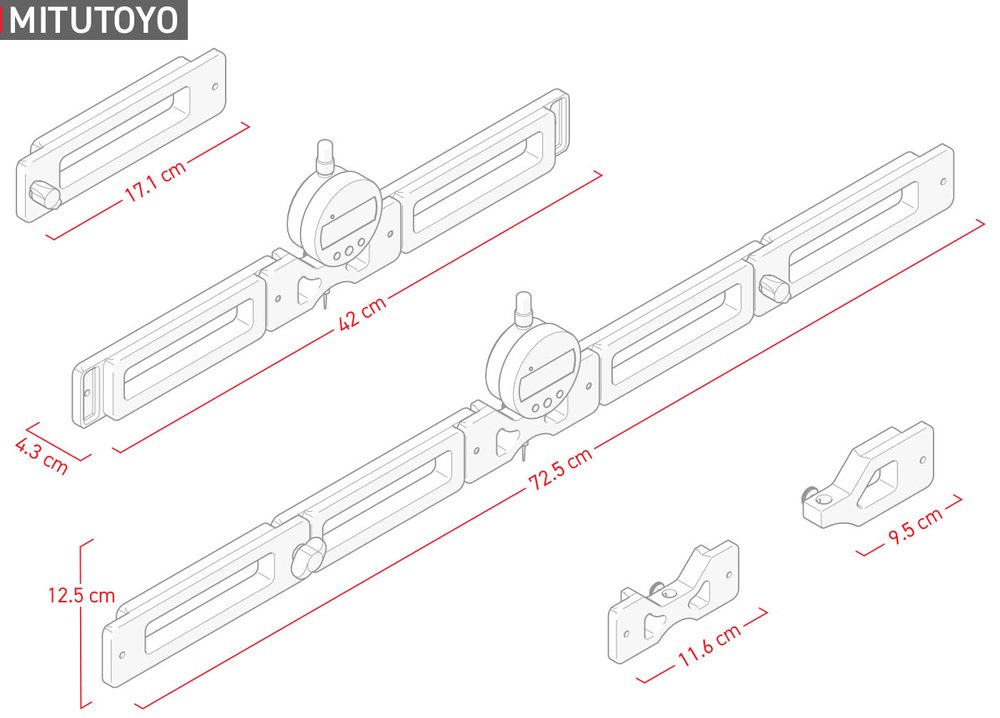

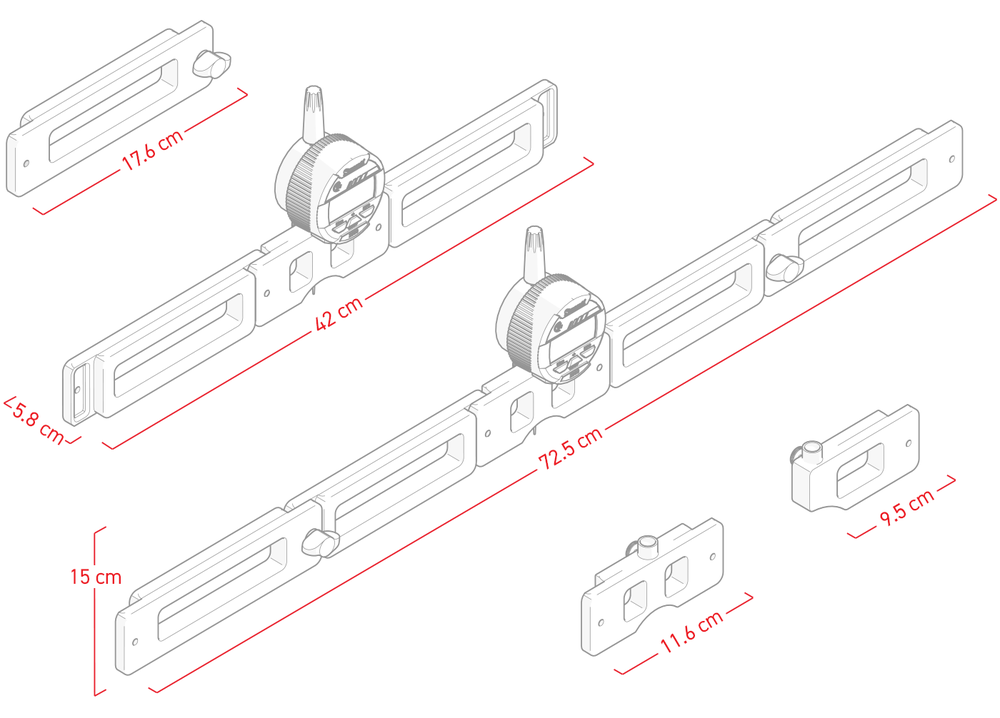

DIMENSIONS
Centre Base, Width: 11.6 cm (4.6 in)
Blind Side Base, Width: 9.5 cm (3.8 in)
Extension Arm, Width: 17.1 cm (6.7 in)
ASSEMBLED DIMENSIONS

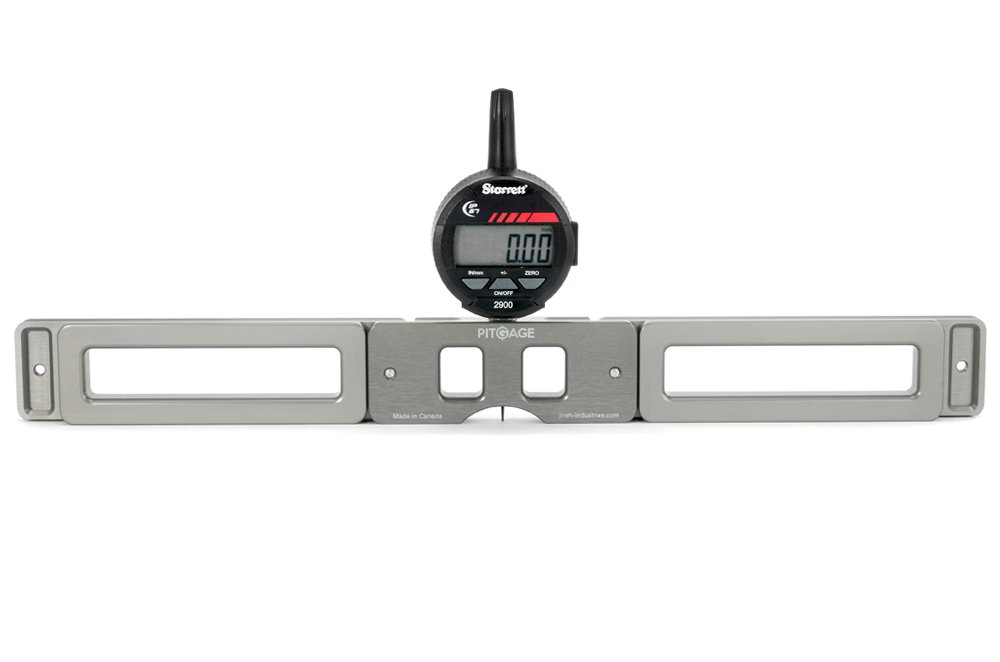

Pit Gage, 2 Arm Configuration, Width: 42 cm (16.5 in)

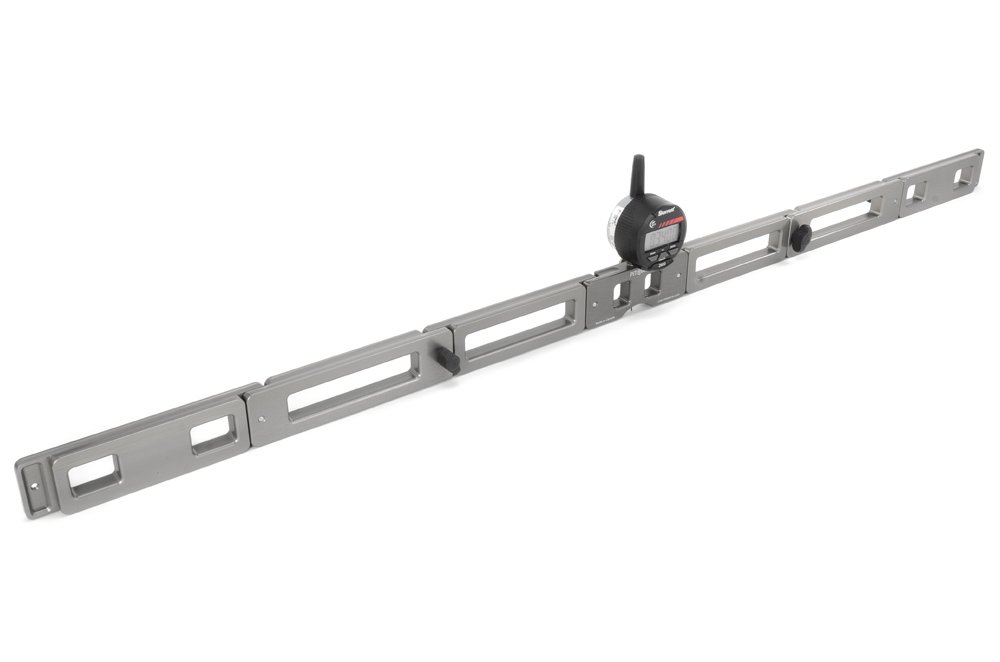

Pit Gage, 4 Arm Configuration, Width: 72.5 cm (28.5 in)

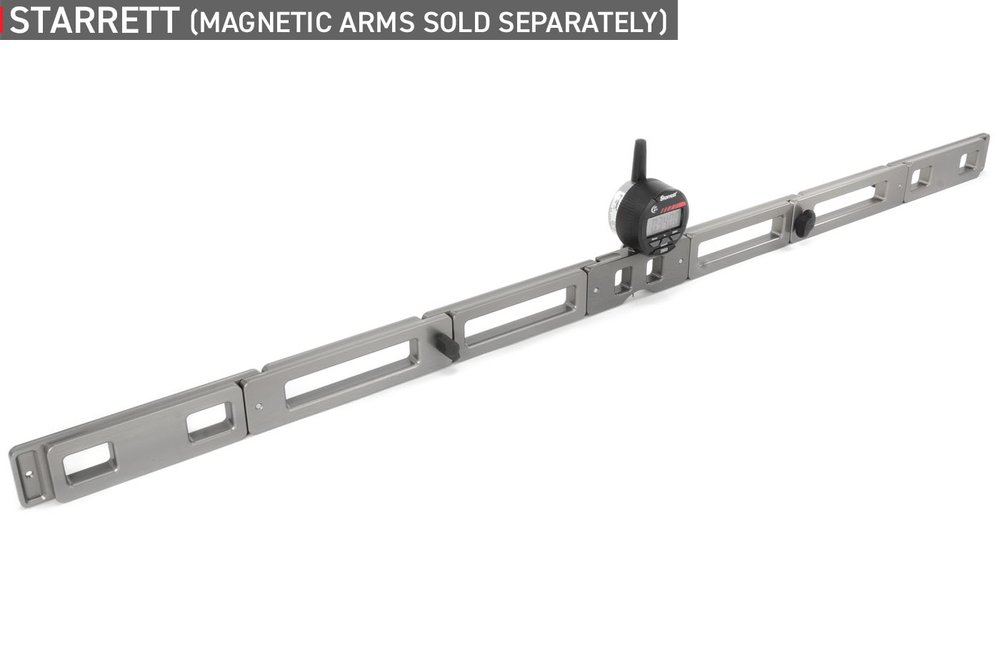

Pit Gage, 6 Arm Configuration, Width: 103 cm (40.6 in)
SHIPPING WEIGHT
Shipping weight (2 arm kit): 1.2 kg (2.7 lb)1
Shipping weight (4 arm kit): 1.54 kg (3.4 lb)1
- Approximate shipping weight of standard kit contents.
Technical specifications are subject to change.
