Probe Holder Receptacle
Choose the receptacle diameter or receptacle type that matches the size/type of probe to be used.
(Contact JIREH to request custom receptacle sizes)

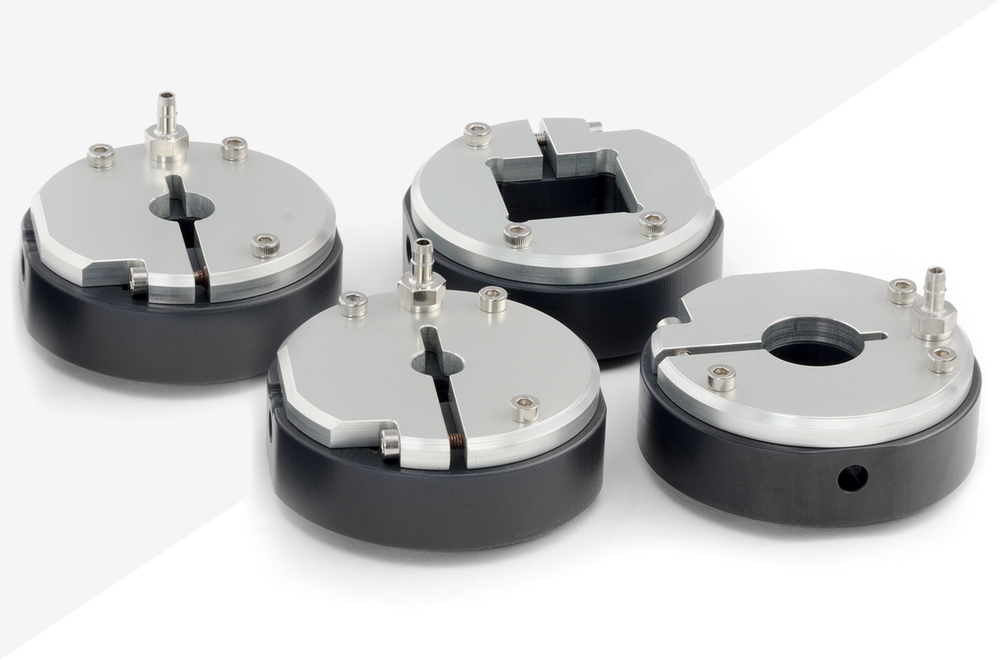

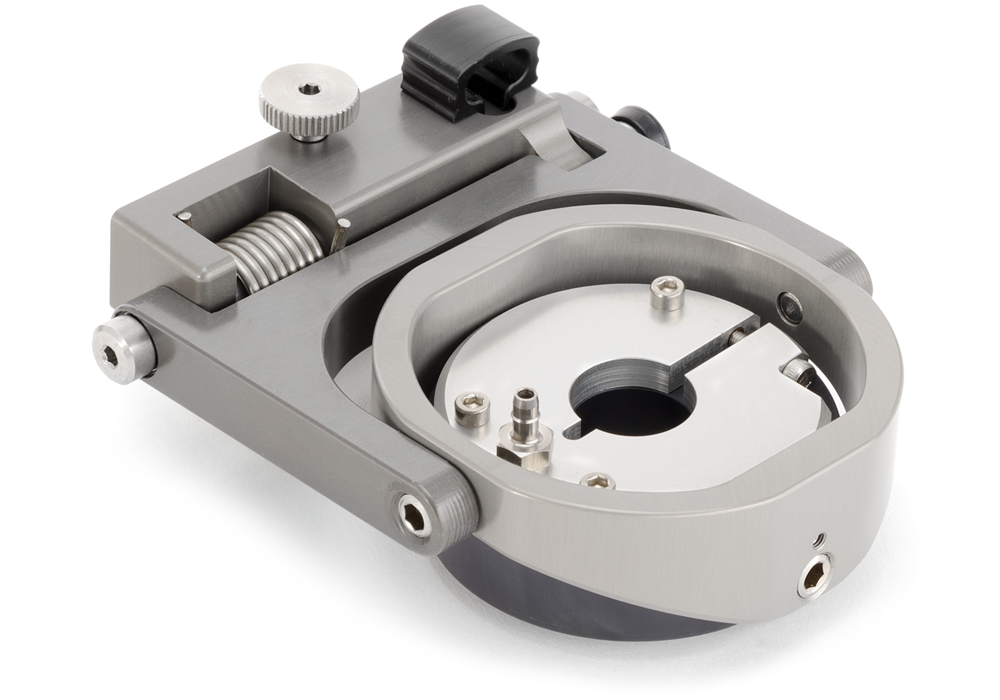

Several Corrosion Thickness Probe Holder Receptacle and Curved Wear Plate options are available. These accommodate various sizes of 0º probes/transducers to be used with the corrosion thickness probe holder. Add versatility to a corrosion thickness probe holder with additional receptacle dimensions, or replace a worn wear plate with a fresh surface.
Receptacle Sizes and Wear Plate
A - 9.53 mm (0.375 in) receptacle diameter - Curved wear plate - PHS066-A
B - 12.7 mm (0.5 in) receptacle diameter - Curved wear plate - PHS066-B
C - 19 mm (0.75 in) receptacle diameter - Curved wear plate - PHS066-C
E - 25.4 mm (1 in) receptacle - Curved wear plate - PHS066-E
J - 21.06 mm (0.829 in) receptacle - Curved wear plate - PHS066-J
K - ∅101.6 mm (∅4 in)
Environmental Specifications
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Maximum Inspection Surface Temperature: 80°C (176°F)
