Probe Holder Receptacle
Choose the receptacle diameter or receptacle type that matches the size/type of probe to be used.
(Contact JIREH to request custom receptacle sizes)

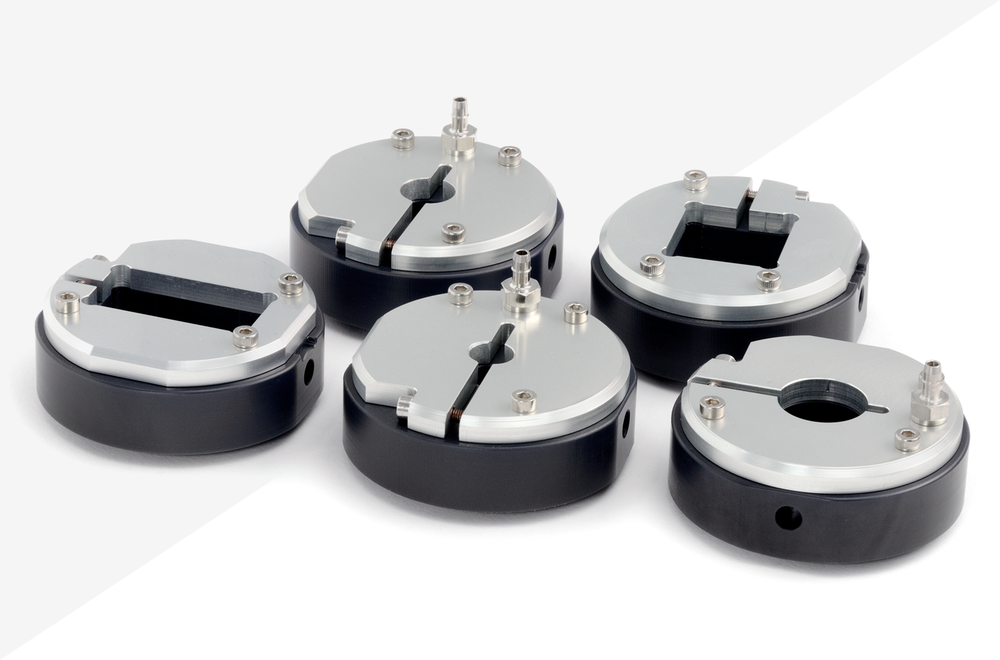

Several Corrosion Thickness Probe Holder Receptacle and Flat Wear Plate options are available. These accommodate various sizes of 0º probes/transducers to be used with the corrosion thickness probe holder. Add versatility to a corrosion thickness probe holder with additional receptacle dimensions, or replace a worn wear plate with a fresh surface.
Receptacle Sizes and Wear Plate
A - 9.53 mm (0.375 in) receptacle diameter - Flat wear plate - PHS067-A
B - 12.7 mm (0.5 in) receptacle diameter - Flat wear plate - PHS067-B
C - 19 mm (0.75 in) receptacle diameter - Flat wear plate - PHS067-C
D - Technisonic receptacle - Flat wear plate - PHS067-D
E - 25.4 mm (1 in) receptacle- Flat wear plate - PHS067-E
F - 27.9 mm (1.1 in) receptacle - Flate wear plate - PHS067-F
G - 30.5 mm (1.2 in) receptacle - Flate wear plate - PHS067-G
H - 16 mm (0.630) receptacle diameter - Flat wear plate - PHS067-H
I - 25.4 mm (1 in) receptacle diameter - Flat wear plate - PHS067-I
J - 21 mm (0.829 in) receptacle diameter - Flate wear plate - PHS067-J
Environmental Specifications
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Maximum Inspection Surface Temperature: 80°C (176°F)
