Elevate your weld inspections NAVIC Actuated Probe Lifts

Use the probe lift feature of the NAVIC Probe Lift crawler to transport your probes safely. Our cutting-edge system elevates your probe holders over surface obstacles and welds during travel between inspection locations, ensuring hassle-free operation and probe longevity. Control the actuated probe lifts remotely with NAVIC's touchscreen handheld controller and customize the probe holders to accommodate almost any probe/wedge style for maximum versatility!

Path 2 Copy BUILD INSTANT QUOTE

Videos

FEATURES

Actuated Probe Lifts

Our system raises probes above obstacles during inspections with the remote-controlled NAVIC crawler, reducing probe wear.

Motorized Driving and steering

Variable drive speed and steering offer users precise control for weld inspection tasks.

Rugged

Engineered to operate demanding tasks in harsh conditions.

Magnetic Wheels

 Robust magnetic wheels ensure the NAVIC system stays securely attached to ferrous surfaces.

Integrated Encoder

A spring-loaded encoder maintains surface contact on all various scan surface diameters.

Remote Control

Effortlessly program drive paths from distances of up to 30 meters (100 feet) using the user-friendly handheld remote control. The ergonomic controller features drive paths and system diagnostics for your convenience.

Tracker

Pair the NAVIC crawler with the Tracker to convert it into a laser-guided, automated scanning solution.

Battery Power

Order the NAVIC with the battery kit and avoid using heavy, cumbersome generators. These rechargeable batteries can power the NAVIC system and accessories for hours.

Many Accessories

Boost the capabilities of the NAVIC system with a range of optional accessories, including a battery-powered optical guide, onboard camera, backpack, motorized couplant pump and more. These valuable accessories provide added functionality and flexibility to meet your specific needs.

Warranty

Our products are carefully crafted for reliable performance. They come with a three-year limited warranty.

Kit Contents

Path 2 CopyPath 2 Copy

SCANNER

NAVIC base crawler

PARTS & ACCESSORIES

Power controller
Power supply (North American, European or UK plugs available)
Umbilical, 5 m (15 ft), 10 m (30 ft), 15 m (50 ft) or 30 m (100 ft) lengths available
Handheld controller
Auxiliary cable, 6 m (20 ft)
Cable management, threaded mount, (length dependent on umbilical length)
J300 encoder cable, 5 m (15 ft)
Installation/Removal mat
6 mm ID irrigation kit (7/16 in quick connect)
Lifting sling (safety tether)
User manual
Cap: NAVIC hinge cover
Plug
Rugged carrying cases (various types based on chosen accessories)  x2 – x3

TOOLS

3 mm hex driver
3 mm flat driver
Wrench for pivot button adjustment

Component Identification

Power Controller

The power controller connects the user instrument and handheld controller to the base crawler and is compatible with North American and European power sources.

Umbilical

The umbilical connects the crawler and the base crawler, providing communication and power between the components.

NAVIC - Base Crawler

The base crawler is designed to handle actuated probe lifts effortlessly. Additionally, its modular design allows for seamless integration with various components for corrosion inspection, nozzle examination, and different types of weld inspection.

Handheld Controller

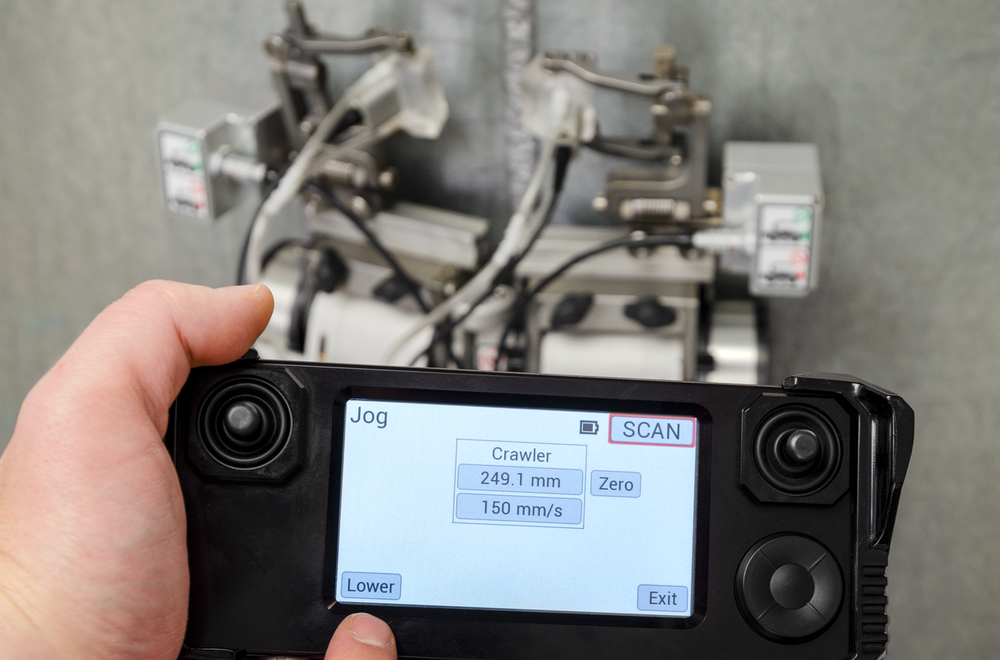

The handheld controller joysticks contain the NAVIC operating system and control the speed and steering of the base crawler. At the same time, the intuitive touchscreen allows for probe lift capabilities and Tracker control.

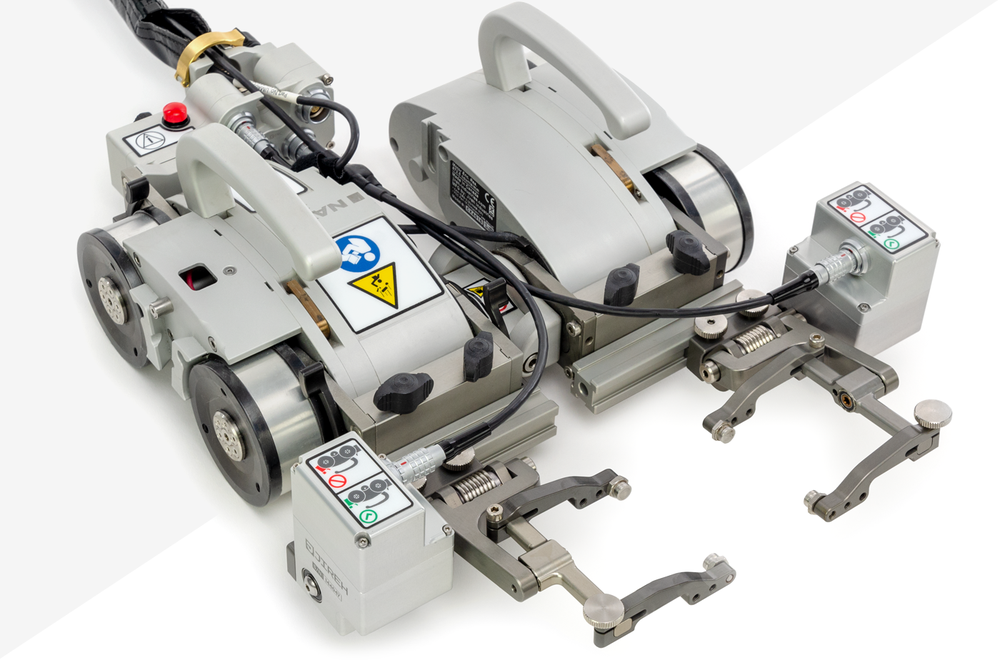

Actuated Probe Lifts

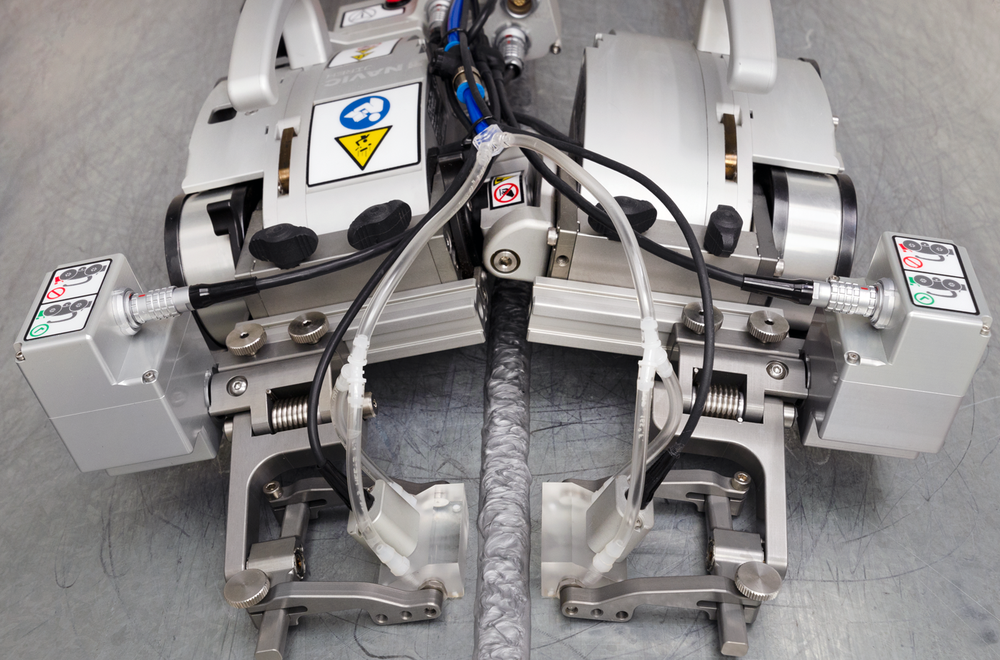

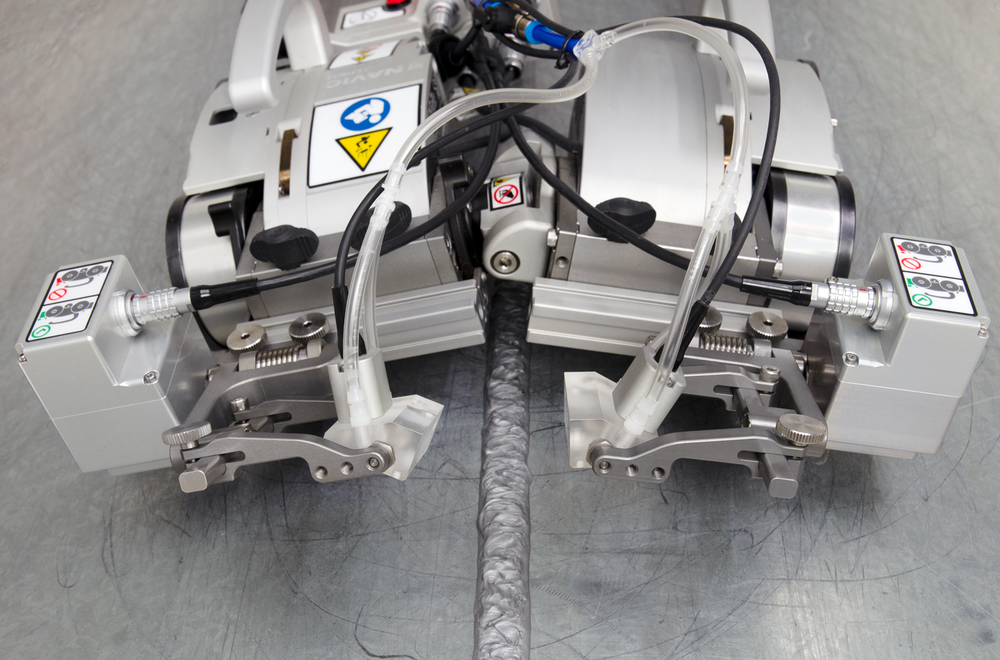

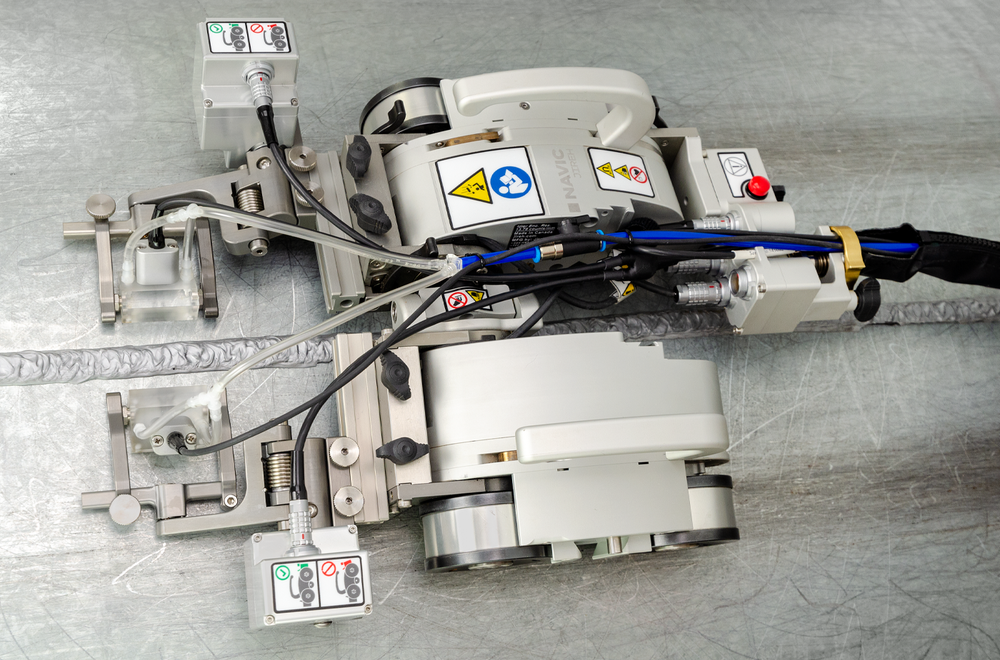

Using the handheld controller, two actuated probe lifts raise and lower probes from the scan surface.

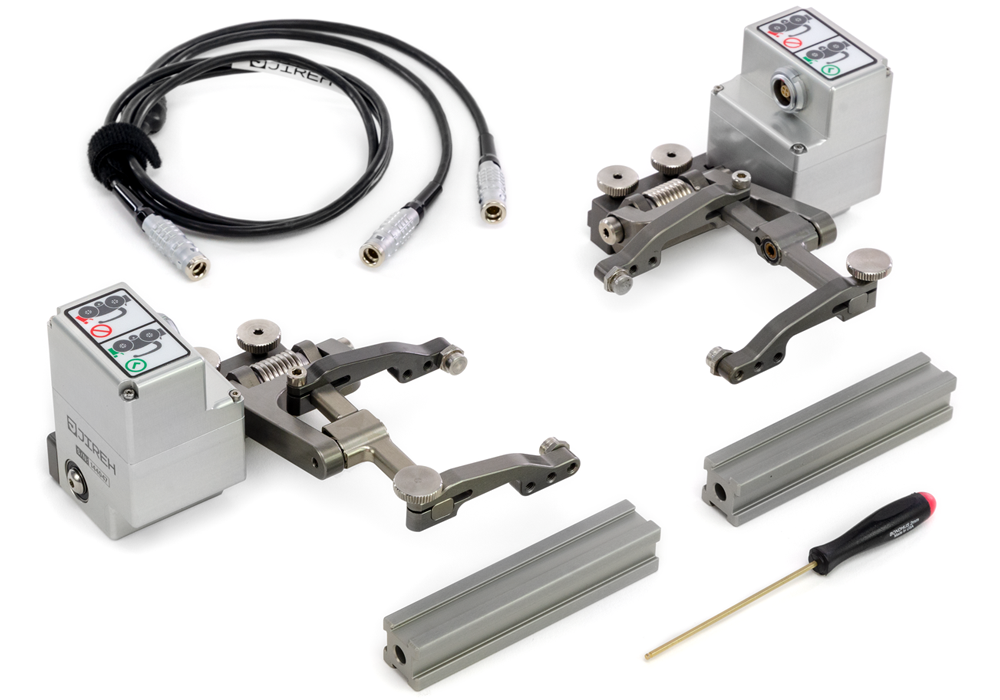

Split auxiliary Cable

This one-metre cable plugs into the NAVIC umbilical and splits to connect to each actuated probe lift.

Frame Bars

Two 10 cm (3.9 in) frame bars provide the mounting point for the actuated probe lifts to attach to the NAVIC.

Parts & Add-Ons

6 mm ID Irrigation Kit (7/16 in Quick Connect)

From USD$ 188.35

Battery Kit

USD$ 1,975.12

Battery Powered Optical Guide

USD$ 773.76

Motorized Couplant Pump

USD$ 2,545.26

Motorized Pump/Umbilical Case - Extra Large

USD$ 651.59

NAVIC Backpack

USD$ 295.25

Probe Holder Pivot Button

From USD$ 10.18

RECON - Fixed Camera Kit

From USD$ 8,736.50

Tracker

USD$ 11,591.00

Related Products

MOTIX - Weld Scanner

From USD$ 34,967.33

SKOOT - Weld Scanner

From USD$ 32,538.64

STIX - 4 Probe Long Seam Scanner

USD$ 8,959.32

TERAX - Base Crawler

From USD$ 41,087.50

Technical Specifications

Path 2 CopyPath 2 Copy

GENERAL

Idler Encoder (Right Module): 13.78 counts/mm (349.9 counts/inch)
Motor Encoder (Left Module): 872.5 counts/mm (22162.8 counts/inch)
Crawler’s Vertical Payload: 10 kg (22 lb)1
Driving Speed: Variable 0 – 25 cm/sec (0 – 10 in/sec)
Power Requirements: 100-240VAC, 50/60Hz, 3.5 Amps
Umbilical Lengths: 5 m (15 ft), 10 m (30 ft), 15 m (50 ft) to 30 m (100 ft)2
Inspection Surface: Ferrous
Maximum Backpack payload: 1.36 kg (3 lb)3

PIPE RANGE

Pipe Range, Circumferential: 7 cm (2.75 in) to flat pipe
Range, Internal Circumferential: 61 cm (24 in) to flat
Pipe Range, Longitudinal: 30.5 cm (12 in) to flat

RADIAL CLEARANCE

Radial Clearance, Pipes under 20 cm (8 in): 7 cm (2.75 in)4
Radial Clearance, Pipes over 20 cm (8 in): 8.15 cm (3.2 in)4

REGULATIONS

CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.5
FCC: Compliance with Part 15 of FCC rules.5
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.5
UKCA: United Kingdom Conformity Assessed – Compliance with relevant UK statutory requirements and legislation.5

SIZE & WEIGHT

Base Crawler Height (including handles): 12.5 cm (4.9 in)
Base Crawler Height (handles removed): 8.1 cm (3.2 in)
Base Crawler Width (Dual Pod): 28.2 cm (11.1 in)
Base Crawler Length: 30.8 cm (12.1 in)6
Base Crawler Width (Single Pod): 16.1 cm (6.3 in)
Base Crawler Weight: 7.7 kg (17 lb)7

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, water-tight (not submersible)

Probe Holder Pivot Buttons

01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)

  1. Performance may vary with the surface type. Heavy payloads may require reduced speeds.
  2. Custom umbilical lengths are available.
  3. The backpack is not compatible with older-generation NAVIC crawlers.
  4. Handles removed.
  5. For a complete description of regulatory certifications, please contact JIREH.
  6. The length of the unit includes umbilical strain relief.
  7. Crawler weight excludes umbilical.

Technical specifications are subject to change.

Documents

To download the user manuals and additional documentation for the scanner, click the appropriate link below.

(specifications are subject to change)

User Manual

Replacement Parts - Crawler

Replacement Parts - Kit

NAVIC - Brochure

User Manual - Actuated Probe Lifts

Crawler

From USD$ 38,687.99

The industry-leading NAVIC is JIREH's most powerful, all-encompassing, weld and corrosion scanning solution.

The NAVIC 2 - Base Crawler is a modular, motorized, steerable scanner that carries various attachments for scanning and inspection applications. The list of possibilities is seemingly endless with this industry-leading crawler. The NAVIC can perform circumferential and longitudinal inspections on ferrous tanks, pipes, and vessels.

Part ID: CXG023

Next Step Path 2 Copy

Actuated Probe Lifts

From USD$ 6,418.30

Get your probes safely from point A to point B with the Actuated Probe Lifts. Our innovative system will raise your probe holders above surface obstacles and welds during inspections with the remote-controlled NAVIC crawler. Reduce unnecessary wear on your wedges by remotely lowering and lifting your probes after navigating to the inspection location.

Part ID: CXG037-01-D

Next Step Path 2 Copy

Automatic Weld Tracker

From USD$ 11,591.00

Add automatic weld following capability to NAVIC.

Start with the NAVIC. Add Laser guidance. Say "Hello" to the TRACKER.

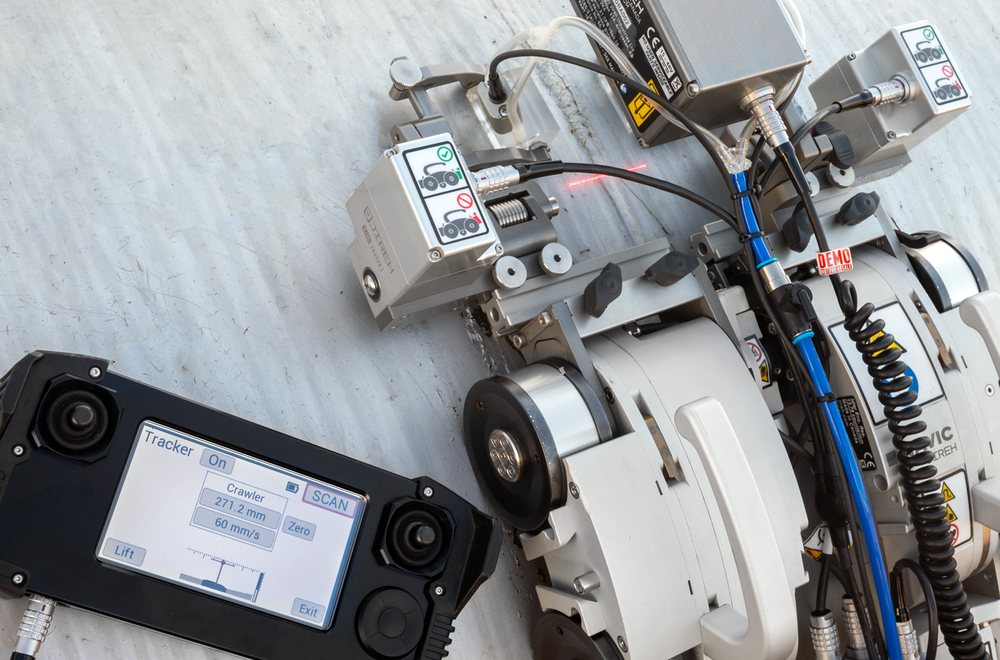

Combine the NAVIC crawler with the Tracker, and transform the NAVIC into a laser-guided, automated scanning solution. Setup atop any probe holder frame, the Tracker uses advanced laser guidance to follow elevated profiles (i.e. a weld) on any ferrous scan surface. The list of features includes: simple controls which let the user start and stop the scanner as needed, tracking information is displayed on the handheld controller, setup is quick and easy.
