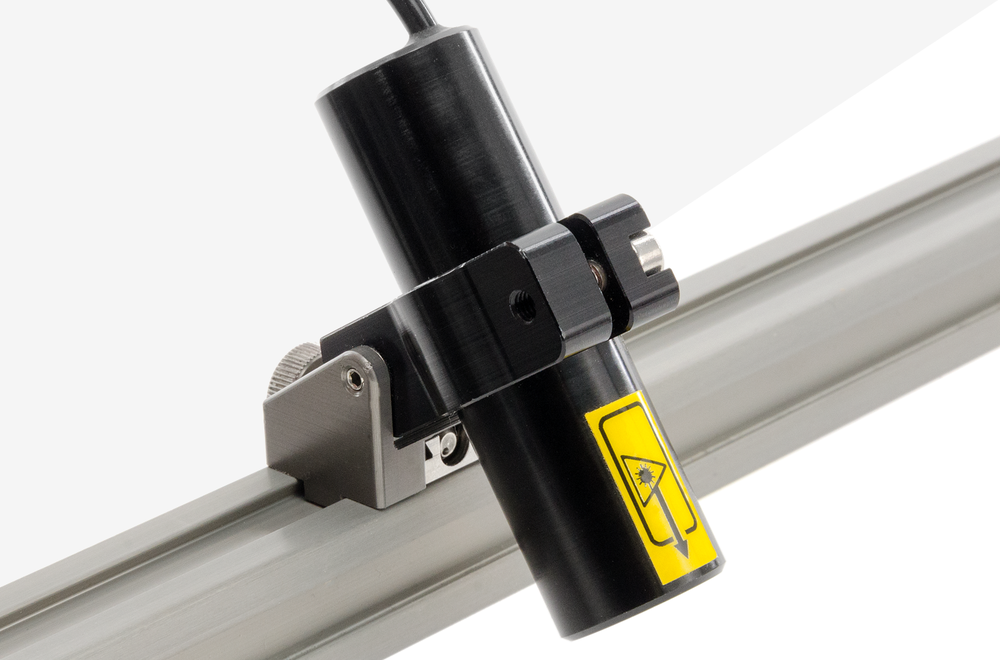

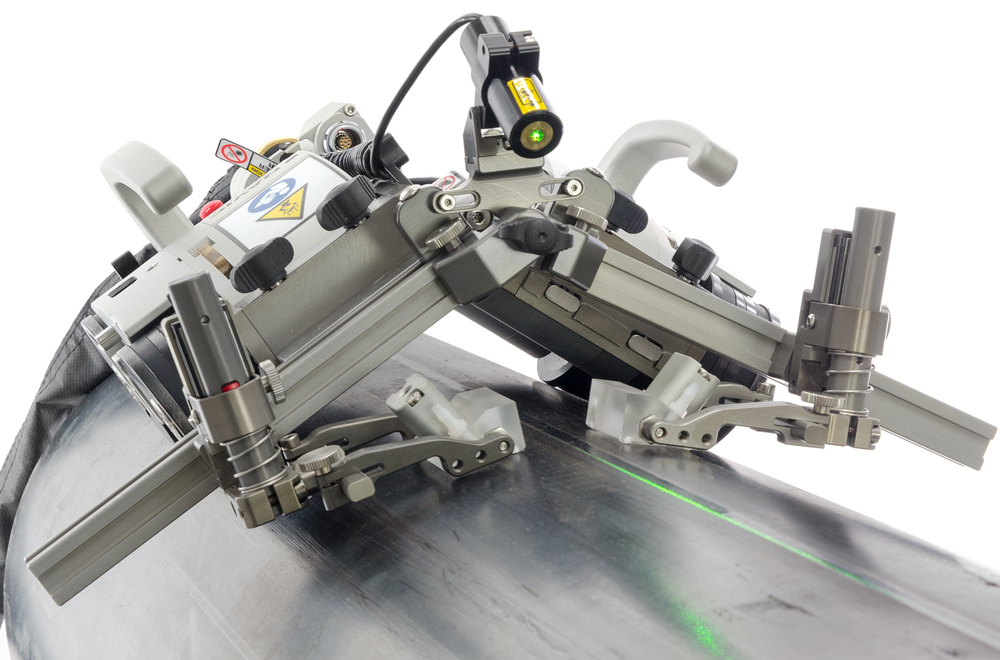

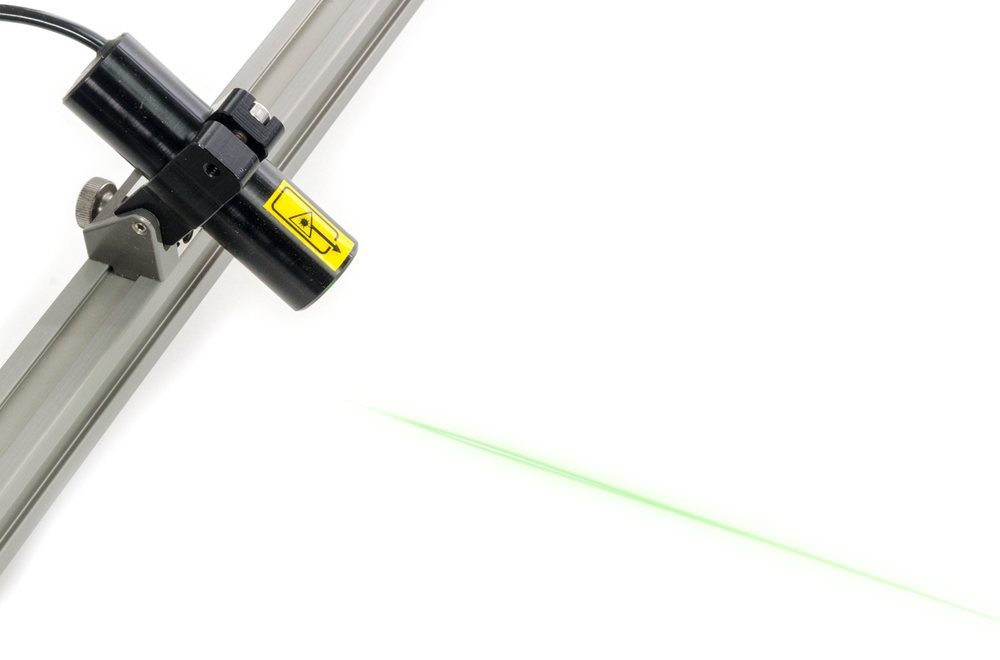

Easily mounted to any motorized crawler's dovetail, the Optical Guide provides a green colour point of reference for guiding scanners along a given path (i.e. a weld). The angle of the projection may be adjusted as required and the plug-in power means never running out of battery.



Part ID: CXG035

Videos

Kit Contents

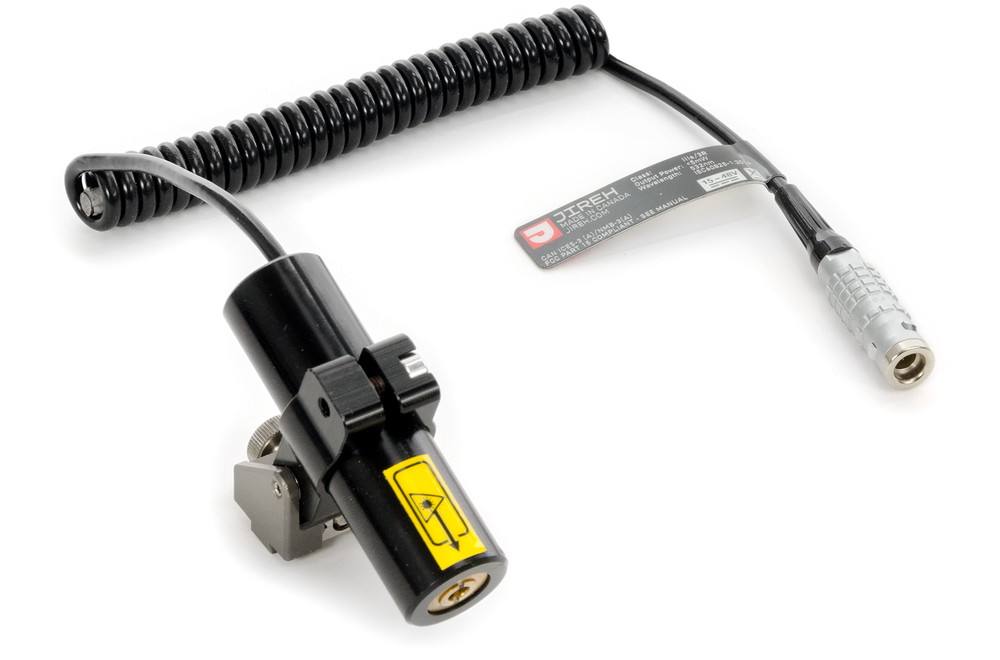

Optical Guide
Optical Guide Clamp

Optical Guide-Safety

Optical Guide-Safety1

Related Products

Specifications

Optical Guide Specifications

Beam Divergence: 60°
Laser Wavelength: 532nm
Laser Output Power: <5mw
Laser Class: IIIa/3R
Laser Colour: Green

Power Requirements

Input Voltage: 15V-48V
Input Current: 14mA-40mA

Environmental Specifications

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)

Optical Guide Safety Label Locations

The optical guide utilizes a class 3R laser which is potentially hazardous. Please read and understand the following warnings prior to use. Class 3R Lasers have the potential to harm eyesight, observe all safety precautions listed within the user manual.
