Experience precise and efficient inspection of nozzle and fitting welds

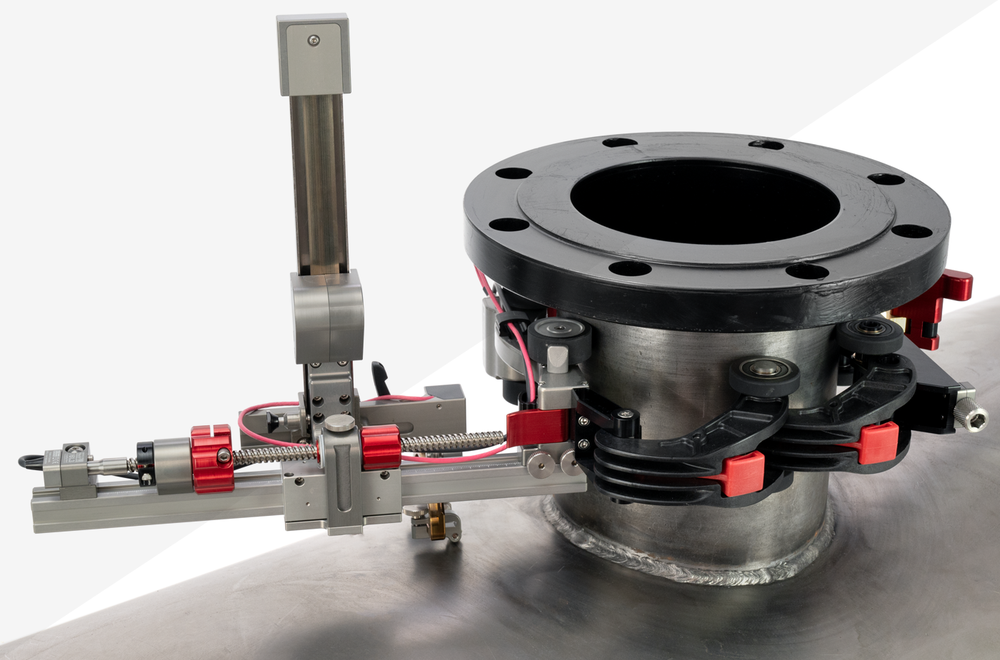

The ROTIX - 3-Axis Nozzle Scanner facilitates semi-automated inspection of nozzle welds. A specialized long-stroke probe holder features encoded skew angle measurement, while the scanner employs a chain system for stable inspection on ferrous and non-ferrous surfaces. The scanner can also limit clearance inspection, requiring just 12.5 cm (4.9 in) between the vessel and the flange.
Features
Flange Inspection

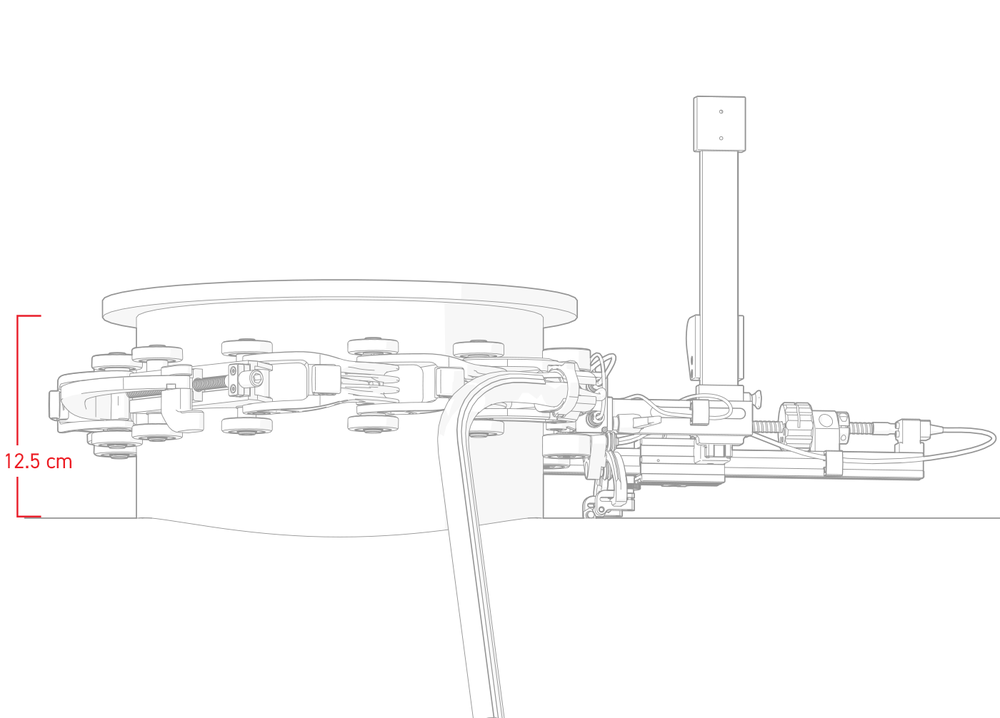

Our Nozzle scanner is designed to accommodate varying heights, including flanges as low as 12.5cm to the vessel. With its adaptable design, the ROTIX easily adjusts to different diameters, ensuring comprehensive inspections of welds.
ADJUSTABLE QUICKLINK CHAIN
Using QuickLinks and an adjustable QuickLink buckle, various flange and nozzle diameters can be effortlessly scanned. Quicklinks facilitate swift and hassle-free connections, and assembling various chain configuration lengths is a breeze.

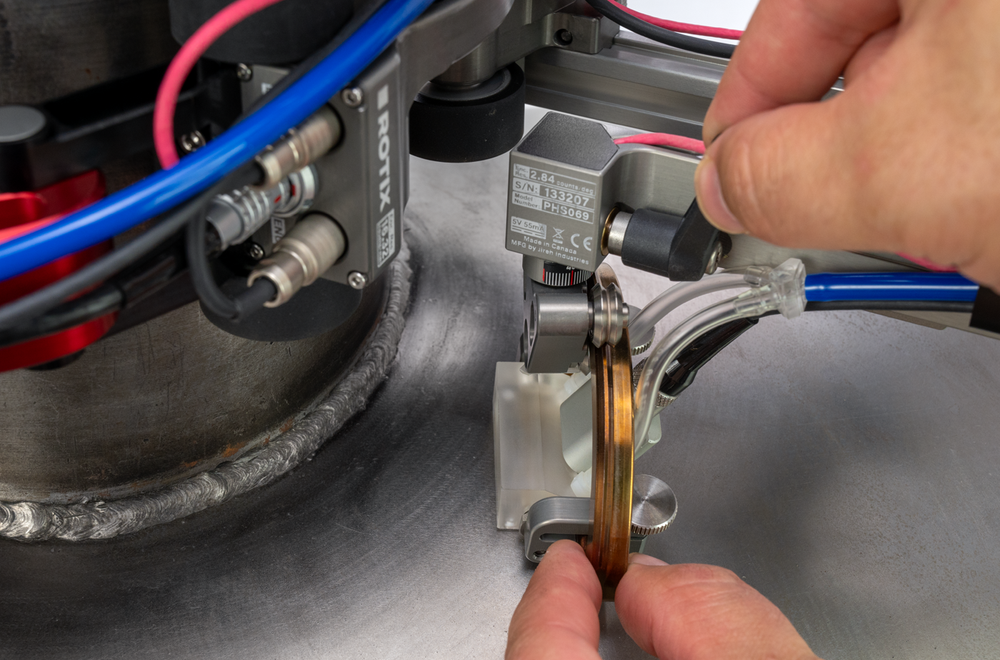

Encoded Skew Vertical Probe Holder
This inventive probe holder offers 12.2 cm (4.8 in) of vertical travel and an encoded skew measurement, which measures the angle of the probe.
Skew Encoding
Experience unparalleled flexibility with the adjustable probe direction. Our innovative skew feature allows you to independently adjust the probe's direction while the encoded angle of the probe is seamlessly provided to your instrument.

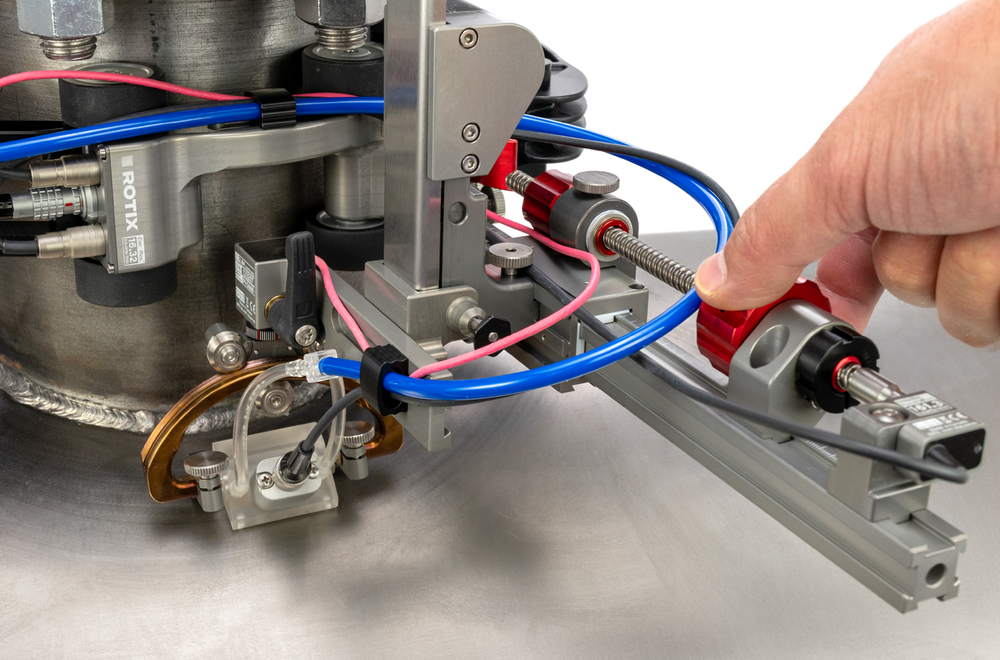

Slider Probe Positioning System (PPS)
Simply make the necessary adjustments to your probe's location on the fly, saving you valuable time. The Slider PPS uses a leadscrew system to easily adjust the probe's distance from the weld while the lock knob prevents any accidental movement.
Y-Axis Encoding
Equipped with a state-of-the-art PPS encoder, our scanner accurately tracks the position of the probe, providing you with real-time feedback on its location.
QUICKLINKS
Designed for ease of use and convenience, Quicklinks connect quickly and securely without complicated tools or lengthy processes. Just latch them together, and you're good to go. The user-friendly design also means you can effortlessly disconnect QuickLinks by pressing a button. No more struggling with complicated disassembly or dealing with frustrating connectors.
Cable Management
Not only do our Cable Clips and Cable Management help with organization, but they also offer an added layer of protection for your tubes and cables. By keeping them securely in place, you can prevent accidental damage and extend the lifespan of your equipment. (Cable management sleeving is sold separately)
Warranty
With our limited three-year warranty, you can have complete confidence in the reliability and durability of our products. We stand behind the quality of our offerings and their long-lasting benefits for years to come.

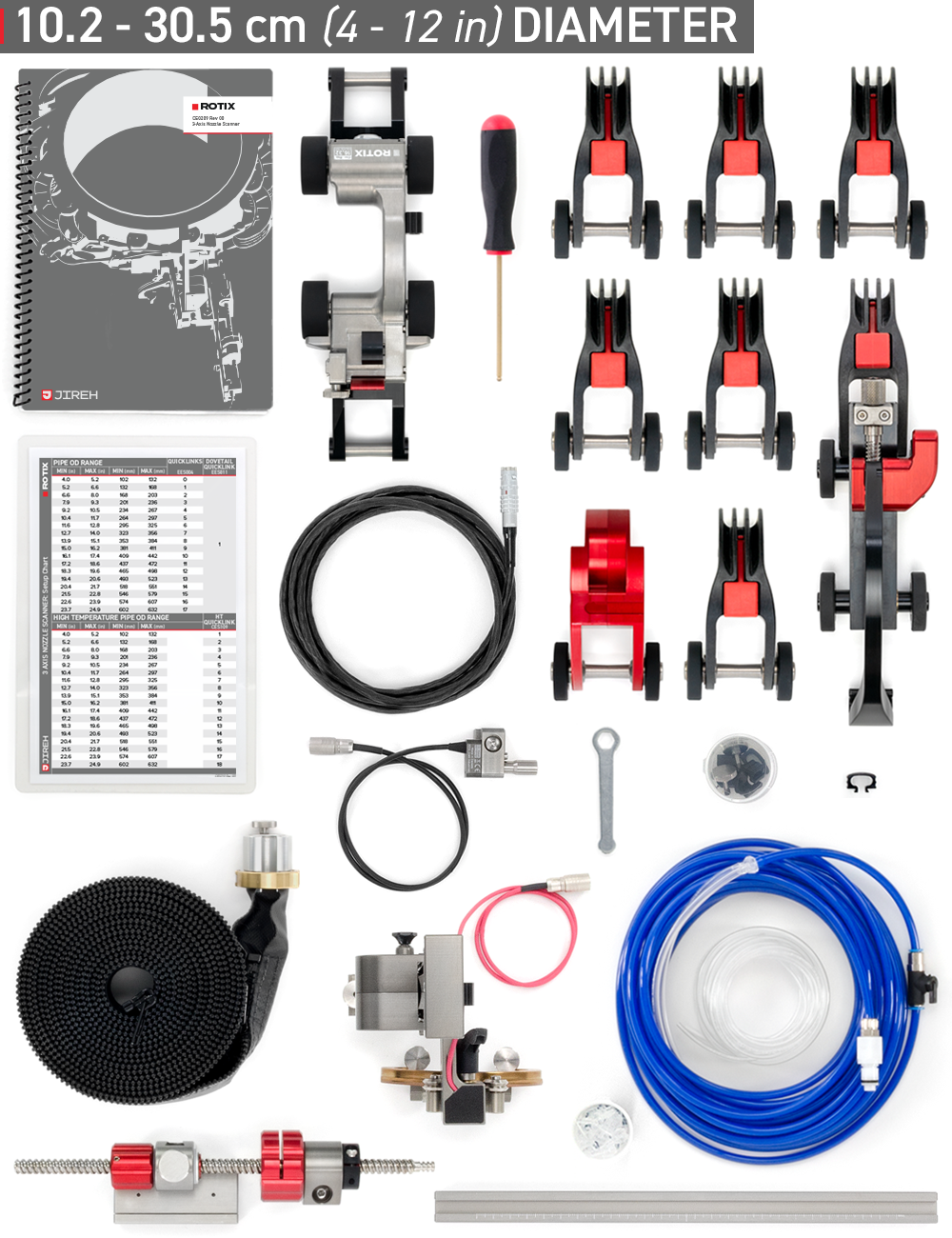

Kit Contents
COMPONENTS
Low profile link
Slider probe positioning system
30 cm (11.8 in) frame bar with ruler
Slider PPS encoder
Encoded skew vertical probe holder
J400 Encoder Cable, 5 m (16.4 ft) length
Cable management, dovetail mount, 4.5 m (14.8 ft)
Irrigation Kit: 4 mm ID, (7/16 in quick connect)
Nozzle Spare Parts Kit
Cable Clip x3
User manual
Setup chart

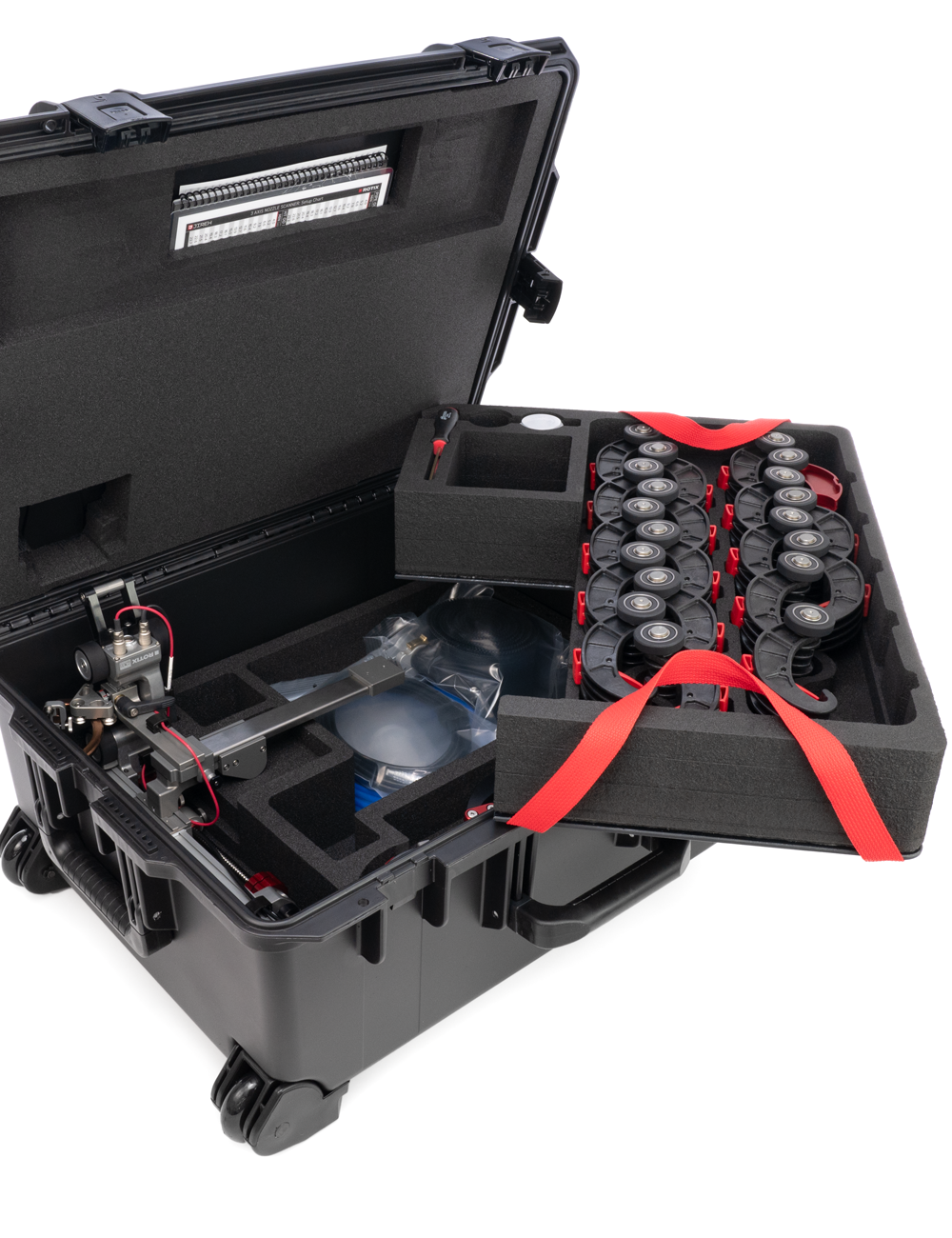

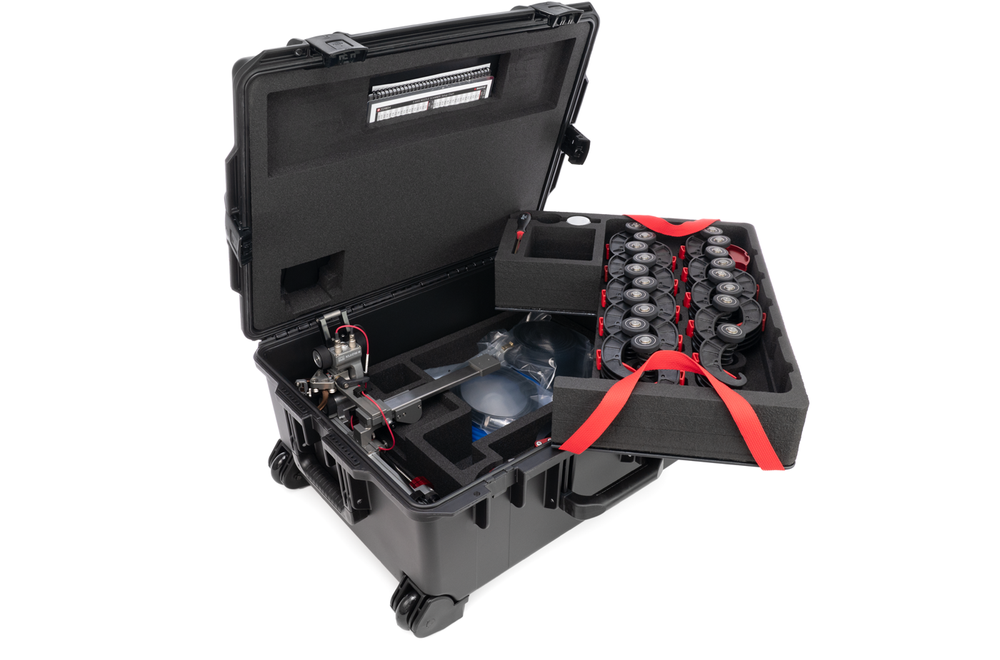

Rugged carrying case
QUICKLINKS
30.5 cm (12 in) Diameter Kit - QuickLinks x6
61 cm (24 in) Diameter Kit - QuickLinks x17
Dovetail QuickLink x1
QuickLink Buckle x1
TOOLS
Hex Driver: 3 mm
3/8" Wrench for pivot button adjustment
Contents may vary depending on the configuration selected.
Component Idetification
Low Profile Link
The low profile link contains the primary positional encoder and a mounting point for a frame bar. Two encoder inputs are located at the rear of the link, along with the output to the user’s instrument.
Encoder Cable
The J400 encoder cable is custom-built with high-quality materials and advanced technology to match the instrument of the user's choice. This cable ensures seamless and accurate communication between the scanner and your instrument.
ENCODED SKEW VERTICAL PROBE HOLDER
A probe holder capable of exceptional vertical travel features a 3rd axis of encoded skew measurement.
QuickLink
Achieve the perfect length for mounting your system on a pipe thanks to QuickLinks. These versatile links allow you to assemble the required length quickly, ensuring a secure and reliable chain configuration.
Frame Bar
The frame bar connects the accessories, Slider PPS and encoders to the lowprofile link.
Slider PPS
The Slider Probe Positioning System (PPS) positions the probe using a leadscrew system.
SLIDER PPS ENCODER
Measure probe distance from the weld. The slider PPS (probe positioning system) encoder mounts to the Slider PPS. The Slider PPS Encoder engages with the encoded lead screw to provide lateral positional feedback of the probe.
CABLE CLIP
Cable Clips provide a secure and organized way to manage cables and hoses. Place the cables and hoses into the cable clip, ensuring a neat arrangement. Then, press the cable clip onto any scanner or frame bar's dovetail groove. This allows for a firm and reliable attachment, preventing cables from getting tangled or becoming a hindrance during operations.
DOVETAIL QUICKLINK
The Dovetail QuickLink helps you expand your chain configuration and is a versatile connector for accessories such as cable management.
QuickLink Buckle
Effortlessly adjust chain tension to achieve optimal performance of your scanner. Not only that, but the QuickLink Buckle also serves as a reliable connection point for the QuickLinks.
Cable Management
Reduce the chance of damaging sensitive probe cables and keep irrigation hoses organized and clean in cable management.
Parts & Add-Ons
Related Products
Specifications
GENERAL
Pipe Range: 10.2 cm - 60 cm (4 in - 24 in)
Encoder Resolution: 16.3 counts/mm (414.5 counts/inch)
Y-Axis Encoder Resolution: 161.3 counts/mm (4096.0 counts/inch)
Skew Axis Encoder Resolution: 2.84 counts/deg.
Probe Holding Capacity: 1 wedge
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Non-ferrous or ferrous materials
PIPE CLEARANCE

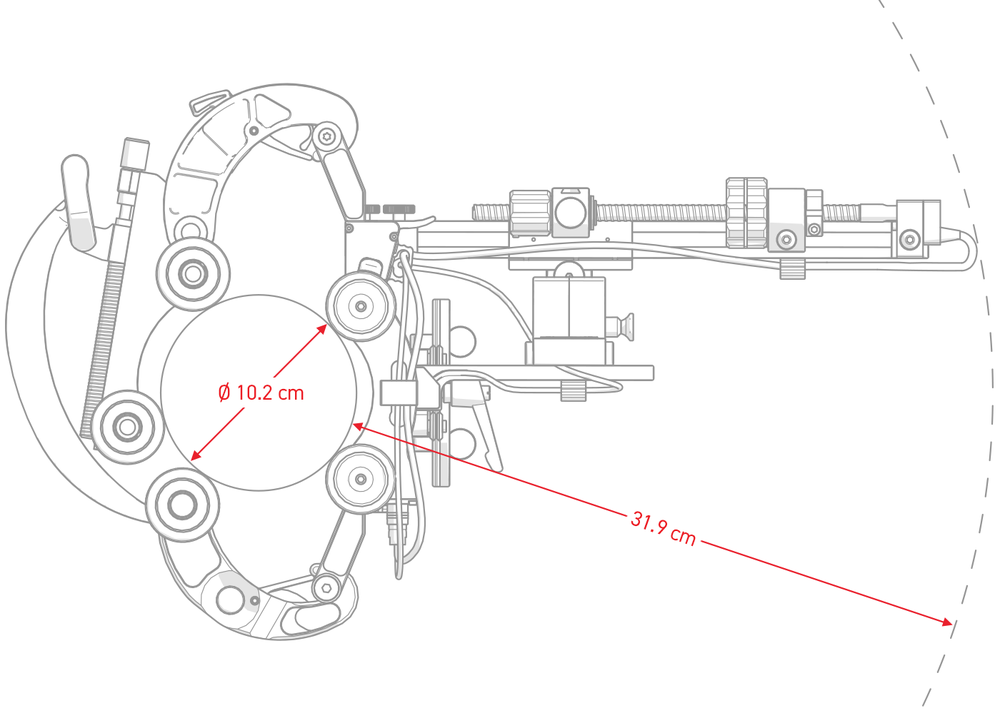

Radial Clearance: 31.9 cm (12.6 in)2
Vertical Clearance: 12.5 (4.9 in)
SIZE & WEIGHT

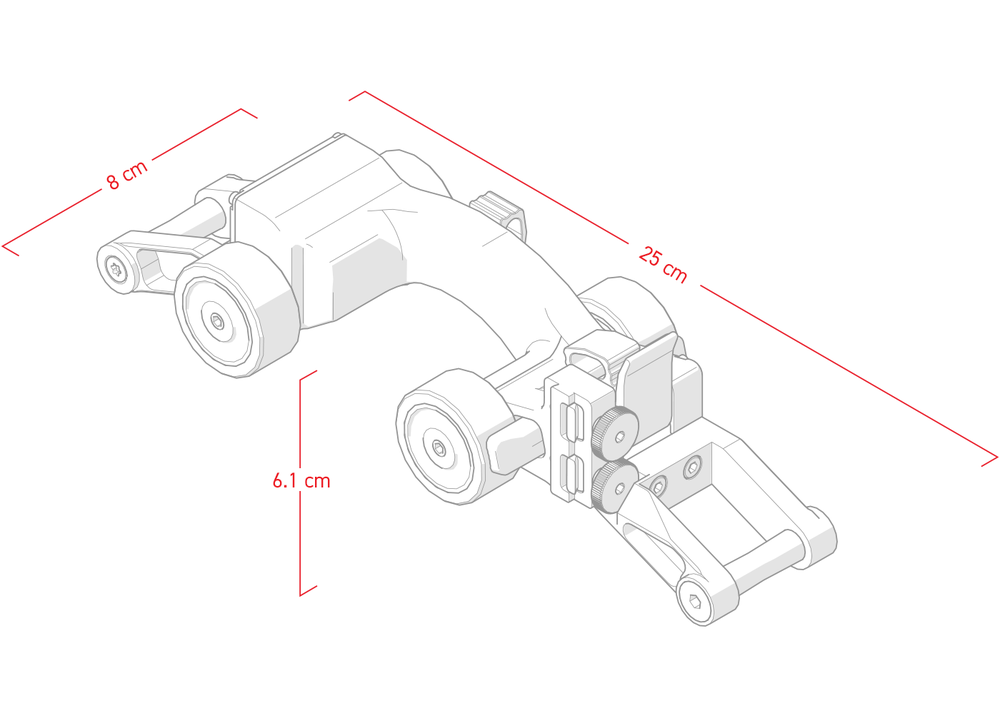

Low Profile Link Height: 6.1 cm (2.4 in)
Low Profile Link Width 8 cm (3.2 in)
Low Profile Link Depth: 25 cm (9.8 in)
Low Profile Link Weight: 0.55 kg (1.12 lb)
Encoded Skew Vertical Probe Holder Height: 32.2 cm (12.7 in)
Encoded Skew Vertical Probe Holder Width: 11.6 cm (4.6 in)
Encoded Skew Vertical Probe Holder Depth: 14.2 cm (5.6 in)
Encoded Skew Vertical Probe Holder Weight: 0.75 kg (1.7 lb)
Shipping Weight: TBA kg (TBA lb)3
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)

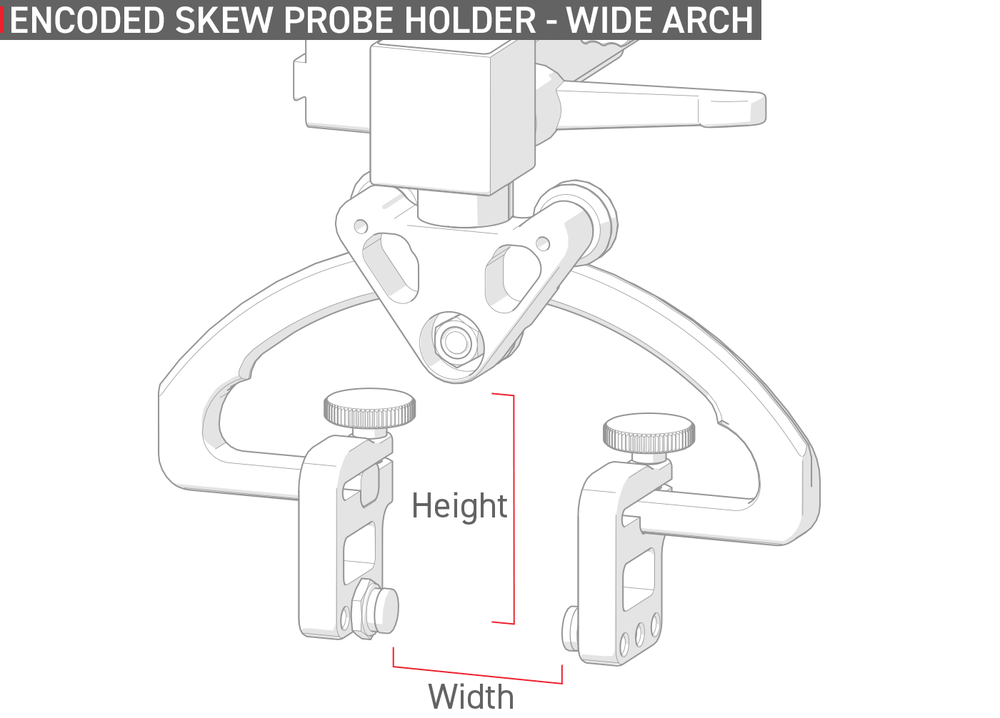

ENCODED SKEW PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 36 mm (1.4 in)4
Maximum Wedge Width: 44 mm (1.7 in)4
- Custom encoder cable lengths are available.
- Radial clearance with standard 30 cm (11.8 in) frame bar.
- Approximate shipping weight of standard kit contents.
- Alternate probe holders with additional vertical clearance are available - contact JIREH for more information.
Technical specifications are subject to change.
