Accurate and reliable inspections around pipes, vessels, and tanks.

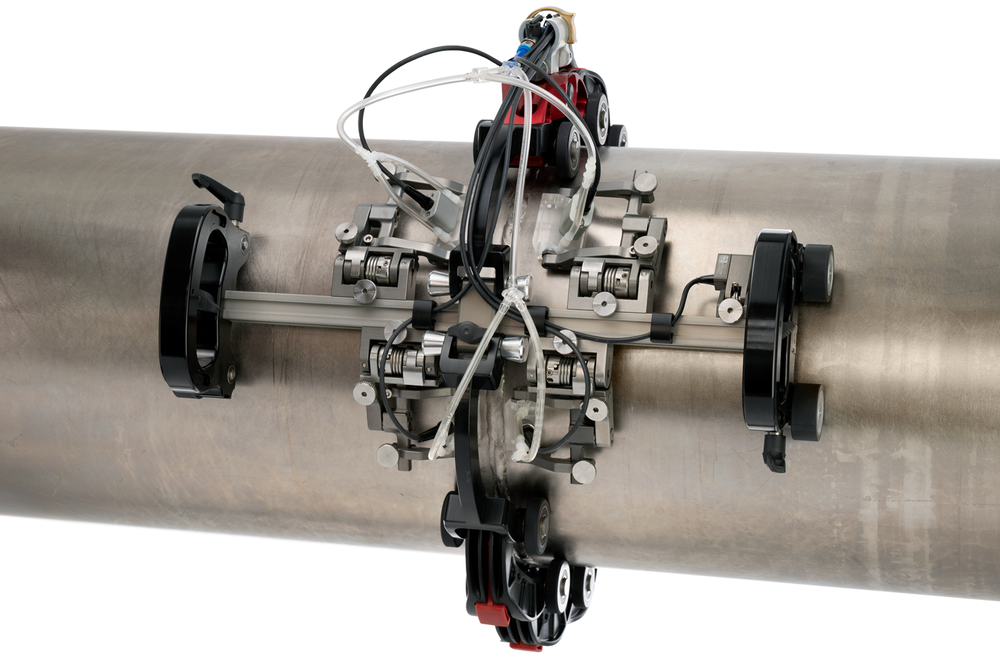

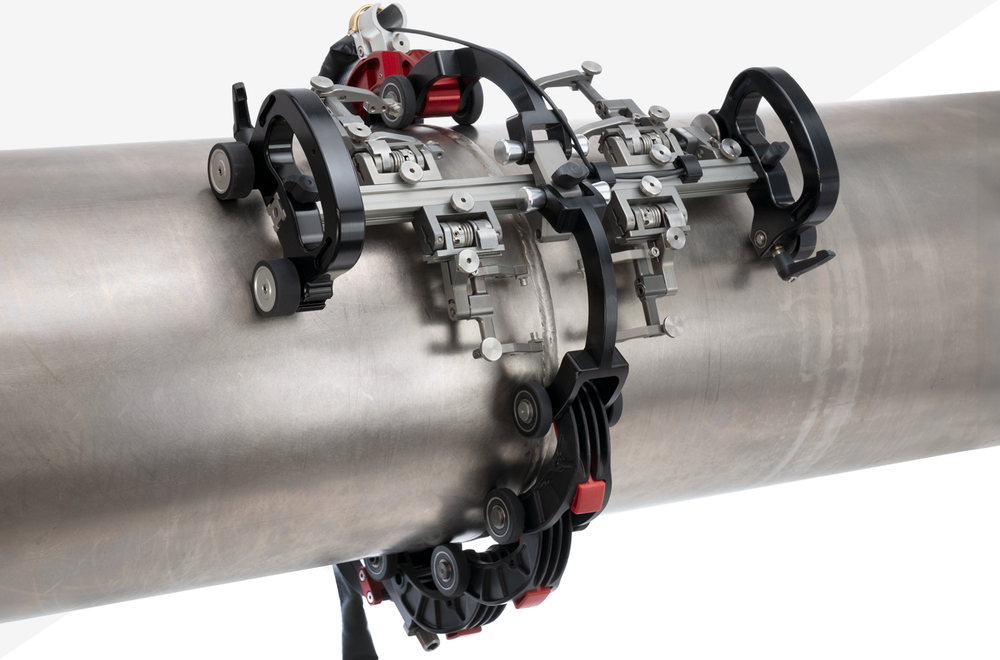

Unlock the power of precise encoded probe positioning with our cutting-edge manual scanner, the ROTIX - Four Probe Weld Frame. Our system is specifically designed to smoothly move phased array probes around pipes, vessels, and tanks, ensuring accurate and reliable weld inspection. Using our QuickLinks, you can quickly adapt the scanner to diameters ranging from 10.2 to 96.5 cm (4 to 38 in). Take your PAUT and TOFD inspections to a new level of precision on non-ferrous and ferrous materials with the ROTIX.

Cable Management is sold separately.

Part ID: CEG048

Videos

FEATURES

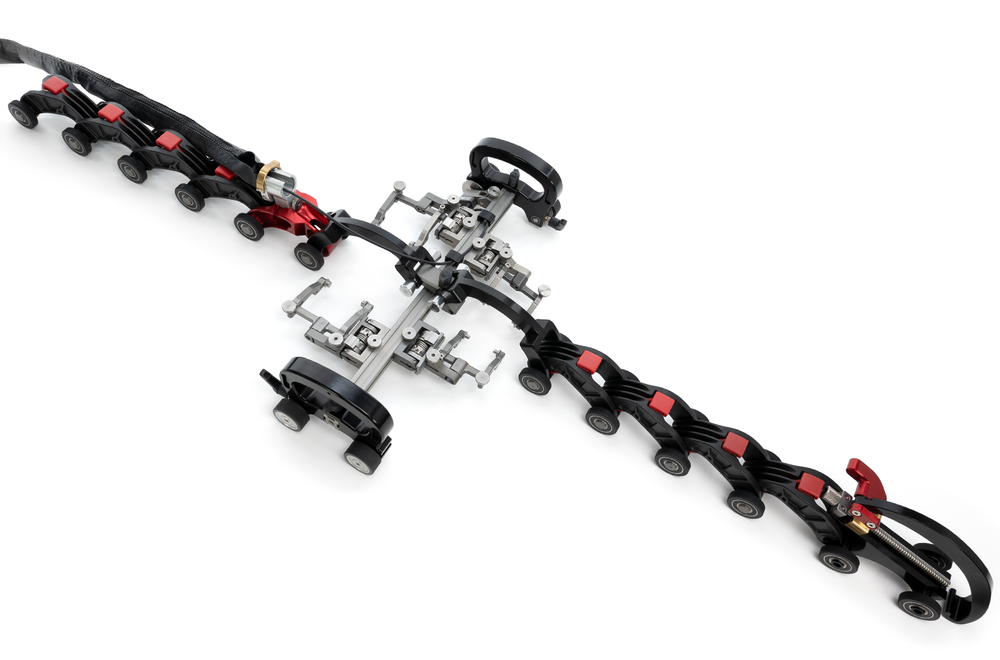

Adjustable QuickLink Chain

Using QuickLinks and an adjustable QuickLink buckle, pipes and tubes ranging from 12.6 - 96.5 cm (4.9 - 38 in) in diameter can be effortlessly scanned. Quicklinks facilitate swift and hassle-free connections, and assembling various chain configuration lengths is a breeze.

QuickLinks

Designed for ease of use and convenience, Quicklinks connect quickly and securely without complicated tools or lengthy processes. Just latch them together, and you're good to go. The user-friendly design also means you can effortlessly disconnect QuickLinks by pressing a button. No more struggling with complicated disassembly or dealing with frustrating connectors.

Brakes

The ROTIX - Four Probe Weld Frame prevents unwanted scanner movement when necessary.

Wheels

Enjoy smooth and consistent scanner travel with urethane wheels that minimize the impact of debris and prevent slippage during vertical applications.

Handles

The convenient handles offer scanner control and mounting points for accessories like cable management, making your scanning experience even more organized and comfortable.

Spring-Loaded Encoder

The spring-loaded encoder maintains contact with the scan surface, providing accuracy for scanner position. The encoder's output is fully compatible with most standard instruments, ensuring seamless integration into your existing setup.

Slip Joint Probe Holders

Achieve precise probe centre spacing and alignment with our versatile probe holders. Designed to accommodate most major phased array wedge types, these holders make it easy to adjust and fine-tune your setup for optimal performance and accuracy.

Cable Management

Our Cable Management provides durable protection for probe cables, irrigation tubes, and more. Its flexible, zippered material is resistant to low temperatures and offers high break strength, abrasion resistance, and flame-retardant properties. (Cable management sleeving is sold separately)

Modular Design

Transform your ROTIX into a magnetic STIX scanner effortlessly with our convenient conversion kits. This enables you to use one scanner for many applications, making it a versatile and cost-effective solution. Unlock the full potential of your JIREH scanners.

Warranty

At JIREH, we stand firmly behind the quality and reliability of our products. That's why we offer a limited 3-year warranty on all our products.

Customer Photos

PAUT (This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
Photo Credit: JES Pipeline
(This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
(This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
Photo Credit: Jeremy Santisteven
(This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)

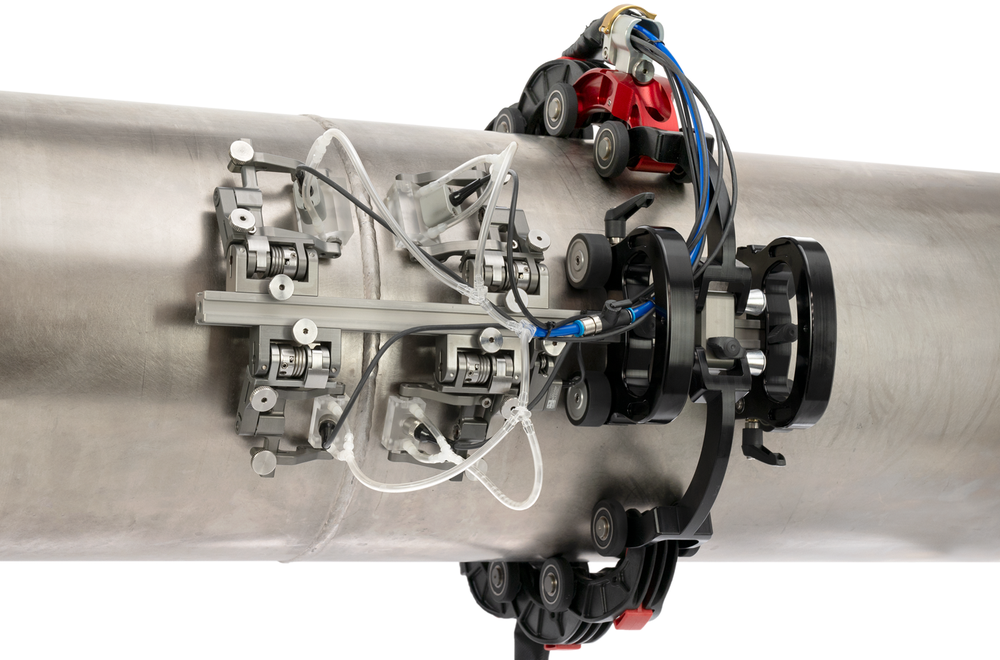

Phased Array and TOFD weld inspection in Cameroon. (This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
APAVE BU Energy

Kit Contents

Path 2 CopyPath 2 Copy

COMPONENTS

ROTIX frame with double chain mount
Standard overtop link x2
Spring-loaded encoder, 5 m (16.4 ft) length
Slip joint phased array probe holder x2
Slip joint TOFD probe holder x2
Probe Holder Arm Set: long drop arms x2
Irrigation Kit: 4 mm ID, (7/16 in quick connect)
Probe holder spare parts kit
Cable Clip x2
User manual
Setup chart

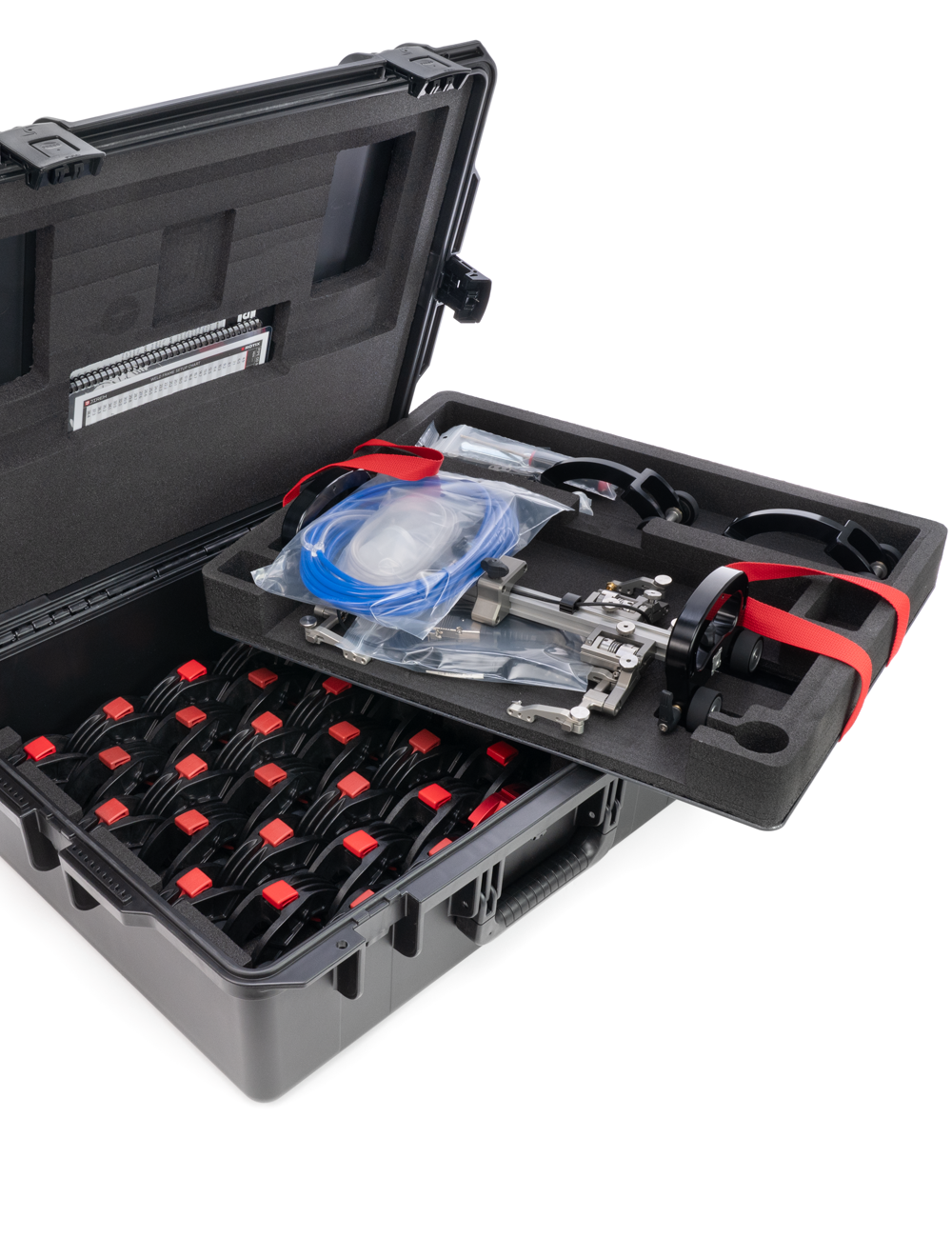

Rugged carrying case

QUICKLINKS

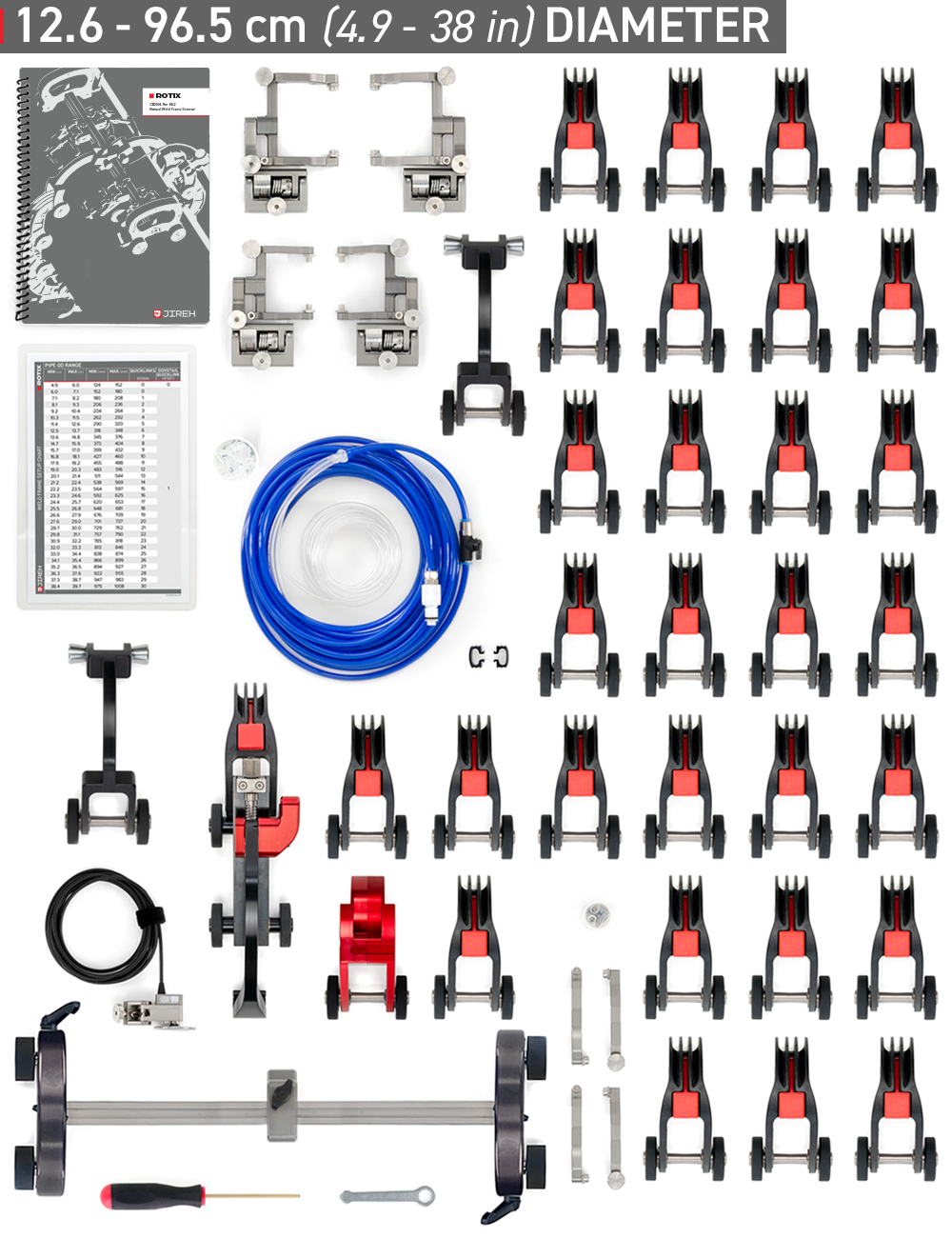

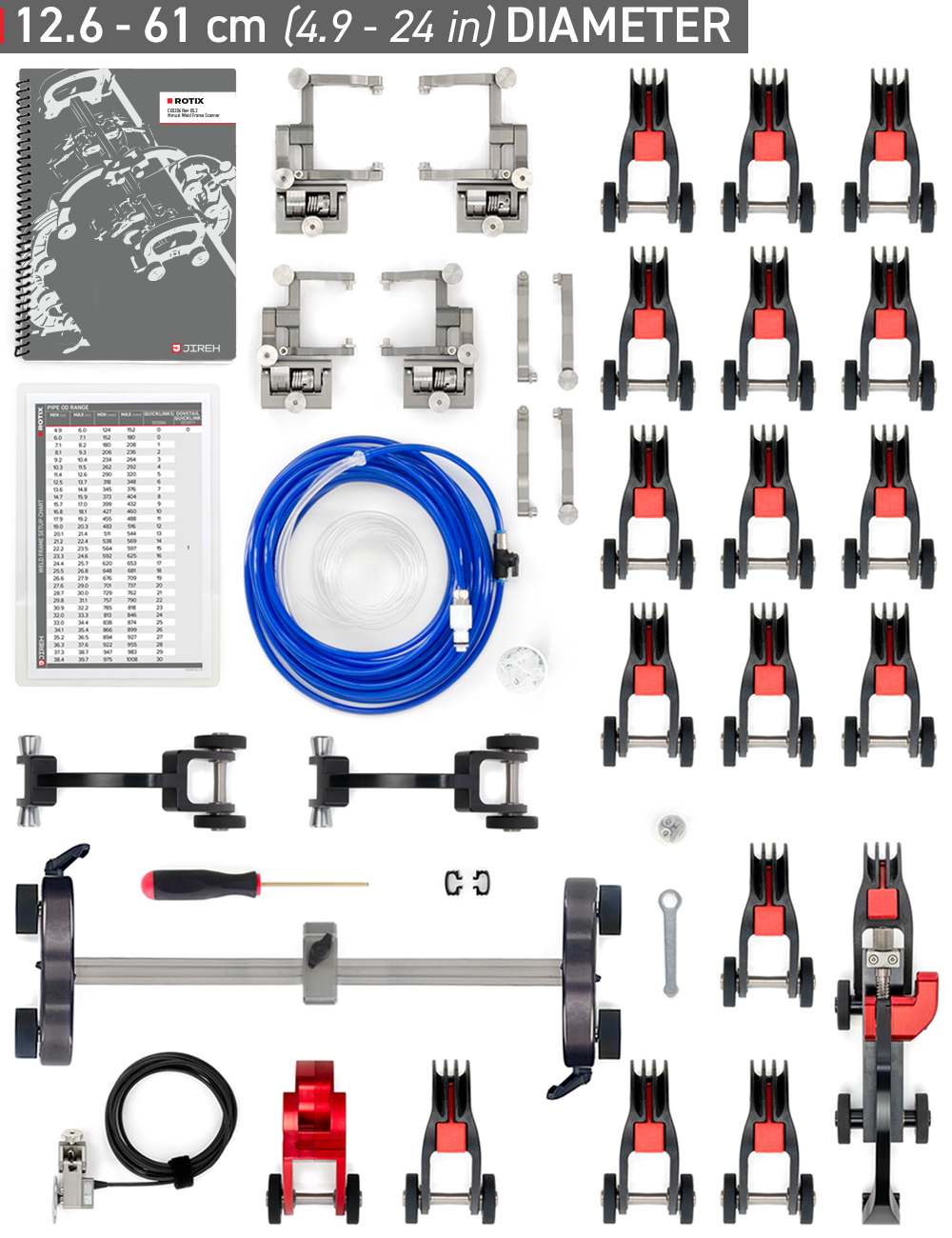

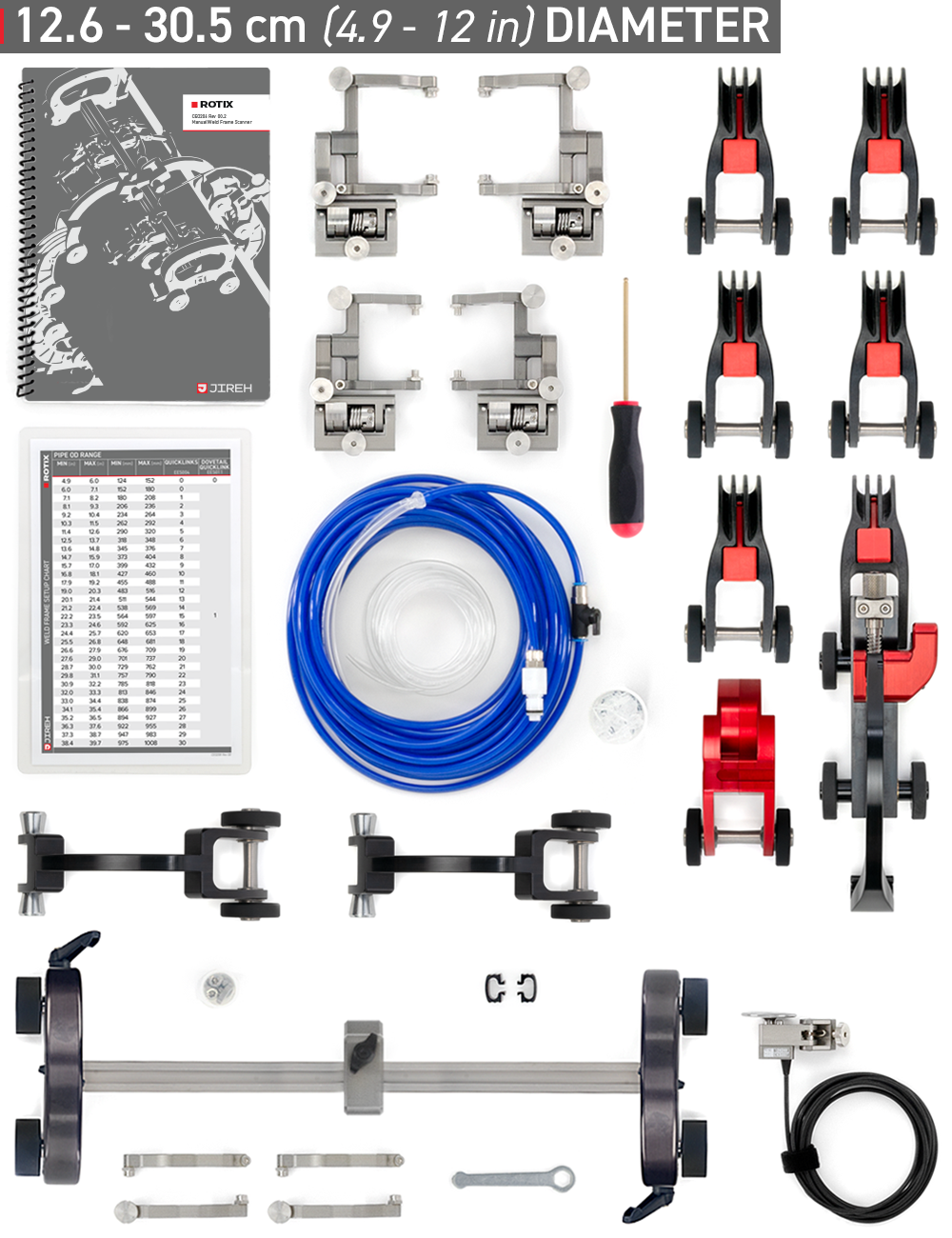

30.5 cm (12 in) Diameter Kit - QuickLinks x5
61 cm (24 in) Diameter Kit - QuickLinks x16
96.5 cm (38 in) Diameter Kit - QuickLinks x29
Dovetail QuickLink x1
QuickLink Buckle x1

TOOLS

Hex Driver: 3 mm
3/8" Wrench for pivot button adjustment

Contents may vary depending on the configuration selected.

Component Identification

Standard Overtop Link

The standard overtop link is precisely engineered to attach to the double chain mount of the ROTIX frame. It extends over the slip joint probe holders and securely connects to the QuickLinks.

QuickLink

Achieve the perfect length for mounting your system on a pipe thanks to QuickLinks. These versatile links allow you to assemble the required length quickly, ensuring a secure and reliable chain configuration.

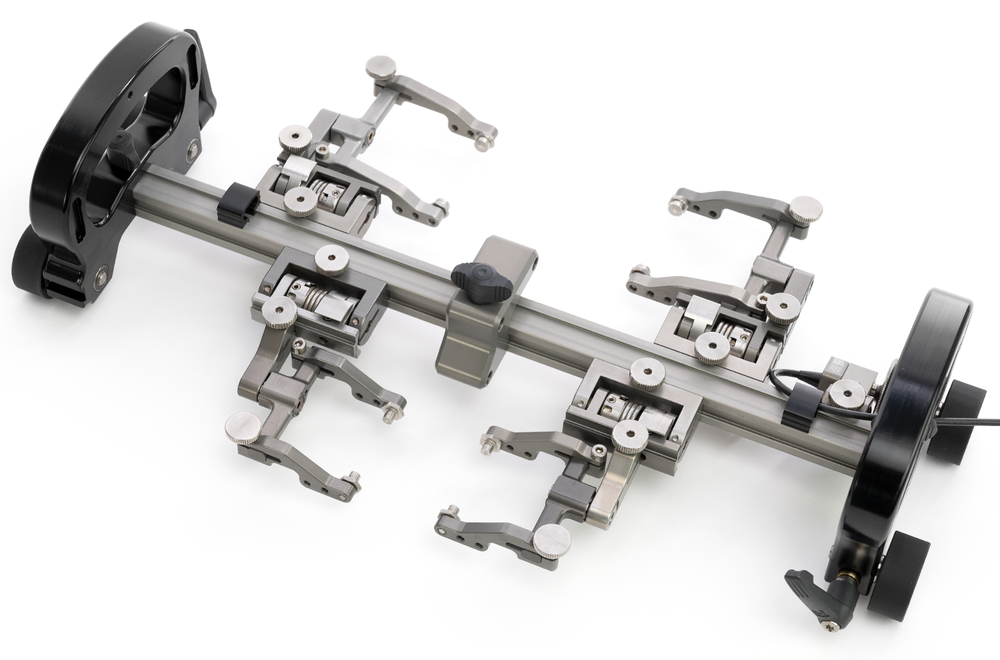

ROTIX Weld Frame

The frame is thoughtfully designed with ergonomic handles, brakes, and a dovetail frame bar. The frame bar makes it easy to attach all necessary components and accessories, ensuring convenience and efficiency during operation. Additionally, the smooth urethane wheels of the ROTIX Weld Frame provide stability and allow for smooth rolling and effectiveness during weld inspection tasks.

Dovetail QuickLink

The Dovetail QuickLink helps you expand your chain configuration and is a versatile connector for accessories such as cable management.

Spring-Loaded Encoder

The spring-loaded encoder ensures constant contact pressure with the scan surface. This feature is crucial for accurate and reliable positional feedback. You can conveniently position the encoder along the frame bar, and it can be connected to any standard instrumentation, making it compatible with a wide range of devices.

QuickLink Buckle

Effortlessly adjust chain tension to achieve optimal performance of your scanner. Not only that, but the QuickLink Buckle also serves as a reliable connection point for the QuickLinks.

Cable Clip

Cable Clips provide a secure and organized way to manage cables and hoses. They easily mount onto any frame bar's dovetail groove, allowing for a firm and reliable attachment and preventing cables from getting tangled or becoming a hindrance during operations.

TOFD Slip Joint Probe Holder

The TOFD Slip Joint Probe Holder is designed to mount seamlessly to the ROTIX frame bar, offering easy positioning wherever needed. These spring-loaded probe holders are equipped with multiple adjustments, allowing you to position the wedge of your choice precisely as required. Many pivot button options are available to mount to your specific transducer.

Phased Array Slip Joint Probe Holder

The Phased Array Slip Joint Probe Holder is designed to mount onto the ROTIX frame bar seamlessly. That enables you to position the phased array probe precisely where required, offering unparalleled versatility and ease of use. Choose from various pivot button options tailored to your specific transducer.

Parts & Add-Ons

Related Products

Specifications

Path 2 CopyPath 2 Copy

GENERAL

Pipe Range, Circumferential: 12.4 - 96.5 cm (4.9 - 38 in)
Encoder Resolution: 9.05 counts/mm (230.0 counts/in)
Probe Holding Capacity: 2 or 4 probes
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous or non-ferrous materials

RADIAL CLEARANCE

Radial Scanner Clearance: 10.7 cm (4.2 in)

SIZE & WEIGHT

Frame Height: 10.5 cm (4.1 in)
Frame Width: 43.5 cm (17.1 in)
Frame Depth: 12.5 cm (4.9 in)
Frame Weight: 1.4 kg (3.1 lb)

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details

PHASED ARRAY PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 17 mm (0.67 in)
Maximum Wedge Width: 55.8 mm (2.2 in)2

TOFD PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 45 mm (1.8 in)2

Probe Holder Pivot Buttons

01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)

  1. Custom encoder cable lengths are available.
  2. Some arm styles may provide additional maximum wedge width. Contact Jireh Industries for details.
    Technical specifications are subject to change.

Documents

To download the user manuals, setup charts, and additional documentation for the scanner, click the appropriate link below.

(specifications are subject to change)
