Examine the welds of incredibly small pipe diameters with an industry leading low profile scanner.

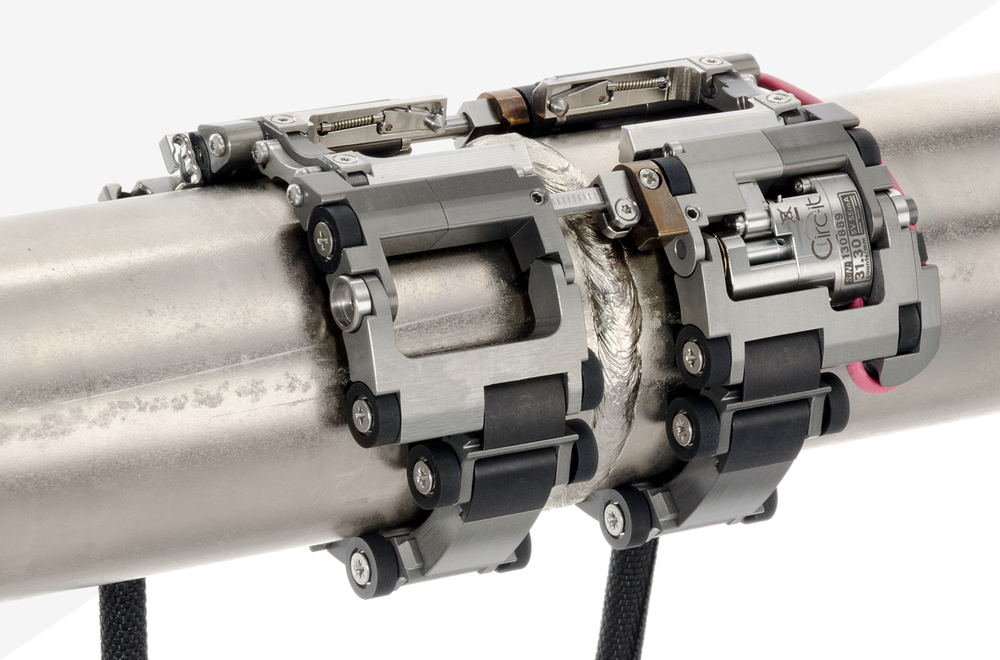

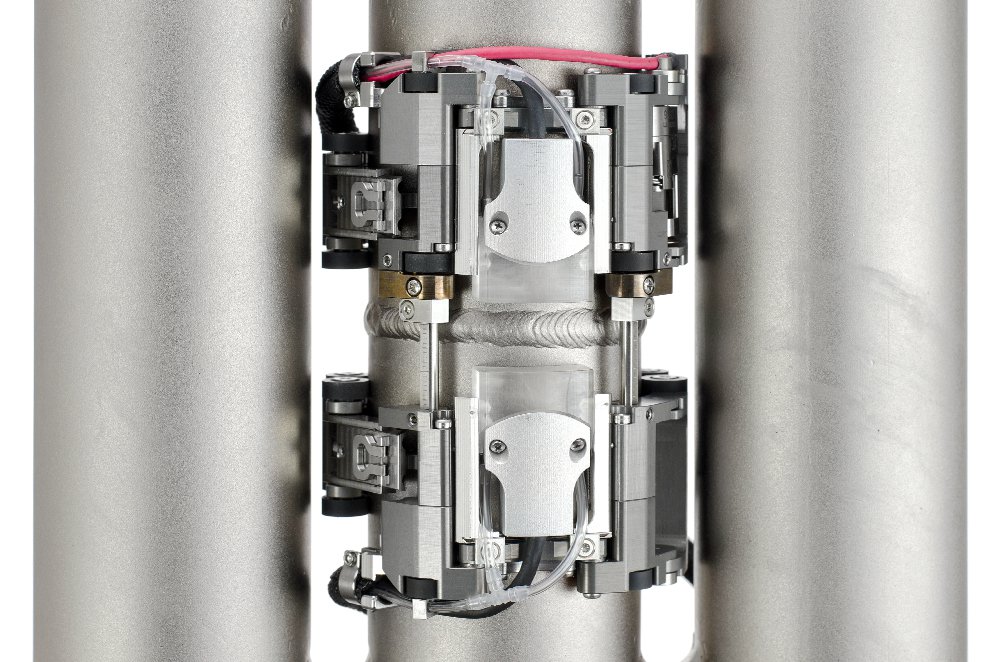

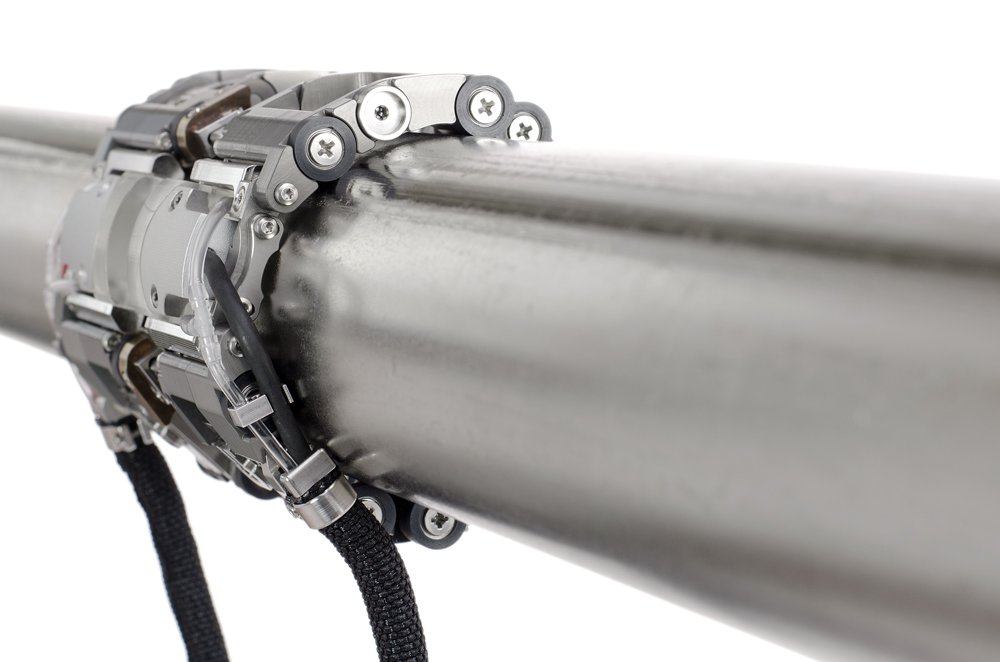

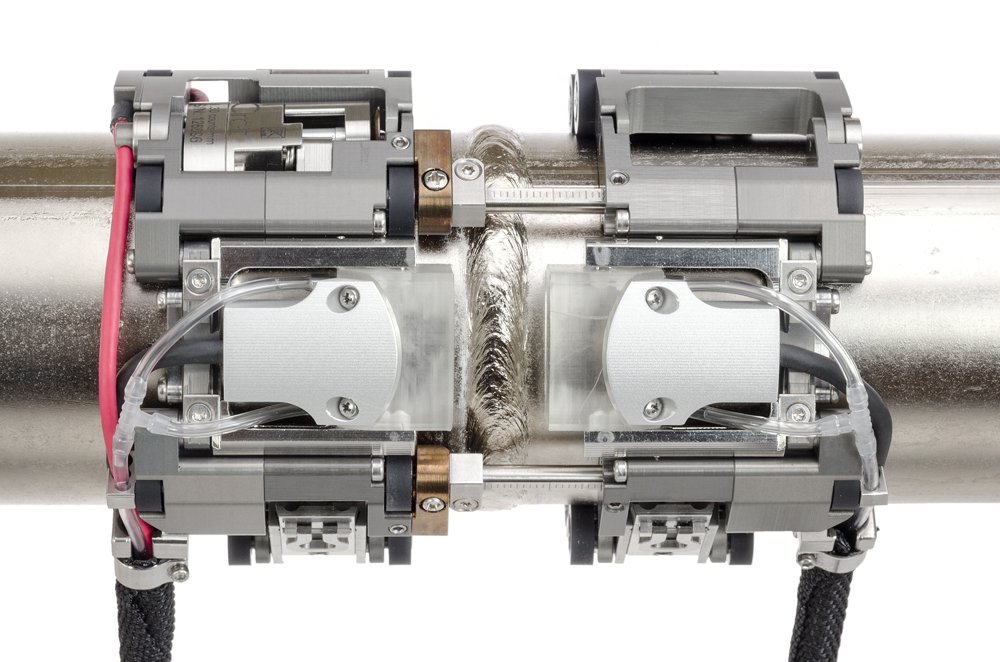

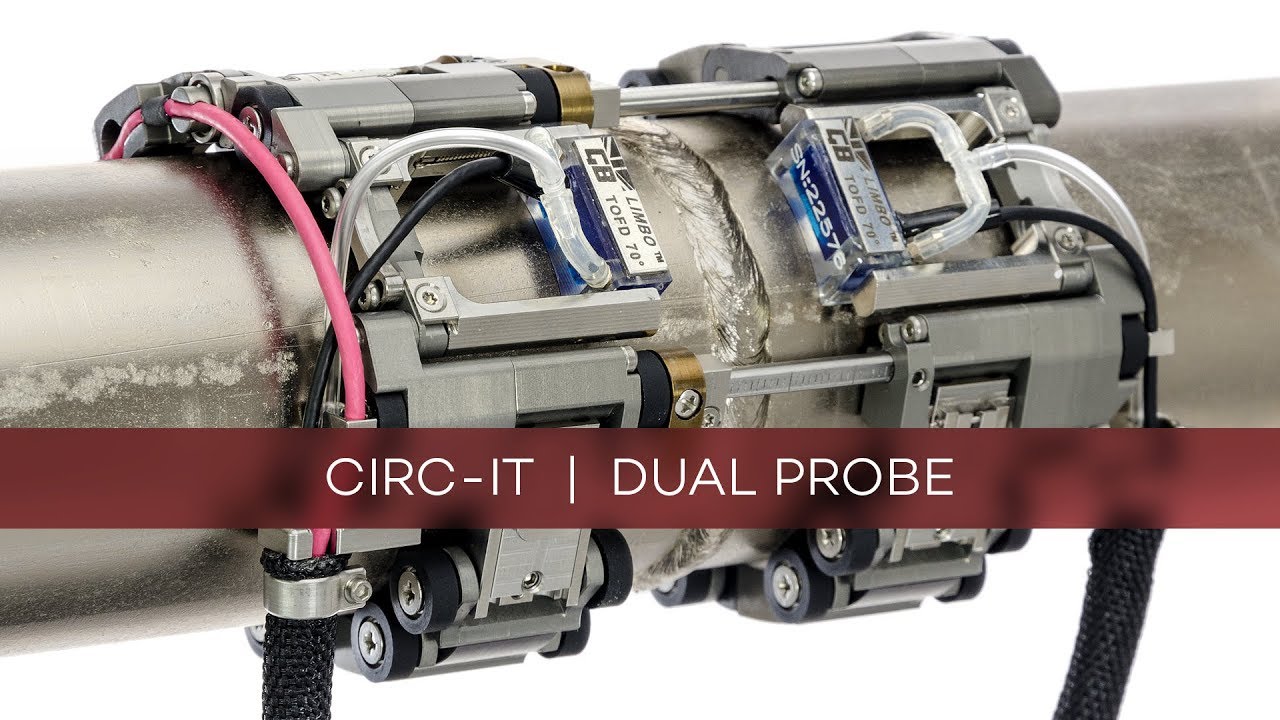

Achieve encoded probe positioning circumferentially around small diameter pipes and tubes with minimal scanner clearance required utilizing the CIRC-IT - Dual Probe Weld Scanner. The ultra-low profile design of the CIRC-IT allows operation in an 11 mm (0.43 in) radial clearance envelope on pipes and tubes as small as 21.4 mm (0.84 in).

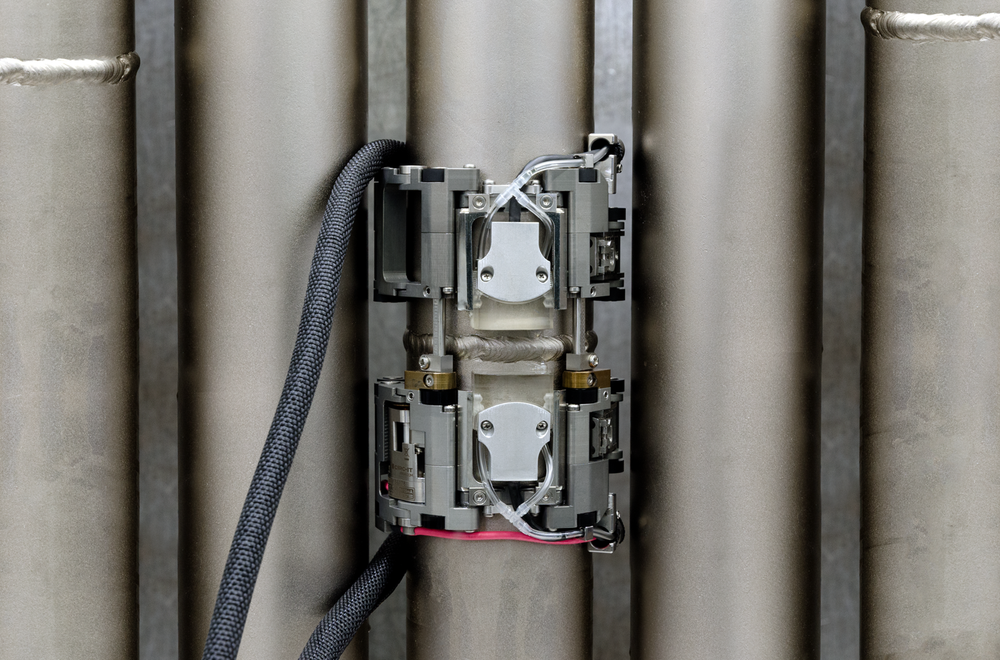

Customer Photos
Videos
Features
Low Profile Design
The CIRC-IT maintains a radial clearance of 11 mm (0.433 in), which allows for limited access inspection.
Small Diameter Scanning
The capability of scanning pipe/tube diameters as small as 21.4 mm (0.84 in) makes the CIRC-IT a valuable tool
Urethane Wheels
Durable urethane wheels provide smooth rolling and adequate traction in vertical scanning applications.
Cable Management
The CIRC-IT scanner features a cable management system for irrigation lines and probe cables.
Quick Change Links
Links provide infinite adjustment for pipes or tubes to be scanned between 21.4 - 114.3 mm (0.84 - 4.5 in).
Probe Holders
Carries Olympus A15 small-footprint probes and wedges.
Tools
Tools for all adjustments and manipulation of the scanner and components are included in the system.
Warranty
All JIREH products come with a three-year limited warranty.

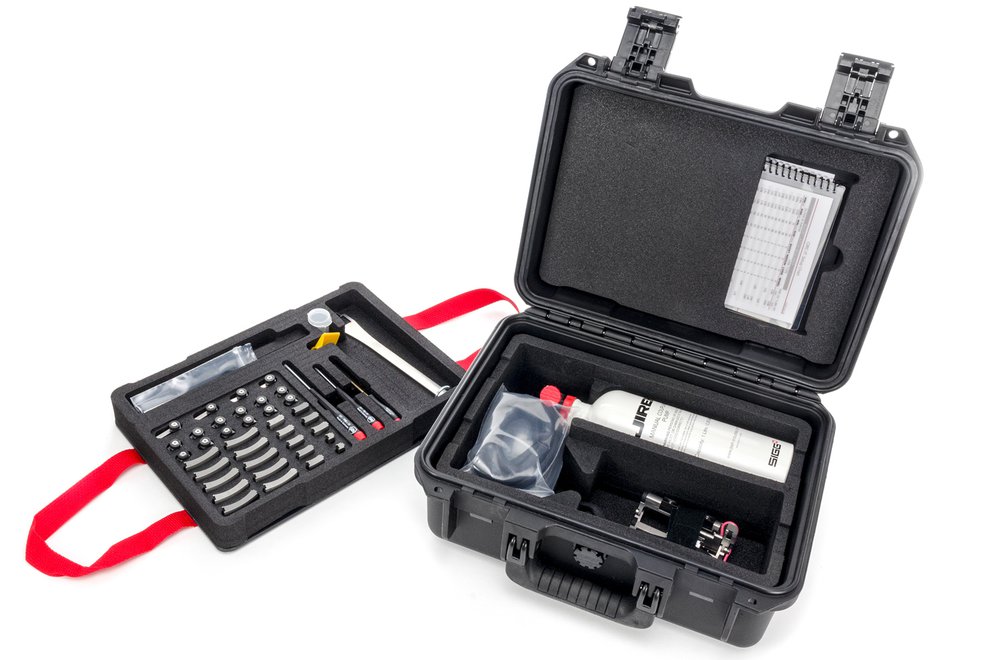

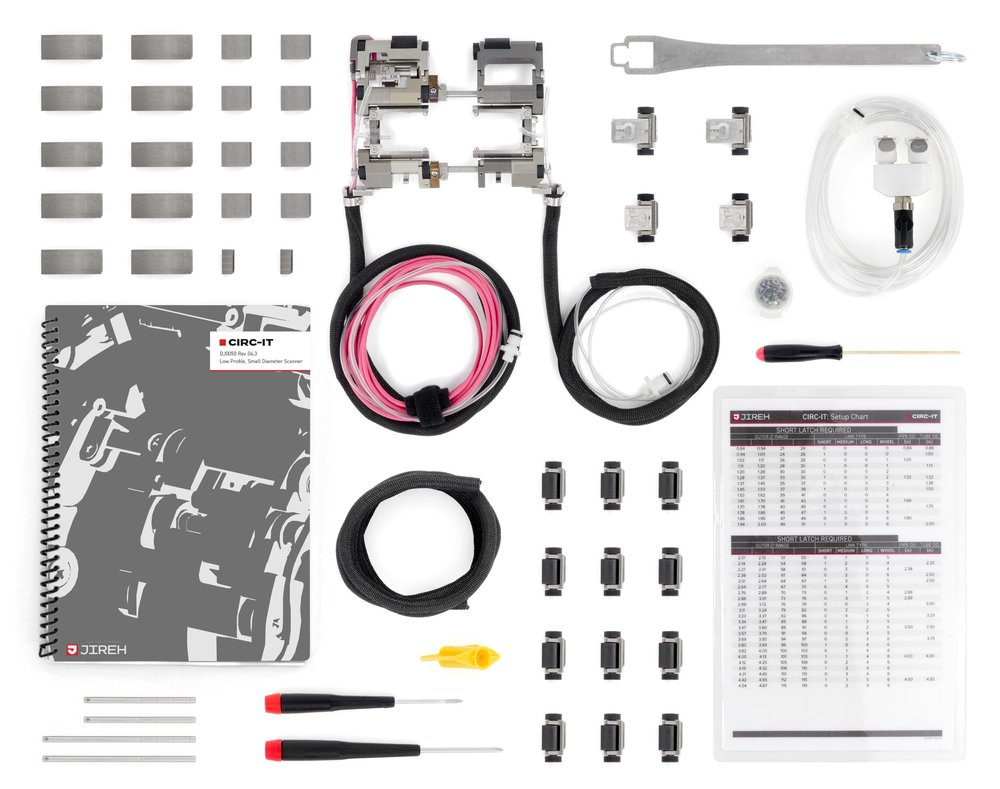

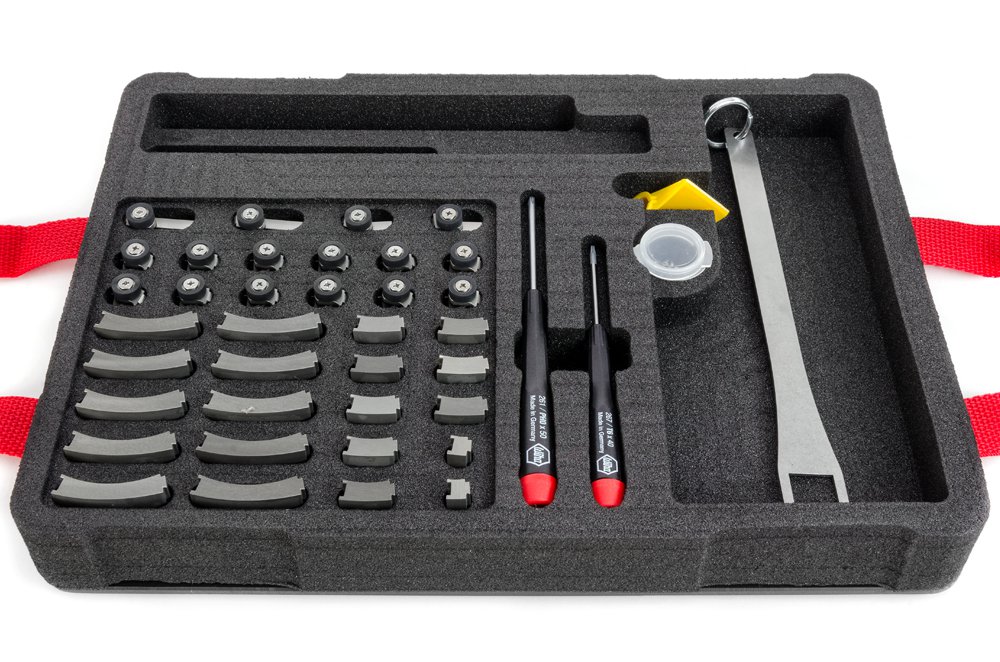

Kit Contents
SCANNER

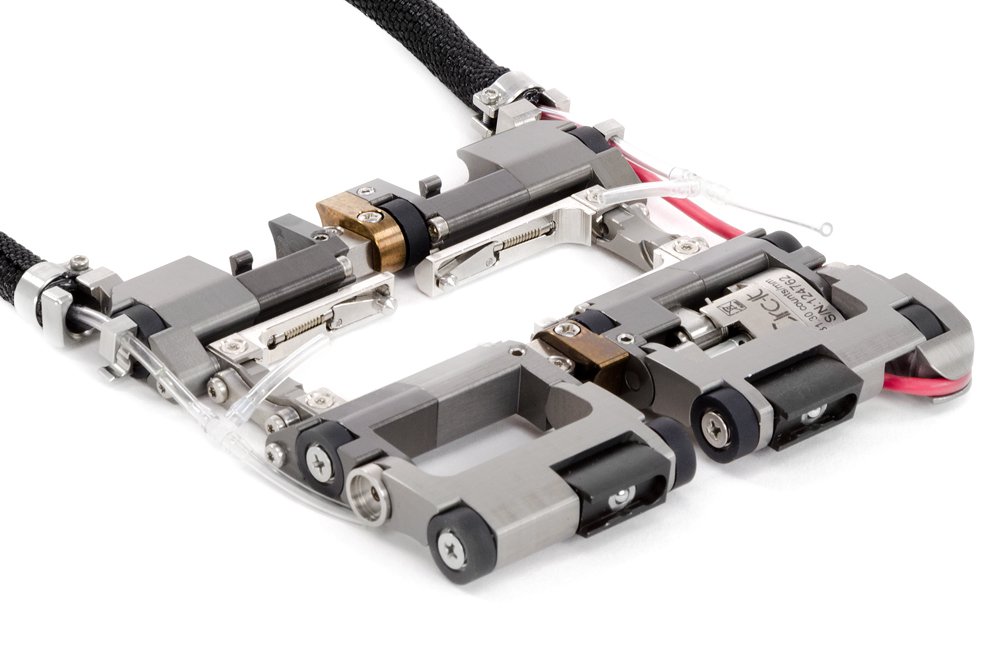

Double-sided CIRC-IT scanner
PARTS & ACCESSORIES
Long latch x2
Short latch x2
Wheel link x12
Short link x2
Medium link x8
Long link x10
Protective sleeving, 1.5 m (4.9 ft)
Crossbar, 69 mm (2.7 in) x2
Crossbar, 94 mm (3.7 in) x2
CIRC-IT spare fasteners kit
Irrigation fittings and tube, 2.5 m (8.2 ft)
User manual
Setup chart
Rugged carrying case
TOOLS
Chain retrieval tool
Loom installation tool
Torx® driver
Phillips driver
2 mm hex driver
Component Identification
Urethane Wheels
Durable urethane wheels provide smooth rolling and adequate traction in vertical scanning applications.
Cable Management
The CIRC-IT scanner features a cable management system for irrigation lines and probe cables.
Quick Change Links
Links provide infinite adjustment for pipes or tubes scanned between 21.4 - 114.3 mm (0.84 - 4.5 in).
Probe Holders
The scanner carries Olympus A15 small-footprint probes and wedges.

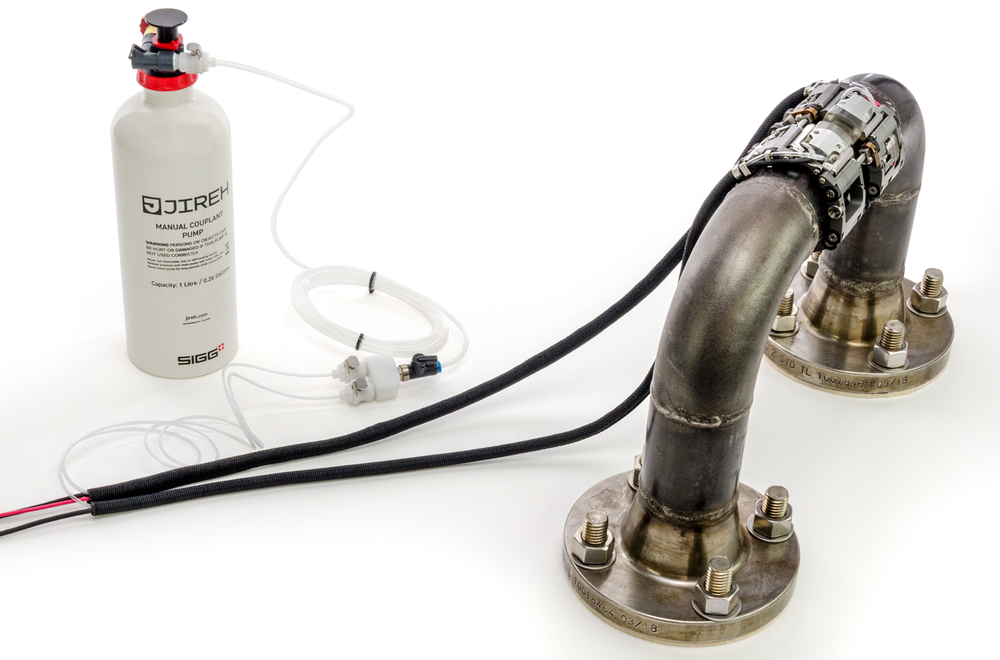

Irrigation Kit
The included irrigation kit contains the necessary hoses, fittings, tubing, etc, required to connect a couplant pump to the probe(s) being carried by the scanner
Encoder
A spring-loaded encoder maintains constant contact with the scan surface for precise encoder measurements.
Parts & Add-Ons
Related Products
Specifications
GENERAL
Pipe Diameter Range: 21.4 mm - 114.3 mm (0.84 in - 4.5 in)1
Minimum Radial Clearance: 11 mm (0.433 in)2
Encoder: RS422 line driver, compatible with all standard encoder inputs
Encoder Resolution: 31.30 counts/mm (795.0 counts/inch)
Probe Holding Capacity: 2 phased array wedges
Encoder Cable Length: 3 m (9.8 ft)3
Inspection Surface: Ferrous and non-ferrous
RADIAL CLEARANCE
Radial Scanner Clearance: 11 mm (0.43 in)

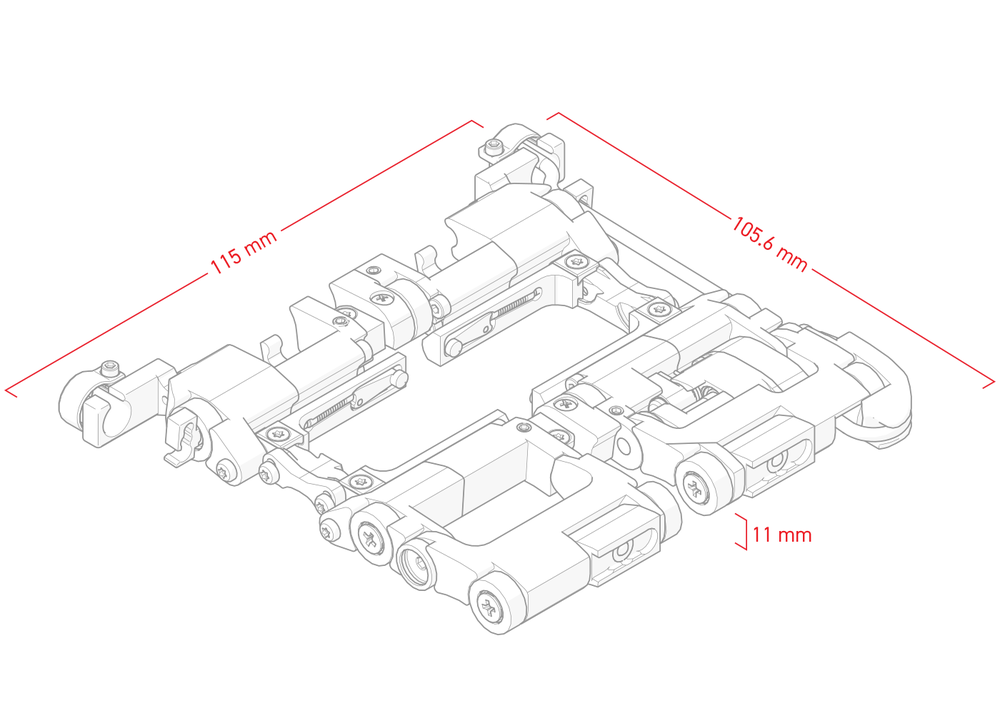

SIZE & WEIGHT
Scanner Height: 11 mm (0.43 in)
Scanner Width (single probe): 53.5 mm (2.11 in)
Scanner Width (dual Probe): 115 mm (4.5 in)
Scanner Depth: 105.6 mm (4.2 in)4
Scanner Weight: 0.18 kg ( 0.4 lb)
Shipping weight: 3.5 kg (7.7 lb)5
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details
Minimum/Maximum Probe Spacing

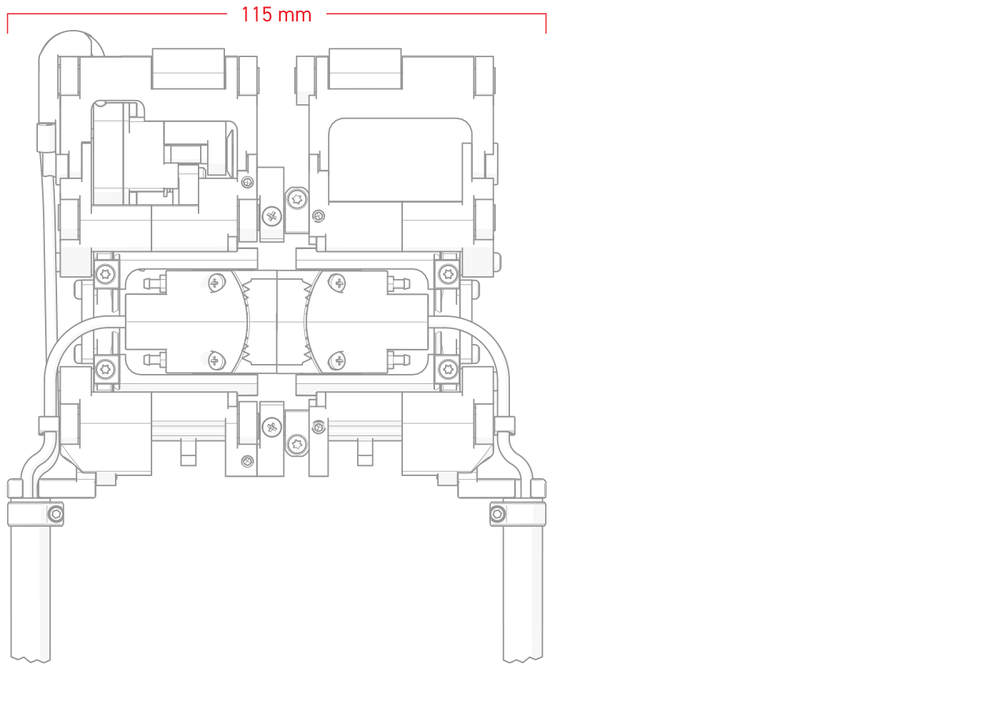

0 mm probe spacing
Scanner Width: 115 mm (4.5 in)
Probe spacing: 0 mm (0.0 in)
Crossbar selection: DJ0034-044
Included with the kit (x2)

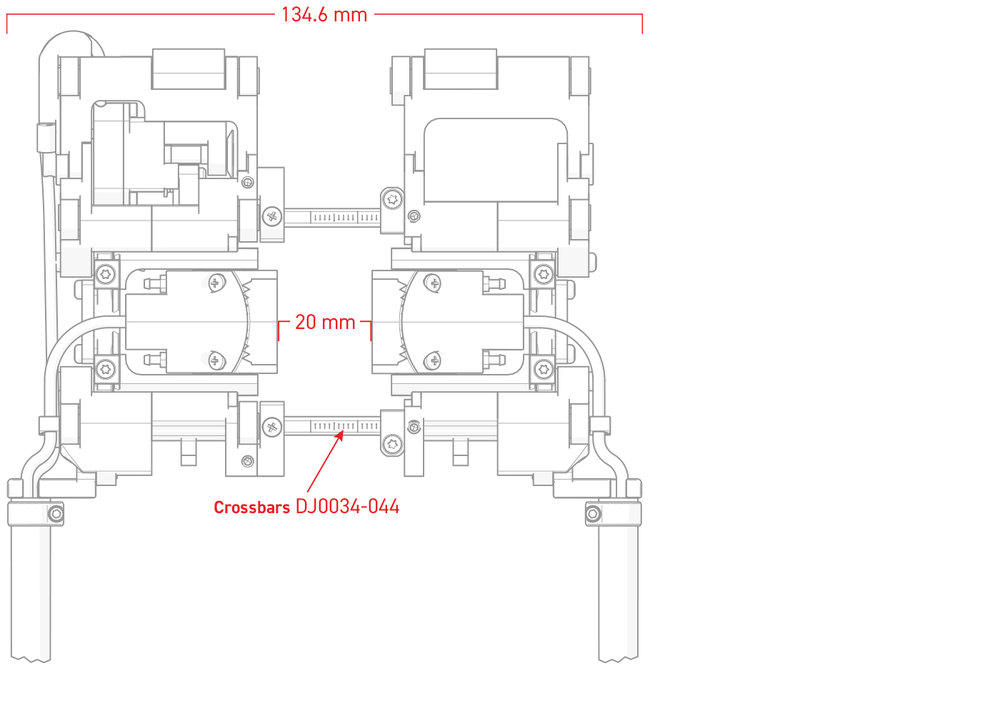

20 mm probe spacing
Scanner width: 134.6 mm (5.3 in)
Probe spacing: 20 mm (0.79 in)
Crossbar selection: DJ0034-044
Included with the kit (x2)

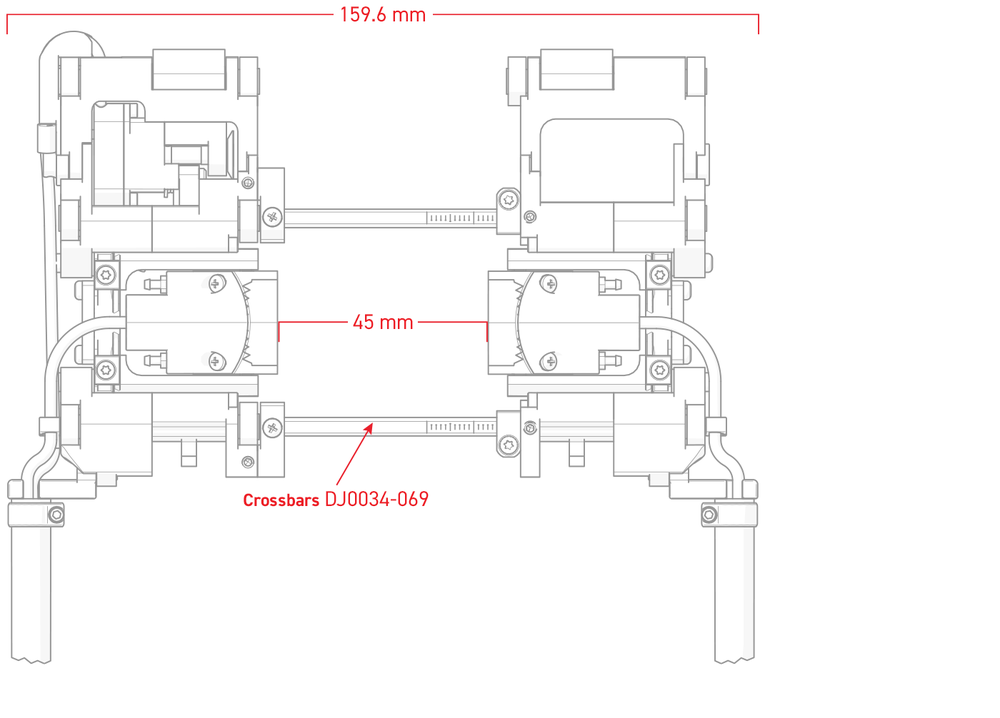

45 mm probe spacing
Scanner width: 159.6 mm (6.3 in)
Probe spacing: 45 mm (1.8 in)
Crossbar selection: DJ0034-69
Included with the kit (x2)

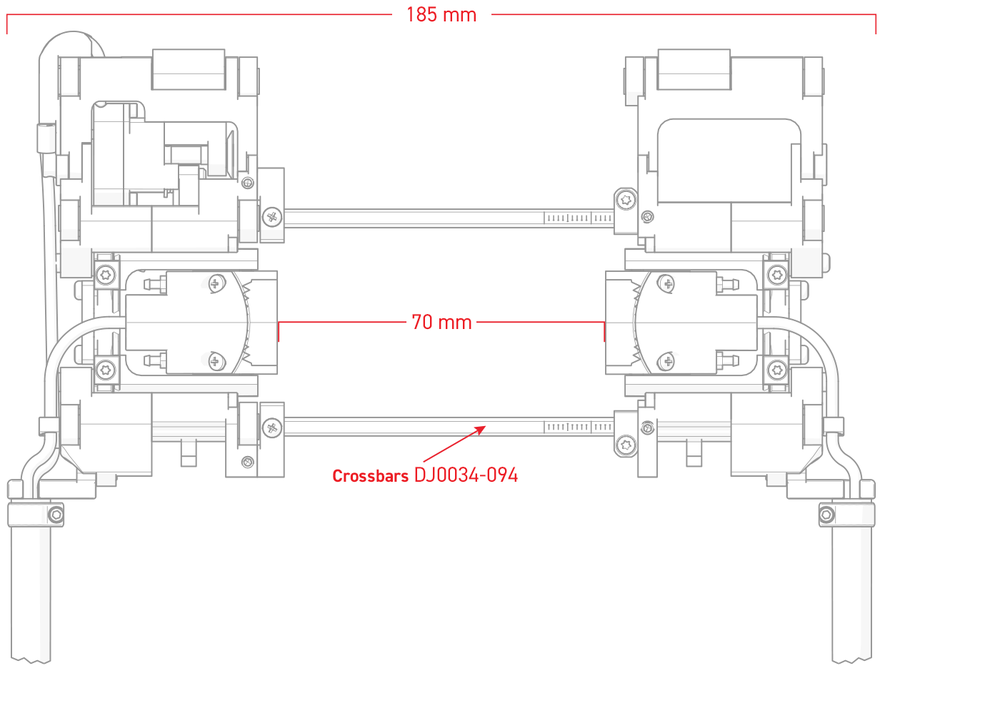

70 mm probe spacing
Scanner width: 185 mm (7.3 in)
Probe spacing: 70 mm (2.8 in)
Crossbar selection: DJ0034-094
Included with the kit (x2)

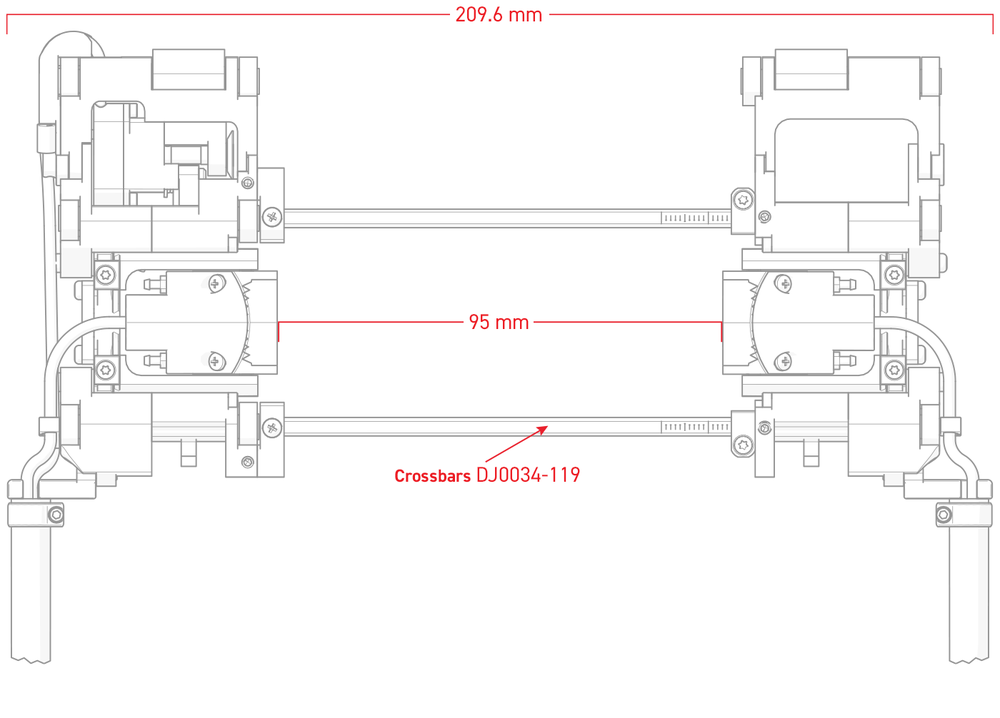

95 mm probe spacing
Scanner width: 209.6 mm (8.3 in)
Probe spacing: 95 mm (3.7 in)
Crossbar selection: DJ0034-119
Purchased separately

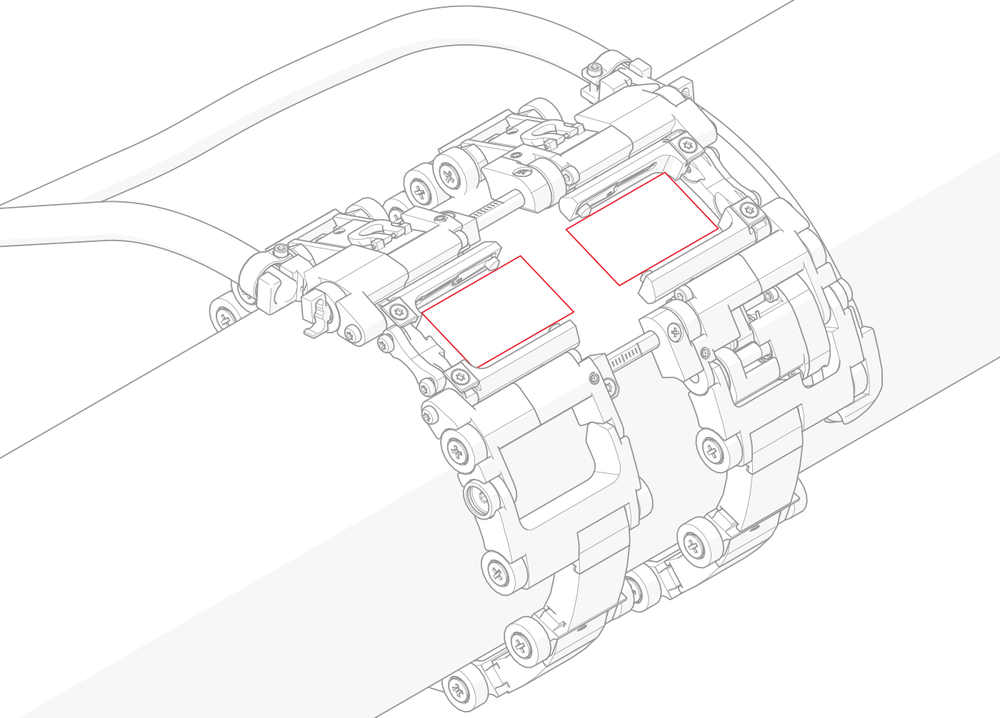

Probe Fitment
Standard compatibility with A15 style probes and wedges from the following manufacturers:
- Olympus
- Sensor Networks
- Sonatest
- Zetec
- Vermon
The CIRC-IT can also be adapted to be compatible with A25 style probes and wedges, as well as GE palm scanner probes and wedges (contact Jireh for details).
- Removal of the encoder cable guard is required for scan diameters smaller than 31.75 mm (1.25 in).
- Scanner only; transducers and wedges are not included.
- Custom encoder cable lengths are available.
- Does not include cable management (sleeving).
- Approximate shipping weight of standard kit contents.
Technical specifications are subject to change.
