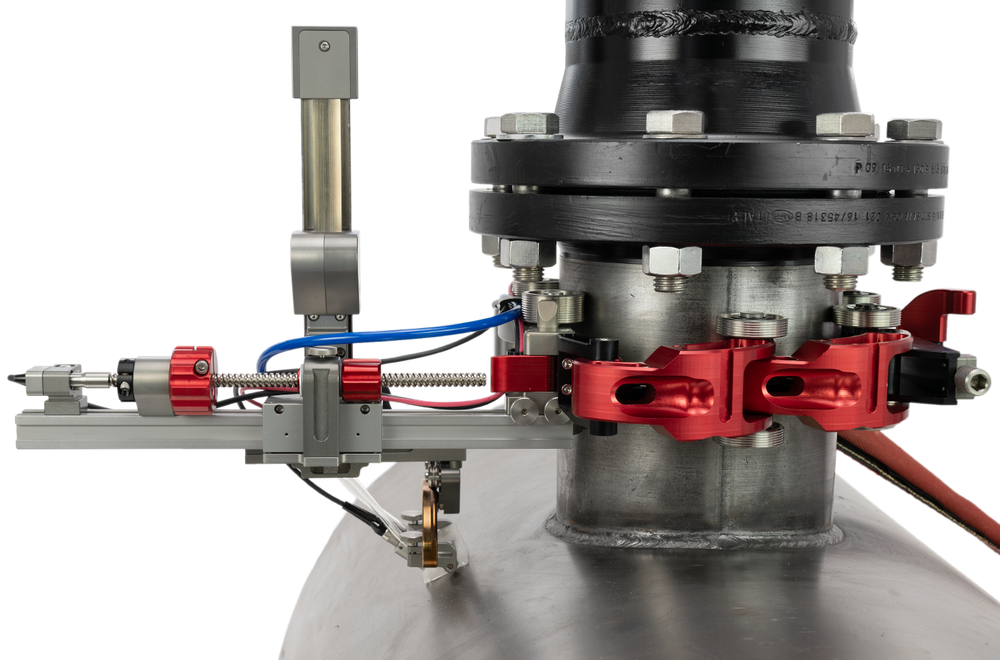

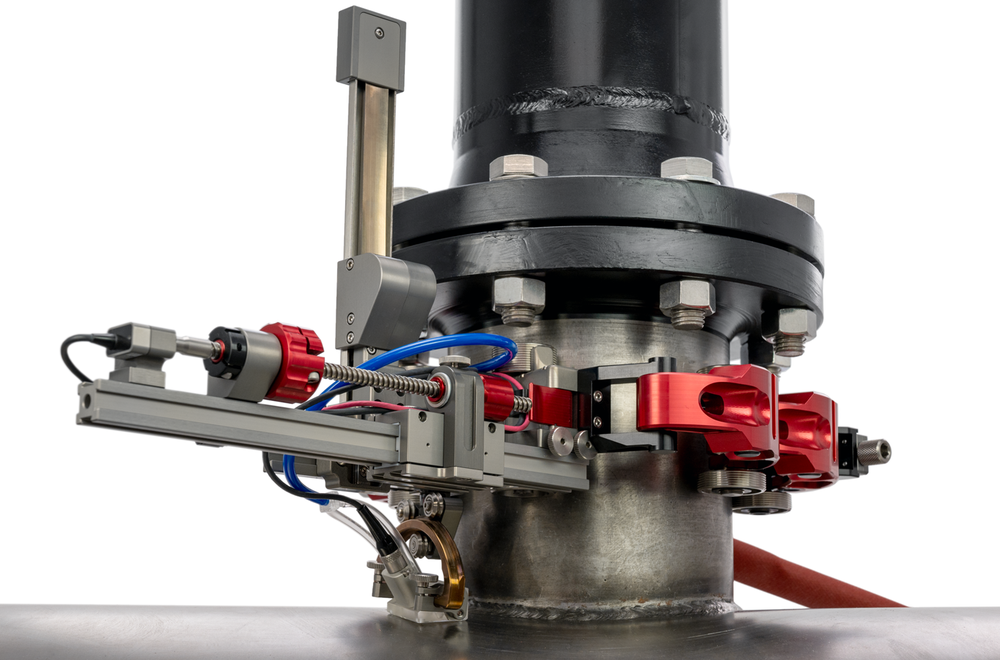

Online Nozzle-To-Shell Weld Inspection

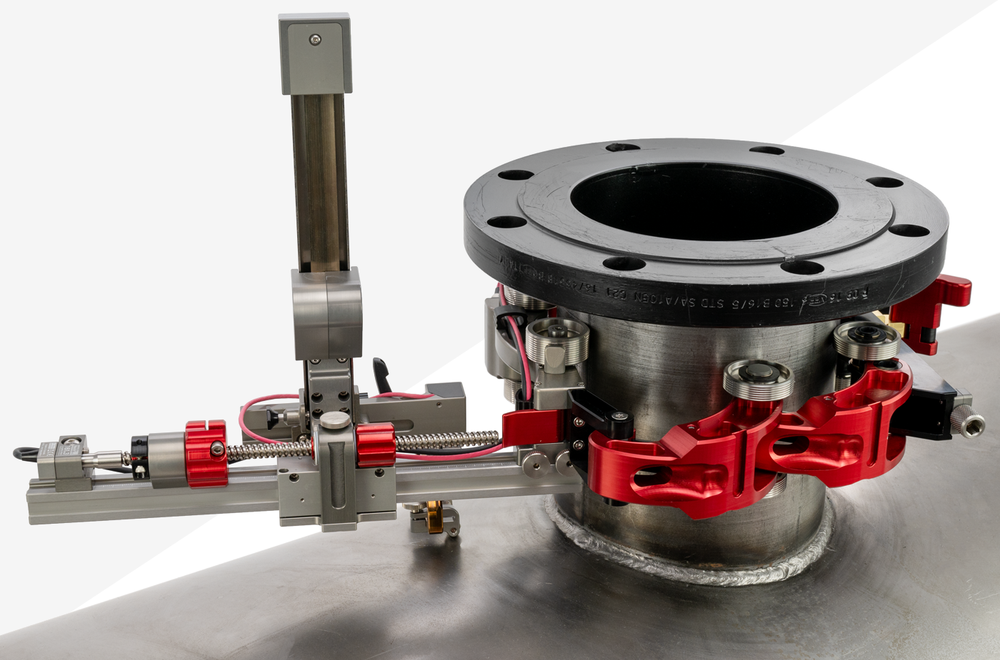

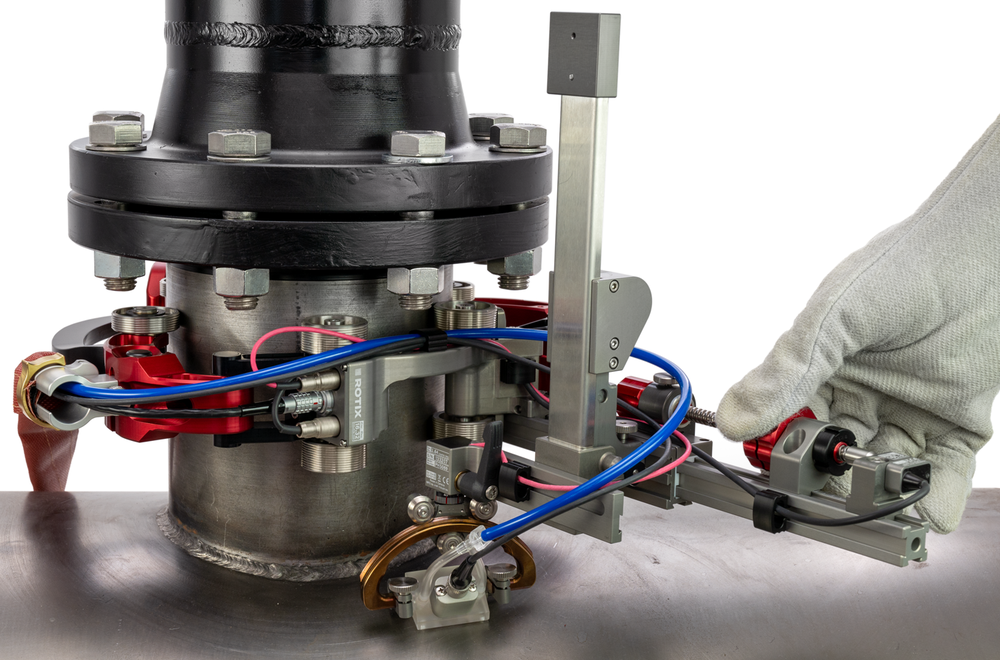

This is the ROTIX - High Temperature 3-Axis Nozzle Scanner, your solution for confident material inspection at temperatures up to 350°C (662°F). With our specialized long-stroke probe holder featuring encoded skew angle measurement, you can accurately and precisely inspect high temperature nozzle welds. The scanner's QuickLink system provides quick and easy setup for inspections on both ferrous and non-ferrous materials. Don't let high temperatures hinder your inspections - trust the ROTIX scanner for reliable results.
Features

High Temperature Inspection
Perform UT scans on pipes and tubes online, with surface temperatures up to 350°C (662°F). No duty cycling is required.

AdjustableChain
Configure QuickLinks to assemble chain diameters of 10.2 - 60 cm (4 - 24 in) with our exclusive chain design.

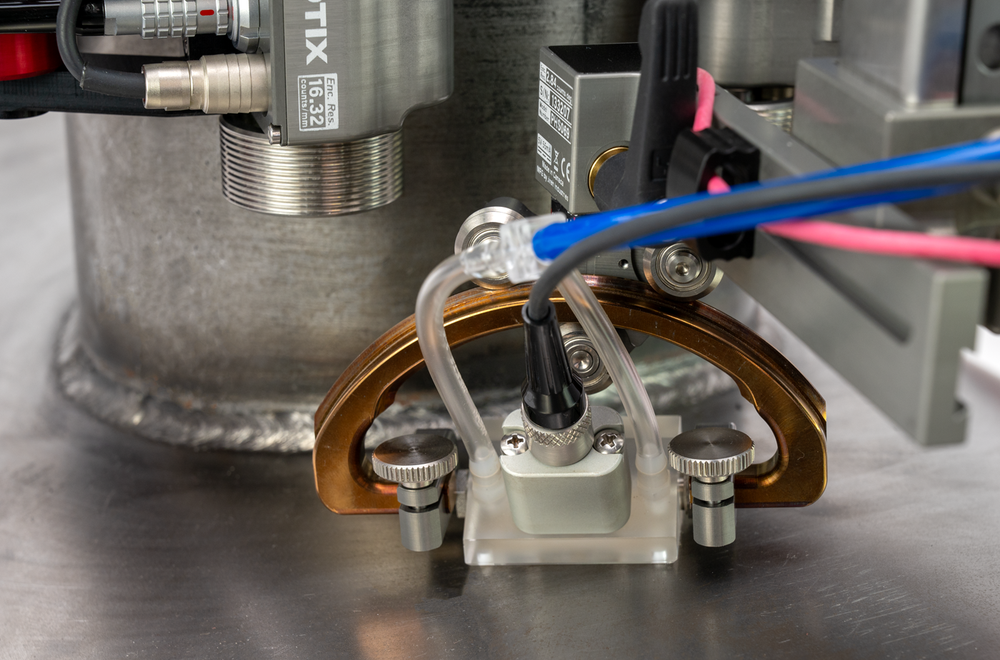

ENCODED SKEW VERTICAL PROBE HOLDER
This inventive probe holder offers 12.2 cm (4.8 in) of vertical travel for greater flexibility and encoded skew measurement for improved accuracy.

High Temperature QuickLinks
The Dovetail QuickLinks have been thoughtfully engineered to minimize heat transfer by limiting contact with the heated surface and utilizing stainless steel materials. Moreover, QuickLinks effectively straddle the weld, preventing scanner wandering and reducing overall scanner width.

ROTIX LOW PROFILE LINK
In addition to containing the scanner's positional encoder, the low profile link transmits all three encoder signals to the user's instrument. Utilize the low profile link's dovetail grooves to mount cable clips and organize cables and tubes.

SLIDER PROBE POSITIONING SYSTEM
Experience the convenience and accuracy of our Slider PPS system, and make quick adjustments to the probe's distance from weld without the need for scanner removal. With the included encoder, you can rely on precise measurements, ensuring accurate and consistent results.

Y-AXIS ENCODING
Accurately measure the distance of your probe from the weld with our advanced measurement tools.

HIGH TEMPERATURE CABLE MANAGEMENT
Our high-temperature cable management system is designed to protect cables, tubes, and hoses by preventing them from contacting hot surfaces. This ensures their safety and longevity even in high-temperature environments.

Cable Clips
With their user-friendly design, you can easily route the cables along desired paths, ensuring a clean and organized setup. Our versatile cable clips can be easily attached to any dovetail groove, allowing you to create a customized cable management system that suits your specific needs.

Warranty
Rest assured, all JIREH products come with a limited 3-year warranty. This warranty provides peace of mind, knowing that your purchase is protected against manufacturing defects or malfunctions. If you encounter any issues with your JIREH product within the warranty period, our dedicated customer support team will be ready to assist you and ensure a prompt resolution. We stand behind the quality and durability of our products, and our 3-year warranty is a testament to our commitment to providing you with reliable and long-lasting solutions.

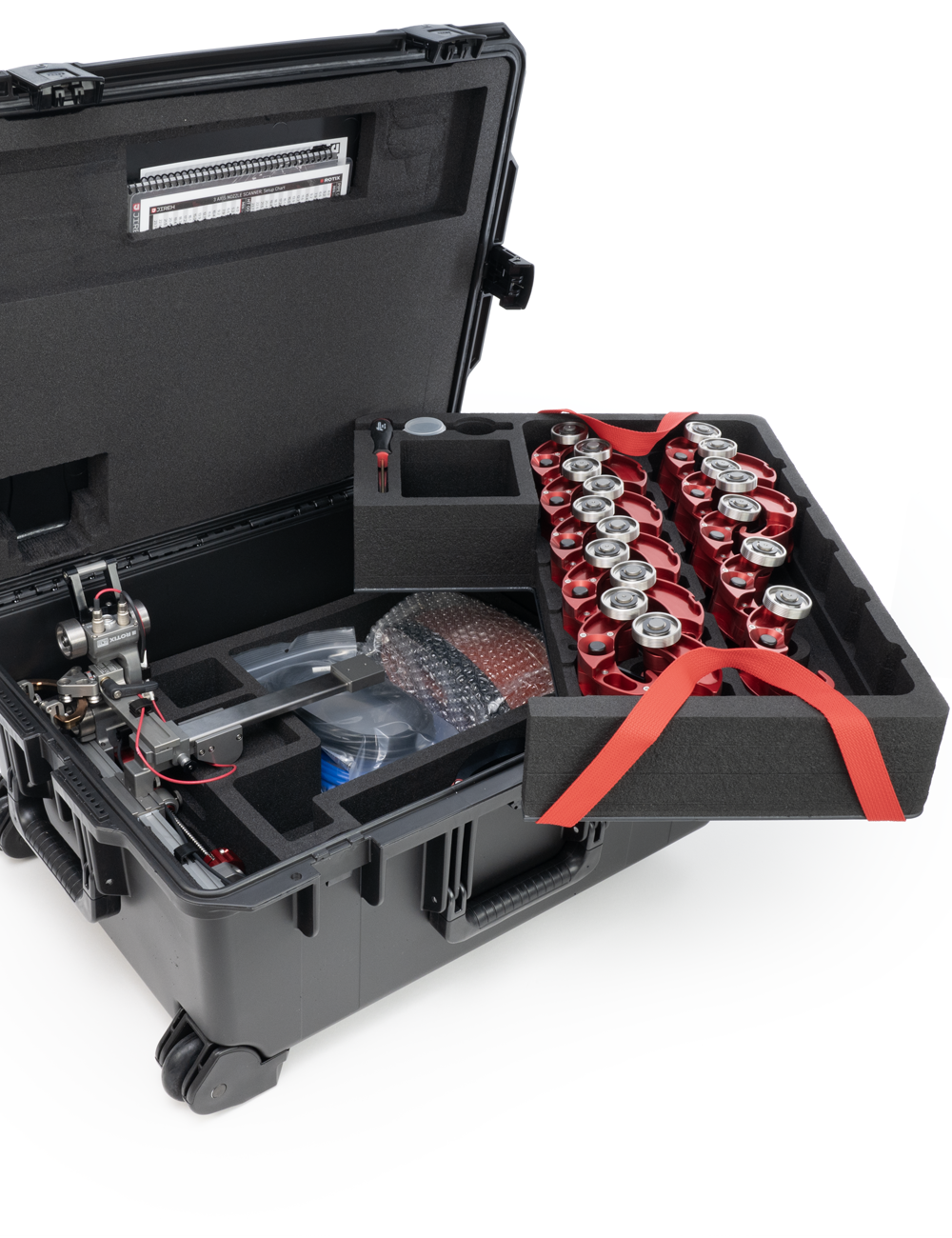

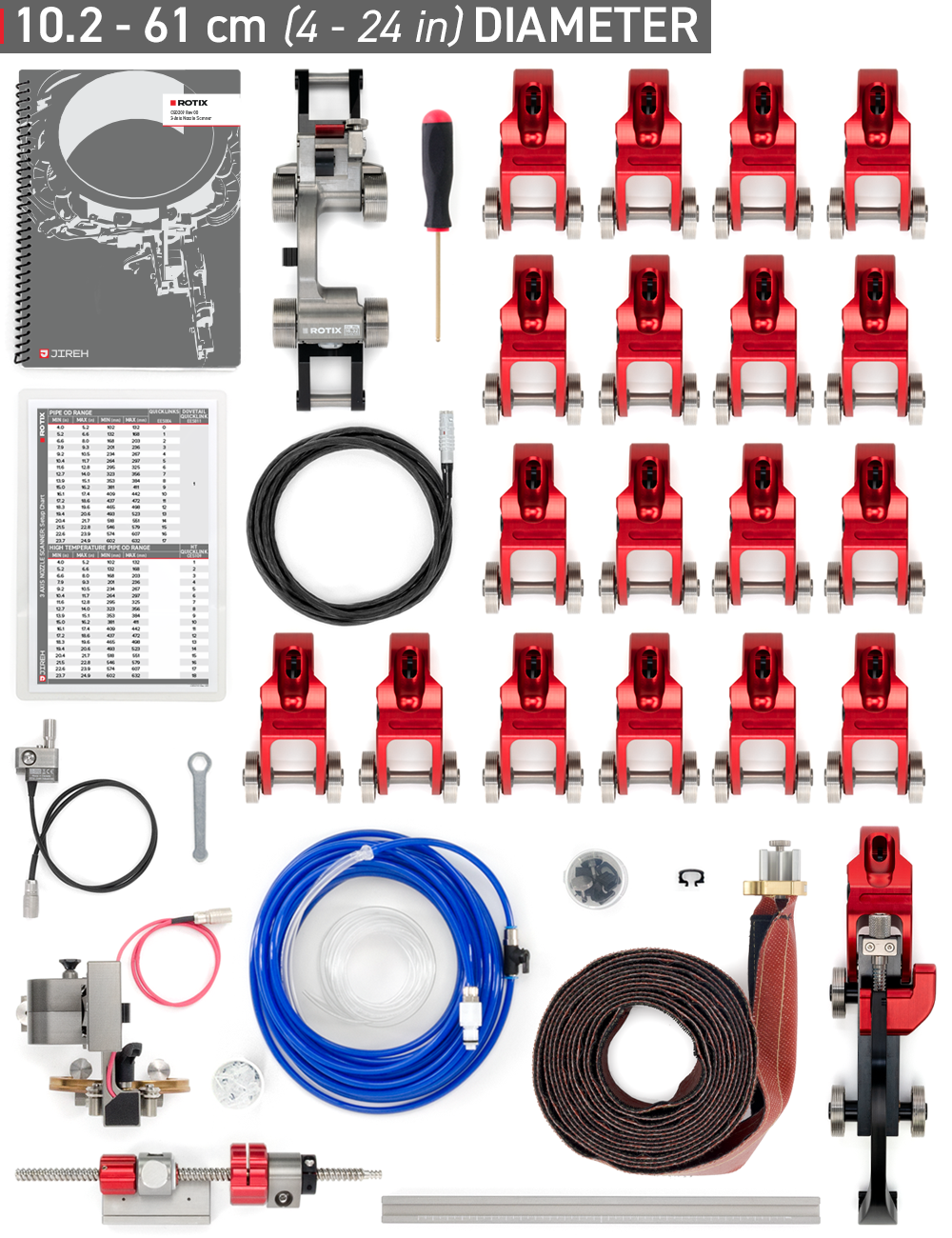

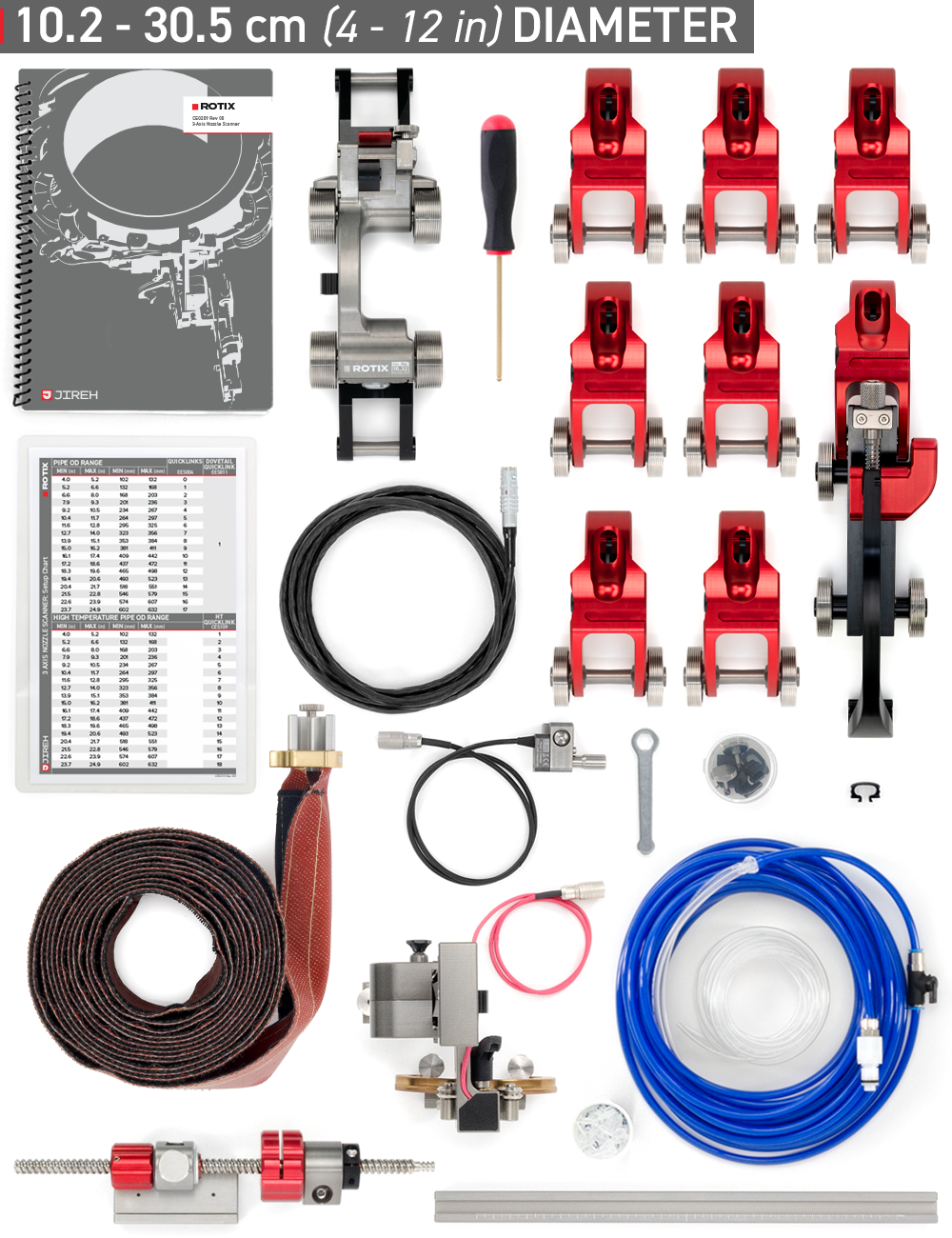

Kit Contents
COMPONENTS
High temperature low profile link
Slider probe positioning system
30 cm (11.8 in) frame bar with ruler
Slider PPS encoder
Encoded skew vertical probe holder
J400 Encoder Cable, 5 m (16.4 ft) length
High temperature cable management, dovetail mount, 4.5 m (14.8 ft)
Irrigation Kit: 4 mm ID, (7/16 in quick connect)
Nozzle Spare Parts Kit
Cable Clip x3
User manual
Setup chart

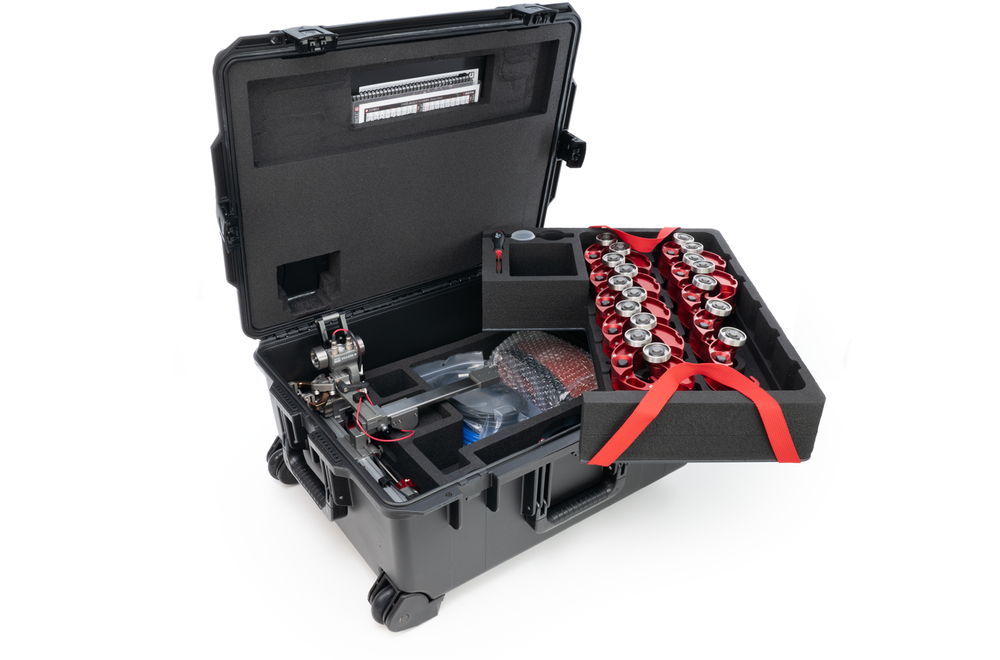

Rugged carrying case
QUICKLINKS
30.5 cm (12 in) Diameter Kit - High temperature dovetail QuickLink x7
61 cm (24 in) Diameter Kit - High temperature dovetail QuickLink x18
High temperature QuickLink buckle x1
TOOLS
Hex Driver: 3 mm
3/8" Wrench for pivot button adjustment
Contents may vary depending on the configuration selected.
Component Idetification

High Temperature Low Profile Link
The low profile link contains the primary positional encoder and a mounting point for a frame bar. Two encoder inputs are located at the rear of the link, along with the output to the user’s instrument.
Encoder Cable
The J400 encoder cable is custom-built with high-quality materials and advanced technology to match the instrument of the user's choice. This cable ensures seamless and accurate communication between the scanner and your instrument.

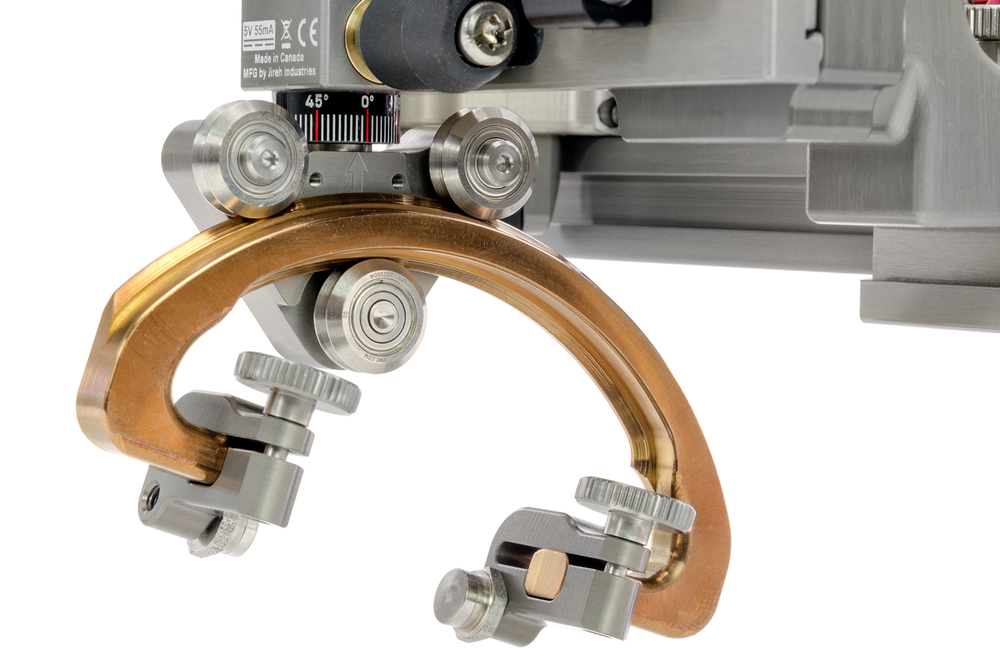

Encoded Skew Vertical Probe Holder
A probe holder capable of exceptional vertical travel and features a 3rd axis of encoded skew measurement.
High Temperature Cable Management, Dovetail Mount
Our High Temperature Cable Management system is designed to be easily mounted to any dovetail grooves on the scanner or Dovetail QuickLinks. This innovative material serves a crucial purpose by protecting cables and hoses from the extreme surface temperatures that the scanner may encounter.
Frame Bar
The frame bar connects the accessories, Slider PPS and encoders to the low profile link.
Slider PPS
The Slider Probe Positioning System positions the probe using a leadscrew system.
Slider PPS Encoder
Measure probe distance from the weld. The slider PPS (probe positioning system) encoder mounts to the Slider PPS. The Slider PPS Encoder engages with the encoded lead screw to provide lateral positional feedback of the probe.
High Temperature Dovetail QuickLink
With the QuickLinks, users can easily extend the length of their chain configuration. The HT Dovetail QuickLink helps you expand your chain configuration and serves as a versatile connector for accessories while resisting the effects of high temperature environments.
Cable Clip
Cable Clips provide a secure and organized way to manage cables and hoses. Place the cables and hoses into the cable clip, ensuring a neat arrangement. Then, press the cable clip onto any scanner or frame bar's dovetail groove. This allows for a firm and reliable attachment, preventing cables from getting tangled or becoming a hindrance during operations.
High Temperature QuickLink Buckle
The QuickLink Buckle serves two important functions in your setup: it allows for easy chain tension adjustment and acts as the connection point for the QuickLinks assembly.
Parts & Add-Ons
Related Products
Specifications
GENERAL
Pipe Range: 10.2 cm - 60 cm (4 in 24 in)
Encoder Resolution: 16.3 counts/mm (414.5 counts/inch)
Y-Axis Encoder Resolution: 161.3 counts/mm (4096.0 counts/inch)
Skew Axis Encoder Resolution: 2.84 counts/deg.
Probe Holding Capacity: 1 wedge
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Non-ferrous or ferrous materials

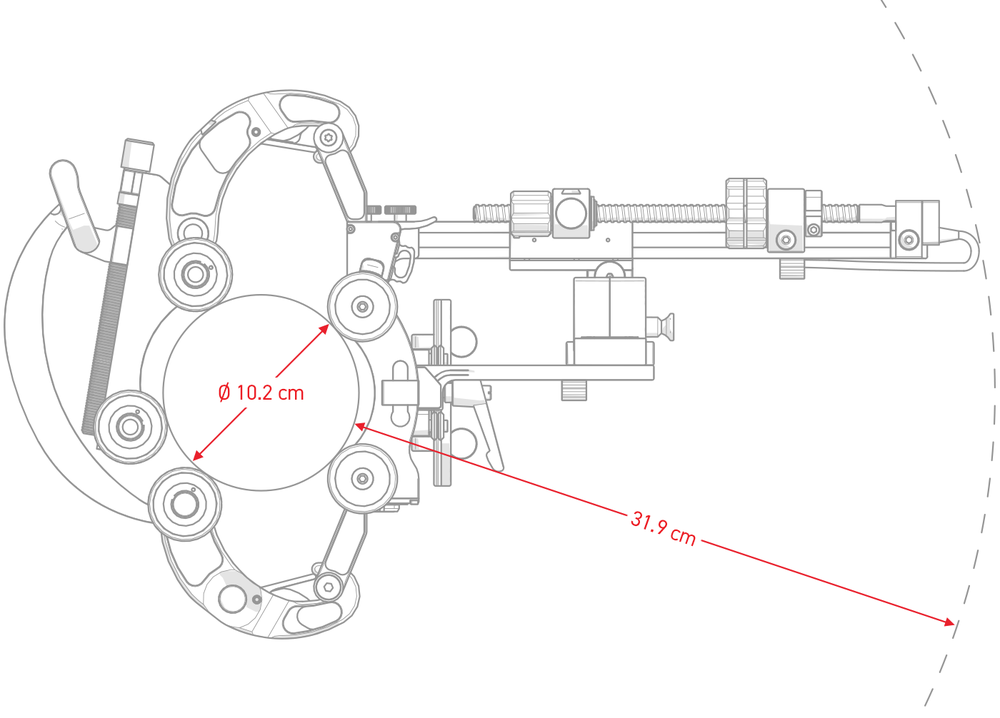

PIPE CLEARANCE
Radial Clearance: 31.9 cm (12.6 in)2

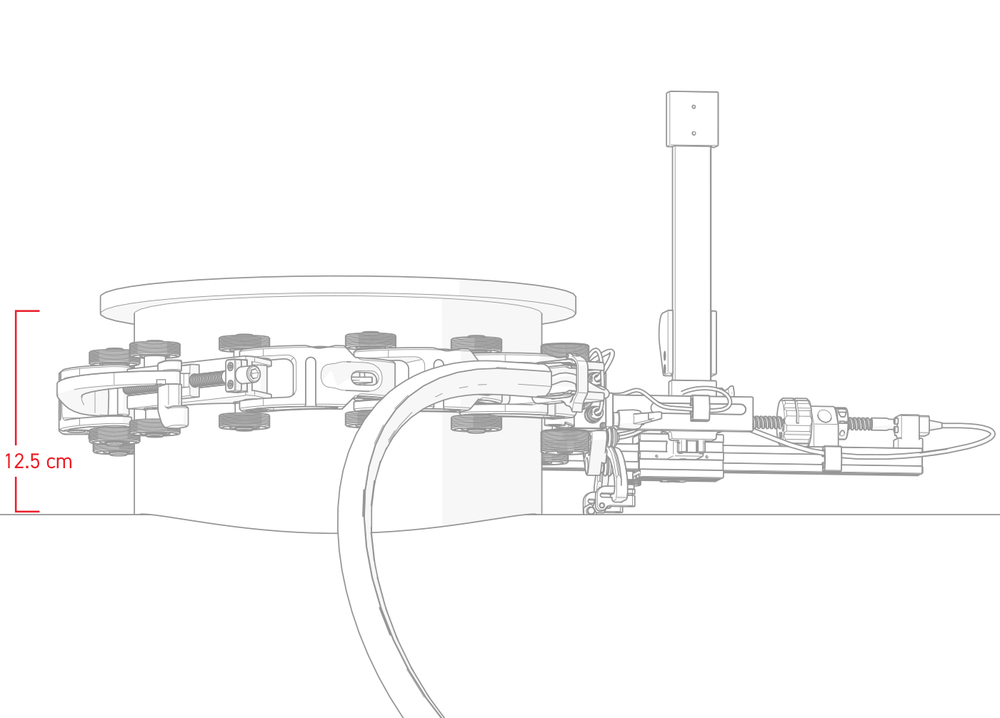

Vertical Clearance: 12.5 (4.9 in)

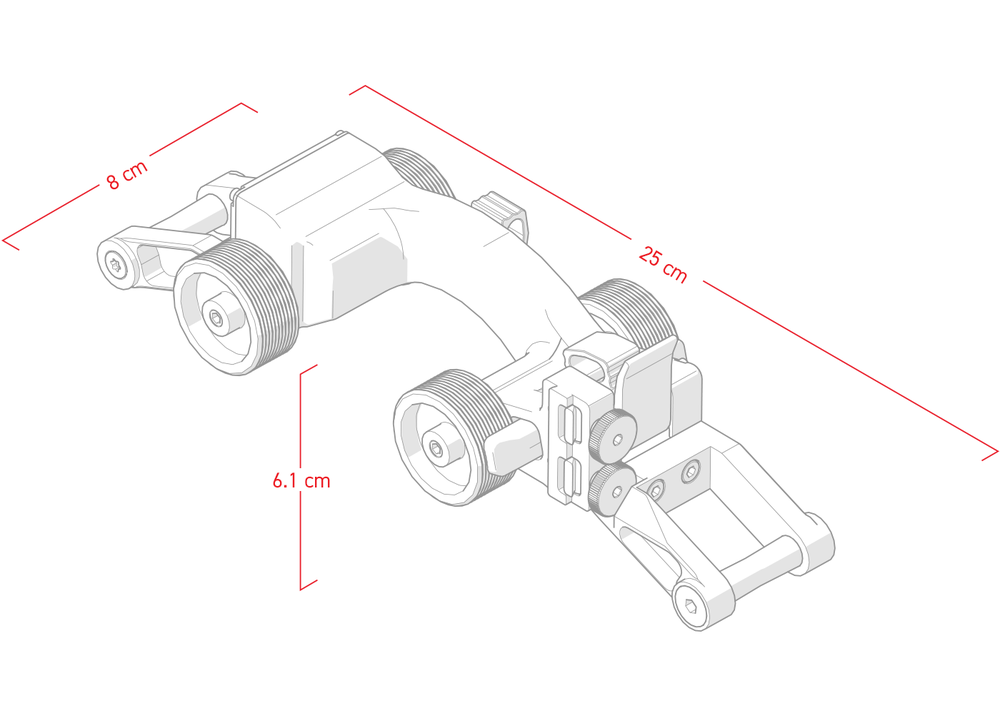

SIZE & WEIGHT
Low Profile Link Height: 6.1 cm (2.4 in)
Low Profile Link Width: 8 cm (3.2 in)
Low Profile Link Depth: 25 cm (9.8 in)
Low Profile Link Weight: 0.55 kg (1.12 lb)

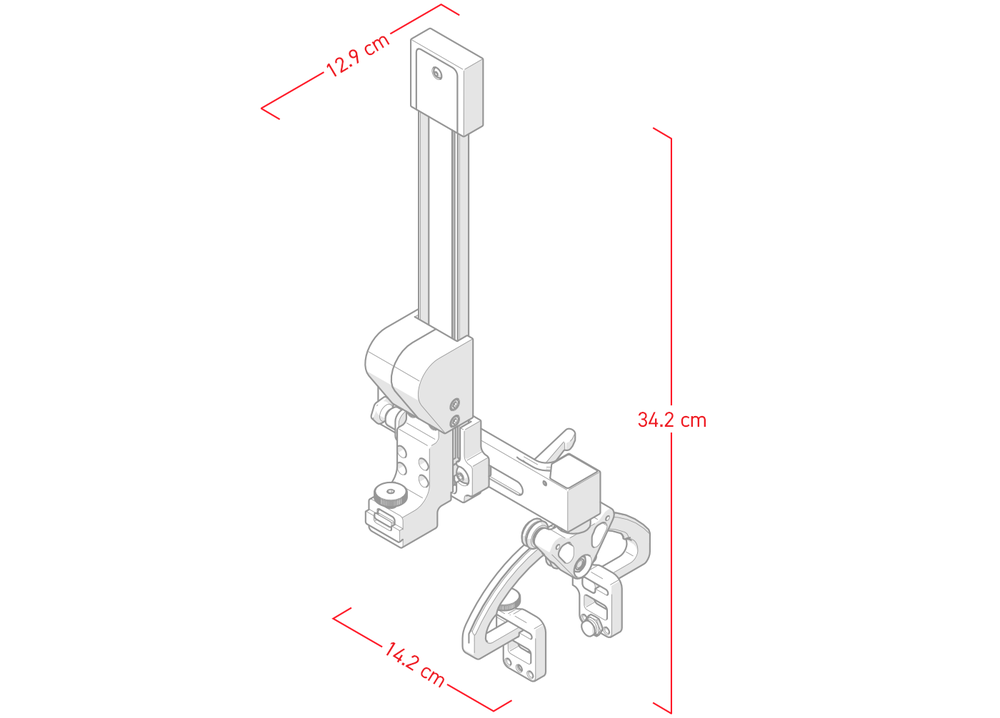

Encoded Skew Vertical Probe Holder Height: 32.2 cm (12.7 in)
Encoded Skew Vertical Probe Holder Width: 10.4 cm (4.1 in)
Encoded Skew Vertical Probe Holder Depth: 14.2 cm (5.6 in)
Encoded Skew Vertical Probe Holder Weight: 0.75 kg (1.7 lb)
Shipping Weight: TBA kg (TBA lb)3
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C to 350°C (-4°F to 662°F)
Environmental Sealing: Dust-tight, watertight (not submersible)

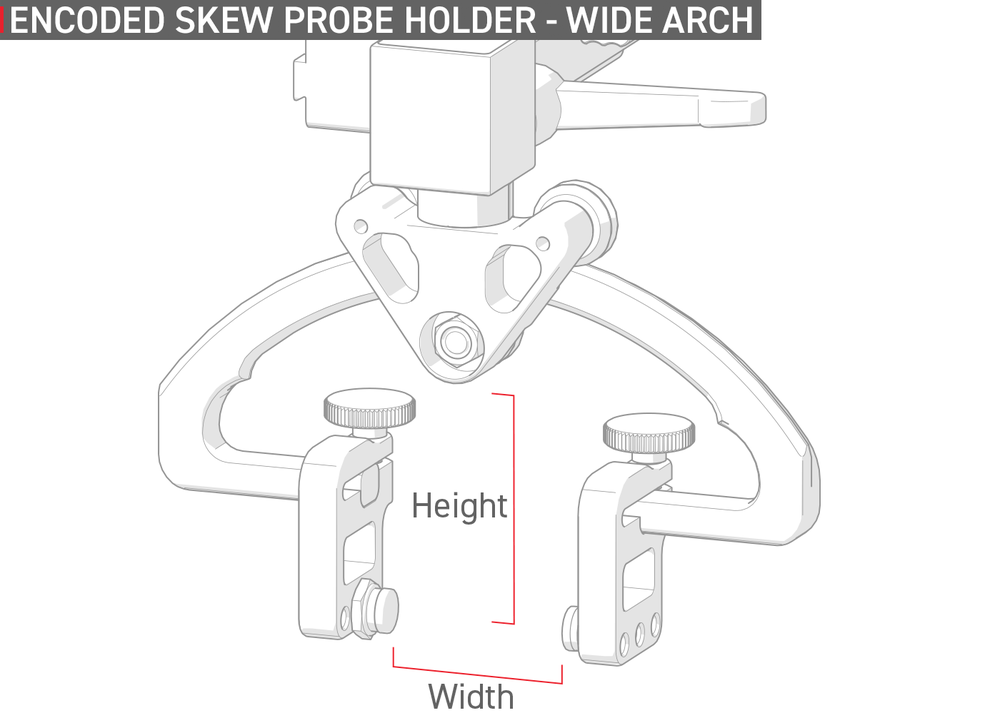

ENCODED SKEW PROBE HOLDER - WIDE ARCH SPECIFICATIONS
Minimum Wedge Width: 36 mm (1.4 in)4
Maximum Wedge Width: 44 mm (1.7 in)4
Maximum Wedge Height: 45.7 mm (1.8 in)4
Probe Holder Pivot Buttons
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
- Custom encoder cable lengths are available.
- Radial clearance with standard 30 cm (11.8 in) frame bar.
- Approximate shipping weight of standard kit contents.
- Alternate probe holders with additional vertical clearance are available - contact JIREH for more information.
Technical specifications are subject to change.
