Achieve quick and precise probe adjustment with our two-probe cantilever scanning system.

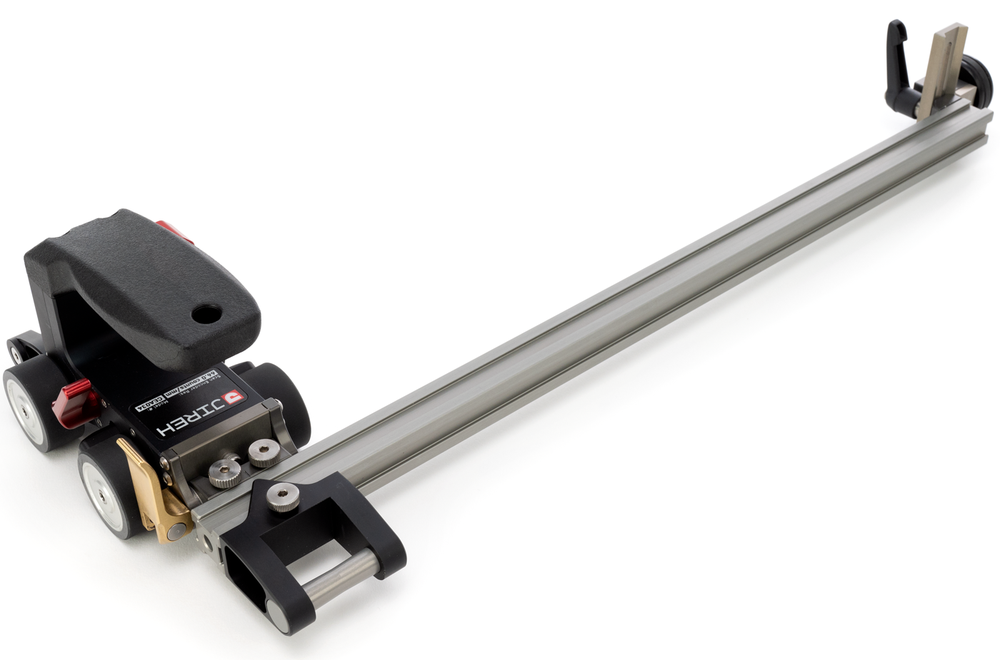

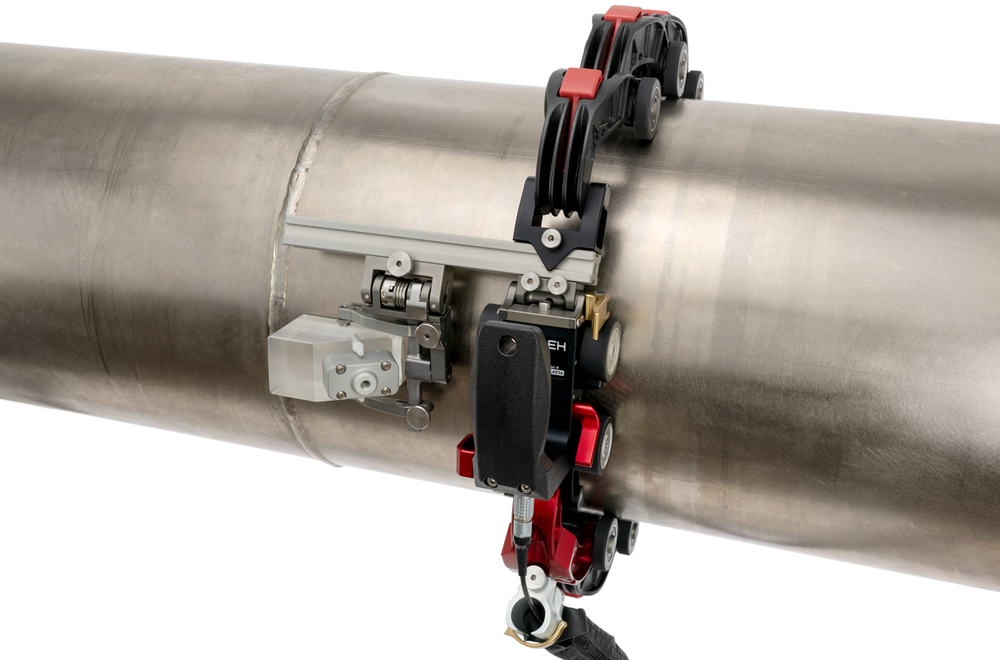

Introducing the ROTIX - 2 Probe Phased Array Scanner, a versatile manual chain scanner that offers encoded probe positioning for circumferential inspections of tubes and pipes. Its configurable design allows the ROTIX to be easily adapted for both phased array and traditional UT (Ultrasonic Testing), accommodating single or multiple probes to suit your specific needs. Effortlessly secure the scanner to the pipe with the user-friendly QuickLinks system while the built-in encoder provides encoded positional feedback to the instrument of your choice.

Choose ROTIX - the go-to solution for accurate probe positioning on non-ferrous materials.

Cable Management is sold separately.

Part ID: CEG043

Videos

FEATURES

ROTIX Cart

The ROTIX cart's urethane wheels glide smoothly over rough surfaces, providing easy maneuverability. The handle offers convenience and comfort during operation, while the additional auxiliary connector accommodates optional Y-axis accessories. These are just a few features that make the ROTIX cart a valuable tool for your inspection needs.

Built-in Encoder

The ROTIX cart has been designed with the inclusion of an integrated encoder in its body. This encoder plays a crucial role in providing accurate position feedback during inspections. The encoder output from the ROTIX cart is fully compatible with all standard instruments, making it easy to integrate with your existing equipment.

Brake

 The ROTIX scanner comes equipped with a reliable brake system that allows you to lock it securely in any desired position.

Cable Management

To provide added convenience, our cart body features a convenient clip, which is a practical solution for organizing and protecting cables. (Cable management sleeving is sold separately)

Adjustable QuickLink Chain

Using QuickLinks and an adjustable QuickLink buckle, pipes and tubes ranging from 7.6 - 96.5 cm (3 - 38 in) in diameter can be effortlessly scanned. Quicklinks facilitate swift and hassle-free connections, and assembling various chain configuration lengths is a breeze.

QuickLinks

With QuickLinks, you can effortlessly connect and disconnect with ease. Our user-friendly design ensures a seamless experience - simply latch them to connect and press a button to disconnect.

Frame Bars

45 cm (17.7 in) and 20 cm (7.8 in) frame bars allow dual and single probe scanning configurations, providing flexibility to suit your inspection needs. To enhance the scanner's functionality, the dovetail groove of the frame bar serves as a mounting point for probe holders, stabilizer wheels, and various accessories.

Slip Joint Probe Holders

These outstanding low-profile probe holders are compatible with most major types of phased array probes. Their user-friendly design allows for easy probe centre spacing adjustment, probe installation and an integrated latch to raise and lower the probes when appropriate.

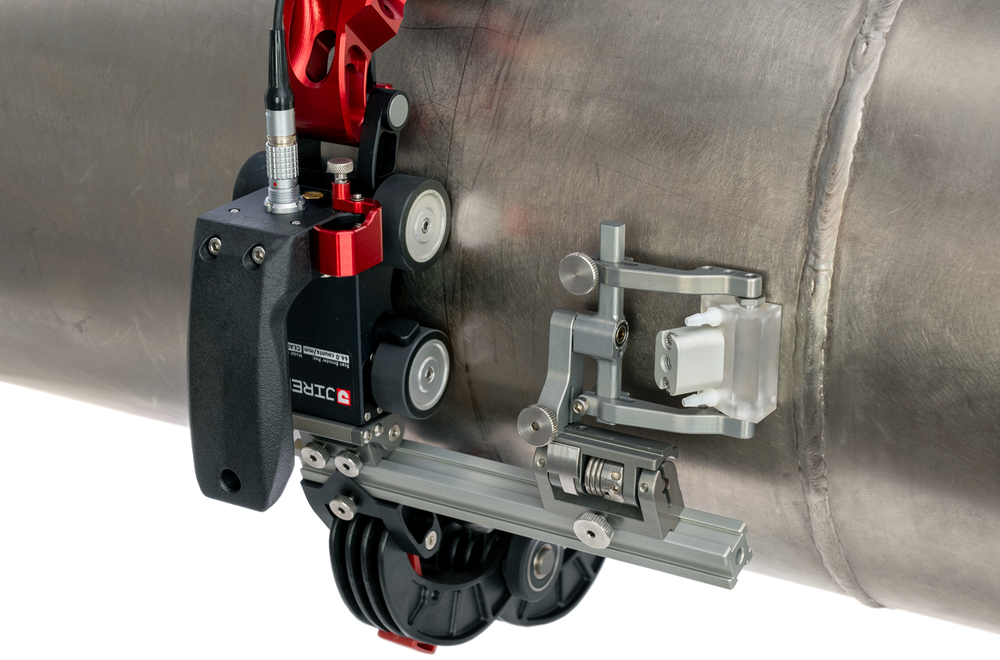

Single Probe Inspection

The shorter 20 cm frame bar is perfect for those tight access applications. With this compact design, you can efficiently perform single probe inspections with a smaller scanner width, allowing you to navigate even the most challenging spaces.

Warranty

With our limited three-year warranty, you can trust in the reliability and longevity of our products.

Customer Photos

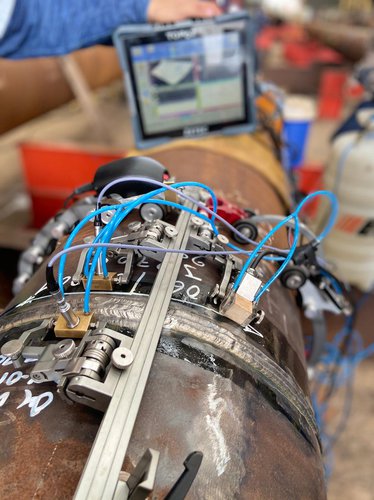

TOFD Inspection (This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
Photo Courtesy of: Jose Miguel Fematt Sanchez

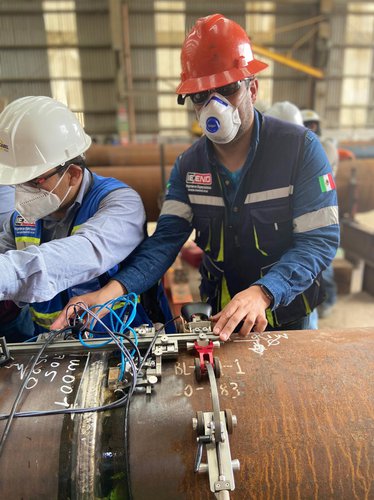

TOFD Inspection (This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
Photo Courtesy of: Jose Miguel Fematt Sanchez

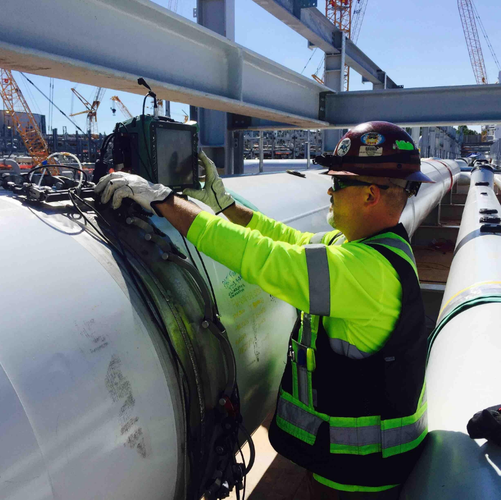

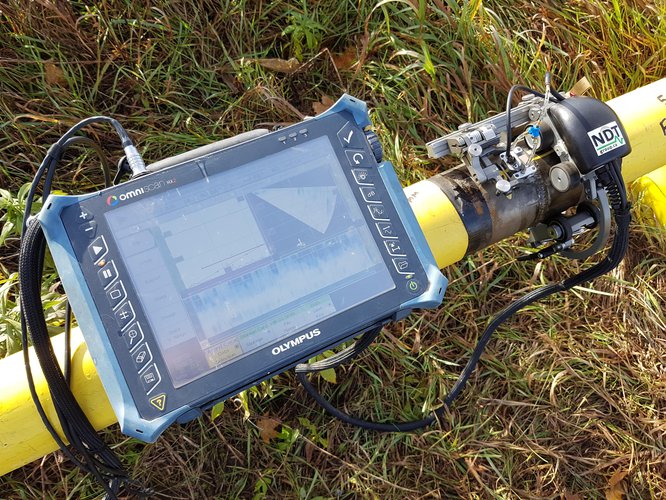

(This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
Photo Credit: SGS Netherlands
Inspection in Panama. (This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
Photo Credit: Ademinsa
For a unique ROTIX setup, contact a JIREH sales specialist for more information. (This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
Photo Credit: GEMS NDT
(This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
Photo Credit: IRIS NDT
(This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
Photo Credit: IRIS NDT (UK)
A long cantilever setup. For more information, contact a JIREH sales specialist. (This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
Photo Credit: M2M
A ROTIX is being used in Amsterdam, NL. (This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
Photo Credit: Mistras
PAUT boiler inspection in Panama. (This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
Photo Credit: Unknown

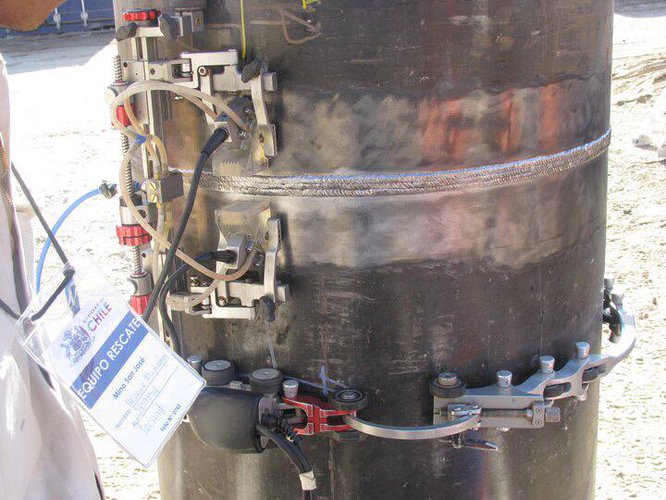

(This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
(This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
(This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)
Photo Credit: NDT Group
(This is a setup that utilizes legacy chain links. Our updated QuickLinks achieve the same results with improved durability and performance)

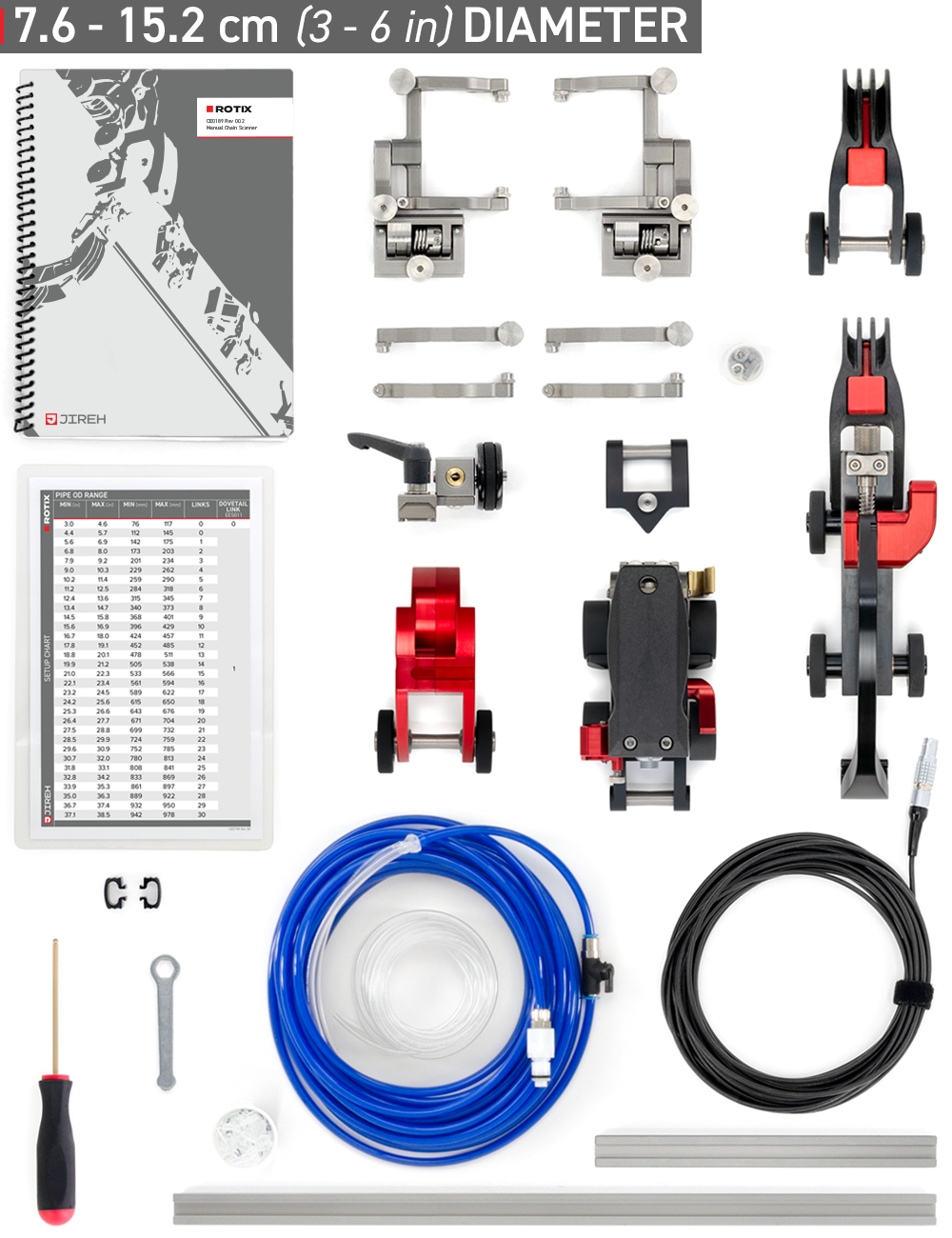

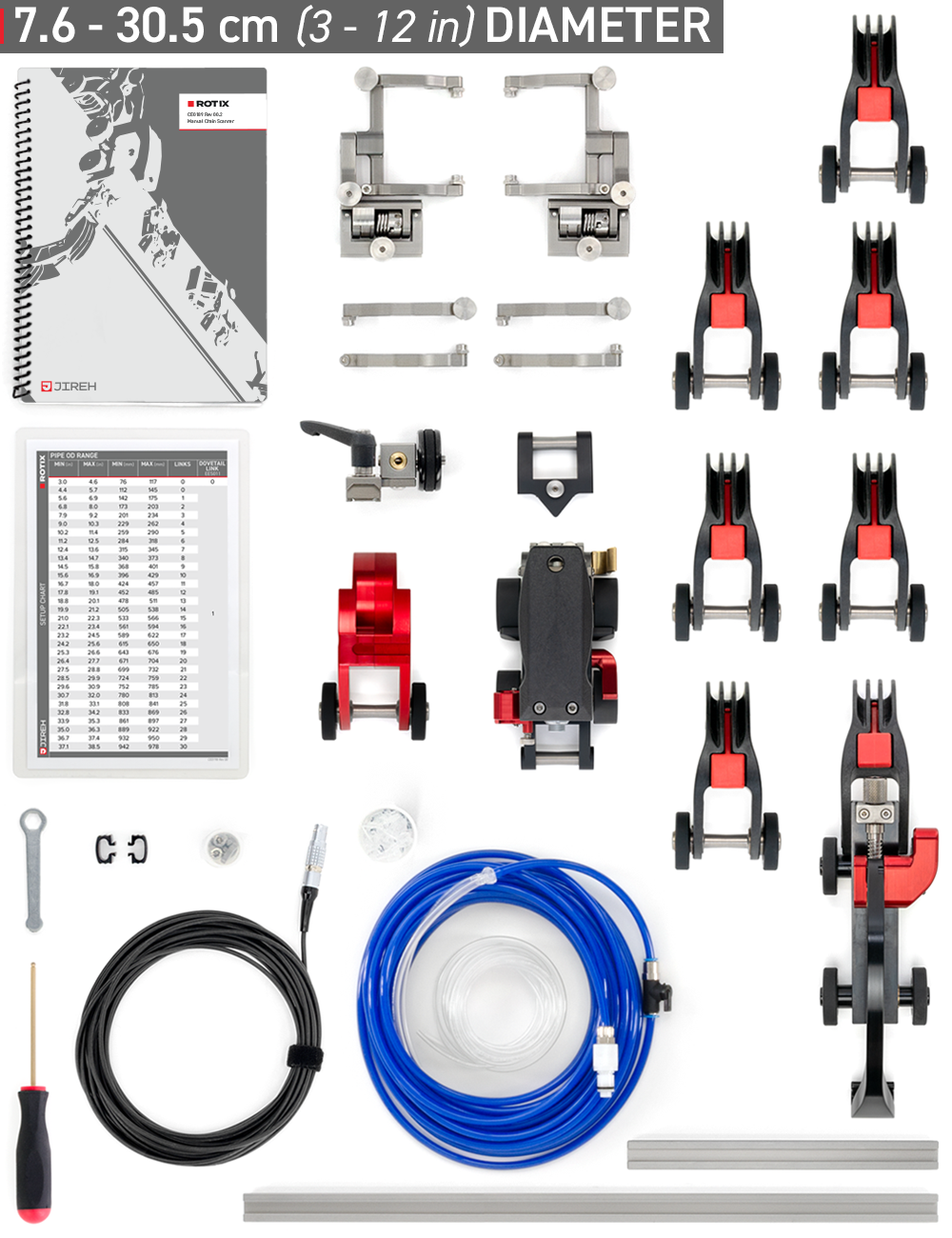

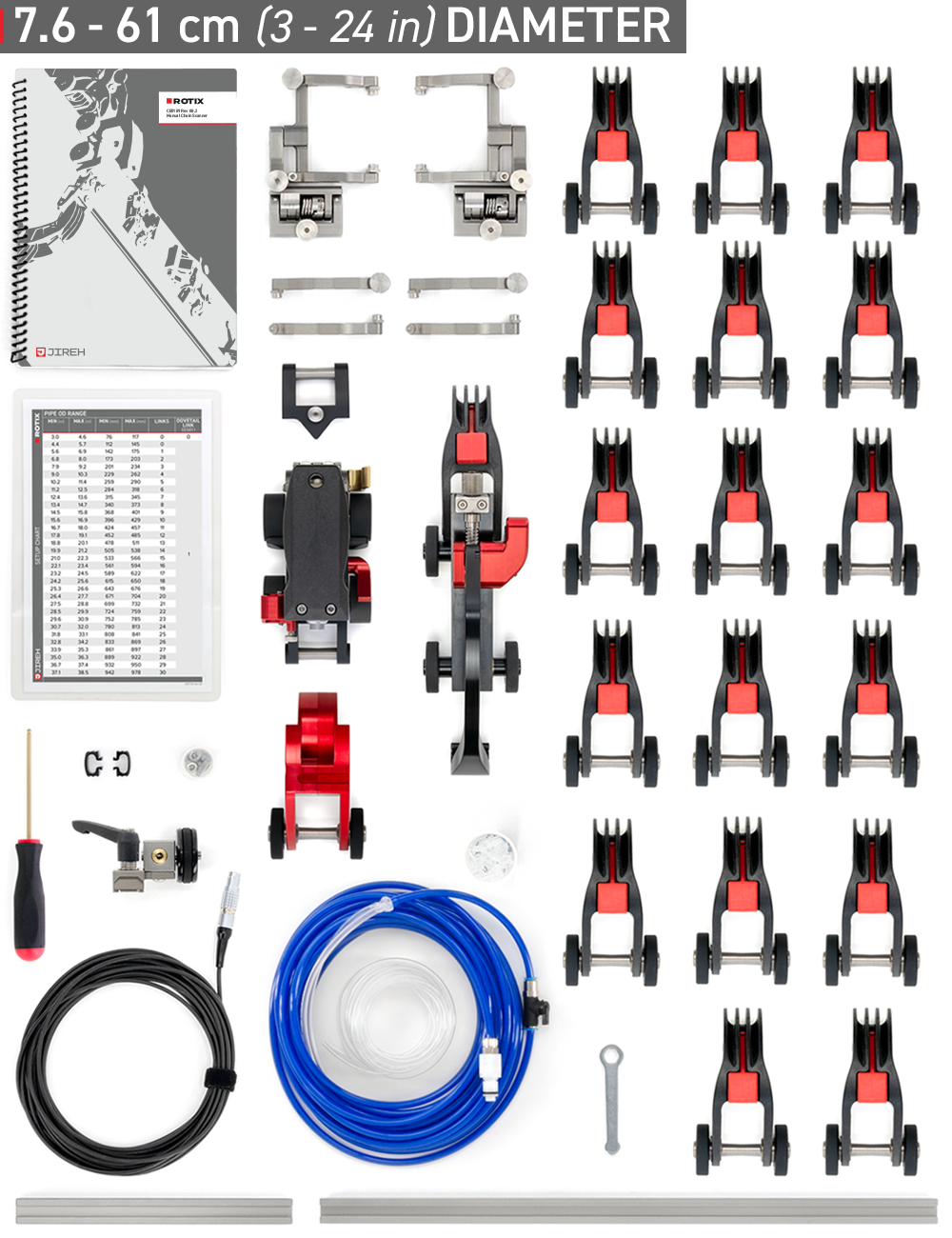

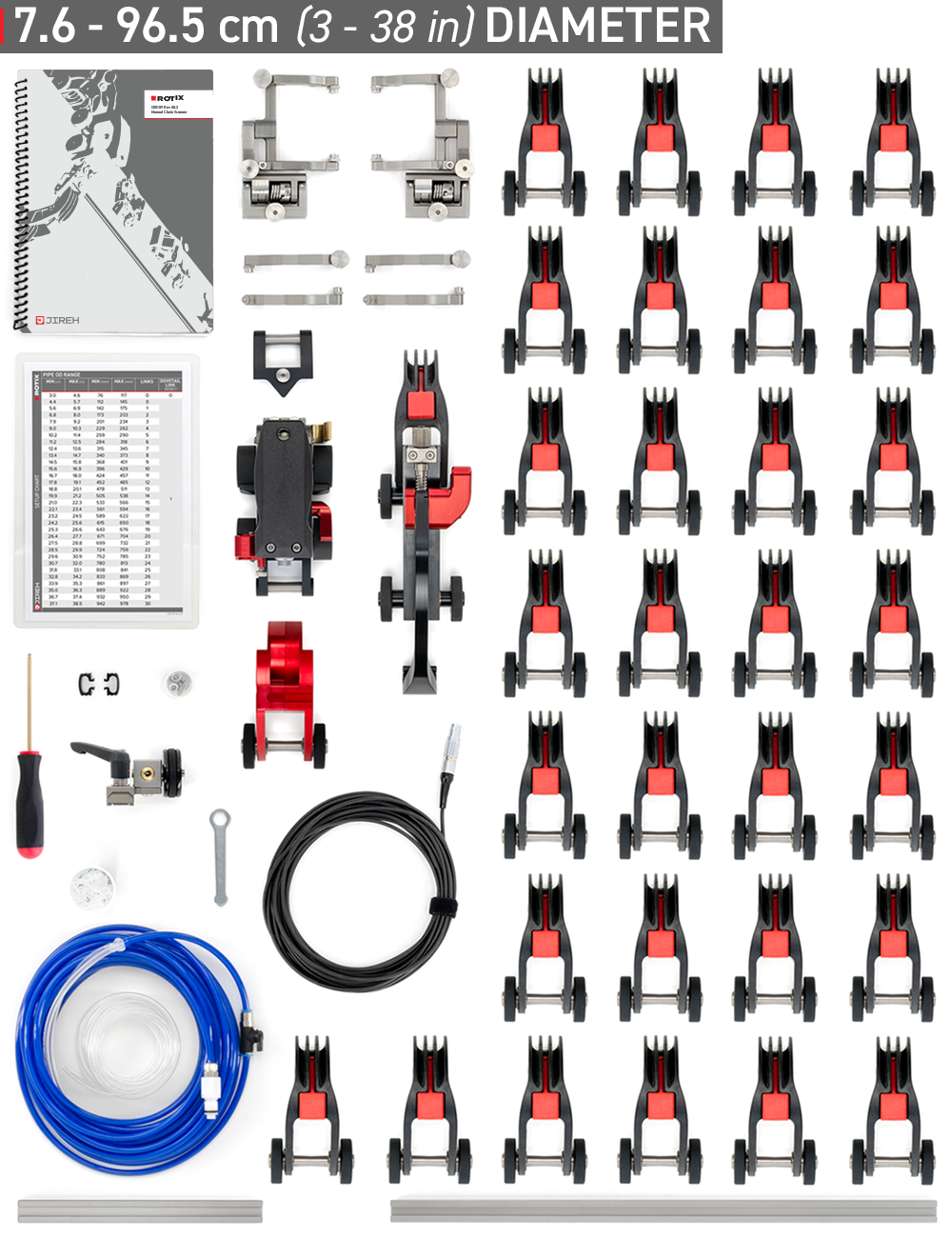

Kit Contents

Path 2 CopyPath 2 Copy

COMPONENTS

ROTIX 2 Cart: with pivot nose
QuickLink mounting bracket
Stabilizer wheel
J100 Encoder Cable, 5 m (16.4 ft) length
Slip joint phased array probe holder x2
45 cm (17.7 in) frame bar
20 cm (7.9 in) frame bar
Probe Holder Arm Set: long drop arms x2
Irrigation Kit: 4 mm ID, (7/16 in quick connect)
Probe holder spare parts kit
Cable Clip x2
User manual
Setup chart
Rugged carrying case

QUICKLINKS

15.2 cm (6 in) Diameter Kit - QuickLink x1
30.5 cm (12 in) Diameter Kit - QuickLinks x6
61 cm (24 in) Diameter Kit - QuickLinks x17
96.5 cm (38 in) Diameter Kit - QuickLinks x30
Dovetail QuickLink x1
QuickLink Buckle x1

TOOLS

Hex Driver: 3 mm
3/8" Wrench for pivot button adjustment

Contents may vary depending on the configuration selected.

Component Identification

ROTIX Cart

The ROTIX cart is loaded with features to enhance the scanning experience. One of its standout features is an auxiliary connector—capture encoded y-axis feedback with the optional probe positioning system. In addition, urethane wheels ensure smooth and unobstructed motion across scan surfaces. With cable management capabilities, you can organize and protect your cables, eliminating any dragging or tangled cables. The ergonomic handle ensures comfortable and easy maneuvering, reducing strain on the operator. Furthermore, the ROTIX cart has an anchor point to enable users to 'pull' the scanner. To top it off, the cart has a built-in positional encoder and a reliable brake system.

With its comprehensive range of features, the ROTIX cart is designed to streamline your scanning workflow, ensuring optimal performance and results.

J100 Encoder Cable

We offer a variety of encoder cable styles to connect the ROTIX system to different instruments, ensuring compatibility and a seamless connection.

Stabilizer Wheel

Achieve optimal stability for your cantilevered ROTIX configurations with the Stabilizer Wheel. Its adjustable height provides a secure frame bar and probe-holding setup, ensuring stability across all pipe diameters.

Frame Bar

Whether you want to utilize one or two probes, this kit includes various lengths of frame bars, allowing you to choose the perfect size based on your specific needs.

QuickLink Mounting Bracket

Easily connect QuickLinks to your frame bar with the QuickLink Mounting Bracket. This bracket is positioned in front of the ROTIX cart.

Cable Clip

Cable Clips provide a secure and organized way to manage cables and hoses. They easily mount onto any frame bar's dovetail groove, allowing for a firm and reliable attachment and preventing cables from getting tangled or becoming a hindrance during operations.

QuickLink Buckle

Effortlessly adjust chain tension to achieve optimal performance of your scanner. Not only that, but the QuickLink Buckle also serves as a reliable connection point for the QuickLinks.

QuickLink

Achieve the perfect length for mounting your system on a pipe thanks to QuickLinks. These versatile links allow you to assemble the required length quickly, ensuring a secure and reliable chain configuration.

Dovetail QuickLink

The Dovetail QuickLink helps you expand your chain configuration and is a versatile connector for accessories such as cable management.

Phased Array Slip Joint Probe Holder

The Phased Array Slip Joint Probe Holder is designed to mount onto the ROTIX frame bar seamlessly. That enables you to position the phased array probe precisely where required, offering unparalleled versatility and ease of use. Choose from various pivot button options tailored to your specific transducer.

Parts & Add-Ons

Related Products

Specifications

Path 2 CopyPath 2 Copy

GENERAL

Pipe Range, Circumferential: 7.6 - 96.5 cm (3 - 38 in)
Encoder Resolution: 66.0 counts/mm (1676.3 counts/inch)
Probe Holding Capacity: 2 Phased Array Wedges
Umbilical Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous and non-ferrous

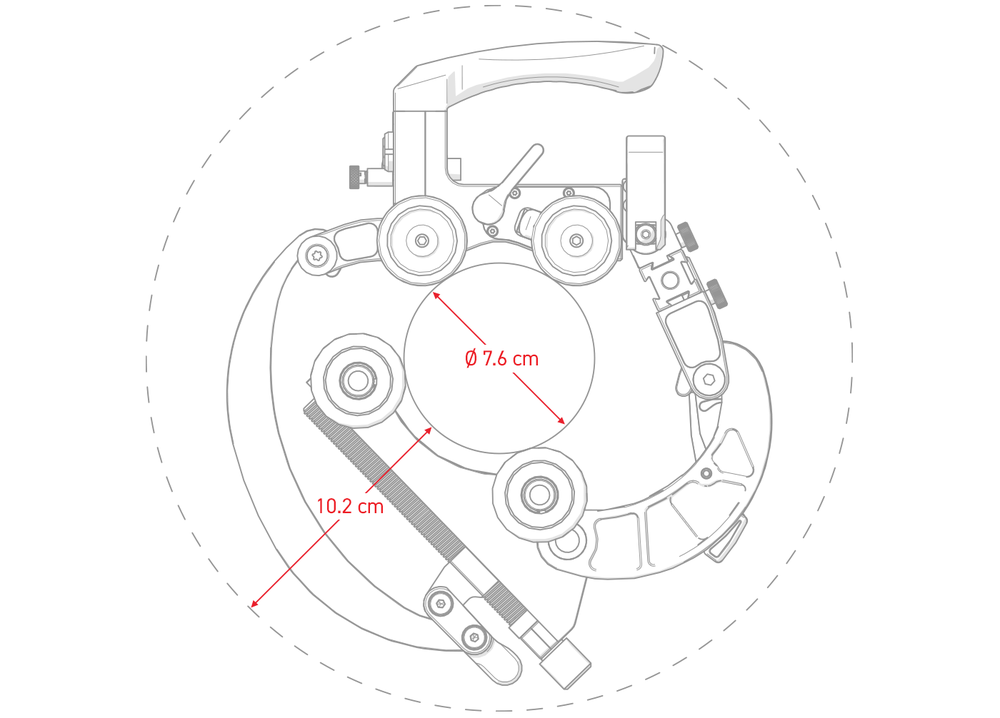

RADIAL CLEARANCE

Clearance: 10.2 cm (4 in)

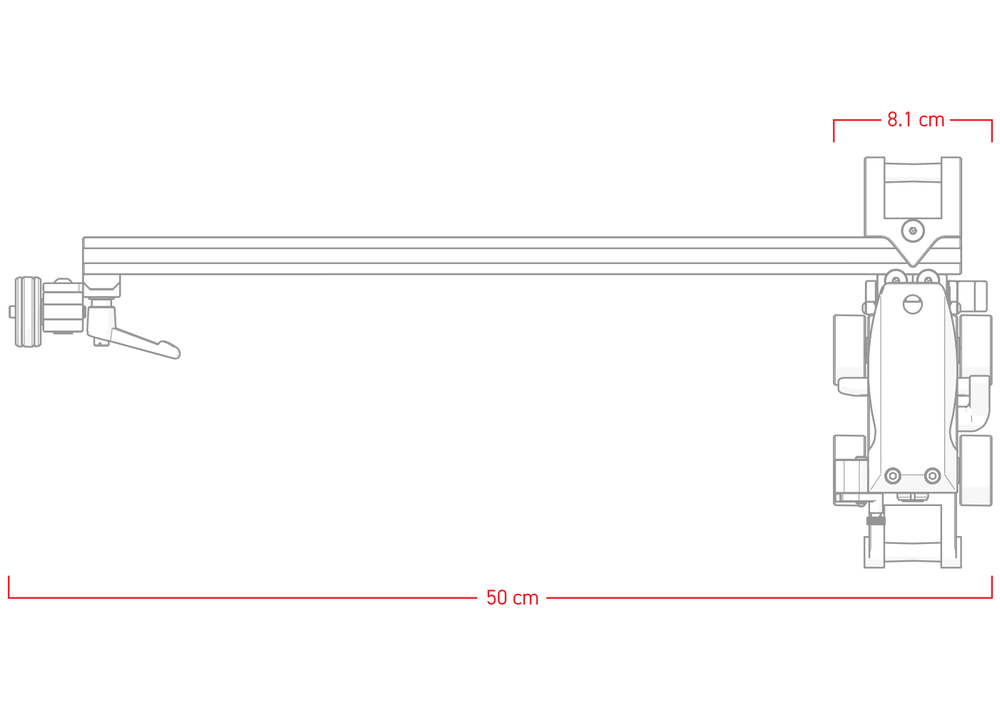

SIZE & WEIGHT

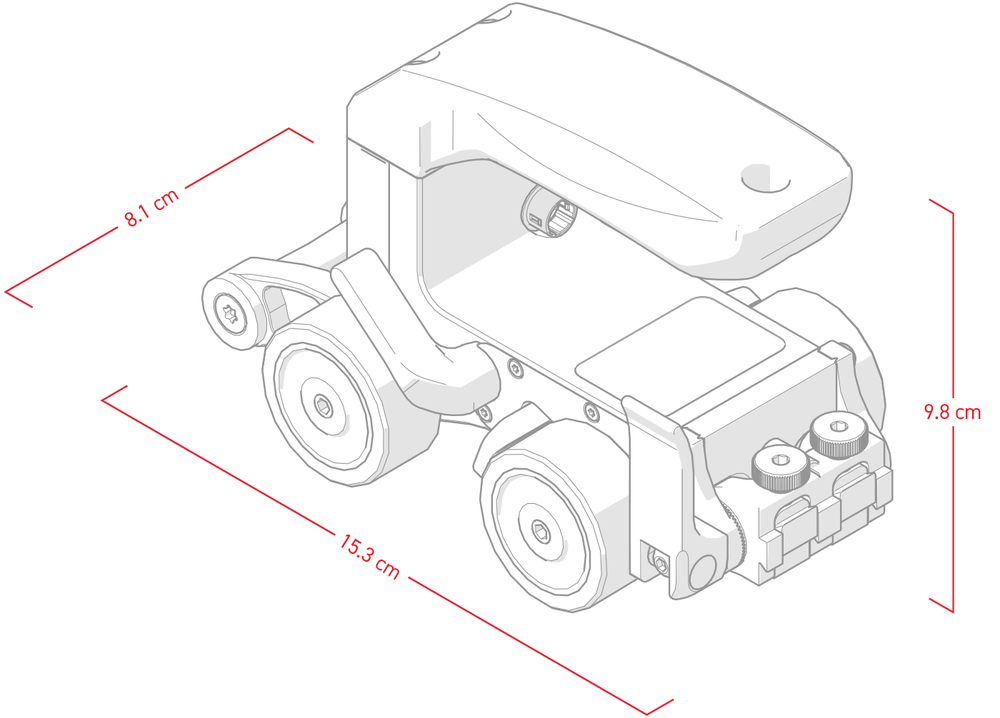

Cart Height: 9.8 cm (3.9 in)
Cart Width: 8.1 cm (3.2 in)
Cart Depth: 15.3 cm (6 in)
Cart Weight: 0.67 kg (1.48 lb)

Scanner Width: 50 cm (19.7 in)

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C to 50°C (-4°F to 122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)

PHASED ARRAY PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 57.6 mm (2.3 in)2

Probe Holder Pivot Buttons

01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)

  1. Custom encoder cable lengths are available.
  2. Some arm styles may provide additional maximum wedge width. Contact Jireh Industries for details.
    Technical specifications are subject to change.

Documents

To download the user manuals, setup charts, and additional documentation for the scanner, click the appropriate link below.
