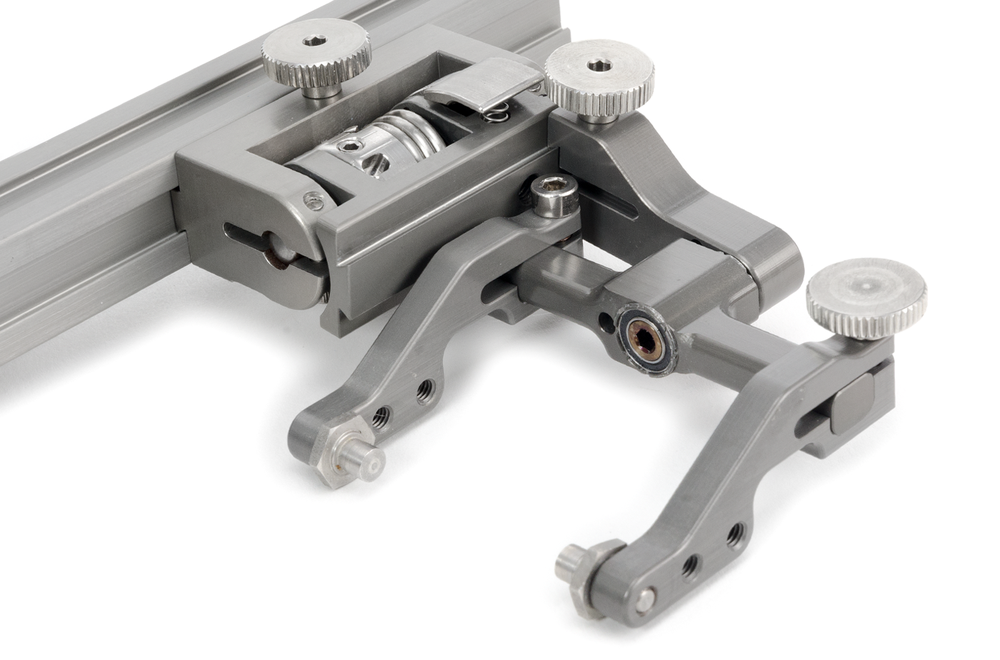

The TOFD Slip Joint Probe Holders are equipped with the pivot buttons of your choice, short, drop arms and standard yokes.

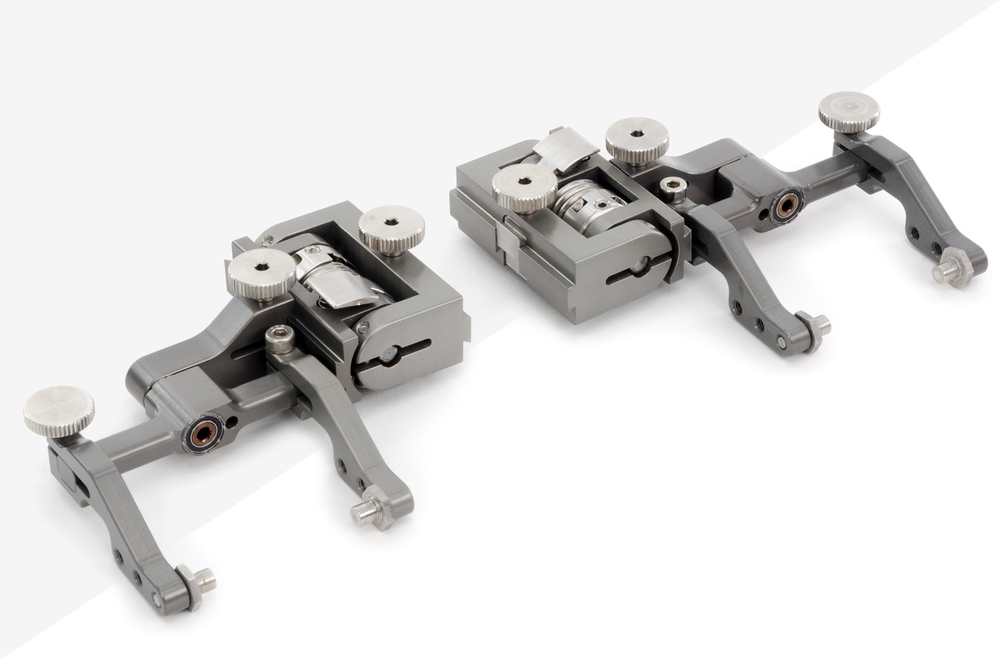

TOFD probe holders use a standard yoke style. The slip joint probe holder may be used in either left or right configuration.

Part ID: PHG017

Arm Style Specifications

E - Short, Drop

Probe holder Specifications



TOFD PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 17 mm (0.67 in)
Maximum Wedge Width: 44.4 mm (1.75 in)1

Probe Holder Pivot Buttons

01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)

  1. Some arms styles may provide additional maximum wedge width. Contact Jireh Industries for details.
    Technical specifications subject to change.
