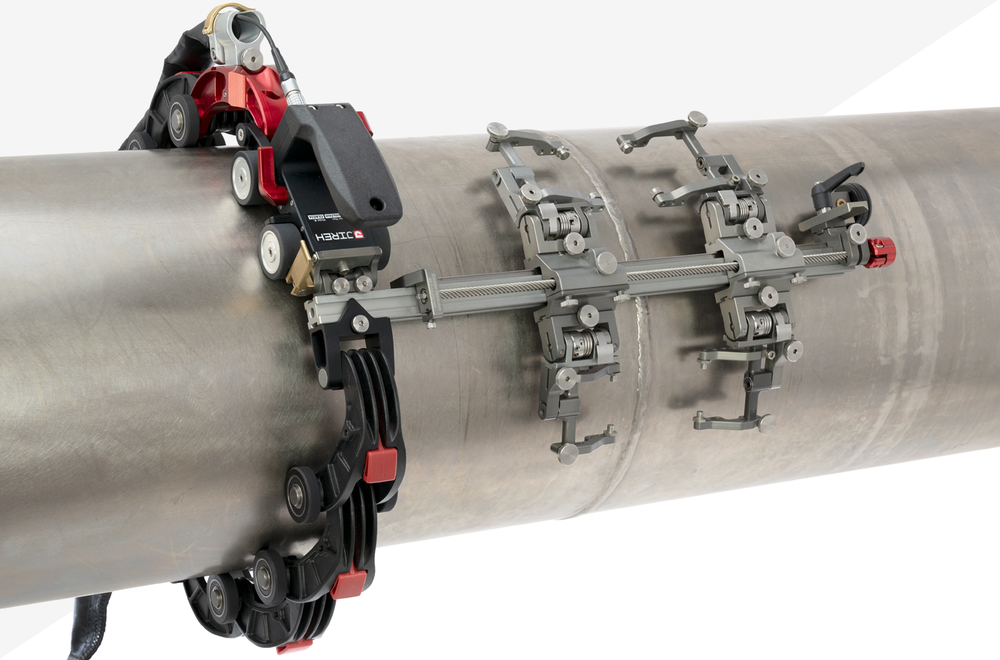

The ROTIX – 4 Probe Weld Scanner with PPS (probe positioning system) is a manual chain scanner designed to provide encoded probe position of two phased array and two TOFD probes circumferentially around tubes and pipes. The integrated probe positioning system allows the operator to adjust the probe offsets without removing the scanner.
Videos
FEATURES
ROTIX Cart
The ROTIX cart's urethane wheels glide smoothly over rough surfaces, providing easy maneuverability. The handle offers convenience and comfort during operation, while the additional auxiliary connector accommodates optional Y-axis accessories. These are just a few features that make the ROTIX cart a valuable tool for your inspection needs.
Built-in Encoder
The ROTIX cart has been designed with the inclusion of an integrated encoder in its body. This encoder plays a crucial role in providing accurate position feedback during inspections. The encoder output from the ROTIX cart is fully compatible with all standard instruments, making it easy to integrate with your existing equipment.
Brake
The ROTIX scanner comes equipped with a reliable brake system that allows you to lock it securely in any desired position.
Cable Management
To provide added convenience, our cart body features a convenient clip, which is a practical solution for organizing and protecting cables. (Cable management sleeving is sold separately)
Adjustable QuickLink Chain

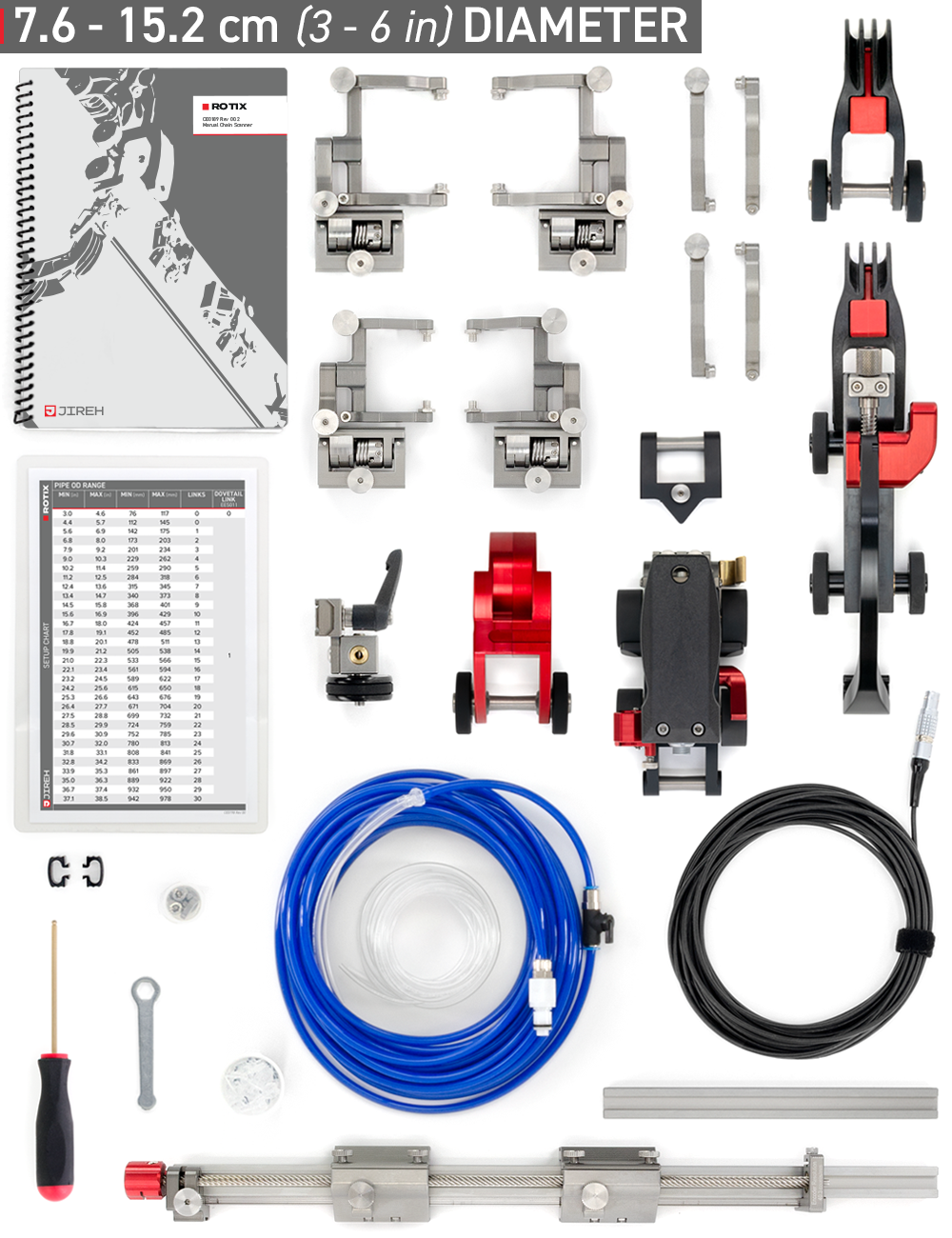

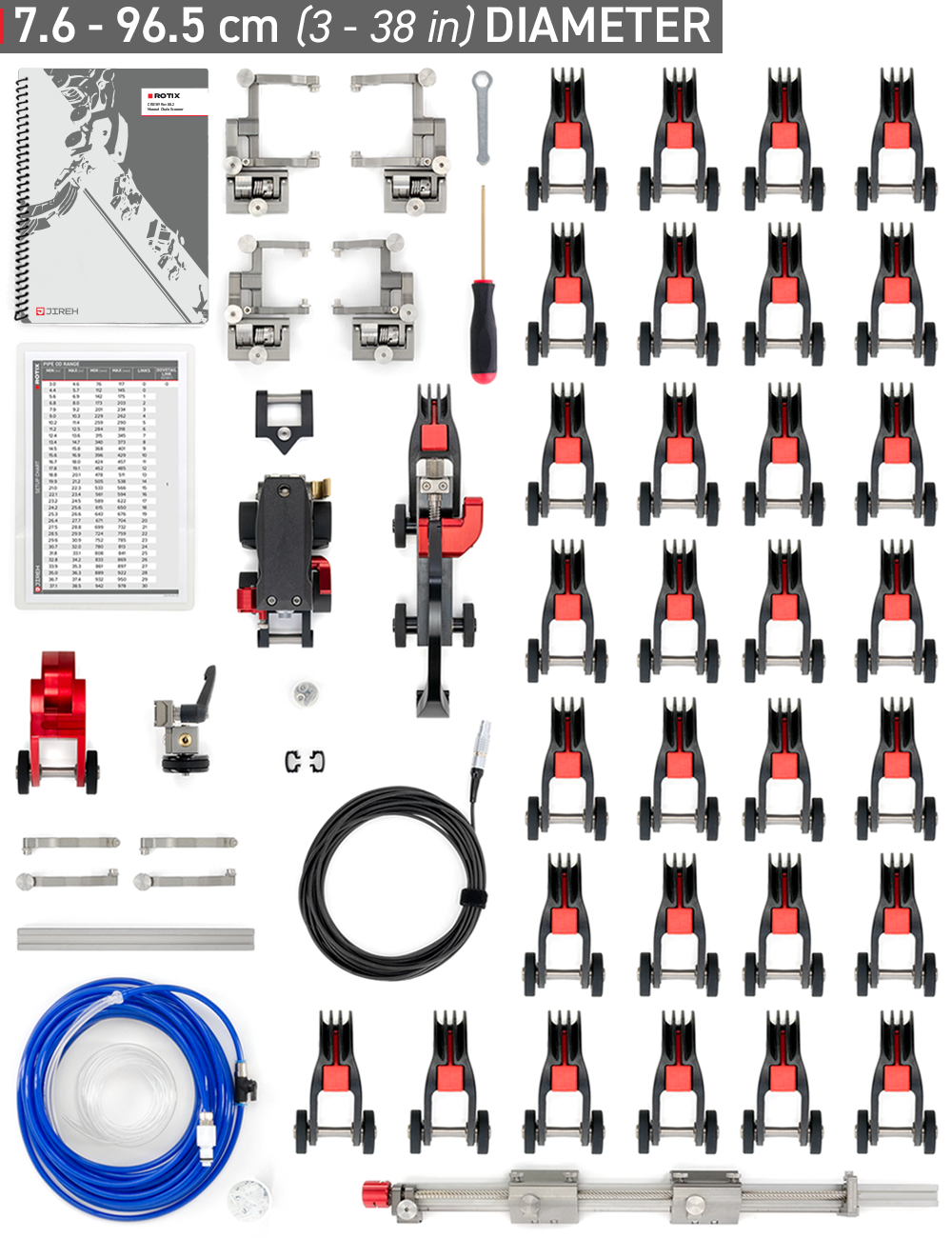

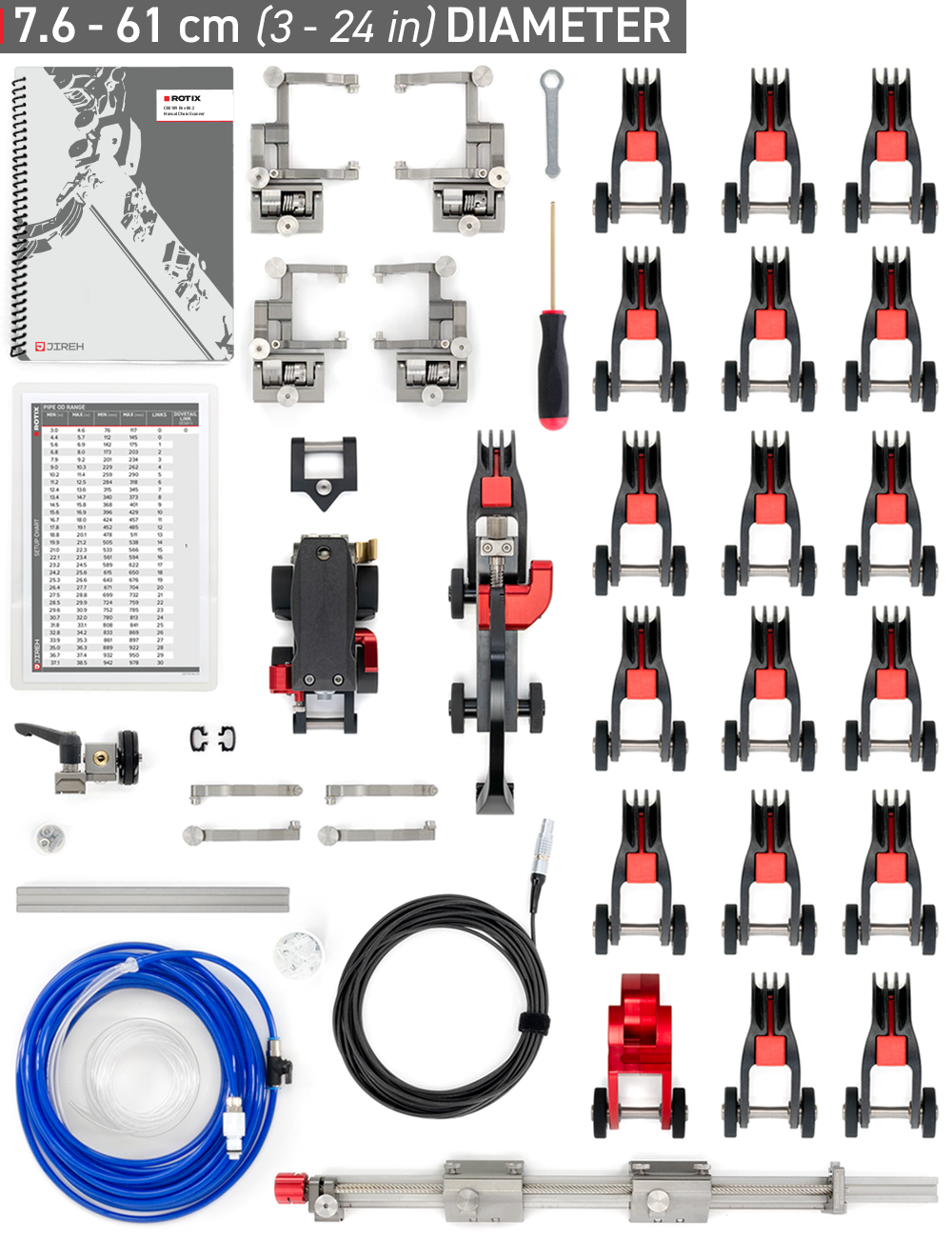

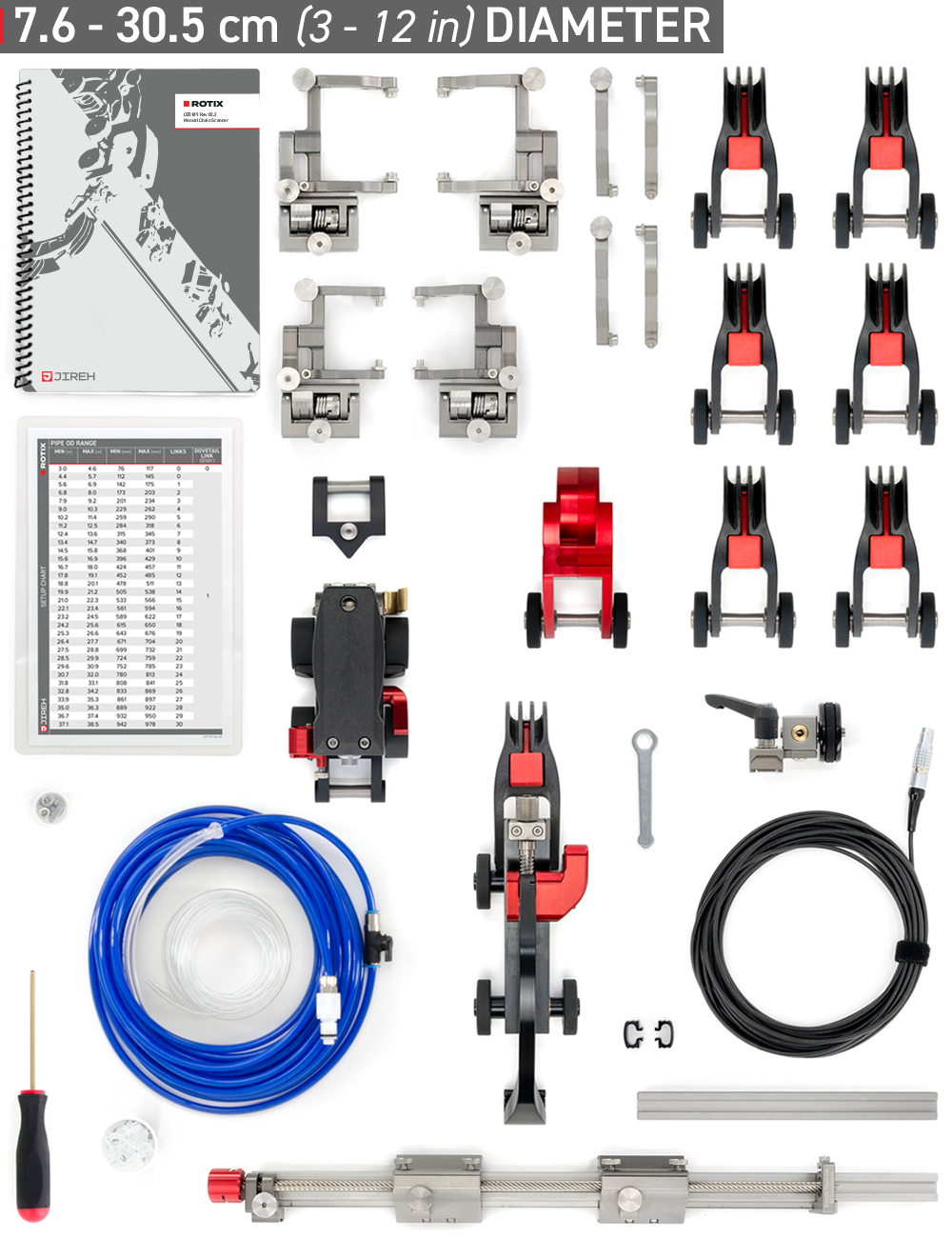

Using QuickLinks and an adjustable QuickLink buckle, pipes and tubes ranging from 7.6 - 96.5 cm (3 - 38 in) in diameter can be effortlessly scanned. Quicklinks facilitate swift and hassle-free connections, and assembling various chain configuration lengths is a breeze.
QuickLinks
With QuickLinks, you can effortlessly connect and disconnect with ease. Our user-friendly design ensures a seamless experience - latch them to click and press a button to disconnect.
PPS (Probe Positioning System)
This easy-to-use accessory allows simple positioning of 2 or 4 probes during weld inspections. With the PPS, you can easily control probe center spacing and adjust probe positioning on the go without the need to remove the scanner from a pipe. Record the probe's Y-Axis positioning with the optional PPS Encoder.
Slip Joint Probe Holders
These outstanding low-profile probe holders are compatible with most major types of phased array probes. Their user-friendly design allows for easy probe centre spacing adjustment, probe installation and an integrated latch to raise and lower the probes when appropriate.
Single Probe Inspection
The shorter 20 cm frame bar is perfect for those tight access applications. With this compact design, you can efficiently perform single probe inspections with a smaller scanner width, allowing you to navigate even the most challenging spaces.
Warranty
With our limited three-year warranty, you can have complete confidence in the reliability and durability of our products. We stand behind the quality of our offerings, and their long-lasting benefits for years to come.
Customer Photos
Component Identification
ROTIX Cart
The ROTIX cart is loaded with features to enhance the scanning experience. One of its standout features is an auxiliary connector—capture encoded y-axis feedback with the optional probe positioning system. In addition, urethane wheels ensure smooth and unobstructed motion across scan surfaces. With cable management capabilities, you can organize and protect your cables, eliminating any dragging or tangled cables. The ergonomic handle ensures comfortable and easy maneuvering, reducing strain on the operator. Furthermore, the ROTIX cart has an anchor point to enable users to 'pull' the scanner. To top it off, the cart has a built-in positional encoder and a reliable brake system.
With its comprehensive range of features, the ROTIX cart is designed to streamline your scanning workflow, ensuring optimal performance and results.
J100 Encoder Cable
We offer a variety of encoder cable styles to connect the ROTIX system to different instruments, ensuring compatibility and a seamless connection.
Stabilizer Wheel
Achieve optimal stability for your cantilevered ROTIX configurations with the Stabilizer Wheel. Its adjustable height provides a secure frame bar and probe-holding setup, ensuring stability across all pipe diameters.
PPS (Probe Positioning System)
The Probe Positioning System (PPS) is an invaluable addition to the cantilevered ROTIX. Loosen the appropriate knobs to position probes along the frame bar or adjust probe centre spacing. As well, all four probes can be positioned simultaneously rotating the red knob.
QuickLink Buckle
Effortlessly adjust chain tension to achieve optimal performance of your scanner. Not only that, but the QuickLink Buckle also serves as a reliable connection point for the QuickLinks.
QuickLink Mounting Bracket
Connect QuickLinks to the frame bar of the PPS with the QuickLink Mounting Bracket. This bracket is positioned in front of the ROTIX cart.
Cable Clip
Cable Clips provide a secure and organized way to manage cables and hoses. They easily mount onto any frame bar's dovetail groove, allowing for a firm and reliable attachment and preventing cables from getting tangled or becoming a hindrance during operations.
Frame Bar
A 20 cm (7.8 in) frame bar allows single probe scanning configurations, providing flexibility to suit your inspection needs. To enhance the scanner's functionality, the dovetail groove of the frame bar serves as a mounting point for probe holders, stabilizer wheels, and various accessories.
QuickLink
Achieve the perfect length for mounting your system on a pipe thanks to QuickLinks. These versatile links allow you to assemble the required length quickly, ensuring a secure and reliable chain configuration.
Dovetail QuickLink
The Dovetail QuickLink helps you expand your chain configuration and is a versatile connector for accessories such as cable management.
TOFD Slip Joint Probe Holder
The TOFD Slip Joint Probe Holder is designed to mount seamlessly to the ROTIX frame bar, offering easy positioning wherever needed. These spring-loaded probe holders are equipped with multiple adjustments, allowing you to position the wedge of your choice precisely as required. Many pivot button options are available to mount to your specific transducer.
Phased Array Slip Joint Probe Holder
The Phased Array Slip Joint Probe Holder is designed to mount onto the ROTIX frame bar seamlessly. That enables you to position the phased array probe precisely where required, offering unparalleled versatility and ease of use. Choose from various pivot button options tailored to your specific transducer.
Parts & Add-Ons
4 mm ID Irrigation Kit (7/16 in Quick Connect)
Cable Clip Kit
Cable Management, Dovetail Mount
Encoder Adapter
J100 Encoder Cable
Manual Couplant Pump - 7.9 L (2.1 gal.)
PPS Encoder
Probe Holder Pivot Button
Related Products
Specifications
GENERAL
Pipe Range, Circumferential: 7.6 - 96.5 cm (3 - 38 in)
Encoder Resolution: 66.0 counts/mm (1676.3 counts/inch)
Probe Holding Capacity: 2 Phased Array Wedges
Umbilical Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous and non-ferrous
RADIAL CLEARANCE
Clearance: 10.2 cm (4 in)
SIZE & WEIGHT
Cart Height: 9.8 cm (3.9 in)
Cart Width: 8.1 cm (3.2 in)
Cart Depth: 15.3 cm (6 in)
Cart Weight: 0.67 kg (1.48 lb)

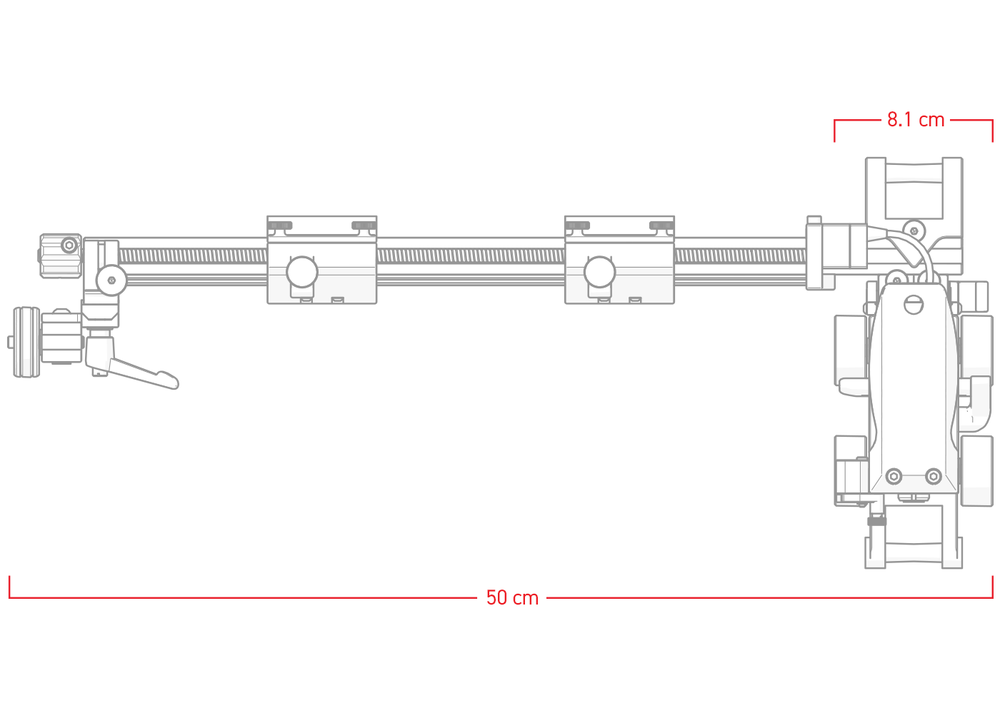

Scanner Width: 50 cm (19.7 in)
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C to 50°C (-4°F to 122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
PHASED ARRAY PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 57.6 mm (2.3 in)2
TOFD PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 45 mm (1.8 in)2
Probe Holder Pivot Buttons
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
- Custom encoder cable lengths are available.
- Some arm styles may provide additional maximum wedge width. Contact Jireh Industries for details.
Technical specifications are subject to change.
