Experience Seamless Four-Probe Weld Scanning Made Easy
The MICROBE - 4 Probe Weld Scanner offers many features to enhance your scanning experience. With its integrated encoder, you can easily track the positional movement of the scanner. The ergonomic handle provides comfort and control, allowing you to maneuver the scanner easily. The brake maintains the scanner position locking the magnetic wheels when needed. Eight stacked magnetic wheels allow for better adherence to surfaces and ensure smooth movement across different ferrous materials.
With the ability to accommodate up to four probes simultaneously, you can significantly increase your scanning productivity.
Features

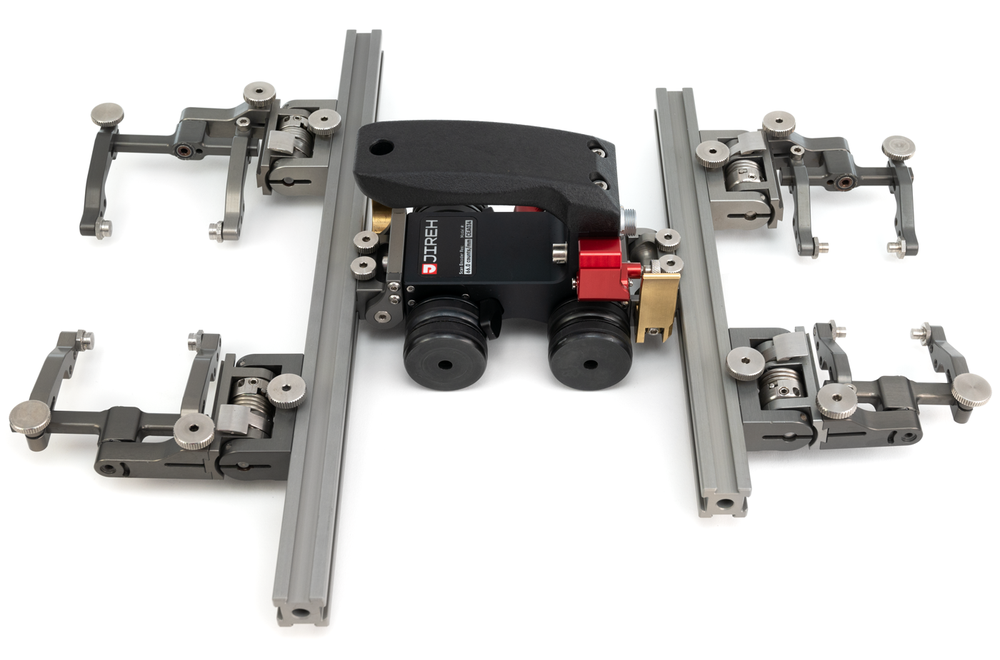

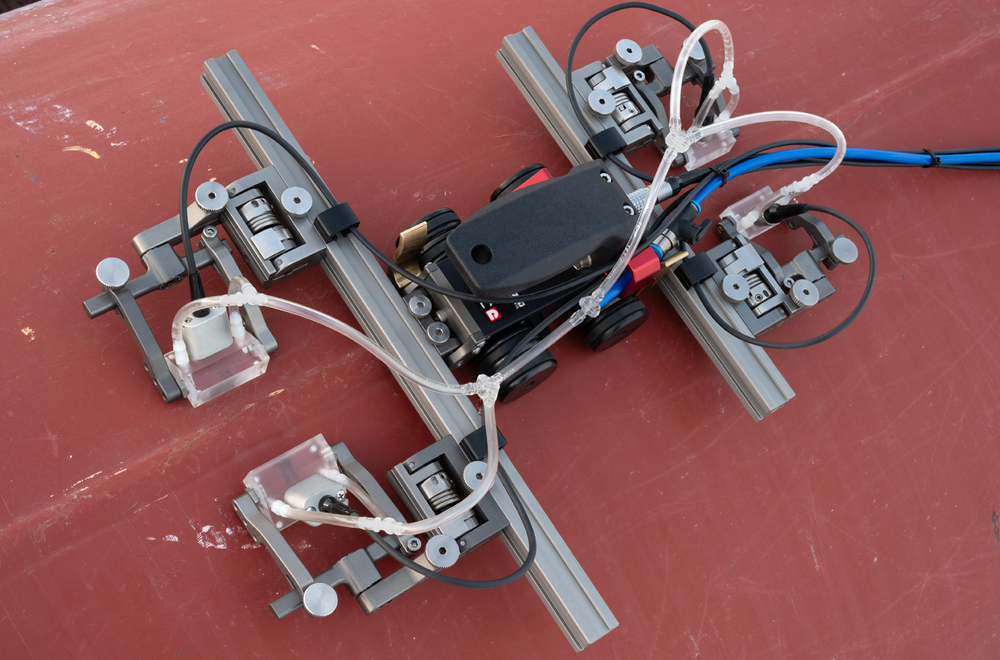

Four Probe Weld Inspection

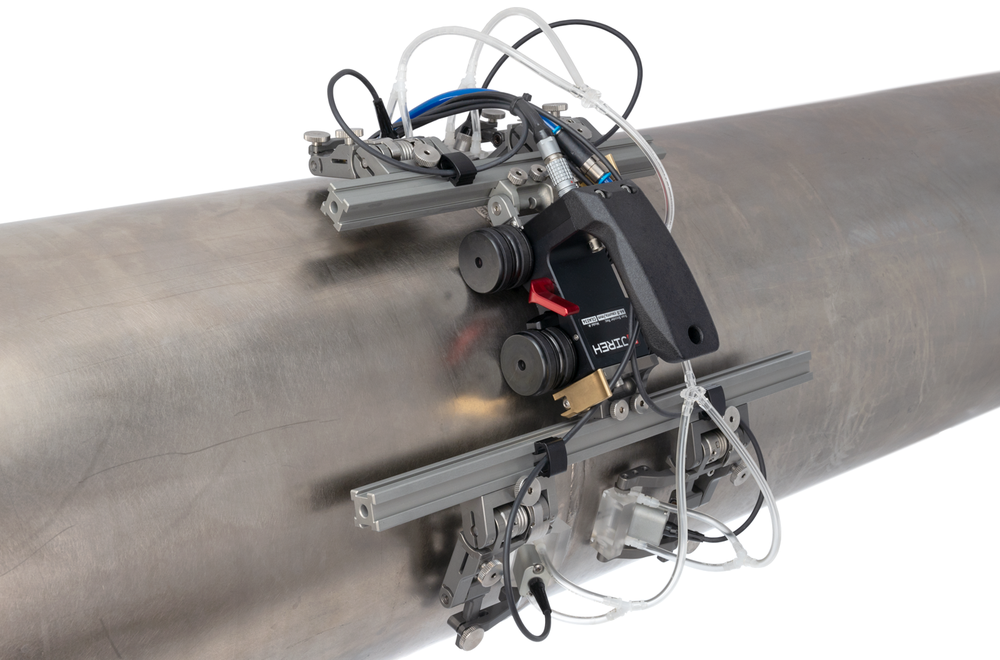

The MICROBE offers the flexibility to simultaneously maneuver two PAUT and two TOFD probes of your choice around ferromagnetic pipes and vessels.
Endless Configurations
Unlock the full potential of the MICROBE system with its remarkable configuration capabilities. Add additional magnetic wheels, incorporate more probe holders, or explore alternate frame bars to tailor your setup precisely to your inspection requirements. We encourage you to contact our knowledgeable sales staff to discover the vast possibilities the MICROBE system can offer.
Brake
Lock your scanner in place with the convenient built-in brake feature.
Cable Management
Our cart body features a convenient clip, a practical solution for organizing and protecting cables.
Built-in Positional Encoding
The MICROBE features an integrated positional encoder within its body. The encoder output is fully compatible with all standard instruments, allowing seamless integration and compatibility for various applications. This ensures that the MICROBE can be easily integrated into existing systems without compatibility issues.
Magnetic Wheels
The MICROBE's magnetic wheels are coated with a urethane layer, minimizing the impact of foreign debris that could obstruct the scanner's smooth rolling. These magnetic wheels are also designed to be stackable, allowing for increased magnetic attraction when necessary.
Handle
The ergonomic injection-molded handle enhances the MICROBE experience. Enjoy a sturdy grip and unbeatable comfort during inspections.
Carabiner Attachment Point
To ensure the safe and efficient handling of the scanner, you can utilize the carabiner attachment point. This allows users to secure the scanner and prevent drops or pull the scanner forward when required. It is also a great feature during rope access applications.
TOFD and PAUT Inspection
The MICROBE kit includes time-of-flight diffraction (TOFD) and phased array probe-holding arms for the slip joint probe holder. When configuring your order, choose the pivot buttons required for your specific wedge. You can order additional probe holder pivot buttons to ensure your MICROBE is ready for any ultrasonic testing method.
Slip Joint Probe Holder
These low-profile probe holders are designed to accommodate most phased array and TOFD probes and ensure optimal alignment and positioning for accurate inspections. Choose your preferred pivot button style to carry the probe/wedge with these extremely adjustable probe holders.
Modular Capabilities
Transform the MICROBE into a non-ferrous ROTIX chain scanner! Converting your MICROBE into a ROTIX will expand your inspection capabilities. Various parts (sold separately) can be added to combine systems and confidently inspect any application. Our team can provide comprehensive information about the MICROBE and ROTIX interchangeable capabilities.
Warranty
JIREH stands behind all of its products with a limited 3-year warranty. This warranty provides customers with peace of mind, knowing that JIREH stands by the quality and reliability of its products.
Videos

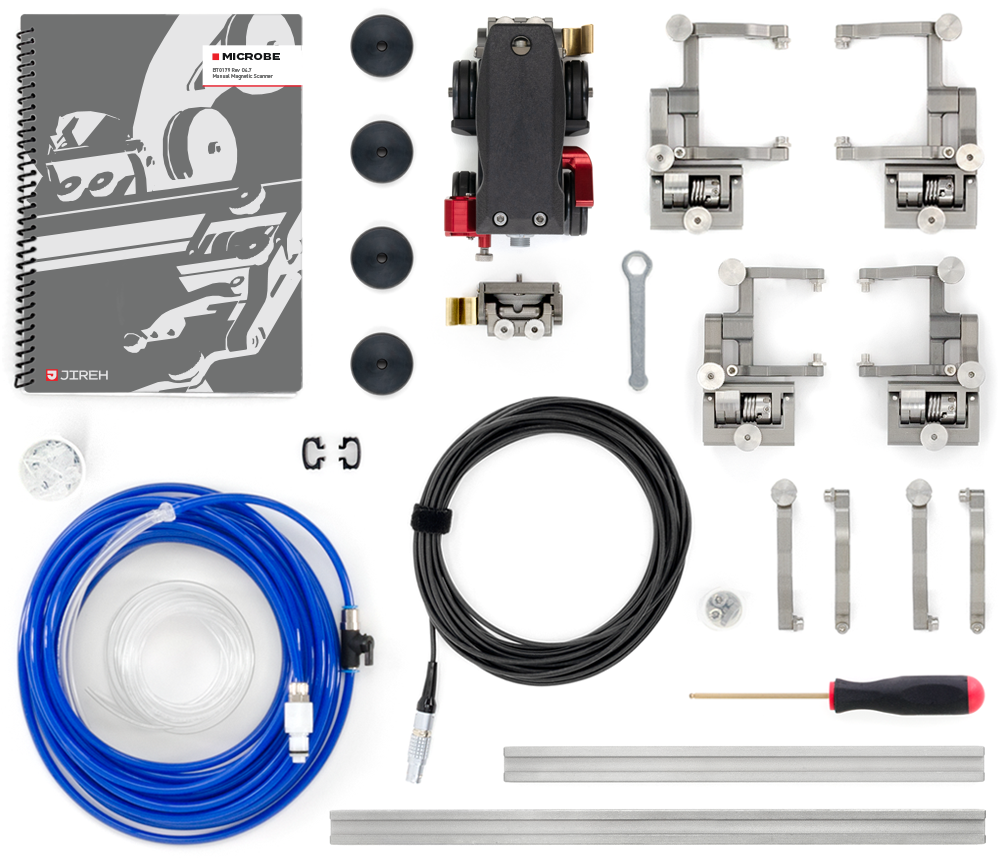

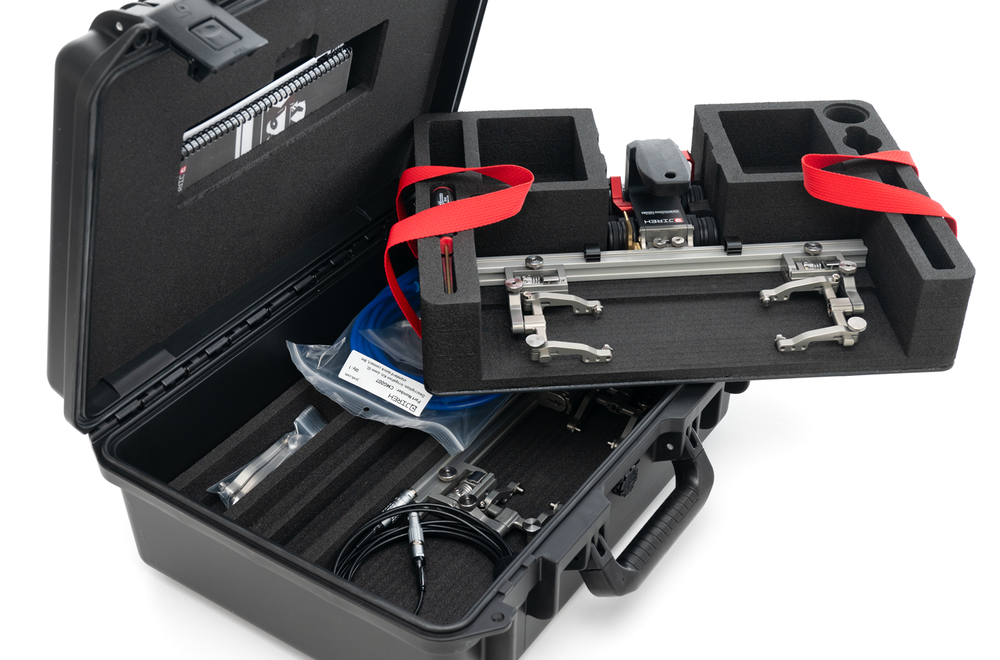

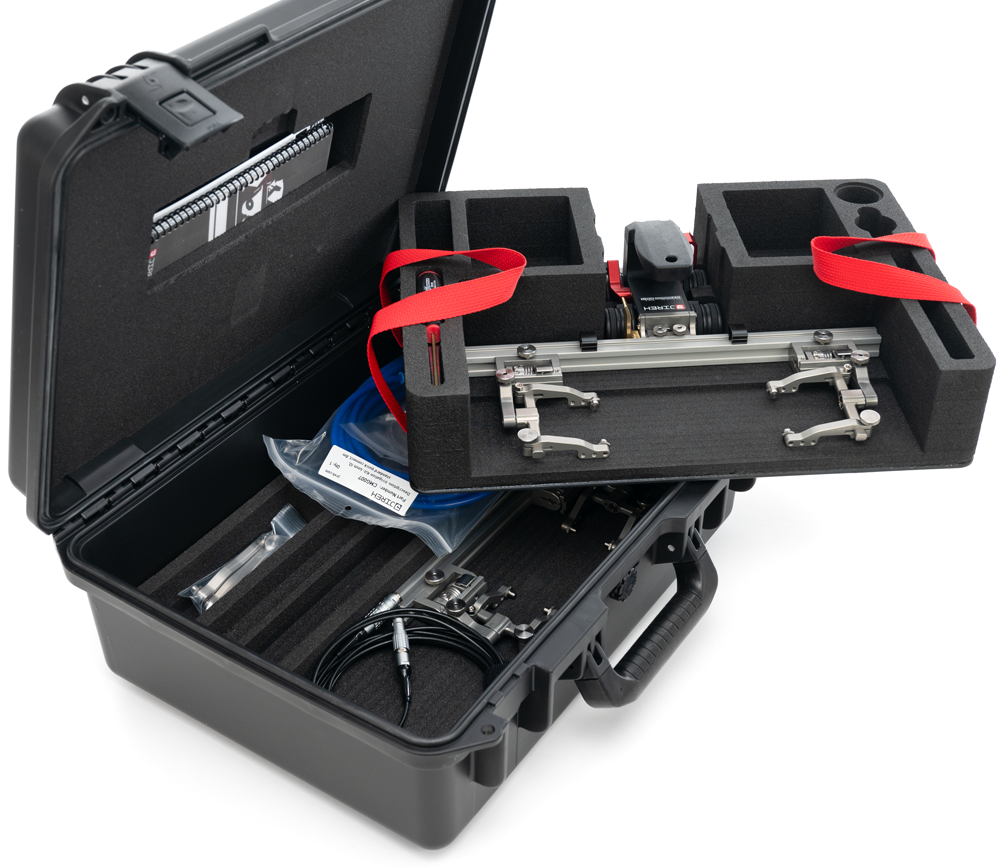

Component Idetification
MICROBE Cart
This cart has a built-in positional encoder for accurate scanning. The ergonomic handle ensures a comfortable grip, and the brake keeps the system securely in place. An onboard cable clip is included to help manage cables efficiently.
Cable Clips
Cable Clips provide a secure and organized way to manage cables and hoses. They easily mount onto any frame bar's dovetail groove, allowing for a firm and reliable attachment and preventing cables from getting tangled or becoming a hindrance during operations.
Frame Bars
The MICROBE scanner includes frame bars measuring 20 cm (7.9 in) and 35 cm (13.8 in), which serve as a secure mounting point between the cart and the probe holder or other accessories.
Magnetic Wheels
The magnetic wheels on this scanner cart ensure constant contact with the inspection surface. Four extra magnetic wheels are included to double the effectiveness for even stronger magnetic attraction.
PAUT Slip Joint Probe Holders
A pair of phased array slip joint probe holders feature a latch mechanism that enables the probe to be easily lifted to a standby position. These holders are highly adaptable and adjustable, allowing them to accommodate any standard probe and wedge combination.
Large probe capabilities
The kit includes longer probe holder arms for mounting larger probes to the slip joint probe holders. These longer arms provide the necessary extension to accommodate the size of larger phased array probes and wedges.
J100 Encoder Cable
The rugged and waterproof J100 encoder cable will be customized to your chosen instrument, allowing you to output positional data.
Probe Holder Spare Parts Kit
The Probe Holder Spare Parts Kit includes replacement screws and knobs for slip joint probe holders.
TOFD Slip Joint Probe Holders
A pair of TOFD slip joint probe holders feature a latch mechanism that enables the probe to be easily lifted to a standby position. These holders are highly adaptable and adjustable, allowing them to accommodate any standard probe and wedge combination.
MICROBE Rear Pivot
The rear pivot mounts to the MICROBE cart and provides a connection point for the rear frame bar and slip joint probe holders.
Parts & Add-Ons
Related Products
Technical Specifications
GENERAL
Pipe Range, Circumferential: 3.8 cm (1.5 in) to flat surface
Pipe Range, Longitudinal: 7.6 cm (3.0 in) to flat

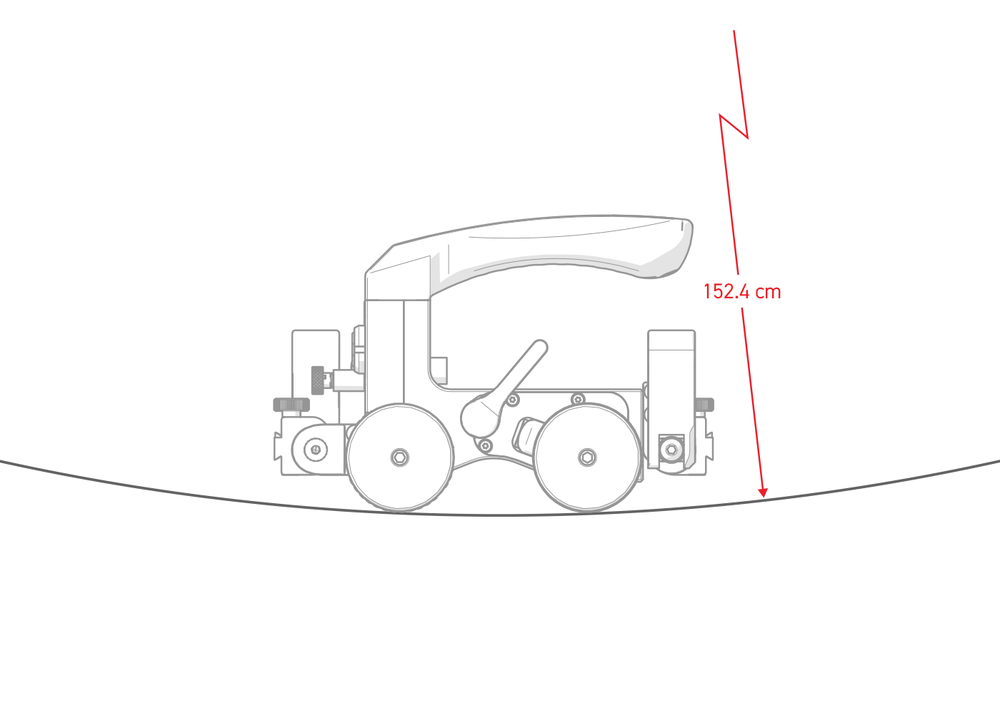

Pipe Range, Circumferential Inner Diameter: 152.4 cm (60 in) to flat
Encoder Resolution: 66.0 counts/mm (1676.3 counts/inch)
Probe Holding Capacity: 1 Phased array probe
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous

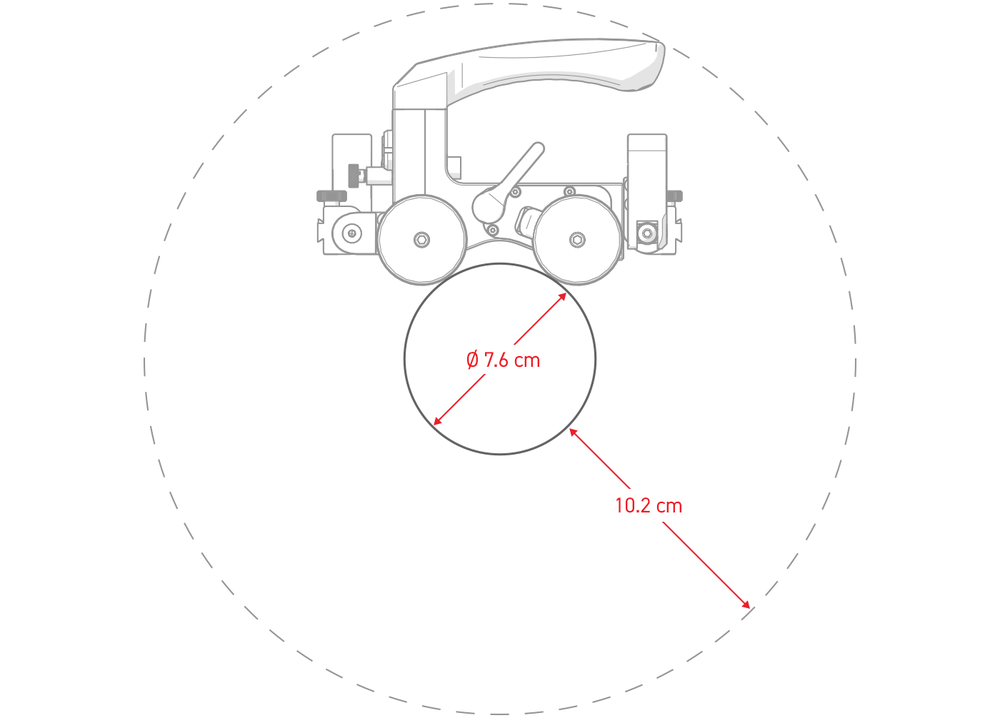

RADIAL CLEARANCE
Radial Clearance: 9.1 cm (3.58 in)

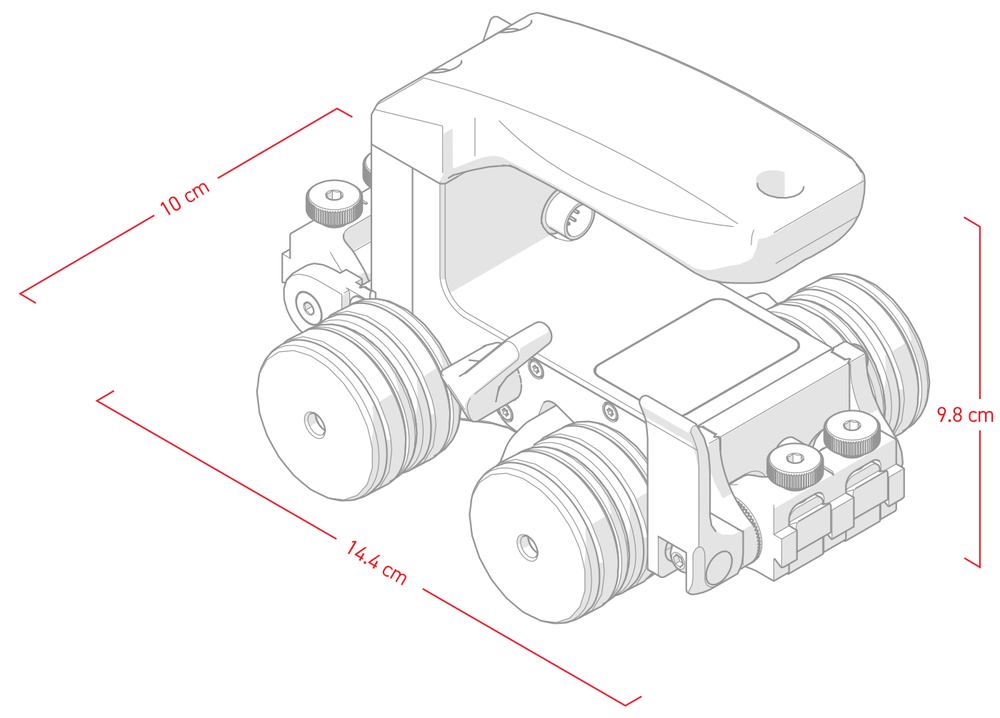

SIZE & WEIGHT
Cart Height: 9.8 cm (3.8 in)
Cart Width (single wheel): 8 cm (3.2 in)
Cart Width (multiple wheels): 10 cm (3.9 in)
Cart Length: 14.4 cm (5.7 in)
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
PHASED ARRAY PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 57.6 mm (2.3 in)3
TOFD PROBE HOLDER SPECIFICATIONS
Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 45 mm (1.8 in)3
Probe Holder Pivot Buttons
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
- Custom encoder cable lengths are available.
- Approximate shipping weight of standard kit contents.
- Some arm styles may provide additional maximum wedge width. Contact JIREH for details.
Technical specifications are subject to change.
