Encode anything. The ODI is perfect for limited access applications.

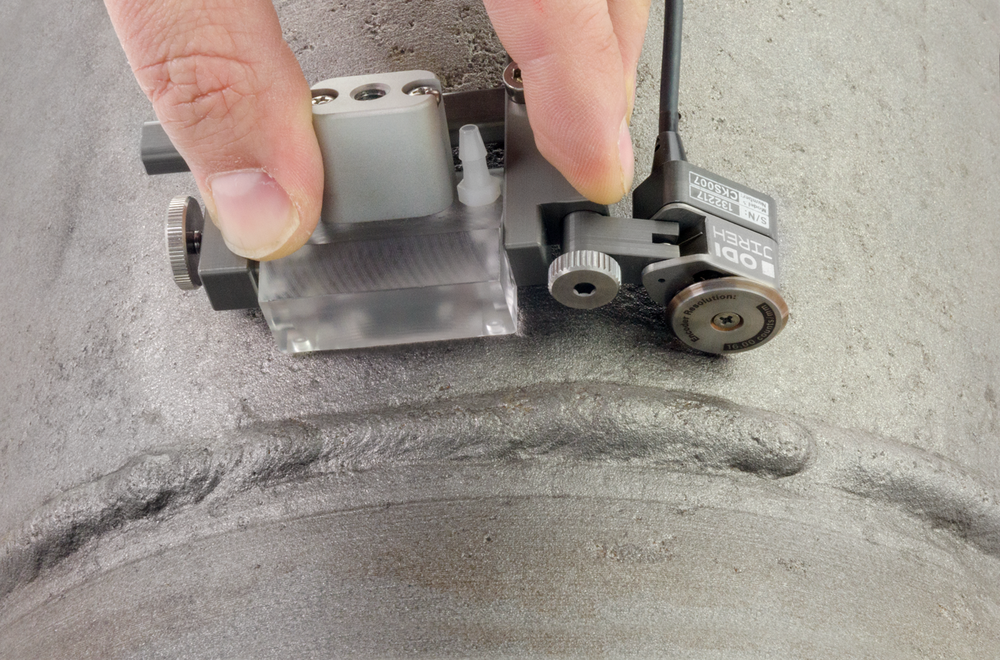

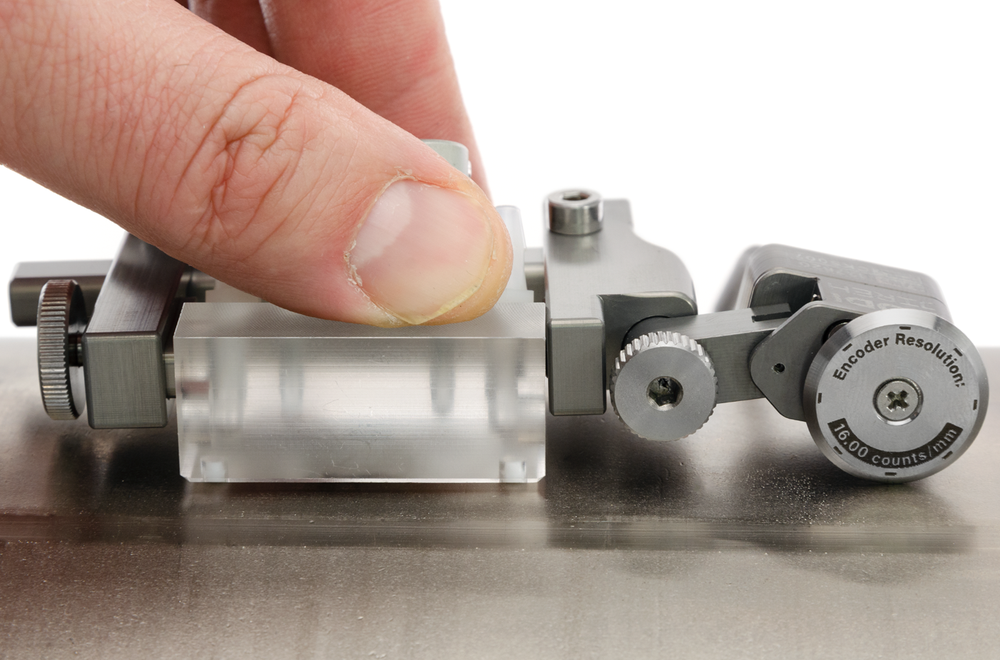

The ODI features an encoder attached to a straightforward, universal clamp system, allowing virtually any combination of probe and wedge to be held. The small size allows for single-handed operation in confined spaces, and the clamping system means probe setup is quick and easy.

Part ID: CKG009

VIDEOS

Features

Quick Adjust Clamp

Affix any probe/wedge to the ODI easily (no tools required).

Condensed Scan Size

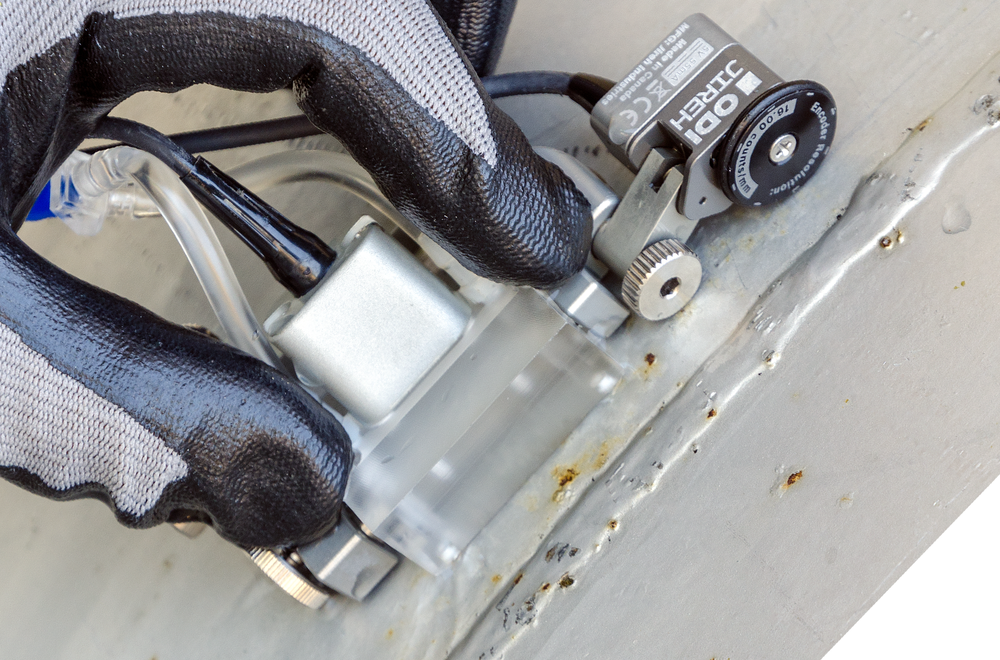

Helpful during limited access inspection as the small stature allows for unique scanning opportunities.

Encoder

The attached mini encoder provides precise encoded positional information while compatible with all standard instruments.

Alternate Encoder Position

Position the encoder at 0° or 90° to accommodate different clamping arrangements. The spring-loaded wheel ensures positive contact with the inspection surface.

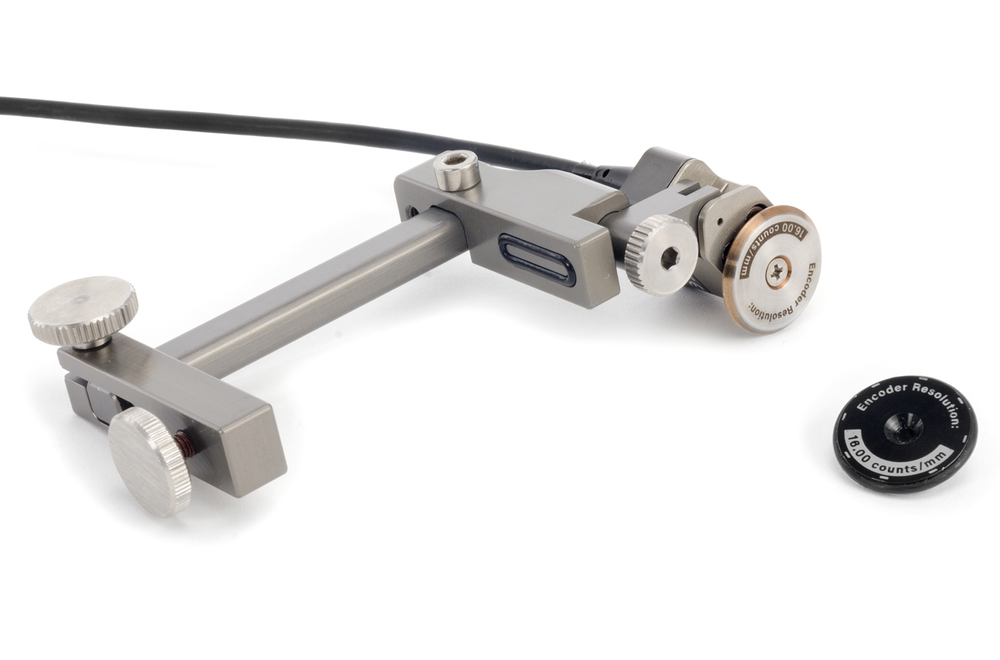

Additional Stainless Steel Wheel

Each ODI kit also includes a heat-treated SST encoder wheel which can prove helpful when using gel couplants.

Warranty

A three-year limited warranty is included with all products.

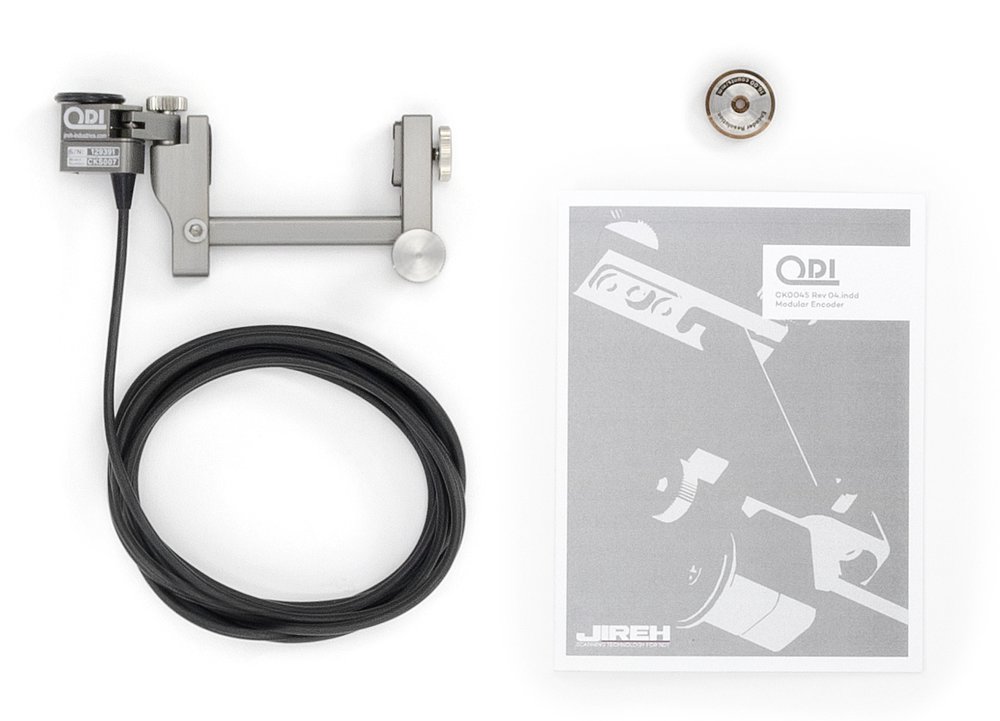

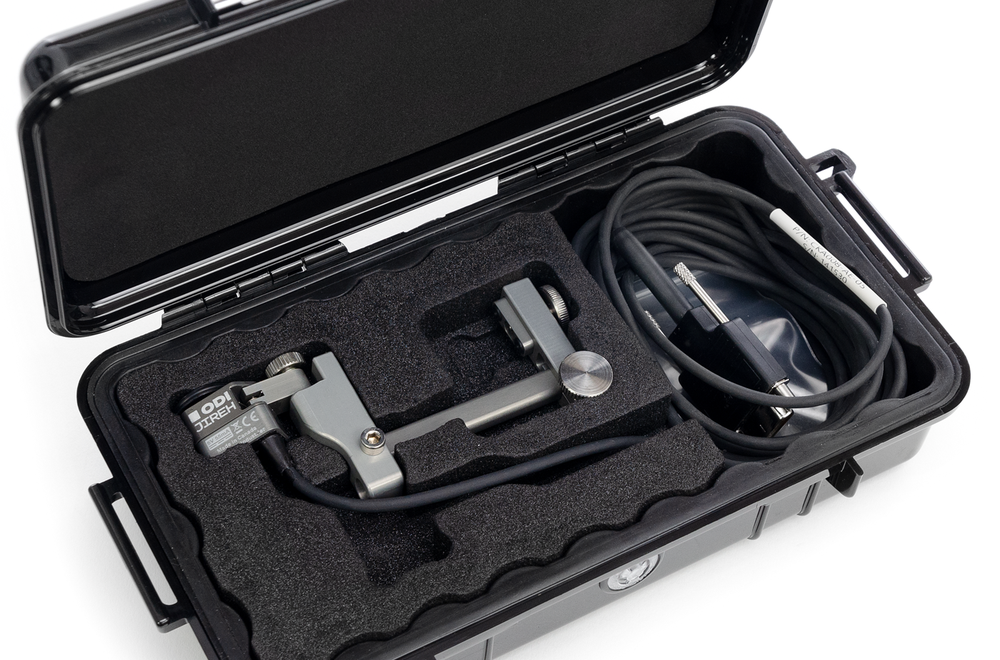

Kit Contents

Spring-loaded encoder with 2.5 m (8.2 ft) or 5 m (16.4 ft) encoder cable
Universal clamp system
Heat-treated stainless steel encoder wheel
User manual
Rugged carrying case

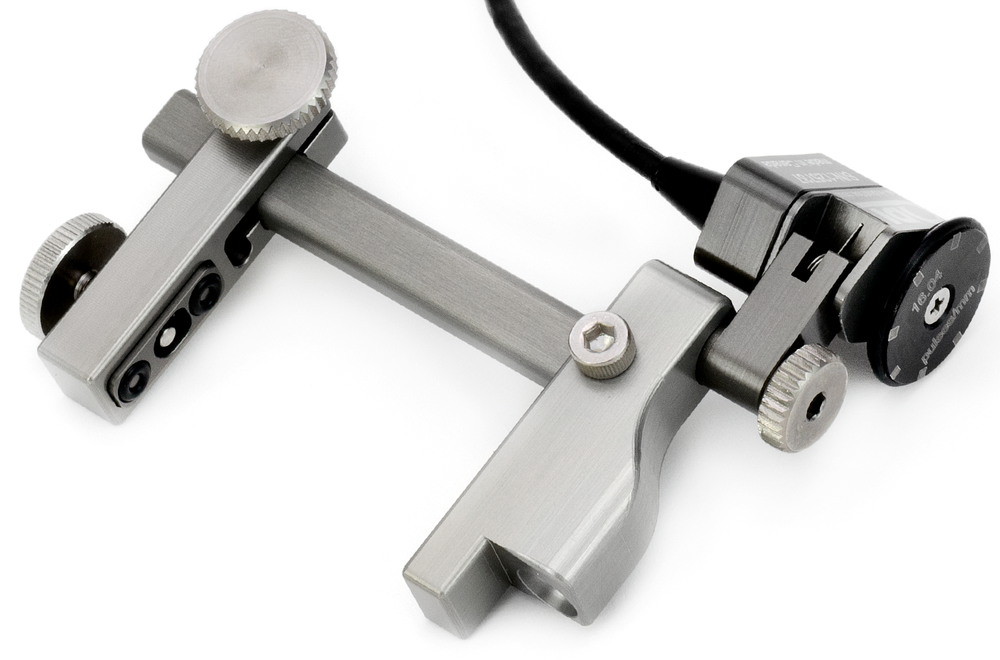

Component Identification

Clamp

Adjust the knobs to press-fit the wedge to the ODI system.

Pivot Knob

The pivot knob allows manipulation of the encoder position.

Encoder

The ODI provides a spring-loaded precise encoded linear position of a probe.

Encoder Cable

The ODI's encoder cable is compatible with most industry-standard instruments, available in 2.5 m (8.2 ft) or 5 m (16.4 ft) lengths.

Alternate Encoder Position

An alternate encoder position further enhances the flexibility of the ODI.

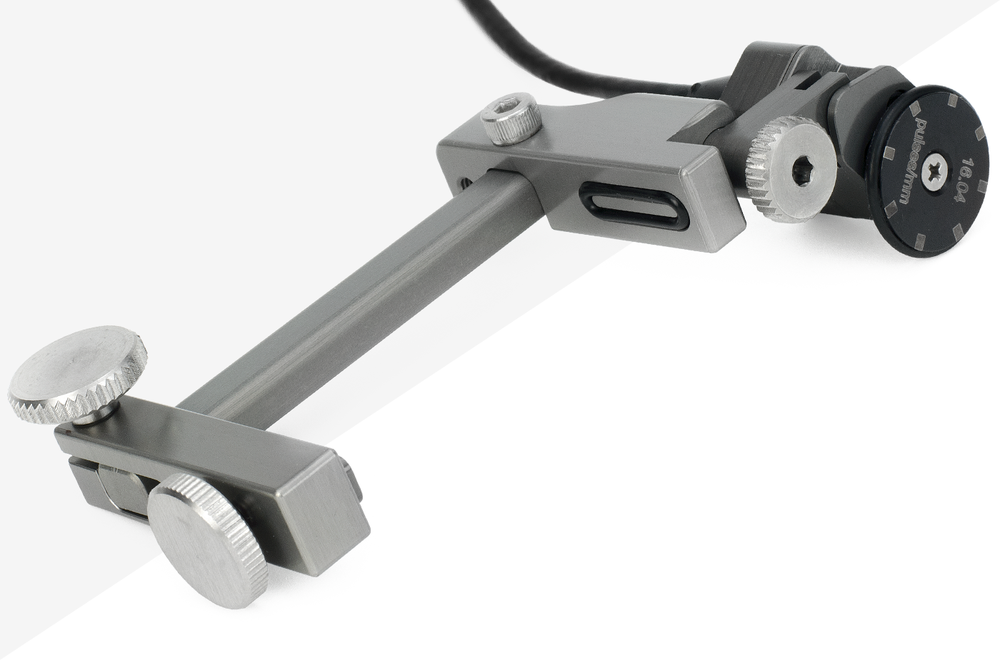

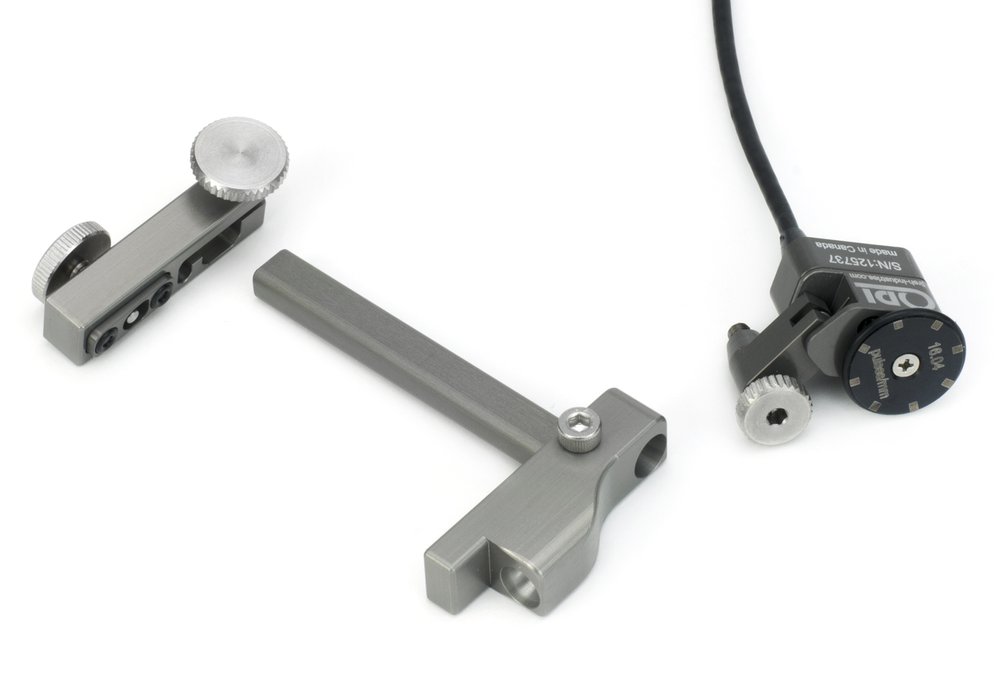

Clamp Arm

Various clamp arm lengths are available.

Parts & Add-Ons

Specifications

Path 2 CopyPath 2 Copy

GENERAL

Max Clamp Width: 55 mm (2.16 in)1
Encoder Wheel Diameter: 20.57 mm (0.81 in)
Encoder Resolution: 16.0 counts/mm (406.4 counts/inch)
Probe Holding Capacity: 1 probe/wedge
Encoder Cable Length: 2.5 m (8.2 ft) or 5 m (16.4 ft)2
Inspection Surface: Ferrous and non-ferrous

SIZE & WEIGHT

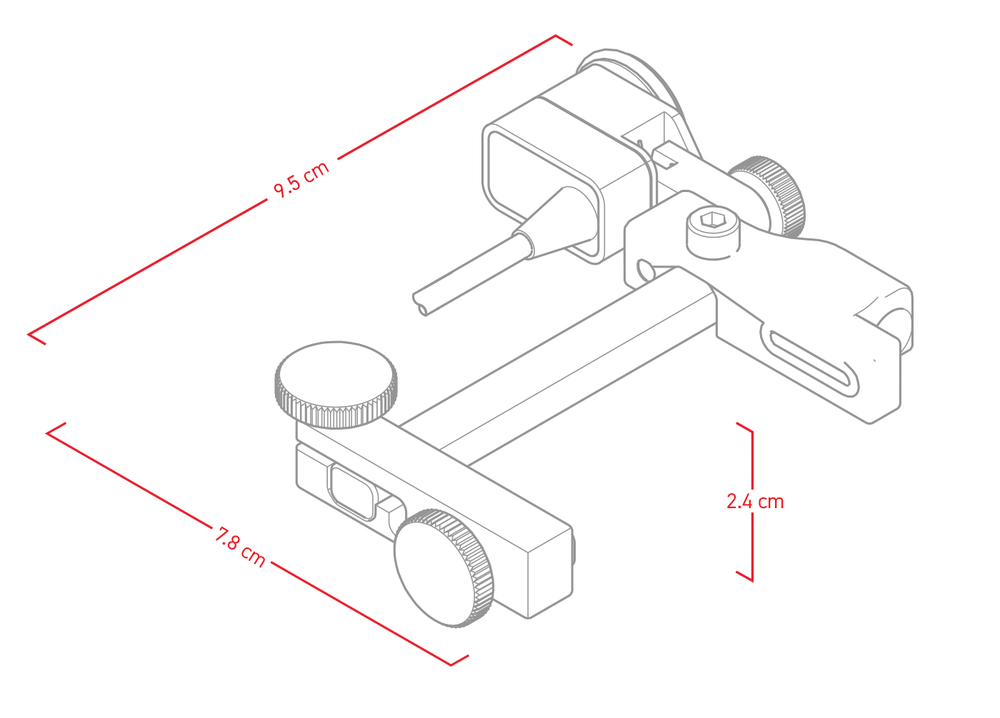

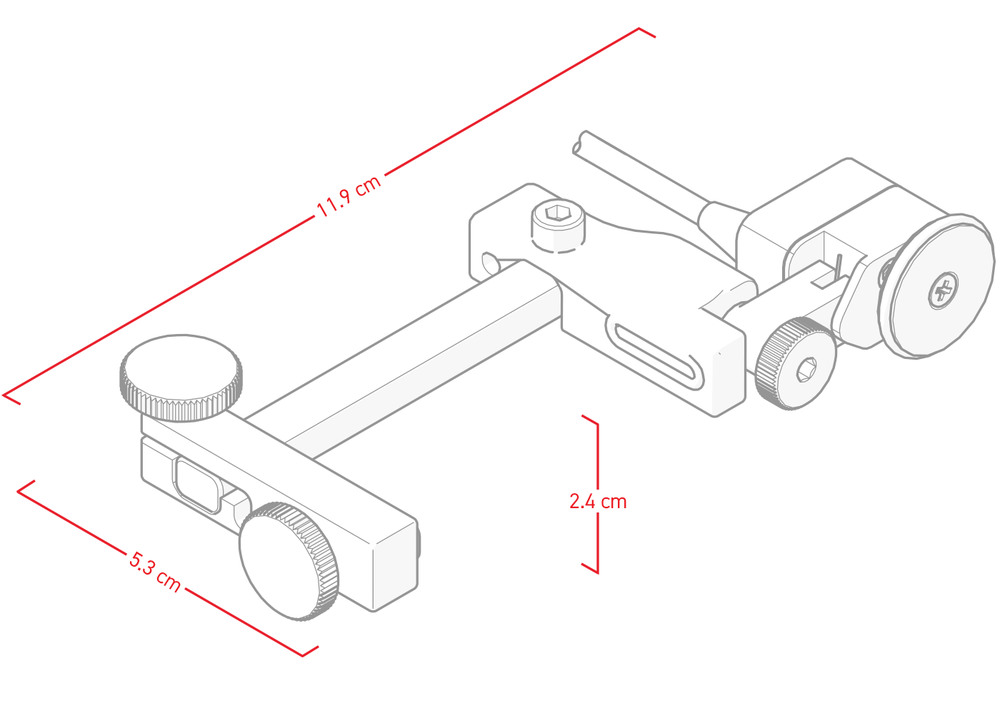

ODI Height: 5.3 cm (2.1 in)
ODI Width: 2.4 cm (0.9 in)3
ODI Length: 11.9 cm (4.7 in)
ODI Weight:  0.08 kg (0.18 lb)4
Shipping weight: 0.6 kg (1.3 lb)5

STAINLESS ENCODER WHEEL

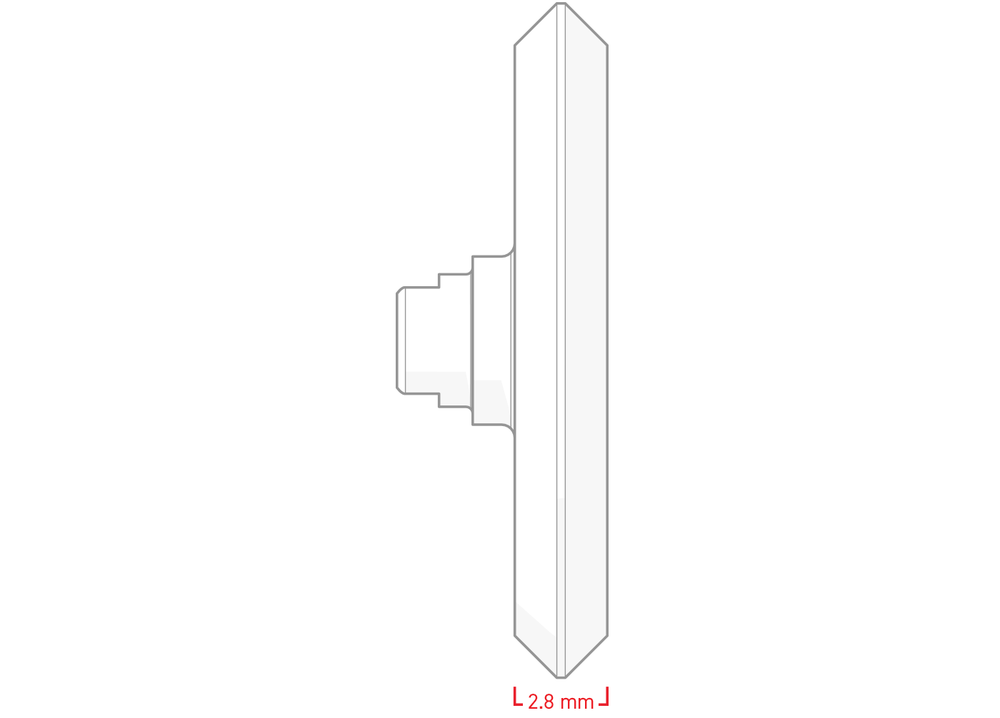

Wheel Width: 2.8 mm (0.11 in)

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details

  1. Additional clamp arm sizes are available.
  2. Custom umbilical lengths are available.
  3. Measurement does not include cabling.
  4. Weight does not include cabling.
  5. Approximate shipping weight of standard kit contents.
    Technical specifications are subject to change.

ODI - Single Probe

From USD$ 1,058.83

Encode anything. The ODI is perfect for limited access applications.

The ODI features an encoder attached to a straightforward, universal clamp system, allowing virtually any combination of probe and wedge to be held. The small size allows for single-handed operation in confined spaces, and the clamping system means probe setup is quick and easy.

Magnetic Encoder Wheel

From USD$ 249.44

Cut through gel couplant and ensure precise encoder feedback using the ODI - Magnetic Encoder Wheel. A magnetized encoder wheel maintains encoder wheel contact with the scan surface.

Clamp Arm, 90 mm

From USD$ 86.54

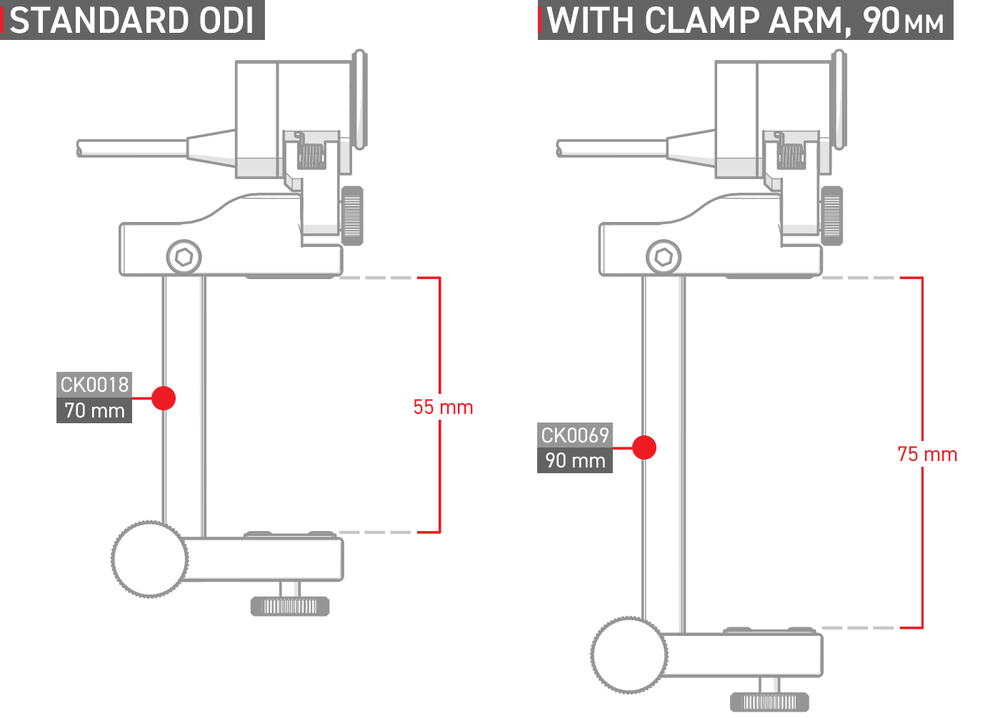

The 90 mm (3.5 in) Clamp Arm allows larger probe/wedge combinations to be used with the ODI. This clamp arm provides an additional 20 mm (0.8 in) of width beyond that of the standard ODI configuration.
