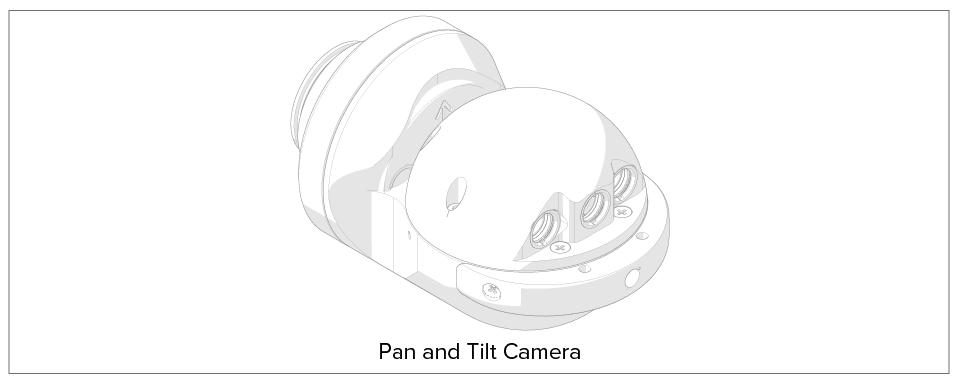

Pan/Tilt Camera
The remotely controlled pan and tilt camera, machined from solid stainless steel, is waterproof up to IP68 and has bright LED lights. It features electronic focus control and is available with PAL or NTSC video signals.
Sewer Pipe Inspection and Maintenance

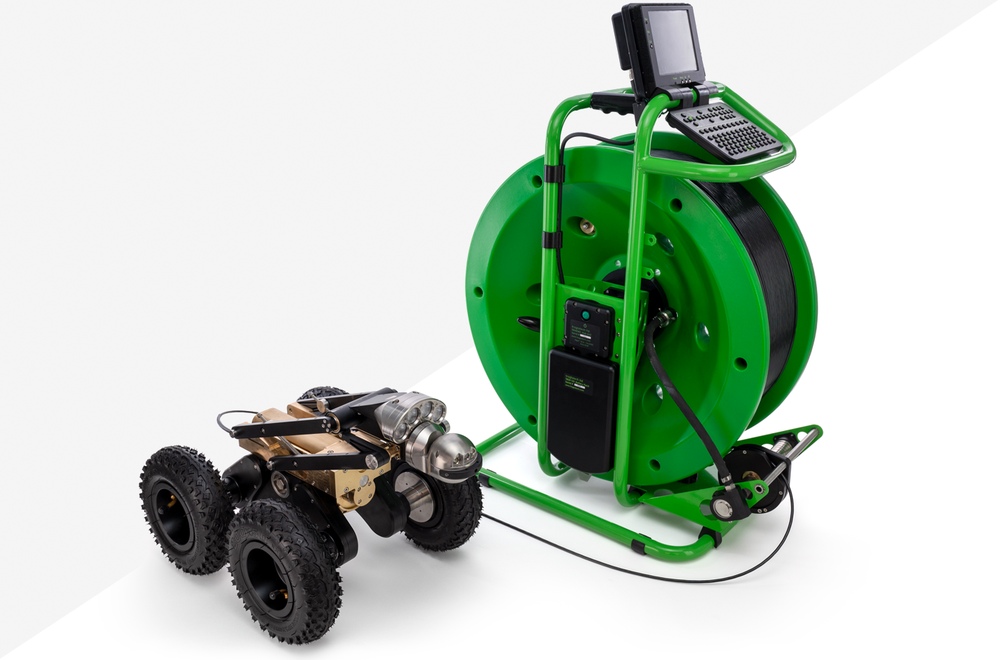

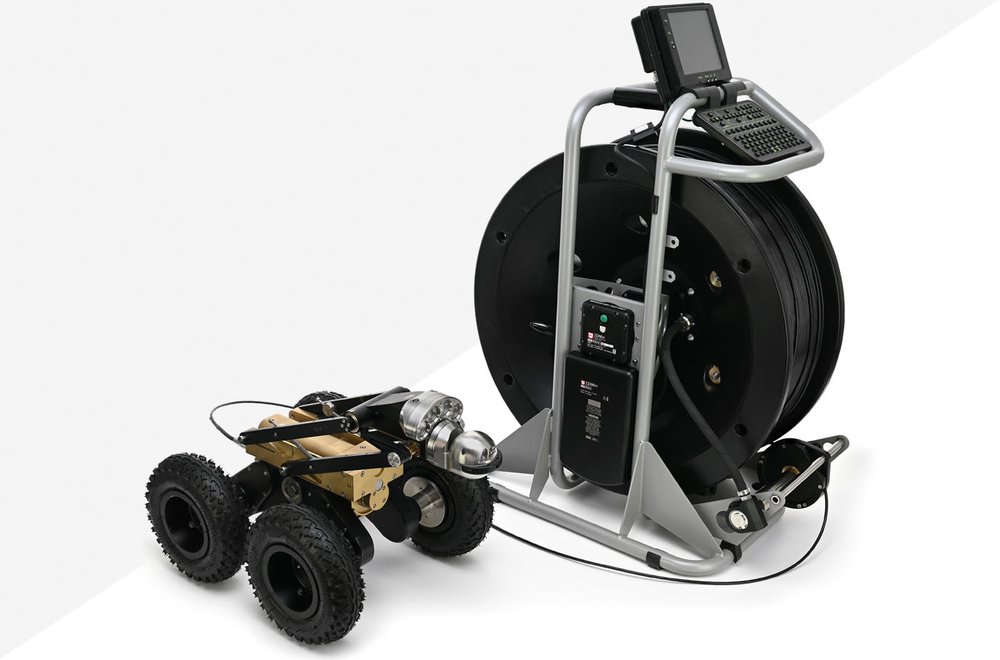

The TROGLO crawler system is an all-encompassing solution for conducting underground pipe surveys. This system, powered by a lithium-ion battery, is meticulously engineered to deliver durability and efficiency for extended use. The watertight (submersible) design ensures optimal environmental performance and enables operation in pipes as small as twelve inches in diameter up to 39 inches. (Pipes as small as 4 inches can be achieved with a conversion kit) Equipped with 300 meters (984 ft) of sturdy Kevlar cable on an auto-recoiling reel, the system facilitates live video streaming from either the front or rear camera of the crawler.
Additionally, bright LED lights illuminate the path seen by the pan-and-tilt camera. Crafted from solid brass and stainless steel, this steerable crawler features a built-in inclinometer that aids auto-steering and prevents tipping over. Enhance your survey capabilities with JIREH's cutting-edge technology and unmatched reliability.

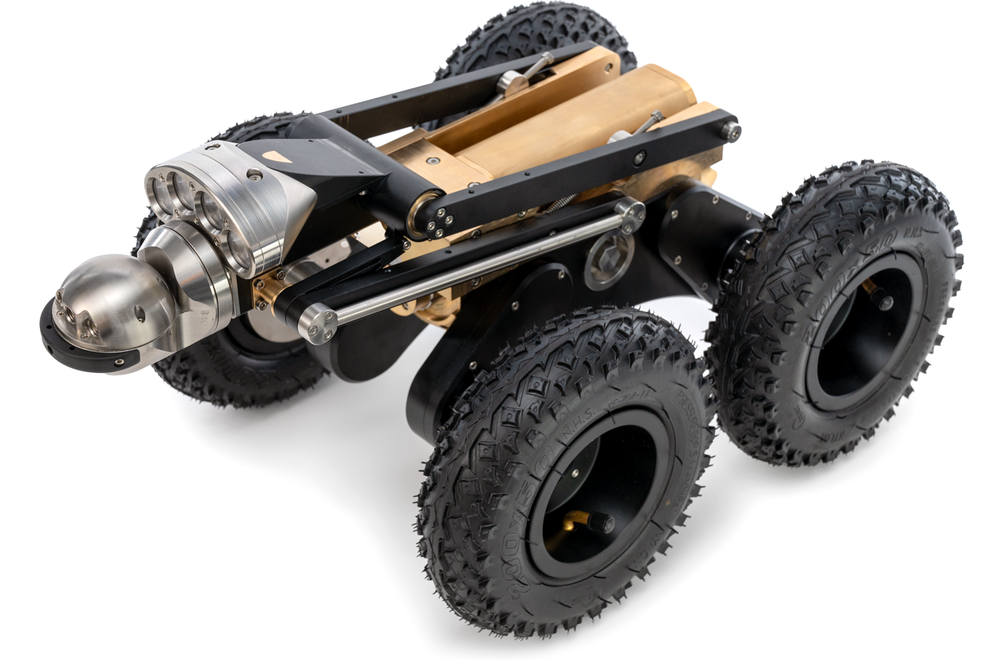

Explore the features of our battery-powered crawler, which can be controlled remotely and is waterproof. Weighing 25 kg (55 lb), it includes forward and reversing cameras for visibility during operation.

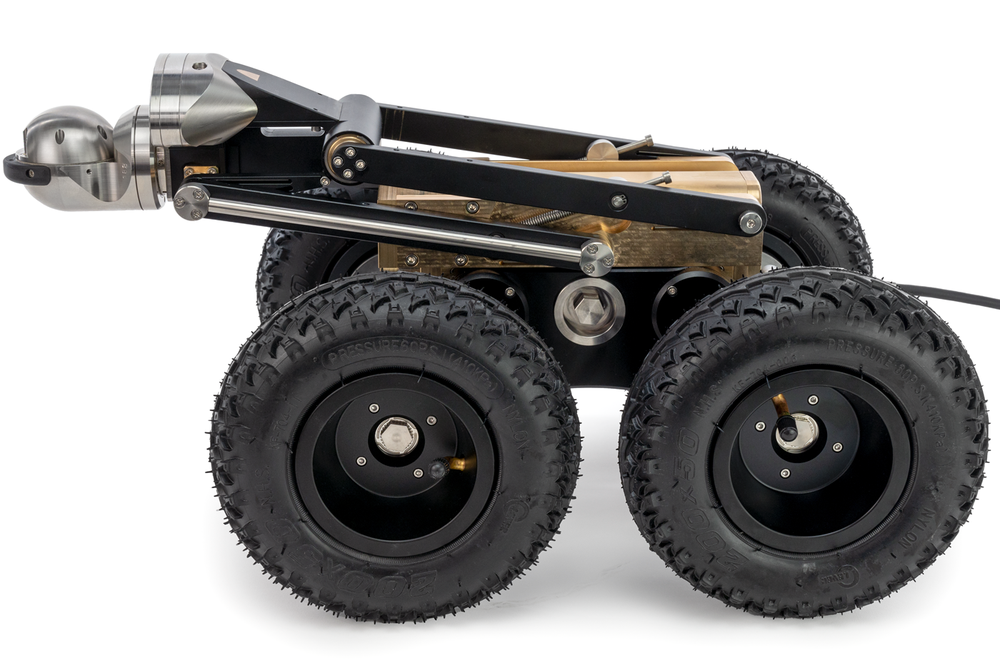

Crafted for navigating dirty pipes, fluids, and slippery terrain, these specialized wheels enhance traction for seamless advancement and dependable performance in tough conditions. Their size allows for easy climbing over debris and small obstacles.
Powered by cutting-edge Lithium-Ion battery technology, the entire system offers extended operational times without the need for bulky generators, ensuring a streamlined and hassle-free operation.

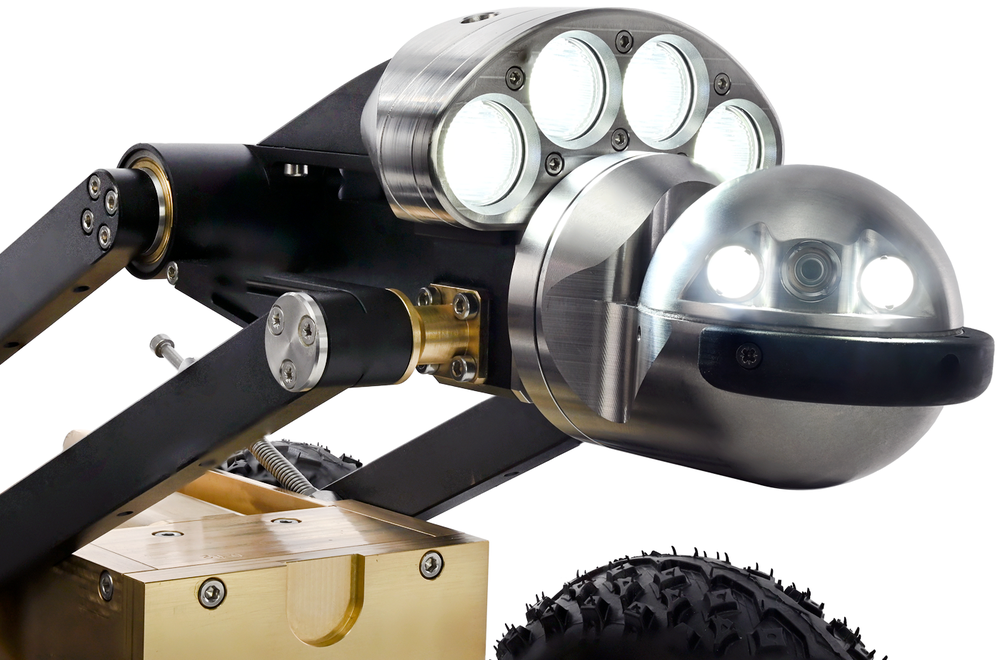

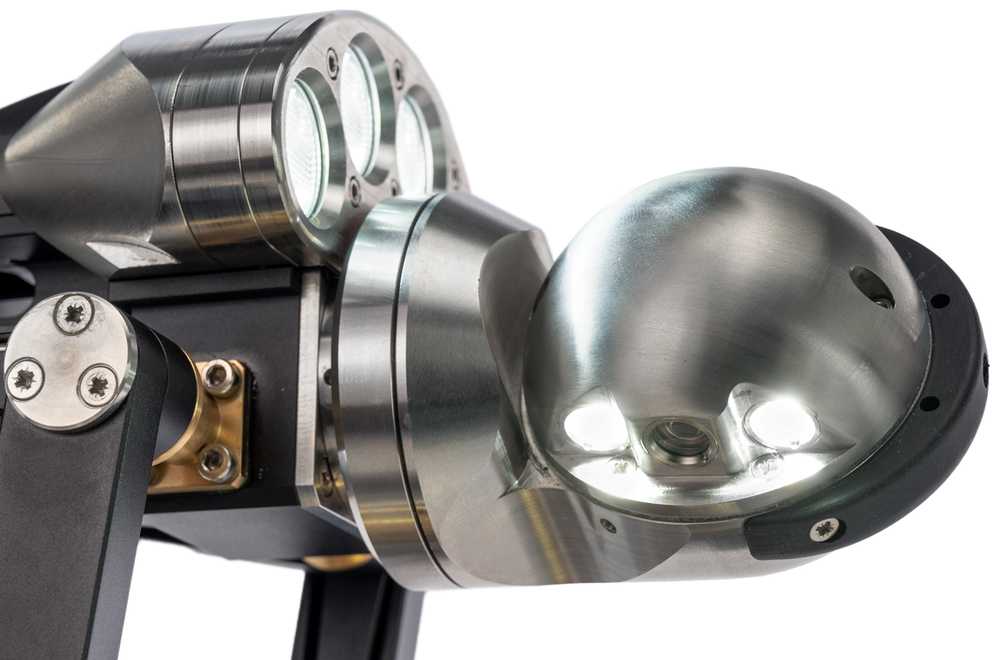

The camera head is a PTF (pan, tilt, and focus) unit with self-centring capabilities. It provides a 360-degree tilt range, 285-degree side-to-side panning, and manual focus adjustment from 20 mm (0.8 in) to infinity. Equipped with CMOS chips and "Digital Clarity" enhancements, the cameras also feature dual high-intensity LEDs. This camera can be remotely controlled via a 14.2 cm (5.6 in) high-brightness colour display.
The pan/tilt camera is accompanied by two LED lights for enhanced illumination.

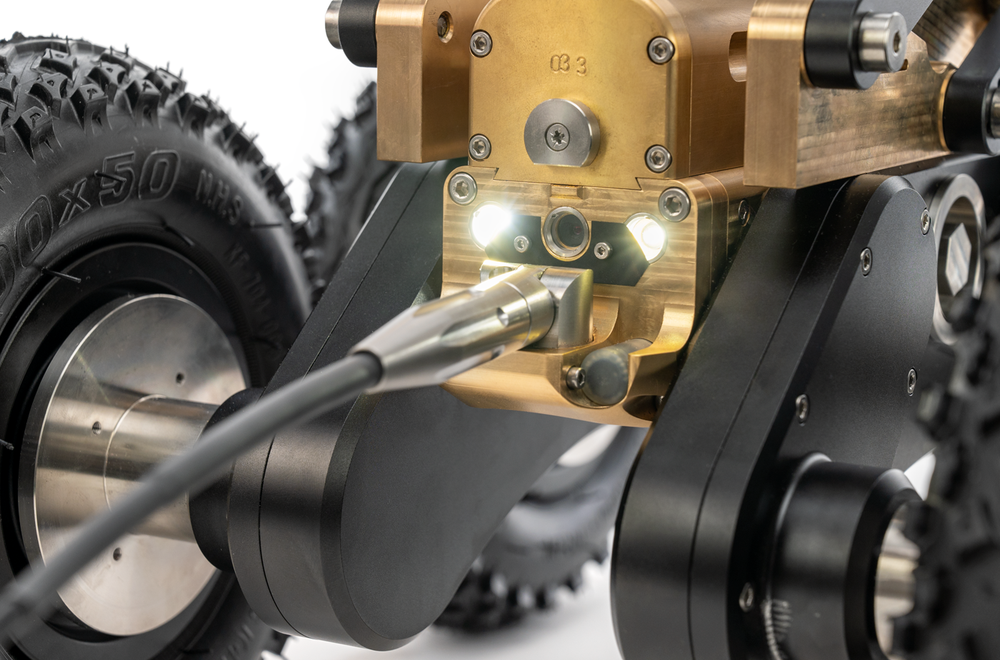

After completing the inspection, guide the crawler out of the pipe using the rear-facing camera and dual bright LED backup lights.
The video processor and the 14.2 cm (5.6 in) high-brightness colour display include a sun shield, a keyboard for controlling and navigating the crawler, storing up to 9 pages of text, a memory card for documenting inspections, an onscreen foot counter, an inclinometer, and a pressure sensor.

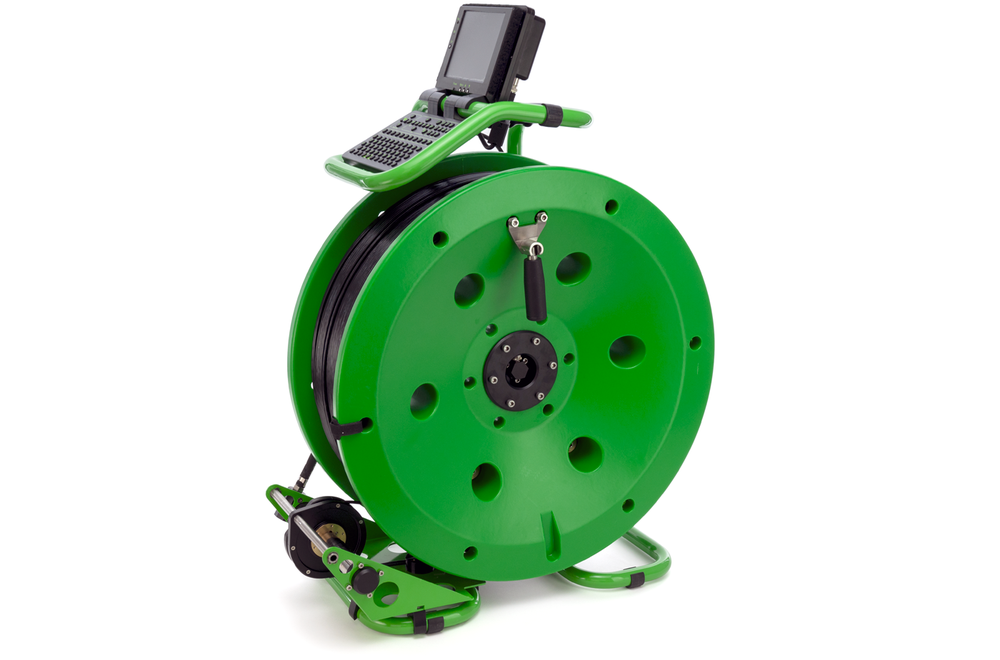

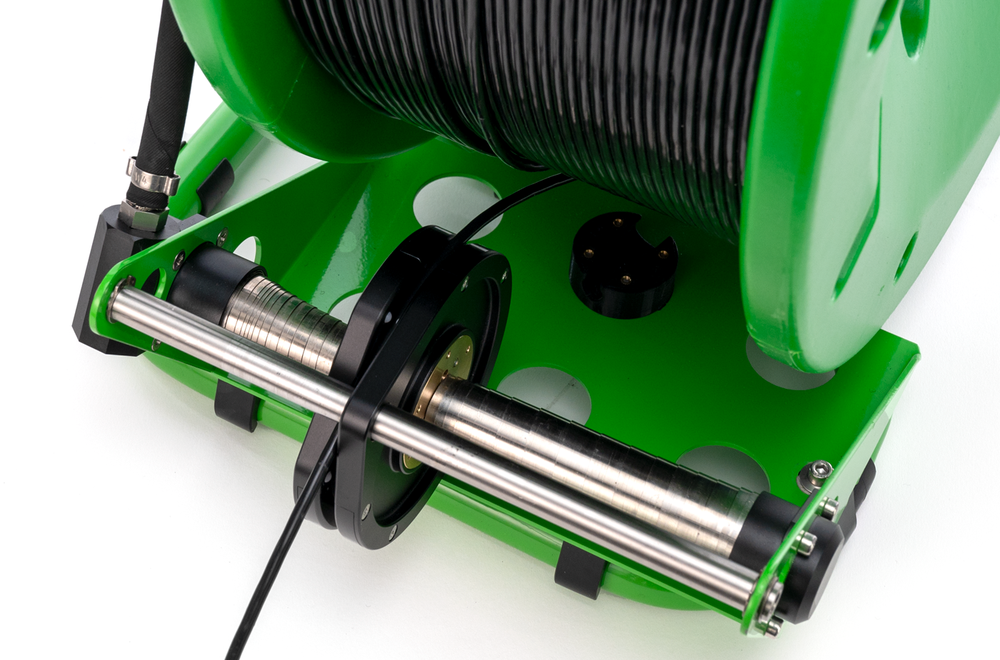

The aluminum cable reel serves dual purposes: it accommodates the 300-meter (984 ft) cable reel and features a seamless cable feeder for effortless reeling after completing your inspection. This fully motorized reel also integrates an advanced rechargeable power cell, providing over 4 hours of continuous operation. The reel is also available for order as a manually recoiling option, providing flexibility and choice for our clients.

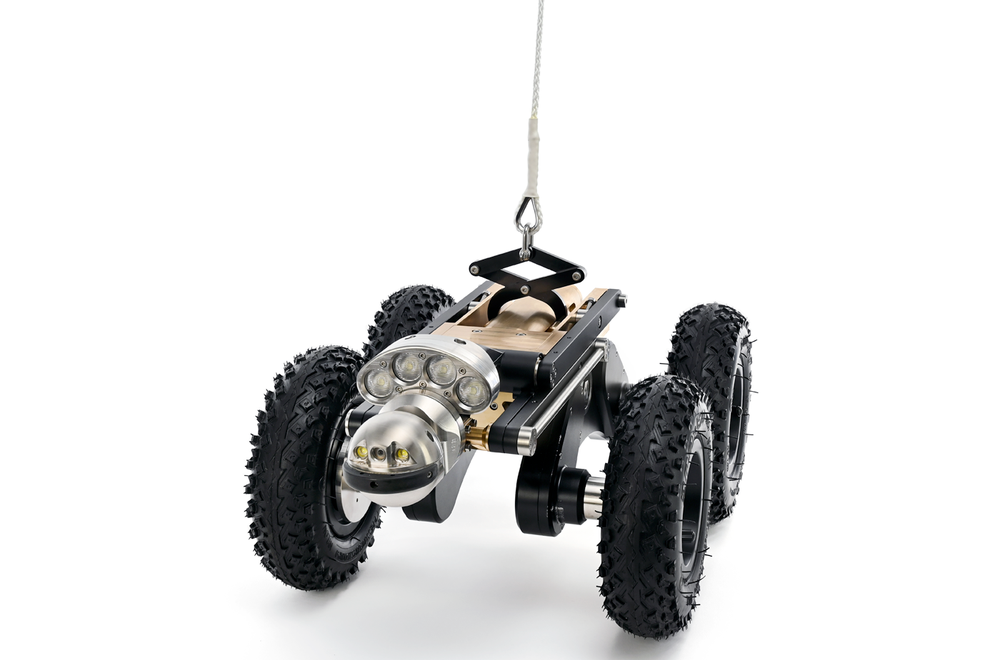

The lifting device allows the crawler to descend into a horizontal inspection setting through a vertical manhole or access point. This same device can also lift the crawler back up when needed.

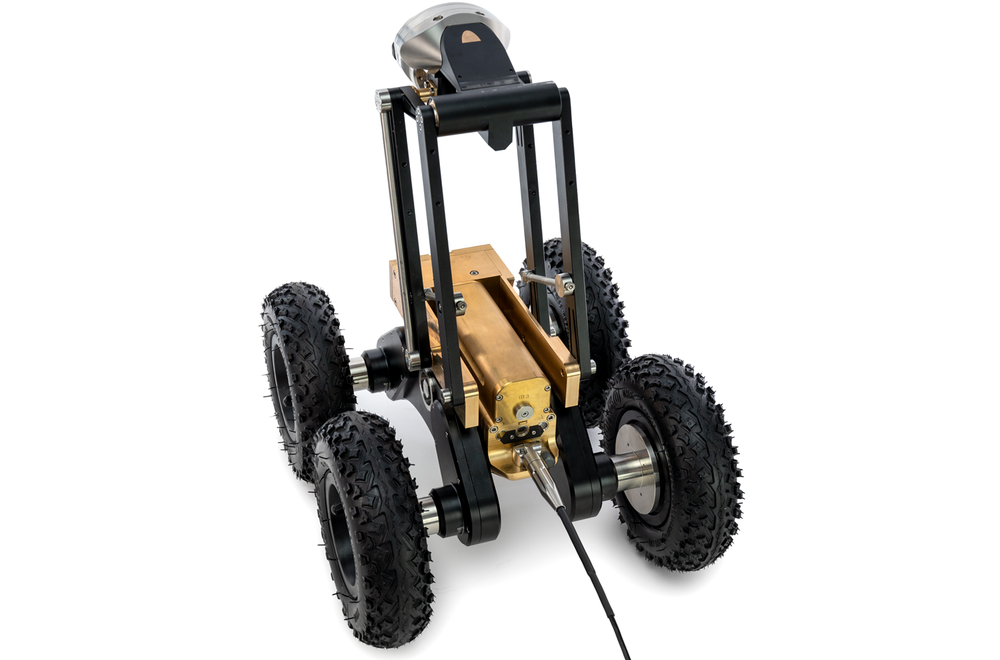

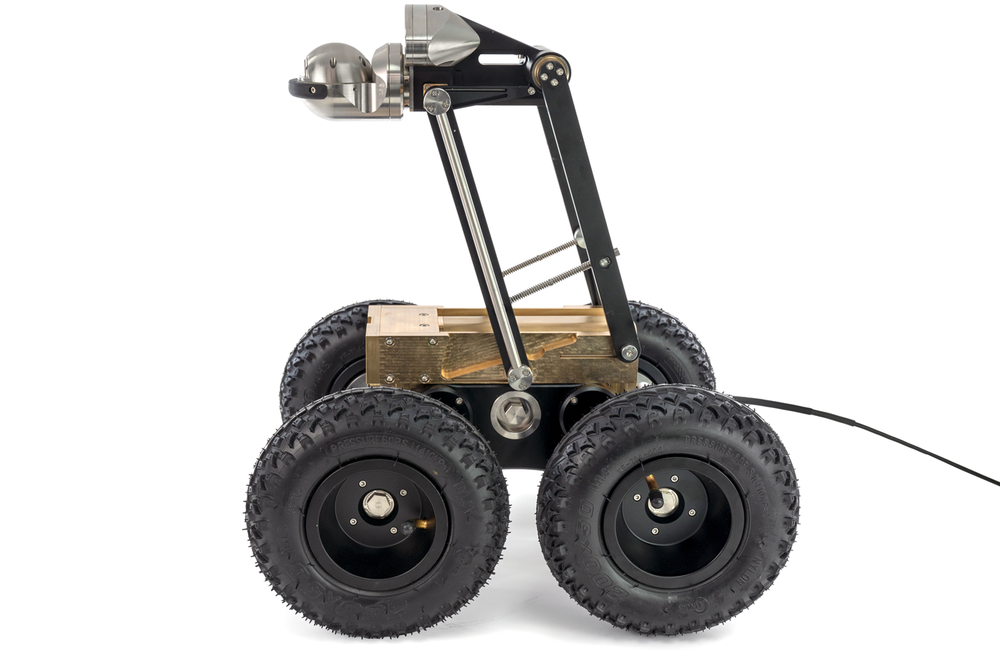

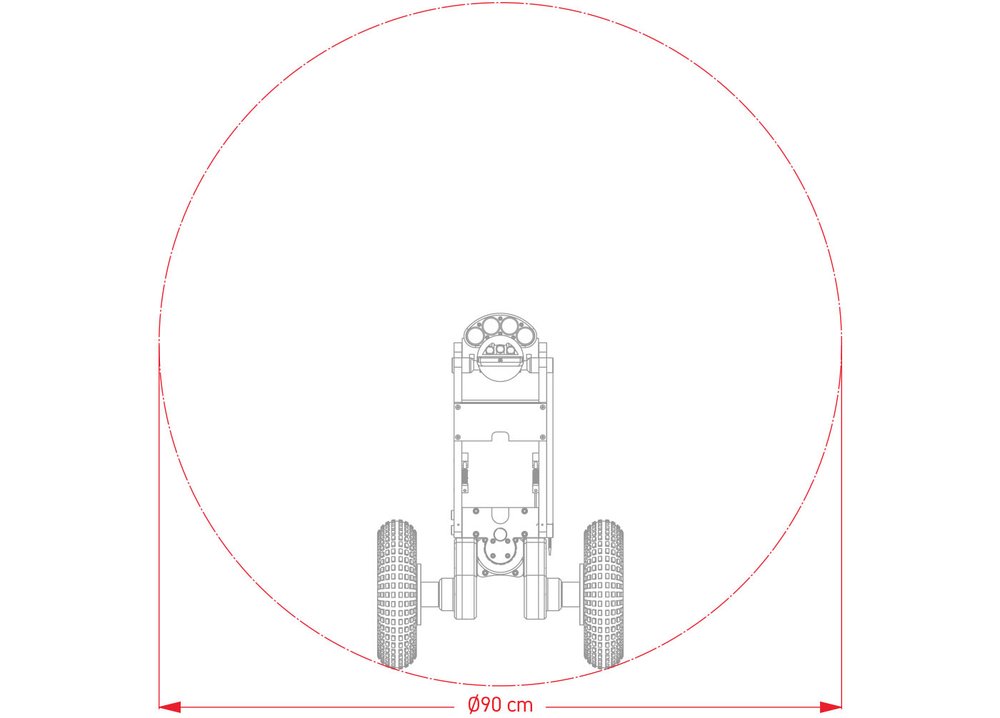

Our optional elevator feature can lift the camera for the centred inspection up to 99 cm (39 in). This powered camera elevator is remotely controlled from the handheld device, allowing for easy camera repositioning.

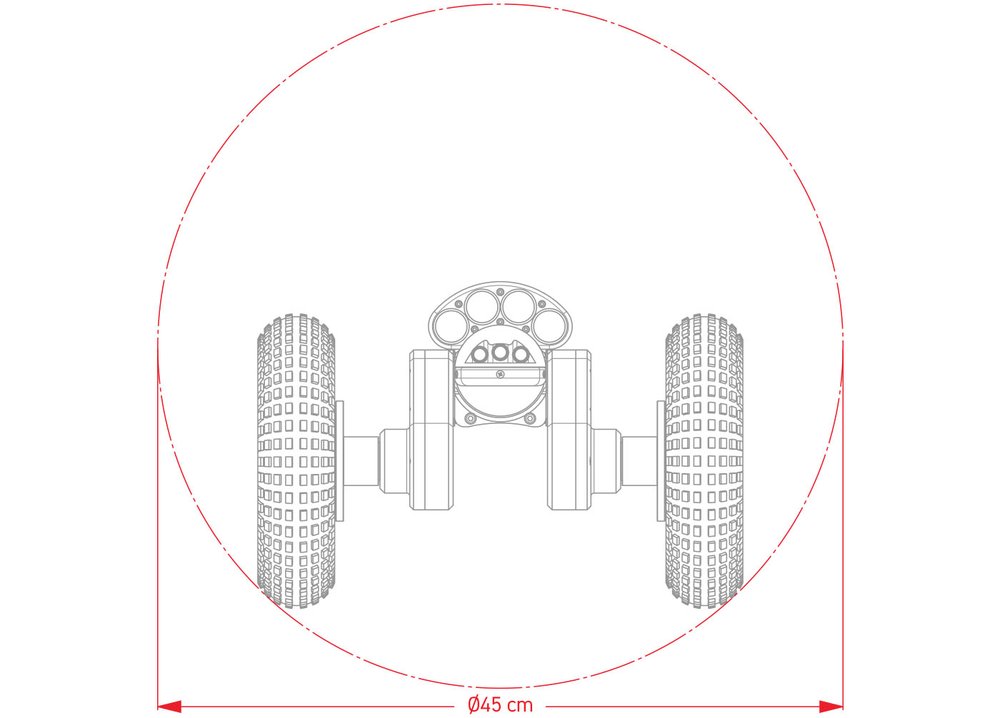

The crawler can traverse pipes as large as 99 cm (39 in) while maintaining the camera at the center of the pipe for optimal inspection results.

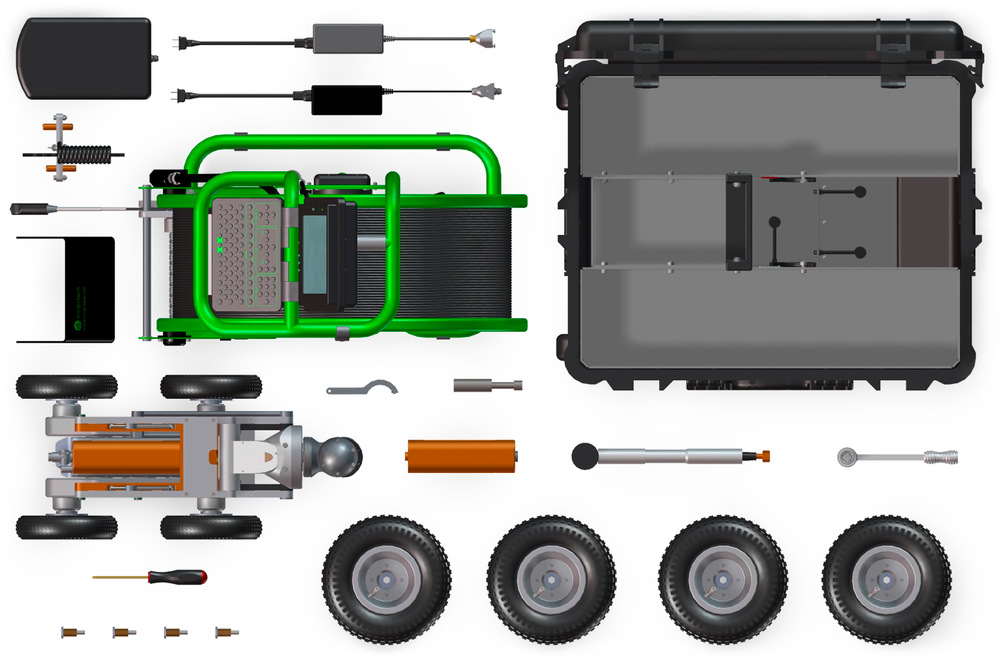

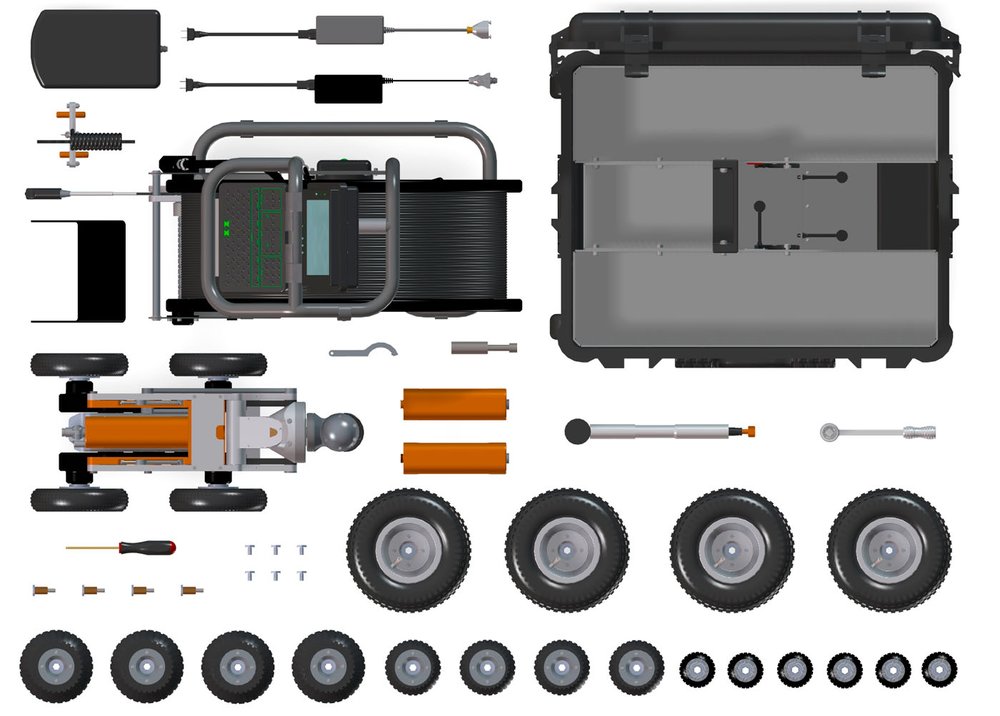

TROGLO - Large Crawler:
Large battery
Camera (user-selected)
Elevator
Lighthead
Pneumatic wheels x4
Reel: (Manual or Powered Reel available)
300 m (984 ft) cable
Battery
Battery charger (North American, European or UK plugs available)
Video monitor with keyboard
Video monitor sunscreen
Troglo large battery charger (North American, European or UK plugs available)
Large Battery
Large Pneumatic wheels x4
Screws for wheels x4
Lifting device
User manual
Rugged carrying case
15 mm nut driver
15 mm socket
3/8" ratchet
Spanner tool
Pump
3 mm hex driver

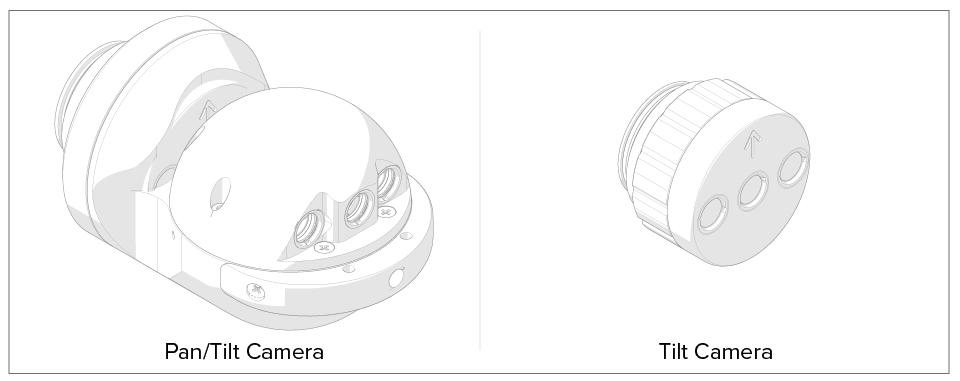

The remotely controlled pan and tilt camera, machined from solid stainless steel, is waterproof up to IP68 and has bright LED lights. It features electronic focus control and is available with PAL or NTSC video signals.

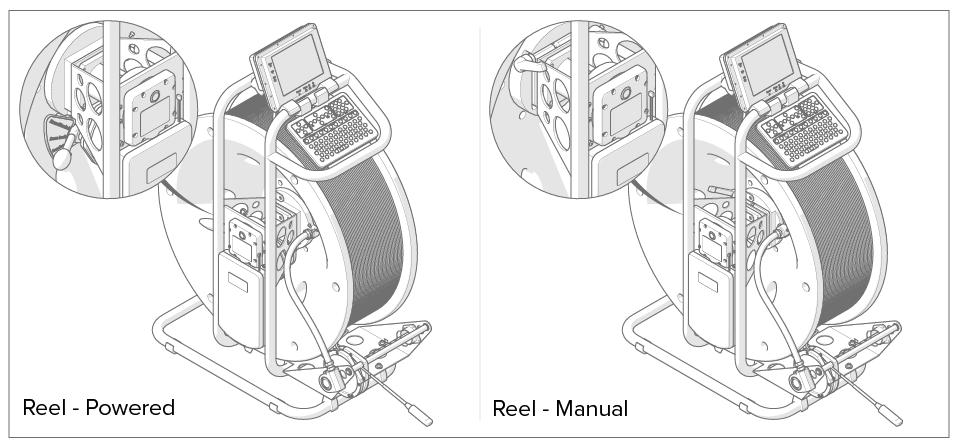

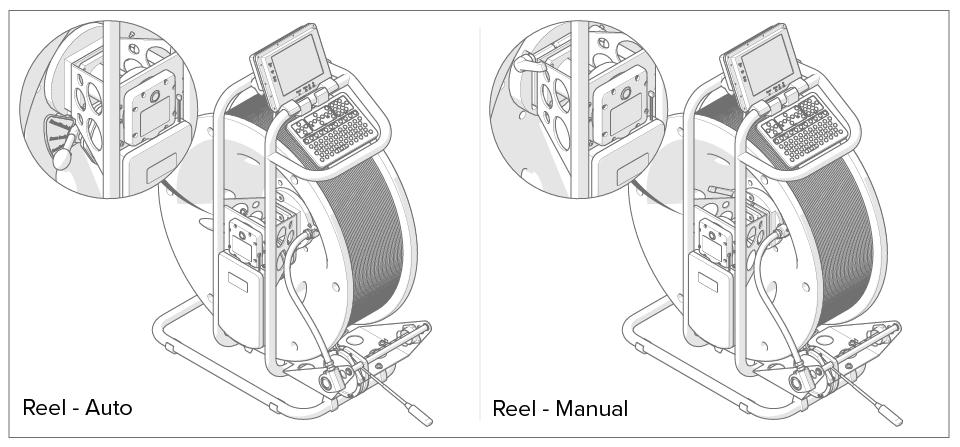

While the reels are similar, users can select an auto or manual version. The powered reel automatically retracts the cable, whereas the manual reel requires manual retraction by hand.
The plug designation of the power cord may be chosen to suit the standard of your region best. Select 'No Cord' should you wish to build a specific power cord not listed here. Contact a JIREH sales specialist for more information.
