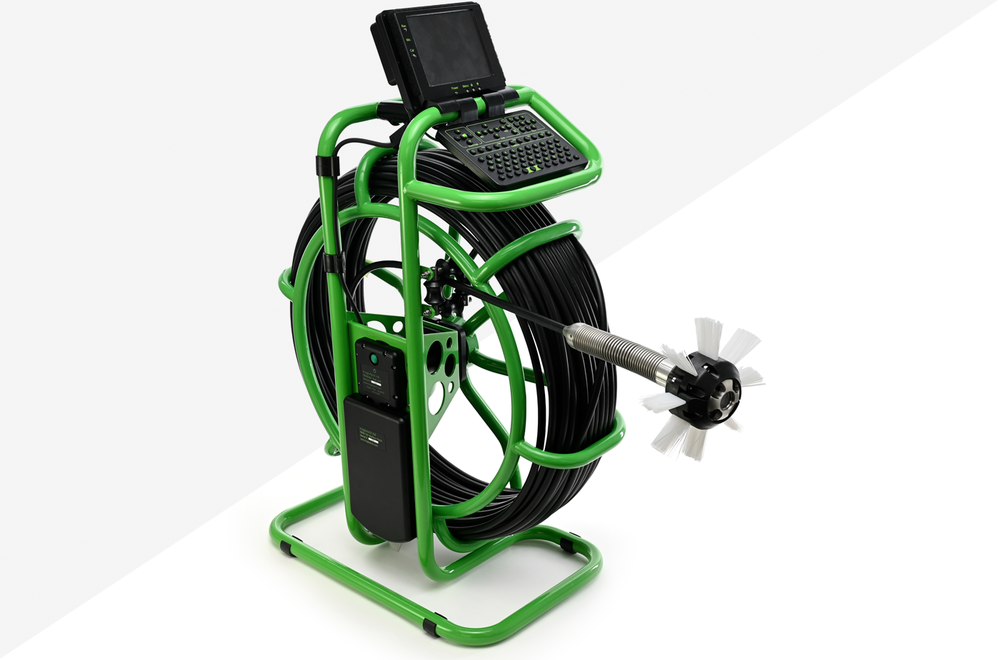

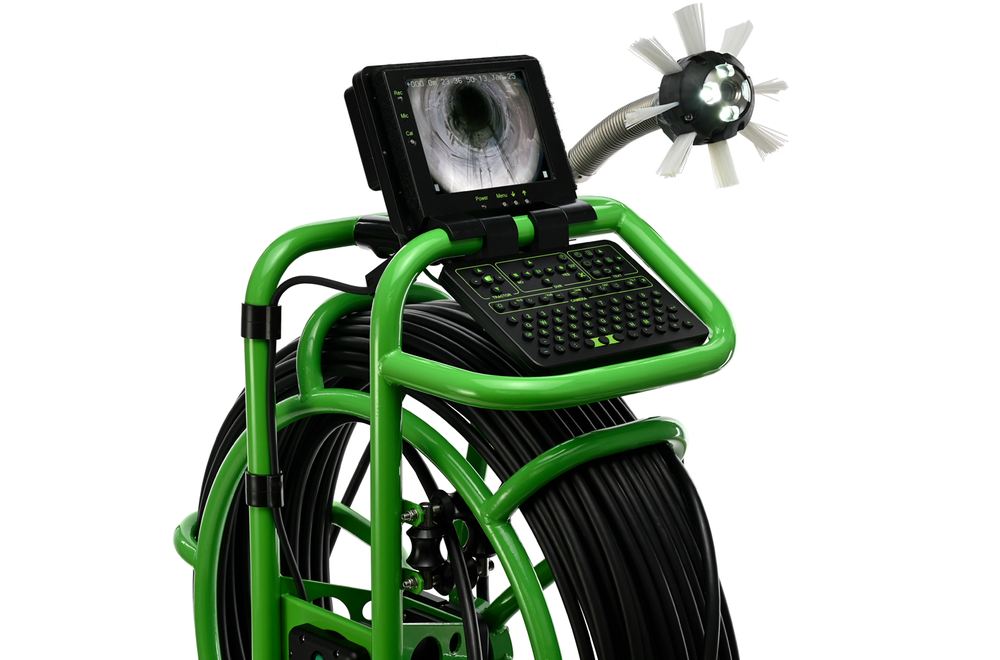

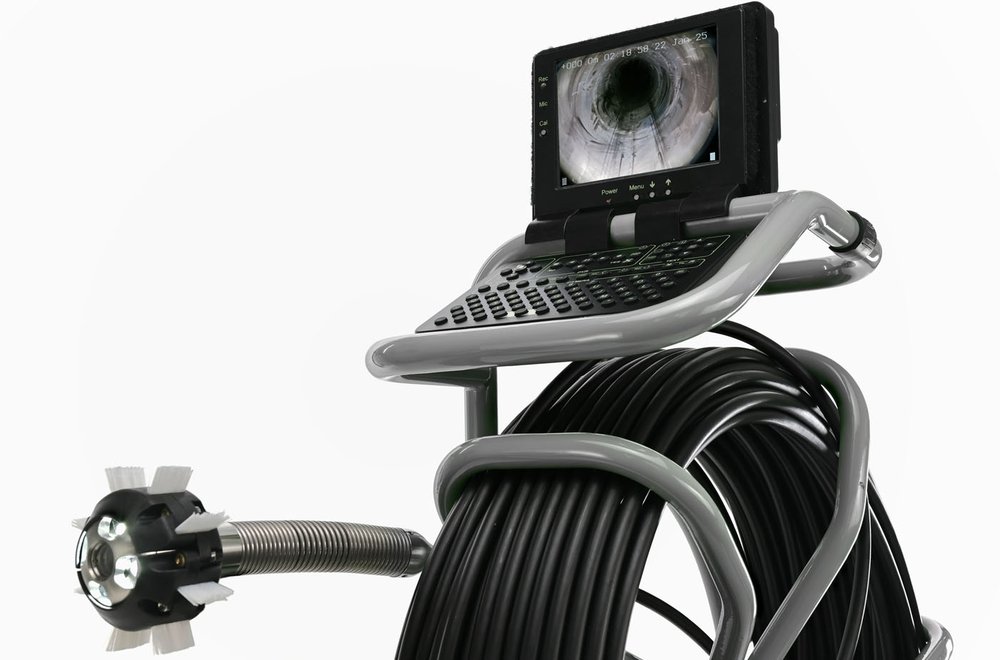

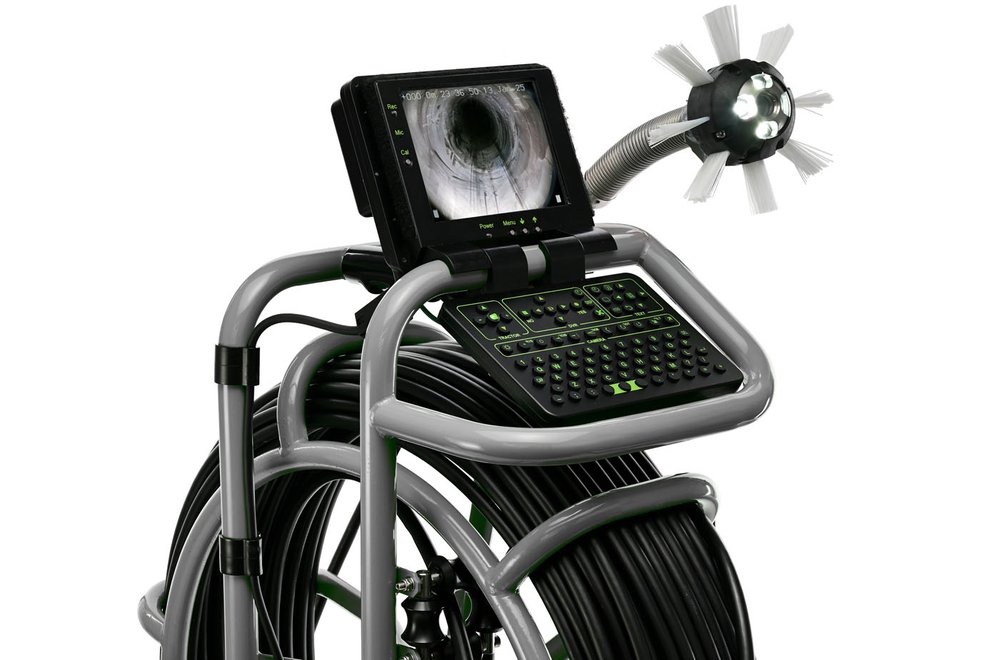

The TROGLO • CAM boasts exceptional features, including waterproof protection for reliable performance in fluid-filled pipes. Users can select from camera heads, including 1-inch and 2-inch models and Pan & Tilt models. The system simplifies operations with one-touch recording to an SD card and snapshot capabilities. Its user-friendly design eliminates the need for complex menus, computers, or touchscreens, ensuring straightforward usage for all. The 60 m (197 ft) rod stores directly on the coiler, creating a portable, battery-powered unit that eliminates the need for a large inspection truck.
FEATURES
Battery-Powered
The rechargeable battery connects to the reel, supplying power to the camera, video screen, and LED lights. This ensures that the system operates independently without the need for generators or plug-in power sources.
Convenient Handle
The reel handle makes it easy to carry the TROGLO•Cam. The system is lightweight and portable, enabling it to be transported and set up in confined spaces with limited room.

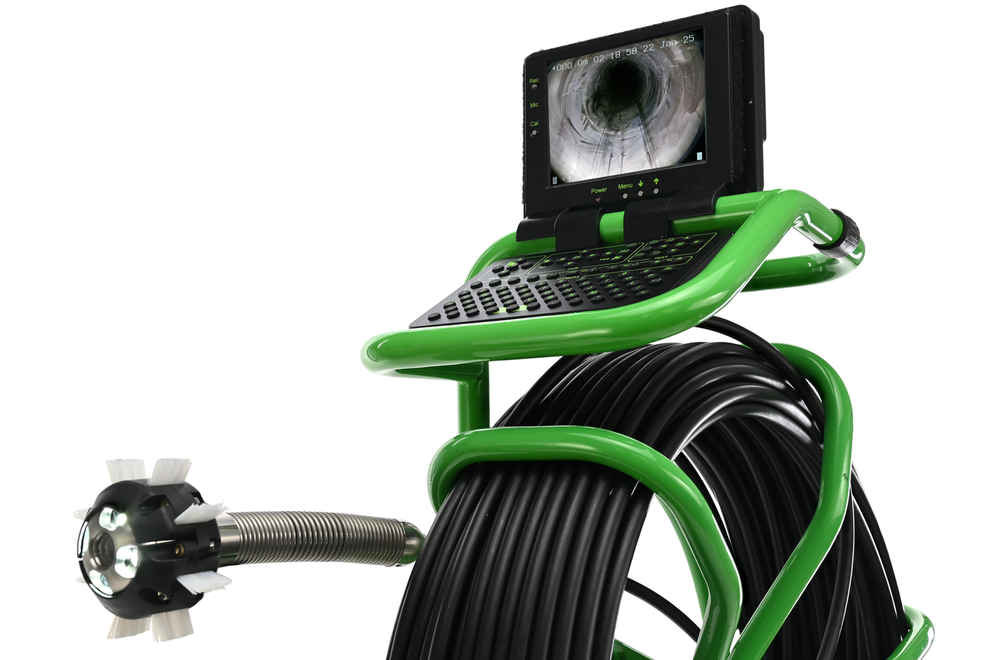

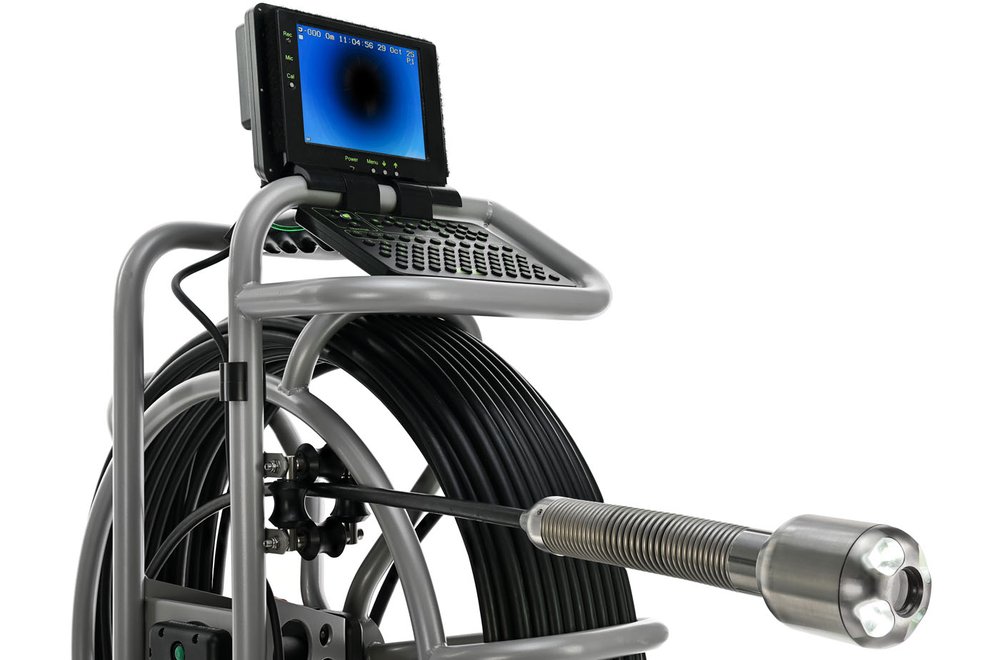

Video Monitor
The LCD for visual inspection is readable in sunlight and includes a digital video recorder with an impressive recording capacity on a single flash card, along with the capability for snapshots and video recording. Additionally, it boasts a 9-page text writer with rod-counter, time and date functionality, and a range of display modes for enhanced usability.
Brake
The integrated brake mechanism holds the reel steady when required.
Mini Pushrod
This add-on integrates seamlessly with the TROGLO • CAM reel, providing an additional 20 m (66 ft) of flexible pushrod in a compact coiler cage. The Mini Pushrod is designed for pipe inspections as small as 2.5 cm (1 in) (sold separately).
WinCan Compatible
The TROGLO • CAM is fully compatible with WinCan, allowing for a seamless inspection and reporting workflow using your own laptop or control console.
Kit Contents
COILER:
60 m (197 ft) rod length
Camera (user-selected, see below)
Video monitor with keyboard and sunscreen
PARTS & ACCESSORIES
Battery
Battery charger (North American, European or UK plugs available)
Brushed skid with 4-inch and 6-inch nylon brushes
Brushed skid reducer
User manual
Rugged carrying case
TOOLS
Spanner tool
CAMERAS

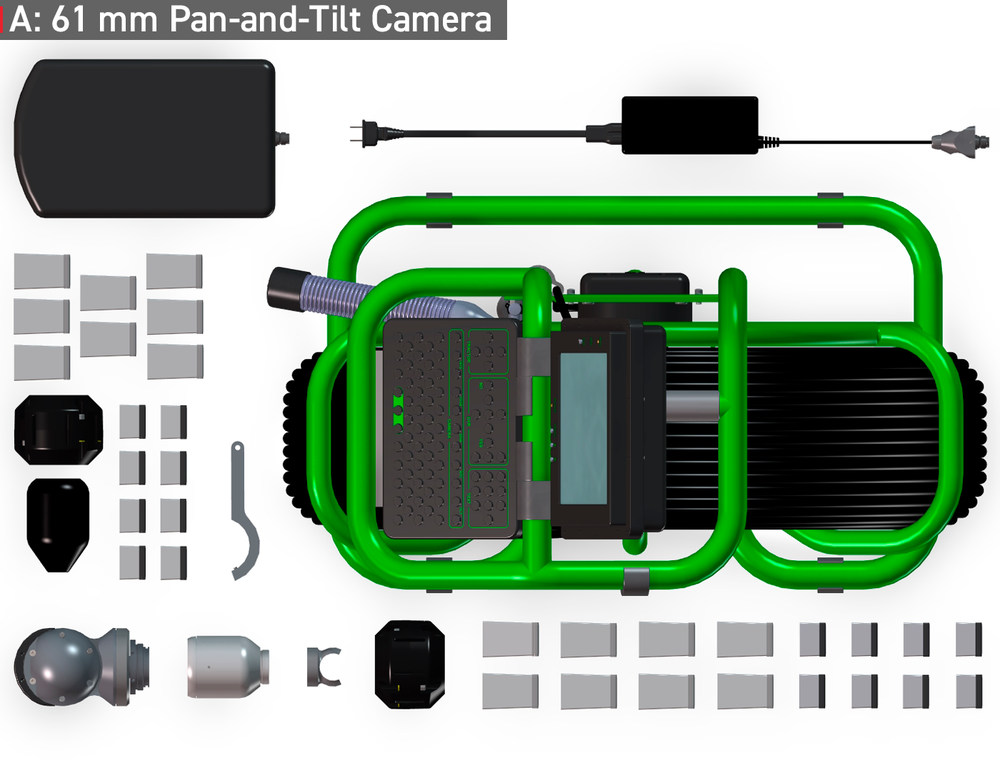

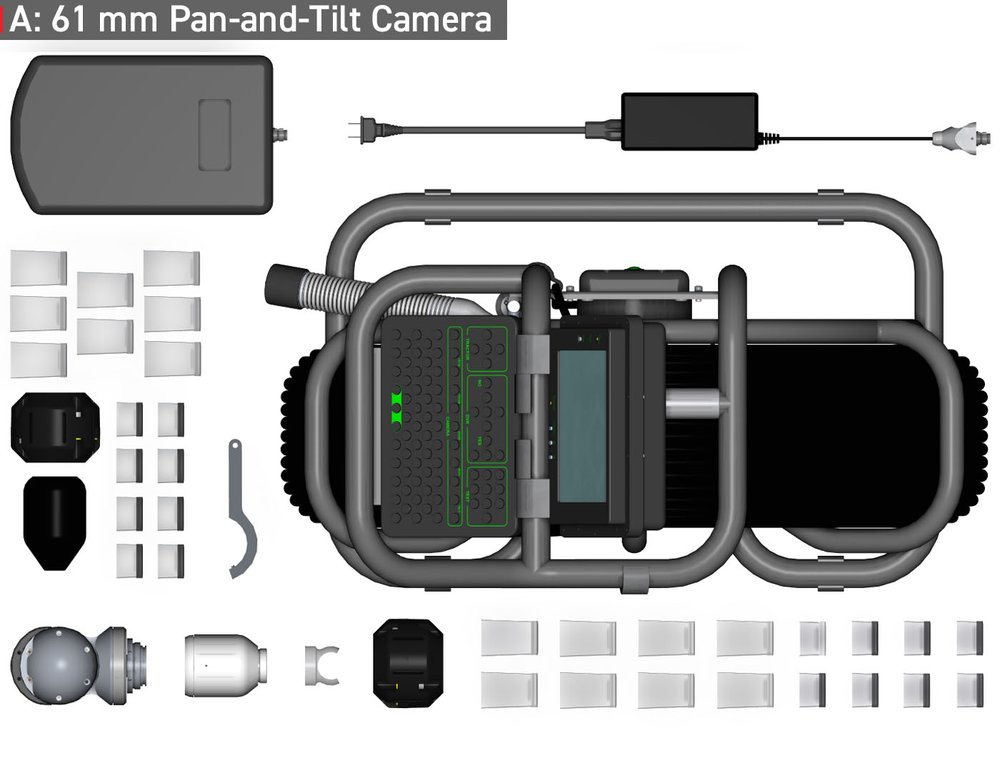

-A: 61 mm Pan-and-Tilt camera
Brushed skid with 4-inch and 6-inch nylon brushes
Pushrod adapter
Cap

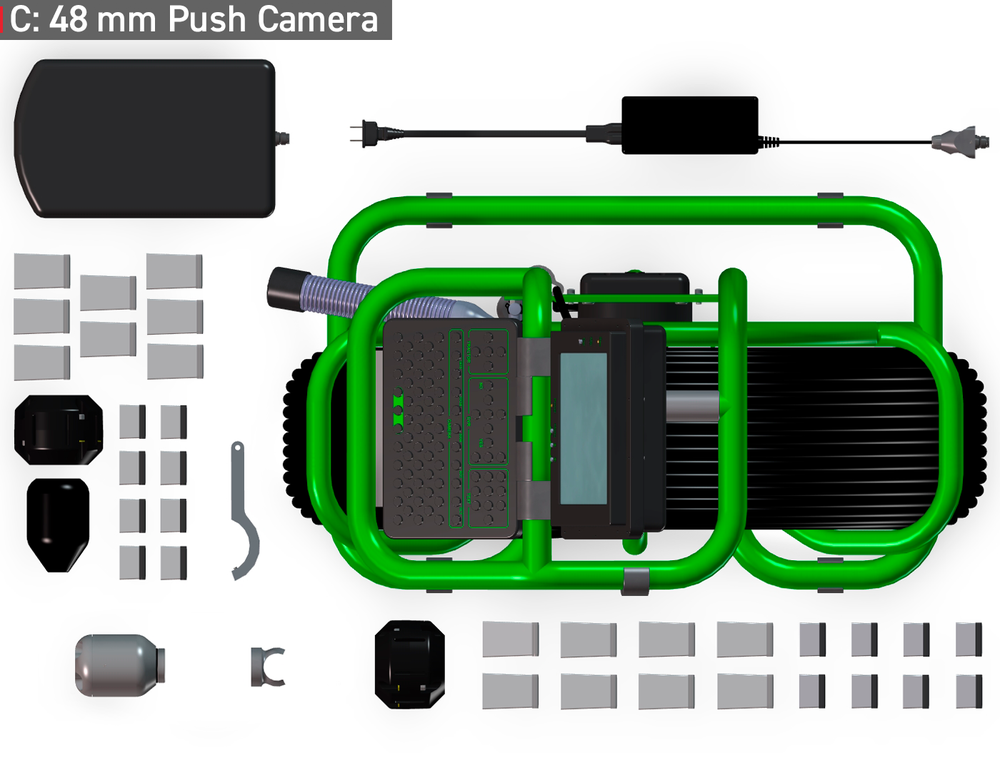

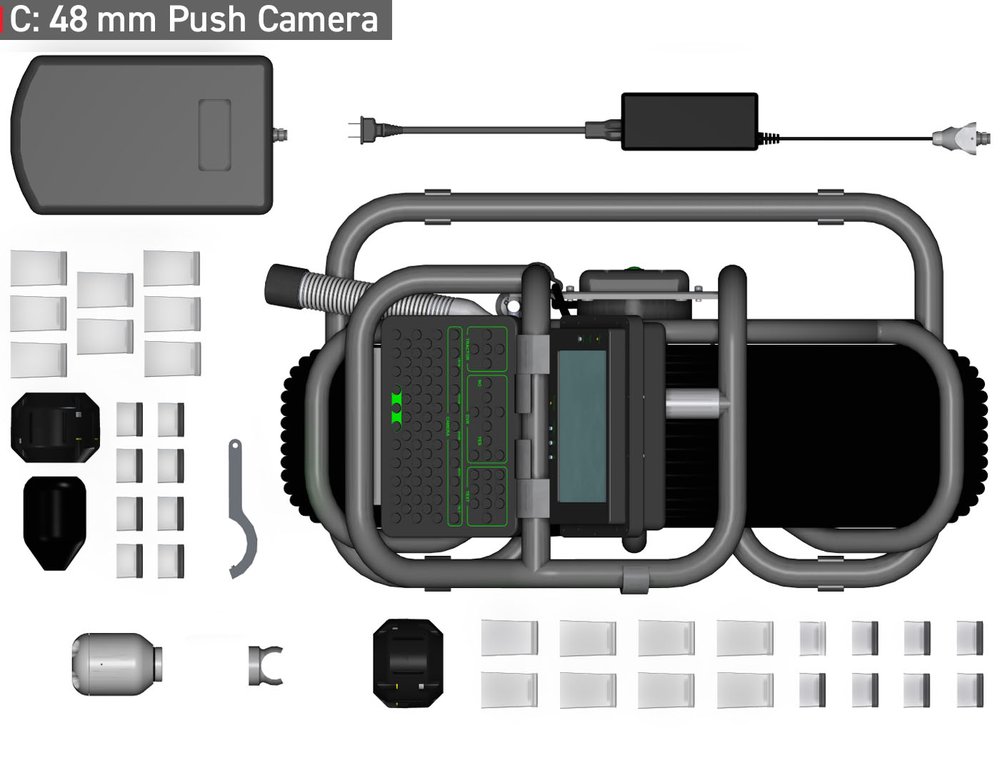

-C: 48 mm push camera
Brushed skid with 4-inch and 6-inch nylon brushes
Cap

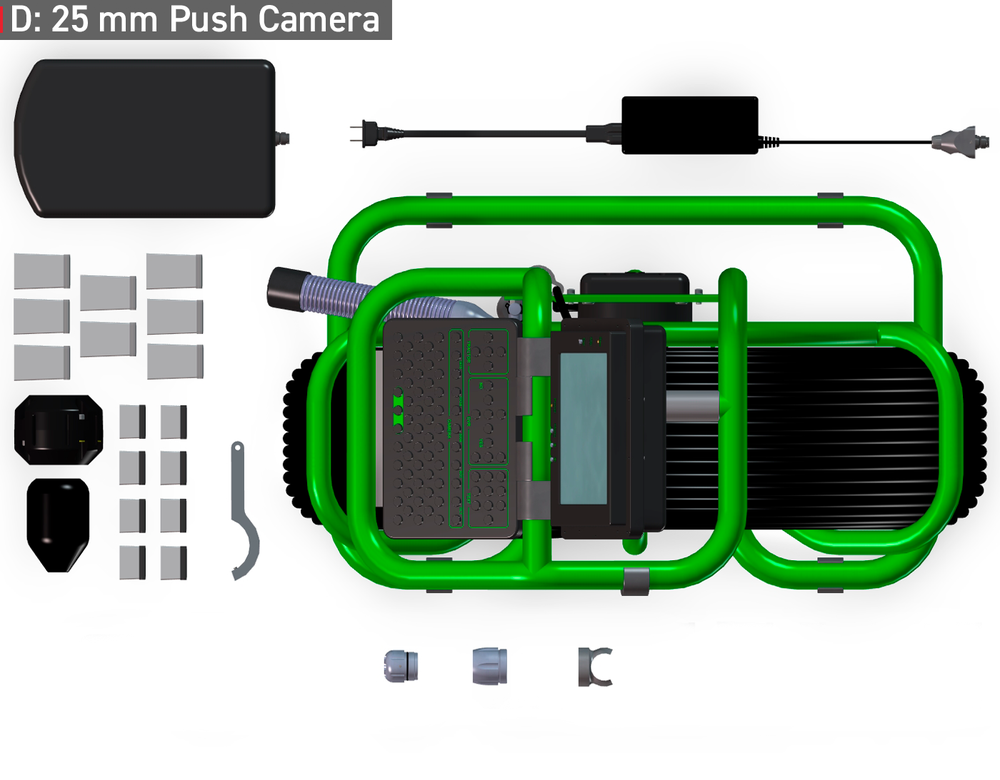

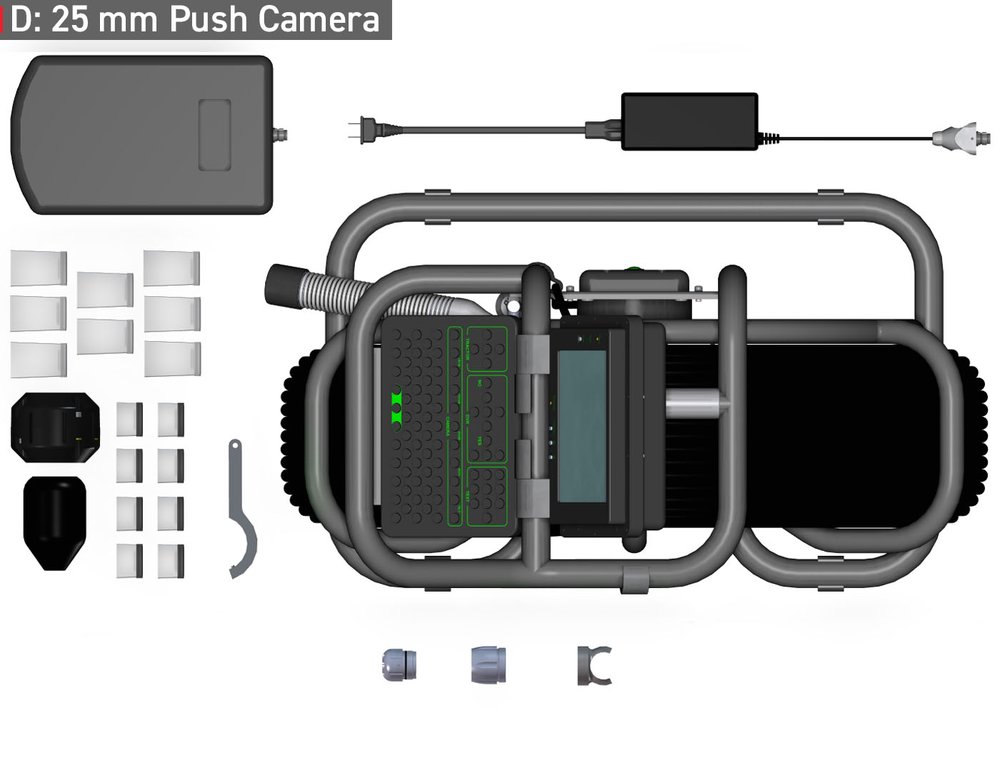

-D: 25 mm Manual push camera
25 mm push camera adapter
Cap

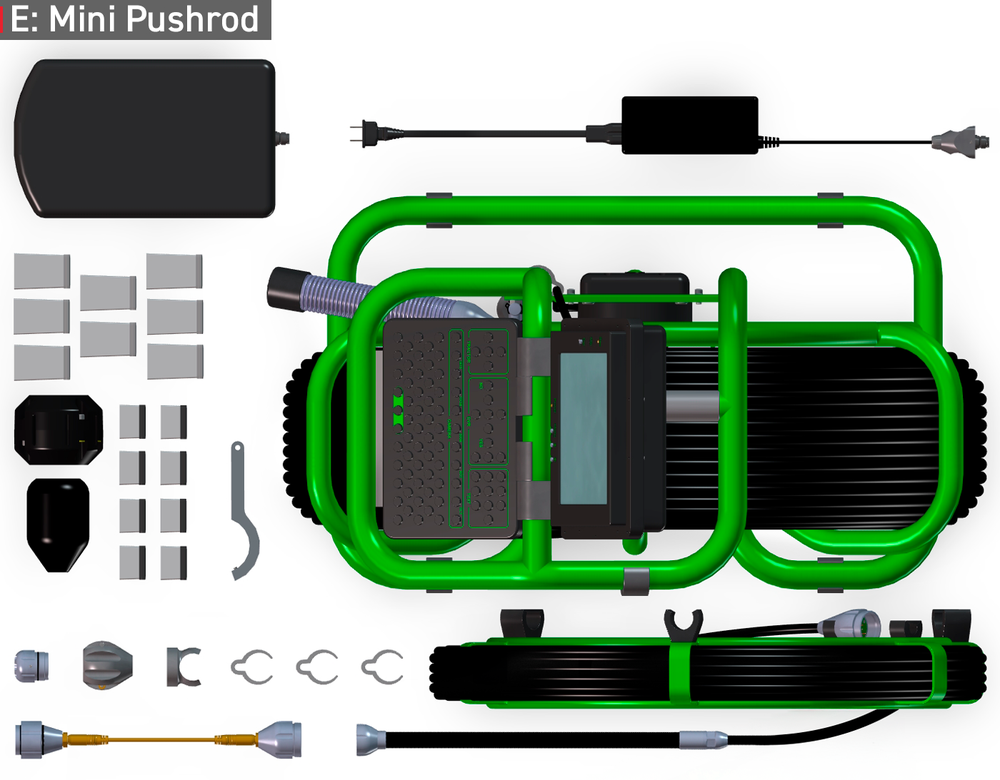

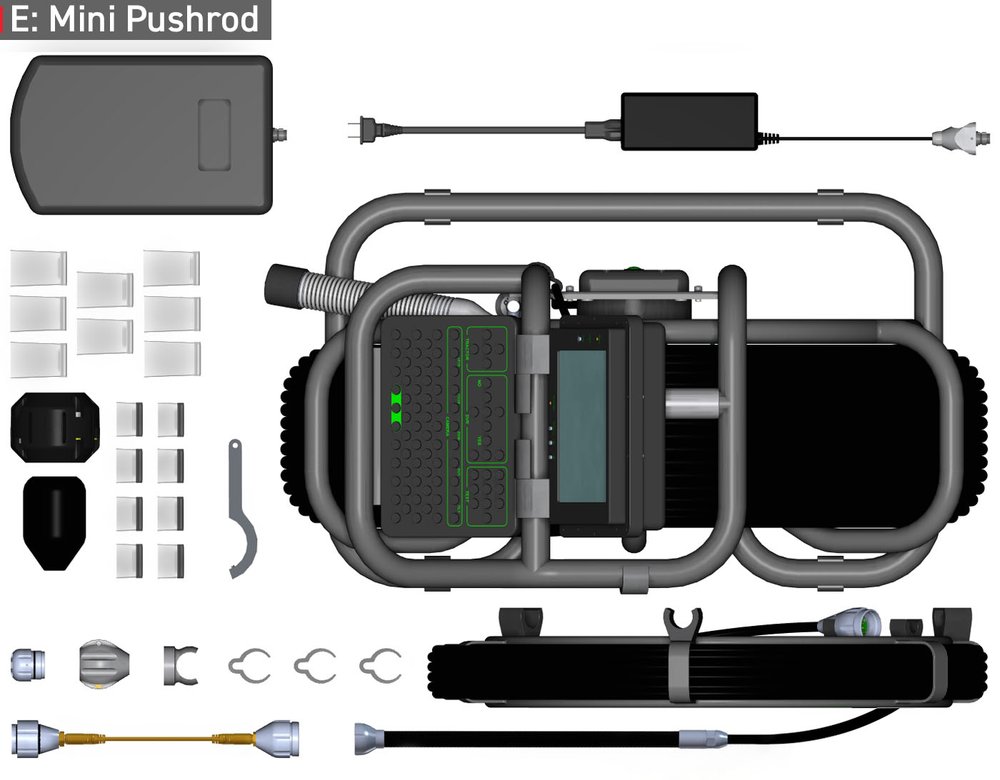

-E: Mini pushrod
25 mm manual push camera
25 mm ball skid
20 m (66 ft) of rod on coiler cage
Pushrod adapter
Cap
Rod clips x3
Cameras

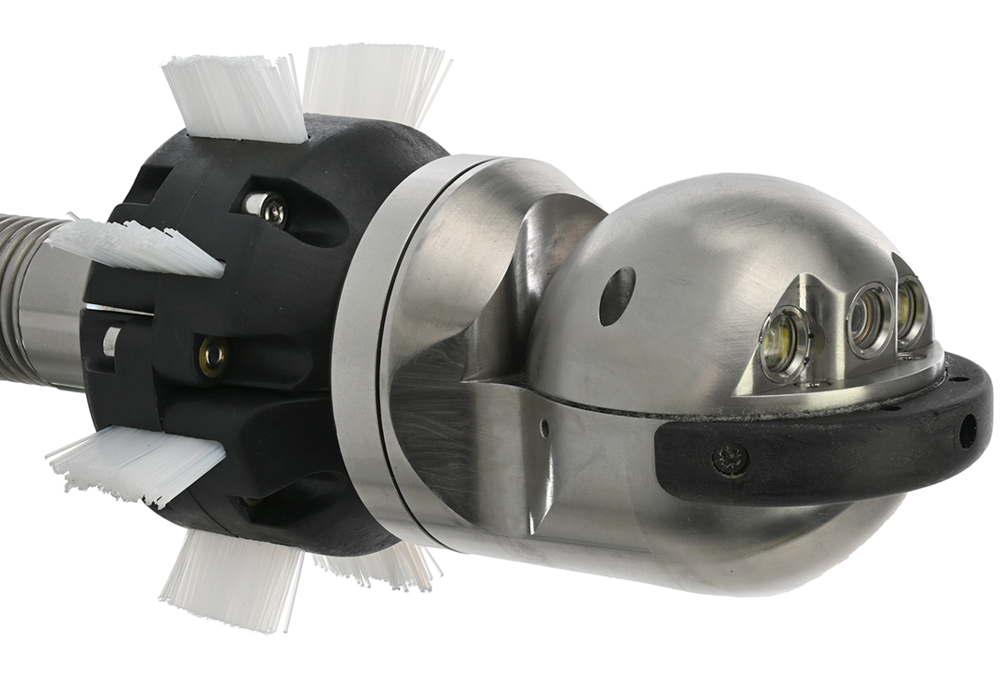

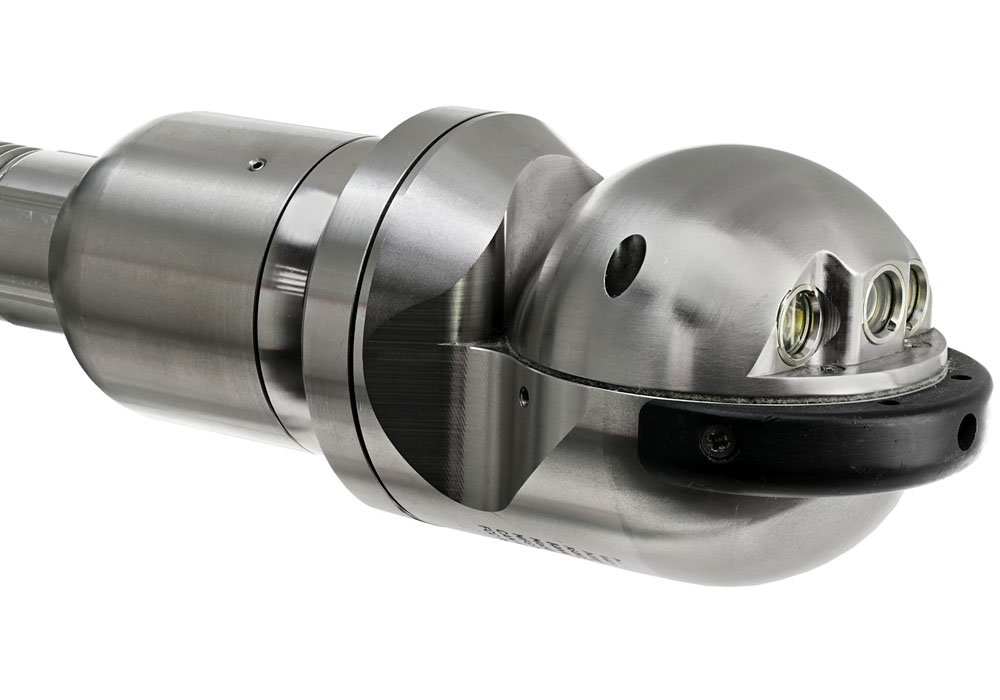

61 mm Pan-and-Tilt Camera
Diameter: 61 mm (2.4 in)
Diameter with 48 mm Brushed Skid: 70 mm (2.76 in)
Camera Articulation: 360° tilt and 285° pan with electronic focus
Lens Focal Length: 5.1 mm
Angle of View: 47°
Focus Range: 20 mm to infinity

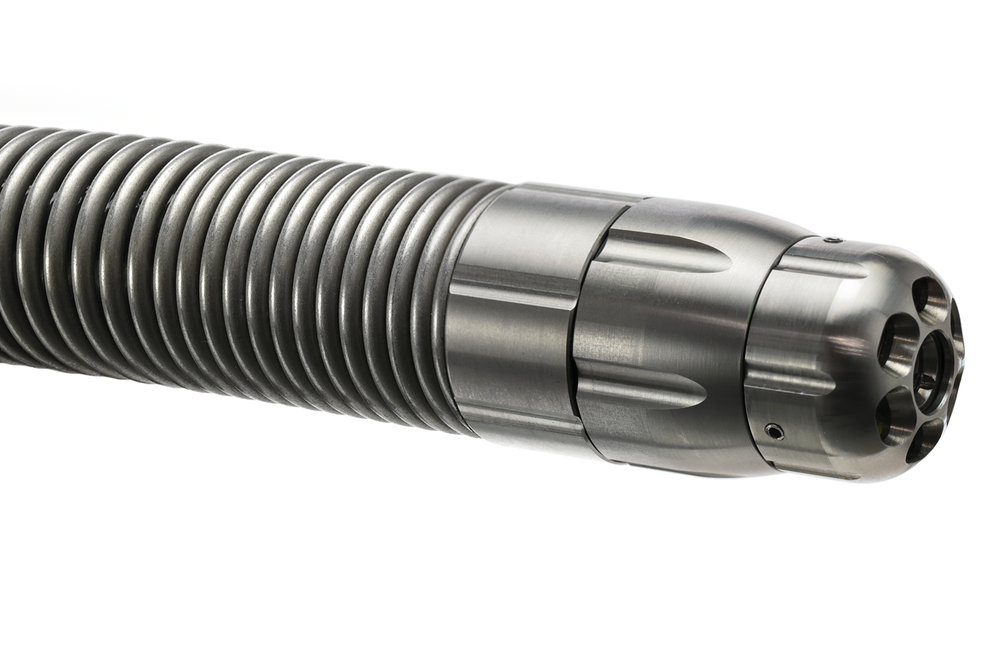

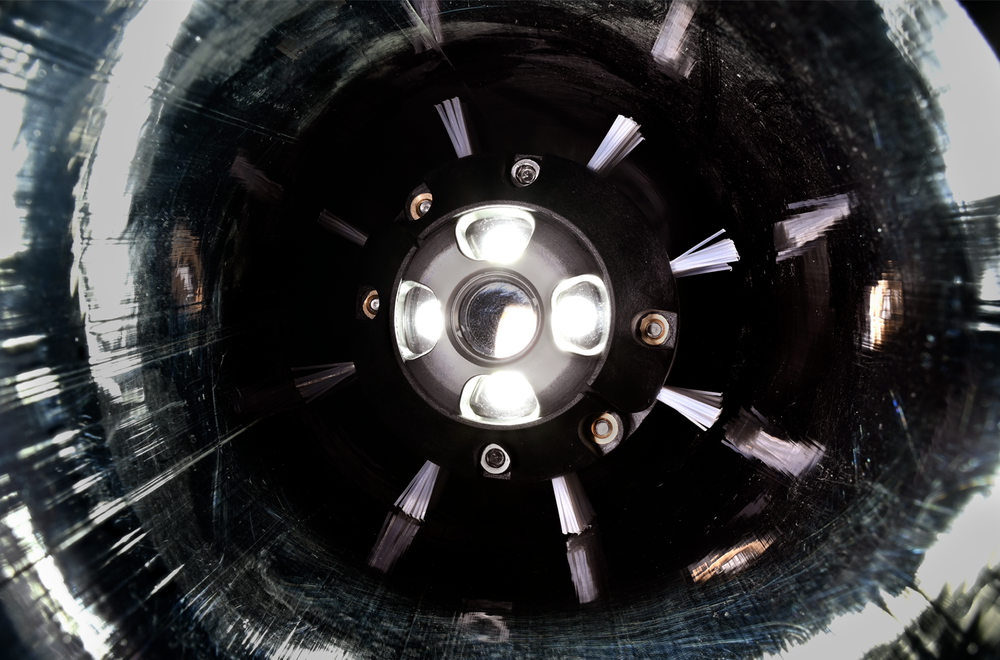

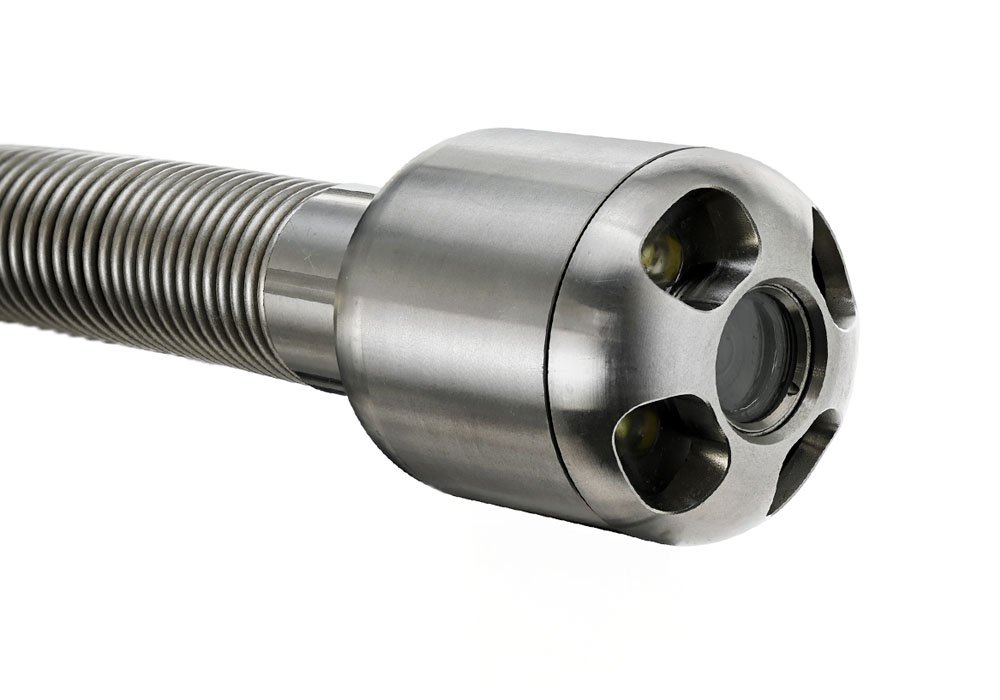

48 mm Push Camera
Diameter: 48 mm (1.9 in)
Camera Performance: Auto uprighting with electronic focus
Lighting: Four LED lights (1400 Lumens)
Lens Focal Length: 4.2 mm
Angle of View: 56° diagonal
Focus Range: 150 mm to infinity
25 mm Push Camera Adapter Kit
Camera and Adapter Diameter: 30 mm (1.2 in)
Camera Performance: Auto uprighting with electronic focus
Lighting: Six LED lights (300 Lumens)
Lens Focal Length: 5.1 mm
Angle of View: 47° diagonal
Focus Range: 50 mm to 250 mm
Parts & Add-Ons
25 mm Push Camera Adapter Kit
48 mm Push Camera
Reel Battery Charger
Sonde

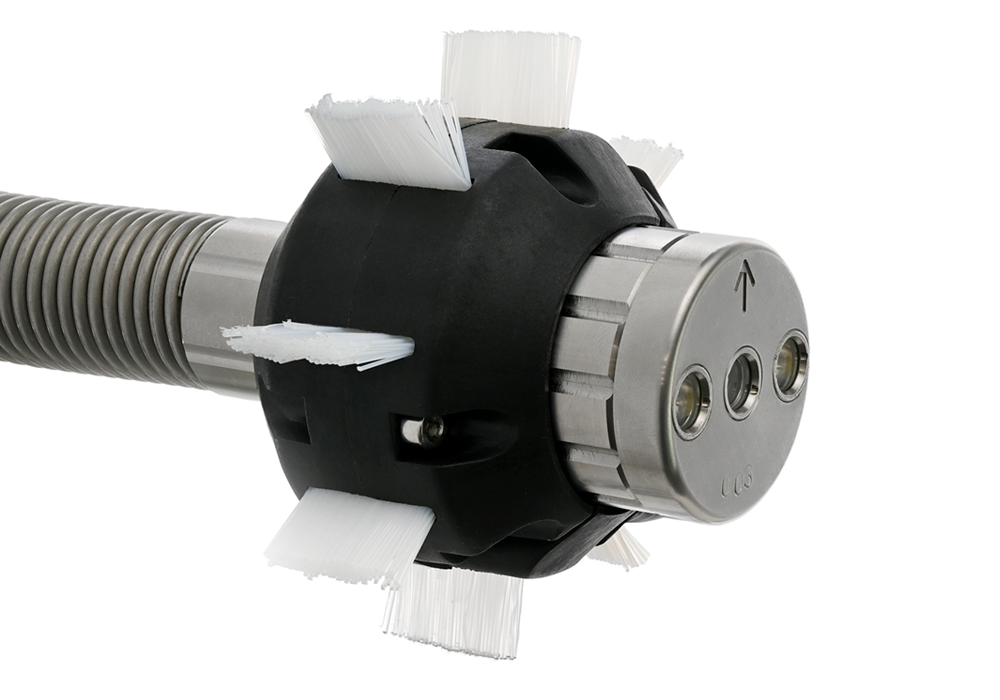

TROGLO • CAM - Brushed Skid
TROGLO • CAM - Mini Pushrod
TROGLO • CAM - Pan-and-Tilt Camera Kit
TROGLO • CAM - Roller Skid
Related Products
Specifications
General
Pushrod Length: 60 m (197 ft)
Pushrod: 5-Conductor Epoxy Glass core
Depth Ratings:
Fixed Camera: 50 m (164 ft)
Pan-and-Tilt Camera: 5 m (16.4 ft)
WinCan Compatible: Yes
Optional Sonde Frequency: 33 kHz or 512 kHz1
Battery Runtime: ~ 7 hrs
Coiler Specifications
Power: Rechargeable lithium-ion battery modules
Coiler locking: Integrated Reel Brake
Voltage: 10.8 to 14.6 VDC
Reel Battery: 9 Ah

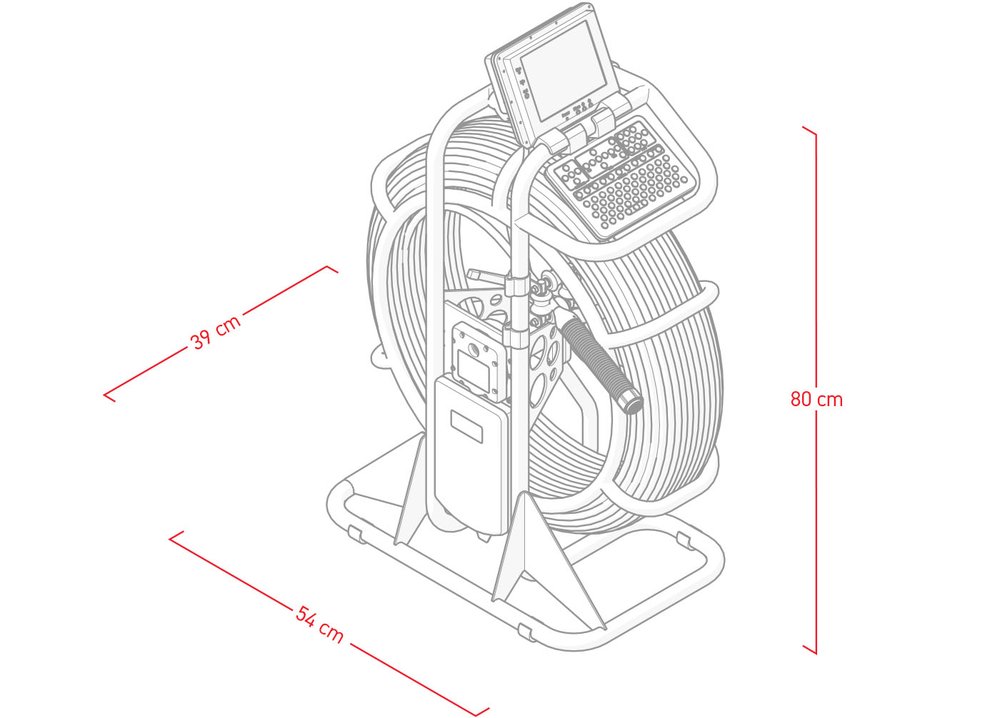

Coiler Dimensions
Width: 39 cm (15.4 in)
Depth: 54 cm (21.3 in)
Height: 80 cm (31.5 in)
Viewfinder Specifications
Monitor: 14.2 cm (5.6 in) LCD
Recording Format: MPEG4 (ASF), JPEG
Recording Resolution: 640 x 480
Recording Media: SDHC (up to 32 GB)
Navigation and Control: Water-resistant integrated keyboard
Built-in Meter-Counter: Distance measurement displayed on-screen
Snapshot: JPEG (VGA)
Card Usage: 1-1.5 GB/hour
Video Output: Composite
Environmental Specifications
Operating Environment: -10° - 40°C (14° - 122°F)
Storage Environment: -20° - 85°C (-4° - 185°F)
Environmental Sealing: Watertight (submersible). Contact JIREH for details
