Long Seam Welds no LONGer a problem.

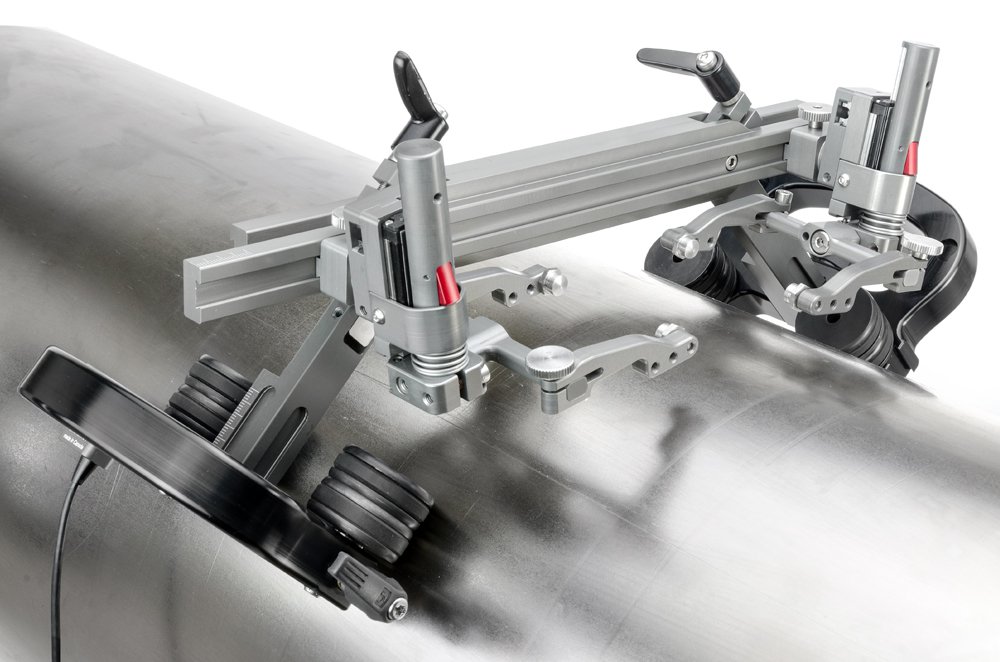

Get the job done right with STIX - Long Seam Scanner. This two-probe magnetic scanner provides an innovative solution for longitudinal weld inspection. Get complete coverage on pipes and tubes with our dual pivoting frame bar, achieving axial scanning down to 15.2 cm (6 in). The outstanding features include convenient handles, encoded positional feedback to the instrument of your choice, and circumferential scanning capability, all in one unit!

Custom encoder cable lengths are available.

Part ID: BGG010

Customer Photos

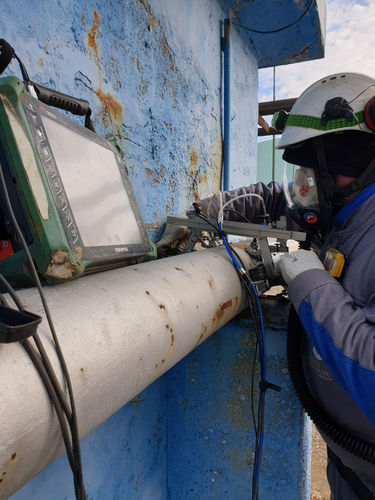

Photo Credit: Groupe Institut de Soudure

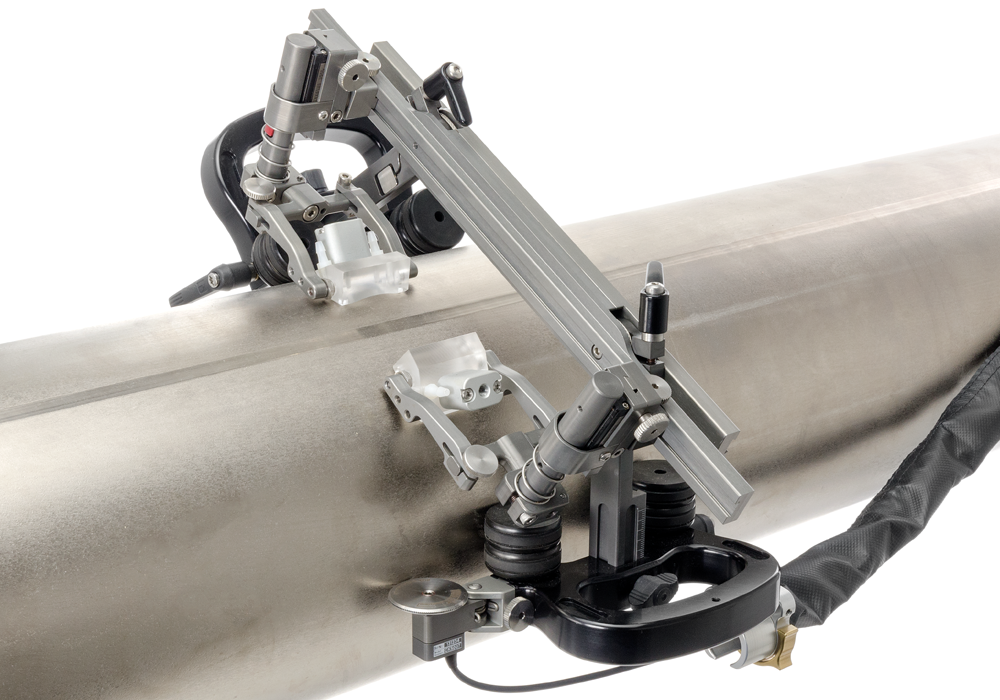

Axial Scanning

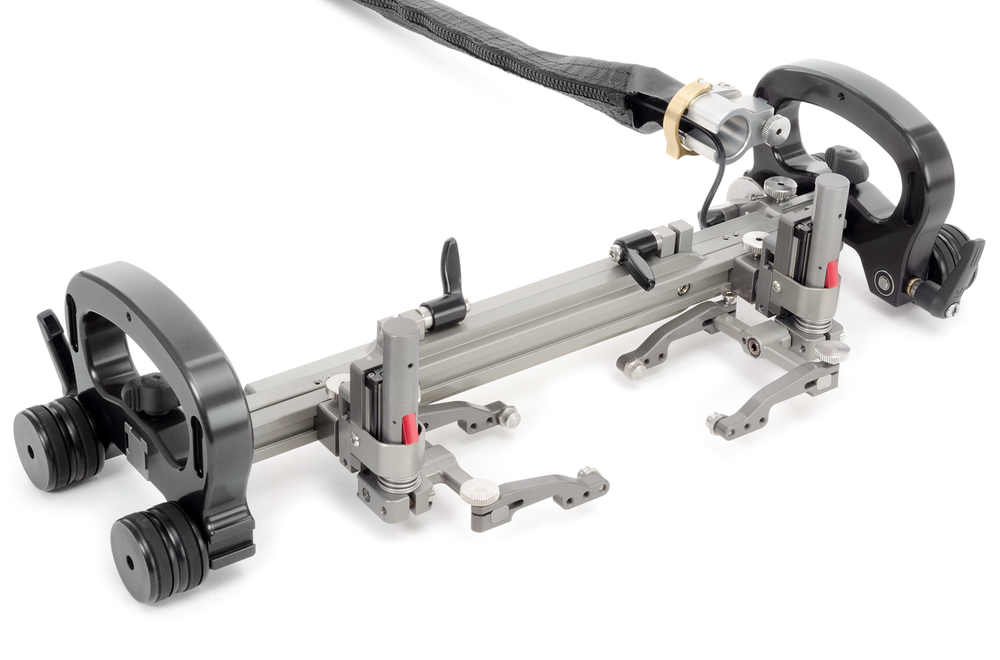

A dual pivot frame bar accommodates two probe, longitudinal scans. Perform manual long seam scans on pipes as small as 15.24 cm (6 in).

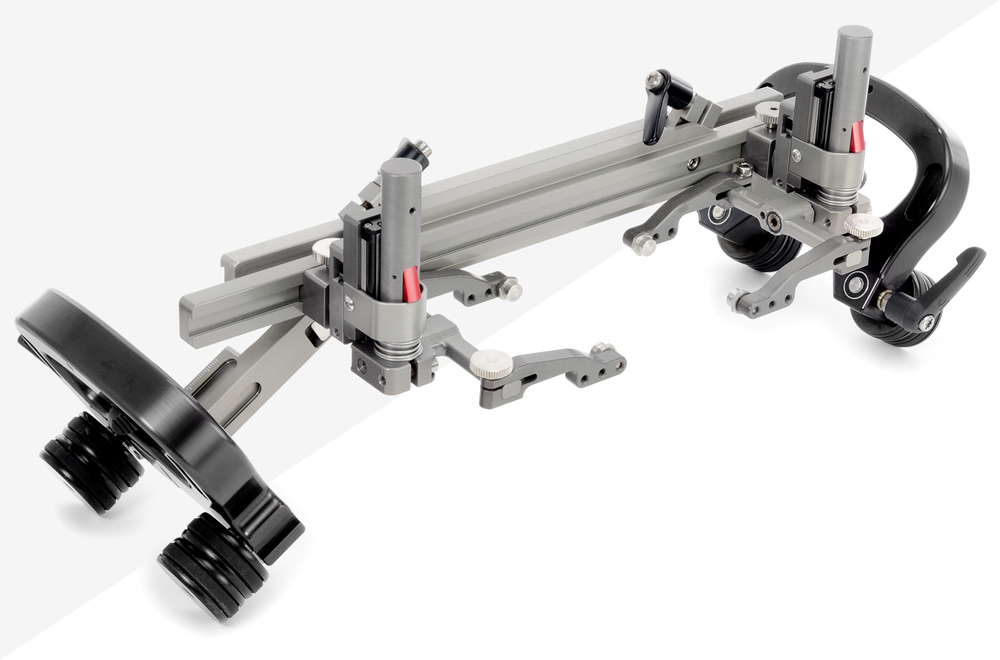

Circumferential Scanning

Conversion between circumferential and longitudinal capabilities is quick and simple. Scan circumferentially on pipes and tubes as small as 25.4 cm (10 in). Scan circumferentially as small as 10.2 cm (4 in) using slip-joint probe holders (sold separately).

Ease of use

Comfortable handles provide excellent scanner control as well as mounting points for accessories.

Spring-Loaded Encoder

The spring-loaded encoder maintains constant surface contact to ensure accurate scanner positioning.

Phased Array Probe Holders

Numerous setup variations and finely tuned adjustment options are the hallmarks of the vertical probe holders.


Hold the scanner position when required.

Magnetic Wheels

Translate two phased array probes across magnetic material with this manual scanner.


A three-year limited warranty backs all JIREH products

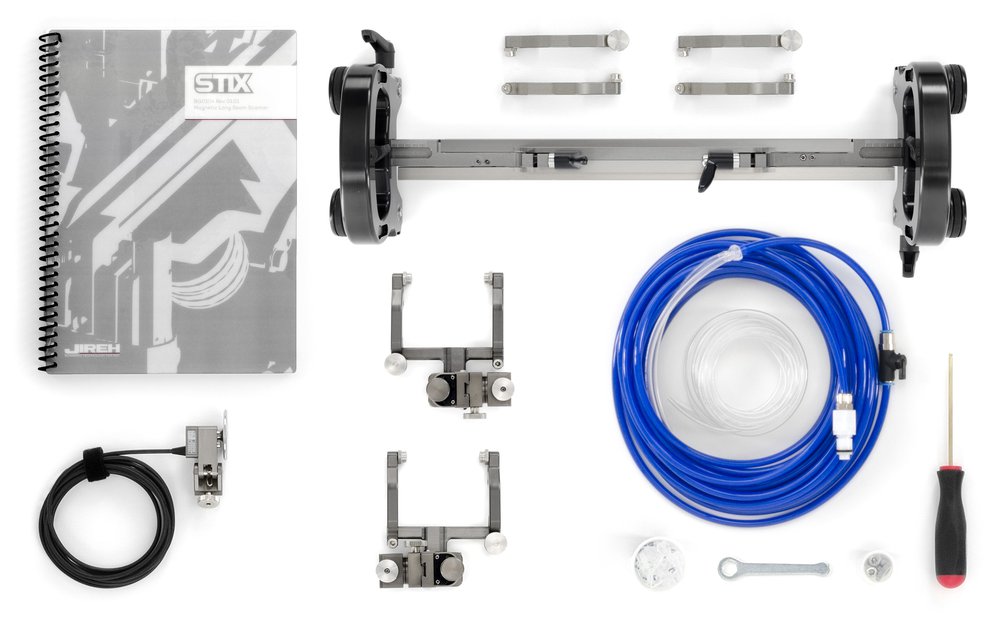

Kit Contents

Path 2 CopyPath 2 Copy


STIX long seam frame with eight magnetic wheels


Spring-loaded encoder
Vertical phased array probe holder
Probe holder arm set – long, drop arm
4 mm ID irrigation kit (7/16 in Quick Connect)
Probe holder spare parts kit
User manual

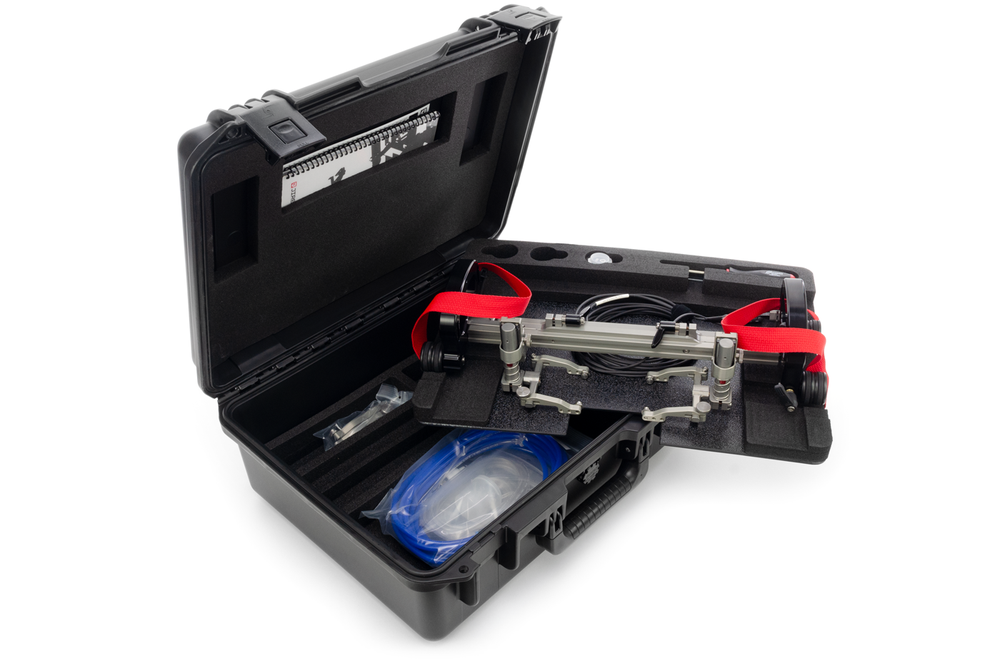

Rugged carrying case


3 mm hex driver
Wrench for pivot button adjustment

Component Identification

Long Seam Frame

The dual pivot frame bar accommodates longitudinal scanning applications. The synchronized dual pivot frame bar ensures precise scanner setup while complete control is provided with convenient handles.



Spring-Loaded Encoder

A spring-loaded encoder maintains constant surface contact to ensure accurate scanner positioning. The spring-loaded encoder is fully compatible with all standard instruments.

Wheel Blocks

Ergonomic handles provide comfortable scanner control while also providing mounting points for accessories.


Brakes are provided to lock the scanner in the required position.


The magnetic wheels are coated with urethane to reduce the effects of foreign debris obstructing the scanner motion. The system includes two sets of 4 magnetic wheels to provide optimal magnetic attraction during scanning operations.

Vertical Probe Holders

Countless setup variations and adjustment options are the hallmarks of the vertical probe holder. Fine-tune probe and wedge setup with these probe holders also offer transverse scanning.

Parts & Add-Ons

Related Products


Path 2 CopyPath 2 Copy


Pipe Range, Circumferential: 25.4 cm (10 in) to flat1
Pipe Range, Longitudinal: 15.2 cm (6 in) to flat
Encoder Resolution: 9.05 counts/mm (230.0 counts/inch)
Probe Holding Capacity: 2 phased array wedges
Encoder Cable Length: 5 m (16.4 ft)2
Inspection Surface: Ferrous materials


Long Seam Clearance: 14 cm (5.5 in)
Circumferential Clearance: 8.9 cm (3.5 in)


Frame Height: 10.5 cm (4.1 in)
Frame Height (Pivot): 19 cm (4.5 in)
Frame Depth: 17.5 cm (6.9 in)
Frame Length: 45.4 cm (17.9 in)
Frame Length (Pivot): 35 cm (13.8 in)
Frame Weight: 1.9 kg (4.25 lb)


Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details


Minimum Wedge Width: 17.1 mm (0.7 in)
Maximum Wedge Width: 57.6 mm (2.3 in)3


Probe Holder Pivot Buttons


Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)


Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)


Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)


Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)


Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)


Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)


Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)


Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)


Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)

  1. Capable of 10.2 cm (4 in) - 25.4 cm (10 in) using slip-joint probe holders.
  2. Custom encoder cable lengths are available.
  3. Some arm styles may provide additional maximum wedge width. Contact Jireh Industries for details.
    Technical specifications are subject to change.


To access all the necessary documentation for the scanner, click the appropriate link below. You'll find user manuals, brochures, and additional helpful information.

(specifications are subject to change)
