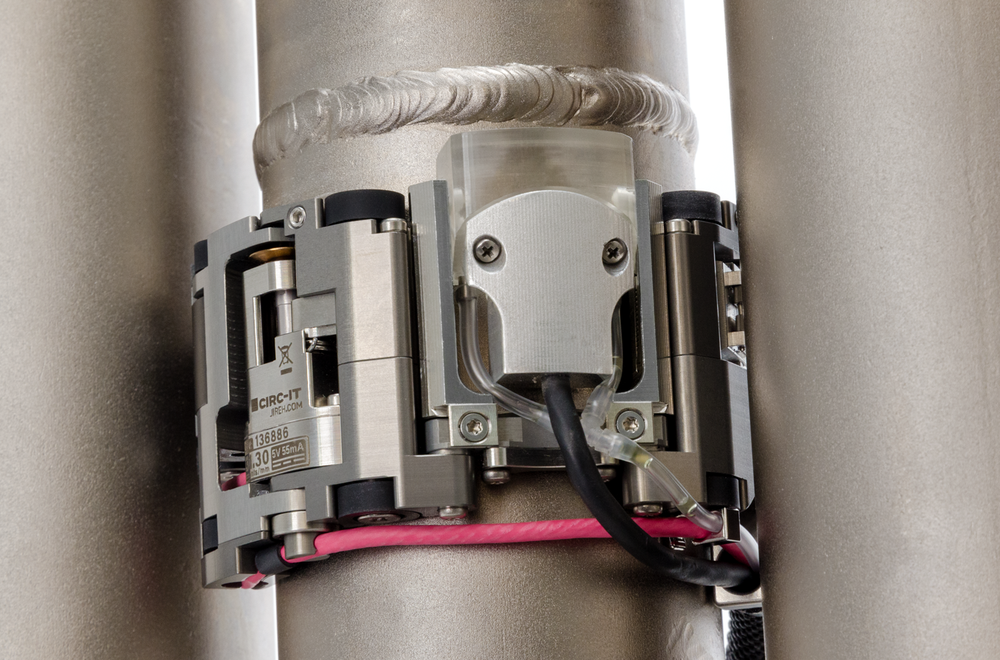

When scanner access is limited, the CIRC-IT makes single probe scanning possible.

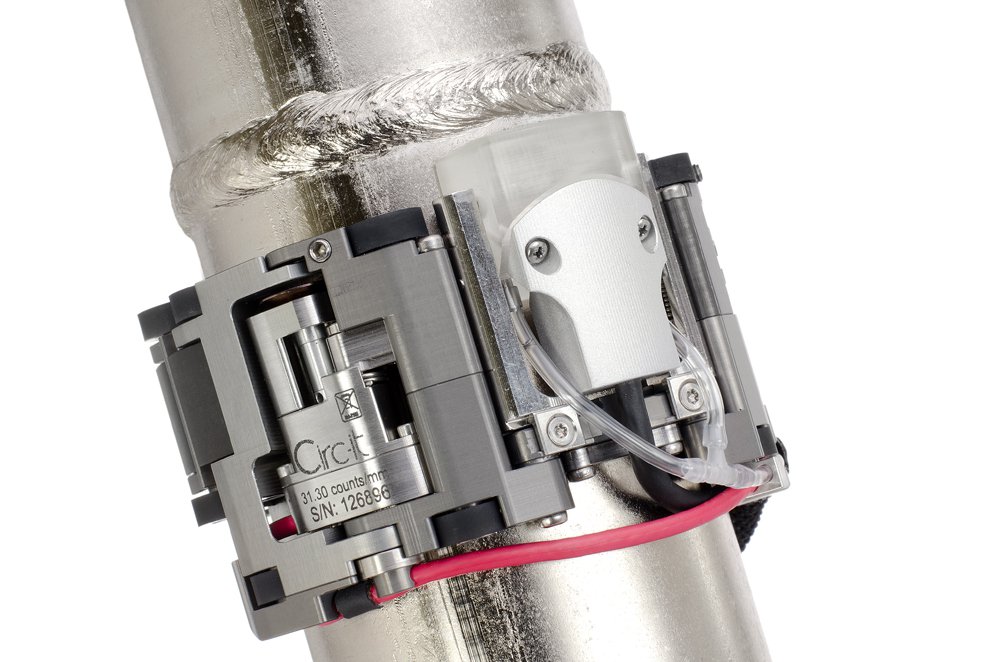

Small diameter, low profile scanning made possible with the CIRC-IT - Single Probe Weld Scanner. Designed to provide encoded probe positioning circumferentially around piping and tubing ranging in size from 21.4 - 114.3 mm (0.84 - 4.5 in), this manually operated scanner can operate in an 11 mm (0.433 in) radial clearance envelope due to the ultra low profile design.

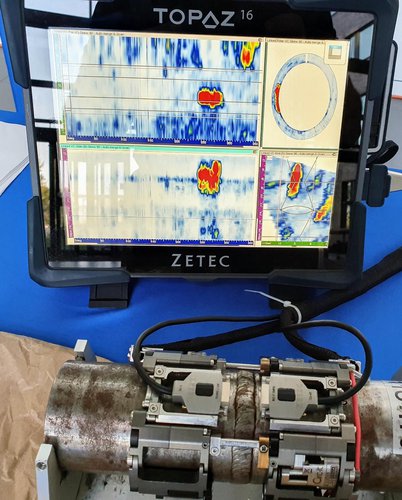

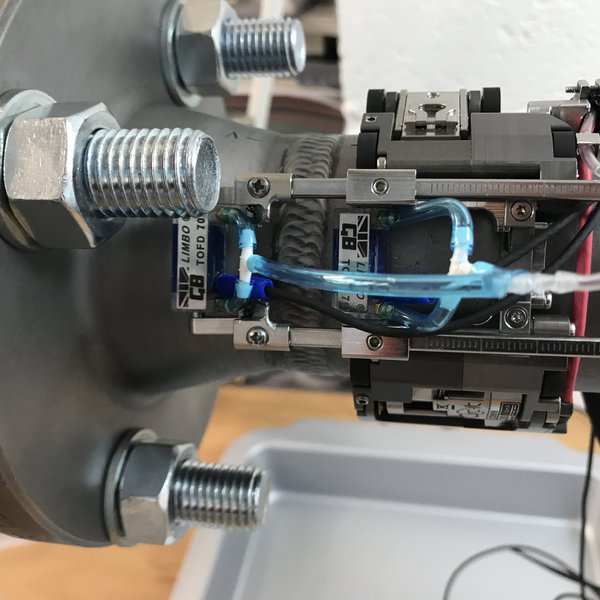

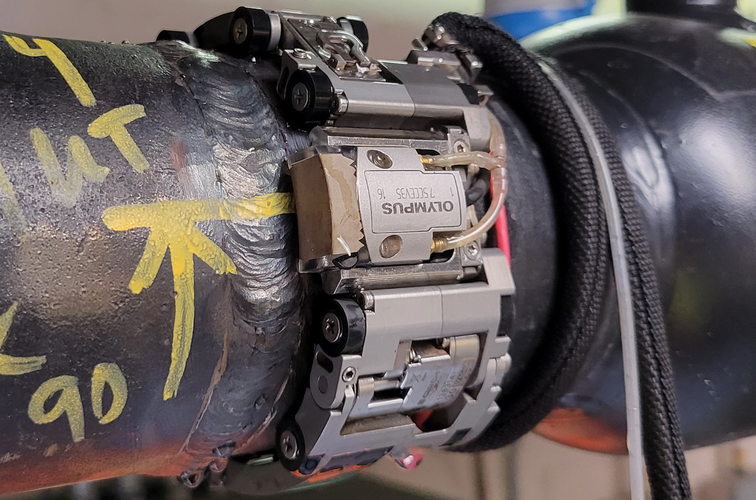

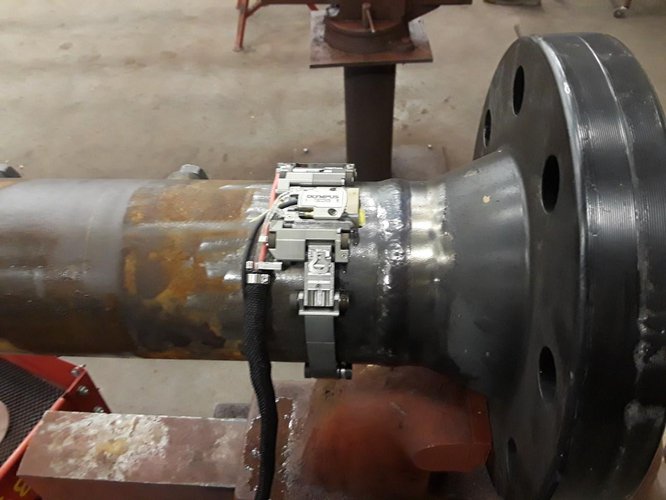

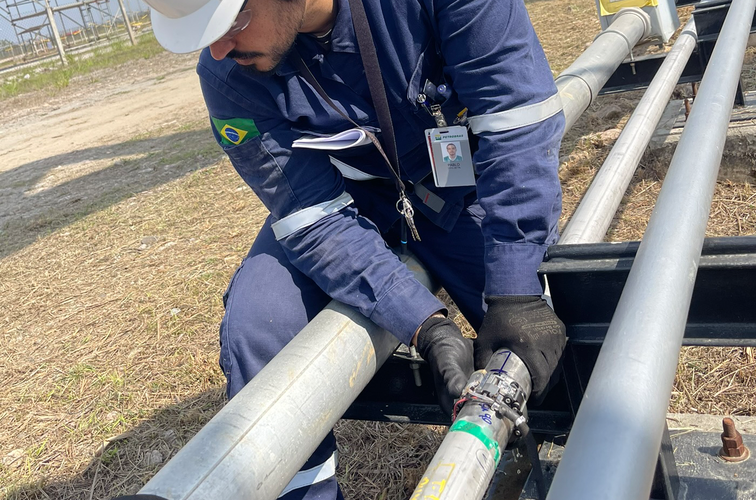

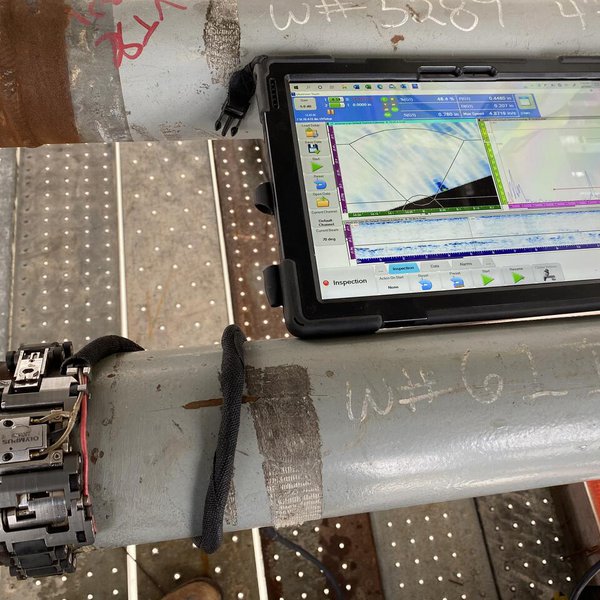

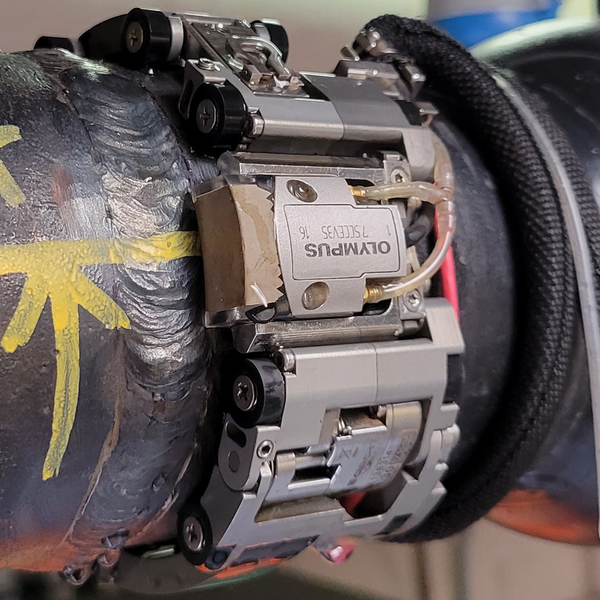

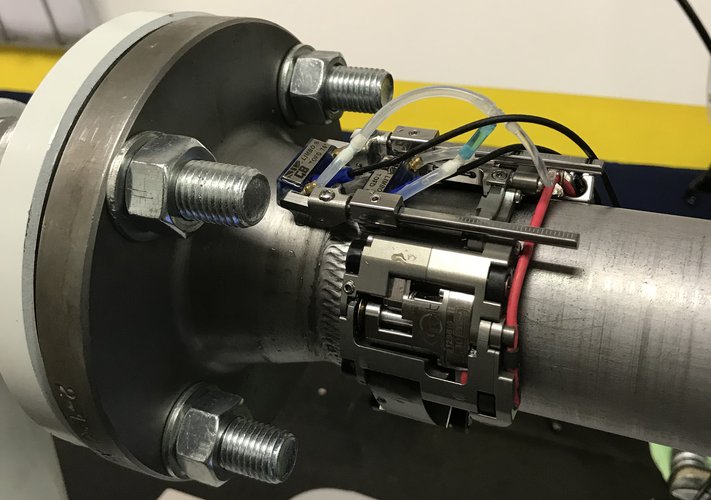

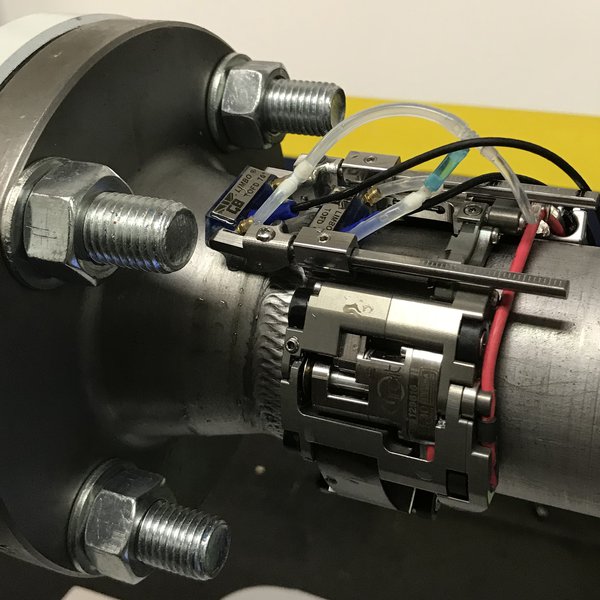

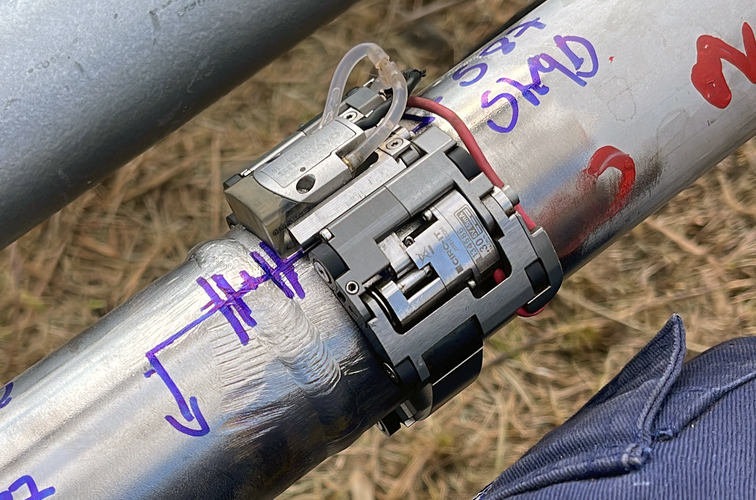

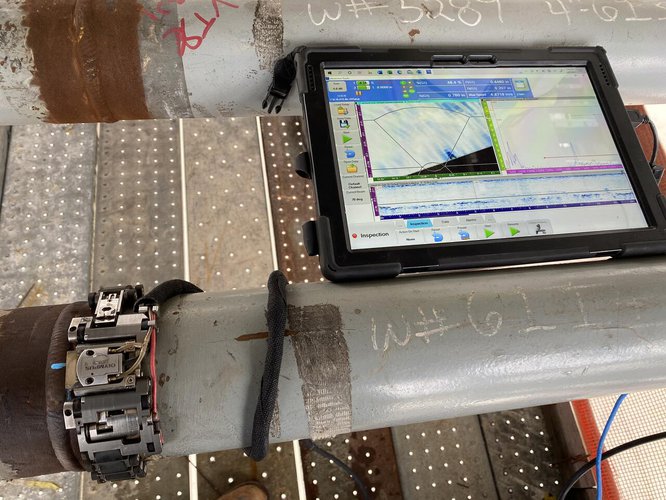

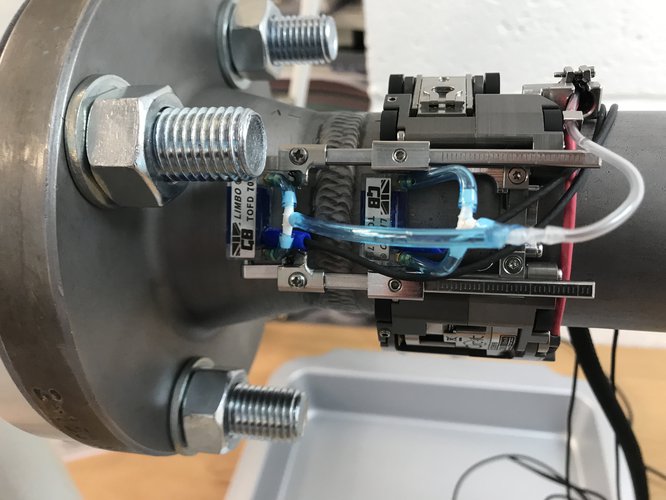

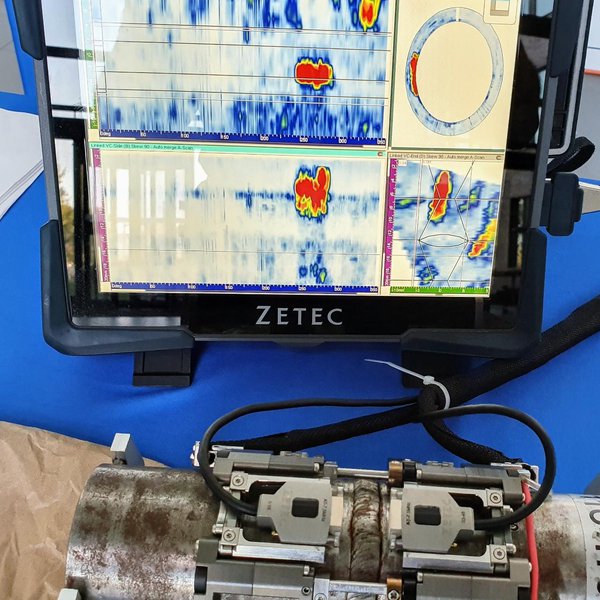

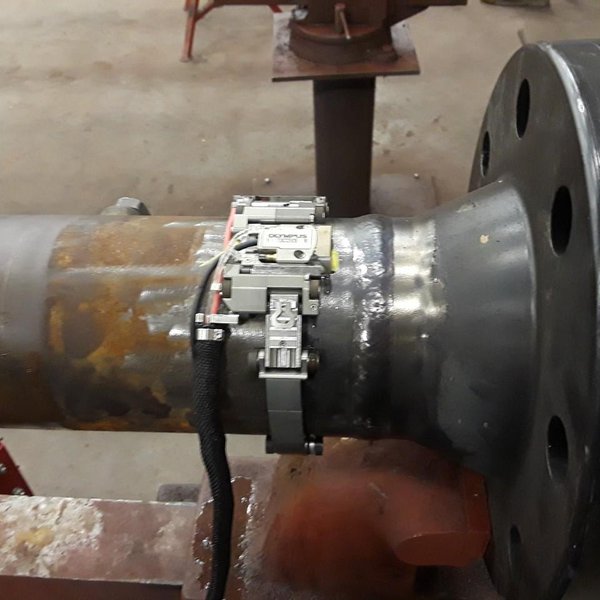

Customer Photos

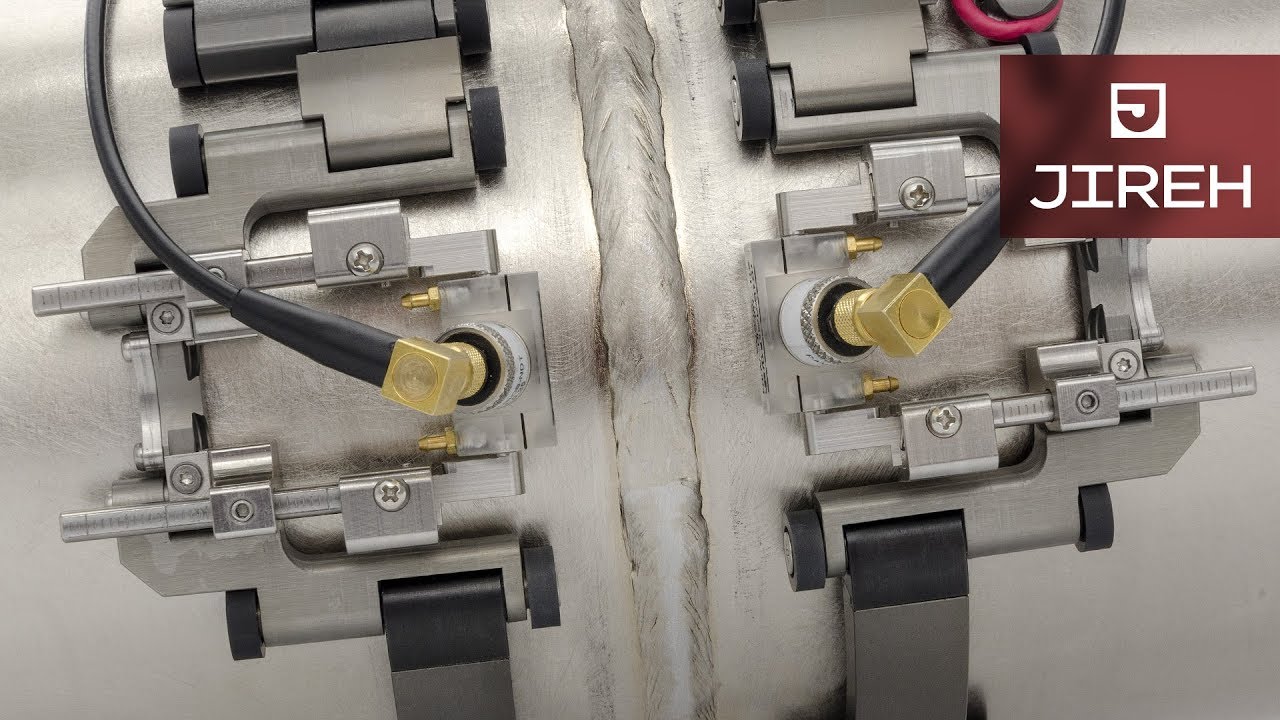

Videos
Features
Low Profile Design

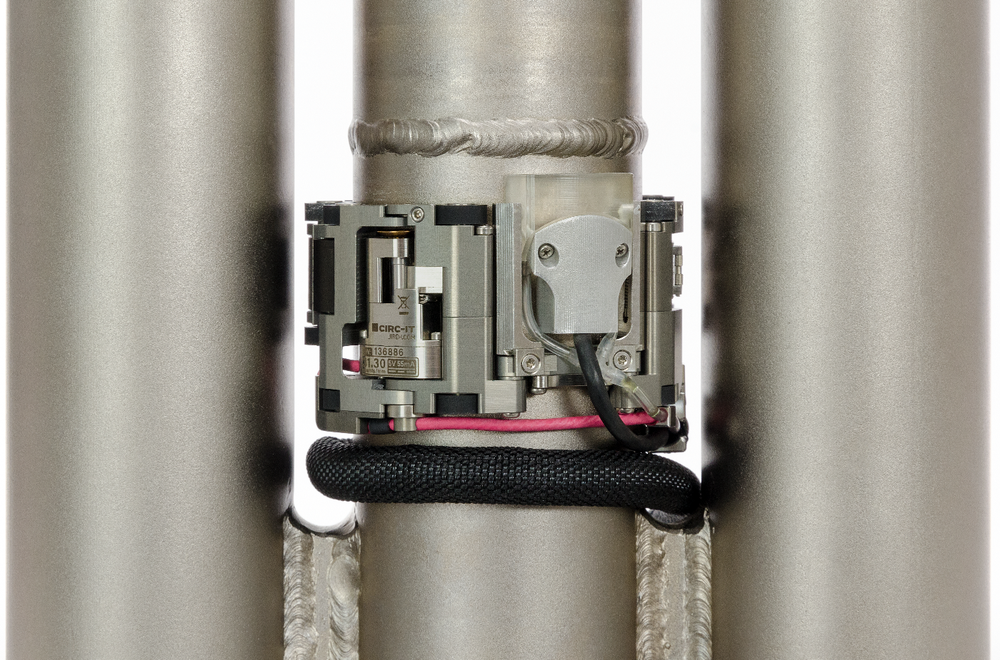

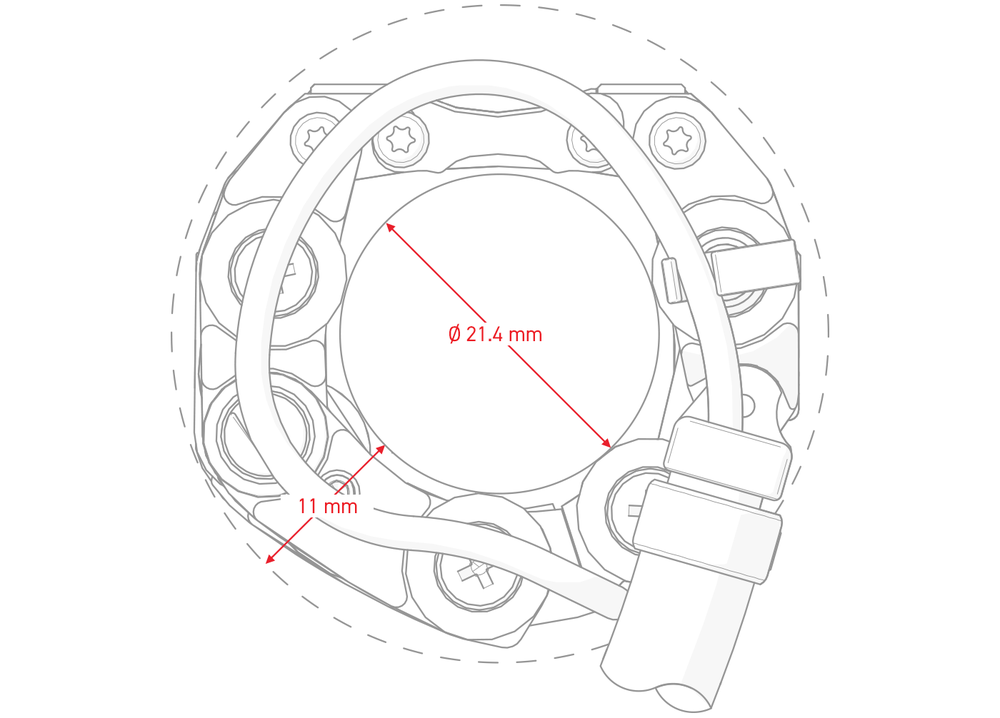

The CIRC-IT maintains a radial clearance of 11 mm (0.433 in) which allows for limited access inspection
Small Diameter Scanning
The capability of scanning pipe/tube diameters as small as 21.4 mm (0.84 in) make the Circ-it a valuable tool
Urethane Wheels
Durable urethane wheels provide smooth rolling and adequate traction in vertical scanning applications
Cable Management
The CIRC-IT scanner features a cable management system for irrigation lines and probe cables
Quick Change Links
Links provide infinite adjustment for pipes or tubes to be scanned between 21.4 - 114.3 mm (0.84 - 4.5 in)
Probe Holders

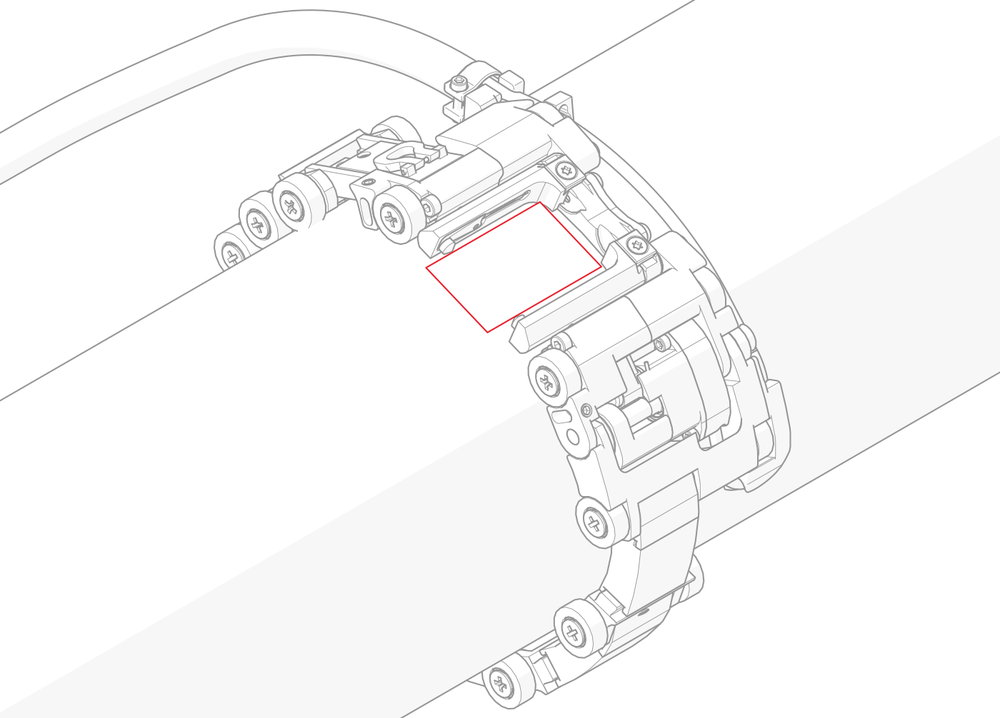

Carries Olympus A15 small-footprint probes and wedges
Tools
Tools for all adjustment and manipulation of the scanner and components are included with the system
Warranty
Three-year limited warranty on all products.

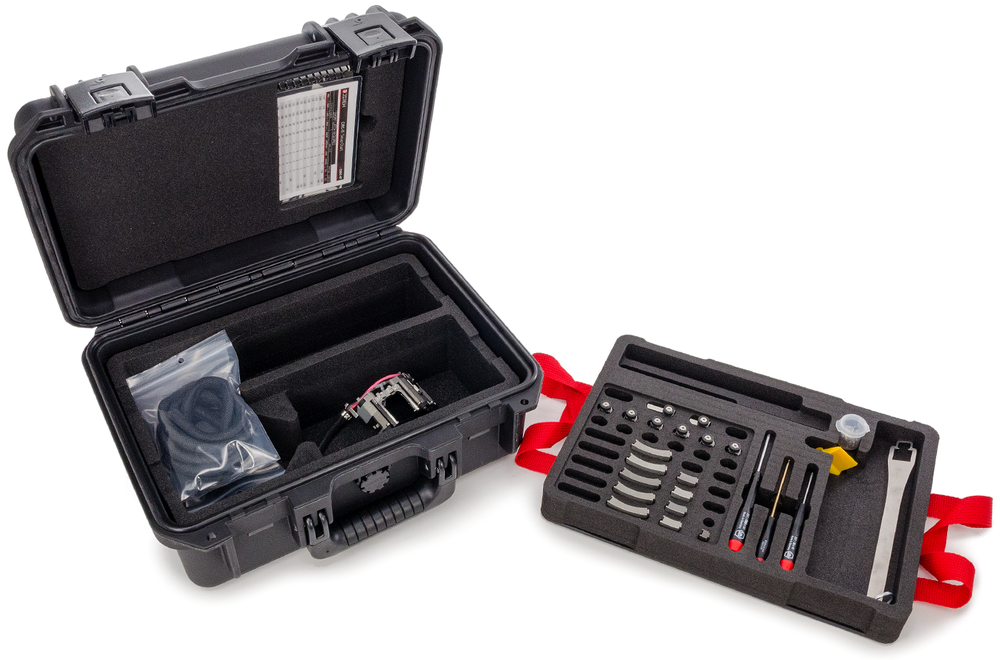

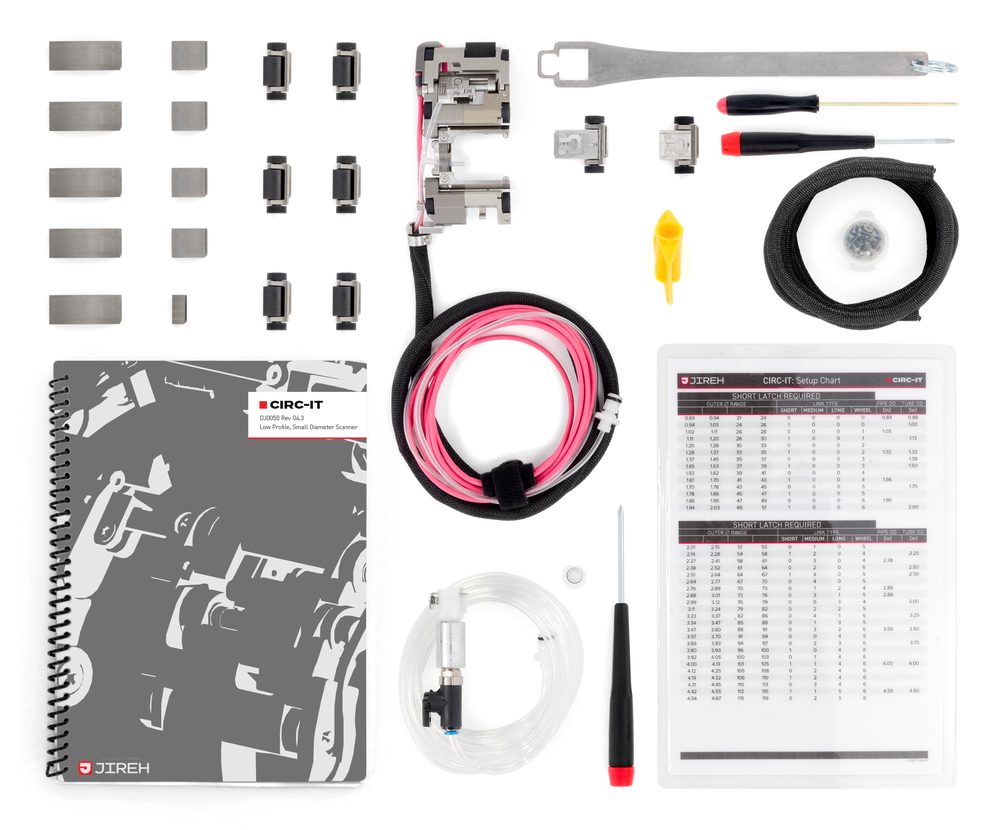

Kit Contents
SCANNER
Single-sided CIRC-IT scanner
PARTS & ACCESSORIES
Long latch x1
Short latch x1
Wheel link x6
Short link x1
Medium link x4
Long link x5
Protective sleeving, 1.5 m (4.9 ft)
CIRC-IT spare fasteners kit
Irrigation fittings and tube, 2.5 m (8.2 ft)
User manual
Setup chart
Rugged carrying case
TOOLS
Chain retrieval tool
Loom installation tool
Torx® driver
Phillips driver
2 mm hex driver
Component Identification

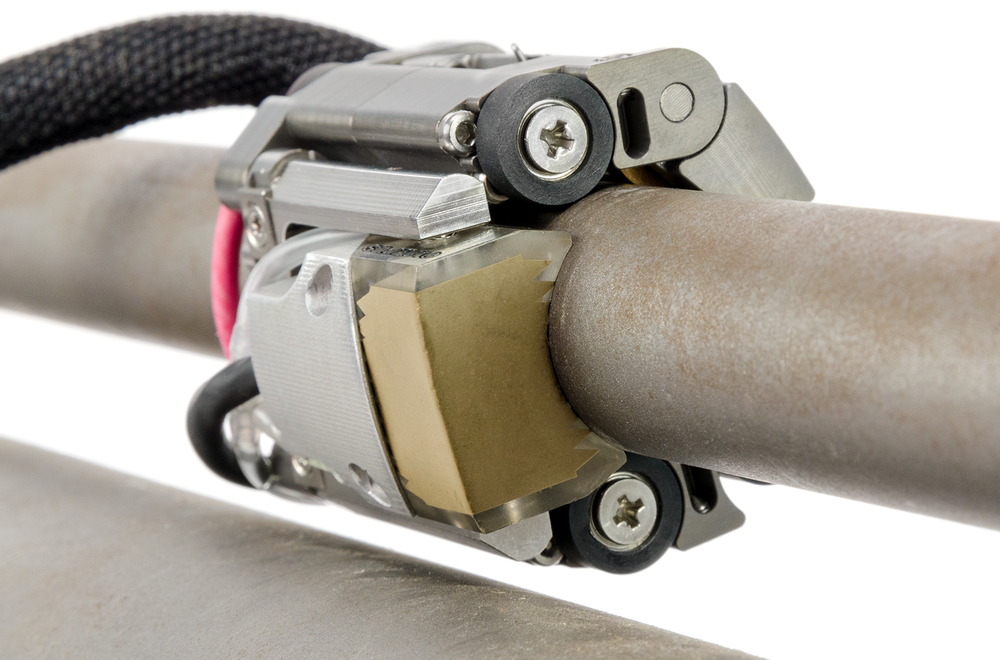

Urethane Wheels
Durable urethane wheels provide smooth rolling and adequate traction in vertical scanning applications.
Cable Management
The CIRC-IT scanner features a cable management system for irrigation lines and probe cables.
Quick Change Links
Links provide infinite adjustment for pipes or tubes between 21.4 - 114.3 mm (0.84 - 4.5 in).
Probe Holders
The scanner carries Olympus A15 small-footprint probes and wedges.
Irrigation Kit
The included irrigation kit contains the necessary hoses, fittings, tubing, etc, required to connect a couplant pump to the probe(s) being carried by the scanner

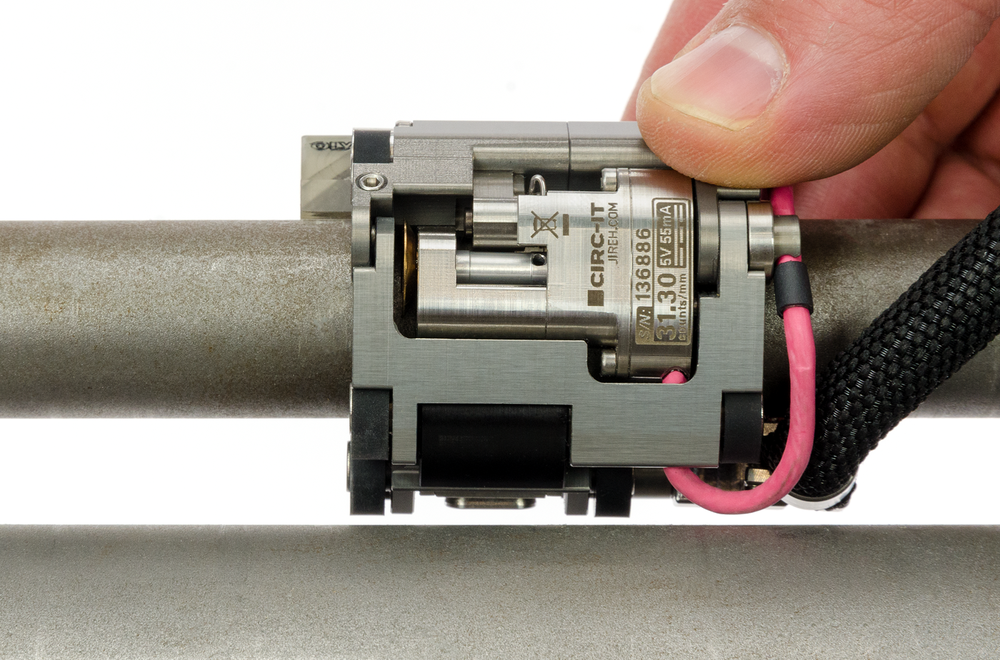

Encoder
A spring-loaded encoder maintains constant contact with the scan surface for precise encoder measurements.
Parts & Add-Ons
Related Products
Specifications
GENERAL
Pipe Diameter Range: 21.4 mm - 114.3 mm (0.84 in - 4.5 in)1
Minimum Radial Clearance: 11 mm (0.433 in)2
Encoder: RS422 line driver, compatible with all standard encoder inputs
Encoder Resolution: 31.30 counts/mm (795.0 counts/inch)
Probe Holding Capacity: 1 phased array wedges
Encoder Cable Length: 3 m (9.8 ft)3
Inspection Surface: Ferrous and non-ferrous
RADIAL CLEARANCE
Radial Scanner Clearance: 11 mm (0.43 in)

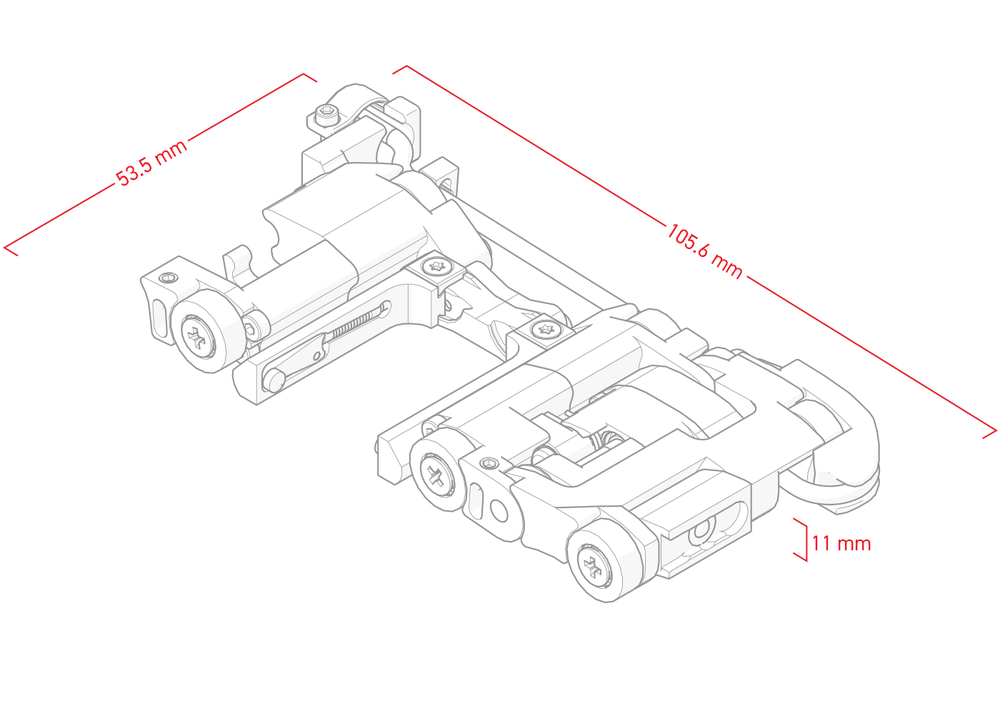

SIZE & WEIGHT
Scanner Height: 11 mm (0.43 in)
Scanner Width: 53.5 mm (2.1 in)
Scanner Depth: 105.6 mm (4.2 in)4
Scanner Weight: 0.09 kg (0.2 lb)
Shipping weight: 3.1 kg (6.8 lb)5
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details
Probe Fitment
Standard compatibility with A15 style probes and wedges from the following manufacturers:
- Olympus
- Sensor Networks
- Sonatest
- Zetec
- Vermon
The CIRC-IT can also be adapted to be compatible with A25 style probes and wedges, as well as GE palm scanner probes and wedges (contact Jireh for details).
- Removal of the encoder cable guard is required for scan diameters smaller than 31.75 mm (1.25 in)
- Scanner only; Transducers and wedges not included
- Custom umbilical lengths are available.
- Does not include cable management (sleeving).
- Approximate shipping weight of standard kit contents.
Technical specifications are subject to change.
