No need for cumbersome, heavy generators any longer. The Battery Kit - Single Battery provides one rechargeable battery for use with a MOTIX, SKOOT, TERAX or NAVIC system. The battery fits into the system controller and will operate an automated crawler and any attached components for hours at a time on a single charge*.

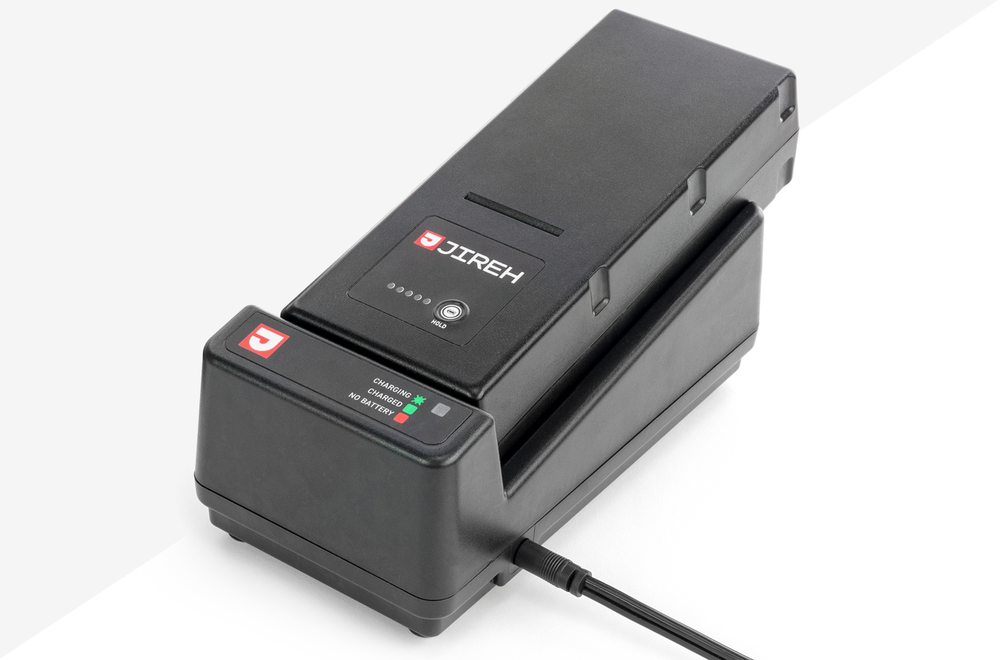

The included charger may be configured for various plug styles.

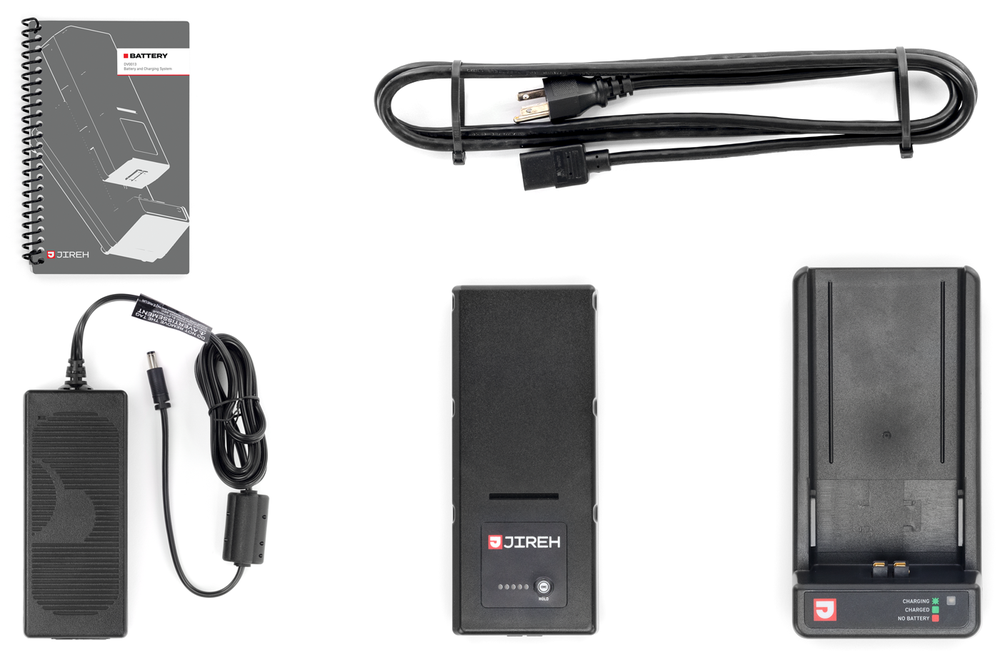

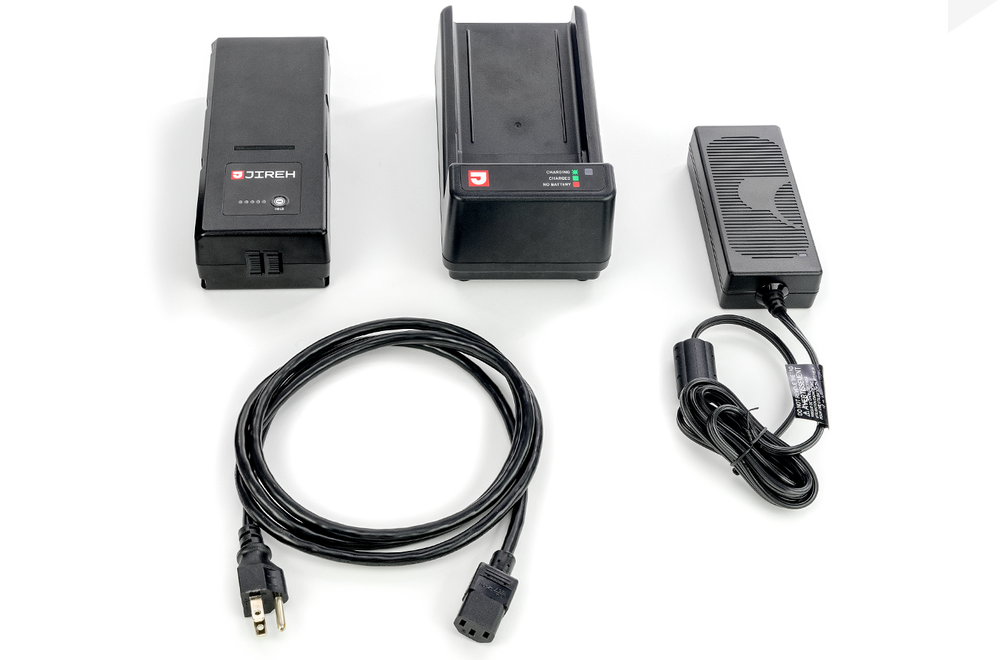

Kit Contents
Battery
Charger
Power Adapter
Power Cord
User Manual
Related Products
Battery Specifications
Battery Life
Typical NAVIC/SKOOT/MOTIX Run Time: 8-12 hours
Fully Loaded NAVIC/SKOOT/MOTIX Run Time: 5 hours
Battery Type
36V Nominal 5Ah Li-ion battery (180Wh)
Operating Temperature
Battery: -20°C to 60°C (-4°F to 140°F)
Charger: 0°C to 40°C (32° to 104°F)
Shipping
Air shipping is allowed
Compliance Declarations
CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.1
FCC: Compliance with Part 15 of FCC rules.1
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.1
UKCA: United Kingdom Conformity Assessed – Compliance with relevant UK statutory requirements and legislation.1
Dimensions
Battery Dimensions
Width: 8.8 cm (3.5 in)
Depth: 21.2 cm (8.4 in)
Height: 5.5 cm (2.2 in)
Weight: 1.4 kg (3 lb)
Charger Dimensions
Width: 11.1 cm (4.4 in)
Depth: 21.5 cm (8.5 in)
Height: 8.7 cm (3.4 in)
Weight: 0.4 kg (0.9 lb)
- For a complete description of regulatory certifications, please get in touch with Jireh Industries.
Technical specifications are subject to change.
Documents
To download the relevant documentation for the scanner, click the corresponding link below.
(Specifications are subject to change.)
