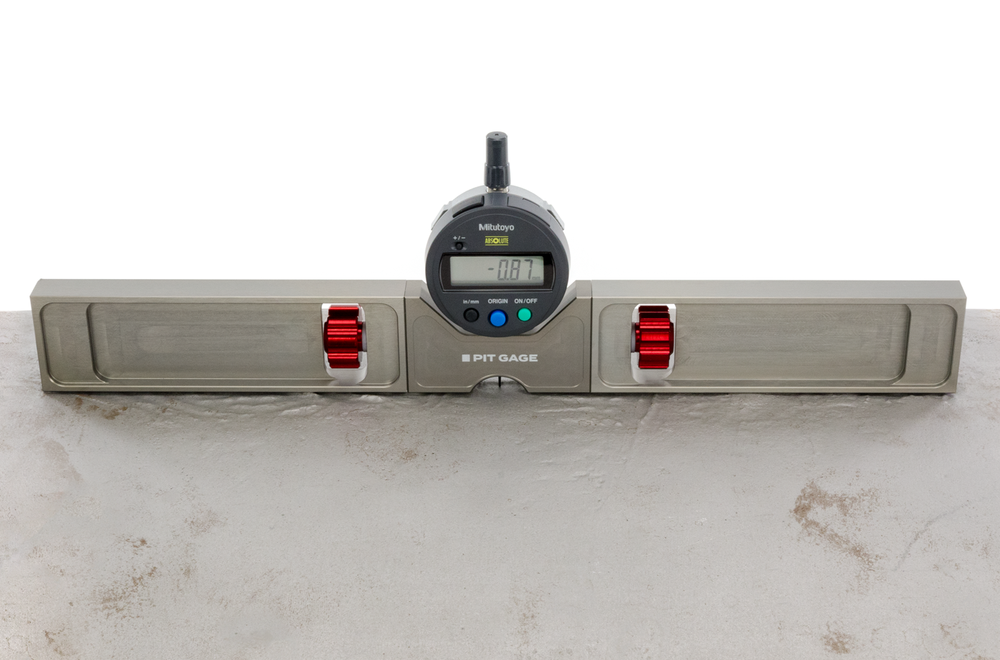

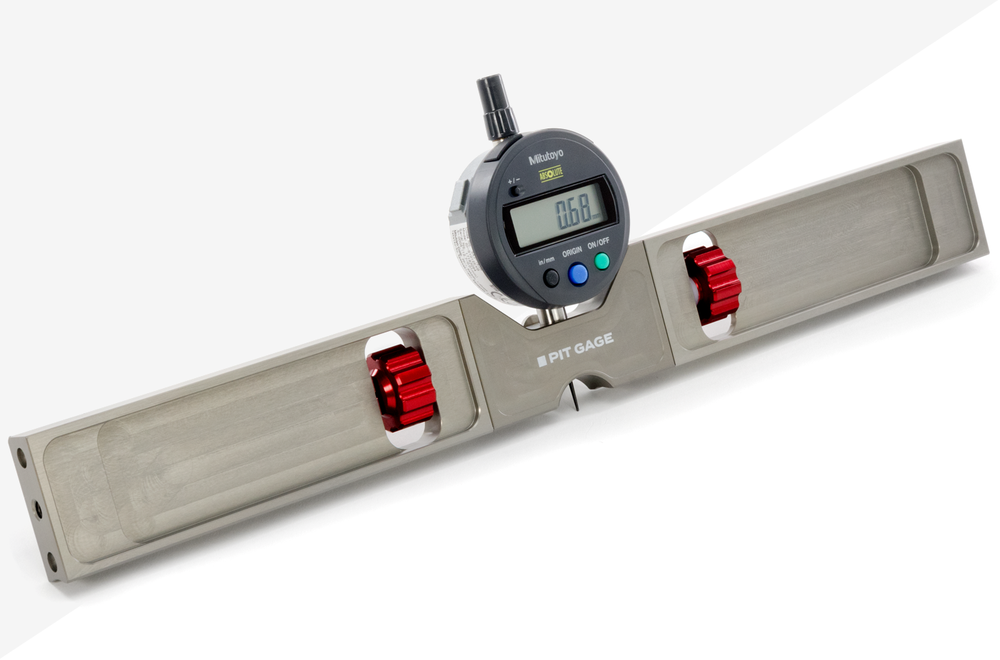

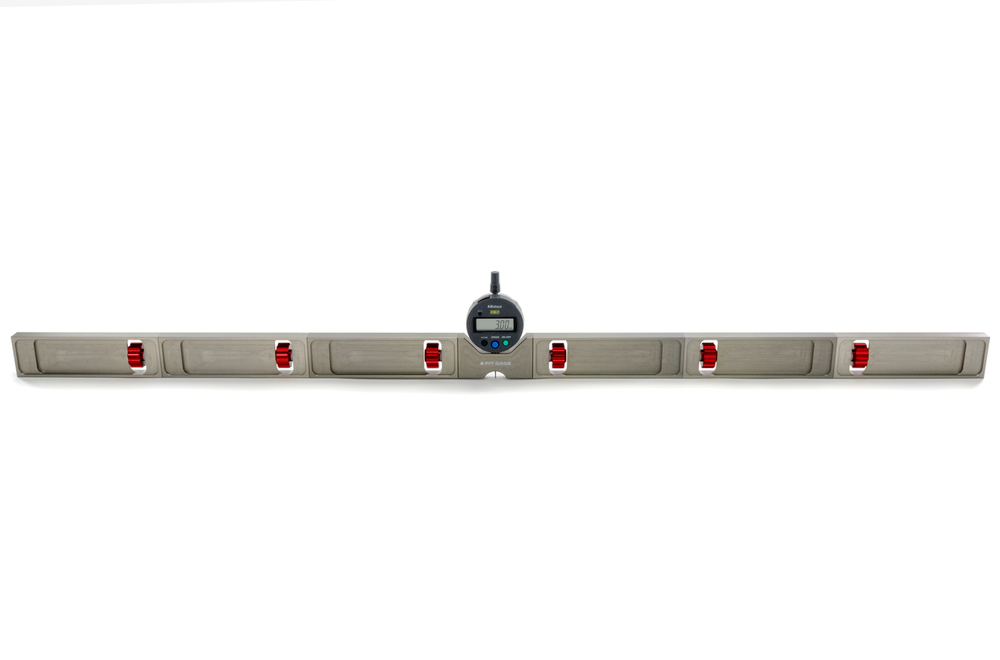

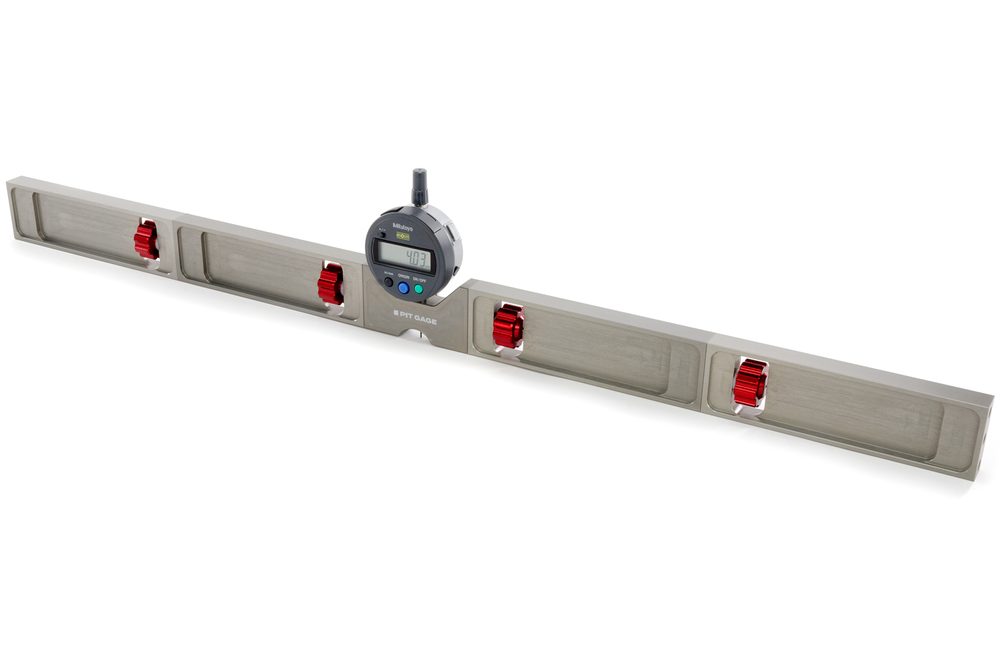

The Pit Gage Classic is a manual system used to measure surface variations. Its accuracy, ease of use and modular design make it an essential tool for manual pit inspection. Available in kits of 2, 4 or 6 extensions arms, each kit also includes a blindside base for limited access measurement.

Part ID: PGA001


Kit Contents

Path 2 CopyPath 2 Copy

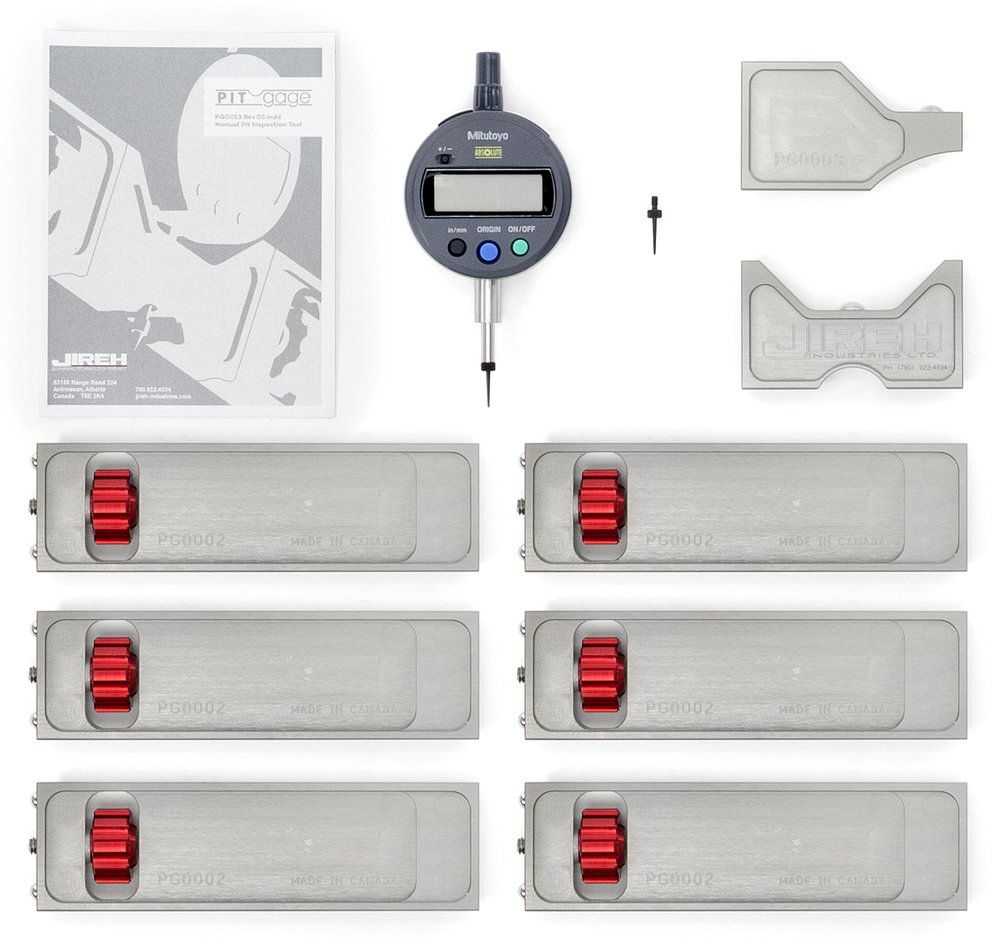

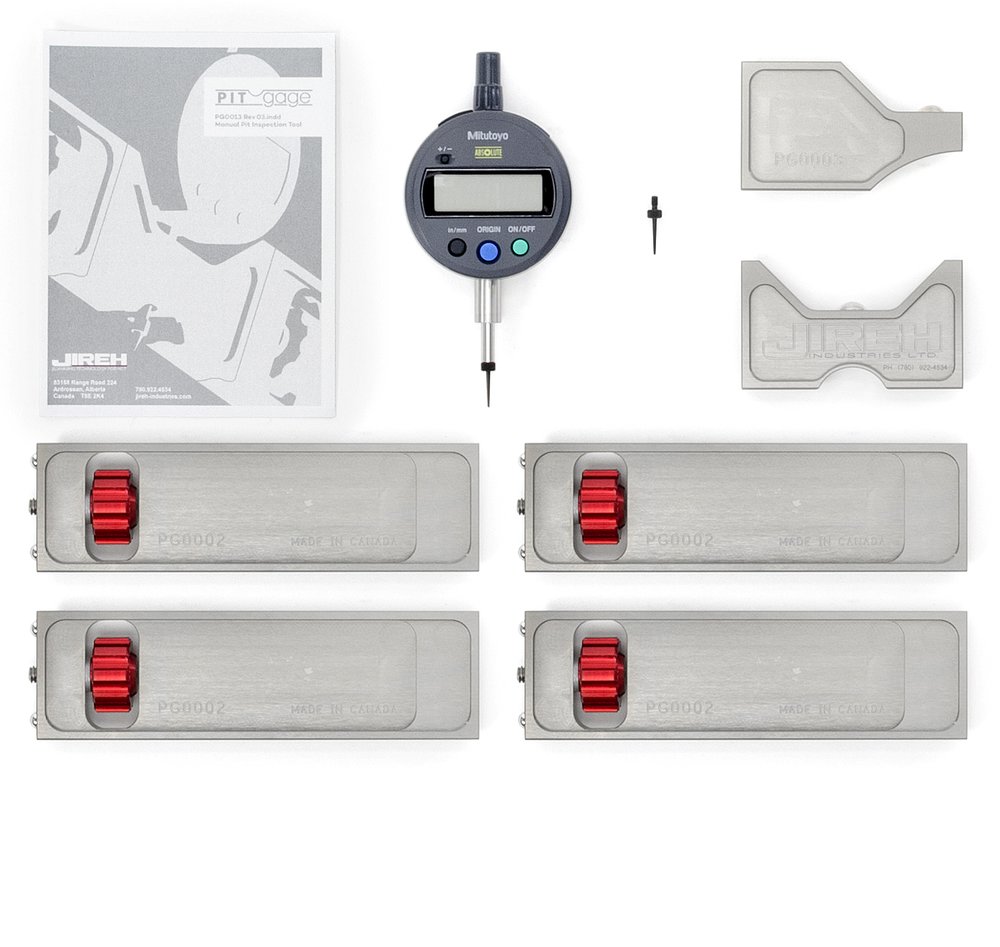

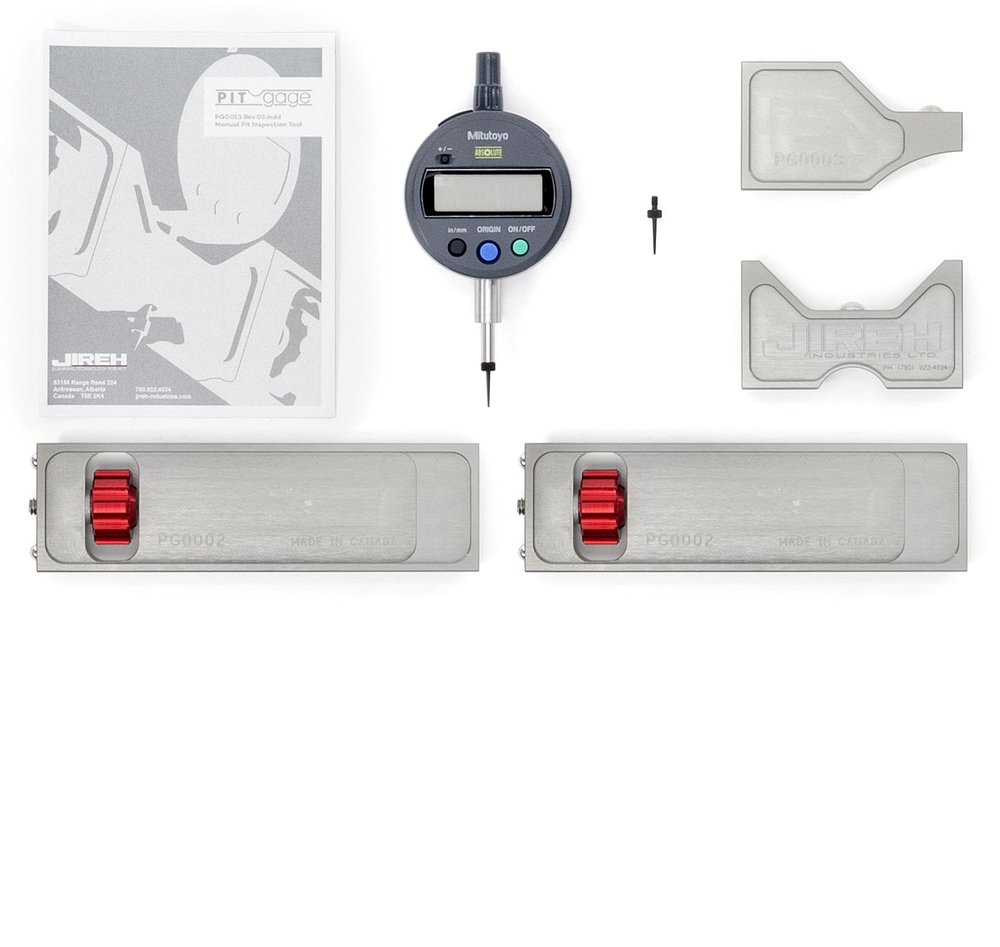

Standard Kit Contents

0 - 12.7 mm (0 - 0.5 in) digital indicator
7.6 cm (3 in) centre base
Blind side base
15.2 cm (6 in) extension arms
Indicator tips
User manual

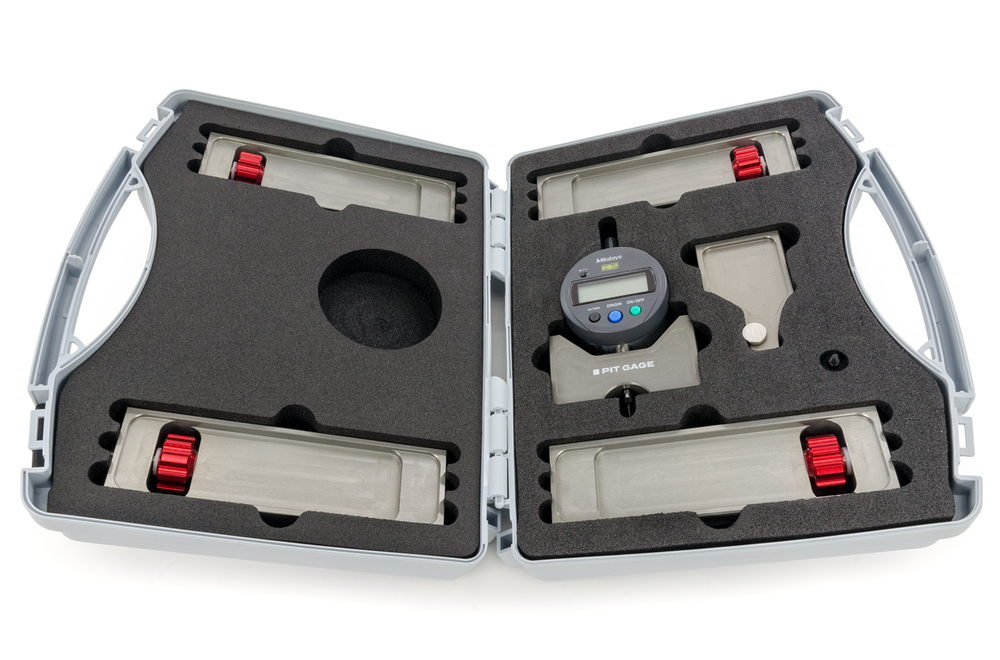

Rugged plastic carrying case


Component Identification

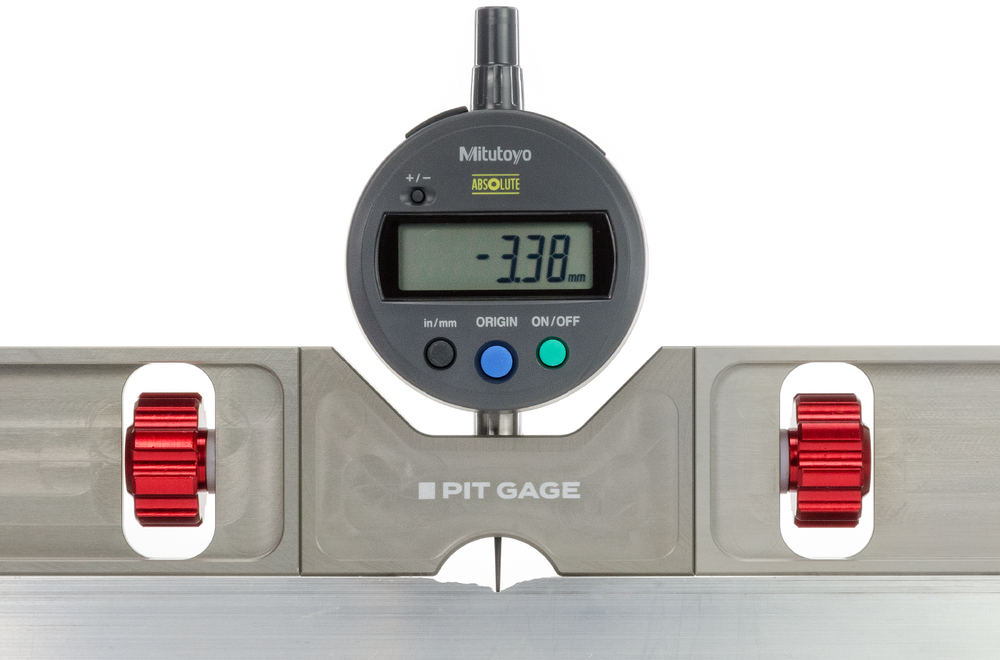

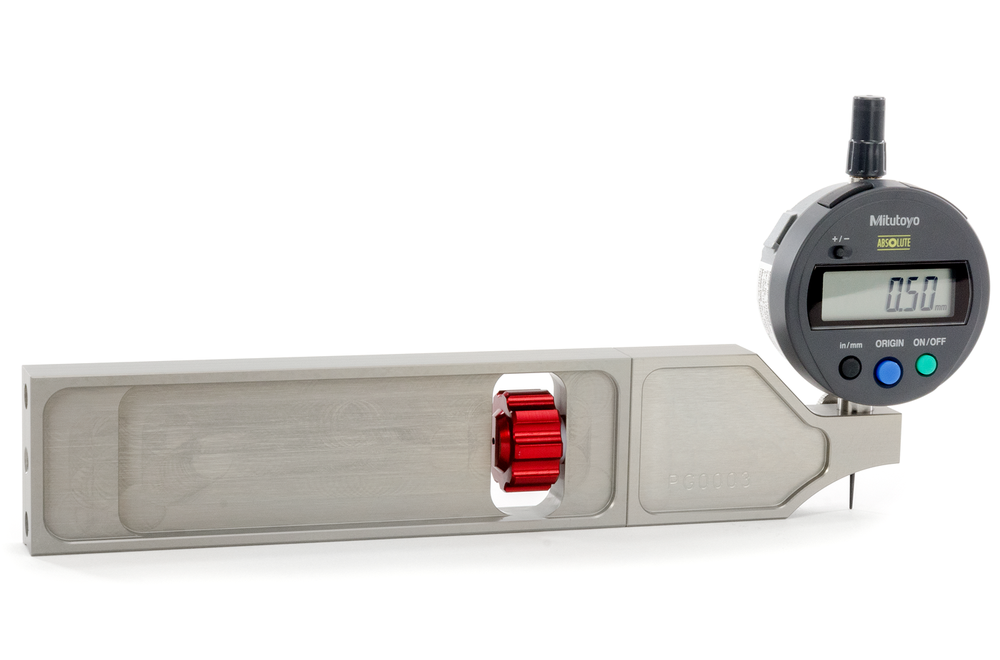

Digital Indicator

The easy readability of the digital indicator ensures accurate readings.

Centre Base

The centre base can be used alone or in part with multiple extension arms.

Extension Arms

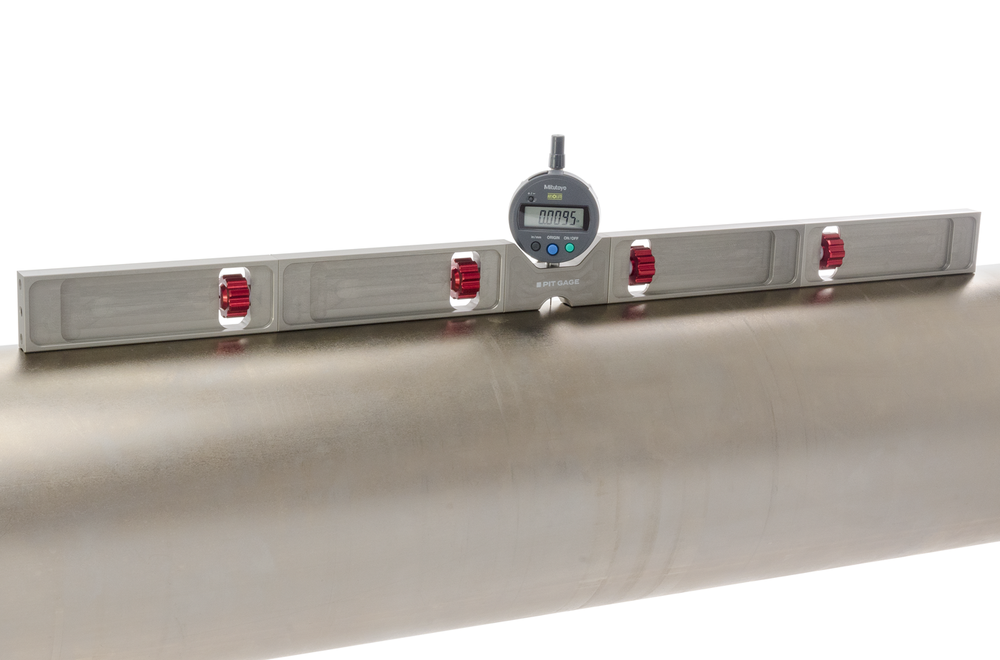

The extension arms may be used in any configuration. A small radius on the bottom surface assists with measuring small diameter pipes.

Blind Side Base

Used to measure when close to a weld or flange.

Indicator Tip

A spare indicator tip is included in the kit.

Parts & Add-Ons

Related Products


Path 2 CopyPath 2 Copy


Digital Indicator, Range: 0 - 12.7 mm (0 - 0.5 in)
Digital Indicator, Resolution: 0.01 mm (0.0005 in.)
Digitla Indicator, Stem Diameter: 9.52 mm (.375 in)
Battery Requirements: SR44 x1 (included)

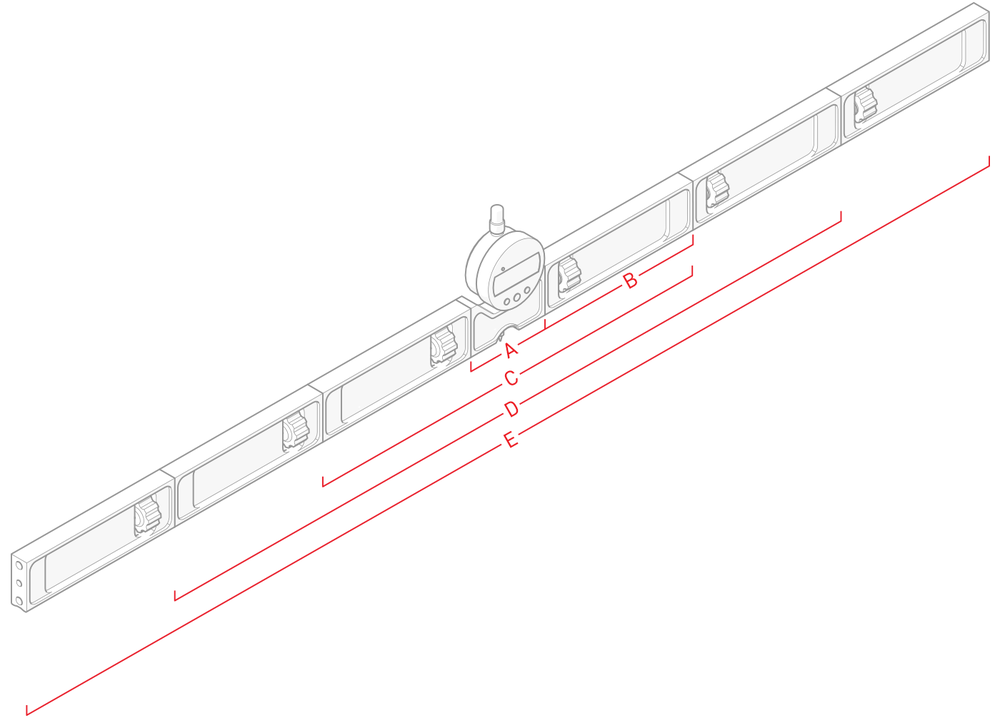

Size and Weight

A: 7.6 cm (3 in)
B: 15.2 cm (6 in)
C: 38.1 cm (15 in)
D: 68.6 cm (27 in)
E: 99.1 cm (39 in)

Shipping weight (2 arm kit): 1.2 kg (2.7 lb)
Shipping weight (4 arm kit): 1.4 kg (3.1 lb)
Shipping weight (6 arm kit): 1.6 kg (3.5 lb)


Diameter: 0.914 mm (0.036 in)

Environmental Specifications

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
