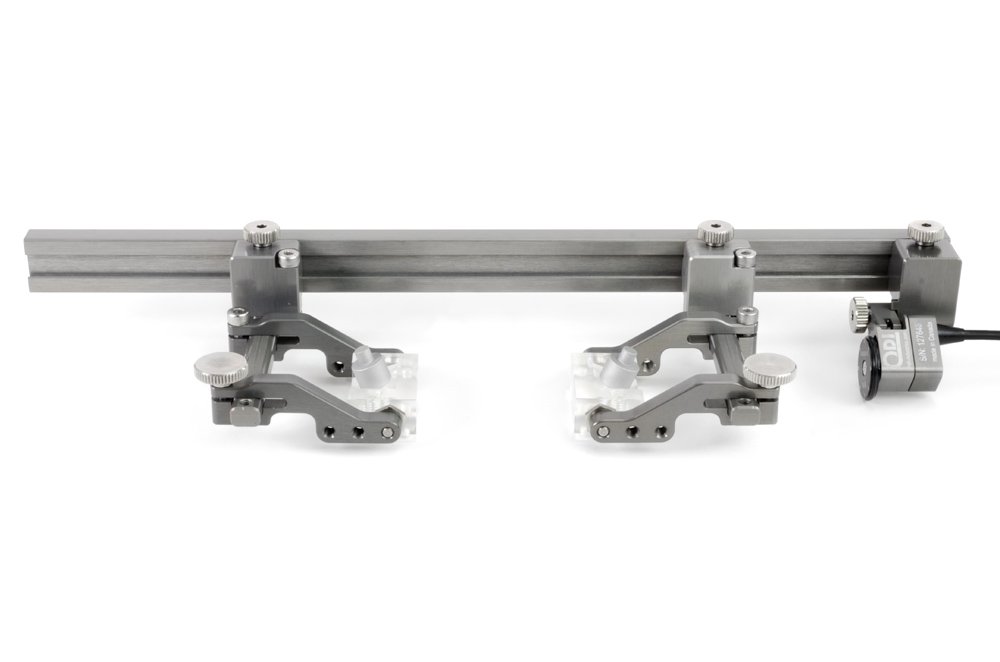

Simple and sophisticated. Streamlined for Speed.

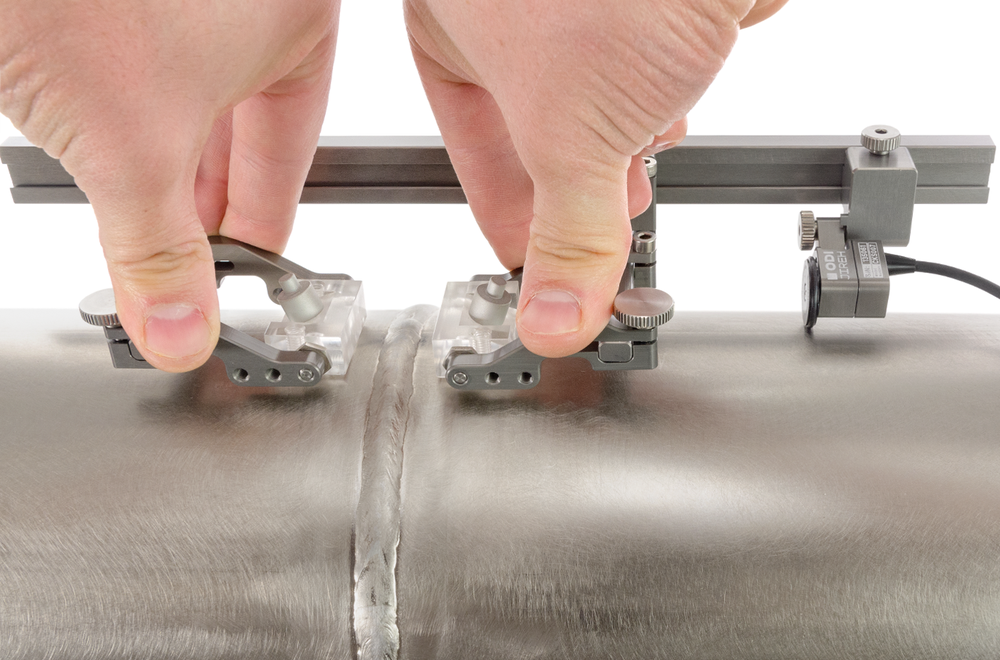

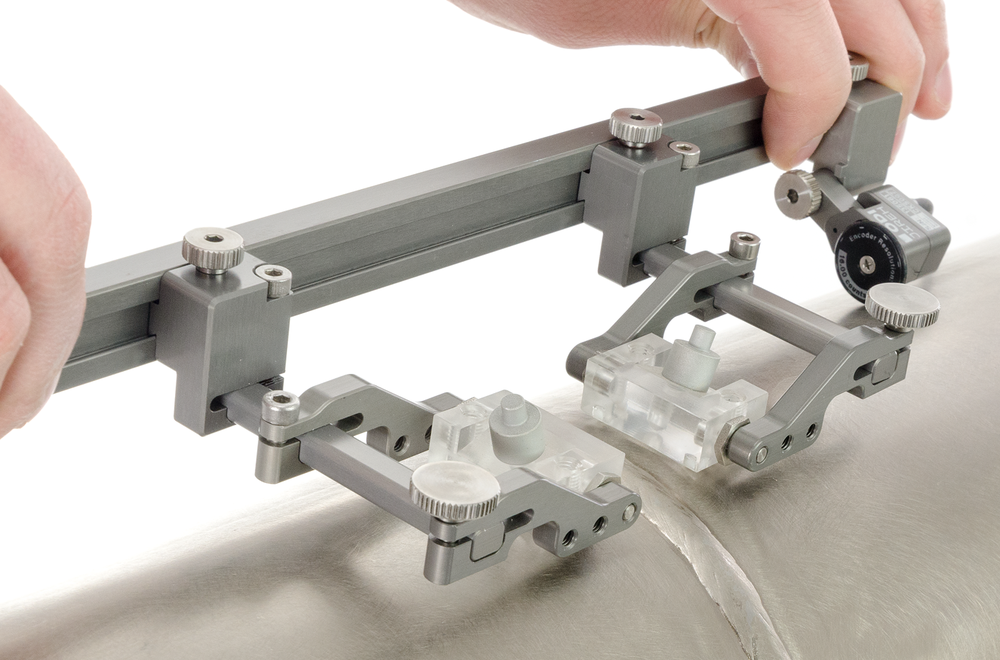

Enjoy expanded probe capacity with two TOFD probes to conduct weld inspection with this simple, no-tools-required, scanner. The ODI II's handheld operation offers maneuverability, while the spring-loaded encoder maintains constant encoder contact.

Part ID: CKG007

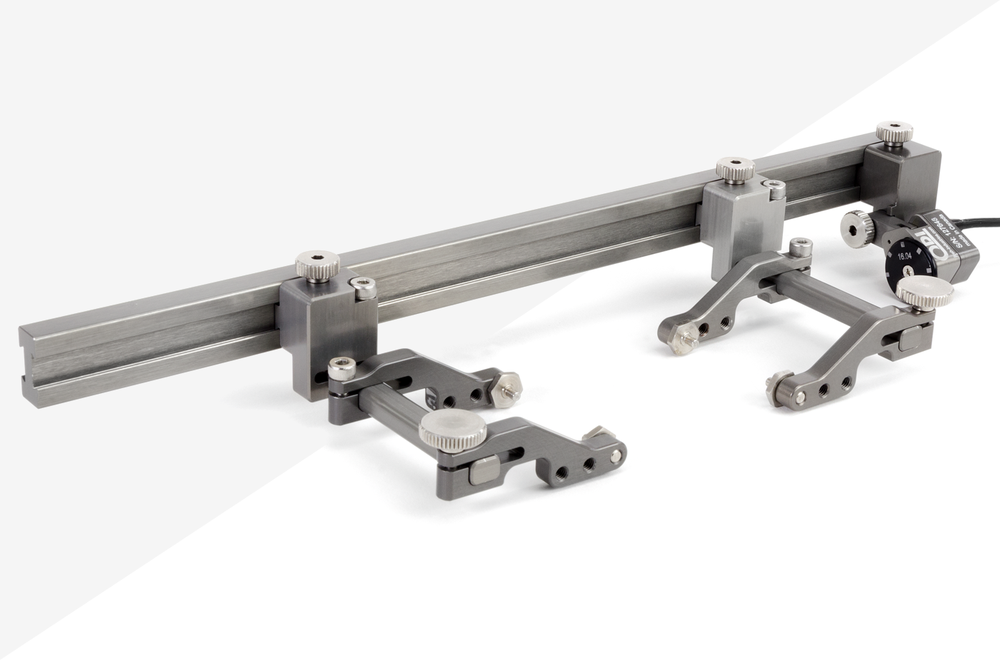

Component Identification

Frame Bar

Connect the components of the scanner using the frame bar.

Encoder

The spring-loaded encoder translates positional data to the user instrument.

TOFD Probe Holders

Carry TOFD probes and wedges with the ODI II.

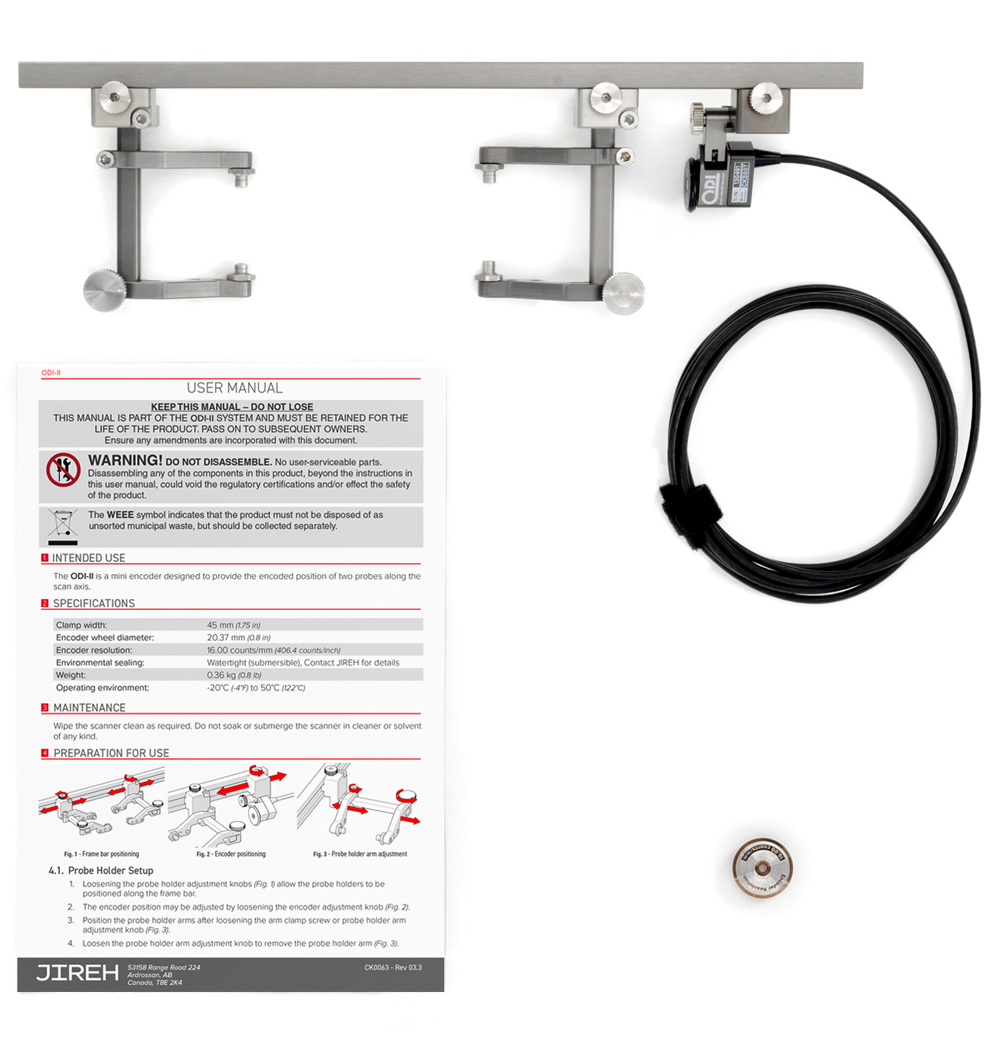

Kit Contents

Path 2 CopyPath 2 Copy

Spring-loaded encoder with 5 m (16.4 ft) encoder cable
ODI two probe system with 30 cm (11.8 in) frame bar
User manual
Warranty card

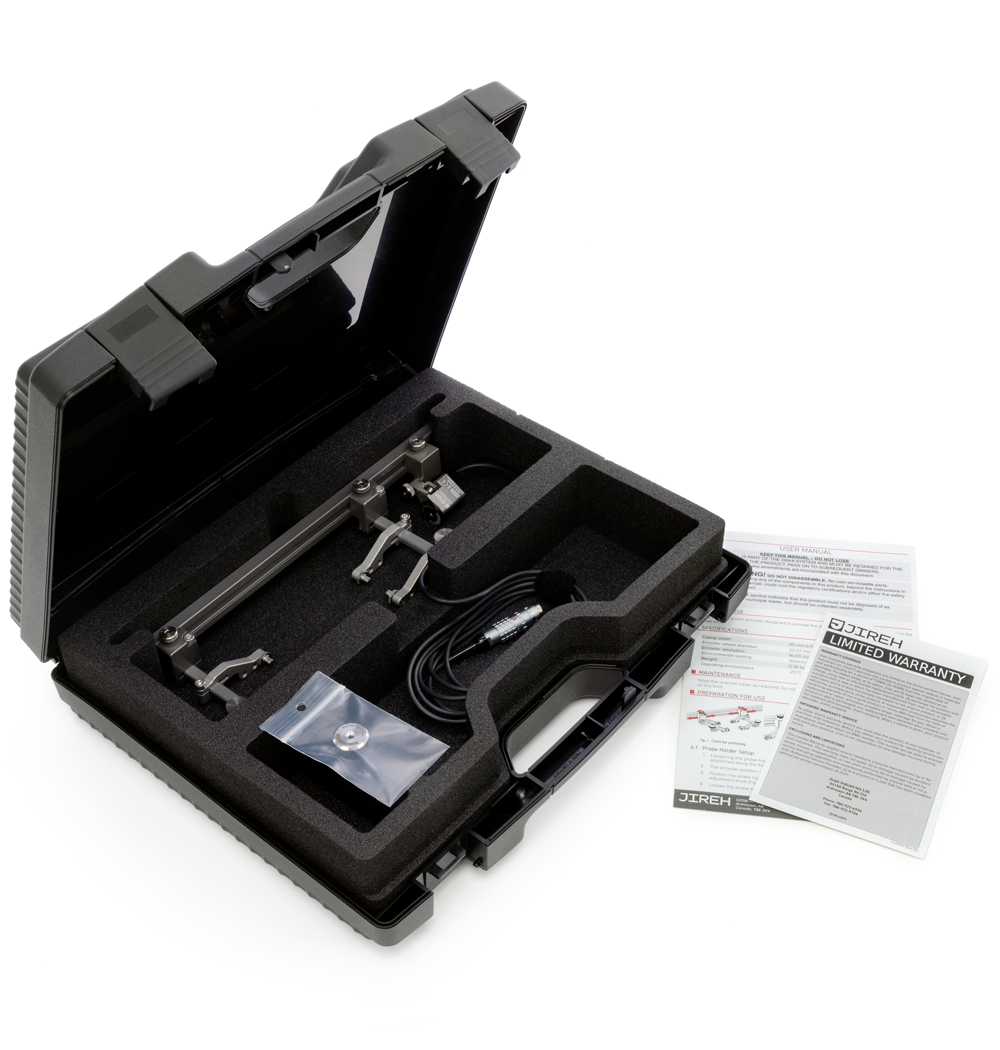

Rugged carrying case

Parts & Add-Ons

Specifications

Path 2 CopyPath 2 Copy

GENERAL

Encoder Wheel Diameter: 20.57 mm (0.810 in)
Encoder Resolution: 16.00 counts/mm (406.4 counts/inch)
Probe Holding Capacity: 2 TOFD wedges
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous and non-ferrous

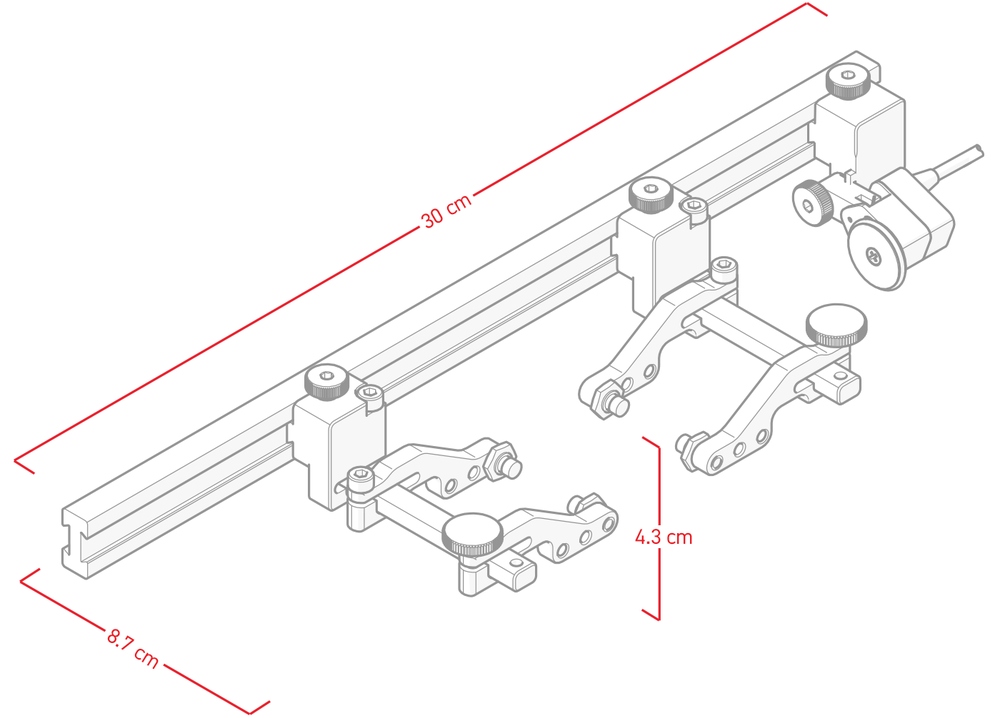

SIZE & WEIGHT

ODI II Height: 4.3 cm (1.7 in)
ODI II Width: 8.7 cm (3.4 in)
ODI II Length: 30 cm (11.8 in)2
ODI II Weight: 0.36 kg (0.8lb)3, 4
Shipping Weight: TBD kg (lb)5

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)

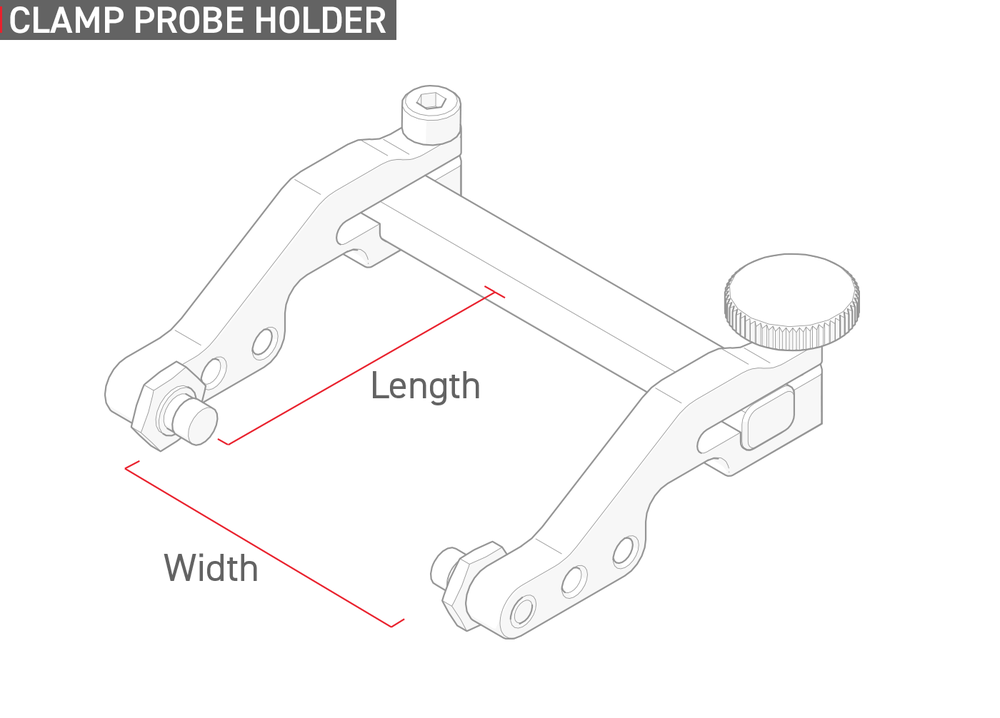

CLAMP PROBE HOLDER SPECIFICATIONS

Maximum Wedge Width: 45 mm ( 1.75 in)

Probe Holder Pivot Buttons

01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.009 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)

  1. Custom umbilical lengths are available.
  2. Additional frame bar lengths available.
  3. Weight includes cabling.
  4. Weight may vary depending on encoder connector.
  5. Approximate shipping weight of standard kit contents.
    Technical specifications subject to change.
