Ensure storage tank integrity and safety with the NAVIC

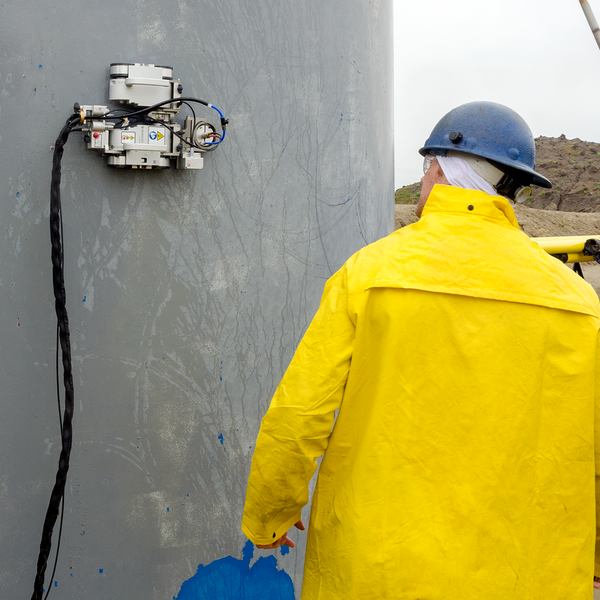

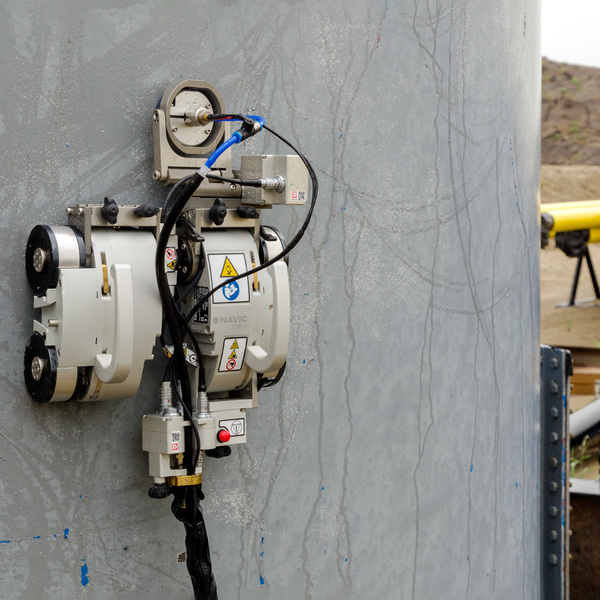

Deliver state-of-the-art thickness inspection results with the NAVIC - Tank Scanner. Paired with the actuated probe lift, the NAVIC operates remotely at a distance of up to 30 m (100 ft), while offering steering control and the ability to raise and lower the probe. Powerful, magnetic wheels, drive vertically (and inverted) along the ferrous surfaces of tanks and vessels.

Features

Motorized Driving and Steering

Variable drive speed and steering are controlled by the handheld controller.

Rugged

Designed to handle intense tasks and challenging environments (dust tight, watertight)

Corrosion Thickness Probe Holder

Measure material thickness with a probe holder which may hold a host of different probe types.

Magnetic Wheels

Magnetic wheels provide the foundation for scan operations on ferrous surfaces

Remote Control

Navigate the crawler from up to 30 m (100 ft) away using the intuitive handheld remote control. The ergonomic handheld controller includes programming of raster patterns, drive paths and system diagnostics.

Many Accessories

Enhance the NAVIC's capability with optional accessories: battery powered laser guide, onboard camera, backpack, cable management, crawler removal system and motorized couplant pump.

Warranty

JIREH backs this product with a limited 3-year warranty

Component Identification

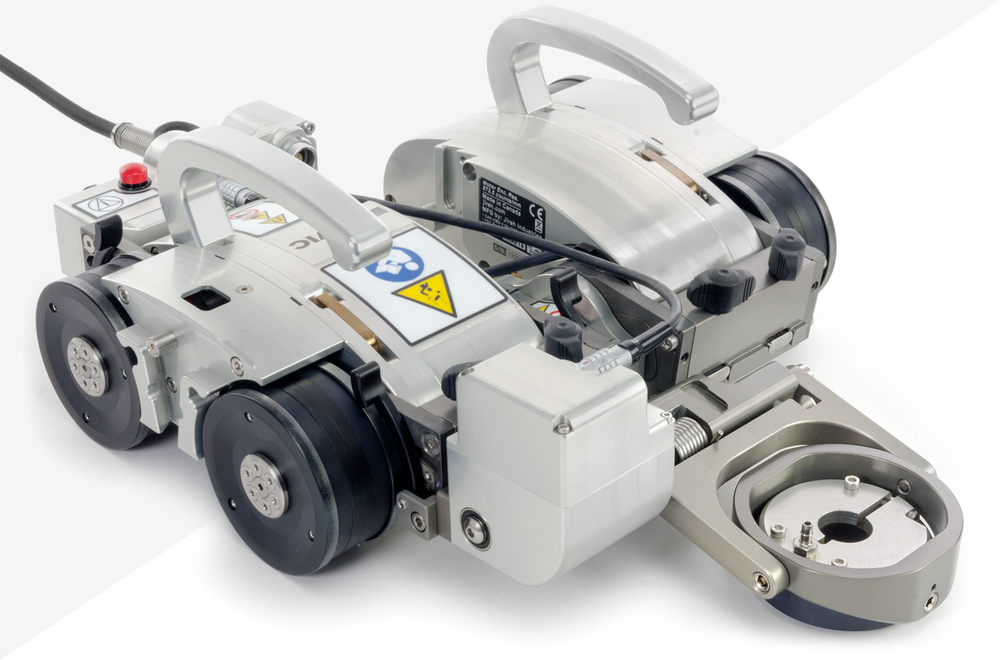

Base Crawler

The powerful base crawler carries probe holder frames, raster arms and a multitude of accessories for the purposes of weld and corrosion inspection.

Integrated Encoder

A spring-loaded encoder maintains surface contact on all various scan surface diameters.

Magnetic Wheels

Powerful magnetic wheels ensure the crawler remains fixed to any ferrous surface.

Power Controller

Compatible with both North American and European power sources, the power controller connects the user instrument and handheld controller to the base crawler.

Umbilical

The backbone of communication between the power controller and the base crawler.

Handheld Controller

Containing the NAVIC operating system, the handheld controller joysticks control speed and steering of the base crawler while the intuitive touchscreen allows for more intricate raster path and drive programming.

Kit Contents

Path 2 CopyPath 2 Copy

SCANNER

NAVIC base crawler

PARTS & ACCESSORIES

Power controller (North American or European plug)
Umbilical, 5 m (15 ft), 10 m (30 ft), 15 m (50 ft) or 30 m (100 ft) lengths available
Handheld controller
Controller cable, 6 m (20 ft)
Cable management, threaded mount, (length dependent on umbilical length)
J300 encoder cable, 5 m (15 ft)
Installation/Removal mat
6 mm ID irrigation kit (7/16 in quick connect)
Lifting sling (safety tether)
User manual
Cap (hinge covers) x2
Rugged carrying cases (various types based on chosen accessories)  x2 – x3



TOOLS

3 mm hex driver
3 mm flat driver
Wrench for pivot button adjustment

COMPONENTS

(Components may vary based on selected configuration)

Actuated Probe Lift
Cable

Specifications

Path 2 CopyPath 2 Copy

GENERAL

Idler Encoder (Right Module): 13.78 counts/mm (349.9 counts/inch)
Motor Encoder (Left Module): 872.5 counts/mm (22162.8 counts/inch)
Crawler’s Vertical Payload: 10 kg (22 lb)1
Driving Speed: Variable 0 – 25 cm/sec (0 – 10 in/sec)
Power Requirements: 100-240VAC, 50/60Hz, 3.5 Amps
Umbilical Lengths: 5 m (15 ft), 10 m (30 ft), 15 m (50 ft) to 30 m (100 ft)2
Inspection Surface: Ferrous
Maximum Backpack payload: 1.36 kg (3 lb)3

PIPE RANGE

Pipe Range, Circumferential: 7 cm (2.75 in) to flat pipe
Range, Internal Circumferential: 61 cm (24 in) to flat
Pipe Range, Longitudinal: 30.5 cm (12 in) to flat

RADIAL CLEARANCE

Radial Clearance, Pipes under 20 cm (8 in): 7 cm (2.75 in)4
Radial Clearance, Pipes over 20 cm (8 in): 8.15 cm (3.2 in)4

REGULATIONS

CE: European Union CE Declaration – Compliance with essential requirements and provisions of European Union directives.5
FCC: Compliance with Part 15 of FCC rules.5
Industry Canada: CAN ICES-3 (A)/NMB-3(A) – This class A digital apparatus complies with Canadian ICES-003.5

SIZE & WEIGHT

Base Crawler Height (including handles): 12.5 cm (4.9 in)
Base Crawler Height (handles removed): 8.1 cm (3.2 in)
Base Crawler Width (Dual Pod): 28.2 cm (11.1 in)
Base Crawler Length: 30.8 cm (12.1 in)6
Base Crawler Width (Single Pod): 16.1 cm (6.3 in)
Base Crawler Weight: 7.7 kg (17 lb)7

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)
Maximum Inspection Surface Temperature: 150°C (302°F)6

Corrosion Thickness Probe Holder Dimensions

With Mounting Bracket

A - 140.09 mm (5.52 in)
B - 135.18 mm (5.32 in)
C - 38.28 mm (1.51 in)
D - 38.28 mm (1.51 in)

Without Mounting Bracket (raster arm application)

E - 32.77 mm (1.29 in)
F - 104.08 mm (4.10 in)
G - 117.27 mm (4.62 in)
H - 46.33 mm (1.82 in)
I - 76.66 mm (3.02 in)

Corrosion Thickness Probe Holder Receptacle Sizes

A - 9.53 mm (0.375 in) dia.
B - 12.7 mm (0.5 in) dia.
C - 19 mm (0.75 in) dia.
D - Technisonic
E - 25.4 mm (1 in)

  1. Performance may vary with surface type. Heavy payloads may require reduced speeds.
  2. Custom umbilical lengths are available.
  3. The backpack is not compatible with older generation NAVIC crawlers.
  4. Handles removed.
  5. For a complete description of regulatory certifications, please contact Jireh Industries.
  6. Length of the unit includes umbilical strain relief.
  7. Crawler weight excludes umbilical.
  8. The automated crawler medium temperature add-on kit is required when the inspection surface temperature measures between 50°C (122°F) and 150°C (302°F).
  9. Technical specifications subject to change.



Crawler

From USD$ 34,182.00

The industry-leading NAVIC is JIREH's most powerful, all-encompassing, weld and corrosion scanning solution.

The NAVIC 2 - Base Crawler is a modular, motorized, steerable scanner designed to carry multiple attachments used in various scanning and inspection applications. This remotely operated scanning platform is capable of circumferential scans on diameters as small as 70 mm (2.75 in) OD.

Probe Holder

From USD$ 2,556.00

Preserve the life of a probe by raising it from the scan surface during transit from various inspection locations. The Actuated Probe Lift allows a NAVIC crawler to raise and lower a corrosion thickness probe holder to avoid obstacles and large welds, all while being controlled remotely from the handheld controller. Available with a 19 mm (0.75 in) receptacle (compatible with an Olympus D790) and a choice of flat or curved wear plate.

UT Cable

From USD$ 121.50

The UT Cable is a dual RG174 COAX cable with male microdot connectors on one cable end, and male BNC connectors on the opposite cable end. Used to connect dual element transducers to a thickness gauge or flaw detector, this cable is available in 15 m (49.2 ft) lengths.

Accessory Bracket

From USD$ 265.50


The NAVIC Backpack provides equipment carrying capabilities to the NAVIC base crawler. Capable of payloads up to 1.36 kg (3 pounds), the backpack offers several mounting options for hardware. Alternativly, flexible velcro straps may also be used to secure the items to the backpack.


Automated Crawler Medium Temperature Add-On Kit

From USD$ 1,395.00

Increase the maximum inspection surface temperature capabilities to 150°C (302°F).

Operate on surfaces up to 150°C (302°F)

The Automated Crawler Medium Temperature Add-On Kit includes an installation/removal mat and a 4.5 m (14.8 ft) cable management system which are designed for use beyond the standard 50°C (122°F). Combine this kit with any existing NAVIC or SKOOT system and operate with confidence on medium heat inspection surfaces up to a maximum temperature of 150°C (302°F).

Irrigation Pump

From USD$ 1,440.00

The Motorized Couplant Pump is designed for use with the CMG007 and CMG009 irrigation kits. The motorized couplant pump is a powered pumping unit used for supplying couplant fluid to the scanning surface.



Pump/Umbilical Case

From USD$ 405.00

The Motorized Pump/Umbilical Case offers superior protection for a Motorized Couplant Pump as well as additional storage for umbilicals, cables, hoses and tubes.
