Translate two TOFD probes around ferrous piping and vessels

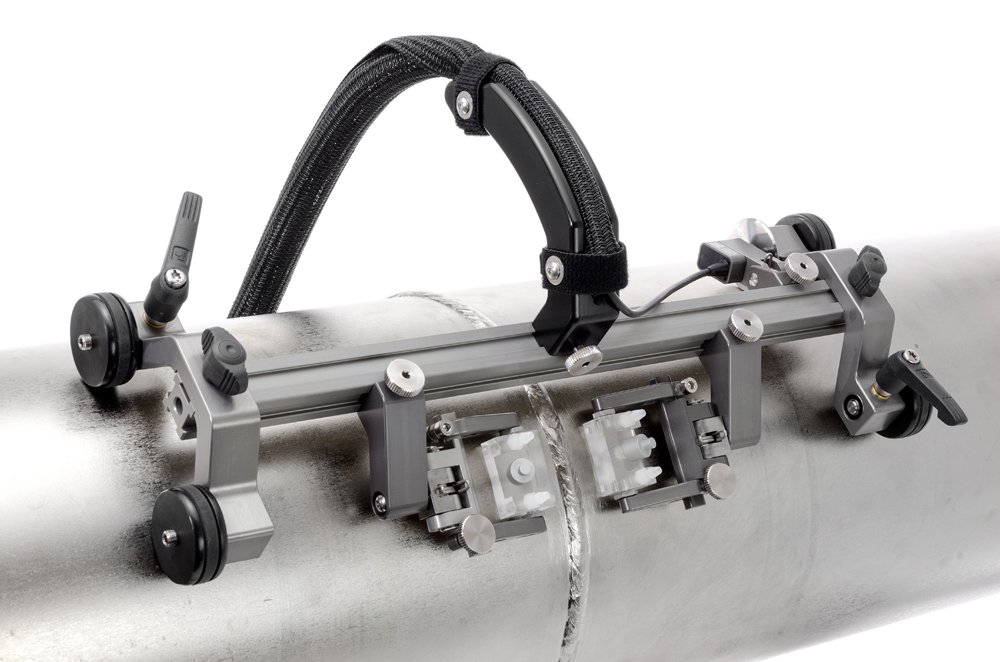

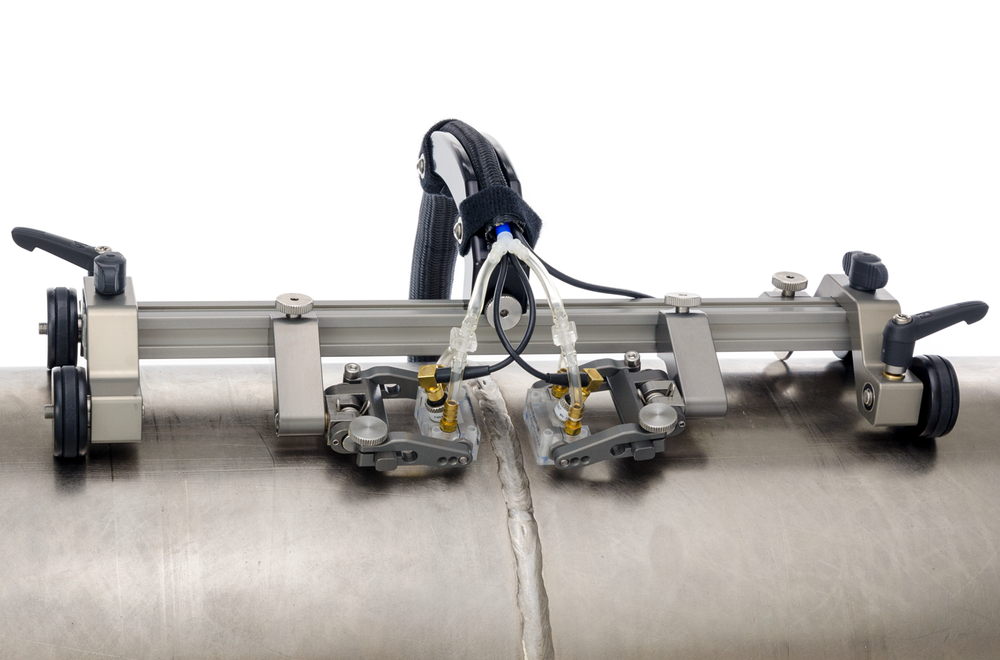

An easy to use manual magnetic scanner which includes a precision spring-loaded encoder. Essentially a plug and play device, the STIX - 2 Probe TOFD Scanner routes cables and hoses through the handle/cable management and then plug the encoder into any standard instrument and get to work quickly and efficiently with the specialized spring-loaded probe holders.

Part ID: BGG001

Videos

Features

STIX Frame

The STIX frame includes a convenient handle for scanner control and cable management.

Spring-Loaded Encoder

A spring loaded encoder ensures accurate scanner positioning. The 5V DC TTL encoder is fully compatible with all standard instruments.

Spring-Loaded Probe Holders

A simplified probe holder is used to provide adjustment and quick setup of PCS. Due to its modular design most major types of TOFD wedges can be accommodated.

Wheels

The magnetic wheels are coated with urethane to reduce the effects of foreign debris obstructing the rolling of the scanner. Increase the flexibility of the system with the with additional magnetic wheels (sold separately) which increase the magnetic attraction when required.

Brakes

Brakes are provided to lock the location of the scanner in a required position.

Warranty

Three year warranty ensures your product always performs.

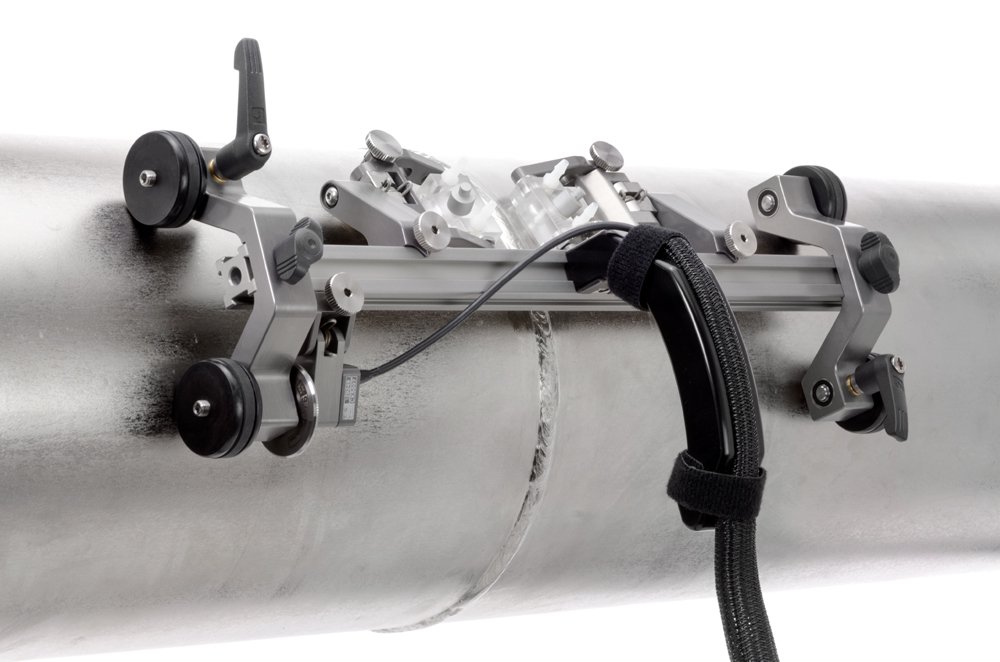

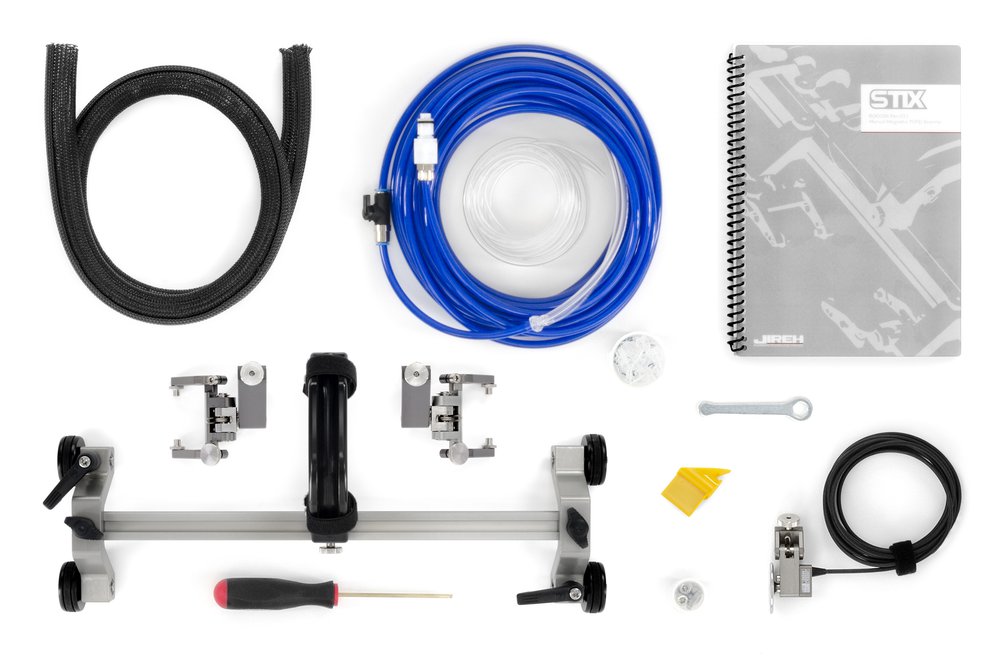

Kit Contents

SCANNER

Stix frame with 35 cm (13.8 in) frame bar

PARTS & ACCESSORIES

Spring-loaded Encoder, 5 m (16.4 ft) encoder cable length
Spring-loaded probe holder x2
Handle
Probe holder spare parts kit
4 mm ID irrigation kit (7/16 in quick connect)
Cable sleeving 1.5 m (4.9 ft)
User manual
Rugged carrying case

TOOLS

Loom installation tool
3 mm hex driver
Wrench for pivot button adjustment



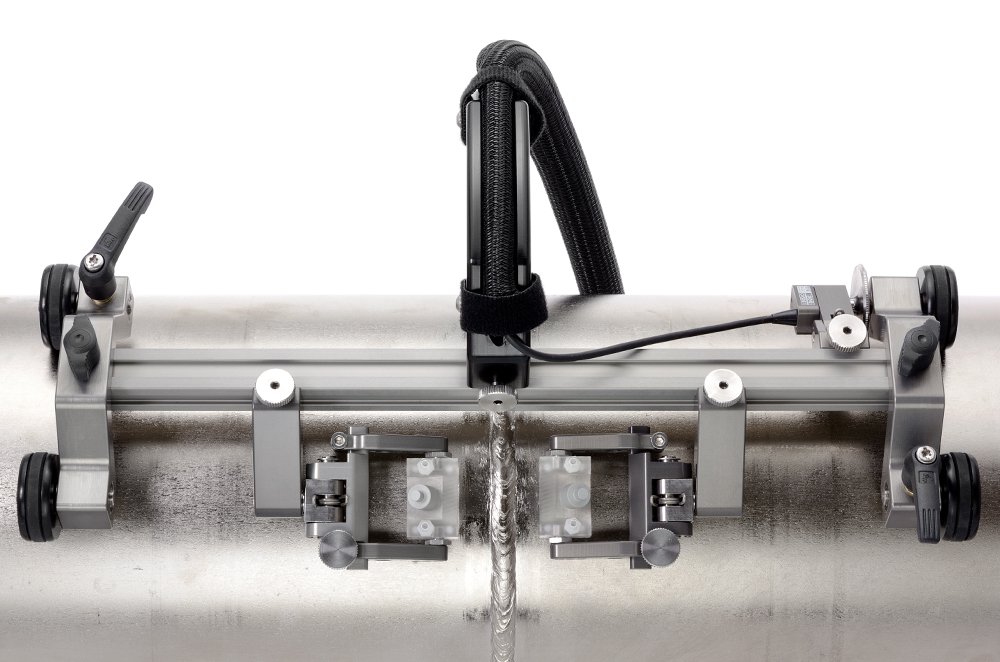

Component Identification

STIX Frame

The handle acts as a means for scanner control.

Brake

Dual brakes lock the magnetic wheels to prevent unwanted scanner motion.

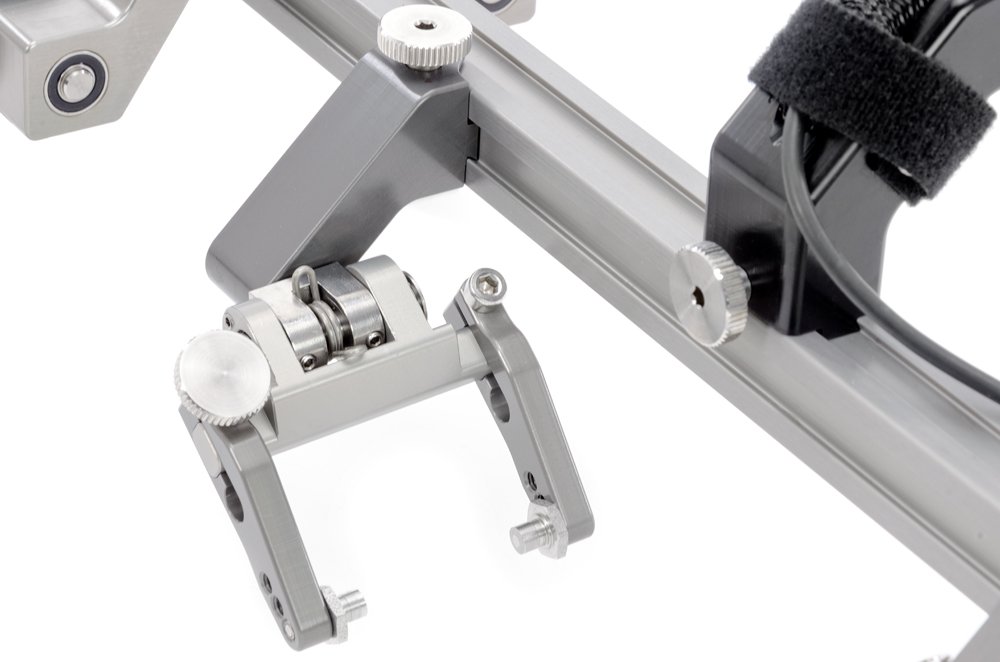

Spring-Loaded Probe Holder

Simplified probe holders carry TOFD wedges with ease.

Wheels

Magnetic wheels adhere the scanner to the ferrous scan surface. Additional magnetic wheels may be added to the scanner to increase the attraction to the inspection surface.

Cable Management

Route the cables and hoses through the handle and provided sleeving.

Parts & Add-Ons

Specifications

Path 2 CopyPath 2 Copy

GENERAL

Circumferential Pipe Range: 10.2 cm (4 in) to flat
Internal Pipe Range: Flat to 152.4 cm (60 in)
Encoder Resolution: 9.05 counts/mm (230.0 counts/inch)
Probe Holding Capacity: 2 TOFD wedges
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Ferrous materials

RADIAL CLEARANCE

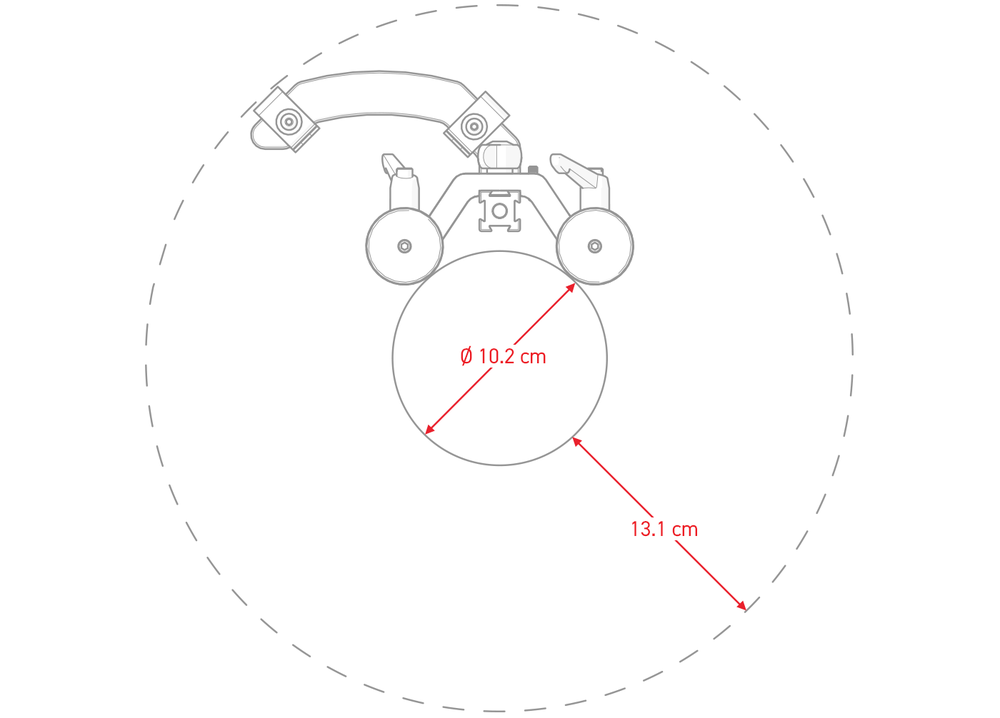

Radial Scanner Clearance: 13.1 cm (5.1 in)

SIZE AND WEIGHT

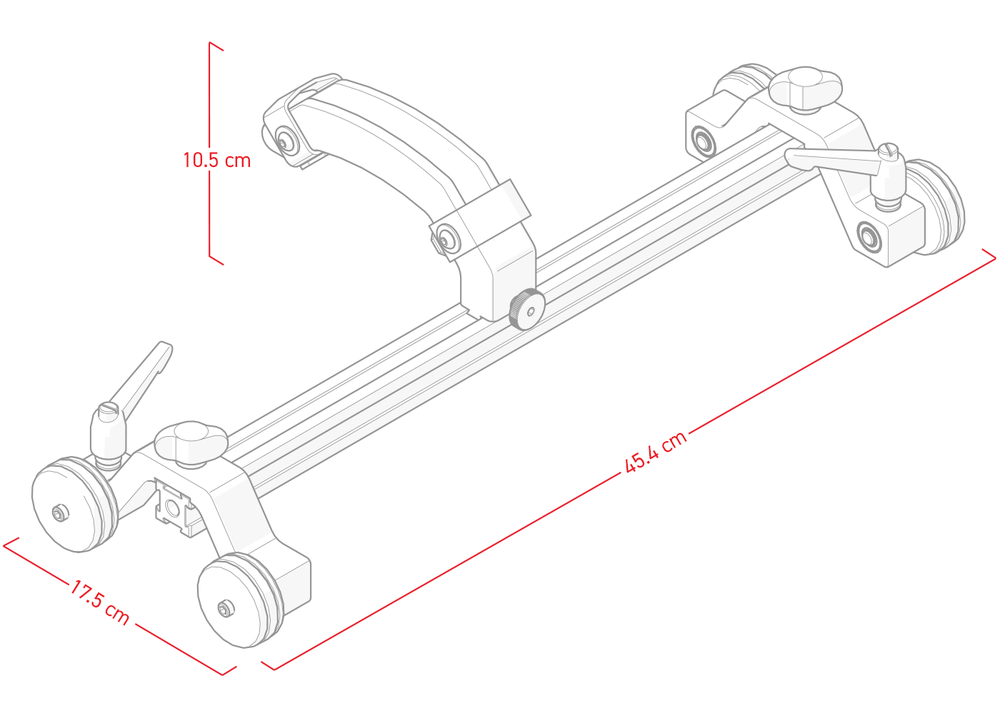

Frame Height: 10.5 cm (4.1 in)
Frame Width: 17.5 cm (6.9 in)
Frame Length: 45.4 cm (17.9 in)
Frame Weight: 1.19 kg (2.6 lb)
Shipping Weight: 4.1 kg (9 lb)

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible), Contact JIREH for details

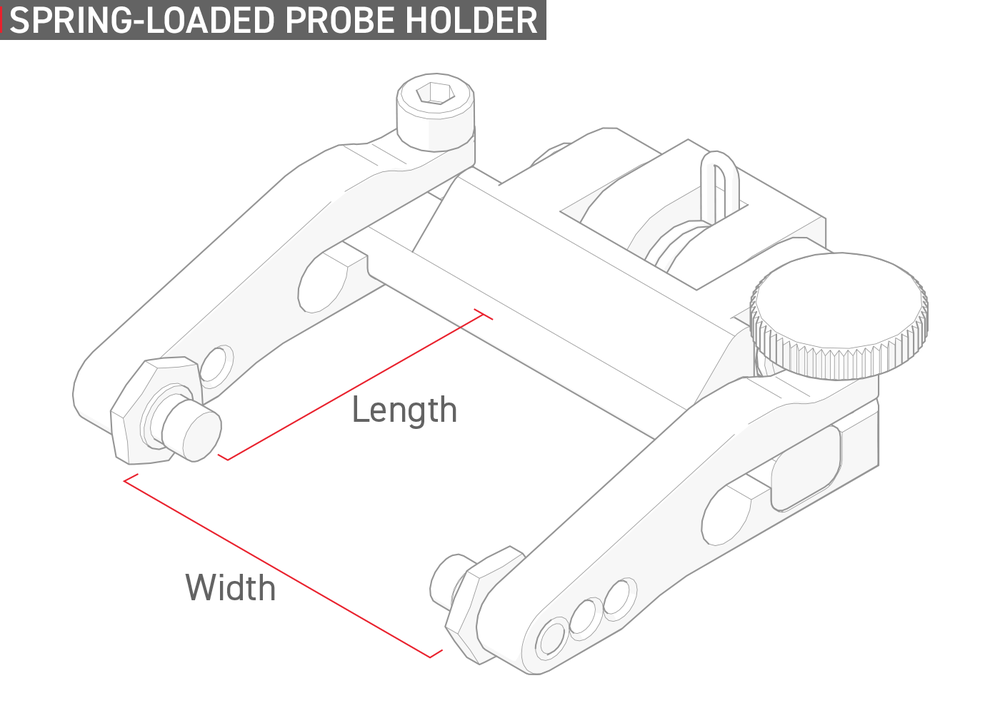

SPRING-LOADED PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 31 mm (1.2 in)
Maximum Wedge Width: 41 mm (1.6 in)
Minimum Wedge Length: 19.3 mm (0.76 in)
Maximum Wedge Length: 25.4 mm (1 in)

Probe Holder Pivot Buttons

01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)

  1.  Custom umbilical lengths are available.
  2. Approximate shipping weight of standard kit contents.
    Technical specifications subject to change.
