Probe Pivot Buttons
Various shapes and sizes of pivot buttons are available. Choose the pivot button that matches the wedge you will use.

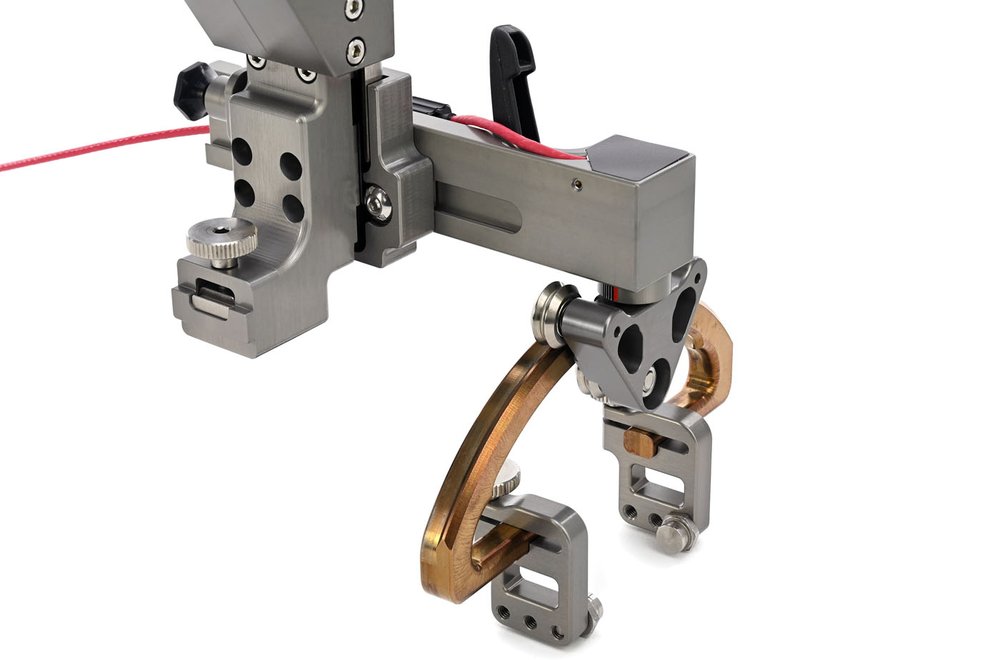

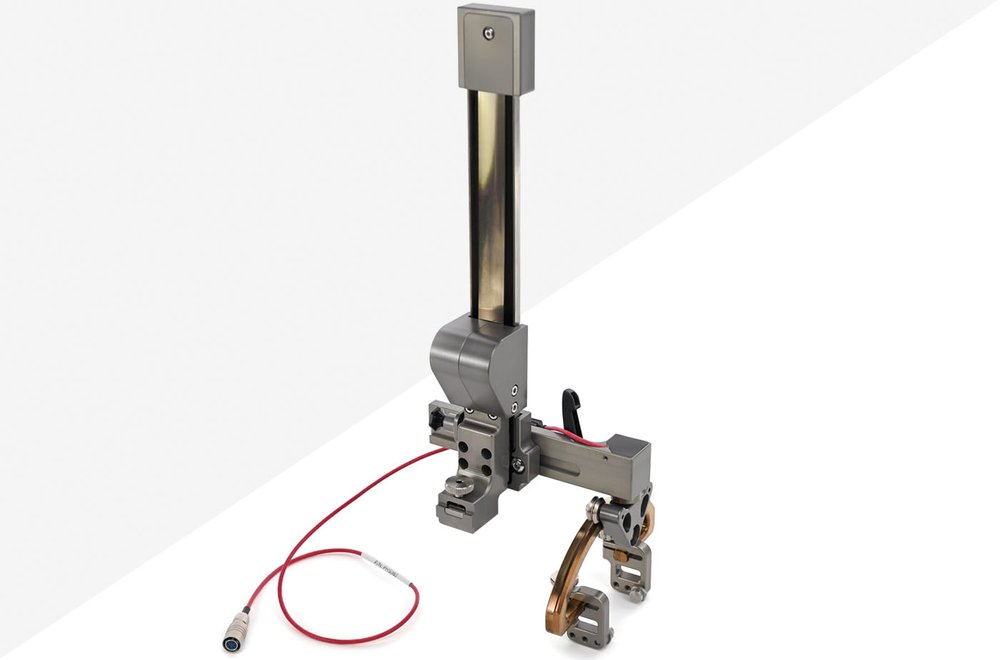

The Encoded Skew Vertical Probe Holder – Wide Arch provides 12.2 cm (4.8 in) of vertical travel to maintain contact over uneven surfaces. It also includes encoded skew capability and is specifically designed to accommodate large high-temperature probes. Used primarily for high temperature nozzle inspections, it creates a highly effective nozzle-scanning solution.
Parts & Add-Ons
Related Products
Specifications
SIZE & WEIGHT

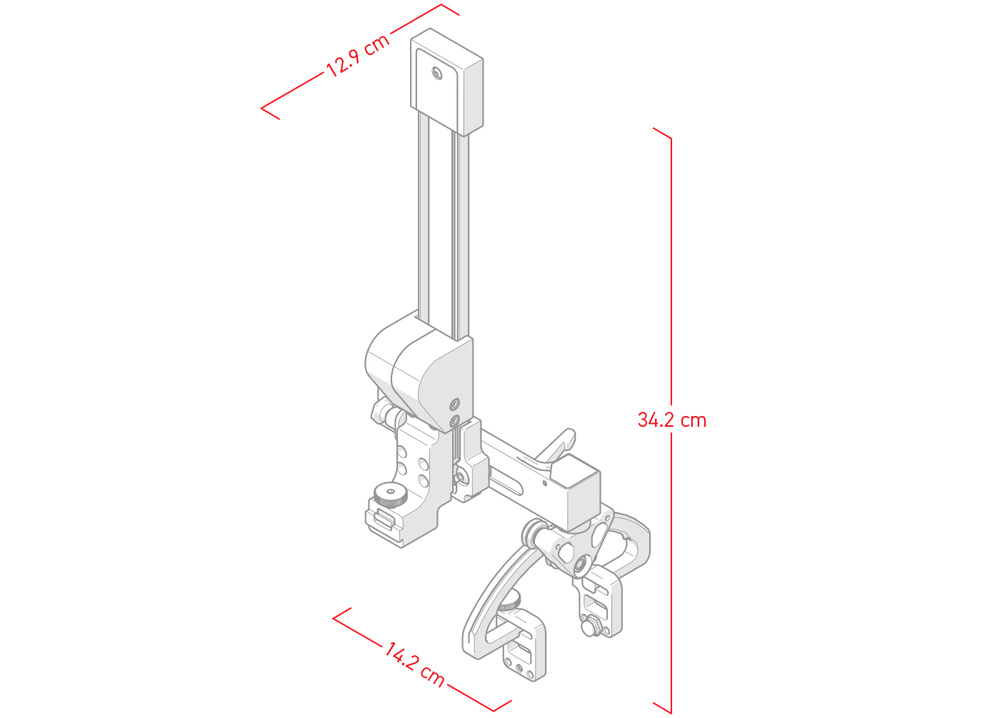

Height: 34.2 cm (13.5 in)
Width: 12.9 cm (5 in)
Length: 14.2 cm (5.6 in)
Weight: 0.80 kg (1.8 lb)
ENCODED SKEW PROBE HOLDER - WIDE ARCH SPECIFICATIONS
Minimum Wedge Width: 36 mm (1.4 in)
Maximum Wedge Width: 44 mm (1.7 in)
Maximum Wedge Height: 45.7 mm (1.8 in)
Probe Holder Pivot Buttons
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
- Alternate probe holders with additional vertical clearance are available - contact JIREH for more information.
Technical specifications are subject to change.
