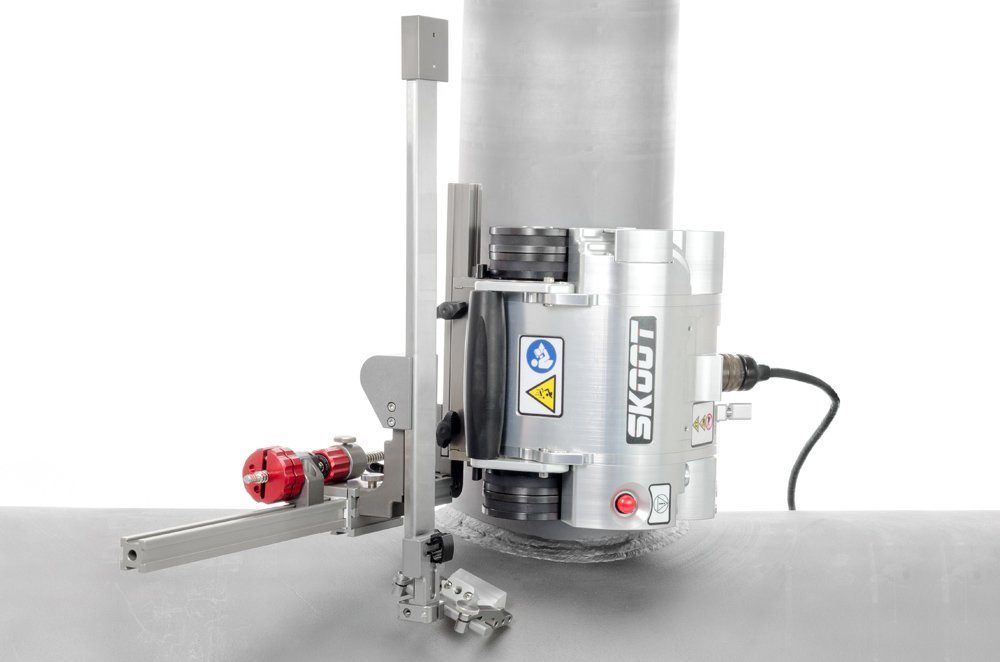

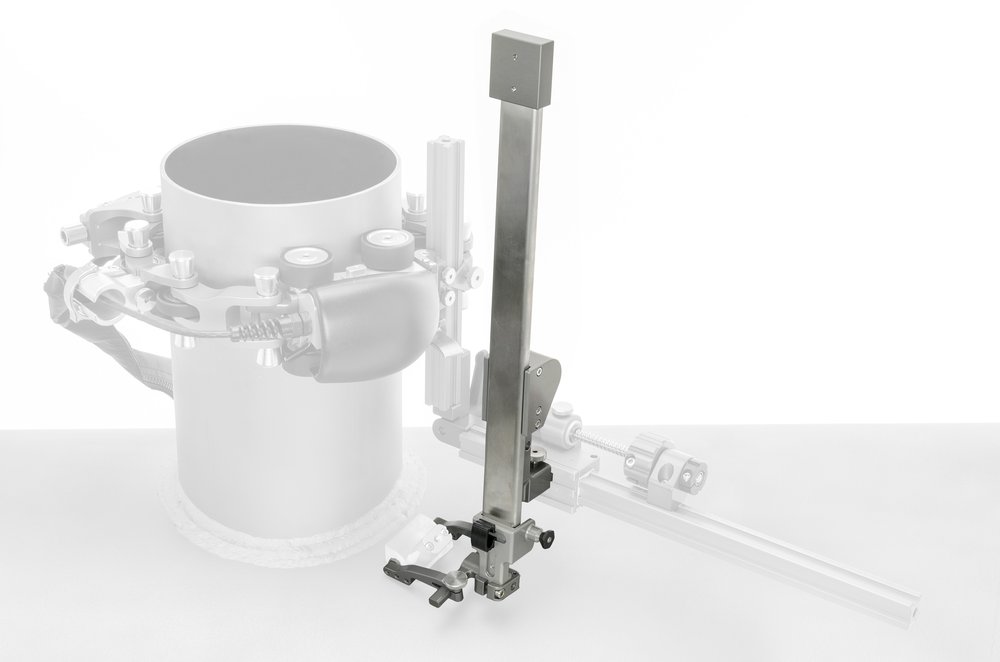

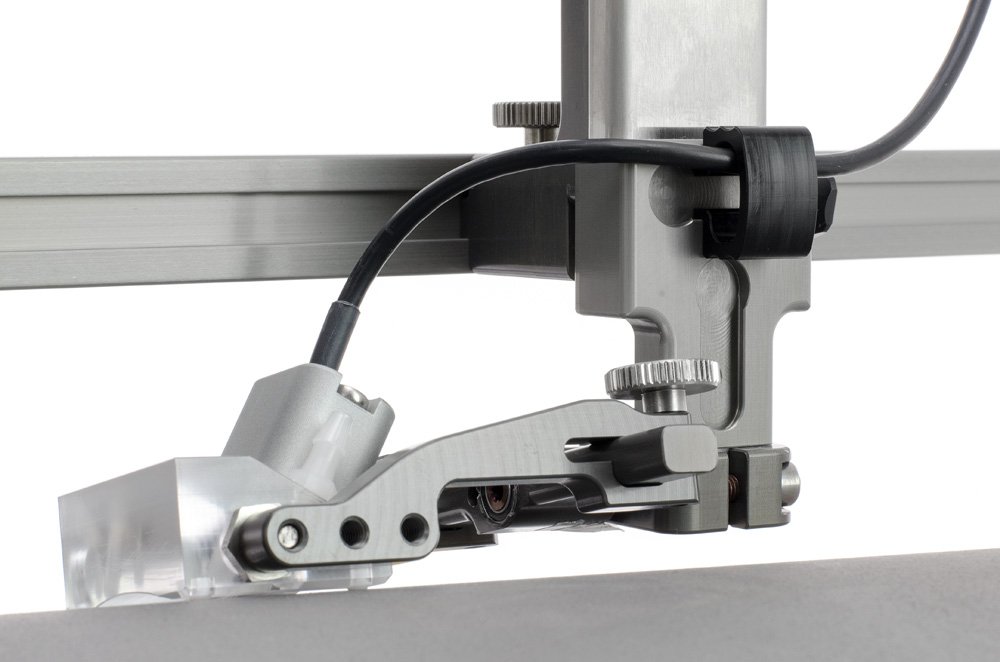

Scan nozzles with the Long Stroke Vertical Probe Holder

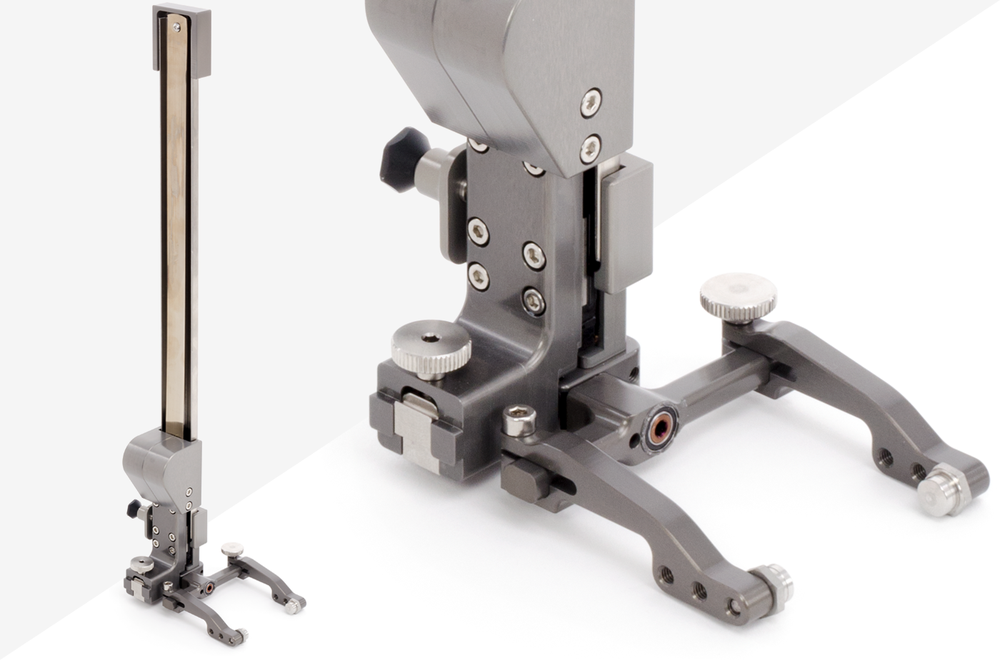

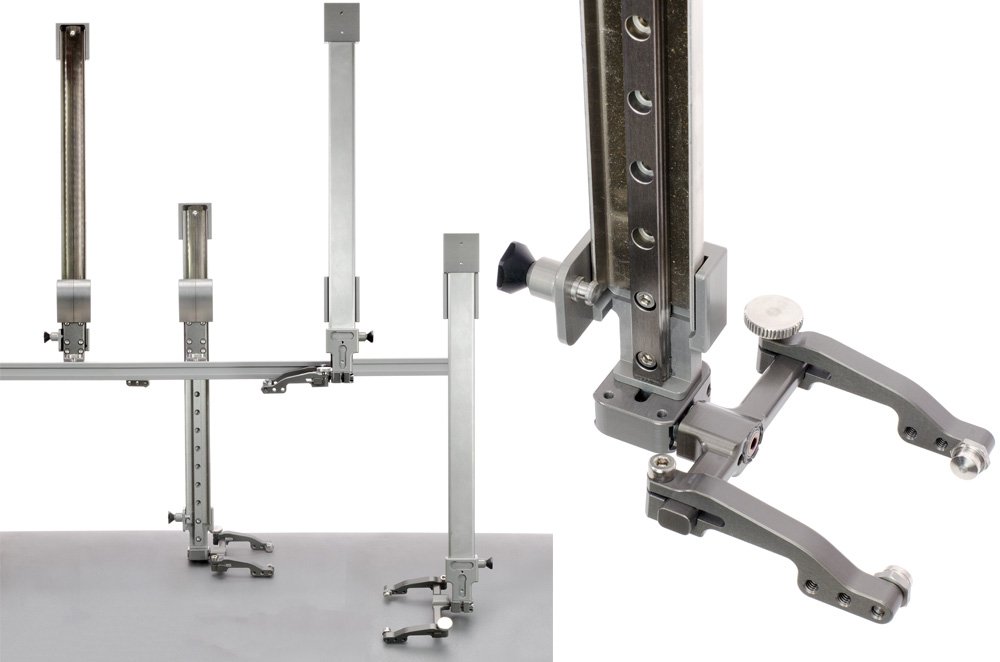

The Long Stroke Vertical Probe Holder offers 22.8 cm (9 in) of vertical probe holding travel. Scan undulating surfaces with ease using this unique probe holder.
Arm style specifications
A - Standard, Flat
B - Short, Flat
C - Long, Flat
D - Standard, Drop
E - Short, Drop
F - Long, Drop
G - Standard, Extra-Drop
H - Short, Extra-Drop
I - Extra-Short, Flat
J - Extra-Short, Drop
Probe Holder Specifications
PHASED ARRAY PROBE HOLDER
Minimum Wedge Width: 10.5 mm (0.41 in)
Maximum Wedge Width: 48.3 mm (1.9 in)1
Probe Holder Pivot Buttons
01
Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)
02
Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)
03
Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)
04
Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)
06
Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)
07
Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)
08
Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)
09
Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)
11
Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
- Some arm styles may provide additional maximum wedge width. Contact Jireh Industries for details.
Technical specifications are subject to change.
