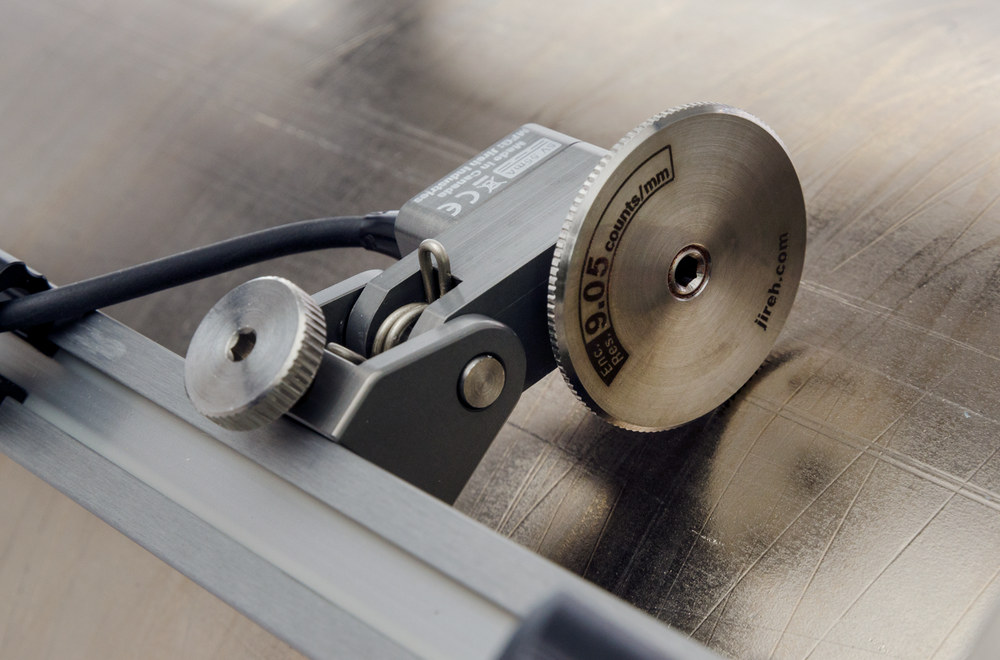

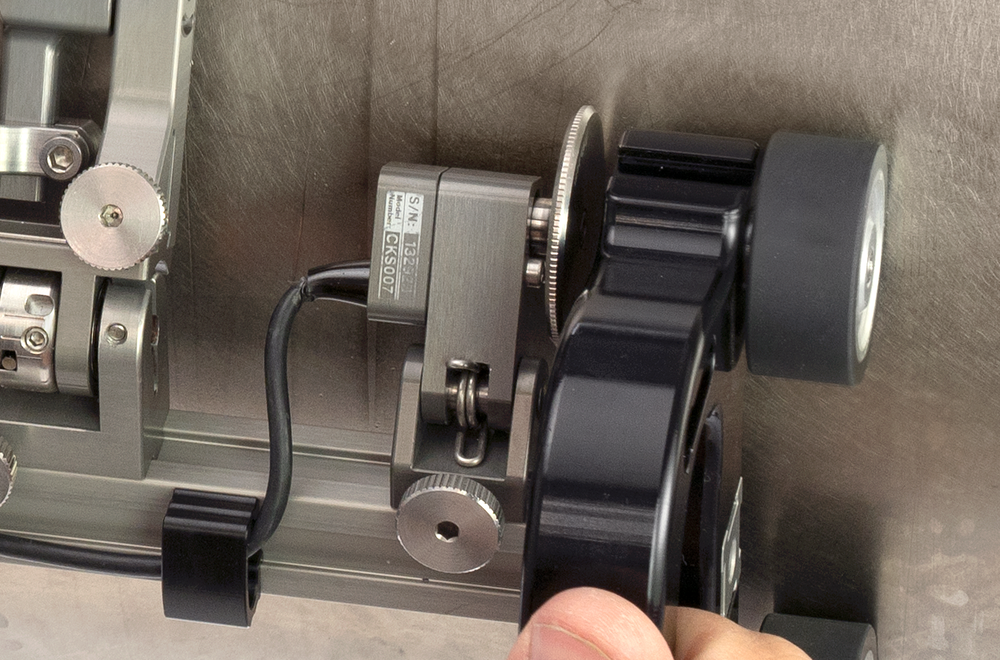

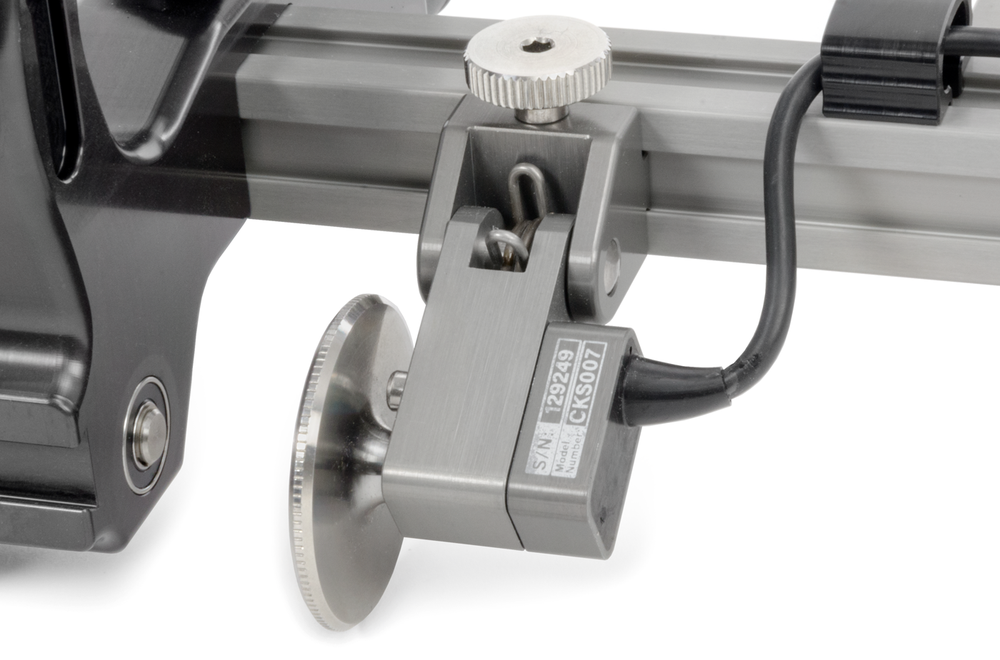

The Spring-Loaded Encoder is compatible with the ROTIX and STIX systems, effortlessly mounting to any standard frame bar and offering a generous 5 m (16.4 ft) encoder cable length.

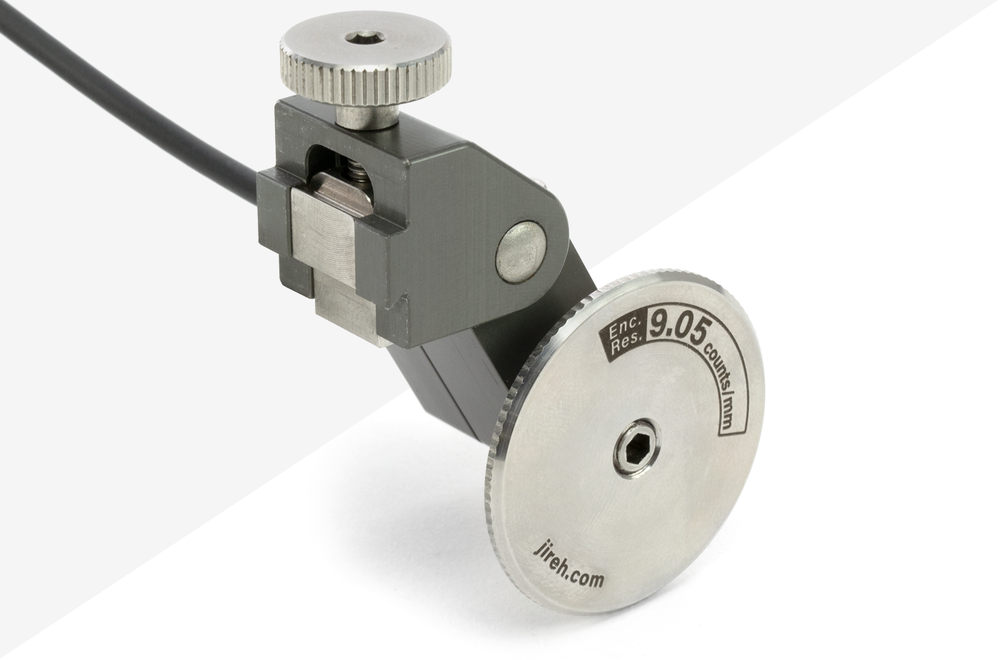

Encoder specifications: 9.05 counts/mm (230.0 counts/inch)

Part ID: BGS053

Encoder Connector Style

Length

Specifications

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Watertight (submersible). Contact JIREH for details.

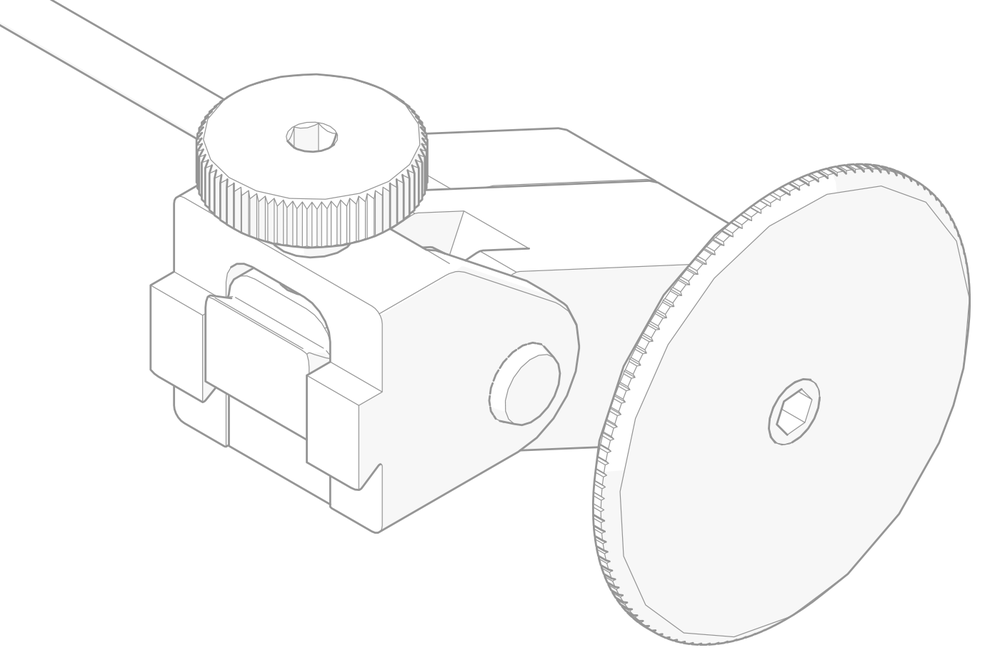

Spring-Loaded Encoder

Specifications

ENVIRONMENTAL SPECIFICATIONS
