Probe Holder Receptacle
Choose the receptacle diameter or receptacle type that matches the size/type of probe.

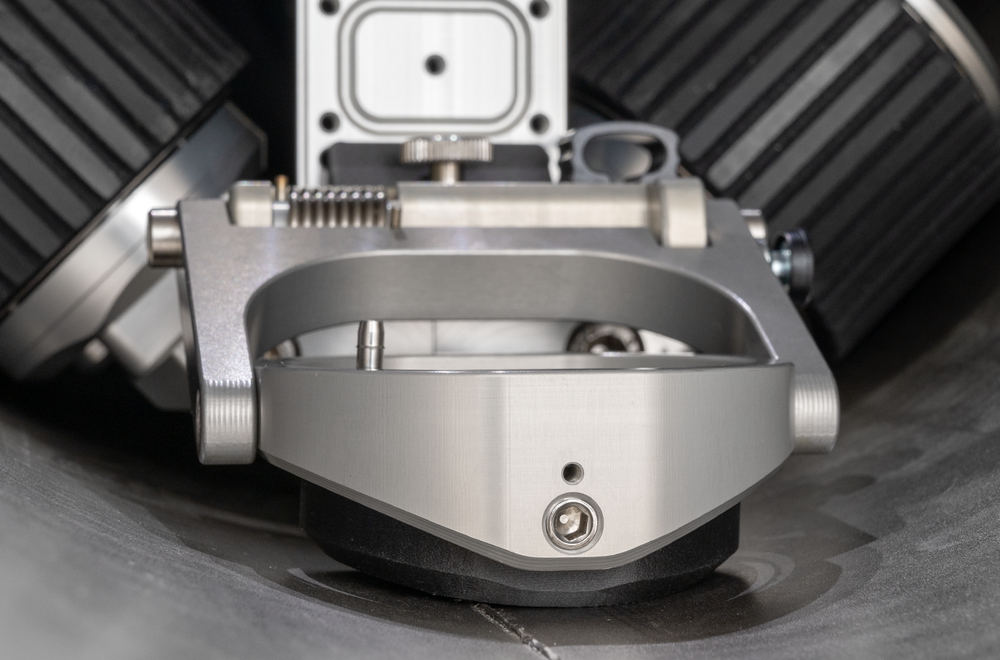

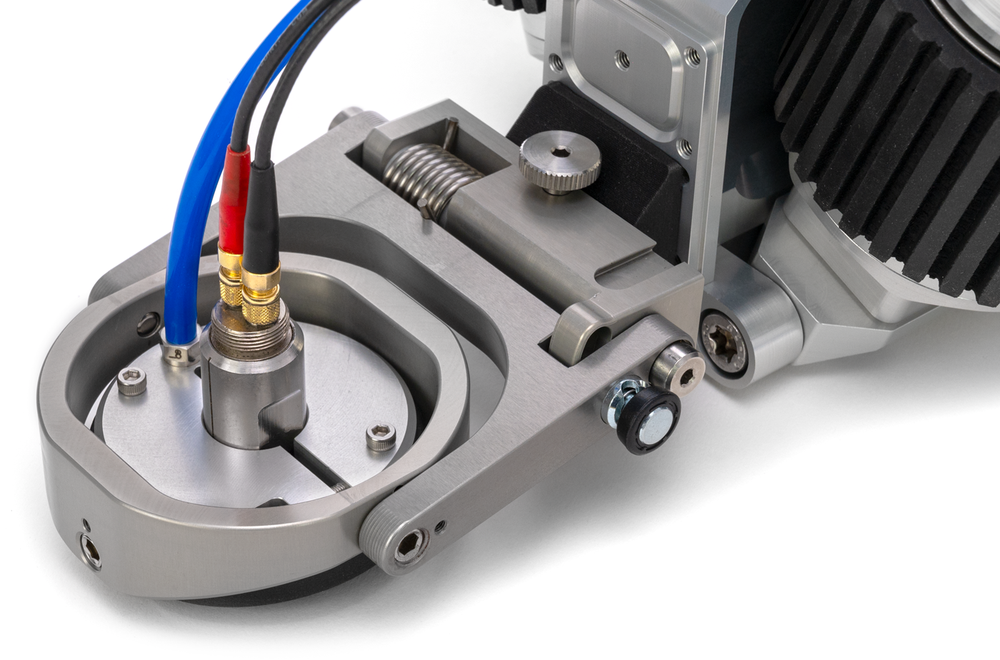

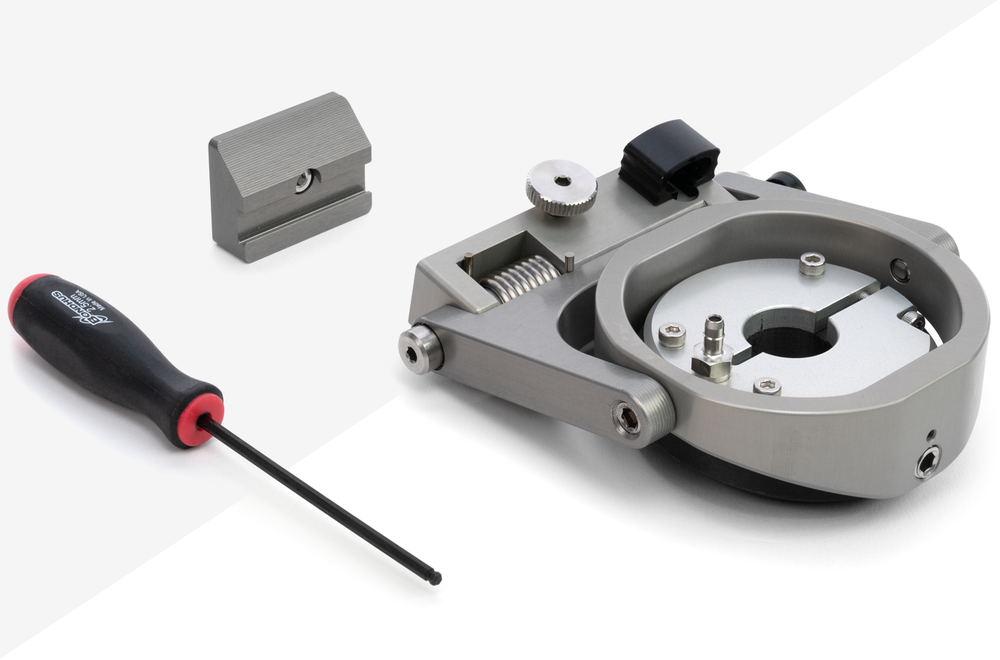

The Corrosion Thickness Probe Holder - Internal Curved Wear Plate - is the perfect companion for the TERAX Internal crawler. This probe holder securely carries 0° corrosion probes while the TERAX drives inside pipes. The probe holder is spring-loaded to ensure constant probe contact with the inspection surface and can be ordered to fit any pipe diameter from 8 inches and up.

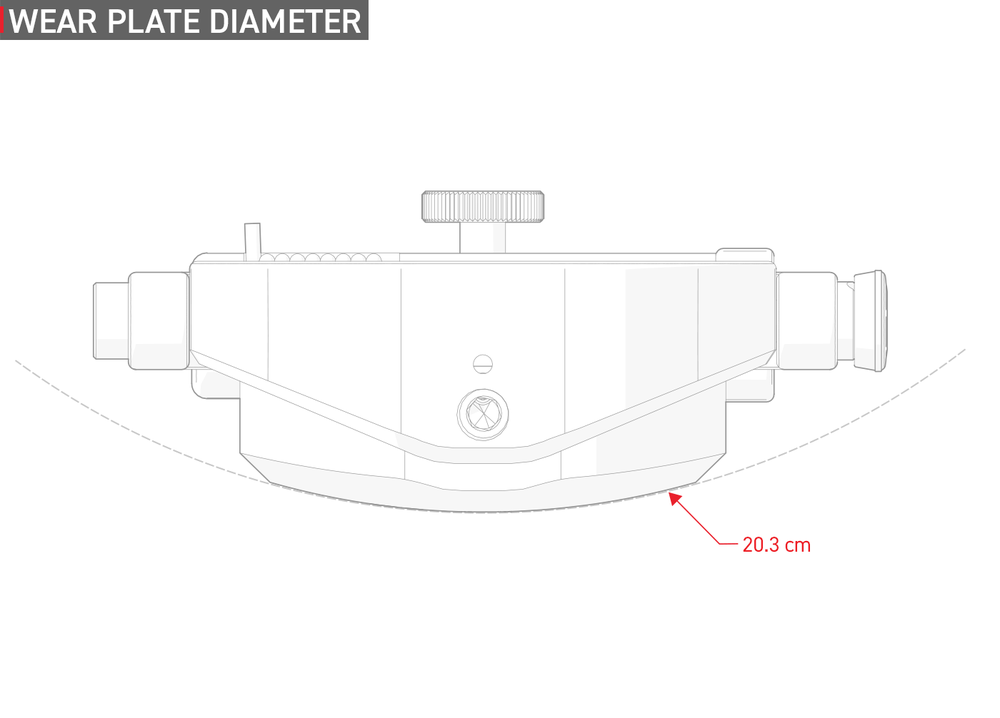

8 - 20.3 cm (8 in) dia.

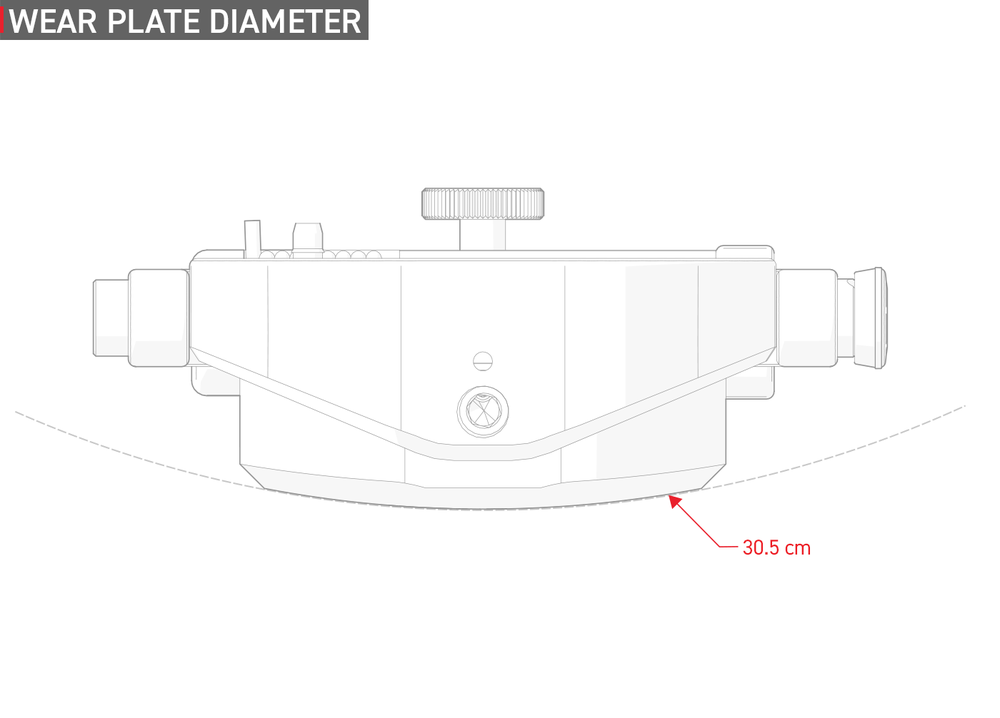

12 - 30.5 cm (12 in) dia.

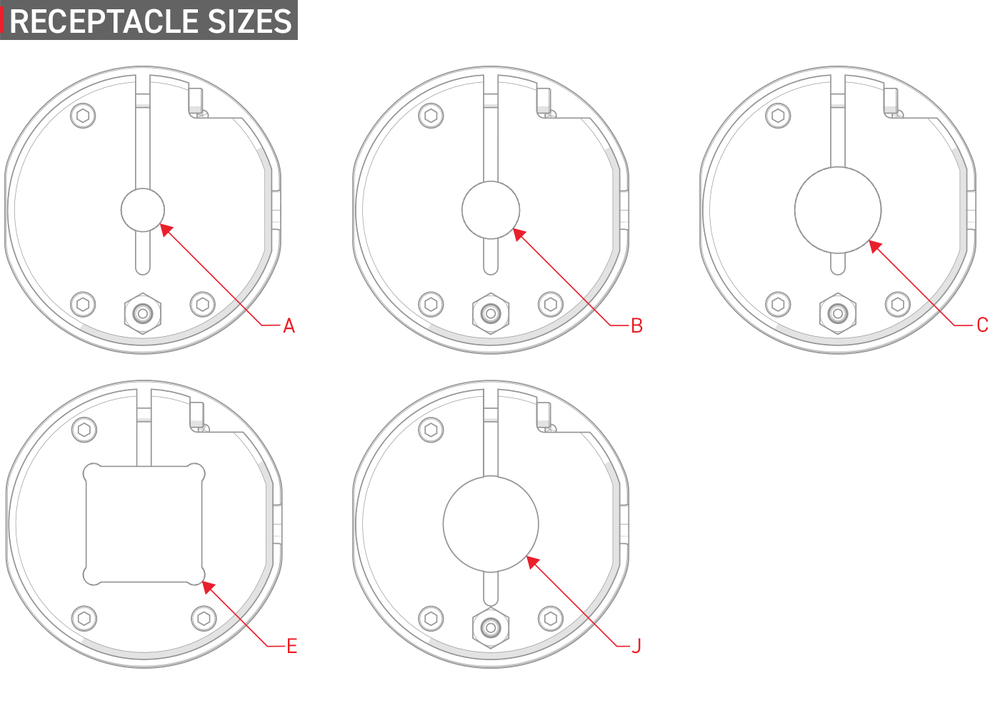

A - 9.53 mm (0.375 in) dia.
B - 12.7 mm (0.5 in) dia.
C - 19 mm (0.75 in) dia.
E - 25.4 mm (1 in)
J - 21 mm (0.825 in) dia. - Ionix HS582i
Choose the receptacle diameter or receptacle type that matches the size/type of probe.

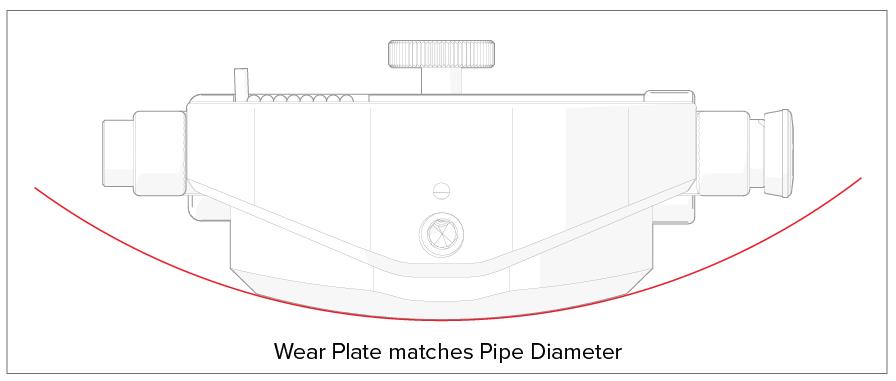

Match the diameter of the pipe with the diameter of the wear plate.
