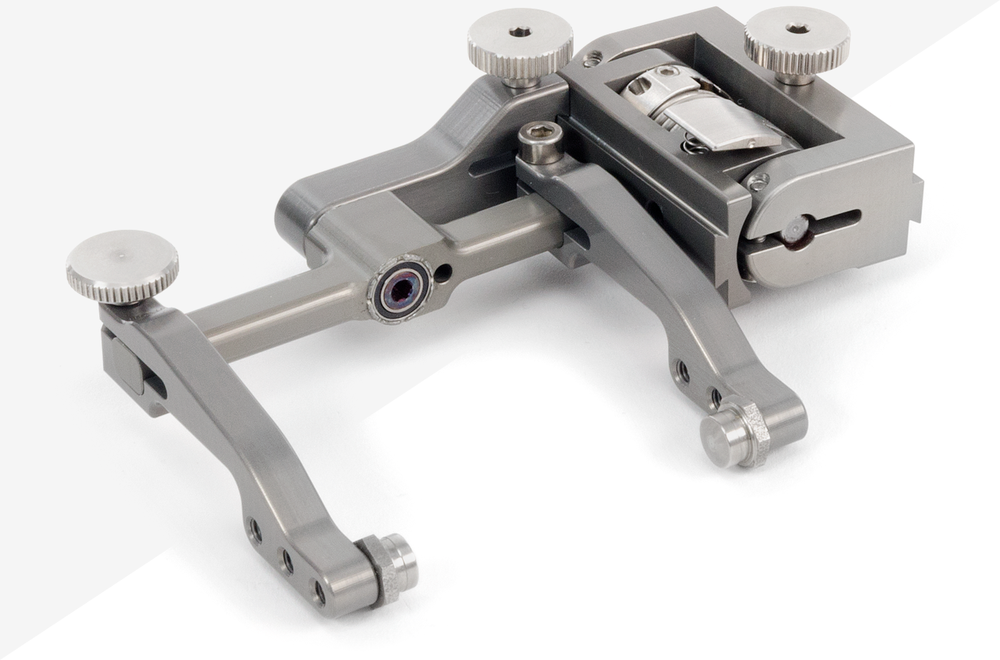

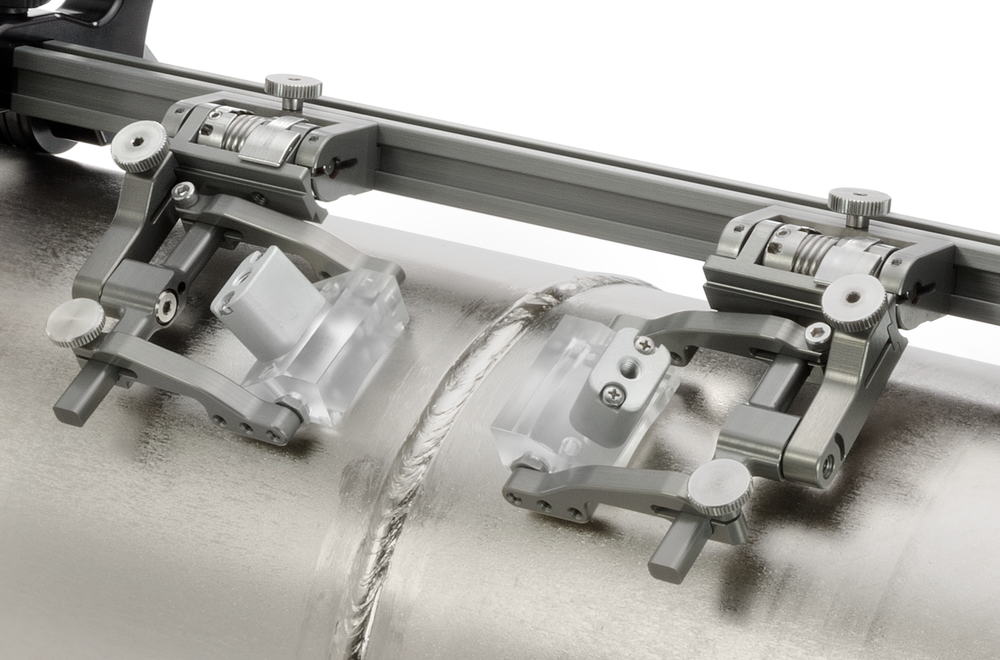

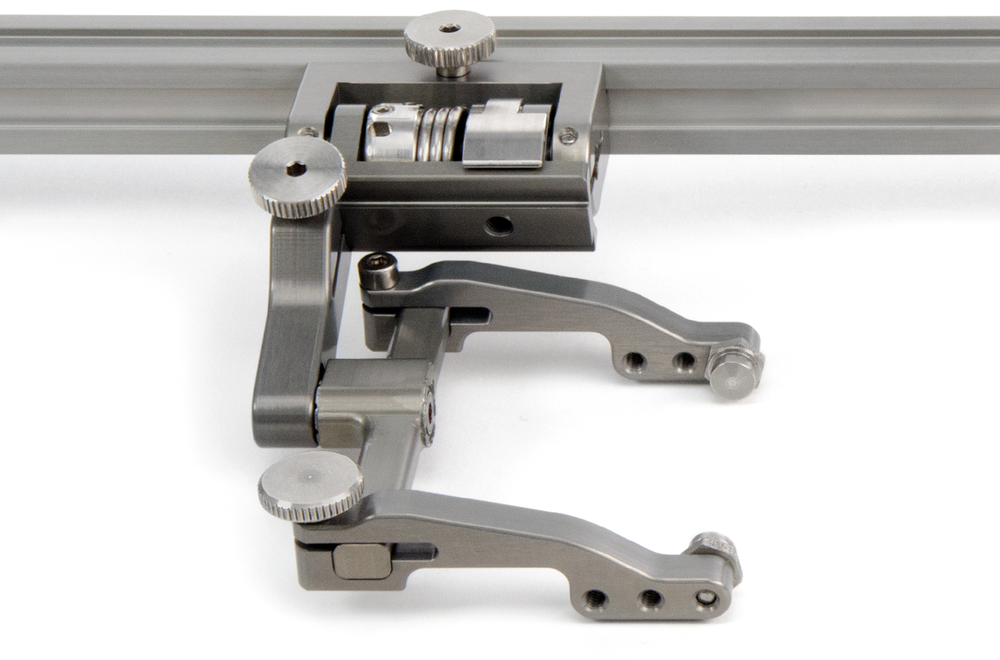

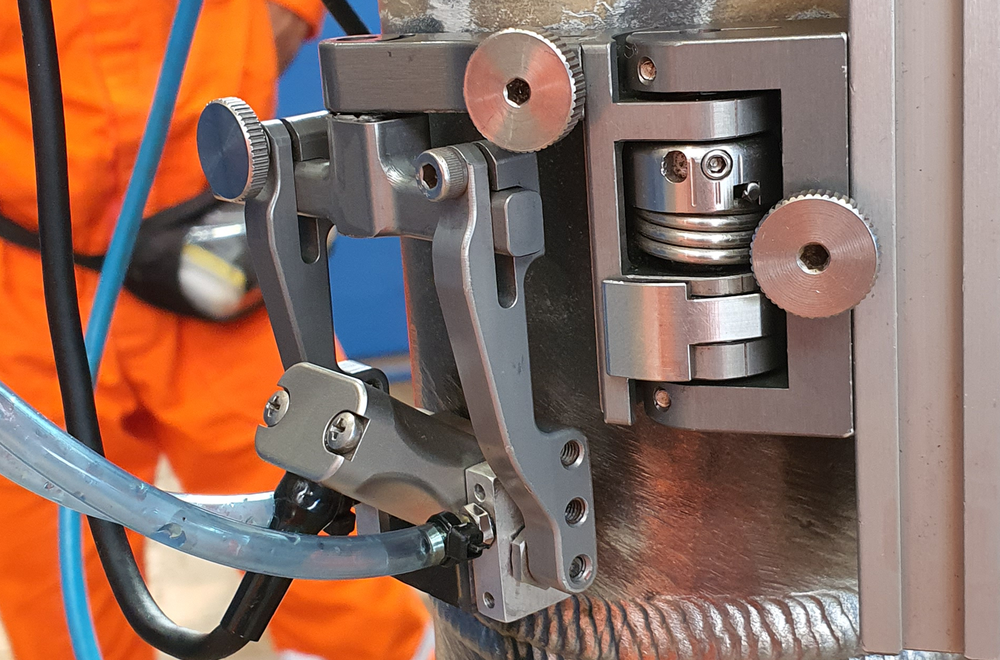

The Slip Joint Probe Holder has an adjustable position when mounted to a slide bar. Multiple configuration options are available, allowing the PHA012 probe holder to clamp to most wedges.

TOFD Probe Holders use the standard yoke style. Phased array probe holders use the wide yoke style.

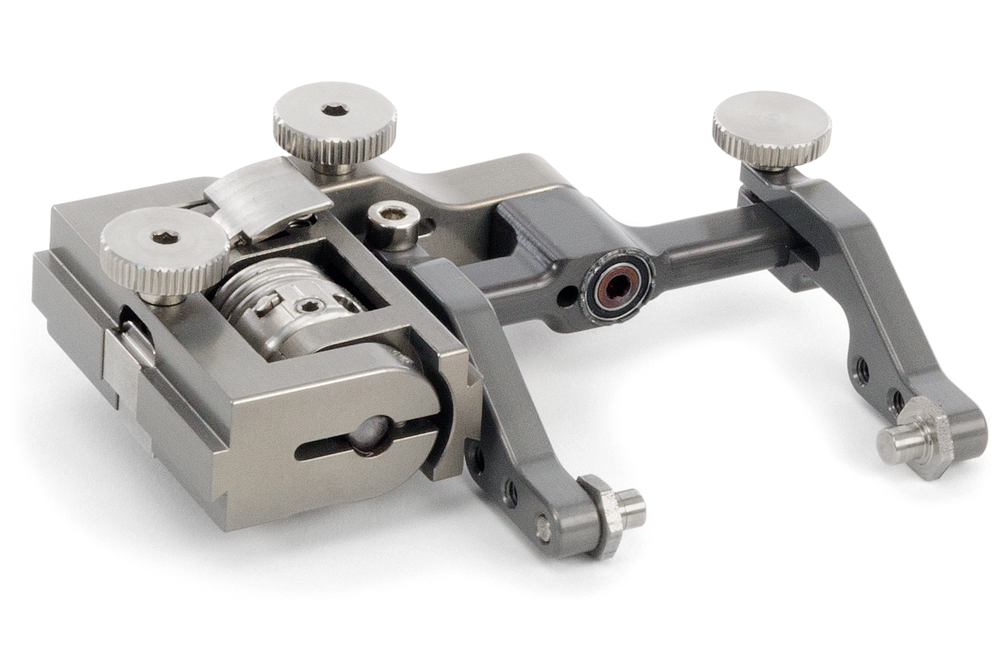

The slip joint probe holder may be used in either left or right configuration.

Part ID: PHA012

Arm Style Specifications

Path 2 CopyPath 2 Copy

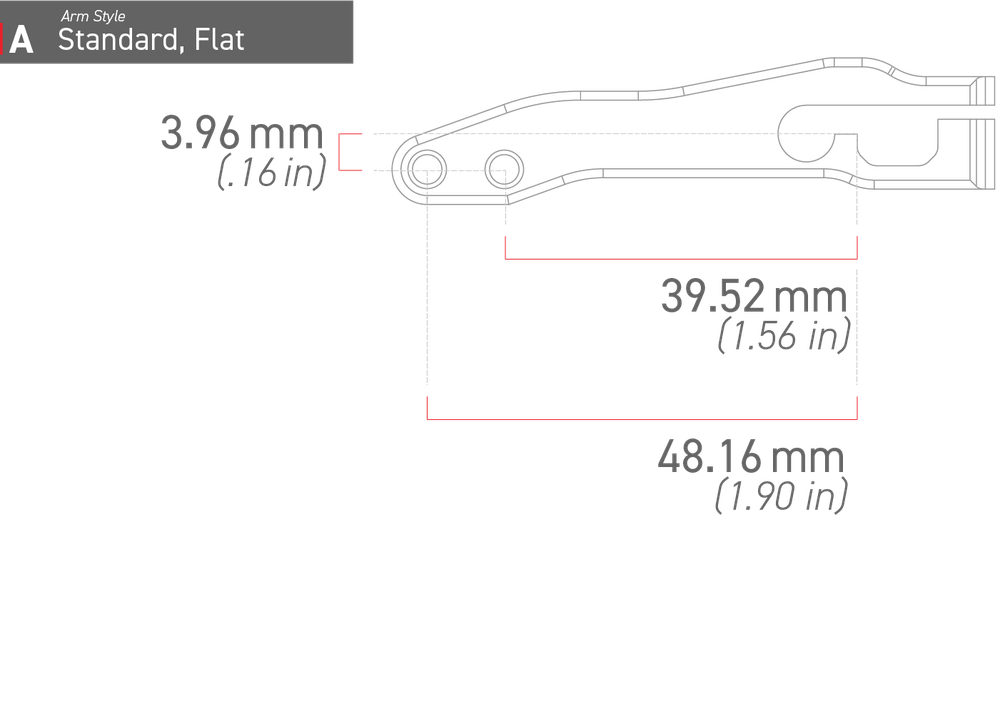

A - Standard, Flat

B - Short, Flat

C - Long, Flat

D - Standard, Drop

E - Short, Drop

F - Long, Drop

G - Standard, Extra-Drop

H - Short, Extra-Drop

I - Extra-Short, Flat

J - Extra-Short, Drop

Probe Holder Specifications

Path 2 CopyPath 2 Copy

PHASED ARRAY PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 17 mm (0.67 in)
Maximum Wedge Width: 55.8 mm (2.2 in)1

TOFD PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 17 mm (0.67 in)
Maximum Wedge Width: 44.4 mm (1.75 in)1

Probe Holder Pivot Buttons

01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.009 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)

  1. Some arms styles may provide additional maximum wedge width. Contact Jireh Industries for details.
    Technical specifications subject to change.
