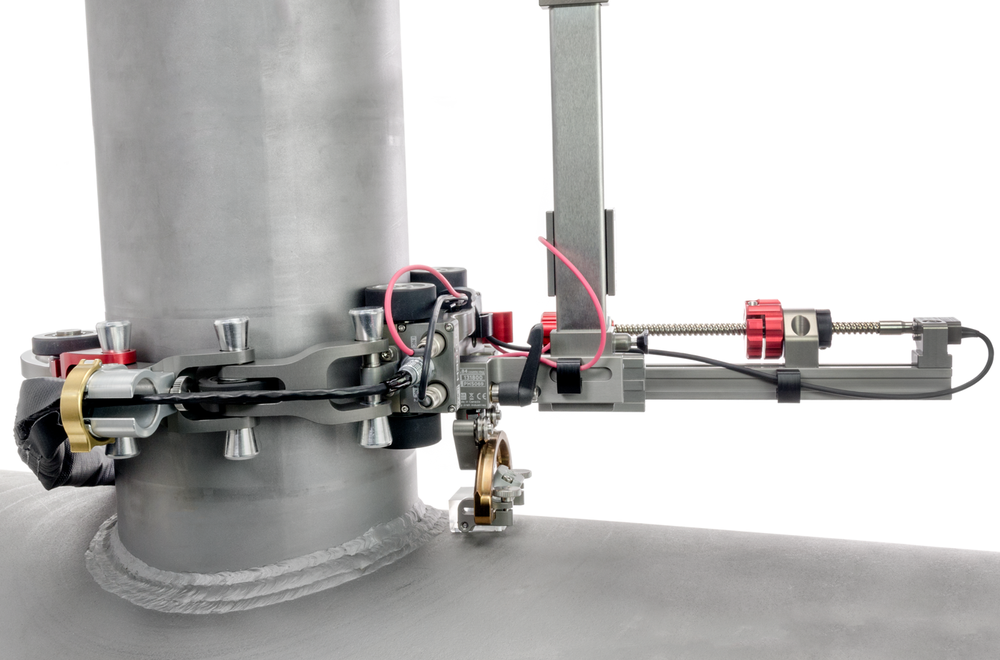

The ROTIX - 3-Axis Nozzle Scanner Add-On Kit includes the necessary encoders, probe holders and links to allow any existing ROTIX system to be utilized as a nozzle scanner. By using existing components, it's possible to achieve a completely new scanning method without the costs of purchasing an entirely new scanner.

Only single wheel chain links are compatible with this add-on kit.

Part ID: CEG038

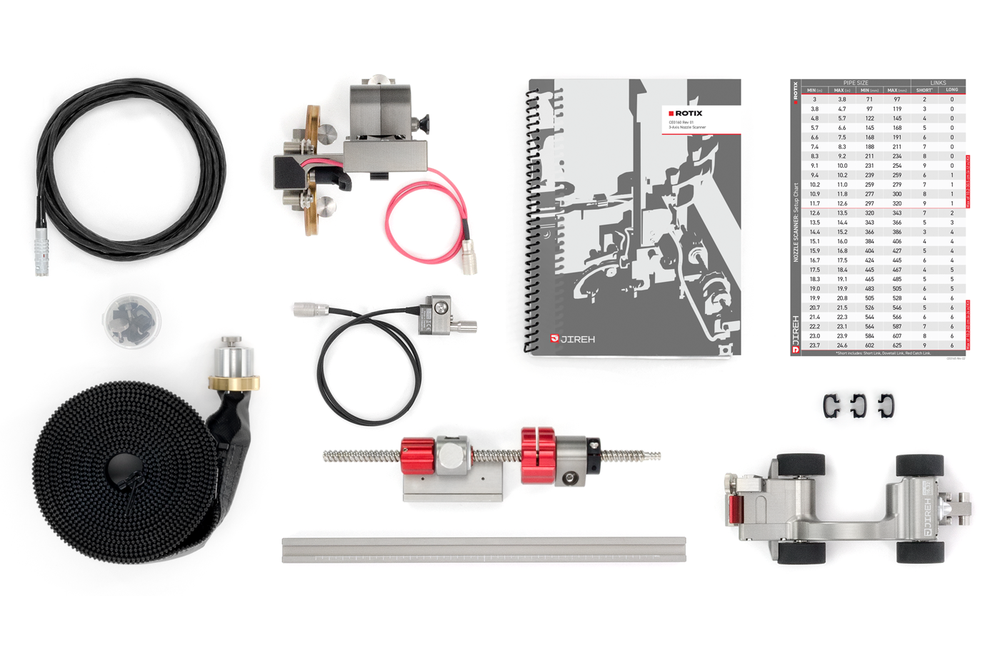

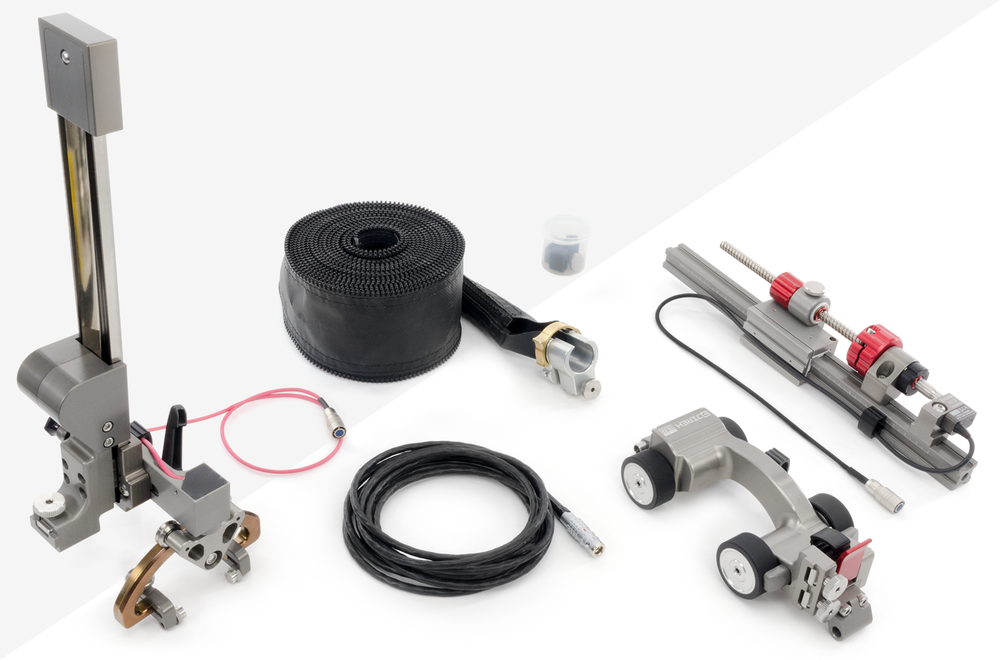

Kit Contents

Path 2 CopyPath 2 Copy

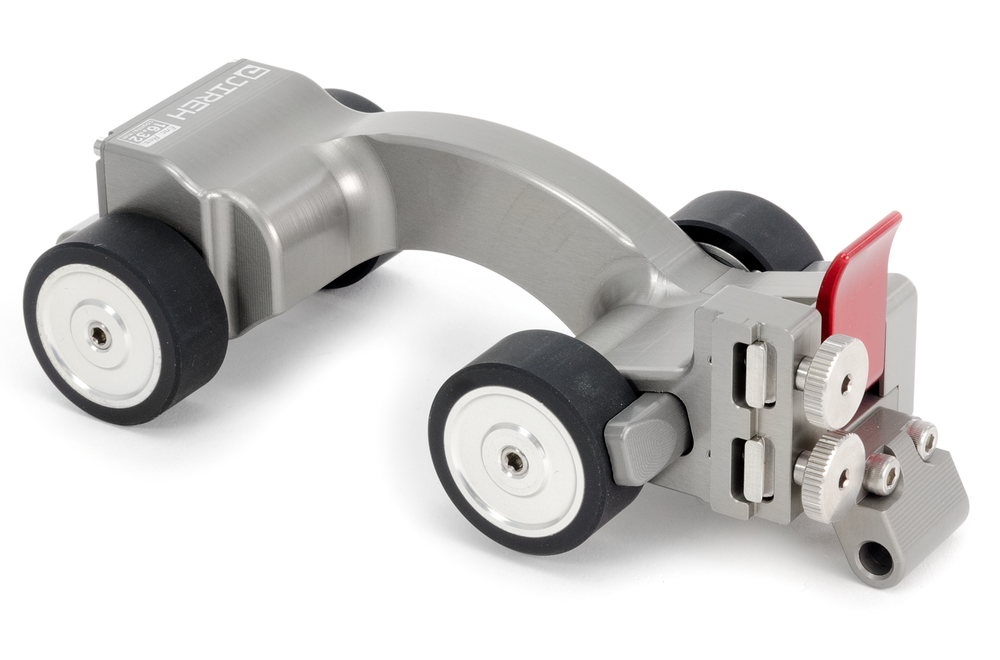

Low profile link

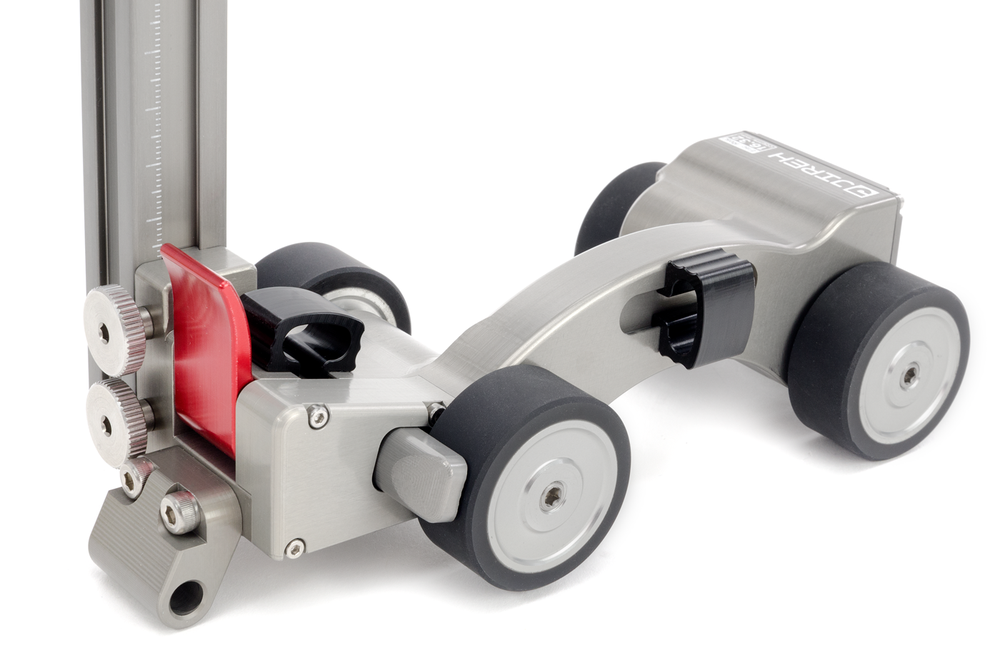

Encoded skew vertical probe holder

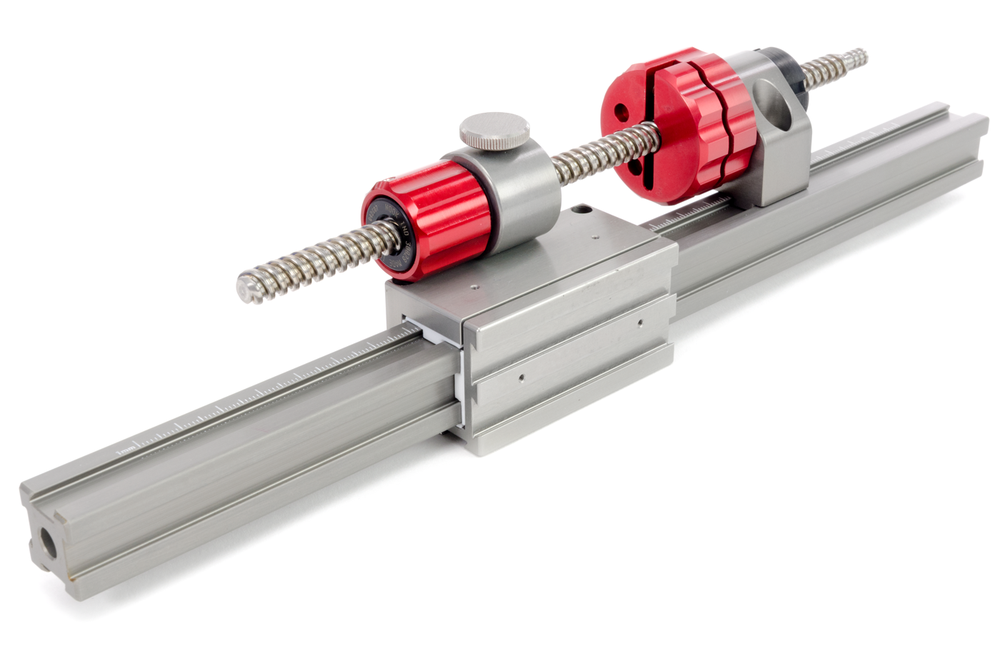

Slider PPS
Slider PPS encoder
Frame bar, 30 cm (11.8 in)

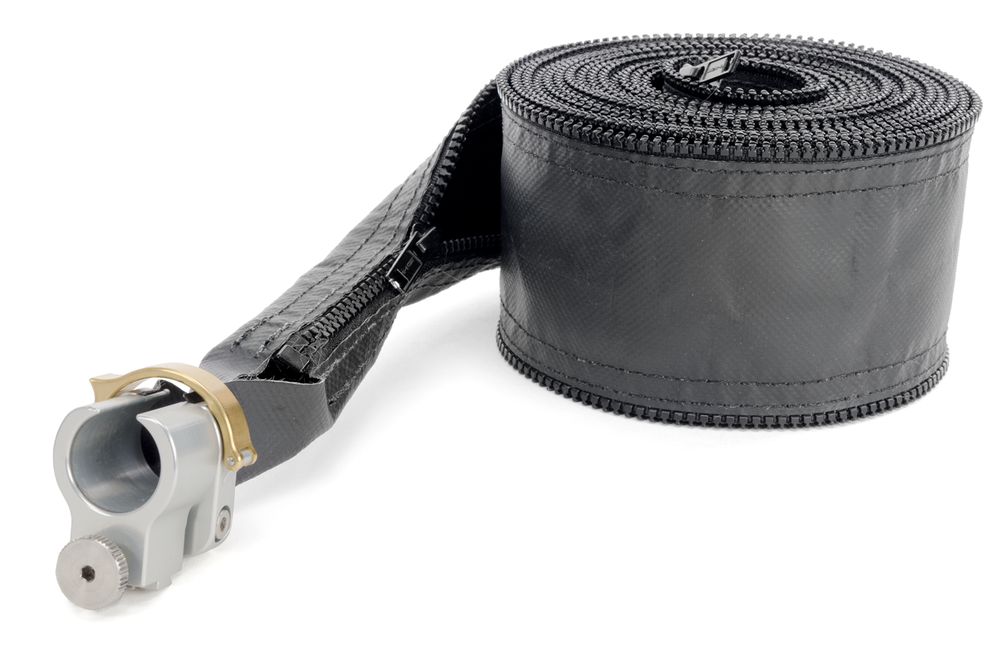

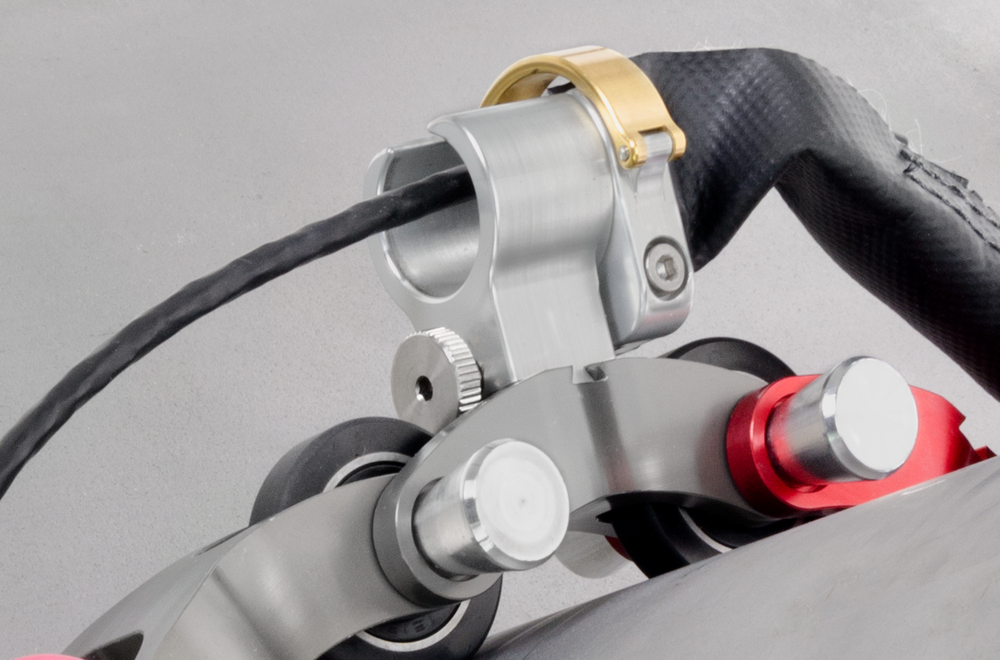

Cable management - dovetail mount, 4.5 m (14.7 ft)
J400 encoder cable, 5 m (16.4 ft)

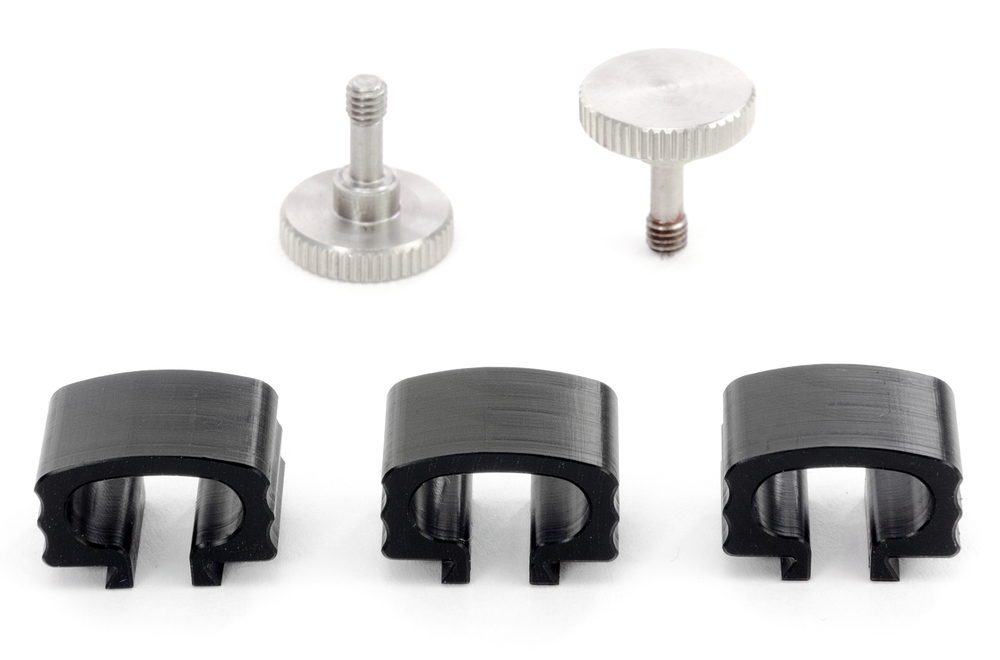

Cable clips
Nozzle spare parts kit
User manual
Setup chart
Rugged carrying case

Specifications

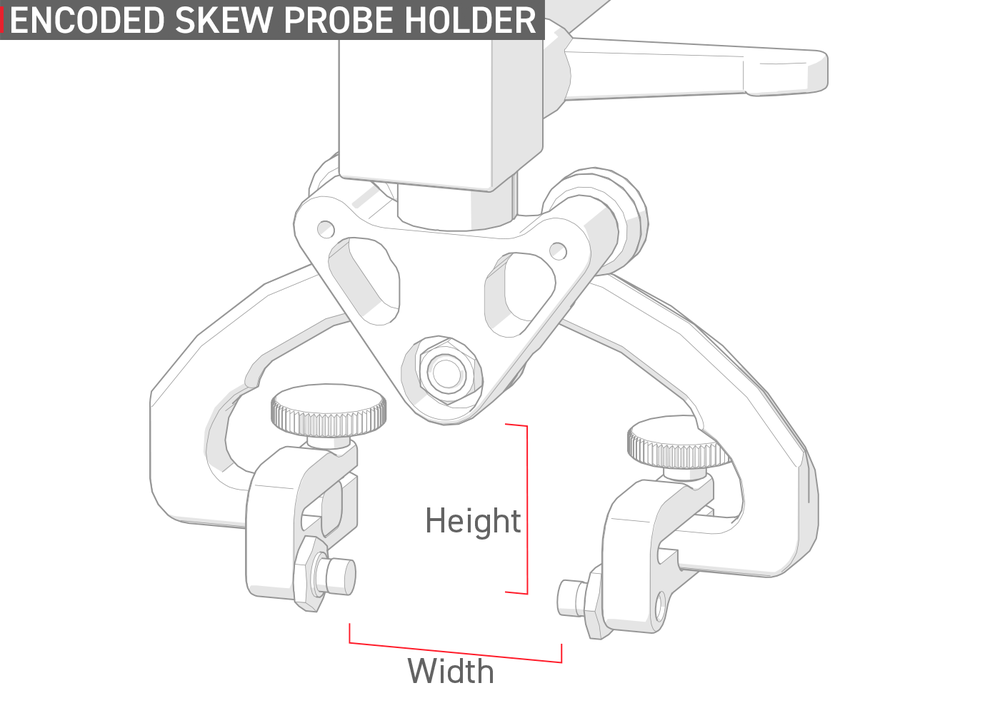

ENCODED SKEW PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 40 mm (1.5 in)
Maximum Wedge Width: 45 mm (1.7 in)

Probe Holder Pivot Buttons

01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.009 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
