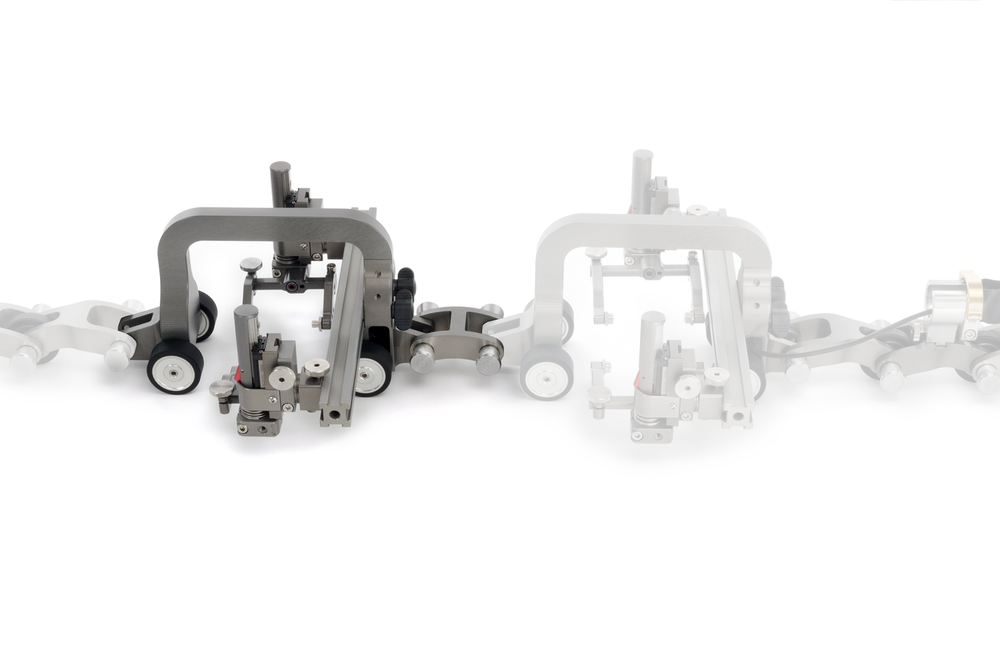

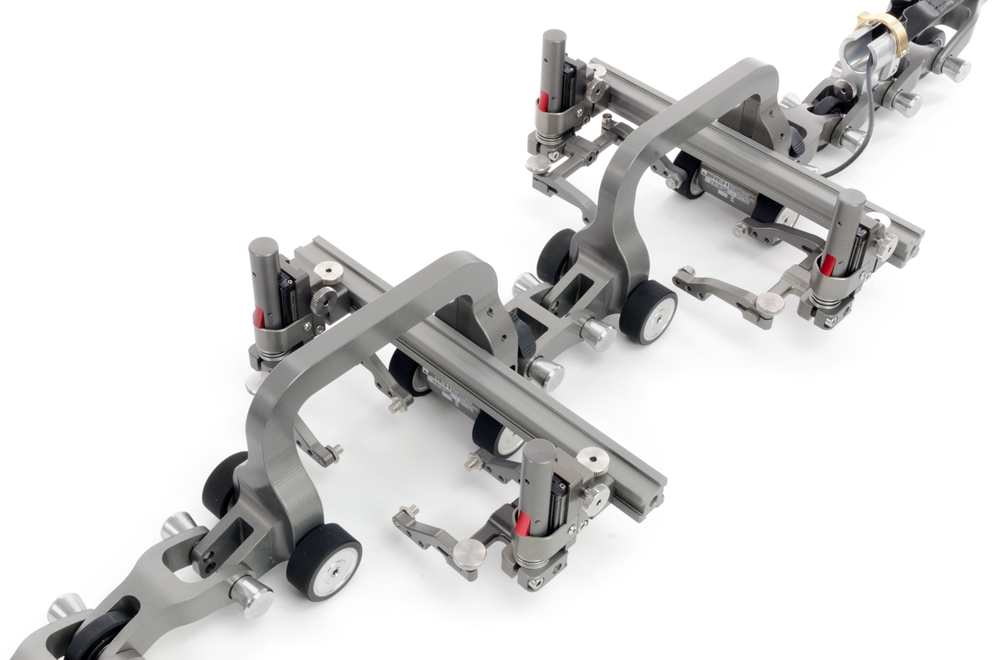

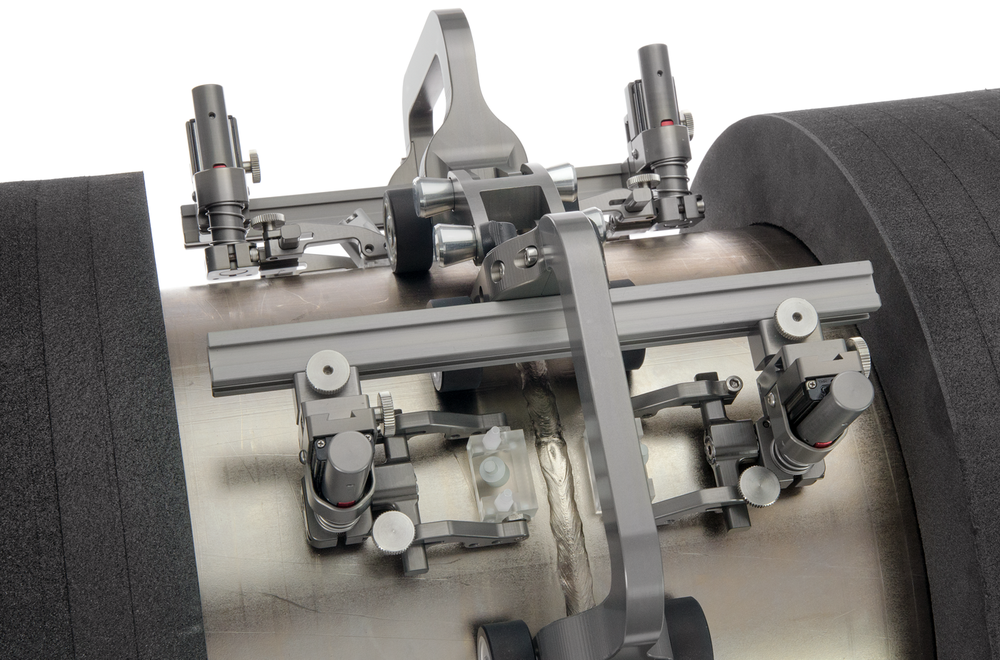

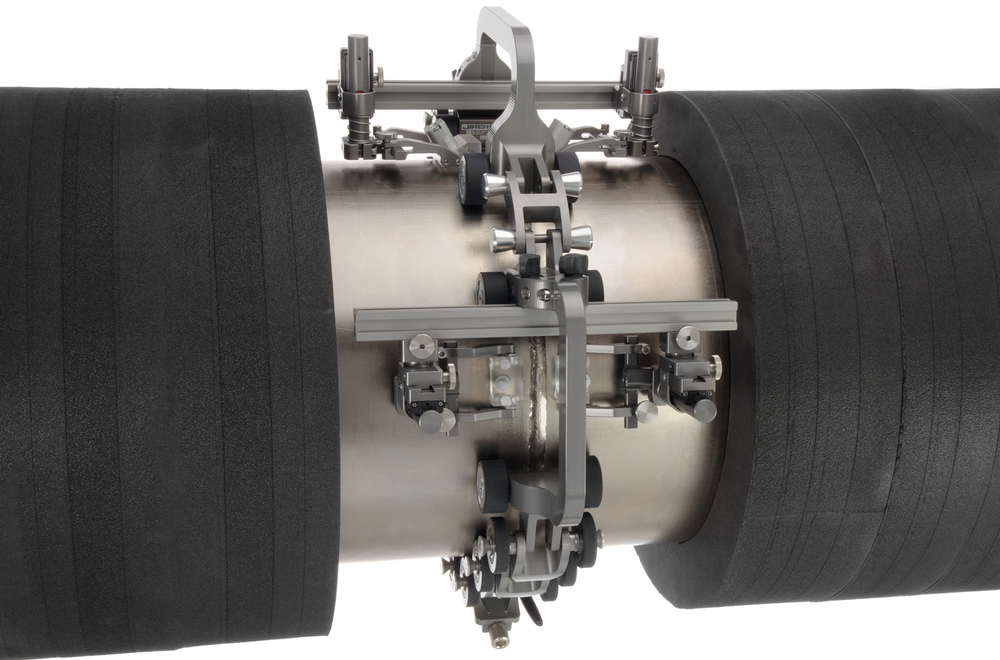

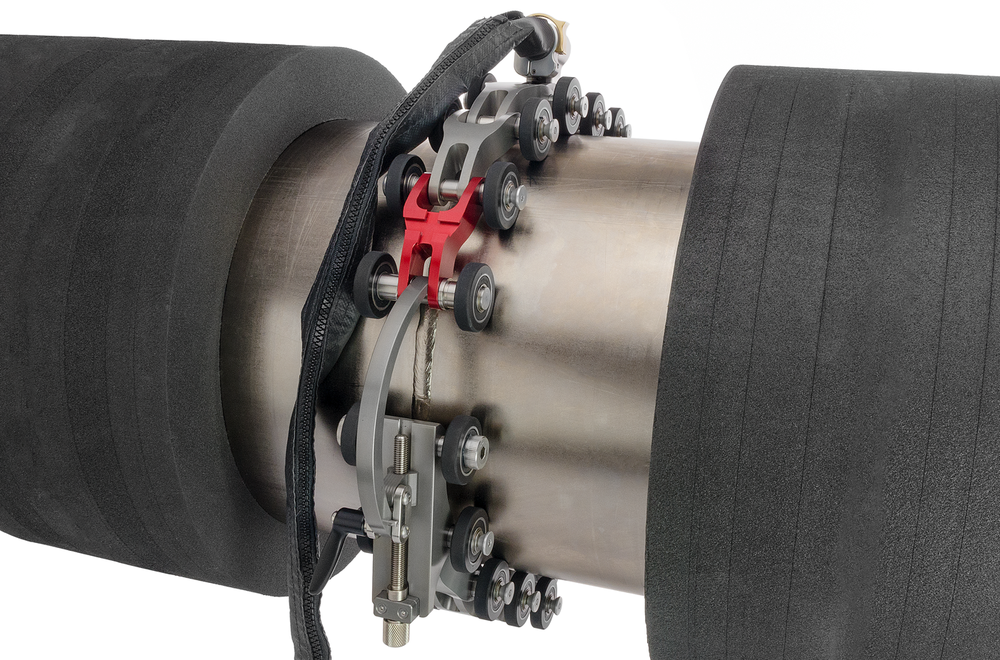

Perform four probe weld scans which require only 25 cm (9.84 in) of insulation/coating to be removed. Simply pair the ROTIX - 2 Probe Reduced Width Add-On Kit with the ROTIX - Reduced Width Scanner to allow small footprint scanning on ferrous and non-ferrous surfaces. This kit includes two TOFD vertical probe holders.

This add-on kit requires the ROTIX - Reduced Width Scanner to perform positional encoding. Product is discontinued. Lead times may vary.

Part ID: CEG040-NE

Probe Pivot Buttons

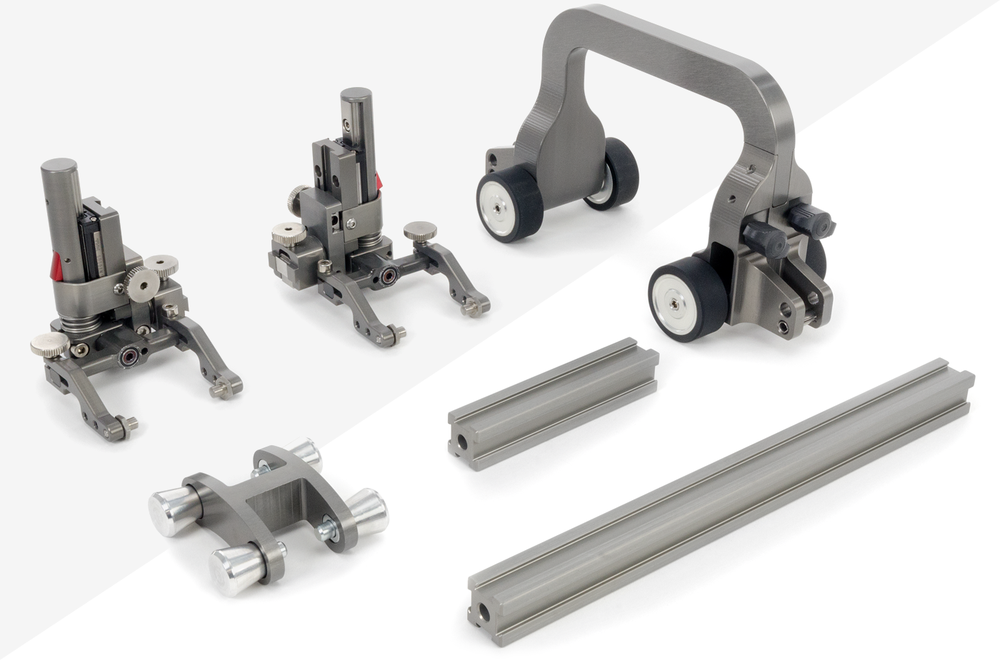

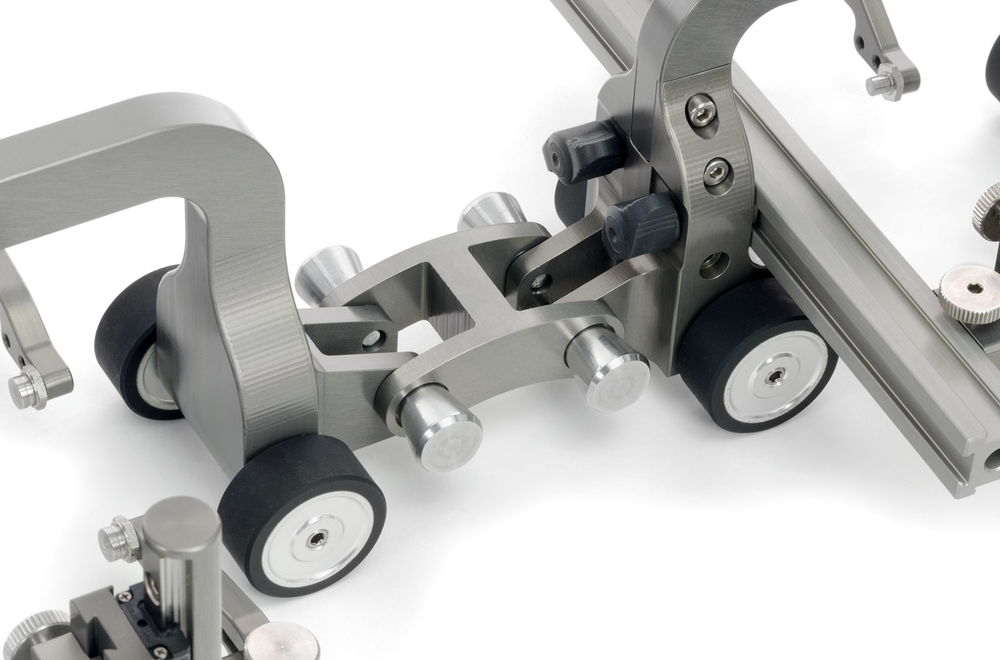

Kit Contents

Reduced width ROTIX non-encoded link
ROTIX adapter link
TOFD Vertical probe holder x2
Frame bar, 10 cm (3.9 in)
Frame bar, 25 cm (9.8 in)
User manual

Scanner Width

Two Probe Width: 25 cm (9.84 in)
Single Probe Width: 10 cm (3.94 in)

Probe Holder Pivot Buttons

01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.09 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
