Choose from a vast assortment of Probe Holder Arm Sets to match almost any probe and wedge combination.

Set includes components to hold one wedge.

Part ID: PHG

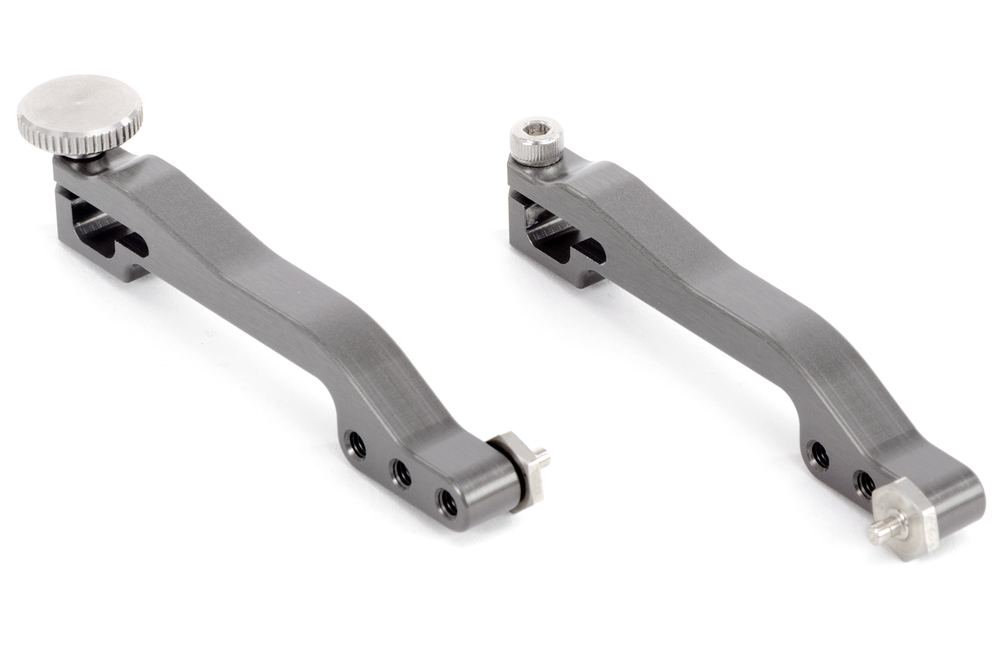

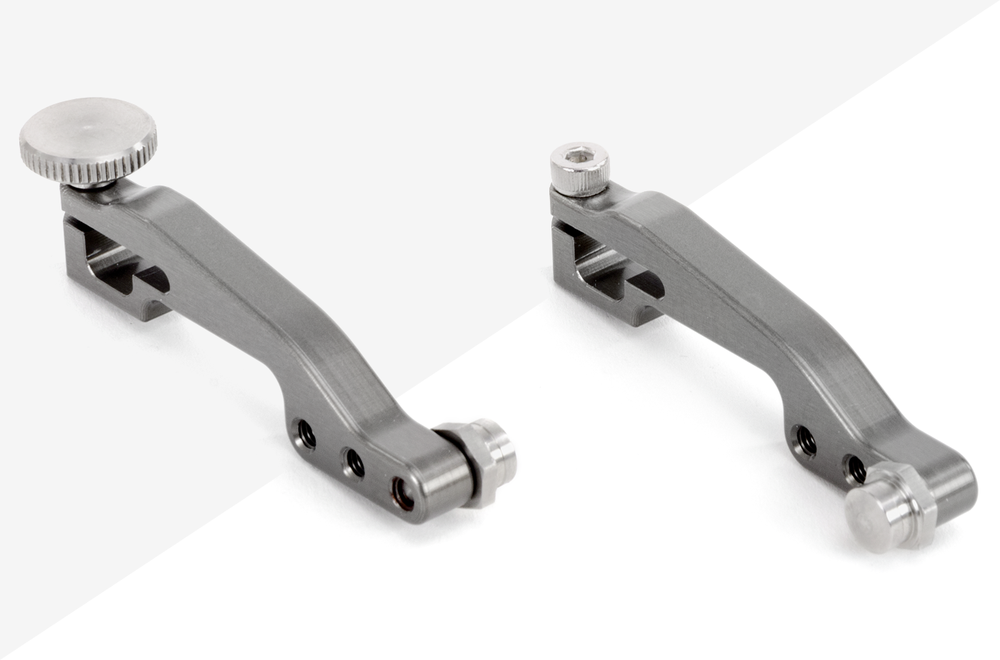

Kit Contents

Probe Holder Arms x2
Probe Holder Pivot Buttons x2
Knob x1
Screw x1



Arm Styles

Path 2 CopyPath 2 Copy

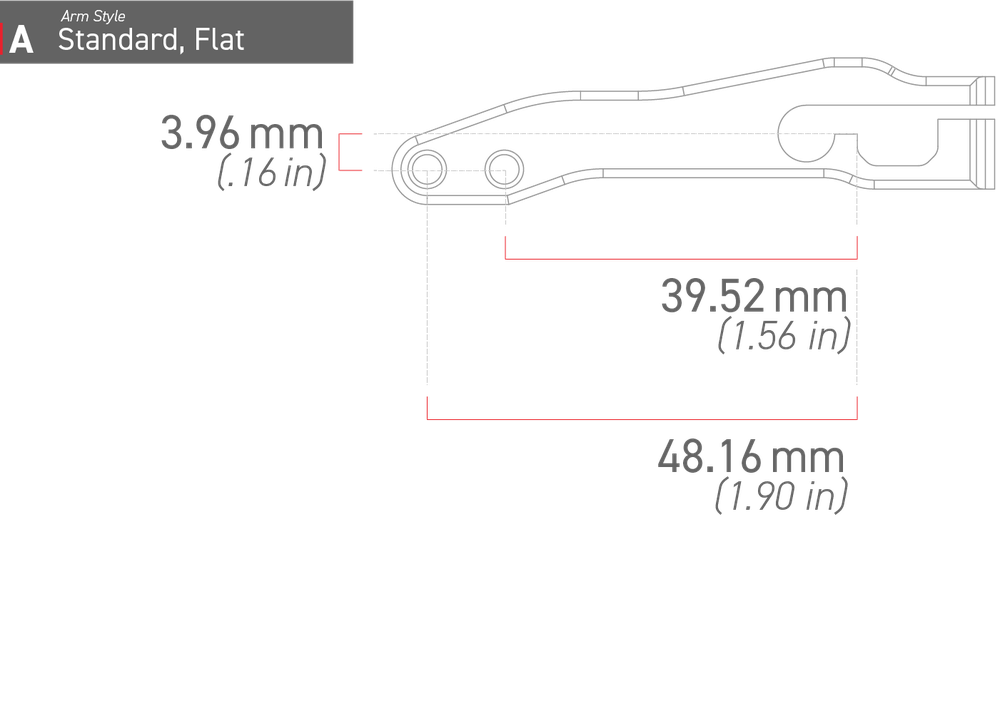

A Arm Style:
Standard, Flat

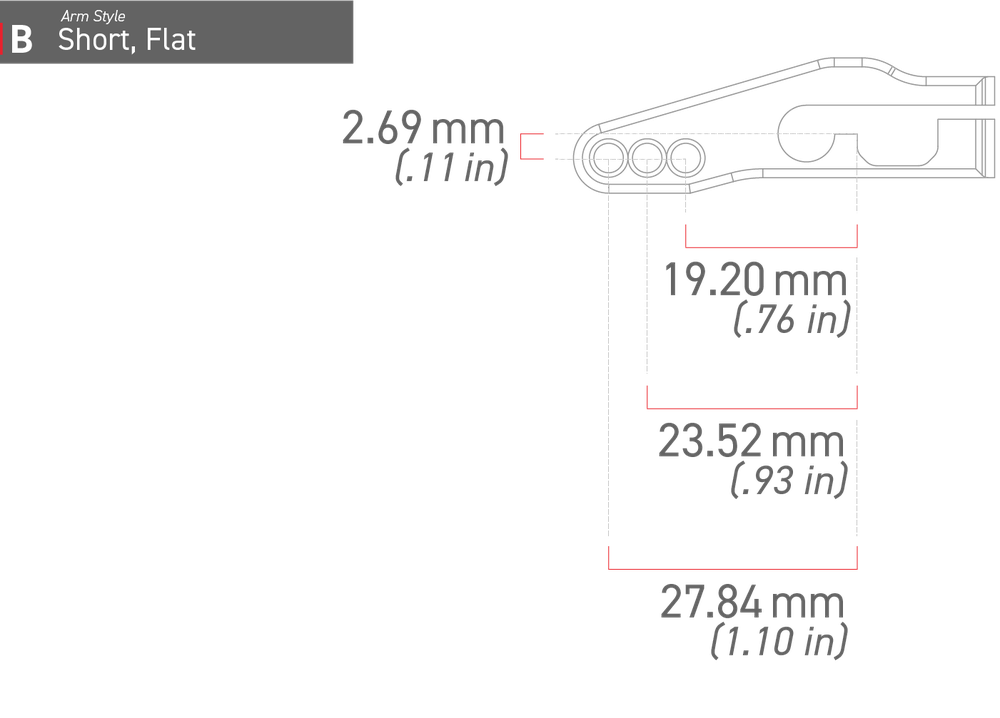

B Arm Style:
Short, Flat

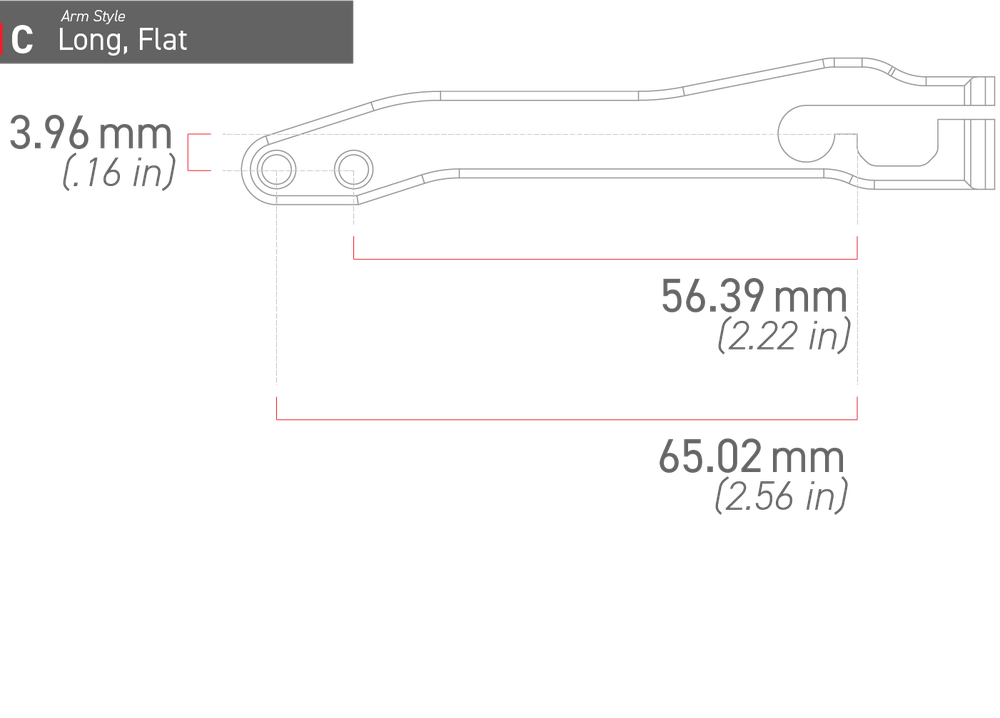

C Arm Style:
Long, Flat

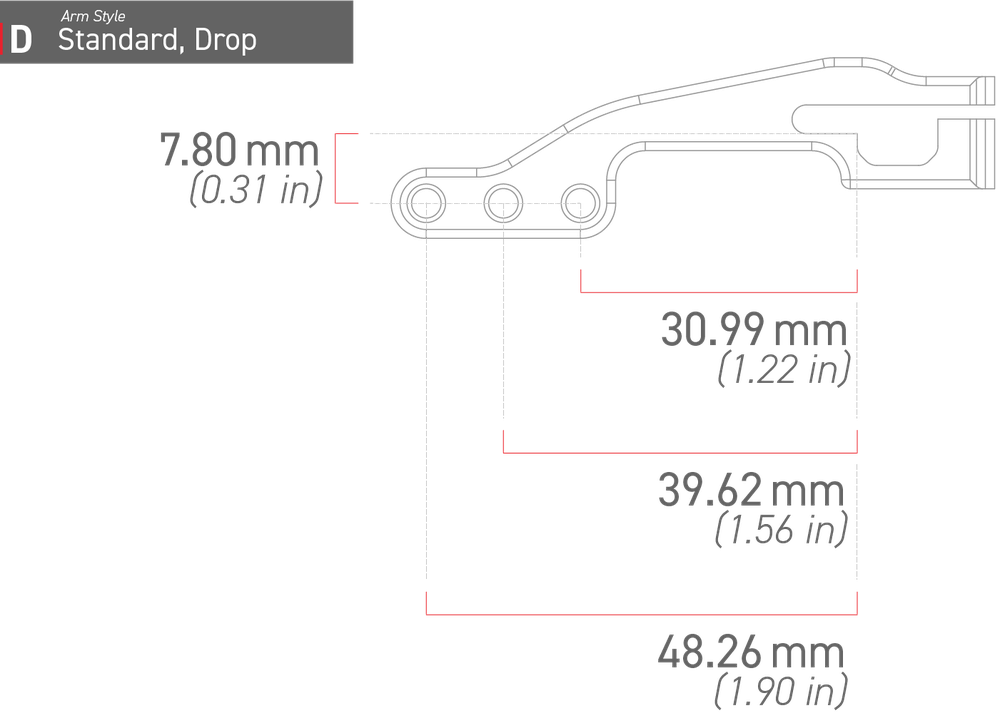

D Arm Style:
Standard, Drop

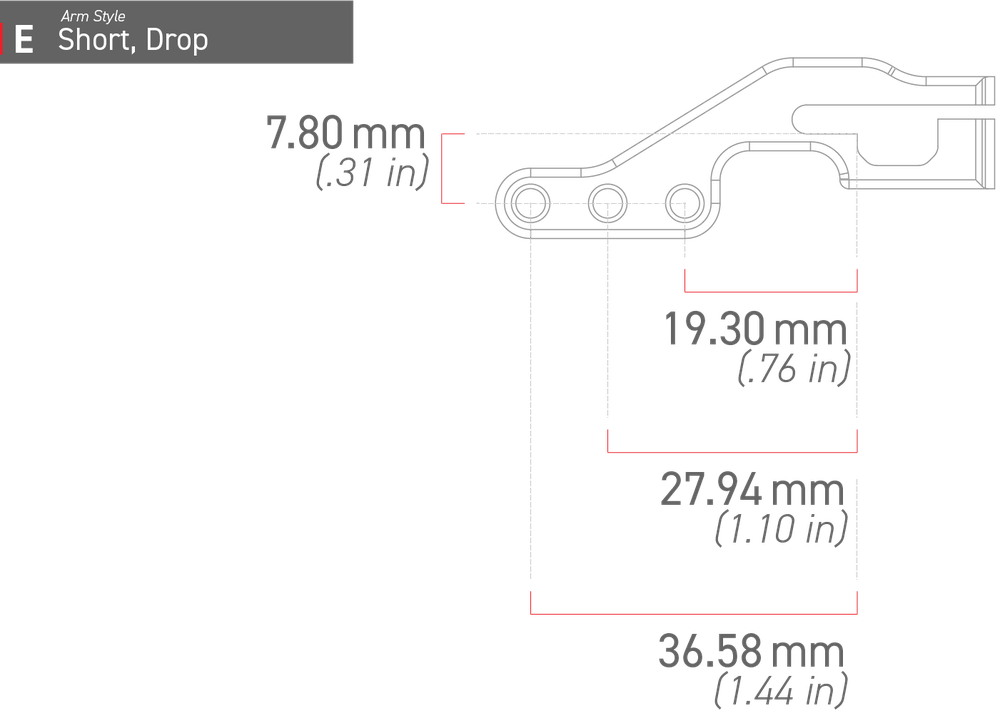

E Arm Style:
Short, Drop

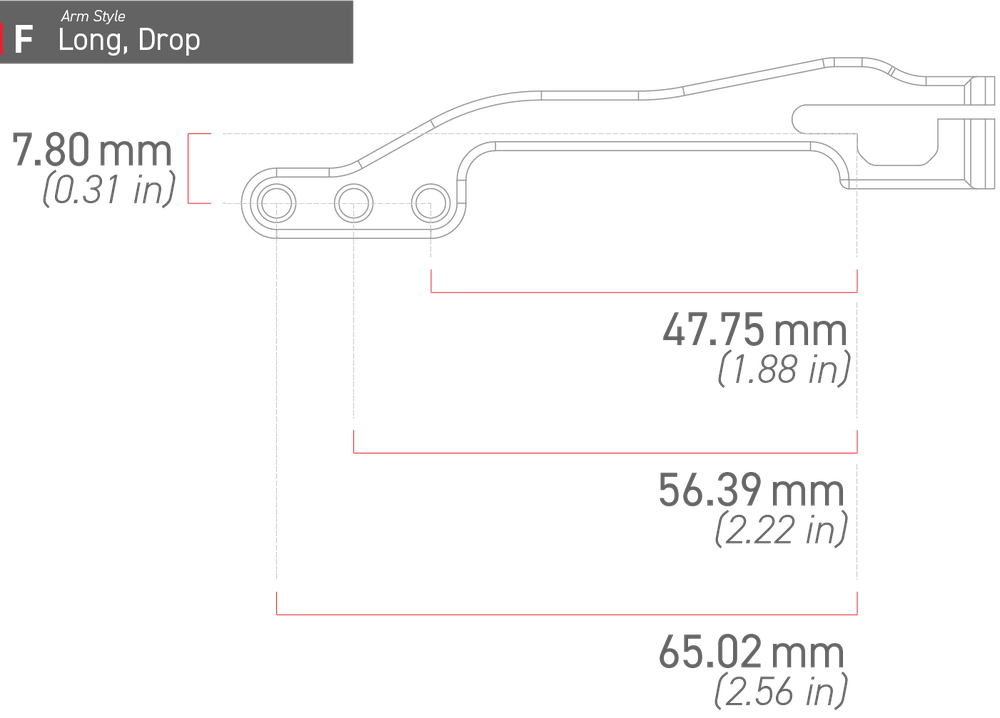

F Arm Style:
Long, Drop

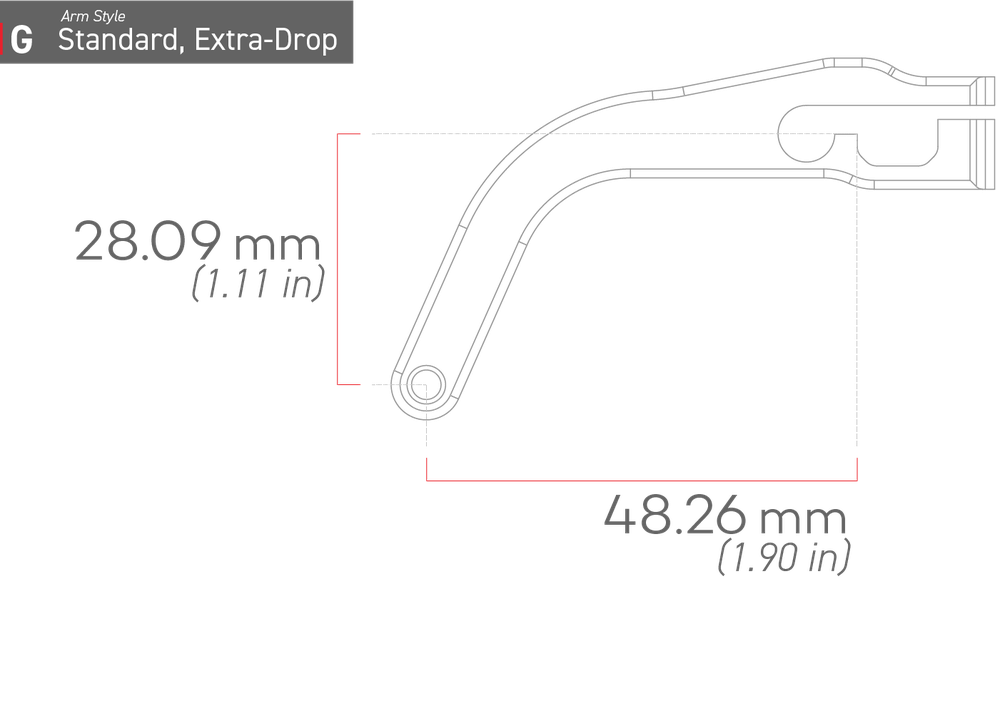

G Arm Style:
Standard, Extra-Drop

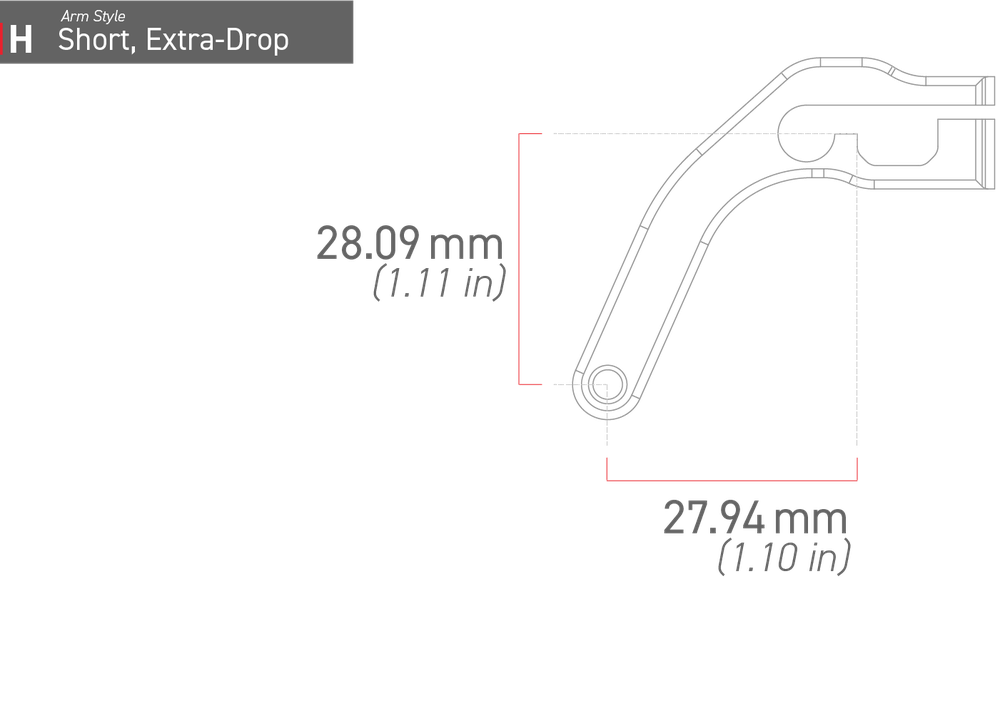

H Arm Style:
Short, Extra-Drop

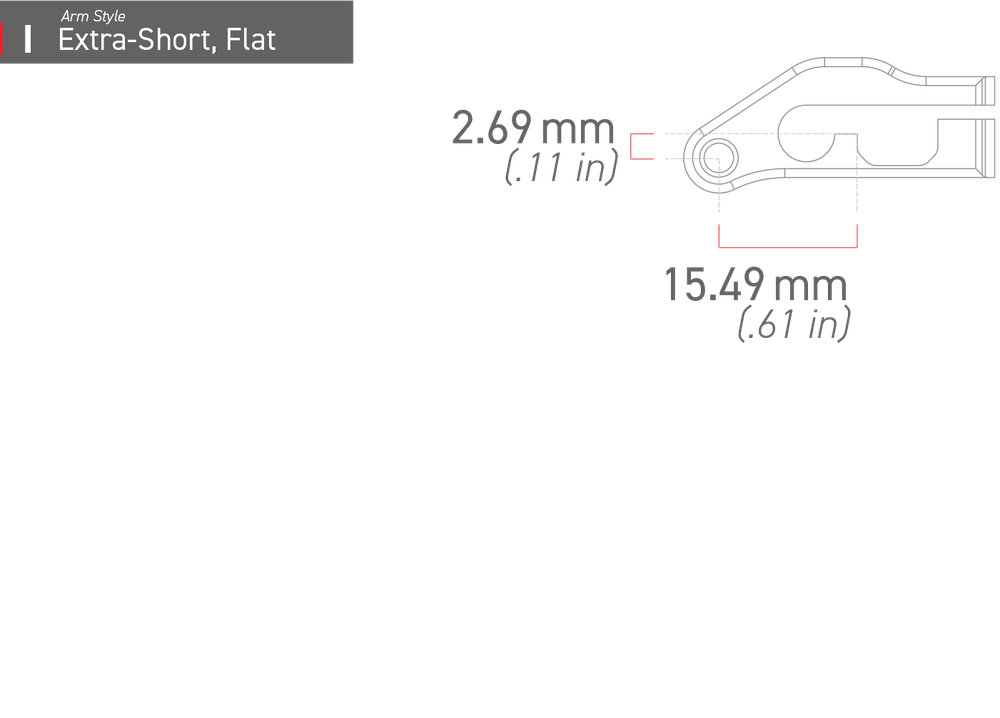

I Arm Style:
Extra-Short, Flat

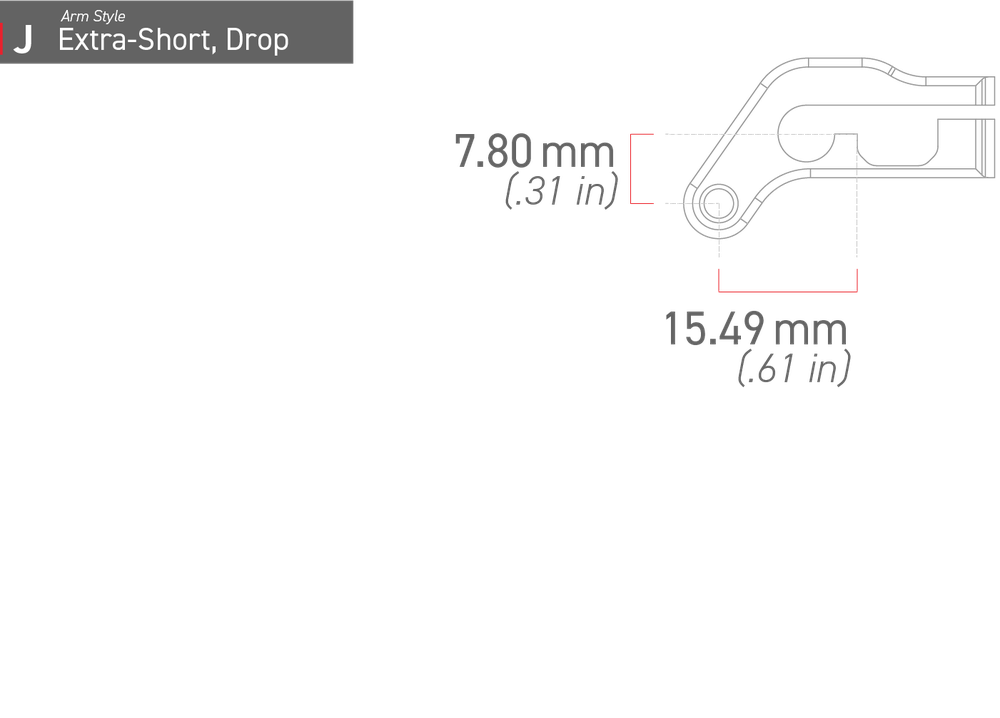

J Arm Style:
Extra-Short, Drop



















Probe Holder Pivot Buttons

01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)

02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)

03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)

04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)

06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.009 in)
Hex Size: 9.53 mm (3/8 in)

08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)

09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)
