Precision chain scanning for nozzle and fitting welds.

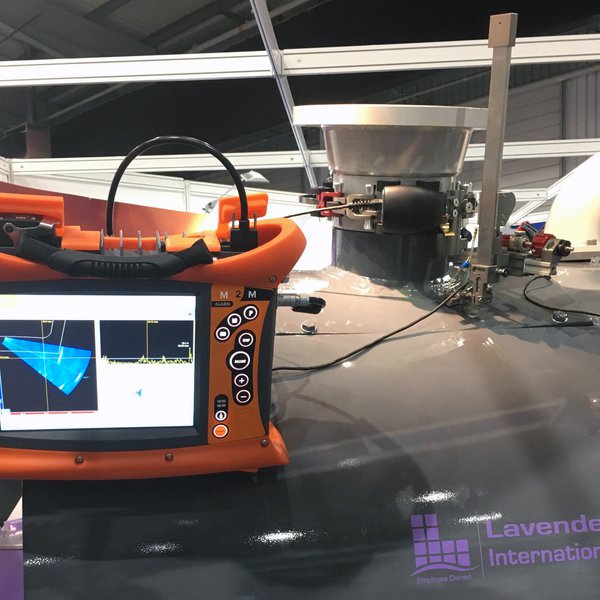

The ROTIX - 3-Axis Nozzle Scanner facilitates semi-automated inspection of nozzle welds, with available encoding of the probe skew angle. Featuring a specialized long stroke probe holder, the nozzle scanner employs a chain system for stable inspection on both ferrous and non-ferrous surfaces. The scanner is also capable of limited clearance inspection, requiring just 12.7 cm (5.0 in) between the vessel and flange.

Part ID: CEG037

Features

Adjustable Chain

Configure chain links to scan diameters of 7.6 cm - 60 cm (3 in - 24 in) with our exclusive chain design.

Slider Probe Positioning System

Make quick adjustment to the probe distance from the weld without requiring scanner removal. The included encoder ensures precise measurement along the frame bar.

Y-Axis Encoding

Measure probe distance from the weld.

ROTIX Low Profile Link

In addition to containing the scanner's positional encoder, the low profile link transmits all three encoder signals to the user's instrument. Utilize the low profile link's dovetail grooves to organize cables and tubes.

Brake



Prevent scanner movement by applying the brake.



Encoded Skew Vertical Probe Holder

An inventive probe holder offering 12.2 cm (4.8 in) of vertical travel as well as an encoded skew measurement. As the probe travels around a weld, constant probe contact with the scan surface is maintained thanks to this unique vertical probe holder. Which also features an encoded skew which measures the degrees in which the probe has been rotated horizontally.

Wheels

Urethane wheels offer smooth scanner motion while traveling around a scan object.

Cable Management

Route cables, tubes and hoses through the provided cable clips which connect to various points on the scanner, probe holder and frame bar. Cable management is also provided to the user's instrument and irrigation solution.

Warranty

Backed by a three-year warranty. Contact Jireh for more information.

Component Identification

Catch Link

The attachment link for the buckle which completes the chain system.

Short Link with Dovetail

The addition of the dovetail allows for the mounting of accessories such as the cable management.

Short Link

Connect the required amount of short links to form the chain length required for various pipe and tube diameters.

ROTIX Low Profile Link

The low profile link contains the system's positional encoder as well as cable management mounts, the brake, connection point for the frame bar and inputs for additional encoder signals. The encoder output is compatible with most industry-standard instruments.

Long Link

Roughly equivalent to 3 short links, the long link is useful during large diameter scans.

Buckle

The buckle fastens to the catch link and allows control of chain tension.

Skew Encoder

Probe skew angle is recorded using the skew encoder.

Long Stroke Probe Holder

The long stroke vertical probe holder offers immense travel over various scan surfaces.

Slider PPS

Position the probe holder closer or farther from the weld with ease.

Slider PPS Encoder

Offset position is recorded using the slider PPS encoder.

Kit Contents

Path 2 CopyPath 2 Copy

SCANNER

ROTIX low profile link with built-in encoder

PARTS & ACCESSORIES

Single wheel chain links (long, short, buckle, etc)
J400 Encoder Cable, 5 m (16.4 ft) cable length
Encoded skew vertical probe holder
30 cm (11.8 in) frame bar with ruler
Slider probe positioning system (single probe)
Cable clips x3
4 mm ID irrigation kit (7/16 in quick connect)
Cable management, dovetail mount, 5 m (16.4 ft)
ROTIX nozzle spare parts kit
User manual
Setup chart
Rugged carrying case

TOOLS

3 mm hex driver
Wrench for pivot button adjustment

Parts & Add-Ons

Specifications

Path 2 CopyPath 2 Copy

GENERAL

Pipe Range: 7.6 cm - 60 cm (3 in 24 in)
Encoder Resolution: 16.3 counts/mm (414.5 counts/inch)
Y-Axis Encoder Resolution: 161.3 counts/mm (4096.0 counts/inch)
Skew Axis Encoder Resolution: 2.84 counts/deg.
Probe Holding Capacity: 1 wedge
Encoder Cable Length: 5 m (16.4 ft)1
Inspection Surface: Non-ferrous or ferrous materials

PIPE CLEARANCE

Radial Clearance: 38 cm (15 in)2
Vertical Clearance: 12.5 (4.9 in)

SIZE & WEIGHT

Low Profile Link Height: 6.1 cm (2.4 in)
Low Profile Link Width: 8 cm (3.2 in)
Low Profile Link Length: 18.8 cm (7.4 in)
Low Profile Link Weight: 0.53 kg (1.2 lb)

Encoded Skew Vertical Probe Holder Height: 32.2 cm (12.7 in)
Encoded Skew Vertical Probe Holder Width: 11.6 cm (4.6 in)
Encoded Skew Vertical Probe Holder Length: 10.4 cm (4.1 in)
Encoded Skew Vertical Probe Holder Weight: 0.75 kg (1.7 lb)

Shipping Weight: TBA kg (TBA lb)3

ENVIRONMENTAL SPECIFICATIONS

Operating Environment: -20°C (-4°F) to 50°C (122°F)
Environmental Sealing: Dust-tight, watertight (not submersible)

ENCODED SKEW PROBE HOLDER SPECIFICATIONS

Minimum Wedge Width: 40 mm (1.5 in)
Maximum Wedge Width: 45 mm (1.7 in)

Probe Holder Pivot Buttons

01

Pivot Hole Size: 8.0 mm (0.315 in)
Wedge Type: Olympus PA
Hex Size: 9.53 mm (3/8 in)





02

Pivot Hole Size: 5.0 mm (0.197 in)
Wedge Type: Olympus TOFD, Olympus A27 DMA
Hex Size: 9.53 mm (3/8 in)



03

Pivot Hole Size: 2.7 mm (0.106 in)
Wedge Type: Sonatest DAAH PH
Hex Size: 9.53 mm (3/8 in)



04

Pivot Hole Size: 9.5 mm (0.375 in)
Hex Size: 11.1 mm (7/16 in)





06

Pivot Hole Size: 3.0 mm (0.118 in)
Hex Size: 9.53 mm (3/8 in)

07

Pivot Hole Size: 2.3 mm (0.009 in)
Hex Size: 9.53 mm (3/8 in)



08

Pivot Hole Size: Conical Head
Hex Size: 9.53 mm (3/8 in)



09

Pivot Hole Size: 5 mm (0.197 in)
Wedge Type: Internal Zetec PA/TOFD, Phoenix TOFD
Hex Size: 9.53 mm (3/8 in)

11

Pivot Hole Size: 5.6 mm (0.221 in)
Hex Size: 9.53 mm (3/8 in)

  1. Custom umbilical lengths are available.
  2. Radial clearance with standard 30 cm (11.8 in) frame bar.
  3. Approximate shipping weight of standard kit contents.
    Technical specification subject to change.
